应用程序的加载
带着问题探究学习：
代码如何写入内存中的呢？
动态库、静态库如何加载到内存中？
objc_init 是怎么来的？

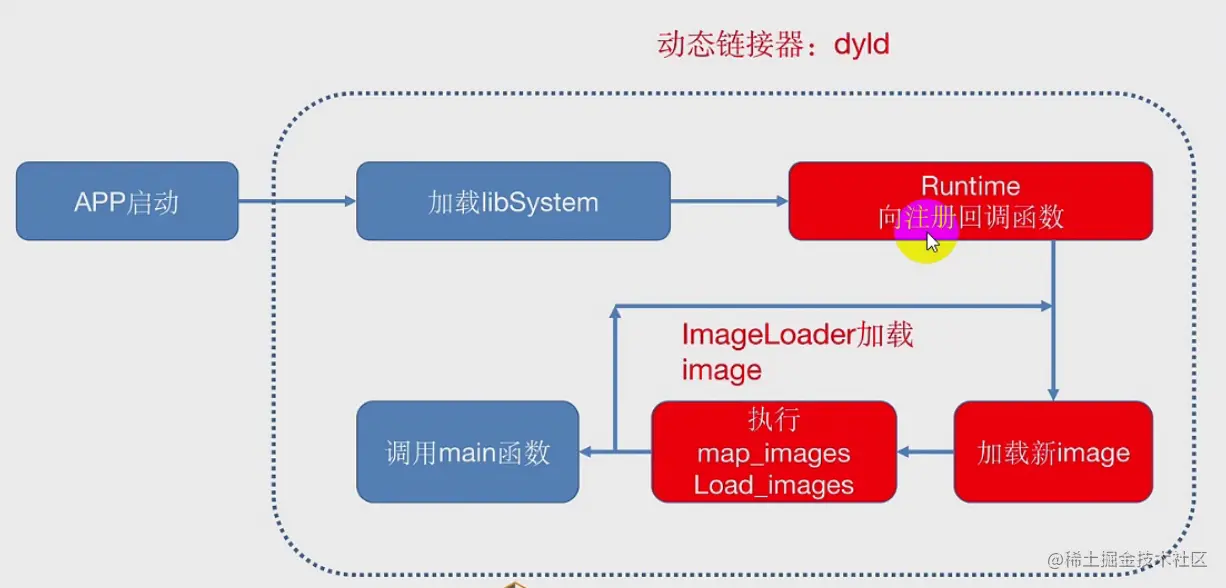

应用程序(App)的加载原理
dyld的引出
dyld就是动态链接器

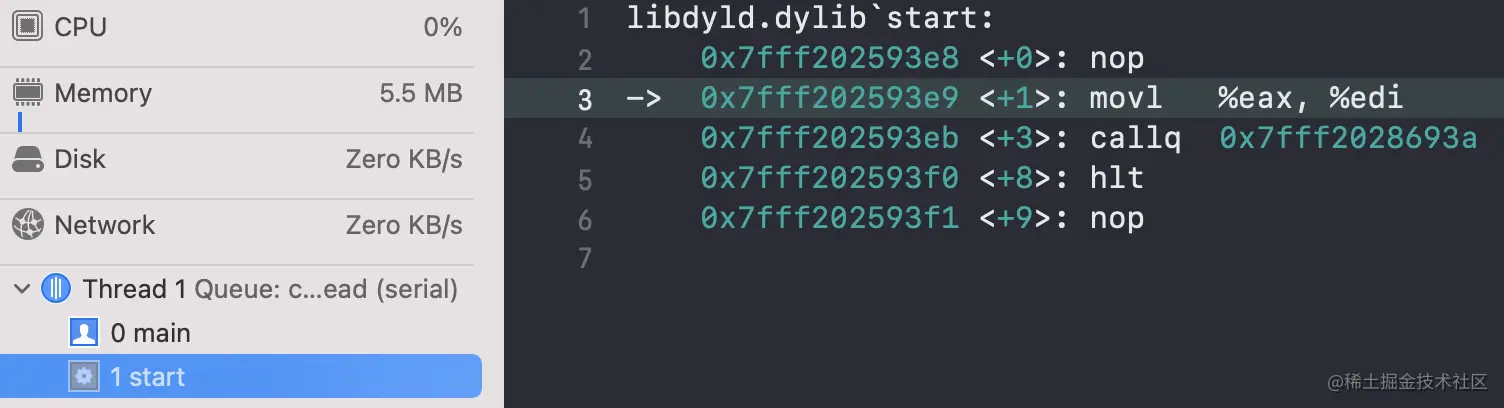

我们通过项目工程来进行分析，首先新建一个工程，在main函数之前打个断点，程序运行起来，然后查看函数调用栈的信息，如下图：
可以看到 libdyld.dylib`start:,里面有我们要找的dyld，接下来又有新的疑问，它是怎么进来这一步的呢？
老规矩，下一个start的符号断点,具体过程比较熟悉了，直接说结果，没有在start处停下来，说明了在下面的真正的调用的符号不是start。
又是老习惯，看我们的打印+[ViewController load] 这个方法执行了，load方法调用在我们的main函数之前，那么我们可以尝试一下在load方法处打一个断点，看看会发生什么情况。
在程序运行到load方法处断住了，这时候我们使用bt工具查看堆栈信息，如下所示
(lldb) bt
* thread #1, queue = 'com.apple.main-thread', stop reason = breakpoint 4.1
* frame #0: 0x00000001054f8e17 002-应用程加载分析`+[ViewController load](self=ViewController, _cmd="load") at ViewController.m:17:5
frame #1: 0x00007fff201804e3 libobjc.A.dylib`load_images + 1442
frame #2: 0x000000010550ce54 dyld_sim`dyld::notifySingle(dyld_image_states, ImageLoader const*, ImageLoader::InitializerTimingList*) + 425
frame #3: 0x000000010551b887 dyld_sim`ImageLoader::recursiveInitialization(ImageLoader::LinkContext const&, unsigned int, char const*, ImageLoader::InitializerTimingList&, ImageLoader::UninitedUpwards&) + 437
frame #4: 0x0000000105519bb0 dyld_sim`ImageLoader::processInitializers(ImageLoader::LinkContext const&, unsigned int, ImageLoader::InitializerTimingList&, ImageLoader::UninitedUpwards&) + 188
frame #5: 0x0000000105519c50 dyld_sim`ImageLoader::runInitializers(ImageLoader::LinkContext const&, ImageLoader::InitializerTimingList&) + 82
frame #6: 0x000000010550d2a9 dyld_sim`dyld::initializeMainExecutable() + 199
frame #7: 0x0000000105511d50 dyld_sim`dyld::_main(macho_header const*, unsigned long, int, char const**, char const**, char const**, unsigned long*) + 4431
frame #8: 0x000000010550c1c7 dyld_sim`start_sim + 122
frame #9: 0x0000000111933a88 dyld`dyld::useSimulatorDyld(int, macho_header const*, char const*, int, char const**, char const**, char const**, unsigned long*, unsigned long*) + 2093
frame #10: 0x0000000111931162 dyld`dyld::_main(macho_header const*, unsigned long, int, char const**, char const**, char const**, unsigned long*) + 1198
frame #11: 0x000000011192b224 dyld`dyldbootstrap::start(dyld3::MachOLoaded const*, int, char const**, dyld3::MachOLoaded const*, unsigned long*) + 450
frame #12: 0x000000011192b025 dyld`_dyld_start + 37
对上面的打印信息进行分析，由于是栈结构，是先进后出的方式，所以 frame #12: 0x000000011192b025 dyld`_dyld_start + 37是最开始的地方。
从这里我们也可以看到一些函数的调用流程：
dyld`_dyld_start --> dyld`dyldbootstrap::start -->
dyld`dyld::_main --> dyld`dyld::useSimulatorDyld -->
dyld_sim`start_sim --> dyld_sim`dyld::_main -->
dyld_sim`dyld::initializeMainExecutable() -->
dyld_sim`ImageLoader::runInitializers -->
dyld_sim`ImageLoader::processInitializers -->
dyld_sim`ImageLoader::recursiveInitialization -->
dyld_sim`dyld::notifySingle
那么我们知道了接下来要探索的就是dyld`_dyld_start，那么又该如何探索呢？
到苹果的开源网站上下载dyld的源码，目前最新版本是8.5.2，dyld下载地址。
dyld流程
打开dyld的工程(直接下载下来的dyld由于关联很多库，所以是不能运行的，需要经过处理)，搜索_dyld_start，如下图：
图上的红框都是dyld的汇编，架构不同，但是主体流程是相似的，我们选择熟悉的arm架构。
#if __arm__
.text
.align 2
__dyld_start:
mov r8, sp // save stack pointer
sub sp, #16 // make room for outgoing parameters
bic sp, sp, #15 // force 16-byte alignment
// call dyldbootstrap::start(app_mh, argc, argv, dyld_mh, &startGlue)
ldr r0, [r8] // r0 = mach_header
ldr r1, [r8, #4] // r1 = argc
add r2, r8, #8 // r2 = argv
adr r3, __dyld_start
sub r3 ,r3, #0x1000 // r3 = dyld_mh
add r4, sp, #12
str r4, [sp, #0] // [sp] = &startGlue
bl __ZN13dyldbootstrap5startEPKN5dyld311MachOLoadedEiPPKcS3_Pm
ldr r5, [sp, #12]
cmp r5, #0
bne Lnew
// traditional case, clean up stack and jump to result
add sp, r8, #4 // remove the mach_header argument.
bx r0 // jump to the program's entry point
// LC_MAIN case, set up stack for call to main()
Lnew: mov lr, r5 // simulate return address into _start in libdyld
mov r5, r0 // save address of main() for later use
ldr r0, [r8, #4] // main param1 = argc
add r1, r8, #8 // main param2 = argv
add r2, r1, r0, lsl #2
add r2, r2, #4 // main param3 = &env[0]
mov r3, r2
Lapple: ldr r4, [r3]
add r3, #4
cmp r4, #0
bne Lapple // main param4 = apple
bx r5
#endif /* __arm__ */
// call dyldbootstrap::start(app_mh, argc, argv, dyld_mh, &startGlue) 从这句注释可以看到start的调用，而看语法得知这是c++ 的函数，如何去找c++的函数呢？直接搜dyldbootstrap::start是搜不到的，需要找到相应的命名空间dyldbootstrap。
dyldbootstrap命名空间的定义(位于dyldInitialization.cpp文件中)
namespace dyldbootstrap {
...
//
// This is code to bootstrap dyld. This work in normally done for a program by dyld and crt.
// In dyld we have to do this manually.
//
uintptr_t start(const dyld3::MachOLoaded* appsMachHeader, int argc, const char* argv[],
const dyld3::MachOLoaded* dyldsMachHeader, uintptr_t* startGlue)
{
// Emit kdebug tracepoint to indicate dyld bootstrap has started <rdar://46878536>
dyld3::kdebug_trace_dyld_marker(DBG_DYLD_TIMING_BOOTSTRAP_START, 0, 0, 0, 0);
// if kernel had to slide dyld, we need to fix up load sensitive locations
// we have to do this before using any global variables
rebaseDyld(dyldsMachHeader);
// kernel sets up env pointer to be just past end of agv array
const char** envp = &argv[argc+1];
// kernel sets up apple pointer to be just past end of envp array
const char** apple = envp;
while(*apple != NULL) { ++apple; }
++apple;
// set up random value for stack canary
__guard_setup(apple);
#if DYLD_INITIALIZER_SUPPORT
// run all C++ initializers inside dyld
runDyldInitializers(argc, argv, envp, apple);
#endif
_subsystem_init(apple);
// now that we are done bootstrapping dyld, call dyld's main
uintptr_t appsSlide = appsMachHeader->getSlide();
//main函数
return dyld::_main((macho_header*)appsMachHeader, appsSlide, argc, argv, envp, apple, startGlue);
}
...
} // end of namespace
找到上面代码中我们熟悉且关注的main函数，接下来进入main函数：

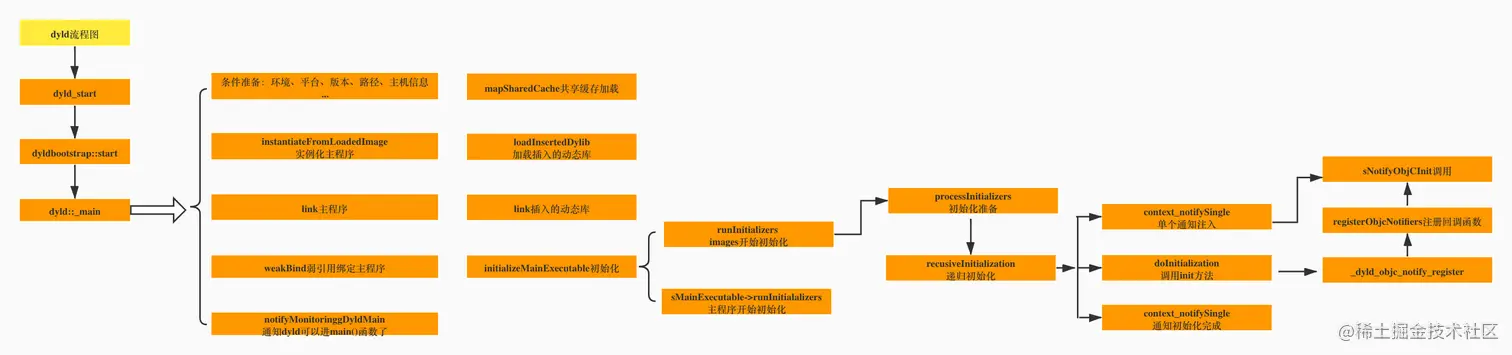

main函数执行流程
可以看到main函数差不多1000行代码左右，我们找出其中关键的代码：
...
getHostInfo(mainExecutableMH, mainExecutableSlide);
...
// load shared cache
checkSharedRegionDisable((dyld3::MachOLoaded*)mainExecutableMH, mainExecutableSlide);
...
// run all initializers
initializeMainExecutable();
...
return result
initializeMainExecutable
void initializeMainExecutable()
{
// record that we've reached this step
gLinkContext.startedInitializingMainExecutable = true;
// run initialzers for any inserted dylibs
ImageLoader::InitializerTimingList initializerTimes[allImagesCount()];
initializerTimes[0].count = 0;
const size_t rootCount = sImageRoots.size();
if ( rootCount > 1 ) {
for(size_t i=1; i < rootCount; ++i) {
sImageRoots[i]->runInitializers(gLinkContext, initializerTimes[0]);
}
}
// run initializers for main executable and everything it brings up
sMainExecutable->runInitializers(gLinkContext, initializerTimes[0]);
// register cxa_atexit() handler to run static terminators in all loaded images when this process exits
if ( gLibSystemHelpers != NULL )
(*gLibSystemHelpers->cxa_atexit)(&runAllStaticTerminators, NULL, NULL);
// dump info if requested
if ( sEnv.DYLD_PRINT_STATISTICS )
ImageLoader::printStatistics((unsigned int)allImagesCount(), initializerTimes[0]);
if ( sEnv.DYLD_PRINT_STATISTICS_DETAILS )
ImageLoaderMachO::printStatisticsDetails((unsigned int)allImagesCount(), initializerTimes[0]);
}
runInitializers
void ImageLoader::runInitializers(const LinkContext& context, InitializerTimingList& timingInfo)
{
uint64_t t1 = mach_absolute_time();
mach_port_t thisThread = mach_thread_self();
ImageLoader::UninitedUpwards up;
up.count = 1;
up.imagesAndPaths[0] = { this, this->getPath() };
//关键代码是下面两行
processInitializers(context, thisThread, timingInfo, up);
context.notifyBatch(dyld_image_state_initialized, false);
mach_port_deallocate(mach_task_self(), thisThread);
uint64_t t2 = mach_absolute_time();
fgTotalInitTime += (t2 - t1);
}
processInitializers
void ImageLoader::processInitializers(const LinkContext& context, mach_port_t thisThread,
InitializerTimingList& timingInfo, ImageLoader::UninitedUpwards& images)
{
uint32_t maxImageCount = context.imageCount()+2;
ImageLoader::UninitedUpwards upsBuffer[maxImageCount];
ImageLoader::UninitedUpwards& ups = upsBuffer[0];
ups.count = 0;
// Calling recursive init on all images in images list, building a new list of
// uninitialized upward dependencies.
for (uintptr_t i=0; i < images.count; ++i) {
images.imagesAndPaths[i].first->recursiveInitialization(context, thisThread, images.imagesAndPaths[i].second, timingInfo, ups);
}
// If any upward dependencies remain, init them.
if ( ups.count > 0 )
processInitializers(context, thisThread, timingInfo, ups);
}
recursiveInitialization
void ImageLoader::recursiveInitialization(const LinkContext& context, mach_port_t this_thread, const char* pathToInitialize,
InitializerTimingList& timingInfo, UninitedUpwards& uninitUps)
{
recursive_lock lock_info(this_thread);
recursiveSpinLock(lock_info);
if ( fState < dyld_image_state_dependents_initialized-1 ) {
uint8_t oldState = fState;
// break cycles
fState = dyld_image_state_dependents_initialized-1;
try {
// initialize lower level libraries first
for(unsigned int i=0; i < libraryCount(); ++i) {
ImageLoader* dependentImage = libImage(i);
if ( dependentImage != NULL ) {
// don't try to initialize stuff "above" me yet
if ( libIsUpward(i) ) {
uninitUps.imagesAndPaths[uninitUps.count] = { dependentImage, libPath(i) };
uninitUps.count++;
}
else if ( dependentImage->fDepth >= fDepth ) {
dependentImage->recursiveInitialization(context, this_thread, libPath(i), timingInfo, uninitUps);
}
}
}
// record termination order
if ( this->needsTermination() )
context.terminationRecorder(this);
// let objc know we are about to initialize this image
uint64_t t1 = mach_absolute_time();
fState = dyld_image_state_dependents_initialized;
oldState = fState;
//核心代码区域
context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);
// initialize this image
bool hasInitializers = this->doInitialization(context);
// let anyone know we finished initializing this image
fState = dyld_image_state_initialized;
oldState = fState;
context.notifySingle(dyld_image_state_initialized, this, NULL);
if ( hasInitializers ) {
uint64_t t2 = mach_absolute_time();
timingInfo.addTime(this->getShortName(), t2-t1);
}
}
catch (const char* msg) {
// this image is not initialized
fState = oldState;
recursiveSpinUnLock();
throw;
}
}
recursiveSpinUnLock();
}
notifySingle
要找到notifySingle赋值的地方， 全局搜索notifySingle
gLinkContext.notifySingle = ¬ifySingle;
static void notifySingle(dyld_image_states state, const ImageLoader* image, ImageLoader::InitializerTimingList* timingInfo)
{
//dyld::log("notifySingle(state=%d, image=%s)\n", state, image->getPath());
std::vector<dyld_image_state_change_handler>* handlers = stateToHandlers(state, sSingleHandlers);
if ( handlers != NULL ) {
dyld_image_info info;
info.imageLoadAddress = image->machHeader();
info.imageFilePath = image->getRealPath();
info.imageFileModDate = image->lastModified();
for (std::vector<dyld_image_state_change_handler>::iterator it = handlers->begin(); it != handlers->end(); ++it) {
const char* result = (*it)(state, 1, &info);
if ( (result != NULL) && (state == dyld_image_state_mapped) ) {
//fprintf(stderr, " image rejected by handler=%p\n", *it);
// make copy of thrown string so that later catch clauses can free it
const char* str = strdup(result);
throw str;
}
}
}
if ( state == dyld_image_state_mapped ) {
// <rdar://problem/7008875> Save load addr + UUID for images from outside the shared cache
// <rdar://problem/50432671> Include UUIDs for shared cache dylibs in all image info when using private mapped shared caches
if (!image->inSharedCache()
|| (gLinkContext.sharedRegionMode == ImageLoader::kUsePrivateSharedRegion)) {
dyld_uuid_info info;
if ( image->getUUID(info.imageUUID) ) {
info.imageLoadAddress = image->machHeader();
addNonSharedCacheImageUUID(info);
}
}
}
if ( (state == dyld_image_state_dependents_initialized) && (sNotifyObjCInit != NULL) && image->notifyObjC() ) {
uint64_t t0 = mach_absolute_time();
dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
//关键代码
(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
uint64_t t1 = mach_absolute_time();
uint64_t t2 = mach_absolute_time();
uint64_t timeInObjC = t1-t0;
uint64_t emptyTime = (t2-t1)*100;
if ( (timeInObjC > emptyTime) && (timingInfo != NULL) ) {
timingInfo->addTime(image->getShortName(), timeInObjC);
}
}
// mach message csdlc about dynamically unloaded images
if ( image->addFuncNotified() && (state == dyld_image_state_terminated) ) {
notifyKernel(*image, false);
const struct mach_header* loadAddress[] = { image->machHeader() };
const char* loadPath[] = { image->getPath() };
notifyMonitoringDyld(true, 1, loadAddress, loadPath);
}
}
sNotifyObjCInit
// _dyld_objc_notify_init
void registerObjCNotifiers(_dyld_objc_notify_mapped mapped, _dyld_objc_notify_init init, _dyld_objc_notify_unmapped unmapped)
{
// record functions to call
sNotifyObjCMapped = mapped;
//关键位置sNotifyObjCInit
sNotifyObjCInit = init;
sNotifyObjCUnmapped = unmapped;
// call 'mapped' function with all images mapped so far
try {
notifyBatchPartial(dyld_image_state_bound, true, NULL, false, true);
}
catch (const char* msg) {
// ignore request to abort during registration
}
// <rdar://problem/32209809> call 'init' function on all images already init'ed (below libSystem)
for (std::vector<ImageLoader*>::iterator it=sAllImages.begin(); it != sAllImages.end(); it++) {
ImageLoader* image = *it;
if ( (image->getState() == dyld_image_state_initialized) && image->notifyObjC() ) {
dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
}
}
}
registerObjCNotifiers
// _dyld_objc_notify_register
void _dyld_objc_notify_register(_dyld_objc_notify_mapped mapped,
_dyld_objc_notify_init init,
_dyld_objc_notify_unmapped unmapped)
{
//registerObjCNotifiers
dyld::registerObjCNotifiers(mapped, init, unmapped);
}
上面我们看到了熟悉的名字_dyld_objc_notify_register,它还出现在_objc_init里面，那么我们回到 _objc_init中查看：
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
environ_init();
tls_init();
static_init();
runtime_init();
exception_init();
#if __OBJC2__
cache_t::init();
#endif
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
接下来思考，dyld 是如何关联到 objc_init 中来的?
在objc_init处下断点，查看堆栈信息：
(lldb) bt
* thread #1, queue = 'com.apple.main-thread', stop reason = breakpoint 1.1
* frame #0: 0x00000001002e840a libobjc.A.dylib`_objc_init at objc-os.mm:925:9 [opt]
frame #1: 0x00000001003bb88f libdispatch.dylib`_os_object_init + 13
frame #2: 0x00000001003cca03 libdispatch.dylib`libdispatch_init + 285
frame #3: 0x00007fff2a6265ff libSystem.B.dylib`libSystem_initializer + 238
frame #4: 0x00000001000316c7 dyld`ImageLoaderMachO::doModInitFunctions(ImageLoader::LinkContext const&) + 535
frame #5: 0x0000000100031ad2 dyld`ImageLoaderMachO::doInitialization(ImageLoader::LinkContext const&) + 40
frame #6: 0x000000010002c4b6 dyld`ImageLoader::recursiveInitialization(ImageLoader::LinkContext const&, unsigned int, char const*, ImageLoader::InitializerTimingList&, ImageLoader::UninitedUpwards&) + 492
frame #7: 0x000000010002c421 dyld`ImageLoader::recursiveInitialization(ImageLoader::LinkContext const&, unsigned int, char const*, ImageLoader::InitializerTimingList&, ImageLoader::UninitedUpwards&) + 343
frame #8: 0x000000010002a26f dyld`ImageLoader::processInitializers(ImageLoader::LinkContext const&, unsigned int, ImageLoader::InitializerTimingList&, ImageLoader::UninitedUpwards&) + 191
frame #9: 0x000000010002a310 dyld`ImageLoader::runInitializers(ImageLoader::LinkContext const&, ImageLoader::InitializerTimingList&) + 82
frame #10: 0x000000010001686b dyld`dyld::initializeMainExecutable() + 129
frame #11: 0x000000010001ceb2 dyld`dyld::_main(macho_header const*, unsigned long, int, char const**, char const**, char const**, unsigned long*) + 8702
frame #12: 0x0000000100015224 dyld`dyldbootstrap::start(dyld3::MachOLoaded const*, int, char const**, dyld3::MachOLoaded const*, unsigned long*) + 450
frame #13: 0x0000000100015025 dyld`_dyld_start + 37

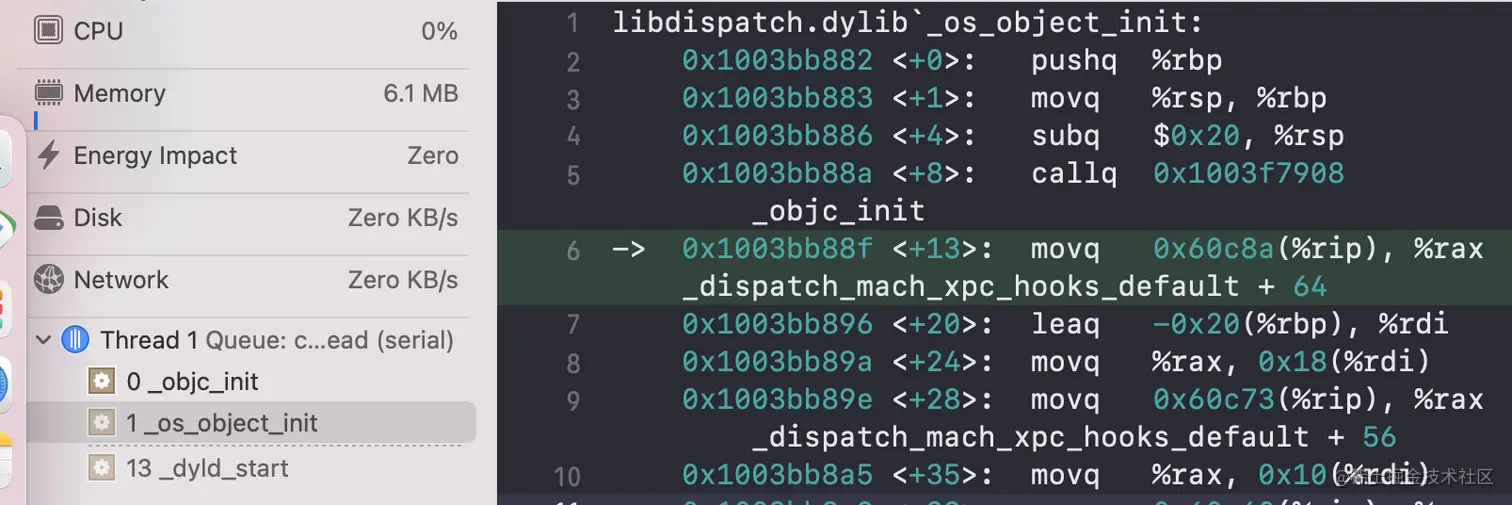

可以看到 libdispatch.dylib`_os_object_init: ,也就是说要看libdispatch.dylib，下载该源码 libdispatch-1271.120.2下载地址。
全局搜索_os_object_init
void _os_object_init(void)
{
_objc_init();
Block_callbacks_RR callbacks = {
sizeof(Block_callbacks_RR),
(void (*)(const void *))&objc_retain,
(void (*)(const void *))&objc_release,
(void (*)(const void *))&_os_objc_destructInstance
};
_Block_use_RR2(&callbacks);
#if DISPATCH_COCOA_COMPAT
const char *v = getenv("OBJC_DEBUG_MISSING_POOLS");
if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
v = getenv("DISPATCH_DEBUG_MISSING_POOLS");
if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
v = getenv("LIBDISPATCH_DEBUG_MISSING_POOLS");
if (v) _os_object_debug_missing_pools = _dispatch_parse_bool(v);
#endif
}
在搜索_objc_init,找到：
extern void _objc_init(void);
再搜索libdispatch_init,找到：
void
libdispatch_init(void)
{
...
_dispatch_hw_config_init();
_dispatch_time_init();
_dispatch_vtable_init();
_os_object_init();
_voucher_init();
_dispatch_introspection_init();
}
从函数调用栈可以知道 libdispatch_init 被 libSystem_initializer 调用， 下载 Libsystem，继续探索：
// libsyscall_initializer() initializes all of libSystem.dylib
// <rdar://problem/4892197>
__attribute__((constructor))
static void
libSystem_initializer(int argc,
const char* argv[],
const char* envp[],
const char* apple[],
const struct ProgramVars* vars)
{
...
libdispatch_init();
...
}
从代码中可以证实，libSystem_initializer 确实调用了 libdispatch_init。
继续看函数调用栈，可以看到来自于 dyld`ImageLoaderMachO::doModInitFunctions
接下来继续看dyld，搜索 doModInitFunctions
void ImageLoaderMachO::doModInitFunctions(const LinkContext& context)
{}
搜索 doInitialization
bool ImageLoaderMachO::doInitialization(const LinkContext& context)
{
CRSetCrashLogMessage2(this->getPath());
// mach-o has -init and static initializers
doImageInit(context);
doModInitFunctions(context);
CRSetCrashLogMessage2(NULL);
return (fHasDashInit || fHasInitializers);
}
还看到:
void ImageLoader::recursiveInitialization(const LinkContext& context, mach_port_t this_thread, const char* pathToInitialize,
InitializerTimingList& timingInfo, UninitedUpwards& uninitUps)
{
recursive_lock lock_info(this_thread);
recursiveSpinLock(lock_info);
if ( fState < dyld_image_state_dependents_initialized-1 ) {
uint8_t oldState = fState;
// break cycles
fState = dyld_image_state_dependents_initialized-1;
try {
// initialize lower level libraries first
for(unsigned int i=0; i < libraryCount(); ++i) {
ImageLoader* dependentImage = libImage(i);
if ( dependentImage != NULL ) {
// don't try to initialize stuff "above" me yet
if ( libIsUpward(i) ) {
uninitUps.imagesAndPaths[uninitUps.count] = { dependentImage, libPath(i) };
uninitUps.count++;
}
else if ( dependentImage->fDepth >= fDepth ) {
dependentImage->recursiveInitialization(context, this_thread, libPath(i), timingInfo, uninitUps);
}
}
}
// record termination order
if ( this->needsTermination() )
context.terminationRecorder(this);
// let objc know we are about to initialize this image
uint64_t t1 = mach_absolute_time();
fState = dyld_image_state_dependents_initialized;
oldState = fState;
context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);
// initialize this image
bool hasInitializers = this->doInitialization(context);
// let anyone know we finished initializing this image
fState = dyld_image_state_initialized;
oldState = fState;
context.notifySingle(dyld_image_state_initialized, this, NULL);
if ( hasInitializers ) {
uint64_t t2 = mach_absolute_time();
timingInfo.addTime(this->getShortName(), t2-t1);
}
}
catch (const char* msg) {
// this image is not initialized
fState = oldState;
recursiveSpinUnLock();
throw;
}
}
recursiveSpinUnLock();
}
总结dyld 加载流程图如下：
