动态库和静态库
- 静态库:链接时会被完整的复制到可执行文件中，多次使用就会有多份冗余拷贝，oc通常为.a和.framework文件。
- 动态库: 链接时不复制，程序运行时由系统动态加载到内存，供程序调用，系统只加载一次，多个程序共用，oc通常为.dylib和.framework文件。
应用加载流程引入
@interface LKPerson : NSObject
@end
@implementation LKPerson
+ (void)load
{
NSLog(@"load");
}
@end
int main(int argc, const char * argv[]) {
@autoreleasepool {
}
return 0;
}

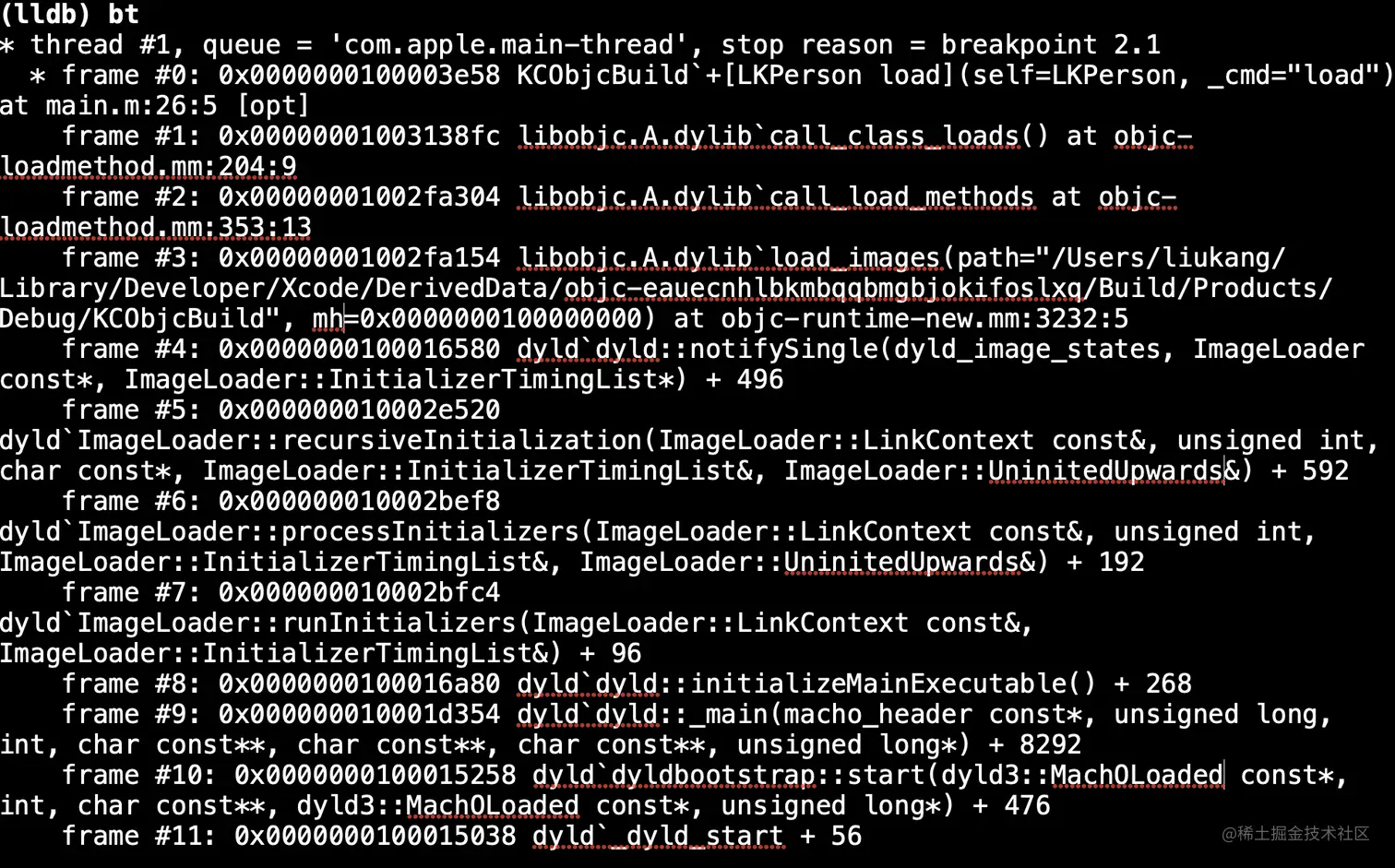

在load函数处打下断点，bt查看堆栈信息
可以看到
load函数调用之前的流程
- dyld`_dyld_start ->
- dyld`dyldbootstrap::start ->
- dyld`dyld::_main ->
- dyld`dyld::initializeMainExecutable() ->
- dyld`ImageLoader::runInitializers ->
- dyld`ImageLoader::processInitializers
- dyld`ImageLoader::recursiveInitialization ->
- dyld`dyld::notifySingle ->
- libobjc.A.dylib
load_images 可以看到，整个应用加载的流程是从_dyld_start`开始
dyld:动态链接器 历程
WWDC2017:App Startup Time: Past, Present, and Future
引用自 BBLV-应用程序加载（上）
dyld 1.0(1996-2004)包含在NeXTStep3.3中
作用并不是特别大，其历史早于标准化POSIX diopen调用
他是在大多数使用C++动态库的系统之前编写的
在macOS Cheetah（10.0）添加了与绑定功能（P retending）dyld 2.0(2004-2007)
包含在macOS Tiger 中
dyld2是完全重写的
正确支持C++初始化器的语义
具有完整的dlopen和dlsym实现
dyld2的设计目标是提高速度，因此进行了有限的健全性检查
安全性增强
由于素的的大幅提升，因此可以减少了预绑定的工作量
不同于dyld1编辑你的程序数据，此次只编辑系统库，并且仅在软件更新的时候更新预绑定。dyld 2.x(2007-2017)
增加了大量基础结构和平台（x86、x86_64、arm、arm64）
通过多种途径增强安全性
增加代码签名和ASLR（地址空间的随机加载）
增强了性能（消除了预绑定，转而使用了共享缓存 ）dyld 3（2017-至今）
dyld3是全新的动态连接器
2017以后的apple所有的系统都将使用dyld3
为了性能，尽可能的更快的提高启动速度
在设计上提升了安全性
可测试性与可靠性
dyld加载流程
相关源码libdispatch，Libsystem，objc4，dyld可以在opensource.apple.com/tarballs/ 上下载
打开dyld-852源码，全局搜索_dyld_start
#if __arm64__ && !TARGET_OS_SIMULATOR
.text
.align 2
.globl __dyld_start
__dyld_start:
mov x28, sp
and sp, x28, #~15 // force 16-byte alignment of stack
mov x0, #0
mov x1, #0
stp x1, x0, [sp, #-16]! // make aligned terminating frame
mov fp, sp // set up fp to point to terminating frame
sub sp, sp, #16 // make room for local variables
#if __LP64__
ldr x0, [x28] // get app's mh into x0
ldr x1, [x28, #8] // get argc into x1 (kernel passes 32-bit int argc as 64-bits on stack to keep alignment)
add x2, x28, #16 // get argv into x2
#else
ldr w0, [x28] // get app's mh into x0
ldr w1, [x28, #4] // get argc into x1 (kernel passes 32-bit int argc as 64-bits on stack to keep alignment)
add w2, w28, #8 // get argv into x2
#endif
adrp x3,___dso_handle@page
add x3,x3,___dso_handle@pageoff // get dyld's mh in to x4
mov x4,sp // x5 has &startGlue
// call dyldbootstrap::start(app_mh, argc, argv, dyld_mh, &startGlue)
bl __ZN13dyldbootstrap5startEPKN5dyld311MachOLoadedEiPPKcS3_Pm
mov x16,x0 // save entry point address in x16
#if __LP64__
ldr x1, [sp]
#else
ldr w1, [sp]
#endif
cmp x1, #0
b.ne Lnew
// LC_UNIXTHREAD way, clean up stack and jump to result
#if __LP64__
add sp, x28, #8 // restore unaligned stack pointer without app mh
#else
add sp, x28, #4 // restore unaligned stack pointer without app mh
#endif
#if __arm64e__
braaz x16 // jump to the program's entry point
#else
br x16 // jump to the program's entry point
#endif
// LC_MAIN case, set up stack for call to main()
Lnew: mov lr, x1 // simulate return address into _start in libdyld.dylib
#if __LP64__
ldr x0, [x28, #8] // main param1 = argc
add x1, x28, #16 // main param2 = argv
add x2, x1, x0, lsl #3
add x2, x2, #8 // main param3 = &env[0]
mov x3, x2
Lapple: ldr x4, [x3]
add x3, x3, #8
#else
ldr w0, [x28, #4] // main param1 = argc
add x1, x28, #8 // main param2 = argv
add x2, x1, x0, lsl #2
add x2, x2, #4 // main param3 = &env[0]
mov x3, x2
Lapple: ldr w4, [x3]
add x3, x3, #4
#endif
cmp x4, #0
b.ne Lapple // main param4 = apple
#if __arm64e__
braaz x16
#else
br x16
#endif
#endif // __arm64__ && !TARGET_OS_SIMULATOR
根据注释// call dyldbootstrap::start(app_mh, argc, argv, dyld_mh, &startGlue)定位到dyldbootstrap::start。搜索dyldbootstrap，找到start函数
uintptr_t start(const dyld3::MachOLoaded* appsMachHeader, int argc, const char* argv[],
const dyld3::MachOLoaded* dyldsMachHeader, uintptr_t* startGlue)
{
// Emit kdebug tracepoint to indicate dyld bootstrap has started <rdar://46878536>
dyld3::kdebug_trace_dyld_marker(DBG_DYLD_TIMING_BOOTSTRAP_START, 0, 0, 0, 0);
// if kernel had to slide dyld, we need to fix up load sensitive locations
// we have to do this before using any global variables
rebaseDyld(dyldsMachHeader);
// kernel sets up env pointer to be just past end of agv array
const char** envp = &argv[argc+1];
// kernel sets up apple pointer to be just past end of envp array
const char** apple = envp;
while(*apple != NULL) { ++apple; }
++apple;
// set up random value for stack canary
__guard_setup(apple);
#if DYLD_INITIALIZER_SUPPORT
// run all C++ initializers inside dyld
runDyldInitializers(argc, argv, envp, apple);
#endif
_subsystem_init(apple);
// now that we are done bootstrapping dyld, call dyld's main
uintptr_t appsSlide = appsMachHeader->getSlide();
return dyld::_main((macho_header*)appsMachHeader, appsSlide, argc, argv, envp, apple, startGlue);
}
最终返回值调用dyld::_main函数
dyld::_main函数
main函数过长，代码略
//获取架构信息
getHostInfo(mainExecutableMH, mainExecutableSlide);
//实例化主程序
sMainExecutable = instantiateFromLoadedImage(mainExecutableMH, mainExecutableSlide, sExecPath);
//加载插入动态库
loadInsertedDylib(*lib);
//link主程序
link(sMainExecutable, sEnv.DYLD_BIND_AT_LAUNCH, true, ImageLoader::RPathChain(NULL, NULL), -1);
//link插入的动态库
link(image, sEnv.DYLD_BIND_AT_LAUNCH, true, ImageLoader::RPathChain(NULL, NULL), -1);
//弱引用绑定主程序
sMainExecutable->weakBind(gLinkContext);
//初始化
initializeMainExecutable();
// notify any montoring proccesses that this process is about to enter main()
notifyMonitoringDyldMain();
initializeMainExecutable流程
void initializeMainExecutable()
{
// record that we've reached this step
gLinkContext.startedInitializingMainExecutable = true;
// run initialzers for any inserted dylibs
ImageLoader::InitializerTimingList initializerTimes[allImagesCount()];
initializerTimes[0].count = 0;
const size_t rootCount = sImageRoots.size();
if ( rootCount > 1 ) {
for(size_t i=1; i < rootCount; ++i) {
sImageRoots[i]->runInitializers(gLinkContext, initializerTimes[0]);
}
}
// run initializers for main executable and everything it brings up
sMainExecutable->runInitializers(gLinkContext, initializerTimes[0]);
// register cxa_atexit() handler to run static terminators in all loaded images when this process exits
if ( gLibSystemHelpers != NULL )
(*gLibSystemHelpers->cxa_atexit)(&runAllStaticTerminators, NULL, NULL);
// dump info if requested
if ( sEnv.DYLD_PRINT_STATISTICS )
ImageLoader::printStatistics((unsigned int)allImagesCount(), initializerTimes[0]);
if ( sEnv.DYLD_PRINT_STATISTICS_DETAILS )
ImageLoaderMachO::printStatisticsDetails((unsigned int)allImagesCount(), initializerTimes[0]);
}
根据sMainExecutable->runInitializers(gLinkContext, initializerTimes[0]);，得到runInitializers函数
void ImageLoader::runInitializers(const LinkContext& context, InitializerTimingList& timingInfo)
{
uint64_t t1 = mach_absolute_time();
mach_port_t thisThread = mach_thread_self();
ImageLoader::UninitedUpwards up;
up.count = 1;
up.imagesAndPaths[0] = { this, this->getPath() };
processInitializers(context, thisThread, timingInfo, up);
context.notifyBatch(dyld_image_state_initialized, false);
mach_port_deallocate(mach_task_self(), thisThread);
uint64_t t2 = mach_absolute_time();
fgTotalInitTime += (t2 - t1);
}
查看runInitializers，找到processInitializers函数
void ImageLoader::processInitializers(const LinkContext& context, mach_port_t thisThread,
InitializerTimingList& timingInfo, ImageLoader::UninitedUpwards& images)
{
//递归所有镜像列表中的所有`image`，如果有没有初始化就去初始化
for (uintptr_t i=0; i < images.count; ++i) {
images.imagesAndPaths[i].first->recursiveInitialization(context, thisThread, images.imagesAndPaths[i].second, timingInfo, ups);
}
//其它代码省略
}
全局搜索recursiveInitialization，找打对应函数
void ImageLoader::recursiveInitialization(const LinkContext& context, mach_port_t this_thread, const char* pathToInitialize,
InitializerTimingList& timingInfo, UninitedUpwards& uninitUps)
//其它代码省略
context.notifySingle(dyld_image_state_dependents_initialized, this, &timingInfo);
// initialize this image
bool hasInitializers = this->doInitialization(context);
}
全局搜索notifySingle，
static void notifySingle(dyld_image_states state, const ImageLoader* image, ImageLoader::InitializerTimingList* timingInfo)
{
//其它代码省略
if ( (state == dyld_image_state_dependents_initialized) && (sNotifyObjCInit != NULL) && image->notifyObjC() ) {
uint64_t t0 = mach_absolute_time();
dyld3::ScopedTimer timer(DBG_DYLD_TIMING_OBJC_INIT, (uint64_t)image->machHeader(), 0, 0);
(*sNotifyObjCInit)(image->getRealPath(), image->machHeader());
uint64_t t1 = mach_absolute_time();
uint64_t t2 = mach_absolute_time();
uint64_t timeInObjC = t1-t0;
uint64_t emptyTime = (t2-t1)*100;
if ( (timeInObjC > emptyTime) && (timingInfo != NULL) ) {
timingInfo->addTime(image->getShortName(), timeInObjC);
}
}
}
全局搜索sNotifyObjCInit
void registerObjCNotifiers(_dyld_objc_notify_mapped mapped, _dyld_objc_notify_init init, _dyld_objc_notify_unmapped unmapped)
{
// record functions to call
sNotifyObjCMapped = mapped;
sNotifyObjCInit = init;
sNotifyObjCUnmapped = unmapped;
}
void _dyld_objc_notify_register(_dyld_objc_notify_mapped mapped,
_dyld_objc_notify_init init,
_dyld_objc_notify_unmapped unmapped)
{
dyld::registerObjCNotifiers(mapped, init, unmapped);
}
最终得到_dyld_objc_notify_register函数，发现只有定义，没有调用。

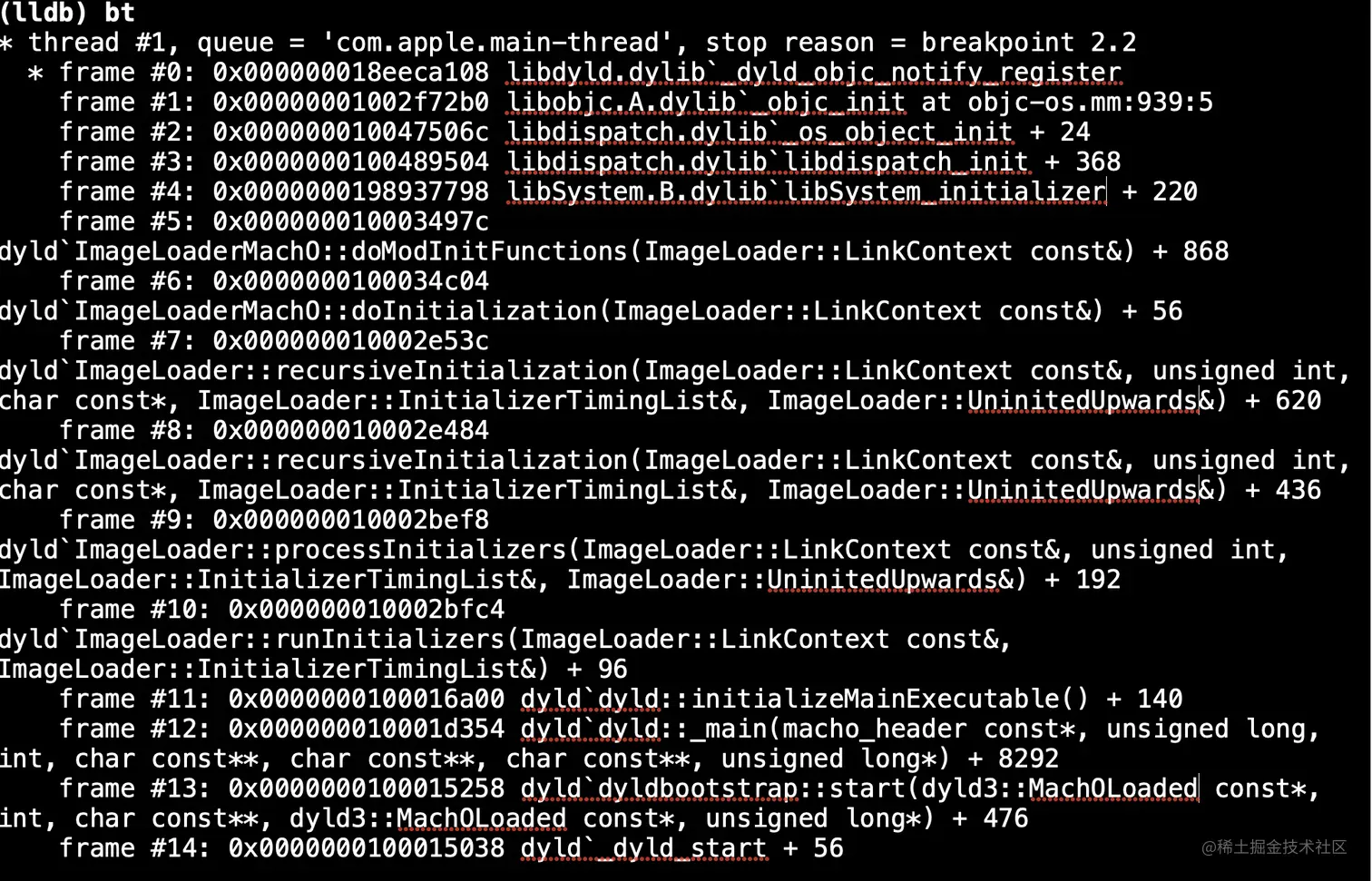

添加符号断点_dyld_objc_notify_register
整个流程为
- dyld`_dyld_start
- dyld`dyldbootstrap::start
- dyld`dyld::_main
- dyld`dyld::initializeMainExecutable()
- dyld`ImageLoader::runInitializers
- dyld`ImageLoader::processInitializers
- dyld`ImageLoader::recursiveInitialization
- dyld`ImageLoader::recursiveInitialization
- dyld`ImageLoaderMachO::doInitialization
- dyld`ImageLoaderMachO::doModInitFunctions
- libSystem.B.dylib`libSystem_initializer
- libdispatch.dylib`libdispatch_init
- libdispatch.dylib`_os_object_init
- libobjc.A.dylib`_objc_init
- libdyld.dylib
_dyld_objc_notify_register_dyld_objc_notify_register之前，是libobjc.A.dylib的_objc_init`函数。
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
environ_init();
tls_init();
static_init();
runtime_init();
exception_init();
#if __OBJC2__
cache_t::init();
#endif
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
发现sNotifyObjCInit实际就是第二个参数load_images函数。
