引入
从前面的分析中我们可以知道，我们的代码经过编译之后，生成可执行文件（mach0），将代码加入到内存中，程序才可以执行，❓那么这些类是怎么加载的呢
源码分析
void _objc_init(void)
{
static bool initialized = false;
if (initialized) return;
initialized = true;
// fixme defer initialization until an objc-using image is found?
//1.读取影响运行时的环境变量。
environ_init();
//2.关于线程key的绑定
tls_init();
//3.运行c++静态构造函数。
static_init();
//4.初始化unattachedCategories、allocatedClasses表
runtime_init();
//5.初始化libobjc的异常处理系统
exception_init();
#if __OBJC2__
cache_t::init();
#endif
_imp_implementationWithBlock_init();
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
// map_images()
// load_images()
#if __OBJC2__
didCallDyldNotifyRegister = true;
#endif
}
exception_init() 捕获异常信息
我们看一下5，可以利用给NSSetUncaughtExceptionHandler赋值获取到异常信息，然后进行一些日志的上传或者堆栈的数据分析。
void exception_init(void)
{
old_terminate = std::set_terminate(&_objc_terminate);
}
看一下_objc_terminate
static void (*old_terminate)(void) = nil;
static void _objc_terminate(void)
{
if (PrintExceptions) {
_objc_inform("EXCEPTIONS: terminating");
}
if (! __cxa_current_exception_type()) {
// No current exception.
(*old_terminate)();
}
else {
// There is a current exception. Check if it's an objc exception.
@try {
__cxa_rethrow();
} @catch (id e) {
// It's an objc object. Call Foundation's handler, if any.
(*uncaught_handler)((id)e);
(*old_terminate)();
} @catch (...) {
// It's not an objc object. Continue to C++ terminate.
(*old_terminate)();
}
}
}
根据try...catch..得知(*uncaught_handler)((id)e);这个是对异常的回调，搜索下uncaught_handler赋值。
/***********************************************************************
* _objc_default_uncaught_exception_handler
* Default uncaught exception handler. Expected to be overridden by Foundation.
**********************************************************************/
static void _objc_default_uncaught_exception_handler(id exception)
{
}
static objc_uncaught_exception_handler uncaught_handler = _objc_default_uncaught_exception_handler;
对objc_uncaught_exception_handler进行重写，则可以获取到异常信息
部分实例代码
+ (void)installUncaughtSignalExceptionHandler{
// uncaught_handler() = fn = LGExceptionHandlers
// objc_setUncaughtExceptionHandler() 对应的OC函数则为NSSetUncaughtExceptionHandler
NSSetUncaughtExceptionHandler(&LGExceptionHandlers);
}
// Exception
void LGExceptionHandlers(NSException *exception) {
NSLog(@"%s",__func__);
int32_t exceptionCount = atomic_fetch_add_explicit(&LGUncaughtExceptionCount,1,memory_order_relaxed);
if (exceptionCount > LGUncaughtExceptionMaximum) {
return;
}
// 获取堆栈信息 - model 编程思想
NSArray *callStack = [LGUncaughtExceptionHandle lg_backtrace];
NSMutableDictionary *userInfo = [NSMutableDictionary dictionaryWithDictionary:[exception userInfo]];
[userInfo setObject:exception.name forKey:LGUncaughtExceptionHandlerSignalExceptionName];
[userInfo setObject:exception.reason forKey:LGUncaughtExceptionHandlerSignalExceptionReason];
[userInfo setObject:callStack forKey:LGUncaughtExceptionHandlerAddressesKey];
[userInfo setObject:exception.callStackSymbols forKey:LGUncaughtExceptionHandlerCallStackSymbolsKey];
[userInfo setObject:@"LGException" forKey:LGUncaughtExceptionHandlerFileKey];
[[[LGUncaughtExceptionHandle alloc] init]
performSelectorOnMainThread:@selector(lg_handleException:)
withObject:
[NSException
exceptionWithName:[exception name]
reason:[exception reason]
userInfo:userInfo]
waitUntilDone:YES];
}
- (void)lg_handleException:(NSException *)exception{
// 保存上传服务器
NSDictionary *userinfo = [exception userInfo];
[self saveCrash:exception file:[userinfo objectForKey:LGUncaughtExceptionHandlerFileKey]];
SCLAlertView *alert = [[SCLAlertView alloc] initWithNewWindowWidth:300.f];
[alert addButton:@"奔溃" actionBlock:^{
self.dismissed = YES;
}];
[alert showSuccess:exception.name subTitle:exception.reason closeButtonTitle:nil duration:0.0f];
}
// 保存奔溃信息或者上传
- (void)saveCrash:(NSException *)exception file:(NSString *)file{
}
_dyld_objc_notify_register(&map_images, load_images, unmap_image);
_dyld_objc_notify_register函数中有两个传参，一个是&map_images和load_images，❓为什么map_images前面有一个&,传过去的是个指针，为了后面调用的与赋值的一起改变。
我们看下这两个传入的参数，&map_images和load_images
map_images管理文件中和动态库中所有的符号(class Protocol selector category )load_image加载执行load方法
map_images
map_images的实现
map_images(unsigned count, const char * const paths[],
const struct mach_header * const mhdrs[])
{
mutex_locker_t lock(runtimeLock);
return map_images_nolock(count, paths, mhdrs);
}
map_images_nolock实现
map_images_nolock(unsigned mhCount, const char * const mhPaths[],
const struct mach_header * const mhdrs[])
{
...
if (hCount > 0) {
_read_images(hList, hCount, totalClasses, unoptimizedTotalClasses);
}
...
}
_read_images
在map_images中我们主要是看类的一些加载，所以把重点转移到_read_images，摘要主要的代码
void _read_images(header_info **hList, uint32_t hCount, int totalClasses, int unoptimizedTotalClasses)
{
//1.条件控制进行一次的加载
if (!doneOnce) {
...
initializeTaggedPointerObfuscator();
if (PrintConnecting) {
_objc_inform("CLASS: found %d classes during launch", totalClasses);
}
// namedClasses
// Preoptimized classes don't go in this table.
// 4/3 is NXMapTable's load factor
// objc::unattachedCategories.init(32);
// objc::allocatedClasses.init();
// x *3 / 4 = count * 4 / 3 * 3 / 4 count
int namedClassesSize =
(isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3;
gdb_objc_realized_classes =
NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);
...
}
// Fix up @selector references
//2.修复selector方法
static size_t UnfixedSelectors;
{
mutex_locker_t lock(selLock);
for (EACH_HEADER) {
if (hi->hasPreoptimizedSelectors()) continue;
bool isBundle = hi->isBundle();
//从符号表中取出来sels
SEL *sels = _getObjc2SelectorRefs(hi, &count);
UnfixedSelectors += count;
for (i = 0; i < count; i++) {
const char *name = sel_cname(sels[i]);
//从dyld取出来的sel
SEL sel = sel_registerNameNoLock(name, isBundle);
if (sels[i] != sel) {
sels[i] = sel;
}
}
}
}
ts.log("IMAGE TIMES: fix up selector references");
// 3.错误混乱的类处理
bool hasDyldRoots = dyld_shared_cache_some_image_overridden();
for (EACH_HEADER) {
if (! mustReadClasses(hi, hasDyldRoots)) {
// Image is sufficiently optimized that we need not call readClass()
continue;
}
classref_t const *classlist = _getObjc2ClassList(hi, &count);
bool headerIsBundle = hi->isBundle();
bool headerIsPreoptimized = hi->hasPreoptimizedClasses();
for (i = 0; i < count; i++) {
Class cls = (Class)classlist[i];
Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
}
}
ts.log("IMAGE TIMES: discover classes");
//4.修复重映射一些没有被镜像文件加载进来的类
if (!noClassesRemapped()) {
for (EACH_HEADER) {
Class *classrefs = _getObjc2ClassRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
// fixme why doesn't test future1 catch the absence of this?
classrefs = _getObjc2SuperRefs(hi, &count);
for (i = 0; i < count; i++) {
remapClassRef(&classrefs[i]);
}
}
}
ts.log("IMAGE TIMES: remap classes");
//5.修复一些消息
#if SUPPORT_FIXUP
// Fix up old objc_msgSend_fixup call sites
for (EACH_HEADER) {
message_ref_t *refs = _getObjc2MessageRefs(hi, &count);
if (count == 0) continue;
if (PrintVtables) {
_objc_inform("VTABLES: repairing %zu unsupported vtable dispatch "
"call sites in %s", count, hi->fname());
}
for (i = 0; i < count; i++) {
fixupMessageRef(refs+i);
}
}
ts.log("IMAGE TIMES: fix up objc_msgSend_fixup");
#endif
//6.当我们类里面有协议的时候：redProtocol
// Discover protocols. Fix up protocol refs.
for (EACH_HEADER) {
extern objc_class OBJC_CLASS_$_Protocol;
Class cls = (Class)&OBJC_CLASS_$_Protocol;
ASSERT(cls);
NXMapTable *protocol_map = protocols();
bool isPreoptimized = hi->hasPreoptimizedProtocols();
// Skip reading protocols if this is an image from the shared cache
// and we support roots
// Note, after launch we do need to walk the protocol as the protocol
// in the shared cache is marked with isCanonical() and that may not
// be true if some non-shared cache binary was chosen as the canonical
// definition
if (launchTime && isPreoptimized) {
if (PrintProtocols) {
_objc_inform("PROTOCOLS: Skipping reading protocols in image: %s",
hi->fname());
}
continue;
}
bool isBundle = hi->isBundle();
protocol_t * const *protolist = _getObjc2ProtocolList(hi, &count);
for (i = 0; i < count; i++) {
readProtocol(protolist[i], cls, protocol_map,
isPreoptimized, isBundle);
}
}
ts.log("IMAGE TIMES: discover protocols");
//7.修复没有被加载的协议
for (EACH_HEADER) {
// At launch time, we know preoptimized image refs are pointing at the
// shared cache definition of a protocol. We can skip the check on
// launch, but have to visit @protocol refs for shared cache images
// loaded later.
if (launchTime && hi->isPreoptimized())
continue;
protocol_t **protolist = _getObjc2ProtocolRefs(hi, &count);
for (i = 0; i < count; i++) {
remapProtocolRef(&protolist[i]);
}
}
ts.log("IMAGE TIMES: fix up @protocol references");
//8.分类处理
if (didInitialAttachCategories) {
for (EACH_HEADER) {
load_categories_nolock(hi);
}
}
ts.log("IMAGE TIMES: discover categories");
//9.类的加载处理
// Realize non-lazy classes (for +load methods and static instances)
for (EACH_HEADER) {
classref_t const *classlist = hi->nlclslist(&count);
for (i = 0; i < count; i++) {
Class cls = remapClass(classlist[i]);
if (!cls) continue;
addClassTableEntry(cls);
if (cls->isSwiftStable()) {
if (cls->swiftMetadataInitializer()) {
_objc_fatal("Swift class %s with a metadata initializer "
"is not allowed to be non-lazy",
cls->nameForLogging());
}
// fixme also disallow relocatable classes
// We can't disallow all Swift classes because of
// classes like Swift.__EmptyArrayStorage
}
realizeClassWithoutSwift(cls, nil);
}
}
ts.log("IMAGE TIMES: realize non-lazy classes");
//10.没有被处理的类，优化那些被侵犯的类
if (resolvedFutureClasses) {
for (i = 0; i < resolvedFutureClassCount; i++) {
Class cls = resolvedFutureClasses[i];
if (cls->isSwiftStable()) {
_objc_fatal("Swift class is not allowed to be future");
}
realizeClassWithoutSwift(cls, nil);
cls->setInstancesRequireRawIsaRecursively(false/*inherited*/);
}
free(resolvedFutureClasses);
}
ts.log("IMAGE TIMES: realize future classes");
...
}
1.条件控制进行一次的加载: 如果第一次进来，进行表的创建int namedClassesSize = (isPreoptimized() ? unoptimizedTotalClasses : totalClasses) * 4 / 3; gdb_objc_realized_classes = NXCreateMapTable(NXStrValueMapPrototype, namedClassesSize);gdb_objc_realized_classes是一个全量的表
// This is a misnomer: gdb_objc_realized_classes is actually a list of
// named classes not in the dyld shared cache, whether realized or not.
// This list excludes lazily named classes, which have to be looked up
// using a getClass hook.
NXMapTable *gdb_objc_realized_classes;
2.UnfixedSelectors修复selector方法 SEL *sels = _getObjc2SelectorRefs(hi, &count);从macho符号表中获取sels SEL sel = sel_registerNameNoLock(name, isBundle);从dyld中获取到sel 如果不相等，把dyld获取到的赋值过去，dyld在动态链接过程中，做了一些rebase，rebind等操作，应该以它为准。macho中只是一个相对的地址。- 3.
错误混乱的类处理在Class cls = (Class)classlist[i];和Class newCls = readClass(cls, headerIsBundle, headerIsPreoptimized);处前后打两个断点，打印cls和newCls的值，
(lldb) po cls
objc[26761]: mutex incorrectly locked
objc[26761]: mutex incorrectly locked
0x0000000100008668
po newCls
objc[26761]: mutex incorrectly locked
objc[26761]: mutex incorrectly locked
LGPerson
readClass
我们看下readClass里面做了什么，
Class readClass(Class cls, bool headerIsBundle, bool headerIsPreoptimized)
{
...
addNamedClass(cls, mangledName, replacing);
...
addClassTableEntry(cls);
...
}
addNamedClass
static void addNamedClass(Class cls, const char *name, Class replacing = nil)
{
runtimeLock.assertLocked();
Class old;
if ((old = getClassExceptSomeSwift(name)) && old != replacing) {
inform_duplicate(name, old, cls);
// getMaybeUnrealizedNonMetaClass uses name lookups.
// Classes not found by name lookup must be in the
// secondary meta->nonmeta table.
addNonMetaClass(cls);
} else {
NXMapInsert(gdb_objc_realized_classes, name, cls);
}
ASSERT(!(cls->data()->flags & RO_META));
// wrong: constructed classes are already realized when they get here
// ASSERT(!cls->isRealized());
}
NXMapInsert(gdb_objc_realized_classes, name, cls);将类的名字和cls插入到全量表中
所以后面在打印newCls的时候已经可以打印出来类的名字了。
把这个类添加到所有class表中
static void
addClassTableEntry(Class cls, bool addMeta = true)
{
runtimeLock.assertLocked();
// This class is allowed to be a known class via the shared cache or via
// data segments, but it is not allowed to be in the dynamic table already.
auto &set = objc::allocatedClasses.get();
ASSERT(set.find(cls) == set.end());
if (!isKnownClass(cls))
set.insert(cls);
if (addMeta)
addClassTableEntry(cls->ISA(), false);
}
打断点发现是不会进到下面这个if中，看备注，resolvedFutureClasses是对一些被移除，但是没有被删干净的类，进行了一些处理
if (newCls != cls && newCls) {
// Class was moved but not deleted. Currently this occurs
// only when the new class resolved a future class.
// Non-lazily realize the class below.
resolvedFutureClasses = (Class *)
realloc(resolvedFutureClasses,
(resolvedFutureClassCount+1) * sizeof(Class));
resolvedFutureClasses[resolvedFutureClassCount++] = newCls;
}
9.类的加载处理我们重点看下类的加载处理 示例代码：
//Person.h
@interface Person : NSObject
@property (nonatomic, copy) NSString *lgName;
@property (nonatomic, strong) NSString *nickName;
- (void)say1;
- (void)say2;
+ (void)sayHappy;
@end
//person.m
#import "Person.h"
@implementation Person
- (void)saySomething{
NSLog(@"Person say : %s",__func__);
}
- (void)say1{
NSLog(@"Person say : %s",__func__);
}
- (void)say2{
NSLog(@"Person say : %s",__func__);
}
- (void)say3{
NSLog(@"Person say : %s",__func__);
}
- (void)say4{
NSLog(@"Person say : %s",__func__);
}
- (void)say5{
NSLog(@"Person say : %s",__func__);
}
- (void)say6{
NSLog(@"Person say : %s",__func__);
}
- (void)say7{
NSLog(@"Person say : %s",__func__);
}
//+ (void)load{
// NSLog(@"load");
//}
+ (void)sayHappy{
NSLog(@"LGPerson say : %s",__func__);
}
@end
//main.m
int main(int argc, const char * argv[]) {
@autoreleasepool {
[Person sayHappy];
Person *p = [Person alloc];
}
return 0;
}
realizeClassWithoutSwift
在9里面打断点，发现跳过了，❓，为什么，我们看下备注
// Realize non-lazy classes (for +load methods and static instances)实现非懒加载类需要添加+load方法，我们在person.m中添加+load方法。
这个时候就进到了
...
realizeClassWithoutSwift(cls, nil);
...
这个方法中，realizeClassWithoutSwift实现如下
static Class realizeClassWithoutSwift(Class cls, Class previously)
{
runtimeLock.assertLocked();
class_rw_t *rw;
Class supercls;
Class metacls;
if (!cls) return nil;
if (cls->isRealized()) {
validateAlreadyRealizedClass(cls);
return cls;
}
ASSERT(cls == remapClass(cls));
// fixme verify class is not in an un-dlopened part of the shared cache?
auto ro = (const class_ro_t *)cls->data();
auto isMeta = ro->flags & RO_META;
if (ro->flags & RO_FUTURE) {
// This was a future class. rw data is already allocated.
rw = cls->data();
ro = cls->data()->ro();
ASSERT(!isMeta);
cls->changeInfo(RW_REALIZED|RW_REALIZING, RW_FUTURE);
} else {//赋值ro, rw
// Normal class. Allocate writeable class data. ro -> rw
rw = objc::zalloc<class_rw_t>();
rw->set_ro(ro);
rw->flags = RW_REALIZED|RW_REALIZING|isMeta;
cls->setData(rw);
}
...
//superClass指向以及isa指向的构建
supercls = realizeClassWithoutSwift(remapClass(cls->getSuperclass()), nil);
metacls = realizeClassWithoutSwift(remapClass(cls->ISA()), nil);
...
// Update superclass and metaclass in case of remapping
cls->setSuperclass(supercls);
cls->initClassIsa(metacls);
...
methodizeClass(cls, previously);
methodizeClass
看下methodizeClass
static void methodizeClass(Class cls, Class previously)
{
runtimeLock.assertLocked();
bool isMeta = cls->isMetaClass();
auto rw = cls->data();
auto ro = rw->ro();
auto rwe = rw->ext();
...
method_list_t *list = ro->baseMethods();
if (list) {
prepareMethodLists(cls, &list, 1, YES, isBundleClass(cls), nullptr);
if (rwe) rwe->methods.attachLists(&list, 1);
}
...
如果list有值，会走一个prepareMethodLists的过程，我们的Person类中有很多方法，也会走这里，记得在前面的方法查找中有说过，对于已排序的查找，是二分查找，排序是什么时候排的呢，就是在这个方法中处理的。下面摘取主要代码
prepareMethodLists(Class cls, method_list_t **addedLists, int addedCount,
bool baseMethods, bool methodsFromBundle, const char *why)
{
...
for (int i = 0; i < addedCount; i++) {
method_list_t *mlist = addedLists[i];
ASSERT(mlist);
// Fixup selectors if necessary
if (!mlist->isFixedUp()) {
fixupMethodList(mlist, methodsFromBundle, true/*sort*/);
}
}
...
}
fixupMethodList源码
fixupMethodList(method_list_t *mlist, bool bundleCopy, bool sort)
{
runtimeLock.assertLocked();
ASSERT(!mlist->isFixedUp());
// fixme lock less in attachMethodLists ?
// dyld3 may have already uniqued, but not sorted, the list
if (!mlist->isUniqued()) {
mutex_locker_t lock(selLock);
// Unique selectors in list.
for (auto& meth : *mlist) {
const char *name = sel_cname(meth.name());
// printf("上面 : %s - %p\n",name,meth.name());
meth.setName(sel_registerNameNoLock(name, bundleCopy));
}
}
// Sort by selector address.
// Don't try to sort small lists, as they're immutable.
// Don't try to sort big lists of nonstandard size, as stable_sort
// won't copy the entries properly.
if (sort && !mlist->isSmallList() && mlist->entsize() == method_t::bigSize) {
method_t::SortBySELAddress sorter;
std::stable_sort(&mlist->begin()->big(), &mlist->end()->big(), sorter);
}
// printf("****************");
// for (auto& meth : *mlist) {
// const char *name = sel_cname(meth.name());
// printf("下面 : %s - %p\n",name,meth.name());
// }
// Mark method list as uniqued and sorted.
// Can't mark small lists, since they're immutable.
if (!mlist->isSmallList()) {
mlist->setFixedUp();
}
}
把排序前后的注释打开，可以看到方法按照了selecotr的地址，从小到大进行了排序
下面 : saySomething - 0x100003e06
下面 : say1 - 0x100003e13
下面 : say2 - 0x100003e18
下面 : say3 - 0x100003e1d
下面 : say4 - 0x100003e22
下面 : say5 - 0x100003e27
下面 : say6 - 0x100003e2c
下面 : say7 - 0x100003e31
下面 : lgName - 0x100003e36
下面 : setLgName: - 0x100003e3d
下面 : nickName - 0x7fff7bfbaf71
下面 : setNickName: - 0x7fff7bfbaf7a
懒加载类与非懒加载类
前面我们提到非懒加载类，非懒加载类的加载流程是在map_images的时候加载所有类
-
_read_images -
readClass -
realizeClassWithoutSwift -

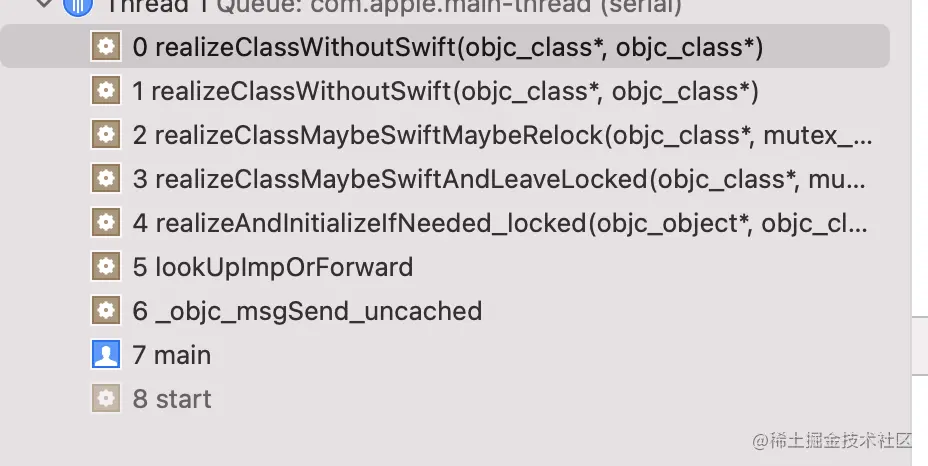

methodizeClass那么什么是懒加载类,它又是怎么加载的呢。在person调用方法的时候，打一个断点，打印堆栈信息如下懒加载类是将数据加载推迟到第一次消息的时候， -
lookUpImpOrForward -
realizeClassMaybeSwiftMaybeRelock -
realizeClassWithoutSwift -
methodizeClass
