mac安装k8s心血历程本篇记录一下macOS环境使用kudeadm安装k8s的步骤。记录了自己在本地安装过程中的一些坑

本篇记录一下macOS环境使用kudeadm安装k8s的步骤，大概分为以下几个步骤：

· 安装docker-ce
·设置k8s所需的前置环境
·安装k8s v1.19.4 master节点
·安装k8s v1.19.4 node节点

我的本地环境：

·操作系统：mac os
·虚拟机：virtual box

一. 虚拟机的安装通过virtual box新建两台centos7的虚机，使用的iso文件版本CentOS-7-x86_64-DVD-2009.iso。

这里需要保证CPU是2核，内存2G以上，网络改用桥接模式，其余都默认即可。

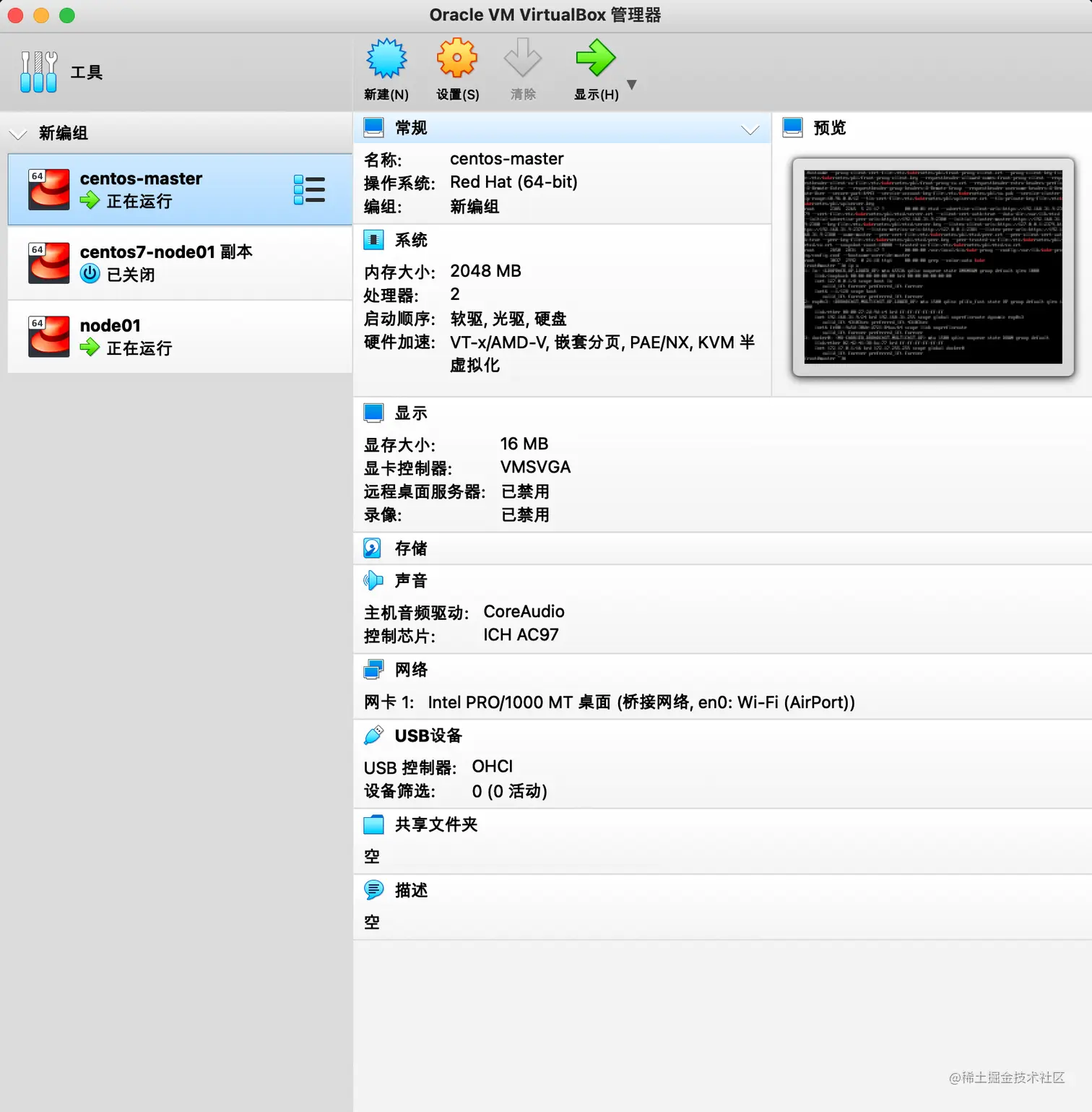

截屏2021-07-05 下午9.10.26.png 安装完成后的master节点ip：192.168.31.9(这个ip下面执行配置命令的时候需要用到) node节点ip:192.168.31.99

二. kubernetes前置环境准备

# 关闭防火墙
systemctl disable firewalld
systemctl stop firewalld

# 关闭selinux
# 临时禁用selinux
setenforce 0
# 永久关闭 修改/etc/sysconfig/selinux文件设置
sed -i 's/SELINUX=permissive/SELINUX=disabled/' /etc/sysconfig/selinux
sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

# 禁用交换分区
swapoff -a
# 永久禁用，打开/etc/fstab注释掉swap那一行。
sed -i 's/.*swap.*/#&/' /etc/fstab

# 修改内核参数
cat <<EOF >  /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system

注意master节点和node节点都需要做这些操作

三. docker安装

# 安装docker所需的工具
yum install -y yum-utils device-mapper-persistent-data lvm2
# 配置阿里云的docker源
wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
# 指定安装这个版本的docker-ce
yum install docker-ce-19.03.13 -y
# 启动docker
systemctl enable docker && systemctl start docker

四. 安装k8s v1.19.4 master管理节点

请确保已经执行过上面的第二、三步骤

1、安装kubeadm,kubelet,kubectl

# 执行配置k8s阿里云源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

# 安装kubeadm、kubectl、kubelet
yum install -y kubectl-1.19.4 kubeadm-1.19.4 kubelet-1.19.4

安装完成后检查一下三个工具的版本是不是都是1.19.4，有可能因为顺序原因安装kubeadm时依赖了kubectl，导致kubectl下载了最新的版本。

yum list installed | grep kube

启动kubelet服务

# 启动kubelet服务
systemctl enable kubelet && systemctl start kubelet

执行初始化操作，这里将--apiserver-advertise-address改为master节点的ip，耐心等待。

kubeadm init --image-repository registry.aliyuncs.com/google_containers --kubernetes-version v1.19.4 --apiserver-advertise-address 192.168.31.9 --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16

上述执行完成后，按照提示进行输入，复制粘贴即可。

# 上面安装完成后，k8s会提示你输入如下命令，执行
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

记住呆会node节点加入集群的命令，再执行kubeadm init后会返回，有效期24h，如果忘记，执行以下命令重新获取。

kubeadm token create --print-join-command

检查一下master的组件是否都起来

kubeget get cs

我这里一开始只有etcd是health，另外的apiserver都没起来，参考如下链接解决： blog.csdn.net/qq_38359135…

此时master节点安装完毕，使用kubectl get nodes查看，master的状态是NotReady，这个先不管。

五、安装k8s v1.19.4 node节点

安装kubeadm、kubelet

# 执行配置k8s阿里云源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

# 安装kubeadm、kubectl、kubelet
yum install -y  kubeadm-1.19.4 kubelet-1.19.4

# 启动kubelet服务
systemctl enable kubelet && systemctl start kubelet

加入集群，执行master节点init返回的加入集群命令。每台机器的命令行都不一样。等待几分钟。

 kubeadm join 192.168.31.9:6443 --token sdr6ls.nfgsrbwwjc8pisc0     --discovery-token-ca-cert-hash sha256:d1f2ee5a5a14de1fb0a1a5ebe62efad8d0b541831cfb4fa86420519ce0217c78

六、安装flannel（master节点）

下载kube-flannel.yml文件

wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

因为源的关系可能没法下载，文件内容我放在最后吧，直接复制粘贴写入即可

安装fannel

到刚才的kube-flannel.yml目录下执行

kubectl apply -f kube-flannel.yml

七、大功告成

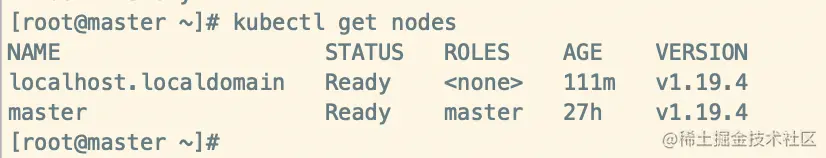

截屏2021-07-05 下午9.48.33.png

附录

kube-flannel.yml文件内容

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
  - configMap
  - secret
  - emptyDir
  - hostPath
  allowedHostPaths:
  - pathPrefix: "/etc/cni/net.d"
  - pathPrefix: "/etc/kube-flannel"
  - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
rules:
- apiGroups: ['extensions']
  resources: ['podsecuritypolicies']
  verbs: ['use']
  resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: quay.io/coreos/flannel:v0.13.0
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: quay.io/coreos/flannel:v0.13.0
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
      - name: run
        hostPath:
          path: /run/flannel
      - name: cni
        hostPath:
          path: /etc/cni/net.d
      - name: flannel-cfg
        configMap:
          name: kube-flannel-cfg
