CentOS7虚拟机环境配置

使用Virtualbox安装CentOS7虚拟机

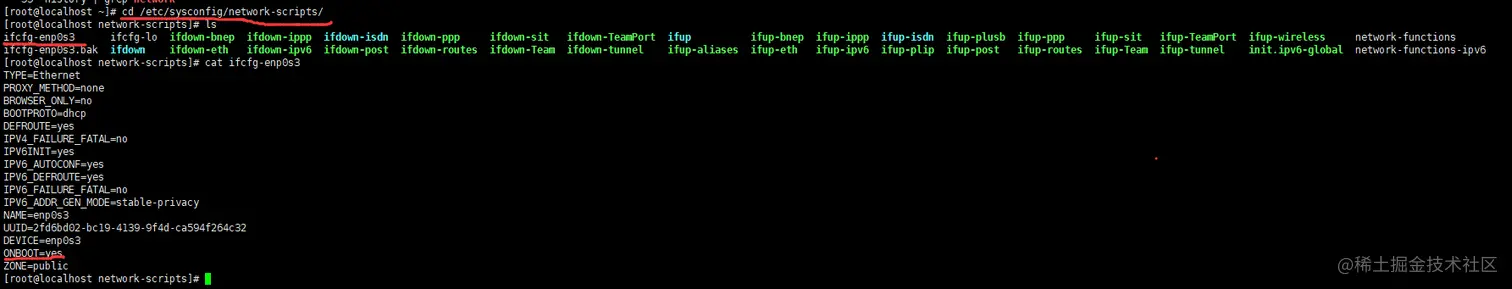

网络设置，这样可以通过virtualbox的端口转发，在外部访问虚拟机端口

设置要对外开放的端口

# 查询已开放的端口
netstat -anp
# 查询指定端口是否已开启,提示yes标识开启，no标识未开启
firewall-cmd --query-port=3306/tcp
# 添加指定需要开放的端口
firewall-cmd --add-port=3306/tcp --permanent
# 重新载入添加的端口
firewall-cmd --reload
# 移除指定端口
firewall-cmd --permanent --remove-port=3306/tcp
# 查看防火墙状态
systemctl status firewalld
# 开启防火墙
systemctl start firewalld
# 关闭防火墙
systemctl stop firewalld

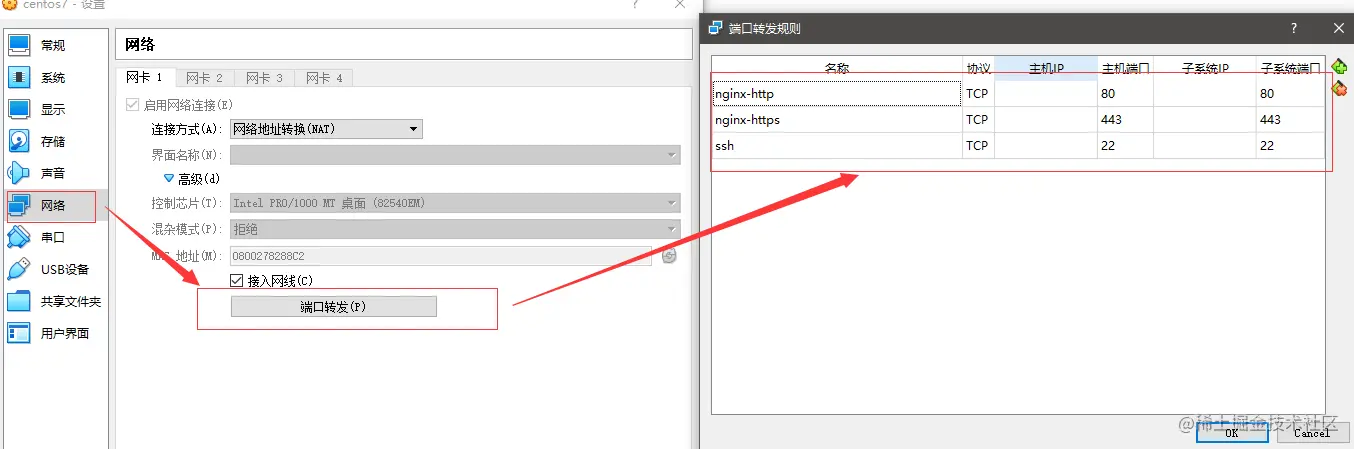

Virtualbox的端口转发

Docker安装

curl -sSL https://get.daocloud.io/docker | sh
# 开机自启
systemctl enable docker
# 镜像配置
cd /etc/docker
vi daemon.json

{
    "registry-mirrors": ["https://registry.docker-cn.com", "http://hub-mirror.c.163.com", "https://3laho3y3.mirror.aliyuncs.com", "http://f1361db2.m.daocloud.io", "https://mirror.ccs.tencentyun.com"]
}

# 重新加载
systemctl daemon-reload
systemctl restart docker

设置docker自定义网络

# 查看当前所有网络
docker network ls
# 新建网络
docker network create --subnet=172.18.0.0/16 my-network

设置CentOS虚拟开机自启

# 在启动文件夹放置后台启动虚拟机的脚本（C:\ProgramData\Microsoft\Windows\Start Menu\Programs\StartUp）
$VIRTUAL_PATH\VBoxManage startvm centos7 --type headless

Mysql主从同步配置

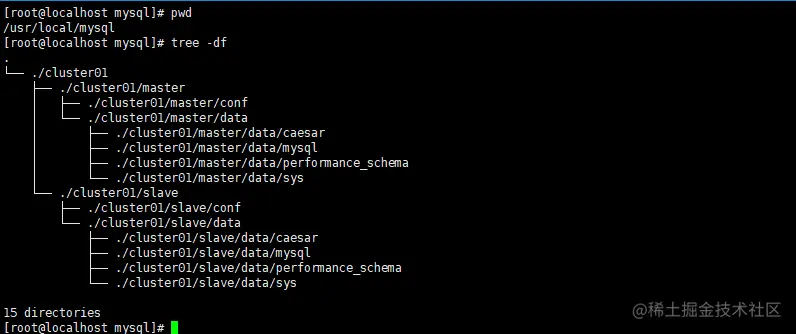

配置主从配置文件

cd /usr/local/mysql/cluster01/master/conf
vi my.cnf

[mysqld]
# 用于标识不同的数据库服务器，而且唯一
server_id = 1
# 需要启用二进制日志
log-bin=mysql-bin
#
read-only=0
# 需要记录二进制日志的数据库
binlog-do-db=test
# 忽略记录二进制日志的数据库
# binlog-ignore-db=
# 该服务器自增列的初始值
# auto-increment-offset=
# 该服务器自增列增量
# auto-increment-increment=
# 制定复制的数据库
# replicat-do-db=
# 不复制的数据库
replicate-ignore-db=mysql
# 从库的中继日志，主库日志写到中继日志，中继日志再重做到从库
# relay_log=
replicate-ignore-db=sys
replicate-ignore-db=information_schema
replicate-ignore-db=performance_schema
!includedir/etc/mysql/conf.d/
!includedir /etc/mysql/mysql.conf.d/

cd /usr/local/mysql/cluster01/slave/conf
vi my.cnf

[mysqld]
server_id = 2
log-bin=mysql-bin
read-only=1
binlog-do-db=test
replicate-ignore-db=mysql
replicate-ignore-db=sys
replicate-ignore-db=information_schema
replicate-ignore-db=performance_schema
relay_log=slaver_relay_log
!includedir/etc/mysql/conf.d/
!includedir /etc/mysql/mysql.conf.d/

创建mysql主从容器

docker pull mysql:5.7
# 主库
docker run --name mysql-master-01 --net my-network --ip 172.18.0.2 -d -p 3307:3306 -e MYSQL_ROOT_PASSWORD=root -v /usr/local/mysql/cluster01/master/data/:/var/lib/mysql -v /usr/local/mysql/cluster01/master/conf/my.cnf:/etc/mysql/my.cnf mysql:5.7
# 从库
docker run --name mysql-slave-01 --net my-network --ip 172.18.0.3 -d -p 3308:3306 -e MYSQL_ROOT_PASSWORD=root -v /usr/local/mysql/cluster01/slave/data/:/var/lib/mysql -v /usr/local/mysql/cluster01/slave/conf/my.cnf:/etc/mysql/my.cnf mysql:5.7

# 设置开机自启
docker update --restart=always mysql-master-01
docker update --restart=always mysql-slave-01

主从同步配置

# 进入master容器
docker exec -it mysql-master-01 bash
# 登录mysql
mysql -uroot -p

# 创建用来同步的用户
grant replication slave on *.* to 'replicat'@'%' identified by 'replicat'

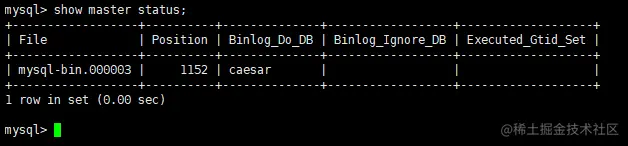

# 查看状态，记住file，position的值，在slave的配置中将用到
show master status;

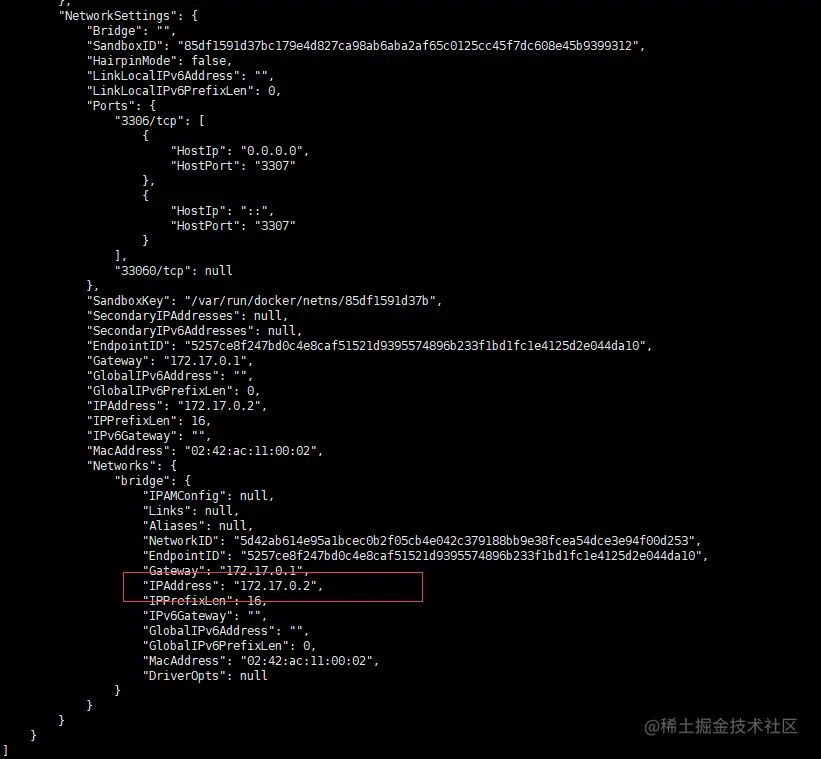

# 获取masterip
docker inspect mysql-master-01
# 进入slave容器
docker exec -it mysql-slave-01 bash
mysql -uroot -p

# 设置主库连接
change master to master_host='172.18.0.2',master_user='replicat',master_password='replicat',master_log_file='mysql-bin.000003',master_log_pos=441,master_port=3306;

stop slave io_thread for channel  '';
# 启动主从库同步
# 重启slave
reset slave;
start slave;

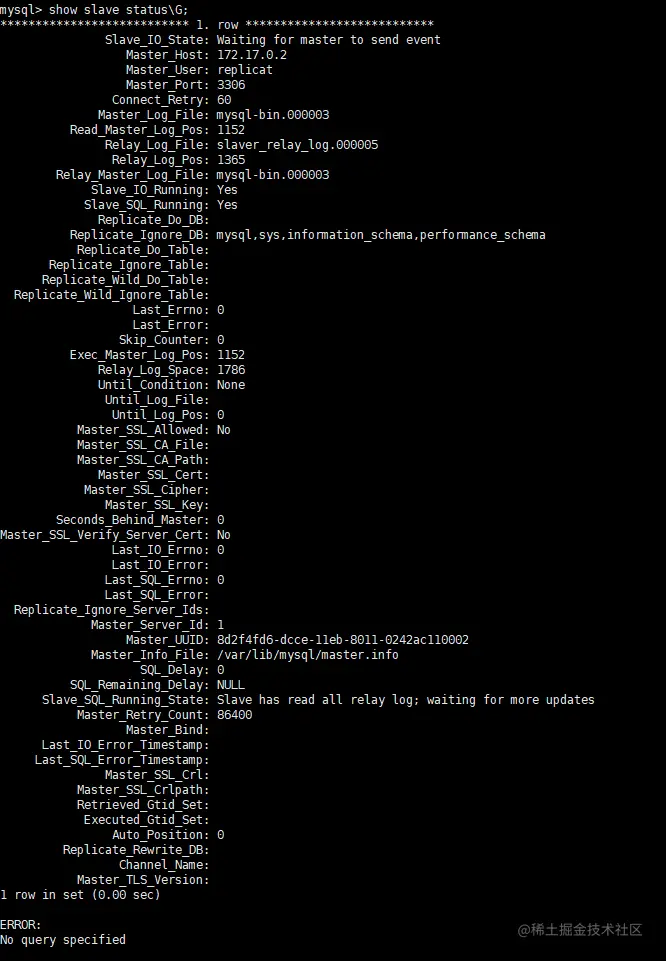

# 查看状态
show slave status\G;
