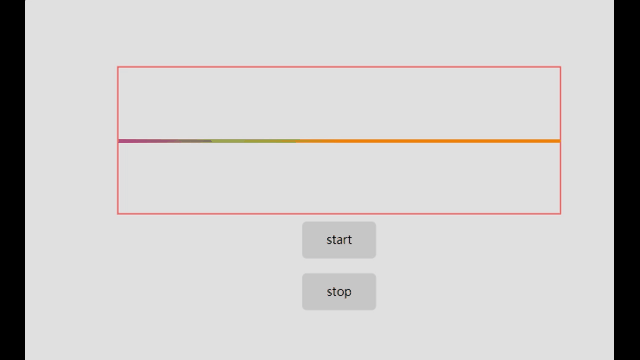

使用canvas制作音乐律动的效果，可根据音量大小自动调节波动大小
重点是位移点的计算，每个点的y轴大小，需要运用三角函数换算，配合相关参数，具体实现直接看代码。
html部分：
<body>
<div class="canvasBox">
<canvas id="my-canvas"> </canvas>
</div>
<div id="start">start</div>
<div id="stop">stop</div>
</body>
css部分：
* {
padding: 0;
margin: 0;
}
body {
width: 100%;
min-height: 100vh;
background-color: rgba(100, 100, 100, 0.2);
display: flex;
flex-direction: column;
justify-content: center;
align-items: center;
}
.canvasBox {
overflow: hidden;
border: 1px solid red;
box-sizing: border-box;
}
#my-canvas {
transform-origin: 0 0;
transform: scale(0.5);
}
#start,
#stop {
width: 100px;
height: 50px;
border-radius: 6px;
margin: 10px 0;
line-height: 50px;
text-align: center;
background-color: rgba(96, 96, 96, 0.2);
}
#start:hover,
#stop:hover {
cursor: pointer;
}
javascript部分：
<script>
const configInfo = {
width: 600,//画布宽度
height: 200,//画布高度
lineWidth: 4,//线条大小
linear1: [
0,
"rgba(181, 21, 135,1)",
0.5,
"rgba(115, 174, 73,1)",
1,
"rgba(242, 128, 6,1)"
],//第一条波浪线的渐变色
linear2: [0, "rgba(22, 108, 220, 0.6)", 1, "rgba(255, 42, 42, 0.6)"],//第二条波浪线的渐变色
linearBg: [0, "rgba(222,222,222,0.3)", 1, "rgba(80,165,222,0.2)"],//波浪背景的渐变色
scale: 2,//画布缩放比，定为2，移动端显示更清晰
speed: 8,//移动速率
_phase: 0,
dataLength: 1200,//换算速率的分子参数
sampleRate: 16000//换算速率的分母参数
};
const canvas = document.querySelector("#my-canvas");
const ctx = canvas.getContext("2d");
const scale = configInfo.scale;
const width = configInfo.width * scale;
const height = configInfo.height * scale;
canvas.width = width;
canvas.height = height;
const Box = document.querySelector(".canvasBox")
Box.style.width = width / 2 + 'px';
Box.style.height = height / 2 + 'px';
/**
* TODO:处理线条颜色成渐变色
* @params:
* ctx-->画笔上下文
* size-->宽高
* colors-->线条渐变的颜色组
*/
const GenLinear = (ctx, size, colors, top) => {
const gradient = ctx.createLinearGradient(
0,
0,
top ? 0 : size,
top ? size : 0
);
for (let i = 0; i < colors.length;) {
gradient.addColorStop(colors[i++], colors[i++]);
}
return gradient;
};
const CanvasGradient1 = GenLinear(ctx, configInfo.width, configInfo.linear1);
const CanvasGradient2 = GenLinear(ctx, configInfo.width, configInfo.linear2);
const LinearBg = GenLinear(ctx, configInfo.height, configInfo.linearBg, true);
/*TODO:计算出每个位置点的y轴大小，存放进数组备用 ，计算公式：*/
const GenPath = (frequency, amplitude, phase) => {
const rtv = [];
const maxAmplitude = (configInfo.height * scale) / 2;
for (let x = 0; x < width; x += scale) {
/* 公式换算每个位移点的y轴大小 */
const scaling = (1 + Math.cos(Math.PI + (x / width) * 2 * Math.PI)) / 2;
const y =
scaling *
maxAmplitude *
amplitude *
Math.sin(2 * Math.PI * (x / width) * frequency + phase) +
maxAmplitude;
rtv.push(y);
}
return rtv;
};
const HandleInput = (powerLevel) => {
const speedx = (configInfo.speed * configInfo.dataLength) / configInfo.sampleRate;
const phase = (configInfo._phase -= speedx); //位移速度
const amplitude = powerLevel / 100;
const path1 = GenPath(2, amplitude, phase);
const path2 = GenPath(1.8, amplitude, phase + speedx * 5);
//清除矩形画布
ctx.clearRect(0, 0, width, height);
//绘制包围背景
ctx.beginPath();
for (var i = 0, x = 0; x < width; i++, x += scale) {
if (x == 0) {
ctx.moveTo(x, path1[i]);
} else {
ctx.lineTo(x, path1[i]);
}
}
i--;
for (let x = width - 1; x >= 0; i--, x -= scale) {
ctx.lineTo(x, path2[i]);
}
ctx.closePath();
ctx.fillStyle = LinearBg;
ctx.fill();
//绘制两条波浪线
DrawPath(path2, CanvasGradient2);
DrawPath(path1, CanvasGradient1);
};
/* 画线 */
const DrawPath = (path, linear) => {
ctx.beginPath();
for (let i = 0, x = 0; x < width; i++, x += scale) {
if (x == 0) {
ctx.moveTo(x, path[i]);
} else {
ctx.lineTo(x, path[i]);
}
}
ctx.lineWidth = configInfo.lineWidth * scale;
ctx.strokeStyle = linear;
ctx.stroke();
};
/* TODO: PL参数用来控制波动的高低幅度大小，范围0~100 */
let PL = 0;
let flag = false;
let animationId = null;
HandleInput(PL)
/* web动画api执行 */
const RequestAnimFrame = () => {
animationId = window.requestAnimationFrame((t) => {
if (PL === 100) flag = false;
if (PL === 0) flag = true;
if (PL % 6 === 0) HandleInput(PL)
RequestAnimFrame()
if (flag) PL++
if (!flag) PL--
})
}
const ClearAnimation = () => {
cancelAnimationFrame(animationId)
animationId = null
}
const domStart = document.getElementById("start")
const domStop = document.getElementById("stop")
domStart.addEventListener("click", function () {
RequestAnimFrame()
}, false)
domStop.addEventListener("click", function () {
ClearAnimation()
}, false)
</script>
