流程的简化回顾
第一：判断当前接收者是否存在
cmp p0, #0
第二：通过isa拿到class
GetClassFromIsa_p16 p13, 1, x0
第三：进入CacheLookup流程,两种结果，找到并抛出imp，没找到通过__objc_msgSend_uncached进入后续的慢速查找流程
CacheLookup NORMAL, _objc_msgSend, __objc_msgSend_uncached
第四：LLookupStart，查找开始，这里分解真机、arm64架构，A12以上芯片汇编，下面只列出满足此条件的汇编
//arm64架构
CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
//真机
CONFIG_USE_PREOPT_CACHES = 1
//是判断编译器是否支持指针身份验证功能，针对arm64e
//A12以上芯片（支持arm64e结构）
__has_feature(ptrauth_calls)
第五：将isa偏移16个字节，得到cache_t
ldr p11, [x16, #CACHE]
第六：判断cache_t的0号位置是否为0，如果不为0，执行LLookupPreopt，去找共享缓存，如果为0，将cache_t(_bucketsAndMaybeMask) & #0x0000ffffffffffff,得到了bucekts
tbnz p11, #0, LLookupPreopt\Function
and p10, p11, #0x0000ffffffffffff // p10 = buckets
第七：将sel右移7位在与自己做逻辑异或^赋值给p12,将cache_t(_bucketsAndMaybeMask)右移48位，即清空了buckets，可以得到mask，最后将p12 & mask，得到了第一次查找bucket_t的index，即first_probed
eor p12, p1, p1, LSR #7
and p12, p12, p11, LSR #48 // x12 = (_cmd ^ (_cmd >> 7)) & mask
对于第七步的源码解释：
static inline mask_t cache_hash(SEL sel, mask_t mask)
{
uintptr_t value = (uintptr_t)sel;
#if CONFIG_USE_PREOPT_CACHES
value ^= value >> 7;
#endif
return (mask_t)(value & mask);
}
第八：有第七步得知第一个查找的bucket_t的下标index，那么接下来就是如何偏移到这个bucket_t拿到里面的sel与imp，这里的做法是将index向左偏移4位，可以理解为index * （1 << 4）即index * 16，得到的是偏移距离，为什么偏移4位，因为一个bucket_t占16字节，最后在加上buckets地址，就得到了第一个要比较的bucket_t。
add p13, p10, p12, LSL #(1+PTRSHIFT)
第九：将p13内的imp和sel拿出来分别存在p17和p9，执行bucket--。如果sel != _cmd,执行3f，判断sel是否存在，有值，将bucket（当前）与bucekts（bucket首位）比较，如果>0，继续循环，回到1b，执行bucket--。如果这个过程找到了目标_cmd,跳转到2，命中缓存，结束查找。
1: ldp p17, p9, [x13], #-BUCKET_SIZE
cmp p9, p1
b.ne 3f
2: CacheHit \Mode
3: cbz p9, \MissLabelDynamic
cmp p13, p10
b.hs 1b
如果找到bucket首位都未匹配到目标_cmd，则直接跳转至mask处bucket（末位bucket_t），查找缓存内剩余的buckets，这里还获取了第一次探查的位置index，为了避免重复探查。4内操作为将bucket_t的imp和sel拿出来赋值给p17和p9，bucket--，比较sel与_cmd，如果成功，执行2b，命中缓存，判断p9是否存在，判断当前bucket是否大于第一次探查的bucket，如果上述条件都满足，则继续循环4b，直到命中缓存。如果全部都搜索完还没有命中，进入慢速查找流程。
add p13, p10, p11, LSR #(48 - (1+PTRSHIFT))
add p12, p10, p12, LSL #(1+PTRSHIFT)
4: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
cmp p9, p1 // if (sel == _cmd)
b.eq 2b // goto hit
cmp p9, #0 // } while (sel != 0 &&
ccmp p13, p12, #0, ne // bucket > first_probed)
b.hi 4b
真机调试（汇编分析）
案例源码：
@interface FFPerson : NSObject
- (void)likeGirls;
@end
@implementation FFPerson
- (void)likeGirls{
NSLog(@"%s",__func__);
}
@end
int main(int argc, char * argv[]) {
@autoreleasepool {
FFPerson *person = [FFPerson alloc];
[person likeGirls];
}
return UIApplicationMain(argc, argv, nil, NSStringFromClass([AppDelegate class]));
}

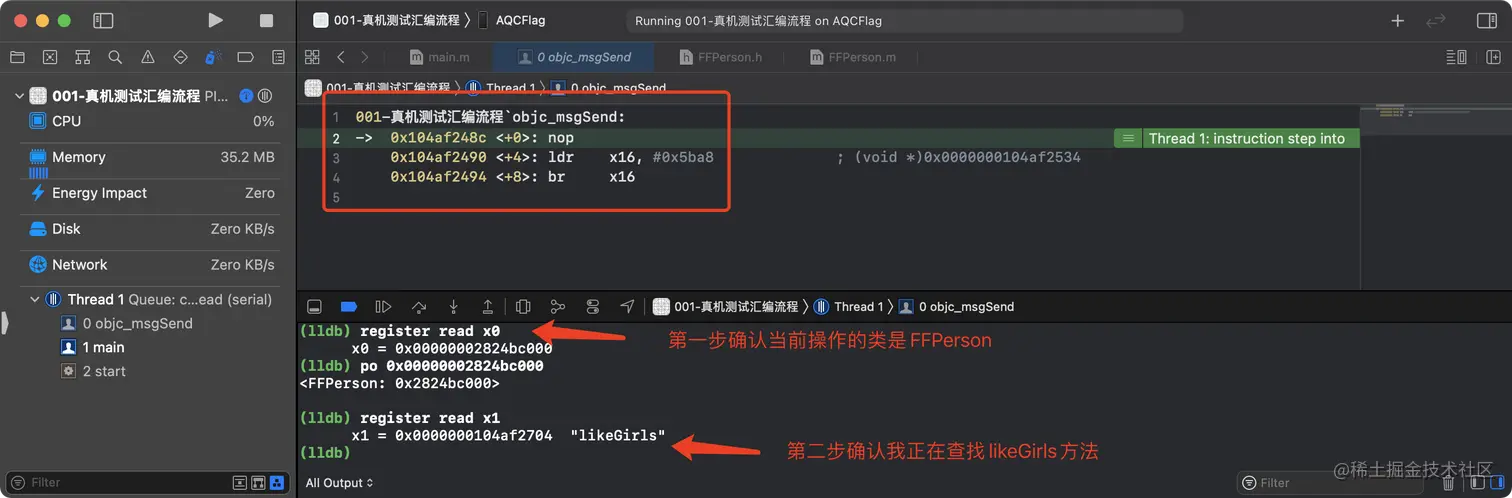

确认当前探索的类与方法

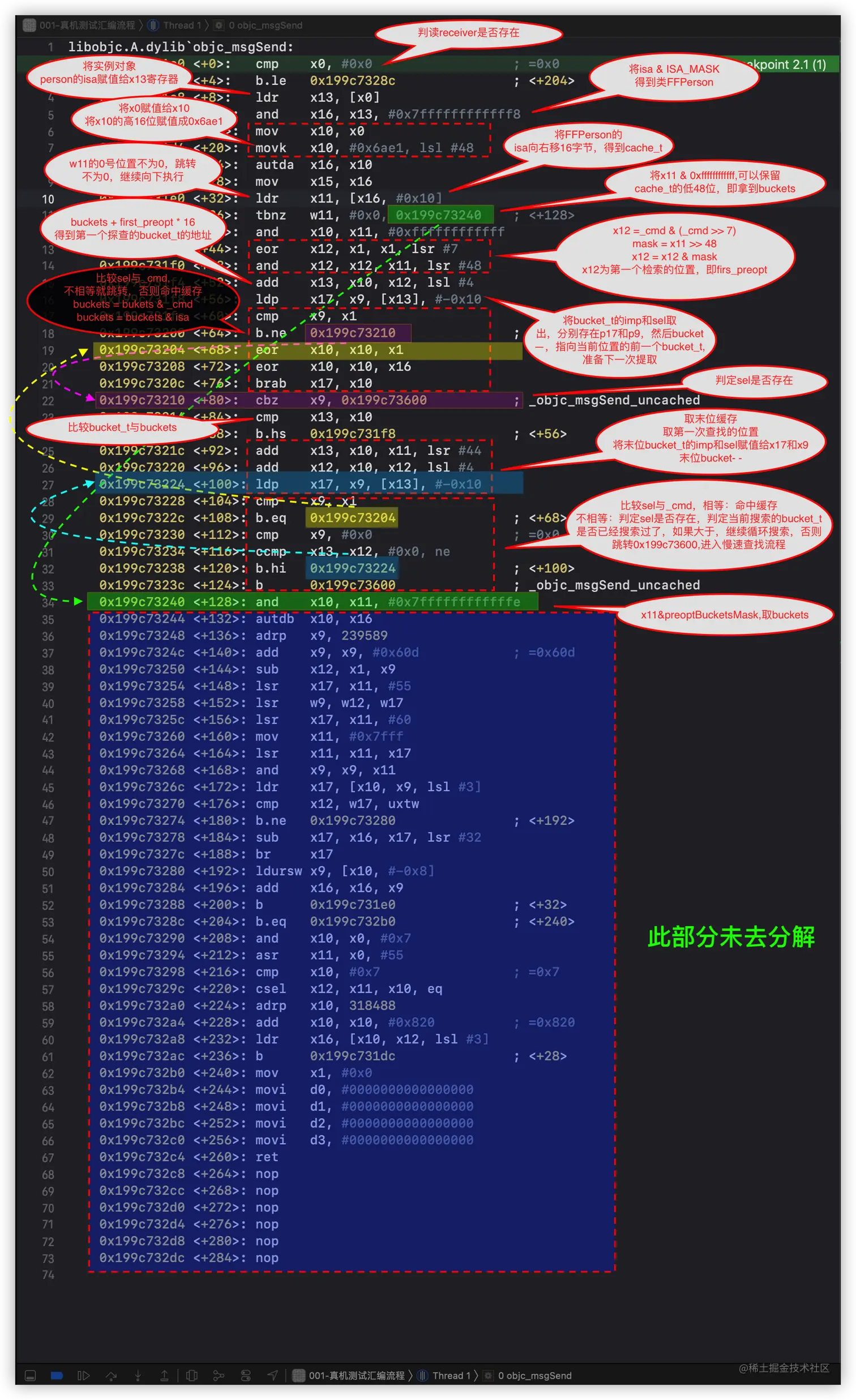

真机汇编分解图解：
关于类cache_t内存扩容在真机情况下的源码模拟
部分关键源码：
typedef uint32_t mask_t; // x86_64 & arm64 asm are less efficient
//preopt_cache_entry_t源码模仿
struct ff_preopt_cache_entry_t {
uint32_t sel_offs;
uint32_t imp_offs;
};
//preopt_cache_t源码模仿
struct ff_preopt_cache_t {
int32_t fallback_class_offset;
union {
struct {
uint16_t shift : 5;
uint16_t mask : 11;
};
uint16_t hash_params;
};
uint16_t occupied : 14;
uint16_t has_inlines : 1;
uint16_t bit_one : 1;
struct ff_preopt_cache_entry_t entries;
inline int capacity() const {
return mask + 1;
}
};
//bucket_t源码模仿
struct ff_bucket_t {
IMP _imp;
SEL _sel;
};
//cache_t源码模仿
struct ff_cache_t {
uintptr_t _bucketsAndMaybeMask; // 8
struct ff_preopt_cache_t _originalPreoptCache; // 8
static constexpr uintptr_t maskShift = 48;
static constexpr uintptr_t maskZeroBits = 4;
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
static constexpr uintptr_t preoptBucketsMarker = 1ul;
static constexpr uintptr_t preoptBucketsMask = 0x007ffffffffffffe;
ff_bucket_t *buckets() {
return (ff_bucket_t *)(_bucketsAndMaybeMask & bucketsMask);
}
uint32_t mask() const {
return _bucketsAndMaybeMask >> maskShift;
}
};
//class_data_bits_t源码模仿
struct ff_class_data_bits_t {
uintptr_t objc_class;
};
//类源码模仿
struct ff_objc_class {
Class isa;
Class superclass;
struct ff_cache_t cache;
struct ff_class_data_bits_t bits;
};
void test(Class cls) {
//将person的类型转换成自定义的源码ff_objc_class类型，方便后续操作
struct ff_objc_class *pClass = (__bridge struct ff_objc_class *)(cls);
struct ff_cache_t cache = pClass->cache;
struct ff_bucket_t * buckets = cache.buckets();
struct ff_preopt_cache_t origin = cache._originalPreoptCache;
uintptr_t _bucketsAndMaybeMask = cache._bucketsAndMaybeMask;
uintptr_t mask = cache.mask();
NSLog(@"class: %p", pClass);
NSLog(@"_bucketsAndMaybeMask: 0x%lx, mask: %lu", _bucketsAndMaybeMask, mask);
//打印当前有多少个方法缓存与最大缓存数量
NSLog(@"%u-%u",origin.occupied,origin.capacity());
//打印buckets
for (int i = 0; i < mask + 1; i++ ) {
SEL sel = buckets[i]._sel;
IMP imp = buckets[i]._imp;
NSLog(@"%@-%p",NSStringFromSelector(sel),imp);
}
}
int main(int argc, char * argv[]) {
@autoreleasepool {
//给person分配内存
FFPerson *person = [FFPerson alloc];
//调用方法
[person likeGirls];
test(person.class);
[person likeFoods];
test(person.class);
[person likeflower];
test(person.class);
[person likeStudy];
test(person.class);
[person enjoyLift];
test(person.class);
[person lnspireCreativity];
test(person.class);
......
}
return UIApplicationMain(argc, argv, nil, NSStringFromClass([AppDelegate class]));
}
打印结果
2021-06-30 23:38:39.523507+0800 002-cache真机源码还原[2001:757686] -[FFPerson likeGirls]
2021-06-30 23:38:39.524594+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.524617+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x10002835b60e0, mask: 1
2021-06-30 23:38:39.524633+0800 002-cache真机源码还原[2001:757686] 1-1025
2021-06-30 23:38:39.524651+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.524706+0800 002-cache真机源码还原[2001:757686] likeGirls-0xe00f9f8102ef148c
2021-06-30 23:38:39.524728+0800 002-cache真机源码还原[2001:757686] -[FFPerson likeFoods]
2021-06-30 23:38:39.524868+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.525038+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x10002835b60e0, mask: 1
2021-06-30 23:38:39.525138+0800 002-cache真机源码还原[2001:757686] 2-1025
2021-06-30 23:38:39.525253+0800 002-cache真机源码还原[2001:757686] likeFoods-0xf64c0b0102ef1504
2021-06-30 23:38:39.525279+0800 002-cache真机源码还原[2001:757686] likeGirls-0xe00f9f8102ef148c
2021-06-30 23:38:39.525298+0800 002-cache真机源码还原[2001:757686] -[FFPerson likeflower]
2021-06-30 23:38:39.525312+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.525326+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x30002820b4c40, mask: 3
2021-06-30 23:38:39.525437+0800 002-cache真机源码还原[2001:757686] 1-1025
2021-06-30 23:38:39.525517+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.525783+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.525910+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.526071+0800 002-cache真机源码还原[2001:757686] likeflower-0x2d78768102ef14c8
2021-06-30 23:38:39.526236+0800 002-cache真机源码还原[2001:757686] -[FFPerson likeStudy]
2021-06-30 23:38:39.526347+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.526438+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x30002820b4c40, mask: 3
2021-06-30 23:38:39.526548+0800 002-cache真机源码还原[2001:757686] 2-1025
2021-06-30 23:38:39.526643+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.526745+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.526900+0800 002-cache真机源码还原[2001:757686] likeStudy-0xf26c730102ef1540
2021-06-30 23:38:39.527019+0800 002-cache真机源码还原[2001:757686] likeflower-0x2d78768102ef14c8
2021-06-30 23:38:39.527098+0800 002-cache真机源码还原[2001:757686] -[FFPerson enjoyLift]
2021-06-30 23:38:39.527195+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.527316+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x30002820b4c40, mask: 3
2021-06-30 23:38:39.527427+0800 002-cache真机源码还原[2001:757686] 3-1025
2021-06-30 23:38:39.527520+0800 002-cache真机源码还原[2001:757686] (null)-0x0
2021-06-30 23:38:39.527626+0800 002-cache真机源码还原[2001:757686] enjoyLift-0x8e617e8102ef157c
2021-06-30 23:38:39.527728+0800 002-cache真机源码还原[2001:757686] likeStudy-0xf26c730102ef1540
2021-06-30 23:38:39.527829+0800 002-cache真机源码还原[2001:757686] likeflower-0x2d78768102ef14c8
2021-06-30 23:38:39.528005+0800 002-cache真机源码还原[2001:757686] -[FFPerson lnspireCreativity]
2021-06-30 23:38:39.528130+0800 002-cache真机源码还原[2001:757686] class: 0x102ef9680
2021-06-30 23:38:39.528236+0800 002-cache真机源码还原[2001:757686] _bucketsAndMaybeMask: 0x30002820b4c40, mask: 3
2021-06-30 23:38:39.528349+0800 002-cache真机源码还原[2001:757686] 4-1025
2021-06-30 23:38:39.528450+0800 002-cache真机源码还原[2001:757686] lnspireCreativity-0xc6607b8102ef15b8
2021-06-30 23:38:39.528536+0800 002-cache真机源码还原[2001:757686] enjoyLift-0x8e617e8102ef157c
2021-06-30 23:38:39.528705+0800 002-cache真机源码还原[2001:757686] likeStudy-0xf26c730102ef1540
2021-06-30 23:38:39.528804+0800 002-cache真机源码还原[2001:757686] likeflower-0x2d78768102ef14c8
INIT_CACHE_SIZE_LOG2
#if CACHE_END_MARKER || (__arm64__ && !__LP64__)
INIT_CACHE_SIZE_LOG2 = 2,
#else
INIT_CACHE_SIZE_LOG2 = 1,
#endif
cache_fill_ratio
#if __arm__ || __x86_64__ || __i386__
#define CACHE_END_MARKER 1
static inline mask_t cache_fill_ratio(mask_t capacity) {
return capacity * 3 / 4;
}
#elif __arm64__ && !__LP64__
#define CACHE_END_MARKER 0
static inline mask_t cache_fill_ratio(mask_t capacity) {
return capacity * 3 / 4;
}
#elif __arm64__ && __LP64__
#define CACHE_END_MARKER 0
static inline mask_t cache_fill_ratio(mask_t capacity) {
return capacity * 7 / 8;
}
#define CACHE_ALLOW_FULL_UTILIZATION 1
#else
#error unknown architecture
#endif
结论：
iPhoneXs，初始缓存容量为2（INIT_CACHE_SIZE = (1 << 1)）- 真机扩容按照
7/8的规则，2倍扩容，所以扩容规律2->4->8->16->2^nx86_64架构初始容量为4（INIT_CACHE_SIZE = (1 << 2)）- 模拟器扩容按照
3/4的规则，2倍扩容，扩容规律4->8-> 16 ->2^(n+1)
拓展
源码释义补充
objc底层操作预留位，判断是否有preopt_cache_t，是给objc_msgSend使用的
static constexpr uintptr_t maskZeroBits = 4;
汇编指令：
本篇内容涉及的部分汇编指令：
| 指令 | 寄存器值 | 说明 |
|---|---|---|
| mov x0, #0xffff | 0xffff | 将0xffff放到寄存器x0 |
| movk x0, #0x3a44, lsl #16 | 0x3a44ffff | 将0x3a44放到寄存器x0，从16bit位开始存放（movk 保持其他位置不变，将值存入指定bit位） |
| tbnz x0, #0x0, 0x199c73240 | ...... | 判断x0的1号位置是否为0，不为零，跳转到0x199c73240，为0，向下执行 |
| eor x10, x10, x1 | x10 | 将x10与x1逻辑异或，结果存在x10 |
| ldr x13, [x0] | x13 | 将x0寄存器中的值取出放在x13寄存器 |
| and x10, x11, #0xffffffffffff | x10 | 将x11 & 0xffffffffffff,结果存在x10 |
| cmp x9, x1 | ...... | 比较x9和x1的大小 |
| b.ne 0x199c73210 | ...... | 不相等，跳转至0x199c73210 |
| b.hs 0x199c731f8 | ...... | 无符号小于，跳转至0x199c731f8 |
| b.hi 0x199c73224 | ...... | 无符号大于，跳转至0x199c73224 |
| b.hi 0x199c73224 | ...... | 无符号大于，跳转至0x199c73224 |
| b.eq 0x199c73204 | ...... | 等于，跳转至0x199c73204 |
| cbz x9, 0x199c73600 | ...... | 判断x9是否存在，不存在，则跳转0x199c73600 |
