底层原理-09-objc_msgSend之慢速查找

上一篇之前进行从class的缓存中查找，没查找到进入__objc_msgSend_uncached，接下来分析下慢速查找

1.慢速查找

源码：

       END_ENTRY __objc_msgSend_uncached


	STATIC_ENTRY __objc_msgLookup_uncached
	UNWIND __objc_msgLookup_uncached, FrameWithNoSaves

	// THIS IS NOT A CALLABLE C FUNCTION
	// Out-of-band p15 is the class to search

	MethodTableLookup
	ret

	END_ENTRY __objc_msgLookup_uncached

很简单，就是去方法列表查询，看下MethodTableLookup

.macro MethodTableLookup

	SAVE_REGS MSGSEND

	// lookUpImpOrForward(obj, sel, cls, LOOKUP_INITIALIZE | LOOKUP_RESOLVER)
	// receiver and selector already in x0 and x1
	mov	x2, x16
	mov	x3, #3
	bl	_lookUpImpOrForward

	// IMP in x0
	mov	x17, x0

	RESTORE_REGS MSGSEND

.endmacro

核心是_lookUpImpOrForward

1.1 _lookUpImpOrForward分析

在objc-msg-arm64.s并没有找到，全局搜索得到

IMP lookUpImpOrForward(id inst, SEL sel, Class cls, int behavior)
{
    const IMP forward_imp = (IMP)_objc_msgForward_impcache;//定义forward_imp
    IMP imp = nil;
    Class curClass;

    runtimeLock.assertUnlocked();//不上锁

    if (slowpath(!cls->isInitialized())) {
        // The first message sent to a class is often +new or +alloc, or +self
        // which goes through objc_opt_* or various optimized entry points.
        //
        // However, the class isn't realized/initialized yet at this point,
        // and the optimized entry points fall down through objc_msgSend,
        // which ends up here.
        //
        // We really want to avoid caching these, as it can cause IMP caches
        // to be made with a single entry forever.
        //
        // Note that this check is racy as several threads might try to
        // message a given class for the first time at the same time,
        // in which case we might cache anyway.
        behavior |= LOOKUP_NOCACHE;
    }//判断类是否初始化，没有把初始化方法进行标记

    // runtimeLock is held during isRealized and isInitialized checking
    // to prevent races against concurrent realization.

    // runtimeLock is held during method search to make
    // method-lookup + cache-fill atomic with respect to method addition.
    // Otherwise, a category could be added but ignored indefinitely because
    // the cache was re-filled with the old value after the cache flush on
    // behalf of the category.

    runtimeLock.lock();//上锁开始慢速查找，防止被写入

    // We don't want people to be able to craft a binary blob that looks like
    // a class but really isn't one and do a CFI attack.
    //
    // To make these harder we want to make sure this is a class that was
    // either built into the binary or legitimately registered through
    // objc_duplicateClass, objc_initializeClassPair or objc_allocateClassPair.
    checkIsKnownClass(cls);//判断当前的类是否是安全的类

    cls = realizeAndInitializeIfNeeded_locked(inst, cls, behavior & LOOKUP_INITIALIZE);//判断当前类是否初始化，和加载，没有的话就去做
    // runtimeLock may have been dropped but is now locked again
    runtimeLock.assertLocked();//再次上锁，防止被解开
    curClass = cls;

    // The code used to lookup the class's cache again right after
    // we take the lock but for the vast majority of the cases
    // evidence shows this is a miss most of the time, hence a time loss.
    //
    // The only codepath calling into this without having performed some
    // kind of cache lookup is class_getInstanceMethod().

// unreasonableClassCount()表示类的迭代上限。for循环类和父类
    for (unsigned attempts = unreasonableClassCount();;) {
        //苹果说虽然上锁了，但是多数的案例证据表示这个时候还是会错过缓存，相比之后的时间，所以在此进行缓存查找，先判断缓存是否发生变化
        if (curClass->cache.isConstantOptimizedCache(/* strict */true)) {
#if CONFIG_USE_PREOPT_CACHES
            imp = cache_getImp(curClass, sel);//发生变化了，如果curClass 的缓存有这个方法就返回imp
            if (imp) goto done_unlock;
            curClass = curClass->cache.preoptFallbackClass();
#endif
        } else {
            // curClass method list.//进行方法列表查询，进行二分法查找，找到了就返回imp 并把方法缓存起来
            Method meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                imp = meth->imp(false);
                goto done;
            }

            //当前类的父类是否为nil
            if (slowpath((curClass = curClass->getSuperclass()) == nil)) {
                // No implementation found, and method resolver didn't help.
                // Use forwarding.
                imp = forward_imp;//父类为nil，也没找到方法，imp进行消息转发，结束循环。
                break;
            }
        }

        // Halt if there is a cycle in the superclass chain.
        //父类链中存在循环的话，停止
        if (slowpath(--attempts == 0)) {
            _objc_fatal("Memory corruption in class list.");
        }

        // Superclass cache.父类的缓存
        imp = cache_getImp(curClass, sel);
        if (slowpath(imp == forward_imp)) {
            // Found a forward:: entry in a superclass.
            // Stop searching, but don't cache yet; call method
            // resolver for this class first.//找到父类的forward 就停止查询，但是不缓存方法，调用此类的方法解析器
            break;
        }
        if (fastpath(imp)) {
            // Found the method in a superclass. Cache it in this class.
            goto done;//父类找到了方法，就把缓存下来
        }
    }

    // No implementation found. Try method resolver once.
//没有找到的话，尝试再次查找
    if (slowpath(behavior & LOOKUP_RESOLVER)) {
        behavior ^= LOOKUP_RESOLVER;//动态方法的控制条件，只走一次
        return resolveMethod_locked(inst, sel, cls, behavior);
    }

 done:
    if (fastpath((behavior & LOOKUP_NOCACHE) == 0)) {
#if CONFIG_USE_PREOPT_CACHES
        while (cls->cache.isConstantOptimizedCache(/* strict */true)) {
            cls = cls->cache.preoptFallbackClass();
        }
#endif
//没有缓存过，使用缓存策略
        log_and_fill_cache(cls, imp, sel, inst, curClass);//插入缓存
    }
 done_unlock:
    runtimeLock.unlock();//解锁
    if (slowpath((behavior & LOOKUP_NIL) && imp == forward_imp)) {
        return nil;
    }
    return imp;
}
realizeAndInitializeIfNeeded_locked(id inst, Class cls, bool initialize)
{
    runtimeLock.assertLocked();
    if (slowpath(!cls->isRealized())) {//类没有实现，没有的话进行实现
        cls = realizeClassMaybeSwiftAndLeaveLocked(cls, runtimeLock);
        // runtimeLock may have been dropped but is now locked again
    }

    if (slowpath(initialize && !cls->isInitialized())) {//类有没有初始化，没有的话初始化该类
        cls = initializeAndLeaveLocked(cls, inst, runtimeLock);
        // runtimeLock may have been dropped but is now locked again

        // If sel == initialize, class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }
    return cls;
}

1. 首先runtime不上锁，如果当前对象没有初始化的话进行标识，这个方法可能是+alloc，+new，不去缓存这些方法。
2. 判断当前类是否加载和初始化，没有的话进行实现和初始化，为了后面确定它的父类链，在父类链中查找方法。
   3.苹果说这个时候还是有可能存在缓存，并且大多数证据表明如果有缓存的话，这个时候缓存的概率最大。所以在每次for循环当前类列表的时候再此进行一次缓存查找，找到直接返回imp
3. 没找到的话进行for循环套for循环，外面的for循环是当前类的父类列表，里面当前类的方法列表方法列表找到的话就返回imp，并缓存方法。当前的父类为nil，也没找到方法，进行方法转发。结束循环
4. 父类链存在循环的时候，终止循环。没有的话查找父类的缓存，有的话返回imp。没有的话返回nil 继续查找
5. 判断是否执行过动态解析方法，没有的话执行动态解析，有的话执行方法转发

1.2 getMethodNoSuper_nolock 二分法

getMethodNoSuper_nolock(Class cls, SEL sel)
{
    runtimeLock.assertLocked();

    ASSERT(cls->isRealized());
    // fixme nil cls?
    // fixme nil sel?

    auto const methods = cls->data()->methods();//获取当前类的方法列表
    //拿到方法列表的起始位置和末尾，开始和结尾不一样的话，每次开始位置向后移动一个位置
    for (auto mlists = methods.beginLists(),
              end = methods.endLists();
         mlists != end;
         ++mlists)
    {
        // <rdar://problem/46904873> getMethodNoSuper_nolock is the hottest
        // caller of search_method_list, inlining it turns
        // getMethodNoSuper_nolock into a frame-less function and eliminates
        // any store from this codepath.
        method_t *m = search_method_list_inline(*mlists, sel);//对sel和method进行比较，相同的话返回方法。
        if (m) return m;
    }

    return nil;
}

1.2.1 findMethodInSortedMethodList分析

findMethodInSortedMethodList(SEL key, const method_list_t *list, const getNameFunc &getName)
{
    ASSERT(list);

    auto first = list->begin();起始的地址
    auto base = first;
    decltype(first) probe;

    uintptr_t keyValue = (uintptr_t)key; //把方法转换为uintptr_t指针
    uint32_t count;

    for (count = list->count; count != 0; count >>= 1) {
        probe = base + (count >> 1);
        /* 假设方法列表 01，02，03，04，05，06,07,08 我们要找的是第一个元素01 probe = 0+8>>1 =0+4 = 4
        判断4号位这个方法是否和要查找的相等，相等话就找到了，没有的话 比较01和04谁大 01>04 = false 继续走第一步
        probe = 0 + (4 >> 1) = 0+2 = 2；
        判断2号位这个方法和01是否相等 01 != 02 & 01>02为false
        probe = 0 + 2>>1 = 0+1  = 1;
        就找到了。判断找有重名的分类方法
        假如要找07
        probe = 0+8>>1 =0+4 = 4
        判断4号位是04这个方法是否和要查找的相等，相等话就找到了，没有的话 比较07和04谁大 07>04 = ture
        base = 4+1 =5;
        count = 4-- = 2;
        probe = 5+ 2>>1 = 5+1 = 6;
        判断06和目标07是否相等，比较07和06谁大 07>06 = ture
        base = 6+1 =7
        count = 2-- =1；
        probe = 7+ 1>>1 = 7
        07和07相等
        就找到了。判断找有重名的分类方法

        */
        uintptr_t probeValue = (uintptr_t)getName(probe);

        if (keyValue == probeValue) {
            // `probe` is a match. 判断这个方法是否是要找的方法
            // Rewind looking for the *first* occurrence of this value.
            // This is required for correct category overrides.
            while (probe > first && keyValue == (uintptr_t)getName((probe - 1))) {//判断分类方法，分类有重名方法，执行分类的方法，分类排在前面
                probe--;
            }
            return &*probe;
        }

        if (keyValue > probeValue) {
            base = probe + 1;
            count--;
        }
    }

    return nil;
}

• 二分法在一个有序列表下我们要取28，第一次取中间的数，和要比较的下标进行比较，如果在上部分0～100，取50，50和28比较28小于50，说明28在50的区间，取0-50的中间数25，25和28比较28大于25则我们取25-50的中间数得到37.5在进行比较，不断的缩小目标值所在的区间，正常内存是1个字节是8bit是8的倍数，指针内存对象方式也是8字节对齐，不会有小数的，我这里随便举的列子。这样通过几次算法就能得到了100中的28，大大节约了时间，算法确实有魅力。

1.2.2 __objc_msgForward_impcache

STATIC_ENTRY __objc_msgForward_impcache

// No stret specialization.
b	__objc_msgForward

END_ENTRY __objc_msgForward_impcache

ENTRY __objc_msgForward

__attribute__((noreturn, cold)) void
objc_defaultForwardHandler(id self, SEL sel)
{
    _objc_fatal("%c[%s %s]: unrecognized selector sent to instance %p "
                "(no message forward handler is installed)",
                class_isMetaClass(object_getClass(self)) ? '+' : '-',
                object_getClassName(self), sel_getName(sel), self);
}

void *_objc_forward_handler = (void*)objc_defaultForwardHandler;

这里就是常见的报错打印。

2. 汇编验证

我们也可以通过汇编的方式验证下

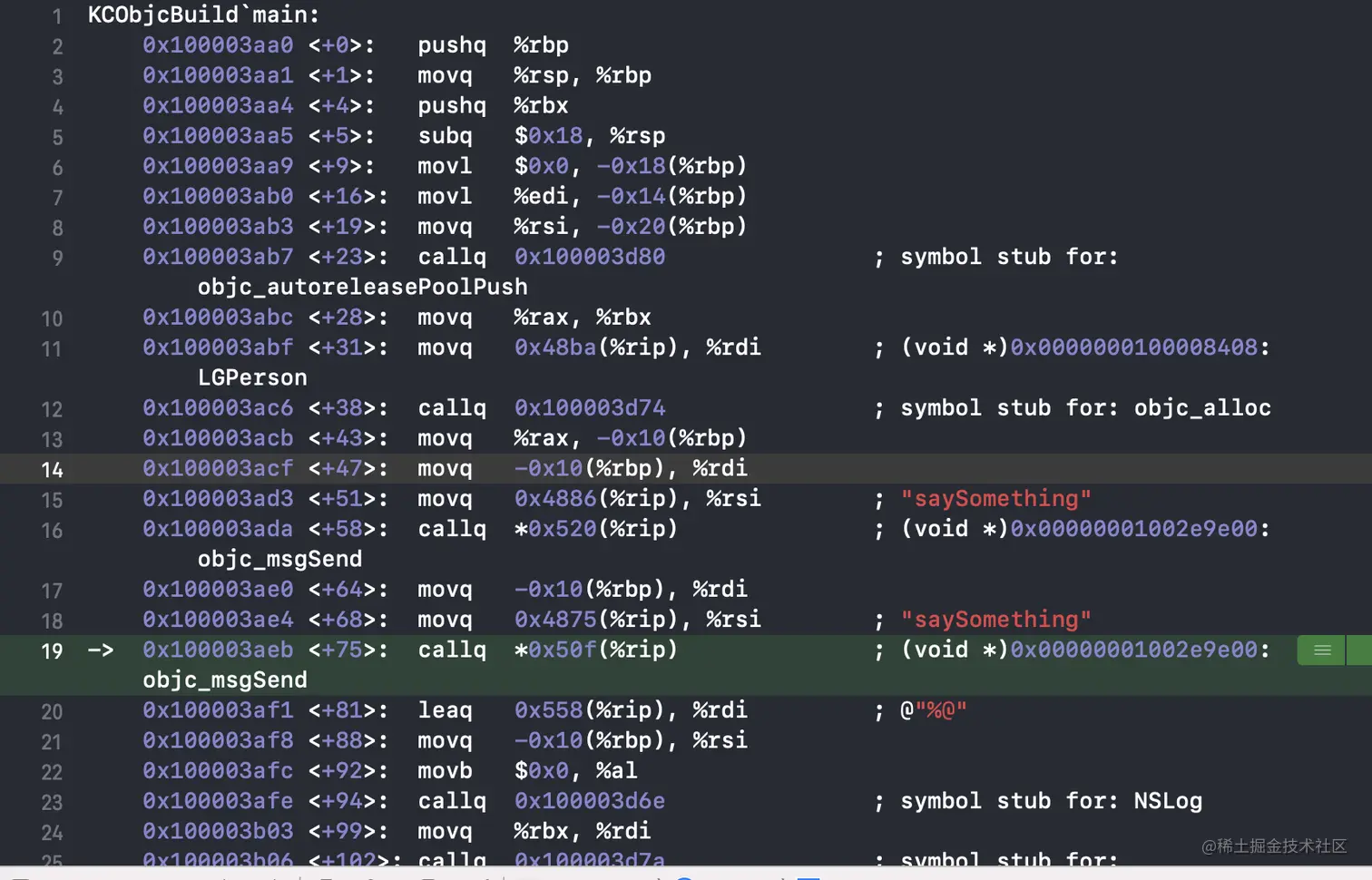

断点进入objc_msgSend

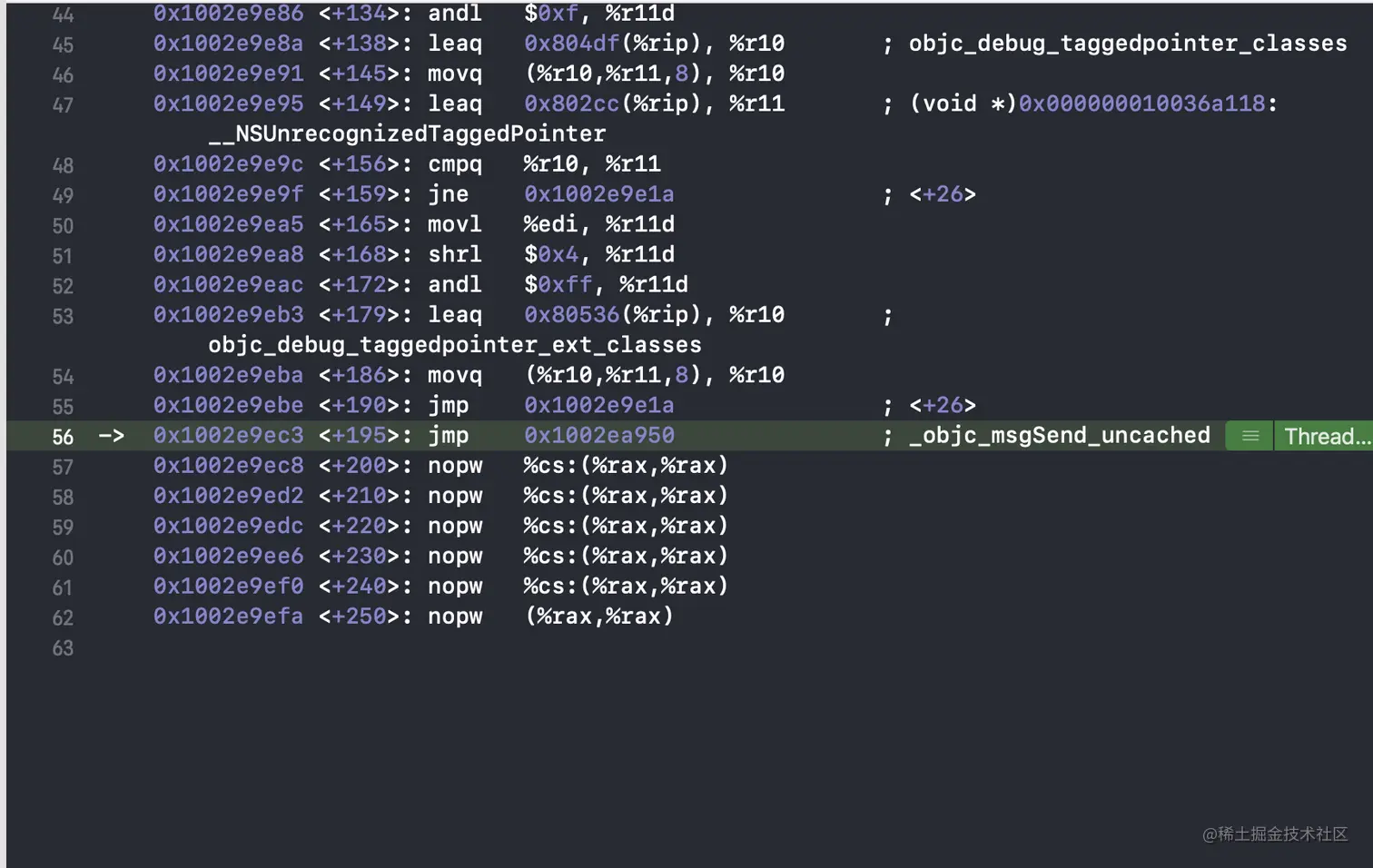

接着断点进入_objc_msgSend_uncached

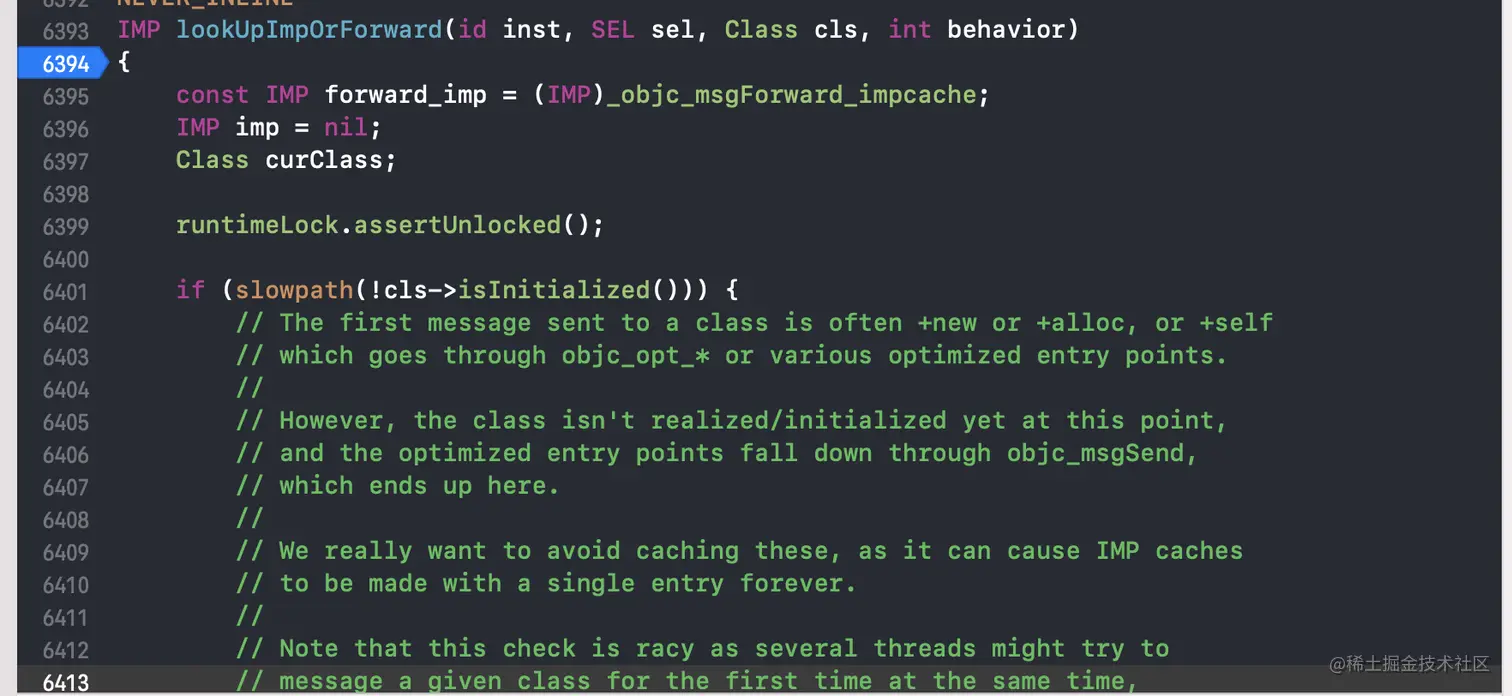

找到了lookUpImpOrForward在objc—runtime-new.mm文件的6394行

3.总结

• 在没有在当前类的缓存中查找到对应的方法时进入慢速查找，其中慢速查找还会进行1次快速查找，防止多线程下缓存写入
• 在当前类的父类链中循环查找方法列表，找到了，就缓存，返回imp。没找到，当前类的父类也是nil则进入一次动态方法解析，没走过就走，走过了则走消息转发。
• 在查找父类的方法列表的时候，会先查询父类缓存方法

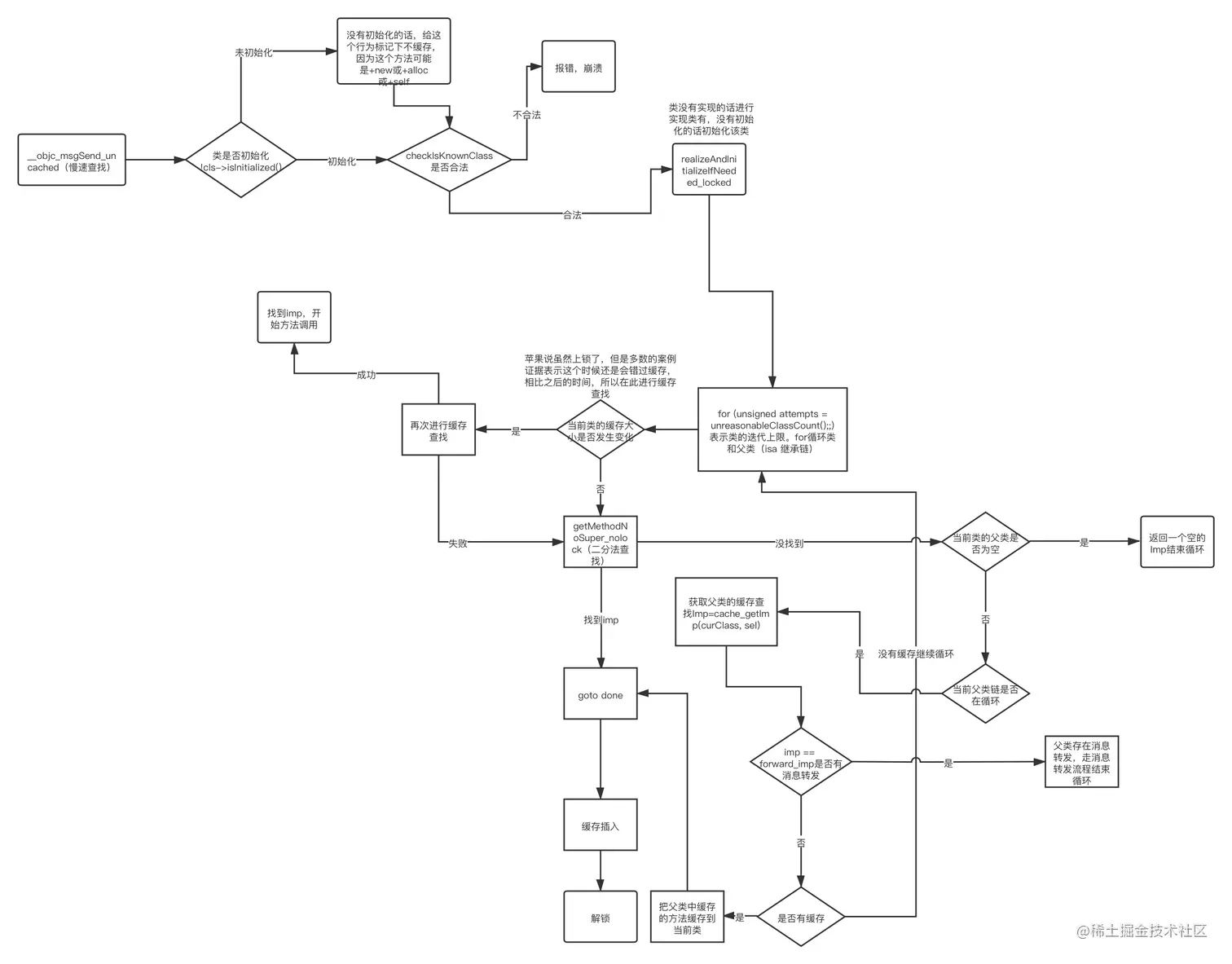

• 方法列表查询使用的是二分法查询。 大概的流程图如下：
