方法快速查找流程

沉默是金iOS
275 阅读3分钟

_objc_msgSend函数

_objc_msgSend汇编代码

	ENTRY _objc_msgSend
	UNWIND _objc_msgSend, NoFrame

	cmp	p0, #0			// nil check and tagged pointer check
#if SUPPORT_TAGGED_POINTERS
	b.le	LNilOrTagged		//  (MSB tagged pointer looks negative)
#else
	b.eq	LReturnZero
#endif
	ldr	p13, [x0]		// p13 = isa
	GetClassFromIsa_p16 p13, 1, x0	// p16 = class
LGetIsaDone:
	// calls imp or objc_msgSend_uncached
	CacheLookup NORMAL, _objc_msgSend, __objc_msgSend_uncached
  1. cmp p0, #0判断p0-第一个参数是否为空，如为空进入2，否则进入3
  2. 判断SUPPORT_TAGGED_POINTERS是否为true，为true，调用LNilOrTagged，否则调用LReturnZero
  3. 将isa指针存放到p13中
  4. 将class指针存放到p16中，可以看出是将p13&#ISA_MASK之后，存到了p16中。
.macro GetClassFromIsa_p16 src, needs_auth, auth_address
ExtractISA p16, \src, \auth_address
.endmacro

.macro ExtractISA
	and    $0, $1, #ISA_MASK
.endmacro
//只查看arm64架构，其它代码省略
  1. 类找到后，进入CacheLookUp查找流程

CacheLookUp

这里只查看CACHE_MASK_STORAGE_HIGH_16环境

.macro CacheLookup Mode, Function, MissLabelDynamic, MissLabelConstant

	mov	x15, x16			// stash the original isa
LLookupStart\Function:
	// p1 = SEL, p16 = isa
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
	ldr	p10, [x16, #CACHE]				// p10 = mask|buckets
	lsr	p11, p10, #48			// p11 = mask
	and	p10, p10, #0xffffffffffff	// p10 = buckets
	and	w12, w1, w11			// x12 = _cmd & mask
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
	ldr	p11, [x16, #CACHE]			// p11 = mask|buckets
#if CONFIG_USE_PREOPT_CACHES
#if __has_feature(ptrauth_calls)
	tbnz	p11, #0, LLookupPreopt\Function
	and	p10, p11, #0x0000ffffffffffff	// p10 = buckets
#else
	and	p10, p11, #0x0000fffffffffffe	// p10 = buckets
	tbnz	p11, #0, LLookupPreopt\Function
#endif
	eor	p12, p1, p1, LSR #7
	and	p12, p12, p11, LSR #48		// x12 = (_cmd ^ (_cmd >> 7)) & mask
#else
	and	p10, p11, #0x0000ffffffffffff	// p10 = buckets
	and	p12, p1, p11, LSR #48		// x12 = _cmd & mask
#endif // CONFIG_USE_PREOPT_CACHES
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
	ldr	p11, [x16, #CACHE]				// p11 = mask|buckets
	and	p10, p11, #~0xf			// p10 = buckets
	and	p11, p11, #0xf			// p11 = maskShift
	mov	p12, #0xffff
	lsr	p11, p12, p11			// p11 = mask = 0xffff >> p11
	and	p12, p1, p11			// x12 = _cmd & mask
#else
#error Unsupported cache mask storage for ARM64.
#endif

	add	p13, p10, p12, LSL #(1+PTRSHIFT)
						// p13 = buckets + ((_cmd & mask) << (1+PTRSHIFT))

						// do {
1:	ldp	p17, p9, [x13], #-BUCKET_SIZE	//     {imp, sel} = *bucket--
	cmp	p9, p1				//     if (sel != _cmd) {
	b.ne	3f				//         scan more
						//     } else {
2:	CacheHit \Mode				// hit:    call or return imp
						//     }
3:	cbz	p9, \MissLabelDynamic		//     if (sel == 0) goto Miss;
	cmp	p13, p10			// } while (bucket >= buckets)
	b.hs	1b

#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
	add	p13, p10, w11, UXTW #(1+PTRSHIFT)
						// p13 = buckets + (mask << 1+PTRSHIFT)
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
	add	p13, p10, p11, LSR #(48 - (1+PTRSHIFT))
						// p13 = buckets + (mask << 1+PTRSHIFT)
						// see comment about maskZeroBits
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
	add	p13, p10, p11, LSL #(1+PTRSHIFT)
						// p13 = buckets + (mask << 1+PTRSHIFT)
#else
#error Unsupported cache mask storage for ARM64.
#endif
	add	p12, p10, p12, LSL #(1+PTRSHIFT)
						// p12 = first probed bucket

						// do {
4:	ldp	p17, p9, [x13], #-BUCKET_SIZE	//     {imp, sel} = *bucket--
	cmp	p9, p1				//     if (sel == _cmd)
	b.eq	2b				//         goto hit
	cmp	p9, #0				// } while (sel != 0 &&
	ccmp	p13, p12, #0, ne		//     bucket > first_probed)
	b.hi	4b

LLookupEnd\Function:
LLookupRecover\Function:
	b	\MissLabelDynamic

//省略部分代码

.endmacro
  1. ldr p11, [x16, #CACHE],x16即class平移16位得到cache，存到p11
#define CACHE            (2 * __SIZEOF_POINTER__)

and	p10, p11, #0x0000fffffffffffe	// p10 = buckets
tbnz	p11, #0, LLookupPreopt\Function

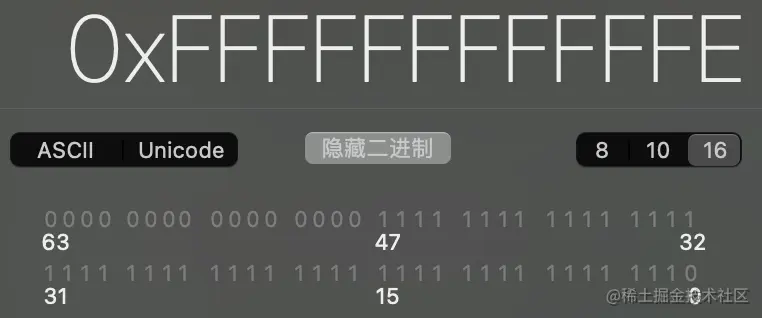

image.png 2. 根据掩码获取buckets，存到p10
3. 将_cmd右移7位，并异或运算eor，赋值给p12,p11右移48位获取mask，然后p12和mask通过and运算获取下标，再赋值给p12，这样就获得了_cmd的下标index。

eor	p12, p1, p1, LSR #7
and	p12, p12, p11, LSR #48		// x12 = (_cmd ^ (_cmd >> 7)) & mask
  1. PTRSHIFT = 3，将p12左移4位，得到index*16，然后加上buckets首地址的话，获取到当前_cmd对应的bucket地址，存放到p13。
add    p13, p10, p12, LSL #(1+PTRSHIFT)  // p13 = buckets + ((_cmd & mask) << (1+PTRSHIFT))
  1. 开始循环查找，
  • 根据x13平移得到{imp, sel}，存放到p17和p9，比对p9和p1，如相同CacheHit，不同，进入3。
  • 如果p9为0，进入MissLabelDynamic，否则说明存在下标冲突；则以当前获取的bucket的地址与首个bucket的地址进行比较；
  • 如果p13大于等于p10首地址，向前平移1个单位，继续比较流程，循环查找。
1:	ldp	p17, p9, [x13], #-BUCKET_SIZE	//     {imp, sel} = *bucket--
	cmp	p9, p1				//     if (sel != _cmd) {
	b.ne	3f				//         scan more
						//     } else {
2:	CacheHit \Mode				// hit:    call or return imp
						//     }
3:	cbz	p9, \MissLabelDynamic		//     if (sel == 0) goto Miss;
	cmp	p13, p10			// } while (bucket >= buckets)
	b.hs	1b
  1. 如果仍然找不到，定位到buckets最后一个位置，存到p13
add	p13, p10, p11, LSR #(48 - (1+PTRSHIFT)) // p13 = buckets + (mask << 1+PTRSHIFT)
						// see comment about maskZeroBits

7.重复循环查找流程

add	p12, p10, p12, LSL #(1+PTRSHIFT)
4:	ldp	p17, p9, [x13], #-BUCKET_SIZE	//     {imp, sel} = *bucket--
	cmp	p9, p1				//     if (sel == _cmd)
	b.eq	2b				//         goto hit
	cmp	p9, #0				// } while (sel != 0 &&
	ccmp	p13, p12, #0, ne		//     bucket > first_probed)
	b.hi	4b

8.如果依然未找到，进入MissLabelDynamic

CacheHit

CacheLookup中，Mode传入的为NORMAL，执行TailCallCachedImp，TailCallCachedImp返回imp

.macro CacheHit
.if $0 == NORMAL
	TailCallCachedImp x17, x10, x1, x16	// authenticate and call imp
.elseif $0 == GETIMP
	mov	p0, p17
	cbz	p0, 9f			// don't ptrauth a nil imp
	AuthAndResignAsIMP x0, x10, x1, x16	// authenticate imp and re-sign as IMP
9:	ret				// return IMP
.elseif $0 == LOOKUP
	// No nil check for ptrauth: the caller would crash anyway when they
	// jump to a nil IMP. We don't care if that jump also fails ptrauth.
	AuthAndResignAsIMP x17, x10, x1, x16	// authenticate imp and re-sign as IMP
	cmp	x16, x15
	cinc	x16, x16, ne			// x16 += 1 when x15 != x16 (for instrumentation ; fallback to the parent class)
	ret				// return imp via x17
.else
.abort oops
.endif
.endmacro

.macro TailCallCachedImp
	// $0 = cached imp, $1 = address of cached imp, $2 = SEL, $3 = isa
	eor	$0, $0, $3
	br	$0
.endmacro

MissLabelDynamic即__objc_msgSend_uncached

MissLabelDynamic为CacheLookup第二个参数，为__objc_msgSend_uncached，查看__objc_msgSend_uncached，可以看到如果没查找到，进入MethodTableLookup，最终进入_lookUpImpOrForward方法，进入慢速查找流程。

        STATIC_ENTRY __objc_msgSend_uncached
	UNWIND __objc_msgSend_uncached, FrameWithNoSaves

	// THIS IS NOT A CALLABLE C FUNCTION
	// Out-of-band p15 is the class to search

	MethodTableLookup
	TailCallFunctionPointer x17

	END_ENTRY __objc_msgSend_uncached

.macro MethodTableLookup

	SAVE_REGS MSGSEND

	// lookUpImpOrForward(obj, sel, cls, LOOKUP_INITIALIZE | LOOKUP_RESOLVER)
	// receiver and selector already in x0 and x1
	mov	x2, x16
	mov	x3, #3
	bl	_lookUpImpOrForward

	// IMP in x0
	mov	x17, x0

	RESTORE_REGS MSGSEND

.endmacro
