一、简介
基于matlab 机器视觉颜色识别系统
二、源代码
function varargout = maingui(varargin)
% MAINGUI M-file for maingui.fig
% MAINGUI, by itself, creates a new MAINGUI or raises the existing
% singleton*.
%
% H = MAINGUI returns the handle to a new MAINGUI or the handle to
% the existing singleton*.
%
% MAINGUI('CALLBACK',hObject,eventData,handles,...) calls the local
% function named CALLBACK in MAINGUI.M with the given input arguments.
%
% MAINGUI('Property','Value',...) creates a new MAINGUI or raises the
% existing singleton*. Starting from the left, property value pairs are
% applied to the GUI before maingui_OpeningFunction gets called. An
% unrecognized property name or invalid value makes property application
% stop. All inputs are passed to maingui_OpeningFcn via varargin.
%
% *See GUI Options on GUIDE's Tools menu. Choose "GUI allows only one
% instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES
% Edit the above text to modify the response to help maingui
% Last Modified by GUIDE v2.5 03-Mar-2008 14:56:06
% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name', mfilename, ...
'gui_Singleton', gui_Singleton, ...
'gui_OpeningFcn', @maingui_OpeningFcn, ...
'gui_OutputFcn', @maingui_OutputFcn, ...
'gui_LayoutFcn', [] , ...
'gui_Callback', []);
if nargin && ischar(varargin{1})
gui_State.gui_Callback = str2func(varargin{1});
end
if nargout
[varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT
% --- Executes just before maingui is made visible.
function maingui_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% varargin command line arguments to maingui (see VARARGIN)
% warning off;
splash('thirdeye.kon','png');
axes(handles.axes2); %initialise axes where color will be displayed
img = im2uint8(zeros([128 128 3])); %set it to black color initially
handles.h2 = image(img);
axis off;
axes(handles.axes1);%initialise axes where preview will be displayed
axis off; drawnow;
axes(handles.axes1);
handles.h1 = imshow(im2uint8(ones([240 320 3])));%intial white colored image on the axis
try %intialise sound card for sound alert
[y,Fs] = wavread('warning.wav');% read a warning wave file
handles.player = audioplayer(y, Fs);
catch %if sound card not present display following error message
errstr = lasterr;
h2 = errordlg(['Sound Card Not Present OR ' errstr] ,'Sound Card Error');
setWindowOnTop(h2,'true');
end
handles.guifig = gcf;
try
if exist('startupdata.mat','file') %load startup data. This contains information about initial conditions set. If not found GUI will load its default values
load startupdata
set(handles.animation,'Checked',animation);
set(handles.sound_alert,'Checked',sound_alert);
set(handles.auto_hide,'Checked',auto_hide);
set(handles.on_top,'Checked',on_top);
if strcmp(get(handles.on_top,'Checked'),'on')
setWindowOnTop(handles.guifig,'true');
end
end
catch
errordlg(lasterr);
end
handles.displayperiod = 2; %pause for the amount specified
handles.tmr = timer('TimerFcn', {@TmrFcn,handles.guifig},'BusyMode','Queue',...
'ExecutionMode','fixedRate','Period',0.1);%intialise a Timer Function
guidata(handles.guifig, handles);
% Choose default command line output for maingui
handles.output = hObject;
% Update handles structure
guidata(hObject, handles);
% UIWAIT makes maingui wait for user response (see UIRESUME)
% uiwait(handles.figure1);
% --- Outputs from this function are returned to the command line.
function varargout = maingui_OutputFcn(hObject, eventdata, handles)
% varargout cell array for returning output args (see VARARGOUT);
% hObject handle to figure
% eventdata reserved - to be defined in a future version of MATLAB
% handles structure with handles and user data (see GUIDATA)
% Get default command line output from handles structure
varargout{1} = handles.output;
% ---Executes on Timer Event
function TmrFcn(src,event,handles)
handles = guidata(handles);
pause(handles.displayperiod);%pause for the number of seconds intialised initially
str = [pwd '\product images'];%product images stored here
names = dir([str '\*.jpg']);
rand_num = random_integer_generator(1,numel(names),1);%generates a random number from the number of JPG files present in the product directory
handles.reference_image = imread([str '\' names(rand_num,1).name]);% reads any one random image
drawnow;
set(handles.h1,'CData',handles.reference_image);% displays the randome image on the axis
if strcmp(get(handles.auto_hide,'Checked'),'on')
setWindowState(handles.guifig,'restore'); %sets the gui figure to restore
drawnow;
end
if isfield(handles,'second') %the color from first variable is stored in variable second. Not true while startup
if ~strcmp(handles.first,'NOCOLOR')
handles.second = handles.first;
end
end
%%%%%%%%%%%%%%%%%%COLOR MATCHING FUNCTION
[output_color output_image] = validate_color_new(handles.reference_image,handles.data);%new main function for finding color match
%%%%%%%%%%%%%%%%%%%%
set(handles.color_text,'string',upper(output_color)); %sets the string value the name of the color
img = im2uint8(zeros([128 128 3])); %create a img file which can display the color
val = output_image(round(size(output_image,1)/2),round(size(output_image,2)/2),:);
val = squeeze(val)';
img(:,:,1) = val(1);
img(:,:,2) = val(2);
img(:,:,3) = val(3);
set(handles.h2,'CData',img);drawnow; %outputs the color on this img
handles.first = output_color; %store the output color in first variable
if ~strcmp(output_color,'NOCOLOR') %if color cannot be identified from the stored colors then dont give audiovisual indication
if ~isfield(handles,'second') %check condition in first run, if condition is not satisfied then second varaible = first variable
handles.second = output_color;
end
if ~strcmp(handles.first,handles.second) %if colors are different then do the following activity
try%necessary if sound card is not present
if strcmp(get(handles.sound_alert,'Checked'),'on')%give and alert only if sound_alert is set to on
play(handles.player);
end
catch
errordlg(lasterr);
end
if strcmp(get(handles.animation,'Checked'),'on') %do the animation if animation is set to on
model_color(output_color);%calls a model wearing the color.Default time duration of 3 seconds
end
end
end
if strcmp(get(handles.auto_hide,'Checked'),'on')
pause(handles.displayperiod);%pause for the number of seconds intialised initially
setWindowState(handles.guifig,'minimize'); %sets the gui figure to minimize
end
if strcmp(get(handles.auto_hide,'Checked'),'off')%This is useful to keep a pause of the same time irrespective of auto hide on or off
pause(handles.displayperiod);%pause for the number of seconds intialised initially
end

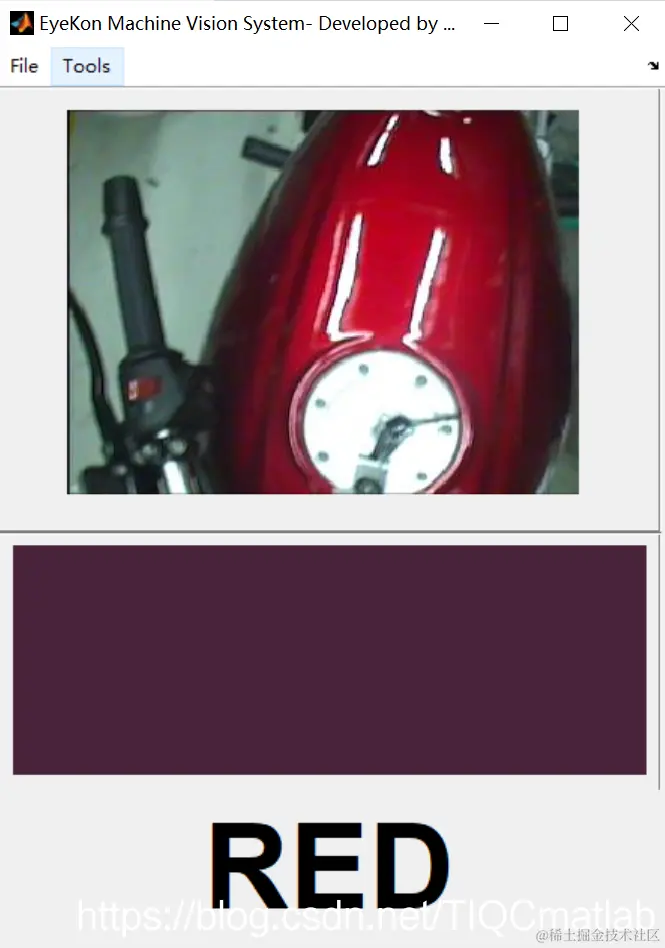

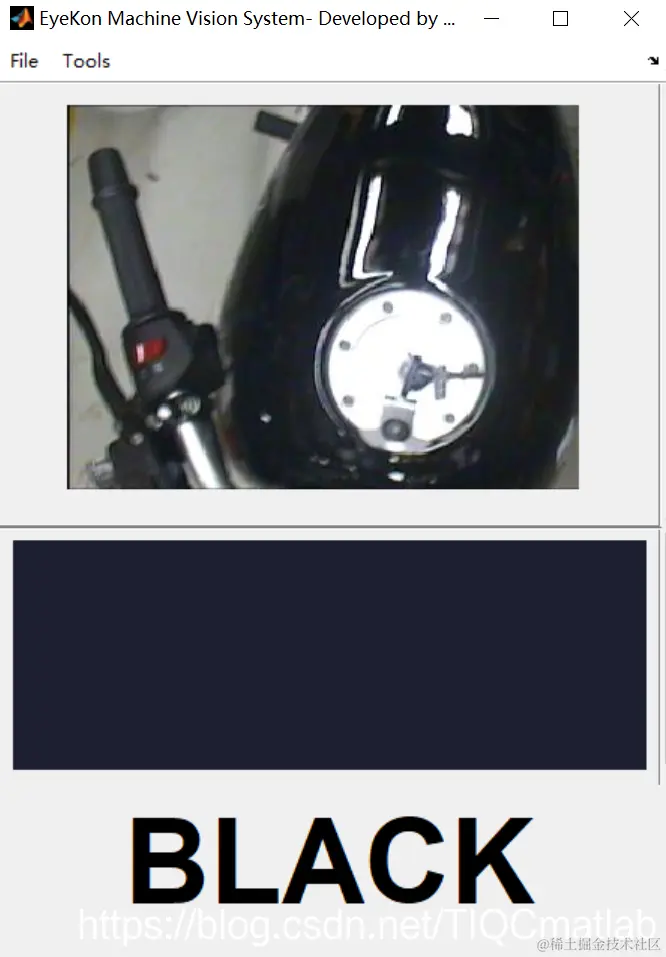

三、运行结果
