从上一节中我们可以看到cache的insert流程是从objc_msgSend中发出的，我们来分析objc_msgSend的过程。前面分析中有一些没有没在流程中的代码，也可以直接看总结部分。
汇编分析objc_msgSend
demo代码
Person *p = [Person alloc];
[p sayHappy];
[p sayHappy];会调用objc_msgSend这个方法，这是一个消息查找的过程，消息查找的本质是通过sel来找到imp这样一个流程。 搜索818源码，objc_msgSend发现有很多，我们选取objc-msg-arm64.s的源码分析。
//入口

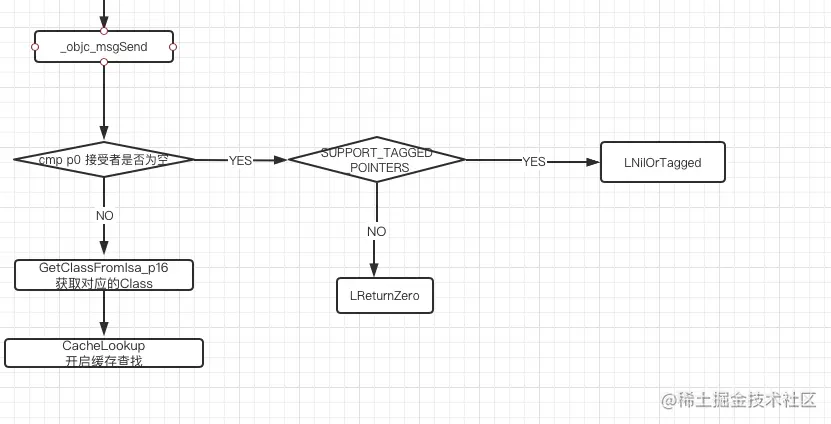

ENTRY _objc_msgSend
UNWIND _objc_msgSend, NoFrame
//p0是p，消息的接受者
//对比p0是否为空
cmp p0, #0 // nil check and tagged pointer check
//如果是tagged_pointers, 走LNilOrTagged
#if SUPPORT_TAGGED_POINTERS
b.le LNilOrTagged // (MSB tagged pointer looks negative)
#else //否则 LReturnZero
b.eq LReturnZero
#endif
//x0是对象的首地址，即isa
ldr p13, [x0]// p13 = isa
//查找class
GetClassFromIsa_p16 p13, 1, x0 // p16 = class
LGetIsaDone:
// calls imp or objc_msgSend_uncached
CacheLookup NORMAL, _objc_msgSend, __objc_msgSend_uncached
我们来看一下GetClassFromIsa_p16的过程
// src=isa， needs_auth=1, auth_address=isa
//走ExtractISA
.macro GetClassFromIsa_p16 src, needs_auth, auth_address /* note: auth_address is not required if !needs_auth */
#if SUPPORT_INDEXED_ISA
// Indexed isa
mov p16, \src // optimistically set dst = src
tbz p16, #ISA_INDEX_IS_NPI_BIT, 1f // done if not non-pointer isa
// isa in p16 is indexed
adrp x10, _objc_indexed_classes@PAGE
add x10, x10, _objc_indexed_classes@PAGEOFF
ubfx p16, p16, #ISA_INDEX_SHIFT, #ISA_INDEX_BITS // extract index
ldr p16, [x10, p16, UXTP #PTRSHIFT] // load class from array
1:
#elif __LP64__
.if \needs_auth == 0 // _cache_getImp takes an authed class already
mov p16, \src
.else
// 64-bit packed isa
ExtractISA p16, \src, \auth_address
.endif
#else
// 32-bit raw isa
mov p16, \src
#endif
.endmacro
// src=isa auth_address=isa
//isa & #ISA_MASK = $0 查找class的过程
.macro ExtractISA
and $0, $1, #ISA_MASK
.endmacro
我们看到GetClassFromIsa_p16是一个查找class的过程，为什么找class呢，因为从前面的分析中我们知道class中才存在cache_t这些信息。
找到了class开始走CacheLookup NORMAL, _objc_msgSend, __objc_msgSend_uncached流程
//CacheLookup NORMAL, _objc_msgSendSuper2, __objc_msgSend_uncached
//mode = NORMAL
//Function = _objc_msgSendSuper2
//MissLabelDynamic = __objc_msgSend_uncached
.macro CacheLookup Mode, Function, MissLabelDynamic, MissLabelConstant
mov x15, x16 // stash the original isa
LLookupStart\Function:
// p1 = SEL, p16 = isa
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
ldr p10, [x16, #CACHE] // p10 = mask|buckets
lsr p11, p10, #48 // p11 = mask
and p10, p10, #0xffffffffffff // p10 = buckets
and w12, w1, w11 // x12 = _cmd & mask
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16 //走这里
ldr p11, [x16, #CACHE] // p11 = mask|buckets
#if CONFIG_USE_PREOPT_CACHES
#if __has_feature(ptrauth_calls)
tbnz p11, #0, LLookupPreopt\Function
and p10, p11, #0x0000ffffffffffff // p10 = buckets
#else //走这里
//-(cache) & 0x0000ffffffffffff ，mask高16位抹零，得到buckets 存入p10寄存器-- 即去掉mask，留下buckets
and p10, p11, #0x0000fffffffffffe // p10 = buckets
tbnz p11, #0, LLookupPreopt\Function
#endif
//走这里，找index
eor p12, p1, p1, LSR #7
and p12, p12, p11, LSR #48 // x12 = (_cmd ^ (_cmd >> 7)) & mask
#else
and p10, p11, #0x0000ffffffffffff // p10 = buckets
and p12, p1, p11, LSR #48 // x12 = _cmd & mask
#endif // CONFIG_USE_PREOPT_CACHES
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
ldr p11, [x16, #CACHE] // p11 = mask|buckets
and p10, p11, #~0xf // p10 = buckets
and p11, p11, #0xf // p11 = maskShift
mov p12, #0xffff
lsr p11, p12, p11 // p11 = mask = 0xffff >> p11
and p12, p1, p11 // x12 = _cmd & mask
#else
#error Unsupported cache mask storage for ARM64.
#endif
....
add p13, p10, p12, LSL #(1+PTRSHIFT)
// p13 = buckets + ((_cmd & mask) << (1+PTRSHIFT))
// do {
1: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
cmp p9, p1 // if (sel != _cmd) {
b.ne 3f // scan more
// } else {
2: CacheHit \Mode // hit: call or return imp
// }
3: cbz p9, \MissLabelDynamic // if (sel == 0) goto Miss;
cmp p13, p10 // } while (bucket >= buckets)
b.hs 1b
#define CACHE_MASK_STORAGE CACHE_MASK_STORAGE_HIGH_16
我们选的是arm64走ldr p11, [x16, #CACHE]
#define CACHE (2 * __SIZEOF_POINTER__)
#define CLASS __SIZEOF_POINTER__
ldr p11, [x16, #CACHE] 就为 ldr p11, [x16, 16]
即x16平移16存到p11里面。这是一个找cache_t的类型，p11存的是cache_t
#if defined(__arm64__) && TARGET_OS_IOS && !TARGET_OS_SIMULATOR && !TARGET_OS_MACCATALYST
#define CONFIG_USE_PREOPT_CACHES 1
#else
#define CONFIG_USE_PREOPT_CACHES 0
#endif
#define CONFIG_USE_PREOPT_CACHES 1则走
and p10, p11, #0x0000fffffffffffe // p10 = buckets
tbnz p11, #0, LLookupPreopt\Function
❓为什么是p10 = buckets
(cache) & 0x0000ffffffffffff ，mask高16位抹零，得到buckets 存入p10寄存器-- 即去掉mask，留下buckets
p11的0号位置不为0则走LLookupPreopt
//--- PTRSHIFT=3 LSL #(1+PTRSHIFT) 实际含义是<<4 即*16
//(_cmd & mask)是取index，取出index index << 4即index *16得到bucket
//--- p13是下标 p10是buckets数组首地址，下标 * 1<<4(即16) 得到实际内存的偏移量，通过buckets的首地址偏移，获取bucket存入p13寄存器
add p13, p10, p12, LSL #(1+PTRSHIFT)
// p13 = buckets + ((_cmd & mask) << (1+PTRSHIFT))
//从x13（即p13）中取出 bucket 分别将imp和sel 存入 p17（存储imp） 和 p9（存储sel // do {
1: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
//比较sel和p1
cmp p9, p1 // if (sel != _cmd) {
//如果不相等，即么有找到，跳转3f
b.ne 3f // scan more
//缓存命中 // } else {
2: CacheHit \Mode // hit: call or return imp
// }
3: cbz p9, \MissLabelDynamic // if (sel == 0) gotoMiss;
cmp p13, p10 // } while (bucket >= buckets)不满足则跳出while循环走到下面
//跳转到第一步，继续对比
b.hs 1b
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
add p13, p10, w11, UXTW #(1+PTRSHIFT)
// p13 = buckets + (mask << 1+PTRSHIFT)
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
//走这里，p13指向了最后一个bucket
add p13, p10, p11, LSR #(48 - (1+PTRSHIFT))
// p13 = buckets + (mask << 1+PTRSHIFT)
// see comment about maskZeroBits
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
add p13, p10, p11, LSL #(1+PTRSHIFT)
// p13 = buckets + (mask << 1+PTRSHIFT)
#else
#error Unsupported cache mask storage for ARM64.
#endif
add p12, p10, p12, LSL #(1+PTRSHIFT)
// p12 = first probed bucket
//开启了一轮从最后面到第一个 first_probed的遍历循环 // do {
4: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
cmp p9, p1 // if (sel == _cmd)
b.eq 2b // goto hit
cmp p9, #0 // } while (sel != 0 &&
ccmp p13, p12, #0, ne // bucket > first_probed)
b.hi 4b
LLookupEnd\Function:
LLookupRecover\Function:
b \MissLabelDynamic
如果没有找到，则走MissLabelDynamic ,即调用CacheLoopup的时候传递的__objc_msgSend_uncached
我们找到__objc_msgSend_uncached
STATIC_ENTRY __objc_msgSend_uncached
UNWIND __objc_msgSend_uncached, FrameWithNoSaves
// THIS IS NOT A CALLABLE C FUNCTION
// Out-of-band p15 is the class to search
MethodTableLookup
TailCallFunctionPointer x17
END_ENTRY __objc_msgSend_uncached
看一下TailCallFunctionPointer
.macro TailCallFunctionPointer
// $0 = function pointer value
br $0
.endmacro
只是一个返回，所以重点应该在MethodTableLookup
.macro MethodTableLookup
SAVE_REGS MSGSEND
// lookUpImpOrForward(obj, sel, cls, LOOKUP_INITIALIZE | LOOKUP_RESOLVER)
// receiver and selector already in x0 and x1
mov x2, x16
mov x3, #3
bl _lookUpImpOrForward
// IMP in x0
mov x17, x0
RESTORE_REGS MSGSEND
.endmacro
我们看到调用了_lookUpImpOrForward，然后全局没有搜到，说明接下来的过程已经不在汇编里面，搜索lookUpImpOrForward，则看到在objc-runtime-new.mm中
总结
上面的整体来说比较乱，我们只把有用的摘出来进行一个总结：
ENTRY _objc_msgSend
//如果接收者不为空
//获取到接收者对应的class
ldr p13, [x0] // p13 = isa
GetClassFromIsa_p16 p13, 1, x0 // p16 = class
//开始进行缓存查找
CacheLookup NORMAL, _objc_msgSend, __objc_msgSend_uncached
//平移16找到cache
ldr p11, [x16, #CACHE] // p11 = mask|buckets
//根据buckets存在cache中的后48位，取出buckets 补充中有解释(补充1)
and p10, p11, #0x0000fffffffffffe // p10 = buckets
//取index 补充中有源码解释（补充2）
eor p12, p1, p1, LSR #7
and p12, p12, p11, LSR #48 // x12 = (_cmd ^ (_cmd >> 7)) & mask
//获取到对应的bucket
add p13, p10, p12, LSL #(1+PTRSHIFT)
// p13 = buckets + ((_cmd & mask) << (1+PTRSHIFT))
//下面进行循环遍历查找，是从index一直--往前查找， 补充中有解释(补充3)
1: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
cmp p9, p1 // if (sel != _cmd) {
b.ne 3f // scan more
// } else {
2: CacheHit \Mode // hit: call or return imp
// }
3: cbz p9, \MissLabelDynamic // if (sel == 0) goto Miss;
cmp p13, p10 // } while (bucket >= buckets)
b.hs 1b
//如果没有找到，则将p13移到最后一个bucket的位置
add p13, p10, p11, LSR #(48 - (1+PTRSHIFT))
// p13 = buckets + (mask << 1+PTRSHIFT)
add p12, p10, p12, LSL #(1+PTRSHIFT)
// p12 = first probed bucket
//从最后一个向前--遍历到firstprobed
// do {
4: ldp p17, p9, [x13], #-BUCKET_SIZE // {imp, sel} = *bucket--
cmp p9, p1 // if (sel == _cmd)
b.eq 2b // goto hit
cmp p9, #0 // } while (sel != 0 &&
ccmp p13, p12, #0, ne // bucket > first_probed)
b.hi 4b
LLookupEnd\Function:
//没有找到走__objc_msgSend_uncached（MethodTableLookup的实参）
LLookupRecover\Function:
b \MissLabelDynamic
//__objc_msgSend_uncached流程
//走MethodTableLookup
MethodTableLookup
//进入lookUpImpOrForward方法
bl _lookUpImpOrForward
补充
1.找bucket
//根据buckets存在cache中的后48位，取出buckets
and p10, p11, #0x0000fffffffffffe // p10 = buckets
_bucketsAndMaybeMask is a buckets_t pointer in the low 48 bits，所以& #0x0000fffffffffffe可以得到buckets
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
// _bucketsAndMaybeMask is a buckets_t pointer in the low 48 bits
// _maybeMask is unused, the mask is stored in the top 16 bits.
// How much the mask is shifted by.
static constexpr uintptr_t maskShift = 48;
// Additional bits after the mask which must be zero. msgSend
// takes advantage of these additional bits to construct the value
// `mask << 4` from `_maskAndBuckets` in a single instruction.
static constexpr uintptr_t maskZeroBits = 4;
// The largest mask value we can store.
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
// The mask applied to `_maskAndBuckets` to retrieve the buckets pointer.
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
// Ensure we have enough bits for the buckets pointer.
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS,
"Bucket field doesn't have enough bits for arbitrary pointers.");
2.找index
//取index
eor p12, p1, p1, LSR #7
and p12, p12, p11, LSR #48 // x12 = (_cmd ^ (_cmd >> 7)) & mask
对应objc源码中 mask_t begin = cache_hash(sel, m);找index的算法
static inline mask_t cache_hash(SEL sel, mask_t mask)
{
uintptr_t value = (uintptr_t)sel;
#if CONFIG_USE_PREOPT_CACHES
value ^= value >> 7;
#endif
return (mask_t)(value & mask);
}
3.遍历过程
bucket_t *b = buckets();
mask_t m = capacity - 1; // 4-1=3
mask_t begin = cache_hash(sel, m);
mask_t i = begin;
do {
if (fastpath(b[i].sel() == 0)) {
incrementOccupied();
b[i].set<Atomic, Encoded>(b, sel, imp, cls());
return;
}
if (b[i].sel() == sel) {
// The entry was added to the cache by some other thread
// before we grabbed the cacheUpdateLock.
return;
}
} while (fastpath((i = cache_next(i, m)) != begin));
我们看下cache_next的源码
#elif __arm64__
static inline mask_t cache_next(mask_t i, mask_t mask) {
return i ? i-1 : mask;
}
eg:加入mask = 7，i第一次等于3，第一次调用cache_next之后，i = 2，依次--，当i=0时，i就会赋值为7，在--依次向前查找，直到i==3,结束
