[Spring MVC]HandlerMapping的初始化

JayminAuthor
812 阅读6分钟

HttpServletBean#init

容器初始化DispatcherServlet这个Servlet实例的时候，会调用其init()方法(该方法在HttpServletBean中)，HttpServletBean会执行子类的initServletBean方法，在这里，FrameworkServlet会进行容器的初始化，在容器的refresh执行到finishRefresh的时候，会发布事件，最终会激活FrameworkServlet#onApplicationEvent,最终就会执行到org.springframework.web.servlet.DispatcherServlet#initStrategies中进行MVC组件的初始化.

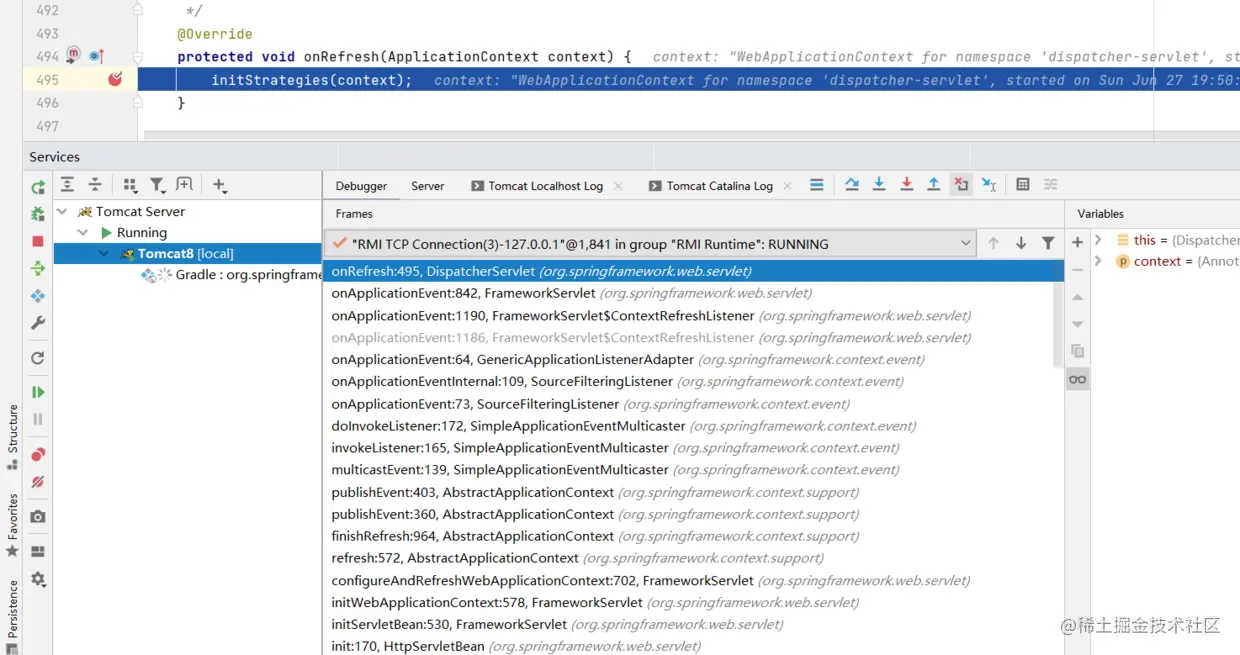

下面来看IDEA的执行栈:

执行栈

初始化MVC的九大组件

  • org.springframework.web.servlet.DispatcherServlet#initStrategies
protected void initStrategies(ApplicationContext context) {
	initMultipartResolver(context);
	initLocaleResolver(context);
	initThemeResolver(context);
	initHandlerMappings(context);
	initHandlerAdapters(context);
	initHandlerExceptionResolvers(context);
	initRequestToViewNameTranslator(context);
	initViewResolvers(context);
	initFlashMapManager(context);
}
  • MultipartResolver
    MultipartResolver主要用来处理文件上传请求，它会将请求包装成MultipartHttpServletRuest实例，通过它的抽象子类AbstractMultipartHttpServletRequest可以看到很多跟文件相关的方法.例如:
@Override
public Iterator<String> getFileNames() {
	return getMultipartFiles().keySet().iterator();
}

@Override
public MultipartFile getFile(String name) {
	return getMultipartFiles().getFirst(name);
}

@Override
public List<MultipartFile> getFiles(String name) {
	List<MultipartFile> multipartFiles = getMultipartFiles().get(name);
	if (multipartFiles != null) {
		return multipartFiles;
	}
	else {
		return Collections.emptyList();
	}
}

@Override
public Map<String, MultipartFile> getFileMap() {
	return getMultipartFiles().toSingleValueMap();
}

  • LocaleResolver
    视图渲染组件ViewResolver的resolveViewName方法需要传输一个Locale实例，这个实例对象由LocaleResovler进行解析。这也是Spring MVC对国际化的支持.

  • ThemeResolver

用于进行主题渲染

  • HandlerMapping
    核心组件,它会将被@RequestMapping注解标记的Controller解析成HandlerMapping实例，在HandMapping中声明了一个getHandler方法，在处理请求的时候，MVC会用这个方法找到匹配的处理方法。
HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception;

  • HandlerAdapters
    这是一个Handler的适配器，Handler可以以任意的形式存在，但是servlet请求都是以doService(HttpServletRequest req,HttpServletResponse resp)请求的，要让固定的Servlet方法调用Handler进行处理，这就是适配器要做的事情。

  • HandlerExceptionResolvers
    HandlerExceptionResolvers是用来处理Handler产生的异常组件。它会根据异常设置ModelAndView,然后交由渲染器进行渲染。

  • ViewResovler
    渲染视图，Spring MVC最终返回的是View类型的视图。如jsp,就需要使用到.

  • RequestToViewNameTranslator
    RequestToViewNameTranslator的作用是从请求中获取ViewName,因为ViewResovler根据ViewName查找View.如果Handler没有指定返回的ViewName,交由该组件处理.

  • FlashMapManager
    FlashMap用于传递重定向的参数。

HanlderMapping的初始化

用户的请求经过DispatcherServlet会根据HandlerMapping来定位到具体的Controller#method.当容器启动的时候，会对标记了@RqequestMapping和@Controller的Bean进行HandlerMapping映射的创建。

初始化RequestMappingHandlerMapping

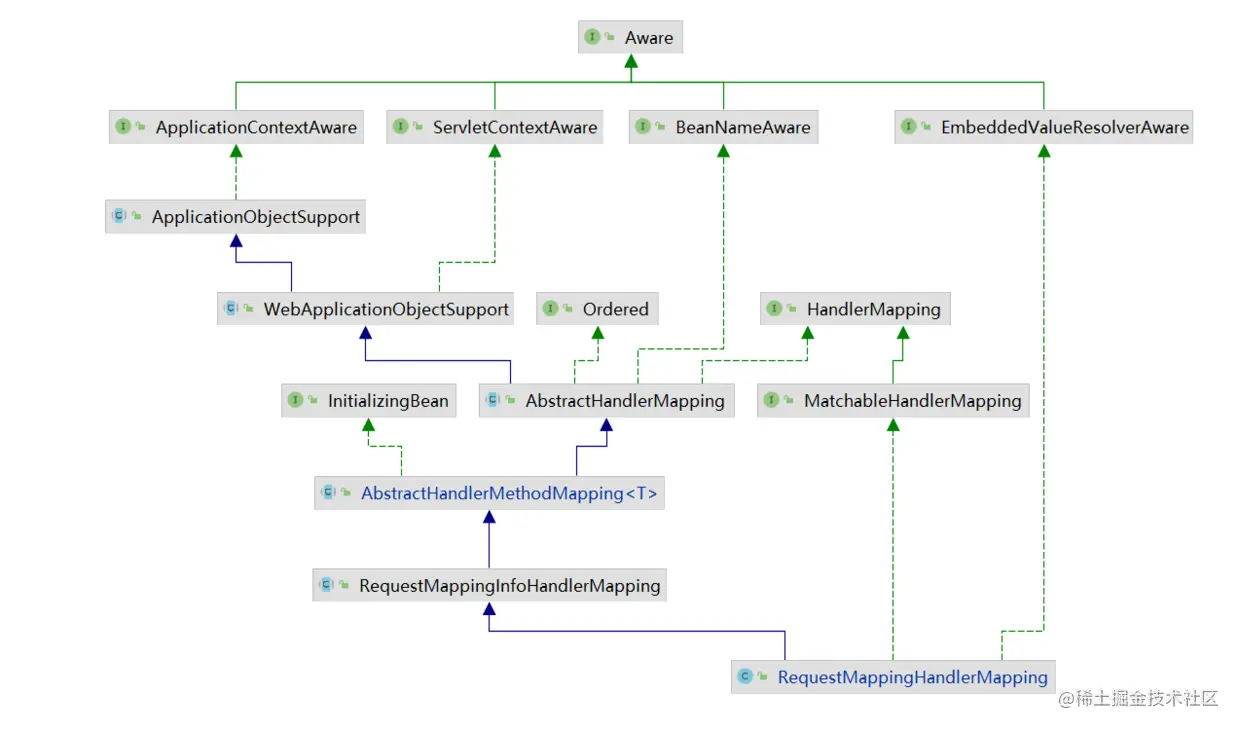

  • UML

UML

RequestMappingHandlerMapping实现了许多的Aware接口，可以从容器中获取ApplicationContext、ServletContext、BeanName、EmbeddedValueResovler.同时，RequestMappingHandlerMapping继承的AbstractHandlerMethodMapping还实现了IoC的生命周期回调函数InitializingBean.

  • org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#afterPropertiesSet
/**
 * Detects handler methods at initialization.
 * @see #initHandlerMethods
 */
@Override
public void afterPropertiesSet() {
	initHandlerMethods();
}

在IoC进行doCreateBean的时候，会回调InitializingBean#afterPropertiesSet函数.我们进入这个函数看看执行了什么逻辑.

  • org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#initHandlerMethods
/**
 * Scan beans in the ApplicationContext, detect and register handler methods.
 * @see #getCandidateBeanNames()
 * @see #processCandidateBean
 * @see #handlerMethodsInitialized
 */
protected void initHandlerMethods() {
	// 遍历容器中所有的beanName
	for (String beanName : getCandidateBeanNames()) {
		// 如果beanName以“scopedTarget.”开头，忽略
		// 通常这些代理Bean的scope都为(session、application、request)
		if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
			processCandidateBean(beanName);
		}
	}
	handlerMethodsInitialized(getHandlerMethods());
}

从容器中获取所有的beanName集合，遍历beanNames.
对beanName不以"scopedTarget."开头的bean进行处理.

  • org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#processCandidateBean
protected void processCandidateBean(String beanName) {
	Class<?> beanType = null;
	try {
		// 获取bean对应的class对象
		beanType = obtainApplicationContext().getType(beanName);
	}
	catch (Throwable ex) {
		// An unresolvable bean type, probably from a lazy bean - let's ignore it.
		if (logger.isTraceEnabled()) {
			logger.trace("Could not resolve type for bean '" + beanName + "'", ex);
		}
	}
	// 判断class对象上是否有@Controller和@RequestMapping的注解
	if (beanType != null && isHandler(beanType)) {
		// 提取其url与controller映射关系
		detectHandlerMethods(beanName);
	}
}
  1. 通过beanName获取该bean的Type.
  2. 判断class对象上是否有@Controller和@RequestMapping的注解,提取其url与method的映射关系.
  • org.springframework.web.servlet.handler.AbstractHandlerMethodMapping#detectHandlerMethods
	/**
	 * Look for handler methods in the specified handler bean.
	 * @param handler either a bean name or an actual handler instance
	 * @see #getMappingForMethod
	 */
	protected void detectHandlerMethods(Object handler) {
		// 如果handler是字符串，证明是一个beanName，则从IoC容器中获取其class对象；
		// 否则直接获取class对象
		Class<?> handlerType = (handler instanceof String ?
				obtainApplicationContext().getType((String) handler) : handler.getClass());

		if (handlerType != null) {
			// 为了确保获取到的类是被代理的类
			Class<?> userType = ClassUtils.getUserClass(handlerType);
			// 寻找方法上有@RequestMapping注解的Method实例
			// 注意这里的methods是一个map，key为method实例,value是RequestMappingHandlerMapping实例
			Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
					(MethodIntrospector.MetadataLookup<T>) method -> {
						try {
							return getMappingForMethod(method, userType);
						}
						catch (Throwable ex) {
							throw new IllegalStateException("Invalid mapping on handler class [" +
									userType.getName() + "]: " + method, ex);
						}
					});
			if (logger.isTraceEnabled()) {
				logger.trace(formatMappings(userType, methods));
			}
			// 将获取到的Method对象依次注册到HandlerMapping中
			methods.forEach((method, mapping) -> {
				// 获取被代理的方法实例
				Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
				registerHandlerMethod(handler, invocableMethod, mapping);
			});
		}
	}
  1. 获取需要处理的class对象.
  2. 如果当前bean是代理类，需要获取被代理的类，也就是TargetClass.
  3. 通过MethodIntrospector#selectMethods对当前class中的methods进行遍历，寻找方法上有@RequestMapping注解的Method实例,对其进行解析，随后放入methodMap这个容器中.key为method实例,value是RequestMappingInfo实例
  4. 对methods进行遍历,在前面获取到的被代理类，现在需要转换成代理类的方法实例.随后对当前方法进行注册.
  • org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#getMappingForMethod
protected RequestMappingInfo getMappingForMethod(Method method, Class<?> handlerType) {
	// 根据当前方法解析出RequestMappingInfo实例
	RequestMappingInfo info = createRequestMappingInfo(method);
	if (info != null) {
		// 创建类上面的RequestMapping信息
		RequestMappingInfo typeInfo = createRequestMappingInfo(handlerType);
		if (typeInfo != null) {
			// 将两个信息合并
			info = typeInfo.combine(info);
		}
		String prefix = getPathPrefix(handlerType);
		if (prefix != null) {
			info = RequestMappingInfo.paths(prefix).options(this.config).build().combine(info);
		}
	}
	return info;
}
  1. 解析method的注解，构造出RequestMappingInfo实例.
  2. 解析class上的RequestMappingInfo实例.
  3. 将两个RequestMappingInfo进行合并.
  • org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#createRequestMappingInfo(java.lang.reflect.AnnotatedElement)
@Nullable
private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {
	// 如果该函数含有@RequestMapping注解，则解析该注解的信息
	// 否则返回null
	// 关键方法: createRequestMappingInfo
	RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class);
	RequestCondition<?> condition = (element instanceof Class ?
			getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
	return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
}
  1. 如果该函数含有@RequestMapping注解，则解析该注解的信息
  2. 进入重载的createRequestMappingInfo.
  • org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#createRequestMappingInfo(org.springframework.web.bind.annotation.RequestMapping, org.springframework.web.servlet.mvc.condition.RequestCondition<?>)
protected RequestMappingInfo createRequestMappingInfo(
		RequestMapping requestMapping, @Nullable RequestCondition<?> customCondition) {
	// 使用builder模式进行参数构建
	RequestMappingInfo.Builder builder = RequestMappingInfo
			// 支持SPEL表达式的解析
			// RequestMappingHandlerMapping实现了EmbeddedValueResolverAware接口
			.paths(resolveEmbeddedValuesInPatterns(requestMapping.path()))
			.methods(requestMapping.method())
			.params(requestMapping.params())
			.headers(requestMapping.headers())
			.consumes(requestMapping.consumes())
			.produces(requestMapping.produces())
			.mappingName(requestMapping.name());
	if (customCondition != null) {
		builder.customCondition(customCondition);
	}
	return builder.options(this.config).build();
}

注册映射关系

  • org.springframework.web.servlet.handler.AbstractHandlerMethodMapping.MappingRegistry#register
public void register(T mapping, Object handler, Method method) {
	this.readWriteLock.writeLock().lock();
	try {
		// 创建HandlerMethod实例
		HandlerMethod handlerMethod = createHandlerMethod(handler, method);
		// 验证方法的唯一性，也就是当前方法映射关系是否已经注册过了
		assertUniqueMethodMapping(handlerMethod, mapping);
		// 注册RequestMappingInfo和HandlerMethod
		this.mappingLookup.put(mapping, handlerMethod);
		// 注册请求路径和对应的RequestMappingInfo
		List<String> directUrls = getDirectUrls(mapping);
		for (String url : directUrls) {
			this.urlLookup.add(url, mapping);
		}

		String name = null;
		if (getNamingStrategy() != null) {
			// 注册请求路径和HandlerMethod的映射
			name = getNamingStrategy().getName(handlerMethod, mapping);
			addMappingName(name, handlerMethod);
		}

		CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
		if (corsConfig != null) {
			// 注册HandlerMethod与跨域信息的映射
			this.corsLookup.put(handlerMethod, corsConfig);
		}
		// 创建以及注册MappingRegistration信息
		this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));
	}
	finally {
		this.readWriteLock.writeLock().unlock();
	}
}
  1. 上读写锁，防止并发引发的线程不安全问题
  2. 创建HandlerMethod实例
  3. 验证方法的唯一性，也就是当前方法映射关系是否已经注册过了
  4. 注册RequestMappingInfo和HandlerMethod
  5. 注册请求路径和对应的RequestMappingInfo
  6. 注册HandlerMethod与跨域信息的映射
  7. 解锁
  • org.springframework.web.method.HandlerMethod
public class HandlerMethod {

	/** Logger that is available to subclasses. */
	protected final Log logger = LogFactory.getLog(getClass());

	private final Object bean;

	@Nullable
	private final BeanFactory beanFactory;
	/**
	 * Controller类型
	 */
	private final Class<?> beanType;
	/**
	 * 方法实例
	 */
	private final Method method;

	private final Method bridgedMethod;
	/**
	 * 方法参数数组
	 */
	private final MethodParameter[] parameters;

	@Nullable
	private HttpStatus responseStatus;

	@Nullable
	private String responseStatusReason;

	@Nullable
	private HandlerMethod resolvedFromHandlerMethod;

	@Nullable
	private volatile List<Annotation[][]> interfaceParameterAnnotations;
}

DispatcherServlet对HandleMapping的初始化

  • org.springframework.web.servlet.DispatcherServlet#initHandlerMappings
private void initHandlerMappings(ApplicationContext context) {
	this.handlerMappings = null;
	// 是否检查所有的HandlerMapping实现类并加载，默认为true
	if (this.detectAllHandlerMappings) {
		// Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
		// 寻找IoC容器中HandlerMapping类型的Bean实例
		Map<String, HandlerMapping> matchingBeans =
				BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
		if (!matchingBeans.isEmpty()) {
			this.handlerMappings = new ArrayList<>(matchingBeans.values());
			// We keep HandlerMappings in sorted order.
			// 对HandlerMapping列表进行排序
			AnnotationAwareOrderComparator.sort(this.handlerMappings);
		}
	}
	else {
		try {
			// 从容器中获取beanName为handlerMapping的Bean
			HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
			this.handlerMappings = Collections.singletonList(hm);
		}
		catch (NoSuchBeanDefinitionException ex) {
			// Ignore, we'll add a default HandlerMapping later.
		}
	}

	// Ensure we have at least one HandlerMapping, by registering
	// a default HandlerMapping if no other mappings are found.
	if (this.handlerMappings == null) {
		this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
		if (logger.isTraceEnabled()) {
			logger.trace("No HandlerMappings declared for servlet '" + getServletName() +
					"': using default strategies from DispatcherServlet.properties");
		}
	}
}
  1. 这里会从容器中找到实现了HandlerMapping接口的bean.进行排序后赋值给handlerMappings变量.
    而RequestMappingHandlerMapping实现了这个接口，并进行了初始化注册进了容器中.
    因此，此处就建立了DispatcherServlet和RequestMappingHandlerMapping之间的联系.
