今天开始写学习日记，从学习mall项目(www.macrozheng.com/#/README)开始。
1. 初始化数据库
新建数据库mall-demo，运行sql文件：mall-demo.sql。文件内容如下：
SET FOREIGN_KEY_CHECKS=0;
-- ----------------------------
-- Table structure for pms_brand
-- ----------------------------
DROP TABLE IF EXISTS `pms_brand`;
CREATE TABLE `pms_brand` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`name` varchar(64) DEFAULT NULL,
`first_letter` varchar(8) DEFAULT NULL COMMENT '首字母',
`sort` int(11) DEFAULT NULL,
`factory_status` int(1) DEFAULT NULL COMMENT '是否为品牌制造商：0->不是；1->是',
`show_status` int(1) DEFAULT NULL,
`product_count` int(11) DEFAULT NULL COMMENT '产品数量',
`product_comment_count` int(11) DEFAULT NULL COMMENT '产品评论数量',
`logo` varchar(255) DEFAULT NULL COMMENT '品牌logo',
`big_pic` varchar(255) DEFAULT NULL COMMENT '专区大图',
`brand_story` text COMMENT '品牌故事',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=59 DEFAULT CHARSET=utf8 COMMENT='品牌表';
-- ----------------------------
-- Records of pms_brand
-- ----------------------------
INSERT INTO `pms_brand` VALUES ('1', '万和', 'W', '0', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180607/timg(5).jpg', '', 'Victoria\'s Secret的故事');
INSERT INTO `pms_brand` VALUES ('2', '三星', 'S', '100', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180607/timg (1).jpg', null, '三星的故事');
INSERT INTO `pms_brand` VALUES ('3', '华为', 'H', '100', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20190129/17f2dd9756d9d333bee8e60ce8c03e4c_222_222.jpg', null, 'Victoria\'s Secret的故事');
INSERT INTO `pms_brand` VALUES ('4', '格力', 'G', '30', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20190129/dc794e7e74121272bbe3ce9bc41ec8c3_222_222.jpg', null, 'Victoria\'s Secret的故事');
INSERT INTO `pms_brand` VALUES ('5', '方太', 'F', '20', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180607/timg (4).jpg', null, 'Victoria\'s Secret的故事');
INSERT INTO `pms_brand` VALUES ('6', '小米', 'M', '500', '1', '1', '100', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20190129/1e34aef2a409119018a4c6258e39ecfb_222_222.png', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180518/5afd7778Nf7800b75.jpg', '小米手机的故事');
INSERT INTO `pms_brand` VALUES ('21', 'OPPO', 'O', '0', '1', '1', '88', '500', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180607/timg(6).jpg', '', 'string');
INSERT INTO `pms_brand` VALUES ('49', '七匹狼', 'S', '200', '1', '1', '77', '400', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20190129/18d8bc3eb13533fab466d702a0d3fd1f40345bcd.jpg', null, 'BOOB的故事');
INSERT INTO `pms_brand` VALUES ('50', '海澜之家', 'H', '200', '1', '1', '66', '300', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20190129/99d3279f1029d32b929343b09d3c72de_222_222.jpg', '', '海澜之家的故事');
INSERT INTO `pms_brand` VALUES ('51', '苹果', 'A', '200', '1', '1', '55', '200', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180607/timg.jpg', null, '苹果的故事');
INSERT INTO `pms_brand` VALUES ('58', 'NIKE', 'N', '0', '1', '1', '33', '100', 'http://macro-oss.oss-cn-shenzhen.aliyuncs.com/mall/images/20180615/timg (51).jpg', '', 'NIKE的故事');
2. 初始化SpringBoot项目

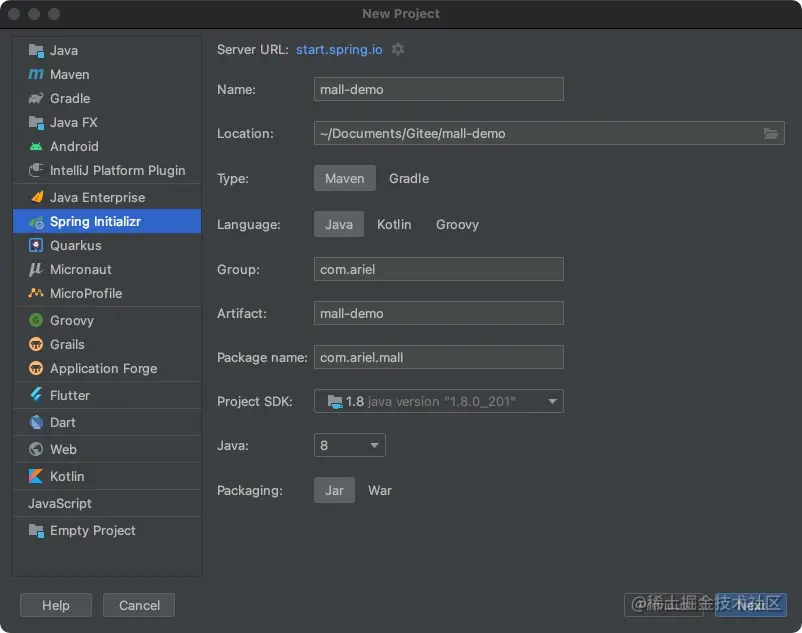

用Spring Initializr新建SpringBoot项目：
加入SpringBoot通用依赖模块：
<!--SpringBoot通用依赖模块-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
修改MallDemoApplicationTests.java报错：
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
@RunWith(SpringRunner.class)
@SpringBootTest
class MallDemoApplicationTests {
@Test
void contextLoads() {
}
}
以上，项目能正常运行。
3. 集成MyBatis
加入MyBatis依赖模块：
<!--MyBatis分页插件-->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>1.2.10</version>
</dependency>
<!--集成druid连接池-->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.1.10</version>
</dependency>
<!-- MyBatis 生成器 -->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.3.3</version>
</dependency>
<!--Mysql数据库驱动-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.15</version>
</dependency>
配置application.yml
server:
port: 8080
spring:
datasource:
url: jdbc:mysql://localhost:3306/mall-demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai
username: root
password:
mybatis:
mapper-locations:
- classpath:mapper/*.xml
- classpath*:com/**/mapper/*.xml
配置generator.properties
jdbc.driverClass=com.mysql.cj.jdbc.Driver
jdbc.connectionURL=jdbc:mysql://localhost:3306/mall-demo?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai
jdbc.userId=root
jdbc.password=
配置generatorConfig.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<properties resource="generator.properties"/>
<context id="MySqlContext" targetRuntime="MyBatis3" defaultModelType="flat">
<property name="beginningDelimiter" value="`"/>
<property name="endingDelimiter" value="`"/>
<property name="javaFileEncoding" value="UTF-8"/>
<!-- 为模型生成序列化方法-->
<plugin type="org.mybatis.generator.plugins.SerializablePlugin"/>
<!-- 为生成的Java模型创建一个toString方法 -->
<plugin type="org.mybatis.generator.plugins.ToStringPlugin"/>
<!--可以自定义生成model的代码注释-->
<commentGenerator type="com.arielyu.mall.mbg.CommentGenerator">
<!-- 是否去除自动生成的注释 true：是 ： false:否 -->
<property name="suppressAllComments" value="true"/>
<property name="suppressDate" value="true"/>
<property name="addRemarkComments" value="true"/>
</commentGenerator>
<!--配置数据库连接-->
<jdbcConnection driverClass="${jdbc.driverClass}"
connectionURL="${jdbc.connectionURL}"
userId="${jdbc.userId}"
password="${jdbc.password}">
<!--解决mysql驱动升级到8.0后不生成指定数据库代码的问题-->
<property name="nullCatalogMeansCurrent" value="true" />
</jdbcConnection>
<!--指定生成model的路径-->
<javaModelGenerator targetPackage="com.arielyu.mall.mbg.model" targetProject="/Users/yuchu/Documents/Gitee/mall-demo/src/main/java"/>
<!--指定生成mapper.xml的路径-->
<sqlMapGenerator targetPackage="com.arielyu.mall.mbg.mapper" targetProject="/Users/yuchu/Documents/Gitee/mall-demo/src/main/resources"/>
<!--指定生成mapper接口的的路径-->
<javaClientGenerator type="XMLMAPPER" targetPackage="com.arielyu.mall.mbg.mapper"
targetProject="/Users/yuchu/Documents/Gitee/mall-demo/src/main/java"/>
<!--生成全部表tableName设为%-->
<table tableName="pms_brand">
<generatedKey column="id" sqlStatement="MySql" identity="true"/>
</table>
</context>
</generatorConfiguration>
自定义注释生成器：
public class CommentGenerator extends DefaultCommentGenerator {
private boolean addRemarkComments = false;
/**
* 设置用户配置的参数
*/
@Override
public void addConfigurationProperties(Properties properties) {
super.addConfigurationProperties(properties);
this.addRemarkComments = StringUtility.isTrue(properties.getProperty("addRemarkComments"));
}
/**
* 给字段添加注释
*/
@Override
public void addFieldComment(Field field, IntrospectedTable introspectedTable,
IntrospectedColumn introspectedColumn) {
String remarks = introspectedColumn.getRemarks();
//根据参数和备注信息判断是否添加备注信息
if (addRemarkComments && StringUtility.stringHasValue(remarks)) {
addFieldJavaDoc(field, remarks);
}
}
/**
* 给model的字段添加注释
*/
private void addFieldJavaDoc(Field field, String remarks) {
//文档注释开始
field.addJavaDocLine("/**");
//获取数据库字段的备注信息
String[] remarkLines = remarks.split(System.getProperty("line.separator"));
for (String remarkLine : remarkLines) {
field.addJavaDocLine(" * " + remarkLine);
}
addJavadocTag(field, false);
field.addJavaDocLine(" */");
}
}
Generator.java
public class Generator {
public static void main(String[] args) throws Exception {
//MBG 执行过程中的警告信息
List<String> warnings = new ArrayList<String>();
//当生成的代码重复时，覆盖原代码
boolean overwrite = true;
//读取我们的 MBG 配置文件
InputStream is = Generator.class.getResourceAsStream("/generatorConfig.xml");
ConfigurationParser cp = new ConfigurationParser(warnings);
Configuration config = cp.parseConfiguration(is);
is.close();
DefaultShellCallback callback = new DefaultShellCallback(overwrite);
//创建 MBG
MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
//执行生成代码
myBatisGenerator.generate(null);
//输出警告信息
for (String warning : warnings) {
System.out.println(warning);
}
}
}
执行Generator.java，生成model和mapper。
