使用evajs实现海洋波浪效果

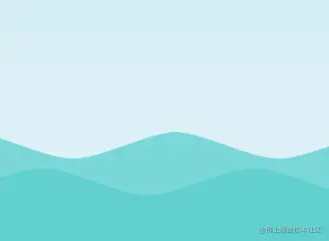

本来效果挺流畅，截屏成gif图有点卡。

素材

wave.png 1280*140

思路

2个图片，叠加一起，运动方向互为相反。

gameObjects

在evajs游戏引擎中，万物皆gameObjects。所以两个海浪的图片，要先建2个实体，也就是gameObjects

• WaveBack

const WaveBack = () => {
    const go = new GameObject("WaveFront", {
        size: {
            width: 1280,
            height: 140
        },
        origin: { x: 0, y: 0 },
        position: {
            x: GAME_SIZE.WIDTH - 1280 * 2,
            y: GAME_SIZE.HEIGHT - 140
        },
        scale: {
            x: 2,
            y: 1
        },
        anchor: {
            x: 0,
            y: 0
        }
    });

    go.addComponent(
        new Img({
            resource: "wave",
        })
    );

    go.addComponent(
        new Render({
            alpha: 0.5
        })
    )

    go.addComponent(new WaveAction(Direction.right))

    return go;
}
export default WaveBack

• WaveFront

const WaveFront = () => {
    const go = new GameObject("WaveFront", {
        size: {
            width: 1280,
            height: 140
        },
        origin: { x: 0, y: 0 },
        position: {
            x: 0,
            y: GAME_SIZE.HEIGHT - 100
        },
        scale: {
            x: 2,
            y: 1
        },
        anchor: {
            x: 0,
            y: 0
        }
    });

    go.addComponent(
        new Img({
            resource: "wave",
        })
    );

    go.addComponent(
        new Render({
            alpha: 0.3
        })
    )

    go.addComponent(new WaveAction(Direction.left))

    return go;
}
export default WaveFront

透明度

让海浪具有透明度，可以在每个gameObject增加Render组件以设置透明度。

addComponent(
   new Render({
       alpha: 0.3
   })
)

行为控制

新建一个WaveAction组件，extends自Component。

它的作用就是让波浪动起来。

export enum Direction {
    left,
    right
}

export class WaveAction extends Component {
    gameObject: GameObject;
    static componentName = "Wave";
    game: any
    direction: Direction

    constructor(direction: Direction) {
        super();
        this.direction = direction
    }

    update() {
        const { x } = this.gameObject.getComponent(Transform).position

        if (this.direction == Direction.left) {
            this.gameObject.getComponent(Transform).position.x -= 6
        }

        if (this.direction == Direction.right) {
            this.gameObject.getComponent(Transform).position.x += 6
        }

        if (x >= 0 && this.direction == Direction.right) {
            this.direction = Direction.left
        }
        if (x <= -1280 * 2 + GAME_SIZE.WIDTH && this.direction == Direction.left) {
            this.direction = Direction.right
        }
    }
}

关键点在于方向的判断

const { x } = this.gameObject.getComponent(Transform).position

if (this.direction == Direction.left) {
    this.gameObject.getComponent(Transform).position.x -= 6
}

if (this.direction == Direction.right) {
    this.gameObject.getComponent(Transform).position.x += 6
}

if (x >= 0 && this.direction == Direction.right) {
    this.direction = Direction.left
}
if (x <= -1280 * 2 + GAME_SIZE.WIDTH && this.direction == Direction.left) {
    this.direction = Direction.right
}

最后，把gameObjects加入到场景中：

const scene = new Scene('game');
game.loadScene({
  scene,
  type: LOAD_SCENE_MODE.SINGLE,
} as any);

scene.addChild(BackGround());
scene.addChild(WaveFront());
scene.addChild(WaveBack());
game.start();

由于帖全部代码会影响阅读，因此本文只贴了关键代码，全部代码在 github.com/codetyphon/…
