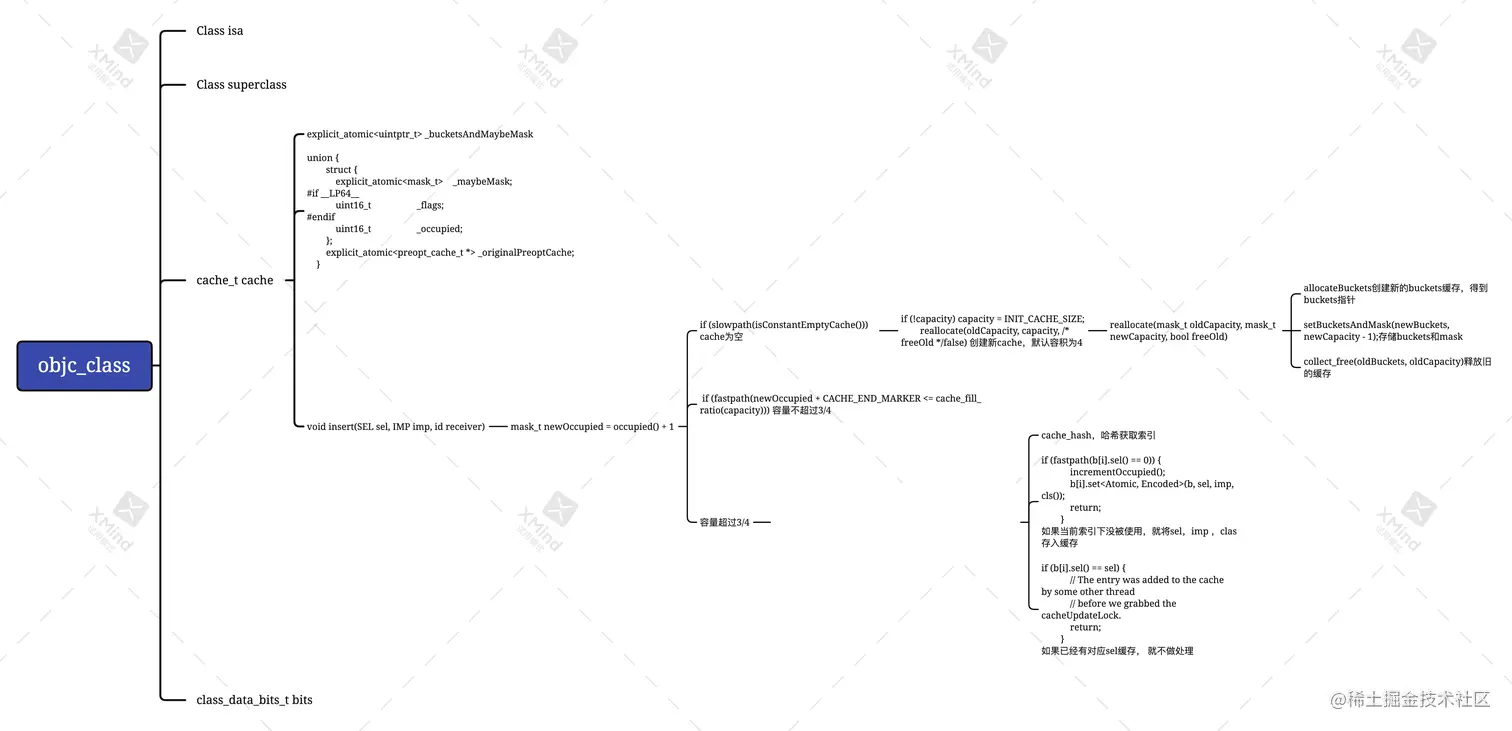

cache_t顾名思义，其作用就是缓存一些数据。在Class的底层结构中，存在着cache_t类型的cache， 它的主要作用是调用方法的缓存。方便下次调用是直接从缓存中获取IMP地址，加快执行效率。
分析cache_t的底层结构
struct cache_t {
private:
explicit_atomic<uintptr_t> _bucketsAndMaybeMask;
union {
struct {
explicit_atomic<mask_t> _maybeMask;
#if __LP64__
uint16_t _flags;
#endif
uint16_t _occupied;
};
explicit_atomic<preopt_cache_t *> _originalPreoptCache;
};
}
cache_t底层是一个结构体，包含着一个uintptr_t的_bucketsAndMaybeMask，然后就是一个共用体， 共用体中有一个结构体和一个preopt_cache_t的指针。简单了解了cache_t的底层结构之后， 接着去看看还有些什么。
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_OUTLINED
// _bucketsAndMaybeMask is a buckets_t pointer
// _maybeMask is the buckets mask
static constexpr uintptr_t bucketsMask = ~0ul;
static_assert(!CONFIG_USE_PREOPT_CACHES, "preoptimized caches not supported");
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
static constexpr uintptr_t maskShift = 48;
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << maskShift) - 1;
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS, "Bucket field doesn't have enough bits for arbitrary pointers.");
#if CONFIG_USE_PREOPT_CACHES
static constexpr uintptr_t preoptBucketsMarker = 1ul;
static constexpr uintptr_t preoptBucketsMask = bucketsMask & ~preoptBucketsMarker;
#endif
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
// _bucketsAndMaybeMask is a buckets_t pointer in the low 48 bits
// _maybeMask is unused, the mask is stored in the top 16 bits.
// How much the mask is shifted by.
static constexpr uintptr_t maskShift = 48;
// Additional bits after the mask which must be zero. msgSend
// takes advantage of these additional bits to construct the value
// `mask << 4` from `_maskAndBuckets` in a single instruction.
static constexpr uintptr_t maskZeroBits = 4;
// The largest mask value we can store.
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
// The mask applied to `_maskAndBuckets` to retrieve the buckets pointer.
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
// Ensure we have enough bits for the buckets pointer.
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS,
"Bucket field doesn't have enough bits for arbitrary pointers.");
#if CONFIG_USE_PREOPT_CACHES
static constexpr uintptr_t preoptBucketsMarker = 1ul;
#if __has_feature(ptrauth_calls)
// 63..60: hash_mask_shift
// 59..55: hash_shift
// 54.. 1: buckets ptr + auth
// 0: always 1
static constexpr uintptr_t preoptBucketsMask = 0x007ffffffffffffe;
static inline uintptr_t preoptBucketsHashParams(const preopt_cache_t *cache) {
uintptr_t value = (uintptr_t)cache->shift << 55;
// masks have 11 bits but can be 0, so we compute
// the right shift for 0x7fff rather than 0xffff
return value | ((objc::mask16ShiftBits(cache->mask) - 1) << 60);
}
#else
// 63..53: hash_mask
// 52..48: hash_shift
// 47.. 1: buckets ptr
// 0: always 1
static constexpr uintptr_t preoptBucketsMask = 0x0000fffffffffffe;
static inline uintptr_t preoptBucketsHashParams(const preopt_cache_t *cache) {
return (uintptr_t)cache->hash_params << 48;
}
#endif
#endif // CONFIG_USE_PREOPT_CACHES
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
// _bucketsAndMaybeMask is a buckets_t pointer in the top 28 bits
// _maybeMask is unused, the mask length is stored in the low 4 bits
static constexpr uintptr_t maskBits = 4;
static constexpr uintptr_t maskMask = (1 << maskBits) - 1;
static constexpr uintptr_t bucketsMask = ~maskMask;
static_assert(!CONFIG_USE_PREOPT_CACHES, "preoptimized caches not supported");
#else
#error Unknown cache mask storage type.
#endif
这里都是一些静态变量，其中看到有很多左移操作，并且注释中最后也解释那些位代表啥，与isa类似。接着就是一些成员函数（缓存操作，就像数据库一下，CURD，所以挑重点的说）。
void insert(SEL sel, IMP imp, id receiver);
insert明显就是插入，将对应的sel，imp 插入缓存。
void cache_t::insert(SEL sel, IMP imp, id receiver)
{
runtimeLock.assertLocked();
// Never cache before +initialize is done
if (slowpath(!cls()->isInitialized())) {
return;
}
if (isConstantOptimizedCache()) {
_objc_fatal("cache_t::insert() called with a preoptimized cache for %s",
cls()->nameForLogging());
}
#if DEBUG_TASK_THREADS
return _collecting_in_critical();
#else
#if CONFIG_USE_CACHE_LOCK
mutex_locker_t lock(cacheUpdateLock);
#endif
ASSERT(sel != 0 && cls()->isInitialized());
// Use the cache as-is if until we exceed our expected fill ratio.
mask_t newOccupied = occupied() + 1;
unsigned oldCapacity = capacity(), capacity = oldCapacity;
if (slowpath(isConstantEmptyCache())) {
// Cache is read-only. Replace it.
if (!capacity) capacity = INIT_CACHE_SIZE;
reallocate(oldCapacity, capacity, /* freeOld */false);
}
else if (fastpath(newOccupied + CACHE_END_MARKER <= cache_fill_ratio(capacity))) {
// Cache is less than 3/4 or 7/8 full. Use it as-is.
}
#if CACHE_ALLOW_FULL_UTILIZATION
else if (capacity <= FULL_UTILIZATION_CACHE_SIZE && newOccupied + CACHE_END_MARKER <= capacity) {
// Allow 100% cache utilization for small buckets. Use it as-is.
}
#endif
else {
capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;
if (capacity > MAX_CACHE_SIZE) {
capacity = MAX_CACHE_SIZE;
}
reallocate(oldCapacity, capacity, true);
}
bucket_t *b = buckets();
mask_t m = capacity - 1;
mask_t begin = cache_hash(sel, m);
mask_t i = begin;
// Scan for the first unused slot and insert there.
// There is guaranteed to be an empty slot.
do {
if (fastpath(b[i].sel() == 0)) {
incrementOccupied();
b[i].set<Atomic, Encoded>(b, sel, imp, cls());
return;
}
if (b[i].sel() == sel) {
// The entry was added to the cache by some other thread
// before we grabbed the cacheUpdateLock.
return;
}
} while (fastpath((i = cache_next(i, m)) != begin));
bad_cache(receiver, (SEL)sel);
#endif // !DEBUG_TASK_THREADS
}
insert具体逻辑：
newOccupied先将当前的occupied()+1,occupied(英文的意思：占位，使用中)，联想到缓存，那大概就跟存储容量相关。判断当前cache是否为空，如果为空就创建缓存。如果当前缓存不为空，并且大于3/4容量就重新2倍扩容。 然后将sel与capacity进行hash，得到一个索引，并将对应的sel,imp,和class存入缓存。如果当前已经存在，就不做任何操作。
具体函数分析
void cache_t::reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld)
{
bucket_t *oldBuckets = buckets();
bucket_t *newBuckets = allocateBuckets(newCapacity);
// Cache's old contents are not propagated.
// This is thought to save cache memory at the cost of extra cache fills.
// fixme re-measure this
ASSERT(newCapacity > 0);
ASSERT((uintptr_t)(mask_t)(newCapacity-1) == newCapacity-1);
setBucketsAndMask(newBuckets, newCapacity - 1);
if (freeOld) {
collect_free(oldBuckets, oldCapacity);
}
}
获取旧的oldBuckets，创建一个newCapacity大小的newBuckets， 然后setBucketsAndMask(newBuckets, newCapacity - 1);，并释放旧的oldBuckets
其中bucket的结构也是一个结构体，里面缓存着sel与imp
struct bucket_t {
private:
// IMP-first is better for arm64e ptrauth and no worse for arm64.
// SEL-first is better for armv7* and i386 and x86_64.
#if __arm64__
explicit_atomic<uintptr_t> _imp;
explicit_atomic<SEL> _sel;
#else
explicit_atomic<SEL> _sel;
explicit_atomic<uintptr_t> _imp;
#endif
void cache_t::setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask)
{
// objc_msgSend uses mask and buckets with no locks.
// It is safe for objc_msgSend to see new buckets but old mask.
// (It will get a cache miss but not overrun the buckets' bounds).
// It is unsafe for objc_msgSend to see old buckets and new mask.
// Therefore we write new buckets, wait a lot, then write new mask.
// objc_msgSend reads mask first, then buckets.
#ifdef __arm__
// ensure other threads see buckets contents before buckets pointer
mega_barrier();
_bucketsAndMaybeMask.store((uintptr_t)newBuckets, memory_order_relaxed);
// ensure other threads see new buckets before new mask
mega_barrier();
_maybeMask.store(newMask, memory_order_relaxed);
_occupied = 0;
#elif __x86_64__ || i386
// ensure other threads see buckets contents before buckets pointer
_bucketsAndMaybeMask.store((uintptr_t)newBuckets, memory_order_release);
// ensure other threads see new buckets before new mask
_maybeMask.store(newMask, memory_order_release);
_occupied = 0;
#else
#error Don't know how to do setBucketsAndMask on this architecture.
#endif
}
setBucketsAndMask(newBuckets, newCapacity - 1); 中主要就是对创建的buckets和**newMask（就是newCapacity-1）**存储，然后将_occupied赋值为0，表示当前cache中一个内容都没有，从中知道 cache_t 结构中的第一个成员变量 _bucketsAndMaybeMask，以及 _occupied 的含义。
hash函数
static inline mask_t cache_hash(SEL sel, mask_t mask)
{
uintptr_t value = (uintptr_t)sel;
#if CONFIG_USE_PREOPT_CACHES
value ^= value >> 7;
#endif
return (mask_t)(value & mask);
}
将sel与sel右移7位的值并异或，然后在于mask进行与操作。
