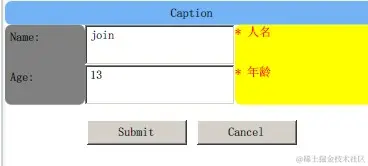

<Grid.ColumnDefinitions> 指定了列的集合,它的子元素ColumnDefinition指代了一个列。我们可以在这里指出列的宽度,可以指定固定数字,也是是Auto(自动),和填充剩余的空间(“*")

<Grid.RowDefinitions> 分别制定了和行集合。它的子元素RowDefinition指代里一个行。我们可以在这里指出列的宽度,可以指定固定数字,也是是Auto(自动),和填充剩余的空间(“*")

如何指定控件位于grid内的位置?

使用Grid.Row 指定所在的行索引和 Grid.Column来指定所在的列索引,如果一个 控件(元素)位于第1行,第2列,那么可能的写法如下:

 <Rectangle Grid.Row="1" Grid.Column="2" Grid.RowSpan="2"   Fill="Yellow" ></Rectangle>

注意,列索引和行索引都是从0开始编号。

使用RowSpan和ColumnSpan来指定行单元格的合并和列单元格的合并。

注意:标签的属性HorizontalAlignment="Center" 指定了水平的对齐方式。

-------------------------------------

StackPanel ,适合指定连续的(相同的)项的布局。StackPanle有个属性Orientation="Horizontal",可以指定方向,模式是垂直。代码如下

代码

< Window x:Class = " WpfApplicationLayout.Window7 "
xmlns = " schemas.microsoft.com/winfx/2006/… "
xmlns:x = " schemas.microsoft.com/winfx/2006/… "
Title = " Window7 "  Height = " 258 "  Width = " 466 " >
< Grid >
< StackPanel Margin = " 10,10,81,61 "  Name = " stackPanel1 "  Orientation = " Horizontal " >
< Button Height = " 23 "  Name = " button1 "  Width = " 75 " > Button </ Button >
< Button Height = " 23 "  Name = " button2 "  Width = " 75 " > Button </ Button >
< Button Height = " 23 "  Name = " button3 "  Width = " 75 " > Button </ Button >
< Button Height = " 23 "  Name = " button4 "  Width = " 75 " > Button </ Button >
</ StackPanel >
</ Grid >
</ Window >\



---------------------------------

WrapPanel 和StackPanle差不多,他是从左向右排列,同时提供了换行功能。在此不再示例。
