cache_t结构

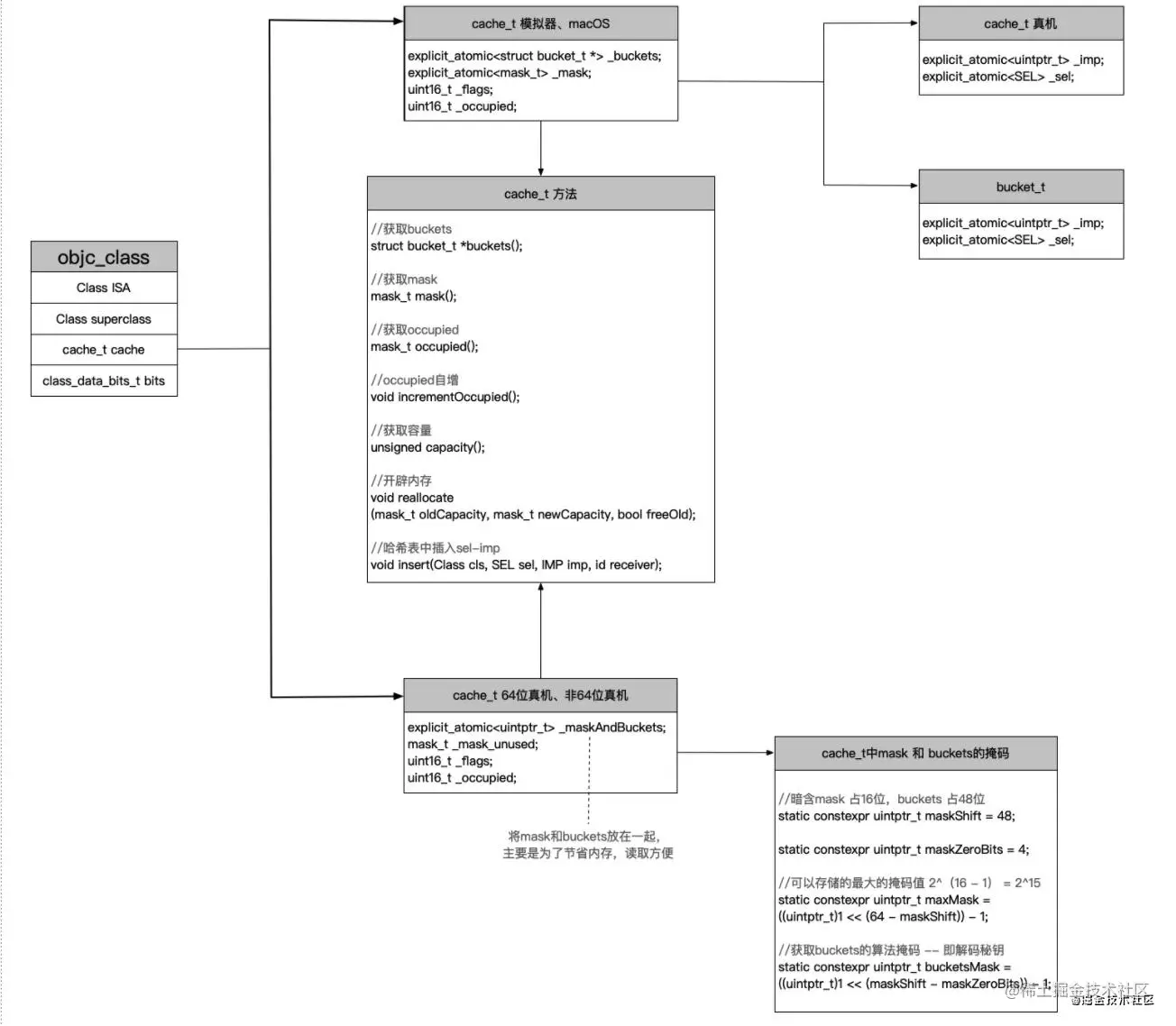

以下是类在底层的结构
其中cache_t的结构如下
/**
架构 : arm64
模拟器 : i386
mac : x86_64
*/
struct cache_t {
private:
explicit_atomic<uintptr_t> _bucketsAndMaybeMask; // 8
union {
struct {
explicit_atomic<mask_t> _maybeMask; // 4
#if __LP64__
uint16_t _flags; // 2
#endif
uint16_t _occupied; // 2
};
explicit_atomic<preopt_cache_t *> _originalPreoptCache; // 8
};
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_OUTLINED
// _bucketsAndMaybeMask is a buckets_t pointer
// _maybeMask is the buckets mask
static constexpr uintptr_t bucketsMask = ~0ul;
static_assert(!CONFIG_USE_PREOPT_CACHES, "preoptimized caches not supported");
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16_BIG_ADDRS
static constexpr uintptr_t maskShift = 48;
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << maskShift) - 1;
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS, "Bucket field doesn't have enough bits for arbitrary pointers.");
#if CONFIG_USE_PREOPT_CACHES
static constexpr uintptr_t preoptBucketsMarker = 1ul;
static constexpr uintptr_t preoptBucketsMask = bucketsMask & ~preoptBucketsMarker;
#endif
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
// _bucketsAndMaybeMask is a buckets_t pointer in the low 48 bits
// _maybeMask is unused, the mask is stored in the top 16 bits.
// How much the mask is shifted by.
static constexpr uintptr_t maskShift = 48;
// Additional bits after the mask which must be zero. msgSend
// takes advantage of these additional bits to construct the value
// `mask << 4` from `_maskAndBuckets` in a single instruction.
static constexpr uintptr_t maskZeroBits = 4;
// The largest mask value we can store.
static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
// The mask applied to `_maskAndBuckets` to retrieve the buckets pointer.
static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
// Ensure we have enough bits for the buckets pointer.
static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS,
"Bucket field doesn't have enough bits for arbitrary pointers.");
#if CONFIG_USE_PREOPT_CACHES
static constexpr uintptr_t preoptBucketsMarker = 1ul;
#if __has_feature(ptrauth_calls)
// 63..60: hash_mask_shift
// 59..55: hash_shift
// 54.. 1: buckets ptr + auth
// 0: always 1
static constexpr uintptr_t preoptBucketsMask = 0x007ffffffffffffe;
static inline uintptr_t preoptBucketsHashParams(const preopt_cache_t *cache) {
uintptr_t value = (uintptr_t)cache->shift << 55;
// masks have 11 bits but can be 0, so we compute
// the right shift for 0x7fff rather than 0xffff
return value | ((objc::mask16ShiftBits(cache->mask) - 1) << 60);
}
#else
// 63..53: hash_mask
// 52..48: hash_shift
// 47.. 1: buckets ptr
// 0: always 1
static constexpr uintptr_t preoptBucketsMask = 0x0000fffffffffffe;
static inline uintptr_t preoptBucketsHashParams(const preopt_cache_t *cache) {
return (uintptr_t)cache->hash_params << 48;
}
#endif
#endif // CONFIG_USE_PREOPT_CACHES
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
// _bucketsAndMaybeMask is a buckets_t pointer in the top 28 bits
// _maybeMask is unused, the mask length is stored in the low 4 bits
static constexpr uintptr_t maskBits = 4;
static constexpr uintptr_t maskMask = (1 << maskBits) - 1;
static constexpr uintptr_t bucketsMask = ~maskMask;
static_assert(!CONFIG_USE_PREOPT_CACHES, "preoptimized caches not supported");
#else
#error Unknown cache mask storage type.
#endif
bool isConstantEmptyCache() const;
bool canBeFreed() const;
mask_t mask() const;
#if CONFIG_USE_PREOPT_CACHES
void initializeToPreoptCacheInDisguise(const preopt_cache_t *cache);
const preopt_cache_t *disguised_preopt_cache() const;
#endif
void incrementOccupied();
void setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask);
void reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld);
void collect_free(bucket_t *oldBuckets, mask_t oldCapacity);
static bucket_t *emptyBuckets();
static bucket_t *allocateBuckets(mask_t newCapacity);
static bucket_t *emptyBucketsForCapacity(mask_t capacity, bool allocate = true);
static struct bucket_t * endMarker(struct bucket_t *b, uint32_t cap);
void bad_cache(id receiver, SEL sel) __attribute__((noreturn, cold));
public:
// The following four fields are public for objcdt's use only.
// objcdt reaches into fields while the process is suspended
// hence doesn't care for locks and pesky little details like this
// and can safely use these.
unsigned capacity() const;
struct bucket_t *buckets() const;
Class cls() const;
#if CONFIG_USE_PREOPT_CACHES
const preopt_cache_t *preopt_cache() const;
#endif
mask_t occupied() const;
void initializeToEmpty();
#if CONFIG_USE_PREOPT_CACHES
bool isConstantOptimizedCache(bool strict = false, uintptr_t empty_addr = (uintptr_t)&_objc_empty_cache) const;
bool shouldFlush(SEL sel, IMP imp) const;
bool isConstantOptimizedCacheWithInlinedSels() const;
Class preoptFallbackClass() const;
void maybeConvertToPreoptimized();
void initializeToEmptyOrPreoptimizedInDisguise();
#else
inline bool isConstantOptimizedCache(bool strict = false, uintptr_t empty_addr = 0) const { return false; }
inline bool shouldFlush(SEL sel, IMP imp) const {
return cache_getImp(cls(), sel) == imp;
}
inline bool isConstantOptimizedCacheWithInlinedSels() const { return false; }
inline void initializeToEmptyOrPreoptimizedInDisguise() { initializeToEmpty(); }
#endif
void insert(SEL sel, IMP imp, id receiver);
void copyCacheNolock(objc_imp_cache_entry *buffer, int len);
void destroy();
void eraseNolock(const char *func);
static void init();
static void collectNolock(bool collectALot);
static size_t bytesForCapacity(uint32_t cap);
#if __LP64__
bool getBit(uint16_t flags) const {
return _flags & flags;
}
void setBit(uint16_t set) {
__c11_atomic_fetch_or((_Atomic(uint16_t) *)&_flags, set, __ATOMIC_RELAXED);
}
void clearBit(uint16_t clear) {
__c11_atomic_fetch_and((_Atomic(uint16_t) *)&_flags, ~clear, __ATOMIC_RELAXED);
}
#endif
#if FAST_CACHE_ALLOC_MASK
bool hasFastInstanceSize(size_t extra) const
{
if (__builtin_constant_p(extra) && extra == 0) {
return _flags & FAST_CACHE_ALLOC_MASK16;
}
return _flags & FAST_CACHE_ALLOC_MASK;
}
size_t fastInstanceSize(size_t extra) const
{
ASSERT(hasFastInstanceSize(extra));
if (__builtin_constant_p(extra) && extra == 0) {
return _flags & FAST_CACHE_ALLOC_MASK16;
} else {
size_t size = _flags & FAST_CACHE_ALLOC_MASK;
// remove the FAST_CACHE_ALLOC_DELTA16 that was added
// by setFastInstanceSize
return align16(size + extra - FAST_CACHE_ALLOC_DELTA16);
}
}
void setFastInstanceSize(size_t newSize)
{
// Set during realization or construction only. No locking needed.
uint16_t newBits = _flags & ~FAST_CACHE_ALLOC_MASK;
uint16_t sizeBits;
// Adding FAST_CACHE_ALLOC_DELTA16 allows for FAST_CACHE_ALLOC_MASK16
// to yield the proper 16byte aligned allocation size with a single mask
sizeBits = word_align(newSize) + FAST_CACHE_ALLOC_DELTA16;
sizeBits &= FAST_CACHE_ALLOC_MASK;
if (newSize <= sizeBits) {
newBits |= sizeBits;
}
_flags = newBits;
}
#else
bool hasFastInstanceSize(size_t extra) const {
return false;
}
size_t fastInstanceSize(size_t extra) const {
abort();
}
void setFastInstanceSize(size_t extra) {
// nothing
}
#endif
};
其中的_bucketsAndMaybeMask is a buckets_t pointer,是bucket_t类型的结构体指针.
struct bucket_t {
private:
// IMP-first is better for arm64e ptrauth and no worse for arm64.
// SEL-first is better for armv7* and i386 and x86_64.
#if __arm64__
explicit_atomic<uintptr_t> _imp;
explicit_atomic<SEL> _sel;
#else
explicit_atomic<SEL> _sel;
explicit_atomic<uintptr_t> _imp;
#endif
// Compute the ptrauth signing modifier from &_imp, newSel, and cls.
uintptr_t modifierForSEL(bucket_t *base, SEL newSel, Class cls) const {
return (uintptr_t)base ^ (uintptr_t)newSel ^ (uintptr_t)cls;
}
// Sign newImp, with &_imp, newSel, and cls as modifiers.
uintptr_t encodeImp(UNUSED_WITHOUT_PTRAUTH bucket_t *base, IMP newImp, UNUSED_WITHOUT_PTRAUTH SEL newSel, Class cls) const {
if (!newImp) return 0;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
return (uintptr_t)
ptrauth_auth_and_resign(newImp,
ptrauth_key_function_pointer, 0,
ptrauth_key_process_dependent_code,
modifierForSEL(base, newSel, cls));
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
return (uintptr_t)newImp ^ (uintptr_t)cls;
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
return (uintptr_t)newImp;
#else
#error Unknown method cache IMP encoding.
#endif
}
public:
static inline size_t offsetOfSel() { return offsetof(bucket_t, _sel); }
inline SEL sel() const { return _sel.load(memory_order_relaxed); }
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
#define MAYBE_UNUSED_ISA
#else
#define MAYBE_UNUSED_ISA __attribute__((unused))
#endif
inline IMP rawImp(MAYBE_UNUSED_ISA objc_class *cls) const {
uintptr_t imp = _imp.load(memory_order_relaxed);
if (!imp) return nil;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
imp ^= (uintptr_t)cls;
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
#else
#error Unknown method cache IMP encoding.
#endif
return (IMP)imp;
}
inline IMP imp(UNUSED_WITHOUT_PTRAUTH bucket_t *base, Class cls) const {
uintptr_t imp = _imp.load(memory_order_relaxed);
if (!imp) return nil;
#if CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_PTRAUTH
SEL sel = _sel.load(memory_order_relaxed);
return (IMP)
ptrauth_auth_and_resign((const void *)imp,
ptrauth_key_process_dependent_code,
modifierForSEL(base, sel, cls),
ptrauth_key_function_pointer, 0);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_ISA_XOR
return (IMP)(imp ^ (uintptr_t)cls);
#elif CACHE_IMP_ENCODING == CACHE_IMP_ENCODING_NONE
return (IMP)imp;
#else
#error Unknown method cache IMP encoding.
#endif
}
template <Atomicity, IMPEncoding>
void set(bucket_t *base, SEL newSel, IMP newImp, Class cls);
};
从以上bucket_t的属性和方法中可以看出它应该与imp有联系——事实上bucket_t作为一个桶，里面是用来装imp方法实现以及它的key. 所以通过上面两个结构体源码可知，而我们cache中缓存的正好是sel-imp. 整体的结构如下图所示
在cache中查找sel-imp
- 通过源码查找 -- LLDB调试

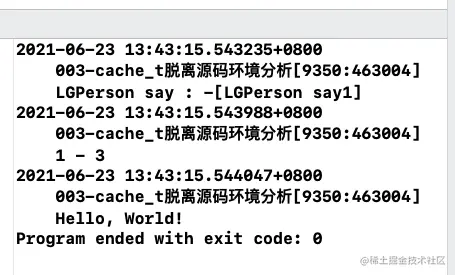

- 脱离源码在项目中查找 创建一个LGPerson类，并定义一个属性及一个实例方法及其实现
lldb调试
(lldb) p/x pClass
(Class) $0 = 0x0000000100008430 LGPerson
(lldb) p (cache_t *)0x0000000100008430
(cache_t *) $1 = 0x0000000100008430
(lldb) p *$1
(cache_t) $2 = {
_bucketsAndMaybeMask = {
std::__1::atomic<unsigned long> = {
Value = 4295001096
}
}
= {
= {
_maybeMask = {
std::__1::atomic<unsigned int> = {
Value = 3580224
}
}
_flags = 1
_occupied = 0
}
_originalPreoptCache = {
std::__1::atomic<preopt_cache_t *> = {
Value = 0x000000010036a140
}
}
}
}
(lldb) p [p sayHello]
2021-06-28 09:35:47.301192+0800 KCObjcBuild[1254:26104] -[LGPerson sayHello]
(lldb) p pClass
(Class) $3 = LGPerson
(lldb) p/x pClass
(Class) $4 = 0x0000000100008430 LGPerson
(lldb) p (cache_t *)0x0000000100008430
(cache_t *) $5 = 0x0000000100008430
(lldb) p 0x0000000100008430+0x10
(long) $6 = 4295001152
(lldb) p *$6
error: <user expression 8>:1:1: indirection requires pointer operand ('long' invalid)
*$6
^~~
(lldb) p/x 0x0000000100008430+0x10
(long) $7 = 0x0000000100008440
(lldb) p *$7
error: <user expression 10>:1:1: indirection requires pointer operand ('long' invalid)
*$7
^~~
(lldb) p (cache_t *)0x0000000100008440
(cache_t *) $8 = 0x0000000100008440
(lldb) p *$8
(cache_t) $9 = {
_bucketsAndMaybeMask = {
std::__1::atomic<unsigned long> = {
Value = 4302790864
}
}
= {
= {
_maybeMask = {
std::__1::atomic<unsigned int> = {
Value = 7
}
}
_flags = 32808
_occupied = 1
}
_originalPreoptCache = {
std::__1::atomic<preopt_cache_t *> = {
Value = 0x0001802800000007
}
}
}
}
(lldb) p $8.buckets()
(bucket_t *) $10 = 0x00000001007760d0
Fix-it applied, fixed expression was:
$8->buckets()
(lldb) p $10.sel()
(SEL) $11 = (null)
Fix-it applied, fixed expression was:
$10->sel()
(lldb) p $10.imp(nil,pClass)
(IMP) $12 = 0x0000000000000000
Fix-it applied, fixed expression was:
$10->imp(nil,pClass)
(lldb) p *$10
(bucket_t) $13 = {
_sel = {
std::__1::atomic<objc_selector *> = (null) {
Value = nil
}
}
_imp = {
std::__1::atomic<unsigned long> = {
Value = 0
}
}
}
(lldb) p $8.buckets()[1]
(bucket_t) $14 = {
_sel = {
std::__1::atomic<objc_selector *> = "" {
Value = ""
}
}
_imp = {
std::__1::atomic<unsigned long> = {
Value = 47104
}
}
}
Fix-it applied, fixed expression was:
$8->buckets()[1]
(lldb) p $14.imp(nil,pClass)
(IMP) $15 = 0x0000000100003c30 (KCObjcBuild`-[LGPerson sayHello])
-
cache属性的获取，需要通过pclass的首地址平移16字节(类中isa指针占8字节，superclass指针占8字节)，即首地址+0x10获取cache的地址
-
从源码的分析中，我们知道sel-imp是在cache_t的_buckets属性中（目前处于macOS环境），而在cache_t结构体中提供了获取_buckets属性的方法buckets()
-
获取了_buckets属性，就可以获取sel-imp了，这两个的获取在bucket_t结构体中同样提供了相应的获取方法sel() 以及 imp(UNUSED_WITHOUT_PTRAUTH bucket_t *base, Class cls).
由上图可知，在没有执行方法调用时，此时的cache是没有缓存的，执行了一次方法调用，cache中就有了一个缓存，即调用一次方法就会缓存一次方法.
脱离源码在项目中查找
typedef uint32_t mask_t; // x86_64 & arm64 asm are less efficient with 16-bits
struct kc_bucket_t {
SEL _sel;
IMP _imp;
};
struct kc_cache_t {
struct kc_bucket_t *_bukets; // 8
mask_t _maybeMask; // 4
uint16_t _flags; // 2
uint16_t _occupied; // 2
};
struct kc_class_data_bits_t {
uintptr_t bits;
};
// cache class
struct kc_objc_class {
Class isa;
Class superclass;
struct kc_cache_t cache; // formerly cache pointer and vtable
struct kc_class_data_bits_t bits;
};
int main(int argc, const char * argv[]) {
@autoreleasepool {
LGPerson *p = [LGPerson alloc];
Class pClass = p.class; // objc_clas
[p say1];
[p say2];
[p say3];
[p say4];
[p say1];
[p say2];
// [p say3];
[pClass sayHappy];
struct kc_objc_class *kc_class = (__bridge struct kc_objc_class *)(pClass);
NSLog(@"%hu - %u",kc_class->cache._occupied,kc_class->cache._maybeMask);
// 0 - 8136976 count
// 1 - 3
// 1: 源码无法调试
// 2: LLDB
// 3: 小规模取样
// 底层原理
// a: 1-3 -> 1 - 7
// b: (null) - 0x0 方法去哪???
// c: 2 - 7 + say4 - 0xb850 + 没有类方法
// d: NSObject 父类
for (mask_t i = 0; i<kc_class->cache._maybeMask; i++) {
struct kc_bucket_t bucket = kc_class->cache._bukets[i];
NSLog(@"%@ - %pf",NSStringFromSelector(bucket._sel),bucket._imp);
}
NSLog(@"Hello, World!");
}
return 0;
}
这里有个问题需要注意，在源码中，objc_class的ISA属性是继承自objc_object的，但在我们将其拷贝过来时，去掉了objc_class的继承关系，需要将这个属性明确，否则打印的结果是有问题，如下图所示，
加上ISA属性后，增加两个方法的调用，其正确的打印结果应该是这样的
在增加两个方法的调用，即解开say3、say4的注释，其打印结果如下
针对上面的打印结果，有以下几点疑问
- _mask是什么？
- _occupied 是什么？
- 为什么随着方法调用的增多，其打印的occupied 和 mask会变化？
- bucket数据为什么会有丢失的情况？，例如2-7中，只有say3、say4方法有函数指针
- 2-7中say3、say4的打印顺序为什么是say4先打印，say3后打印，且还是挨着的，即顺序有问题？
- 打印的cache_t中的_ocupied为什么是从2开始？
带着上述的这些疑问，下面来进行cache底层原理的探索
cache_t底层原理分析
- 首先，从cache_t中的_mask属性开始分析，找cache_t中引起变化的函数，发现了incrementOccupied()函数
该函数的具体实现为
void cache_t::incrementOccupied()
{
_occupied++;
}

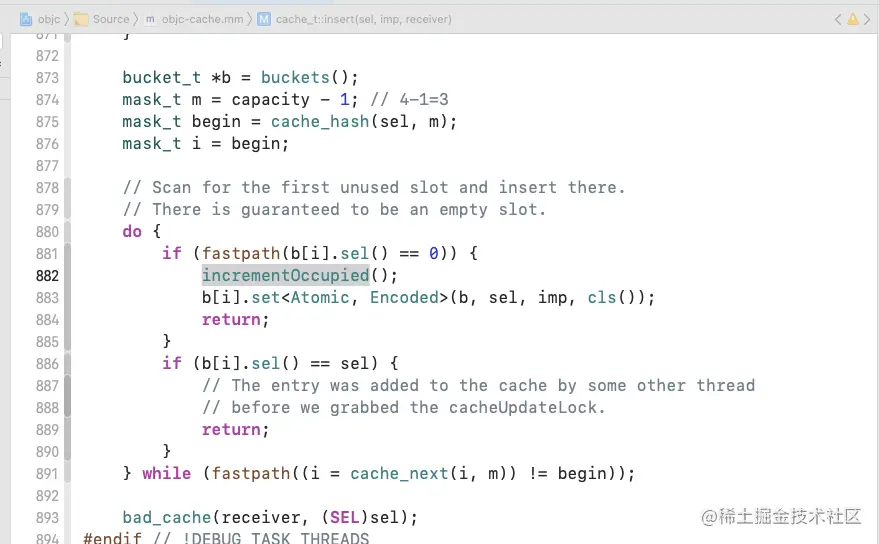

- 源码中，全局搜索incrementOccupied()函数，发现只在cache_t的insert方法有调用

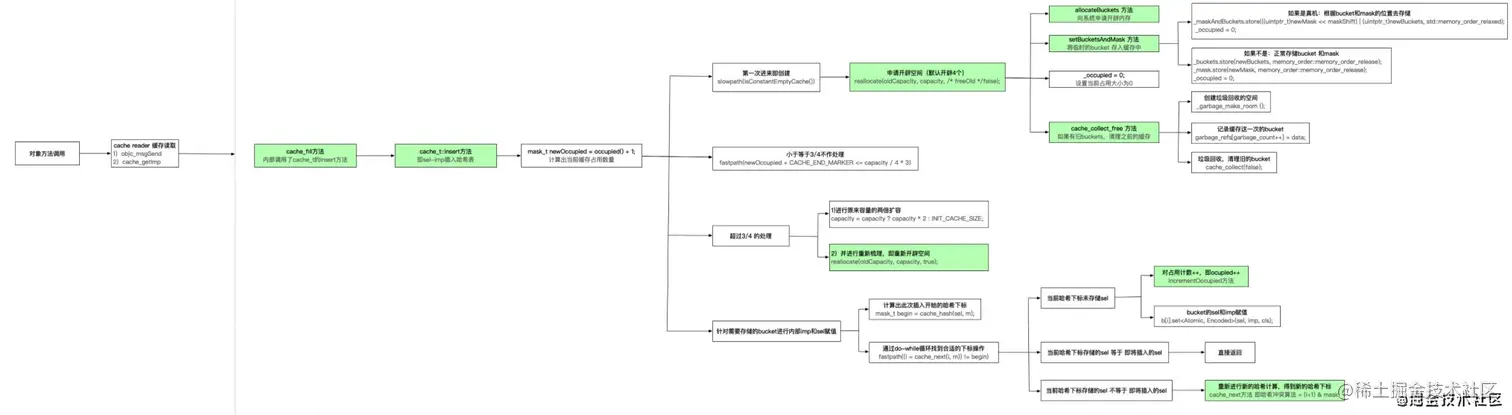

- insert方法，理解为cache_t的插入，而cache中存储的就是sel-imp，所以cache的原理从insert方法开始分析，以下是cache原理分析的流程图
- 全局搜索cache_t::insert，发现在写入之前，还有一步操作，即cache读取，即查找sel-imp，如下所示
insert方法分析
在insert方法中，其源码实现如下
void cache_t::insert(SEL sel, IMP imp, id receiver)
{
runtimeLock.assertLocked();
// Never cache before +initialize is done
if (slowpath(!cls()->isInitialized())) {
return;
}
if (isConstantOptimizedCache()) {
_objc_fatal("cache_t::insert() called with a preoptimized cache for %s",
cls()->nameForLogging());
}
#if DEBUG_TASK_THREADS
return _collecting_in_critical();
#else
#if CONFIG_USE_CACHE_LOCK
mutex_locker_t lock(cacheUpdateLock);
#endif
ASSERT(sel != 0 && cls()->isInitialized());
// Use the cache as-is if until we exceed our expected fill ratio.
mask_t newOccupied = occupied() + 1; // 1+1
unsigned oldCapacity = capacity(), capacity = oldCapacity;
if (slowpath(isConstantEmptyCache())) {
// Cache is read-only. Replace it.
if (!capacity) capacity = INIT_CACHE_SIZE;//4
reallocate(oldCapacity, capacity, /* freeOld */false);
}
else if (fastpath(newOccupied + CACHE_END_MARKER <= cache_fill_ratio(capacity))) {
// Cache is less than 3/4 or 7/8 full. Use it as-is.
}
#if CACHE_ALLOW_FULL_UTILIZATION
else if (capacity <= FULL_UTILIZATION_CACHE_SIZE && newOccupied + CACHE_END_MARKER <= capacity) {
// Allow 100% cache utilization for small buckets. Use it as-is.
}
#endif
else {// 4*2 = 8
capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;
if (capacity > MAX_CACHE_SIZE) {
capacity = MAX_CACHE_SIZE;
}
reallocate(oldCapacity, capacity, true);
}
bucket_t *b = buckets();
mask_t m = capacity - 1; // 4-1=3
mask_t begin = cache_hash(sel, m);
mask_t i = begin;
// Scan for the first unused slot and insert there.
// There is guaranteed to be an empty slot.
do {
if (fastpath(b[i].sel() == 0)) {
incrementOccupied();
b[i].set<Atomic, Encoded>(b, sel, imp, cls());
return;
}
if (b[i].sel() == sel) {
// The entry was added to the cache by some other thread
// before we grabbed the cacheUpdateLock.
return;
}
} while (fastpath((i = cache_next(i, m)) != begin));
bad_cache(receiver, (SEL)sel);
#endif // !DEBUG_TASK_THREADS
}
主要分为以下几部分
- 【第一步】计算出当前的缓存占用量
- 【第二步】根据缓存占用量判断执行的操作
- 【第三步】针对需要存储的bucket进行内部imp和sel赋值
【第一步】计算出当前的缓存占用量
根据occupied的值计算出当前的缓存占用量，当属性未赋值及无方法调用时，此时的occupied()为0，而newOccupied为1，如下所示
mask_t newOccupied = occupied() + 1;
关于缓存占用量的计算，有以下几点说明：
- alloc申请空间时，此时的对象已经创建，如果再调用init方法，occupied也会+1
- 当有属性赋值时，会隐式调用set方法，occupied也会增加，即有几个属性赋值，occupied就会在原有的基础上加几个
- 当有方法调用时，occupied也会增加，即有几次调用，occupied就会在原有的基础上加几个
【第二步】根据缓存占用量判断执行的操作
- 如果是第一次创建，则默认开辟4个
- 如果缓存占用量小于等于3/4，则不作任何处理
- 如果缓存占用量超过3/4，则需要进行两倍扩容以及重新开辟空间
realloc方法：开辟空间
该方法，在第一次创建以及两倍扩容时，都会使用 主要有以下几步
- allocateBuckets方法：向系统申请开辟内存，即开辟bucket，此时的bucket只是一个临时变量
- setBucketsAndMask方法：将临时的bucket存入缓存中，此时的存储分为两种情况：
- 如果是真机，根据bucket和mask的位置存储，并将occupied占用设置为0
- 如果不是真机，正常存储bucket和mask，并将occupied占用设置为0
- 如果有旧的buckets，需要清理之前的缓存，即调用collect_free方法该方法的实现主要有以下几步：
- _garbage_make_room方法：创建垃圾回收空间
- 如果是第一次，需要分配回收空间
- 如果不是第一次，则将内存段加大，即原有内存*2
- 记录存储这次的bucket
- cache_collect方法：垃圾回收，清理旧的bucket
- _garbage_make_room方法：创建垃圾回收空间
【第三步】针对需要存储的bucket进行内部imp和sel赋值
这部分主要是根据cache_hash方法，即哈希算法 ，计算sel-imp存储的哈希下标，分为以下三种情况：
-
如果哈希下标的位置未存储sel，即该下标位置获取sel等于0，此时将sel-imp存储进去，并将occupied占用大小加1
-
如果当前哈希下标存储的sel 等于 即将插入的sel，则直接返回
-
如果当前哈希下标存储的sel 不等于 即将插入的sel，则重新经过cache_next方法 即哈希冲突算法，重新进行哈希计算，得到新的下标，再去对比进行存储
其中涉及的两种哈希算法，其源码如下
- cache_hash：哈希算法
static inline mask_t cache_hash(SEL sel, mask_t mask)
{
return (mask_t)(uintptr_t)sel & mask; // 通过sel & mask（mask = cap -1）
}
- cache_next：哈希冲突算法
#if __arm__ || __x86_64__ || __i386__
// objc_msgSend has few registers available.
// Cache scan increments and wraps at special end-marking bucket.
#define CACHE_END_MARKER 1
static inline mask_t cache_next(mask_t i, mask_t mask) {
return (i+1) & mask; //（将当前的哈希下标 +1） & mask，重新进行哈希计算，得到一个新的下标
}
#elif __arm64__
// objc_msgSend has lots of registers available.
// Cache scan decrements. No end marker needed.
#define CACHE_END_MARKER 0
static inline mask_t cache_next(mask_t i, mask_t mask) {
return i ? i-1 : mask; //如果i是空，则为mask，mask = cap -1，如果不为空，则 i-1，向前插入sel-imp
}
cache_t疑问点
为什么是在 3/4 时进行扩容
在哈希这种数据结构里面，有一个概念用来表示空位的多少叫做装载因子——装载因子越大，说明空闲位置越少，冲突越多，散列表的性能会下降
负载因子是3/4的时候，空间利用率比较高，而且避免了相当多的Hash冲突，提升了空间效率
