仿乐透购彩app（6）

仿乐透购彩app- - - 购彩界面

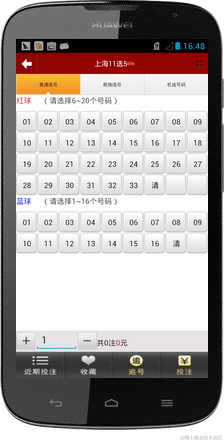

购彩布局界面如下

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" >

    <RelativeLayout
        android:layout_width="fill_parent"
        android:layout_height="40dip"
        android:layout_alignParentTop="true"
        android:background="#940400"
        android:orientation="horizontal" >

        <ImageView
            android:layout_width="40dip"
            android:layout_height="40dip"
            android:layout_alignParentLeft="true"
            android:src="@drawable/back" >
        </ImageView>

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="fill_parent"
            android:layout_marginLeft="40dip"
            android:orientation="horizontal" >

            <LinearLayout
                android:layout_width="fill_parent"
                android:layout_height="fill_parent"
                android:layout_weight="8"
                android:gravity="center"
                android:orientation="horizontal" >

                <TextView
                    android:id="@+id/buylottery_title"
                    android:layout_width="wrap_content"
                    android:layout_height="fill_parent"
                    android:gravity="center"
                    android:text="title"
                    android:textColor="#ffffff"
                    android:textSize="9pt" >
                </TextView>

                <TextView
                    android:id="@+id/buylottery_title2"
                    android:layout_width="wrap_content"
                    android:layout_height="fill_parent"
                    android:gravity="center"
                    android:text="title"
                    android:textColor="#F7C36B"
                    android:textSize="6pt" >
                </TextView>
            </LinearLayout>

            <ImageView
                android:layout_width="40dip"
                android:layout_height="40dip"
                android:layout_weight="2"
                android:gravity="right"
                android:src="@drawable/menu_down" >
            </ImageView>
        </LinearLayout>
    </RelativeLayout>

    <RelativeLayout
        android:layout_width="fill_parent"
        android:layout_height="fill_parent"
        android:layout_alignParentBottom="true"
        android:layout_marginTop="40dip"
        android:background="#ffffff" >

        <!-- center -->

        <LinearLayout
            android:layout_width="fill_parent"
            android:layout_height="fill_parent"
            android:layout_alignParentTop="true"
            android:background="#ffffff"
            android:orientation="vertical" >

            <!-- top tool -->

            <LinearLayout
                android:layout_width="fill_parent"
                android:layout_height="wrap_content"
                android:orientation="vertical" >

                <!-- 抽屉效果界面 -->

                <LinearLayout
                    android:layout_width="fill_parent"
                    android:layout_height="40dip"
                    android:orientation="horizontal" >

                    <LinearLayout
                        android:id="@+id/buylottery_frame_item1"
                        android:layout_width="wrap_content"
                        android:layout_height="fill_parent"
                        android:layout_weight="3.3"
                        android:background="@drawable/tab1" >

                        <TextView
                            android:layout_width="fill_parent"
                            android:layout_height="fill_parent"
                            android:gravity="center"
                            android:text="普通选号"
                            android:textColor="#000000"
                            android:textSize="6pt" />
                    </LinearLayout>

                    <LinearLayout
                        android:id="@+id/buylottery_frame_item2"
                        android:layout_width="wrap_content"
                        android:layout_height="fill_parent"
                        android:layout_weight="3.3"
                        android:background="@drawable/tab2" >

                        <TextView
                            android:layout_width="fill_parent"
                            android:layout_height="fill_parent"
                            android:gravity="center"
                            android:text="胆拖选号"
                            android:textColor="#000000"
                            android:textSize="6pt" />
                    </LinearLayout>

                    <LinearLayout
                        android:id="@+id/buylottery_frame_item3"
                        android:layout_width="wrap_content"
                        android:layout_height="fill_parent"
                        android:layout_weight="3.3"
                        android:background="@drawable/tab2" >

                        <TextView
                            android:layout_width="fill_parent"
                            android:layout_height="fill_parent"
                            android:gravity="center"
                            android:text="机选号码"
                            android:textColor="#000000"
                            android:textSize="6pt" />
                    </LinearLayout>
                </LinearLayout>
            </LinearLayout>
            <!-- change freame -->

            <LinearLayout
                 android:orientation="vertical"
                android:id="@+id/buylottery_changeframe"
                android:layout_width="fill_parent"
                android:layout_height="wrap_content" >
            </LinearLayout>
        </LinearLayout>
        <!-- botton items -->

        <RelativeLayout
            android:layout_width="fill_parent"
            android:layout_height="90dip"
            android:layout_alignParentBottom="true"
            android:layout_marginTop="-90dip"
            android:background="#ffffff" >

            <LinearLayout
                android:layout_width="fill_parent"
                android:layout_height="40dip"
                android:layout_alignParentTop="true"
                android:background="#E7E3E7"
                android:orientation="horizontal" >

                <ImageView
                    android:id="@+id/buylottery_add"
                    android:layout_width="35dip"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:src="@drawable/btnadd" >
                </ImageView>

                <EditText
                    android:layout_width="80dip"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:text="1" >
                </EditText>

                <ImageView
                    android:id="@+id/buylottery_reduce"
                    android:layout_width="35dip"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:src="@drawable/btnreduce" >
                </ImageView>

                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:text="共0注"
                    android:textColor="#000000" >
                </TextView>

                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:text="0"
                    android:textColor="#950055" >
                </TextView>

                <TextView
                    android:layout_width="wrap_content"
                    android:layout_height="35dip"
                    android:layout_marginTop="2dip"
                    android:text="元"
                    android:textColor="#000000" >
                </TextView>
            </LinearLayout>

            <LinearLayout
                android:layout_width="fill_parent"
                android:layout_height="50dip"
                android:layout_alignParentBottom="true"
                android:background="#ffffff"
                android:orientation="horizontal" >

                <LinearLayout
                    android:id="@+id/buylottery_bottom1"
                    android:layout_width="fill_parent"
                    android:layout_height="fill_parent"
                    android:layout_weight="1"
                    android:background="@drawable/buylttery_botton1_selector"
                    android:orientation="vertical" >
                </LinearLayout>

                <LinearLayout
                    android:id="@+id/buylottery_bottom2"
                    android:layout_width="fill_parent"
                    android:layout_height="fill_parent"
                    android:layout_weight="1"
                    android:background="@drawable/buylttery_botton2_selector"
                    android:orientation="vertical" >
                </LinearLayout>

                <LinearLayout
                    android:id="@+id/buylottery_bottom3"
                    android:layout_width="fill_parent"
                    android:layout_height="fill_parent"
                    android:layout_weight="1"
                    android:background="@drawable/buylttery_botton3_selector"
                    android:orientation="vertical" >
                </LinearLayout>

                <LinearLayout
                    android:id="@+id/buylottery_bottom4"
                    android:layout_width="fill_parent"
                    android:layout_height="fill_parent"
                    android:layout_weight="1"
                    android:background="@drawable/buylttery_botton4_selector"
                    android:orientation="vertical" >
                </LinearLayout>
            </LinearLayout>
        </RelativeLayout>
    </RelativeLayout>

</RelativeLayout>

顶部的三个按钮控制着中间的LinearLayout的布局改变

    /**
     *控制中间的布局显示内容
     */
    private void dobuylottery_frame_item(int layoutId) {
        buylottery_changeframe.removeAllViews();
        View view = getLayoutInflater().inflate(layoutId, null);
        LayoutParams params = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);
        buylottery_changeframe.addView(view, params);
    }

逻辑代码

package com.chb.letou;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.Window;
import android.widget.LinearLayout;
import android.widget.TextView;
import android.widget.LinearLayout.LayoutParams;
/**
 * 购买彩票的界面
 */
public class BuyLotteryActivity extends Activity implements OnClickListener{
    TextView buylottery_title ;
    //顶部三个选好按钮
    LinearLayout buylottery_frame_item1;
    LinearLayout buylottery_frame_item2;
    LinearLayout buylottery_frame_item3;
    //底部四个按钮
    private LinearLayout buylottery_bottom1;
    private LinearLayout buylottery_bottom2;
    private LinearLayout buylottery_bottom3;
    private LinearLayout buylottery_bottom4;


    private LinearLayout buylottery_changeframe;

    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        setContentView(R.layout.activity_buylottery);
        initView();
        Intent intent = getIntent();
        String title = intent.getStringExtra("title");
        buylottery_title.setText(title);
        dobuylottery_frame_item(R.layout.buylottery_shuangsheqiu_frame1);

    };

    /**
     * 初始化view
     */
    private void initView() {
        buylottery_title = (TextView) findViewById(R.id.buylottery_title);


        buylottery_frame_item1 = (LinearLayout) findViewById(R.id.buylottery_frame_item1);
        buylottery_frame_item2 = (LinearLayout) findViewById(R.id.buylottery_frame_item2);
        buylottery_frame_item3 = (LinearLayout) findViewById(R.id.buylottery_frame_item3);
        buylottery_frame_item1.setOnClickListener(this);
        buylottery_frame_item2.setOnClickListener(this);
        buylottery_frame_item3.setOnClickListener(this);

        //底部的四个按钮
        buylottery_bottom1 = (LinearLayout) findViewById(R.id.buylottery_bottom1);
        buylottery_bottom2 =  (LinearLayout) findViewById(R.id.buylottery_bottom2);
        buylottery_bottom3 =  (LinearLayout) findViewById(R.id.buylottery_bottom3);
        buylottery_bottom4 =  (LinearLayout) findViewById(R.id.buylottery_bottom4);
        buylottery_bottom1.setOnClickListener(this);
        buylottery_bottom2.setOnClickListener(this);
        buylottery_bottom3.setOnClickListener(this);
        buylottery_bottom4.setOnClickListener(this);

        buylottery_changeframe = (LinearLayout) findViewById(R.id.buylottery_changeframe);


    }

    @Override
    public void onClick(View v) {
        switch (v.getId()) {
        case R.id.buylottery_frame_item1:
            resetTopButton();
            buylottery_frame_item1.setBackgroundResource(R.drawable.tab1);
            dobuylottery_frame_item(R.layout.buylottery_shuangsheqiu_frame1);
            break;
        case R.id.buylottery_frame_item2:
            resetTopButton();
            buylottery_frame_item2.setBackgroundResource(R.drawable.tab1);
            dobuylottery_frame_item(R.layout.buylottery_shuangsheqiu_frame2);
            break;
        case R.id.buylottery_frame_item3:
            buylottery_frame_item3.setBackgroundResource(R.drawable.tab1);
            dobuylottery_frame_item(R.layout.buylottery_shuangsheqiu_frame3);
            resetTopButton();
            break;


        case R.id.buylottery_bottom4:

            break;
        case R.id.buylottery_bottom3:

            break;
        case R.id.buylottery_bottom2:

            break;
        case R.id.buylottery_bottom1:

            break;





        default:
            break;
        }
    }

    /**
     * 将购彩界面的顶部三个按钮设置为原始状态
     */
    private void resetTopButton(){
        buylottery_frame_item3.setBackgroundResource(R.drawable.tab2);
        buylottery_frame_item2.setBackgroundResource(R.drawable.tab2);
        buylottery_frame_item1.setBackgroundResource(R.drawable.tab2);

    }

    /**
     *控制中间的布局显示内容
     */
    private void dobuylottery_frame_item(int layoutId) {
        buylottery_changeframe.removeAllViews();
        View view = getLayoutInflater().inflate(layoutId, null);
        LayoutParams params = new LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.MATCH_PARENT);
        buylottery_changeframe.addView(view, params);
    }


}
