android 进程间通信之aidl

android 进程间通信之aidl\

android 进程间通信之aidl 多个客户端， 多线程， IPC \

第一步： 创建一个ITestAidl.aidl 文件

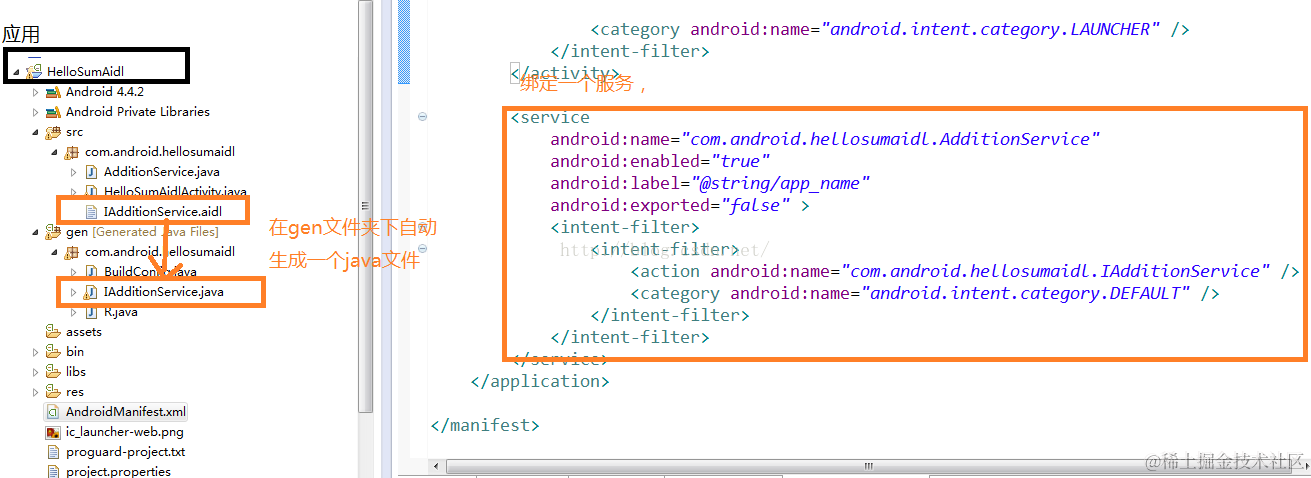

Eclipse 下回自动在gen文件夹下生成一个相应的ITestAidl.java文件

第二步： 创建一个服务，

返回的一个binder对象  继承ITestAidl.Stub

第三步： 在客户端， 绑定服务， 通过ServiceConnection 获取IBinder对象，

获取服务器的数据

\

\

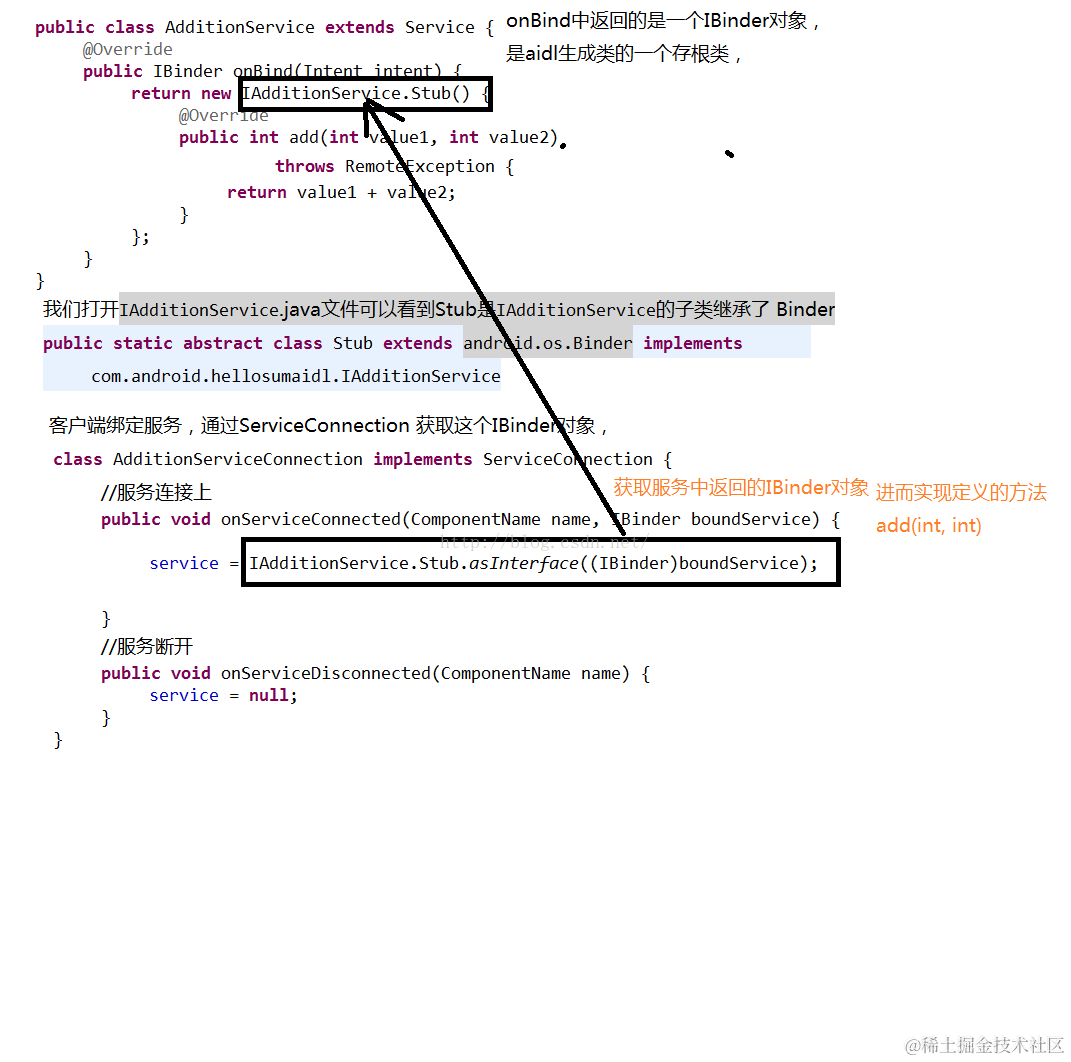

Service中返回一个IBinder对象实现了 aidl接口中的Stub (继承了IBinder)

客户端绑定服务，通过ServiceConnection 获取Service中的IBinder,

在客户端进行传输数据， 并返回结果，

\

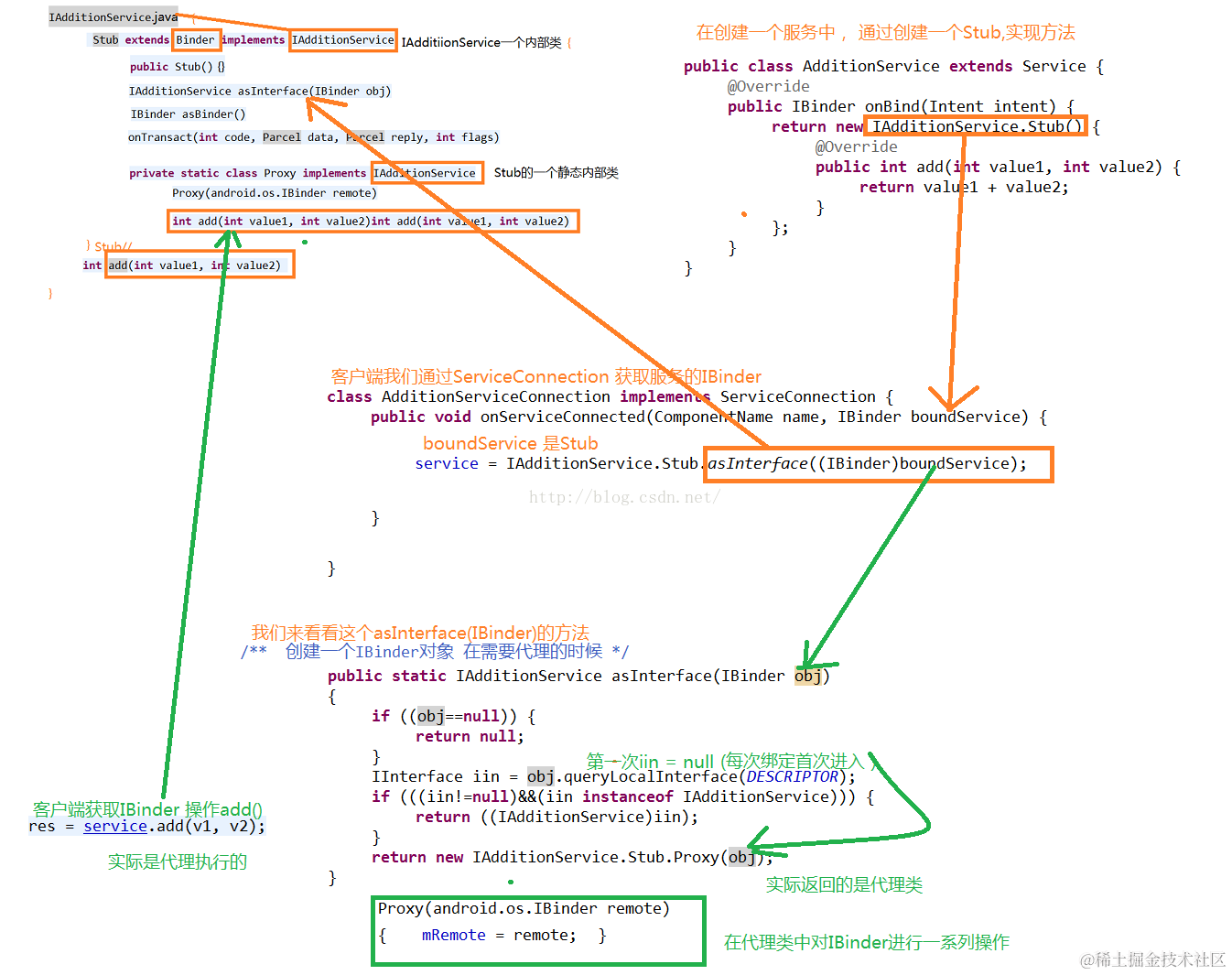

aidl底层实现

\

\

客户端实现：\

package com.android.hellosumaidl;

import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;
import android.app.Activity;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;

public class HelloSumAidlActivity extends Activity {

	IAdditionService service;
	AdditionServiceConnection connection;

	@Override
	public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.main);

		initService();

		Button buttonCalc = (Button)findViewById(R.id.buttonCalc);

		buttonCalc.setOnClickListener(new OnClickListener() {
			TextView result = (TextView)findViewById(R.id.result);
			EditText value1 = (EditText)findViewById(R.id.value1);
			EditText value2 = (EditText)findViewById(R.id.value2);

			@Override
			public void onClick(View v) {
				int v1, v2, res = -1;
				v1 = Integer.parseInt(value1.getText().toString());
				v2 = Integer.parseInt(value2.getText().toString());

				try {
					res = service.add(v1, v2);
				} catch (RemoteException e) {
					e.printStackTrace();
				}

				result.setText(Integer.valueOf(res).toString());
			}
		});
	}

	@Override
	protected void onDestroy() {
		super.onDestroy();
		releaseService();
	}

	/*
	 * This inner class is used to connect to the service
	 */
	class AdditionServiceConnection implements ServiceConnection {
		public void onServiceConnected(ComponentName name, IBinder boundService) {
			service = IAdditionService.Stub.asInterface((IBinder)boundService);
			Toast.makeText(HelloSumAidlActivity.this, "Service connected", Toast.LENGTH_LONG).show();
		}

		public void onServiceDisconnected(ComponentName name) {
			service = null;
			Toast.makeText(HelloSumAidlActivity.this, "Service disconnected", Toast.LENGTH_LONG).show();
		}
	}

	/*
	 * This function connects the Activity to the service
	 */
	private void initService() {
		connection = new AdditionServiceConnection();
		Intent i = new Intent();
		i.setClassName("com.android.hellosumaidl", com.android.hellosumaidl.AdditionService.class.getName());
		boolean ret = bindService(i, connection, Context.BIND_AUTO_CREATE);
	}

	/*
	 * This function disconnects the Activity from the service
	 */
	private void releaseService() {
		unbindService(connection);
		connection = null;
	}
}

\

\

\

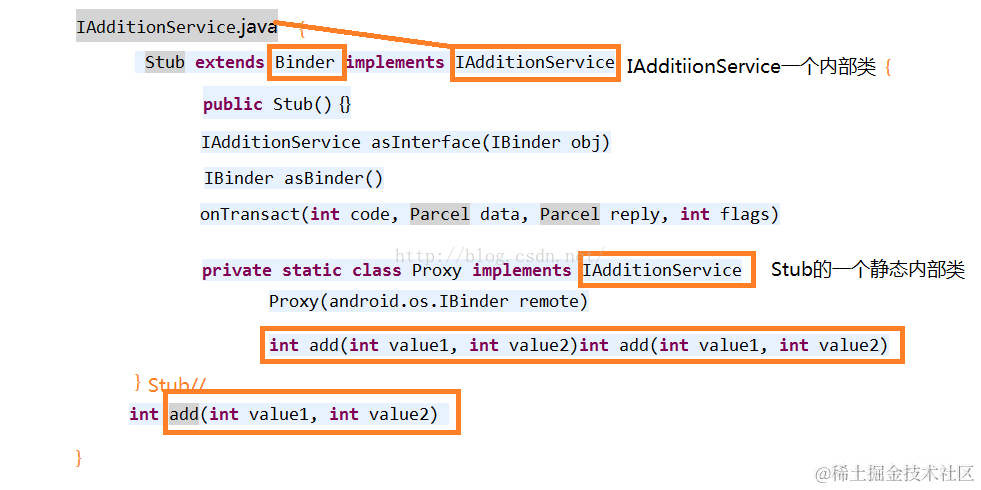

将gen文件夹下的.aidl生成的IAdditionService.java

文件 拷出来看以一看：

\

\

public interface IAdditionService extends android.os.IInterface
{
	/** Local-side IPC implementation stub class. */
	public static abstract class Stub extends Binder implements IAdditionService
	{
		private static final String DESCRIPTOR = "com.android.hellosumaidl.IAdditionService";
		/** 构造函数. */
		public Stub()
		{
			this.attachInterface(this, DESCRIPTOR);
		}
		/**  创建一个IBinder对象 在需要代理的时候 */
		public static IAdditionService asInterface(IBinder obj)
		{
			if ((obj==null)) {
				return null;
			}
			IInterface iin = obj.queryLocalInterface(DESCRIPTOR);
			if (((iin!=null)&&(iin instanceof IAdditionService))) {
				return ((IAdditionService)iin);
			}
			return new IAdditionService.Stub.Proxy(obj);
		}
		@Override public  IBinder asBinder()
		{
			return this;
		}
		@Override public boolean onTransact(int code,
				Parcel data, Parcel reply, int flags)
						throws android.os.RemoteException
		{
			switch (code)
			{
			case INTERFACE_TRANSACTION:
			{
				reply.writeString(DESCRIPTOR);
				return true;
			}
			case TRANSACTION_add:
			{
				data.enforceInterface(DESCRIPTOR);
				int _arg0;
				_arg0 = data.readInt();
				int _arg1;
				_arg1 = data.readInt();
				int _result = this.add(_arg0, _arg1);
				reply.writeNoException();
				reply.writeInt(_result);
				return true;
			}
			}
			return super.onTransact(code, data, reply, flags);
		}
		private static class Proxy implements IAdditionService
		{
			private IBinder mRemote;
			Proxy(android.os.IBinder remote)
			{
				mRemote = remote;
			}
			@Override public android.os.IBinder asBinder()
			{
				return mRemote;
			}
			public java.lang.String getInterfaceDescriptor()
			{
				return DESCRIPTOR;
			}
			// You can pass the value of in, out or inout
			// The primitive types (int, boolean, etc) are only passed by in

			@Override public int add(int value1, int value2) throws android.os.RemoteException
			{
				android.os.Parcel _data = android.os.Parcel.obtain();
				android.os.Parcel _reply = android.os.Parcel.obtain();
				int _result;
				try {
					_data.writeInterfaceToken(DESCRIPTOR);
					_data.writeInt(value1);
					_data.writeInt(value2);
					mRemote.transact(Stub.TRANSACTION_add, _data, _reply, 0);
					_reply.readException();
					_result = _reply.readInt();
				}
				finally {
					_reply.recycle();
					_data.recycle();
				}
				return _result;
			}
		}
		static final int TRANSACTION_add = (android.os.IBinder.FIRST_CALL_TRANSACTION + 0);
	}
	// You can pass the value of in, out or inout
	// The primitive types (int, boolean, etc) are only passed by in

	public int add(int value1, int value2) throws android.os.RemoteException;
}

\
