GitLab CI/CD+Gitlab-runner+docker的介绍与踩坑

·  阅读 1293

GitLab CI/CD

Docker安装gitlab-runner

$ docker run -d --name gitlab-runner --restart always \
     -v /srv/gitlab-runner/config:/etc/gitlab-runner \
     -v /var/run/docker.sock:/var/run/docker.sock \
     gitlab/gitlab-runner:latest
复制代码

可以在运行runner时暴露一个端口,用于在gitlab流水线上直接debug:

$ docker run -d --name gitlab-runner -p 8081:8081 --restart always \
     -v /srv/gitlab-runner/config:/etc/gitlab-runner \
     -v /var/run/docker.sock:/var/run/docker.sock \
     gitlab/gitlab-runner:latest
复制代码

运行后需要修改runner的配置文件/srv/gitlab-runner/config/config.toml

[session_server]
	listen_address = "[::]:8081"
	advertise_address = "IP:8081"
	session_timeout = 1800
[runners.docker]
	volumes = ["/cache","/usr/bin/docker:/usr/bin/docker","/var/run/docker.sock:/var/run/docker.sock"]
	pull_policy = "if-not-present"
复制代码

进入gitlab-runner

$ docker exec -it gitlab-runner bash
复制代码

查看runners的状态

$ gitlab-runner status
复制代码

重启runners

$ gitlab-runner run
复制代码

注册gitlab-runner

$ docker exec -it gitlab-runner gitlab-runner register
复制代码

执行后需要依次输入提示信息

其中url和token可以在gitlab项目设置里面找到


.gitlab-ci.yml

  • stages

    全局自定义阶段

    stages:
    	- stage1
    	- stage2
    	- stage3
    复制代码
  • script

    shell脚本

    job1:
    	stage: stage1
    	script: "echo 'this is job1'"

    job2:
    	stage: stage2
    	script:
    		- echo "this is job2"
    		- echo "this is job2 too"
    复制代码
  • stage

    任务内的阶段,必须从全局阶段中选

    job1:
    	stage: stage1
    	script: "echo 'this is stage1'"
    复制代码
  • retry

    失败后的重试次数(0不会重试,2最多重试2次)

    when:当什么时候重试

    test:
    	script: rspec
    	retry: 0
    test:
    	script: rspec
    	retry:
    		max: 2
    		when:
    			- runner_system_failure
    			- syuck_or_timeout_failure
    复制代码
  • image

    指定一个基础Docker镜像作为基础运行环境,经常用到的镜像有node java python docker

  • tags

    tags关键字是用于指定Runner,tags的取值范围是在该项目可见的runner tags中

  • only/except

    限定当前任务执行的条件

  • when

    when关键字是实现在发生故障或尽管发生故障仍能运行的作业

  • cache

    是将当前工作环境目录中的一些文件,一些文件夹存储起来,用于在各个任务初始化的时候恢复

  • variables

    设置变量的三种方式:

    • 在.gitlab-ci.yml中自己定义
    • 使用pipeline中预定义的变量
    • 设置在CICD中设置变量
  • interruptible

    默认为false,可以设置为true,会自动取消旧的正在运行的流水线(需要在设置中CI/CD设置Auto-cancel redundant pipelines

  • timeout

    设置超时时间

  • rousource_group

    限定分支的部署任务数量只能有一个,其他新的流水线会进入等待状态

一个前端自动部署的例子:

image: node:alpine

stages:
	- install
	- build
	- deploy

cache:
	key: modules-cache
	paths:
		- node_modules

job_install:
	stage: install
	tags:
	 - dockercicd
	script:
		- npm install
	interruptible: true
	rouscource: prod

job_build:
	stage: build
	tags:
	 - dockercicd
	script:
		- npm run build
	only:
		- release # 只在release分支执行
	interruptible: true
	rouscource: prod

job_deplot:
	stage: deploy
	variables:
		WEB_NAME:"web-image"
	image: docker
	tags:
	 - dockercicd
	script:
		- docker build -t $WEB_NAME . # 当前项目目录下写了Dockerfile 执行生成镜像 Dockerfile如下
		- if [ $(docker ps -aq --filter name=$WEB_NAME) ];then docker rm -f $WEB_NAME;fi
		- docker run -d -p 8082:80 $WEB_NAME
	when: manual # 手动执行任务
	interruptible: true
	rouscource: prod
复制代码
FROM node:lastest as builder
WORKDIR /app
COPY package.json .
RUN npm install --registry=http://registry.npm.taobao.org
COPY . .
RUN npm run build

FROM nginx:lastest
COPY --from=builder /app/dist /usr/share/nginx/html
复制代码

CI/CD相关设置

取消默认的邮件提醒


流水线没有权限触发

Pipeline failed due to the user not being verified

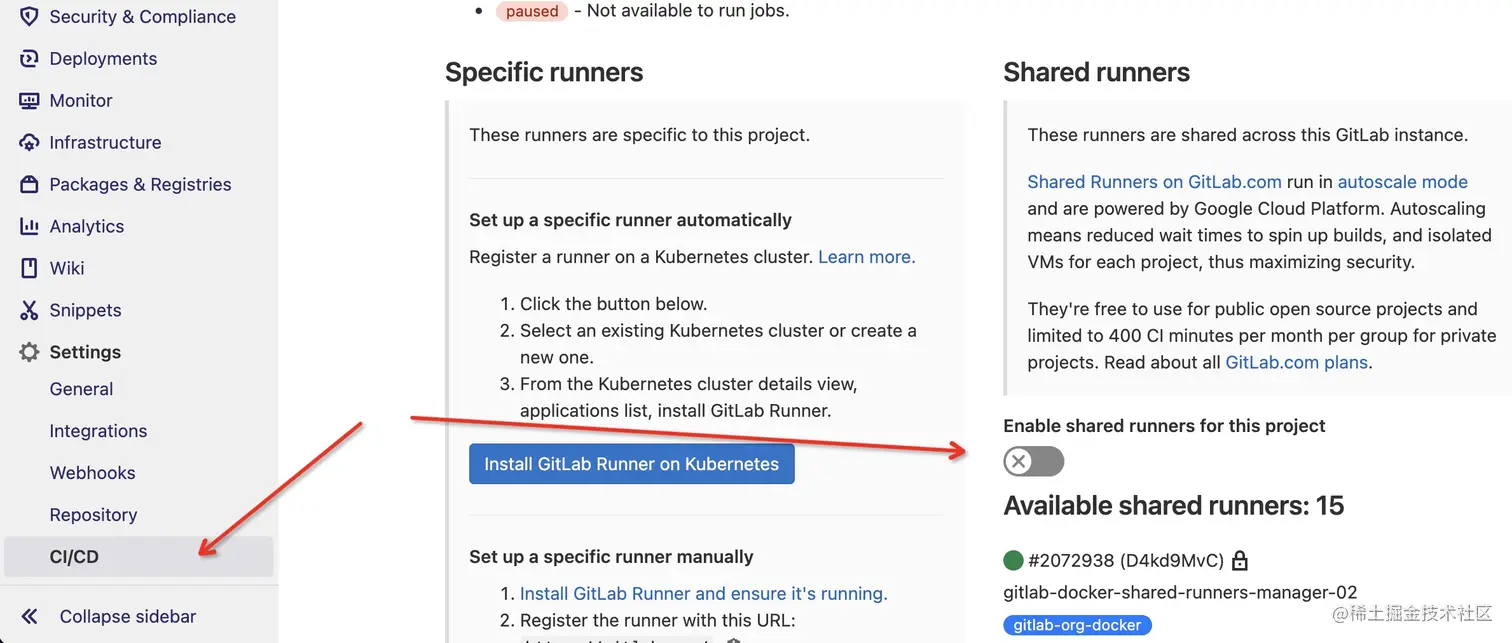

这个问题比较奇葩,网上找了很久才在外网找到问题所在,是因为默认启用了允许使用共享tags导致需要验证身份的问题。

这里我选择直接关闭,同样是在获取token那个页面。

流水线

  • 基本流水线

  • DAG流水线

    stages:
    	- build
    	- test
    	- deploy

    image: alpine

    build_a:
    	stage: build
    	script:
    		- echo "this job builds something quickly"

    build_b:
    	stage: build
    	script:
    		- echo "this job builds something slowly"

    test_a:
    	stage: test
    	need: [build_a]
    	script:
    		- echo "this test job will start as soon as build_a finished"
    		- echo "it will not wait for build_b,or other jobs in the build stage,to finished"

    test_b:
    	stage: test
    	need: [build_b]
    	script:
    		- echo "this test job will start as soon as build_b finished"
    		- echo "it will not wait for build_b,or other jobs in the build stage,to finished"

    deploy_a:
    	stage: deploy
    	need: [test_a]
    	script:
    		- echo "Since build_a and test_a run quickly,this deploy job can run much earlier"
    		- echo "it dose not need to wait for build_b or test_b"
    复制代码
  • 父子流水线

    stages:
    	- test
    	- triggers
    	- deploy

    testjob:
    	stage: test
    	script: echo 'test job'

    trigger_a:
    	stage: triggers
    	trigger:
    		include: a/.gitlab-ci.yml
    	rules:
    		- changes:
    			- a/*

    trigger_b:
    	stage: triggers
    	trigger:
    		include: b/.gitlab-ci.yml
    	rules:
    		- changes:
    			- b/*
    复制代码
  • 多项目流水线

    stages:
    	- test
    	- triggers
    	- deploy

    testjob:
    	stage: test
    	script: echo 'test job'

    trigger_a:
    	stage: triggers
    	trigger:
    		include: a/.gitlab-ci.yml
    	rules:
    		- changes:
    			- a/*

    trigger_b:
    	stage: triggers
    	trigger:
    		include: b/.gitlab-ci.yml
    	rules:
    		- changes:
    			- b/*

    trigger_c:
    	stage: deploy
    	trigger:
    		project: root/pain_html
    		branch: master
    		stategy: depend
    复制代码
  • 合并请求流水线

    image: node:alpine

    stages:
    	- install
    	- build
    	- deploy

    cache:
    	key: modules-cache
    	paths:
    		- node_modules

    job_install:
    	stage: install
    	tags:
    	 - dockercicd
    	script:
    		- npm install

    job_build:
    	stage: build
    	tags:
    	 - dockercicd
    	script:
    		- npm run build
    	only:
    		- merge_requests # 只在merge时执行
    复制代码

流水线的触发

  • 推送代码
  • 定时触发
  • url触发
  • 手动触发

vue项目实战 .gitlab-ci.yml

stages:
  - package
  - build
  - deploy
my_package:
  image: 192.168.100.150/tools/node-git:10-alpine
  stage: package
  script:
    - npm install --registry=https://registry.npm.taobao.org
    - npm run build:prod
    - cp Dockerfile dist/Dockerfile
  cache:
    key: ${CI_PIPELINE_ID}
    paths:
      - dist/
  only:
    - master
  tags:
   - runInDk
my_build:
  stage: build
  cache:
    key: ${CI_PIPELINE_ID}
    paths:
      - dist/
  script:
    - cd dist
    - docker build -t 192.168.88.4:5000/${CI_PROJECT_NAME}:${CI_PIPELINE_ID} .
    - docker push 192.168.88.4:5000/${CI_PROJECT_NAME}:${CI_PIPELINE_ID}
  tags:
    - runInDk
my_deploy:
  stage: deploy
  script:
    - docker stop ${CI_PROJECT_NAME} && docker rm ${CI_PROJECT_NAME}
    - docker run -d -p 8080:80 --restart=always --name=${CI_PROJECT_NAME} 192.168.88.4:5000/${CI_PROJECT_NAME}:${CI_PIPELINE_ID}
  tags:
    - runInDk
复制代码
