DBeaver添加自定义高德底图

1,889 阅读1分钟

添加自定义底图

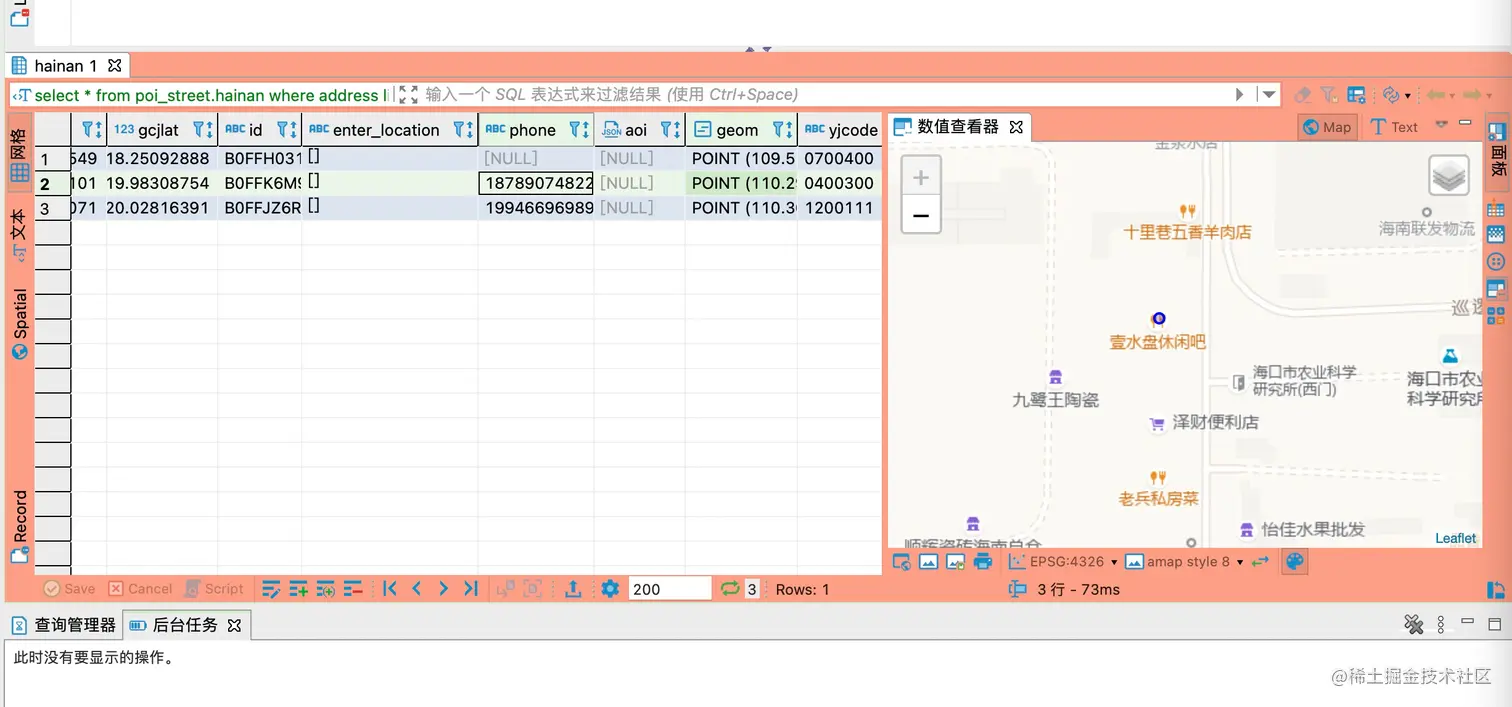

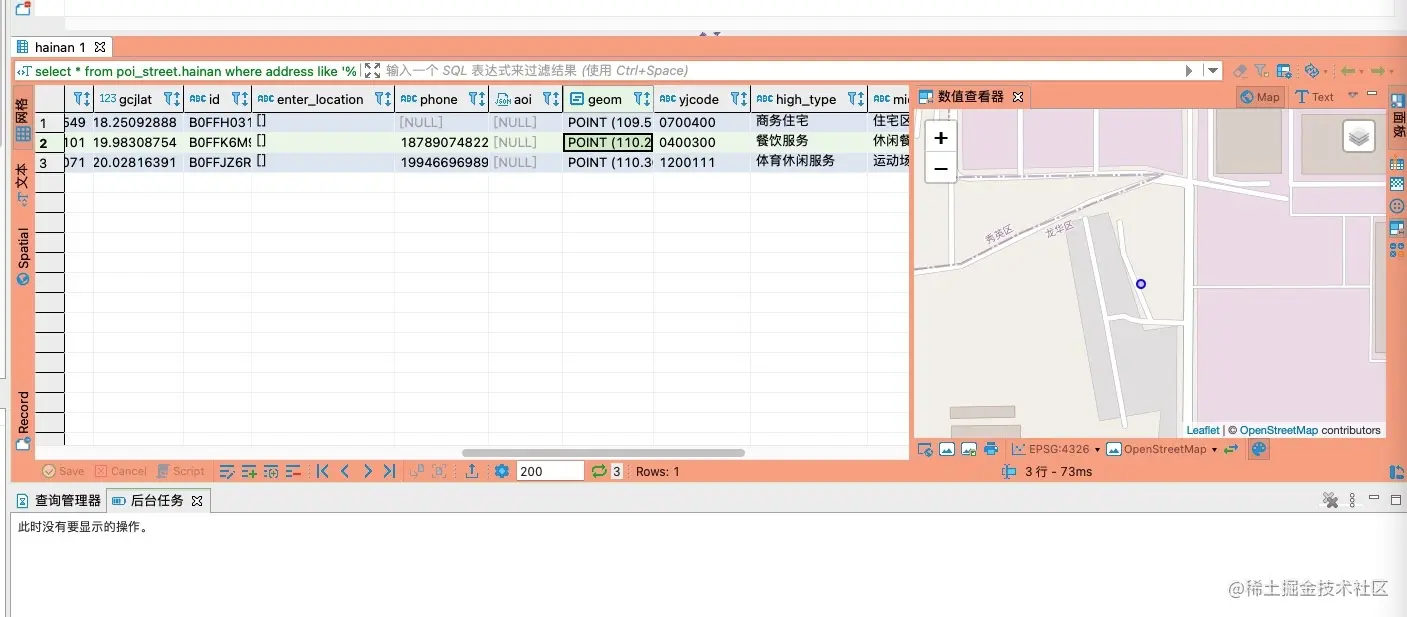

DBeaver提供了空间数据在地图上查看的功能,地图查看器技术上基于Leaflet实现。 当我们在表格中选择空间数据时,空间数据会叠加在右侧的地图查看器上。

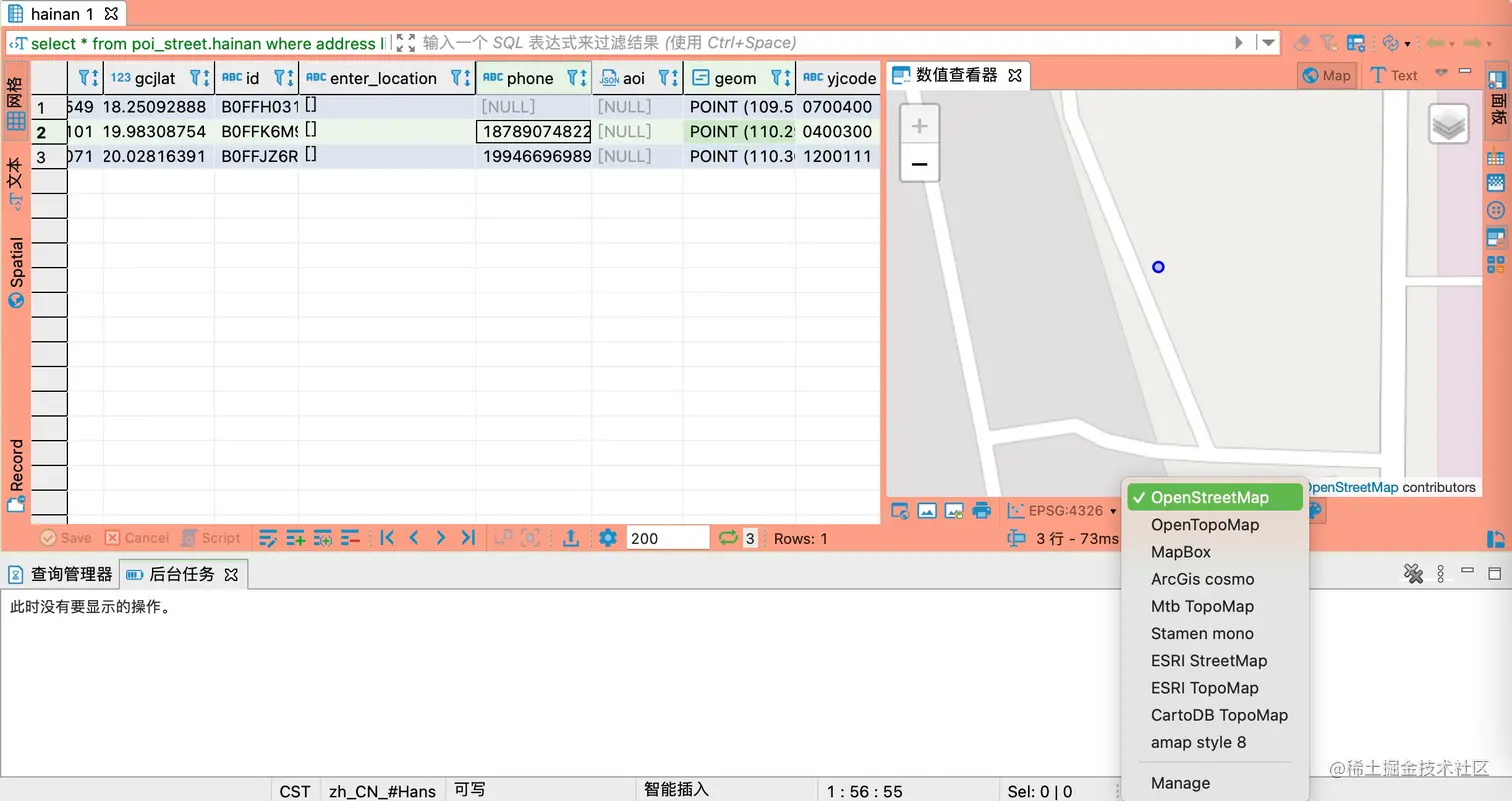

底图查看器已经预置了OSM、MapBox、ESRI等多种底图服务,可以通过下方的下拉选择框进行切换。

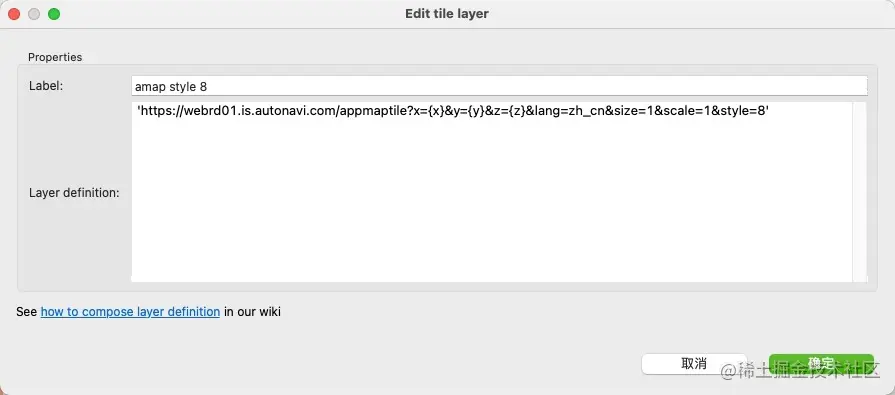

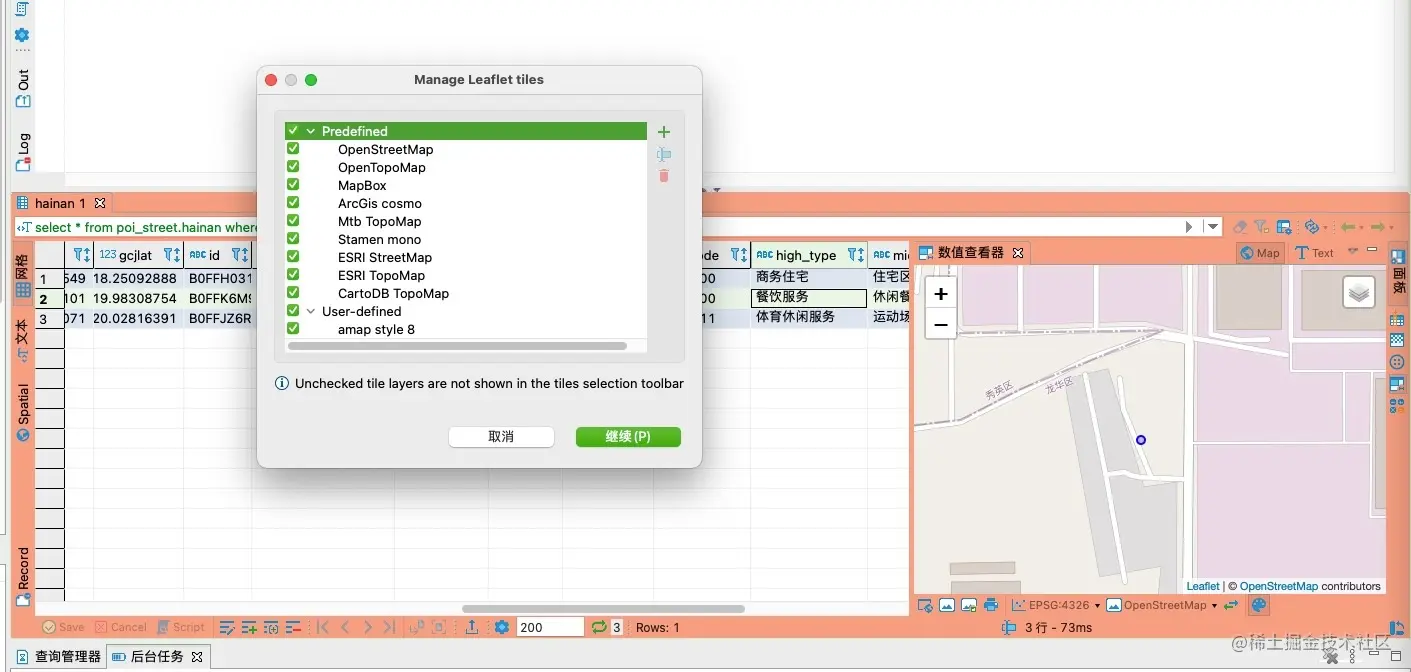

此外我们还可以添加自定义图层,打开图层管理器,点击“+”按钮打开编辑器,填入图层名和URL即可(注意URL要用单引号包裹起来),图中以高德style8底图为例。

高德style8 URL:'webrd01.is.autonavi.com/appmaptile?…'




常见互联网底图:

1、高德style8

webrd01.is.autonavi.com/appmaptile?…

2、高德style7

webrd01.is.autonavi.com/appmaptile?…

3、天地图

t7.tianditu.gov.cn/DataServer?…

4、天地图Label

t3.tianditu.gov.cn/DataServer?…

5、Google Street

mt1.google.com/vt/lyrs=m&x…

6、Google Satellite

mt1.google.com/vt/lyrs=s&x…
