前言
项目中用到高德地图的轨迹图，遂留下记录。代码注释写的比较详细，不做过多语言阐述。
实例
index.html
<!doctype html>
<html lang="zh-CN">
<head>
<meta charset="utf-8">
<meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
<title>轨迹展示&巡航</title>
<style>
html,
body,
#container {
width: 100%;
height: 100%;
margin: 0px;
}
.amap-marker-label {
border: 0;
background-color: transparent
}
</style>
</head>
<body>
<div id="container"></div>
<script src="./data.js"></script>
<script type="text/javascript" src='//webapi.amap.com/maps?v=1.4.15&key=你的key'></script>
<!-- UI组件库 1.0 -->
<script src="//webapi.amap.com/ui/1.1/main.js?v=1.1.1"></script>
<script type="text/javascript">
//创建地图
var map = new AMap.Map('container');
/**
* 创建巡航器
*/
function initPath() {
map.clearMap();
if (window.pathSimplifierIns) {
//通过该方法清空上次传入的轨迹
pathSimplifierIns.setData([]);
}
AMapUI.load(['ui/misc/PathSimplifier'], function (PathSimplifier) {
if (!PathSimplifier.supportCanvas) {
alert('当前环境不支持 Canvas！无法展示路径');
return
}
let pathSimplifierIns = new PathSimplifier({
zIndex: 100,
map: map,
data: [
{
name: "测试路径",
path: PathSimplifier.getGeodesicPath([116.405289, 39.904987], [87.61792, 43.793308], 300)
}
],
getPath: function (pathData, pathIndex) {
return pathData.path;
},
getHoverTitle: function (pathData, pathIndex, pointIndex) {
// 鼠标悬停在节点之间的连线上
return '测试路径'
},
autoSetFitView: true,
renderOptions: {
// 轨迹线的样式
pathLineStyle: {
strokeStyle: '#E04356',
lineWidth: 10,
dirArrowStyle: true
}
}
});
window.pathSimplifierIns = pathSimplifierIns;
// setData可用于后面增加路线
// pathSimplifierIns.setData([{
// name: 'Test',
// path: PathSimplifier.getGeodesicPath([116.405289, 39.904987], [87.61792, 43.793308], 300)
// }]);
pathSimplifierIns.createPathNavigator(0, {
loop: true, // 循环播放
speed: 300000,
}).start()
});
}
/**
* 创建自定义标注
* @param pointArr
*/
function fixedPoint(pointArr) {
// 清除页面元素
map.clearMap();
for (let i = 0; i < pointArr.length; i++) {
let info = [],
labelContent = '';
switch (pointArr[i].type) {
case 'start':
// 起点'
labelContent = '<div style="width: 95px;height: 50px;line-height: 45px;text-align: center;color: #00BDFF;font-size: 10px;transform: scale(.9)">开始行程</div>'
pointArr[i].address ? info.push(`乘客选择的订单起点：${pointArr[i].address}`) : info.push('')
break;
case 'end':
// 终点
labelContent = '<div style="width: 95px;height: 50px;line-height: 45px;text-align: center;color: #2587EF;font-size: 10px;transform: scale(.8)">结束行程</div>'
pointArr[i].address ? info.push(`乘客选择的订单终点：${pointArr[i].address}`) : info.push('');
break;
default:
break;
}
// 自定义标注
let icon = new AMap.Icon({
size: new AMap.Size(95, 50), // 图标尺寸
image: './icon.png', // Icon的图像
imageOffset: new AMap.Pixel(0, 0), // 图像相对展示区域的偏移量，适于雪碧图等
imageSize: new AMap.Size(95, 50) // 根据所设置的大小拉伸或压缩图片
});
let marker = new AMap.Marker({
position: new AMap.LngLat(
pointArr[i].point.lon,
pointArr[i].point.lat
),
offset: new AMap.Pixel(0, 0),
icon: icon, // 添加 Icon 实例发布终点
zoom: 13,
anchor: "bottom-center", // 设置锚点方位
label: {
content: labelContent,
offset: new AMap.Pixel(0, -5)
}
});
//信息窗体
var infoWindow = new AMap.InfoWindow({
offset: new AMap.Pixel(0, 0),
content: info.join('<br/>')
});
//鼠标点击marker弹出自定义的信息窗体 amap1.x和2.x版本写法不一样
AMap.event.addListener(marker, 'click', function () {
infoWindow.open(map, marker.getPosition());
});
map.add(marker);
// 缩放到合适的视图
map.setFitView();
}
}
initPath();
fixedPoint(data.mapPointList);
</script>
</body>
</html>
data.js
const data = {
mapPointList: [
{
point: {
lat: 39.904987,
lon: 116.405289,
},
type: "start",
address: "起点：北京",
},
{
point: {
lat: 43.793308,
lon: 87.61792,
},
type: "end",
address: "终点：乌鲁木齐",
},
],
}

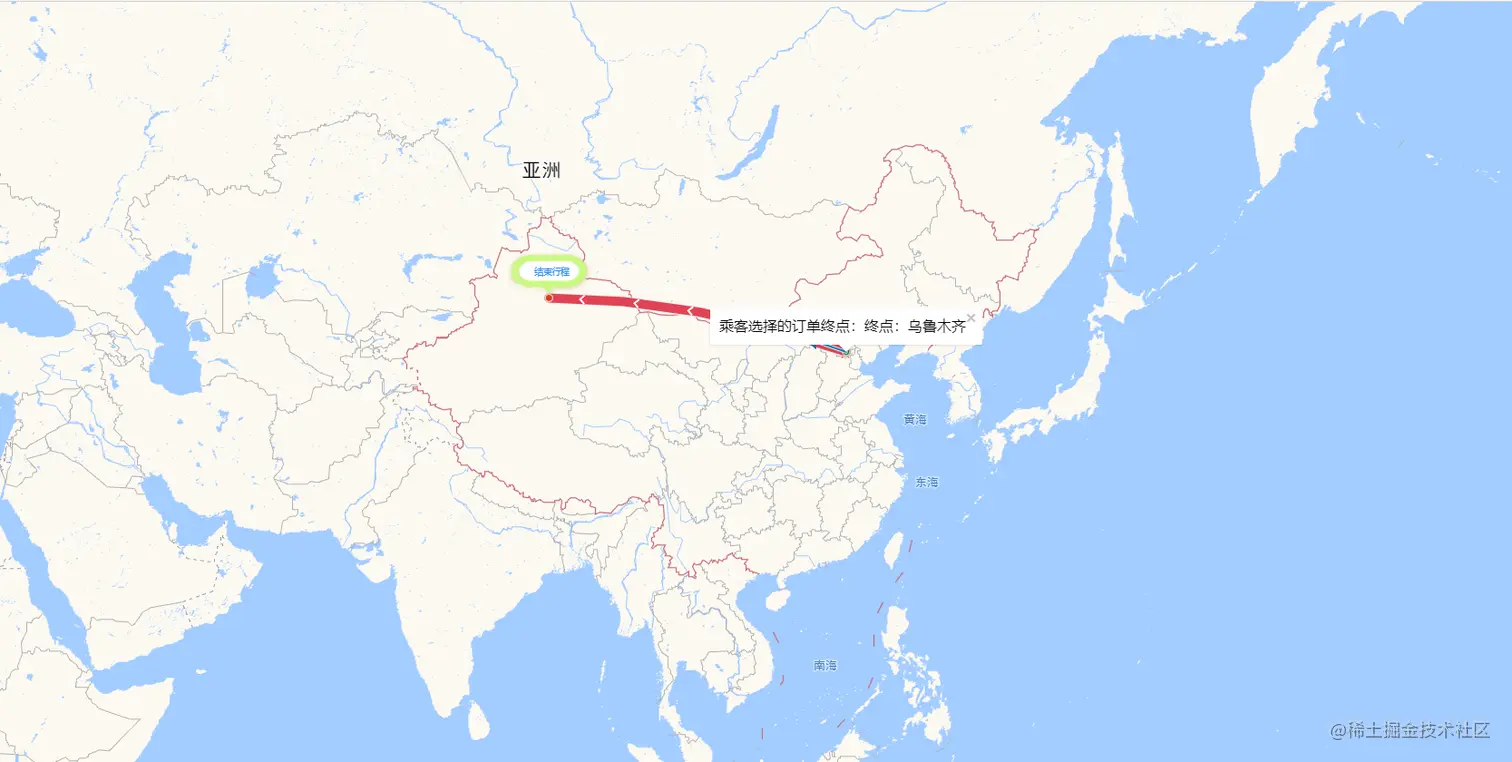

效果
结语
如果觉得这篇文章对您有帮助的话，欢迎点赞评论加转发。
源代码
首发于语雀文档@is_tao
