应用场景： 客户在创建前后端分离的应用时，前端只用于做一些基本的数据展示，如果涉及大量的数据或报表生成，建议放在服务器端展示，本文主要分享如何在服务器端使用ActiveReportsJS 实现报表导出PDF功能
Demo下载：
gcdn.grapecity.com.cn/forum.php?m…
环境准备: node.js v14.15.0+Headless 无头浏览器
操作步骤：

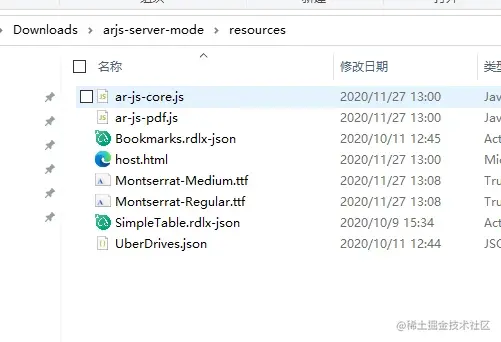

添加资源文件
配置资源和文件 const puppeteer = require('puppeteer'); const fs = require('fs'); var static = require('node-static'); var http = require('http');
var file = new(static.Server)(__dirname + '/resources');
http.createServer(function (req, res) { file.serve(req, res); }).listen(9999);
const fonts = [ { name: 'Montserrat', source: 'Montserrat-Regular.ttf' }, { name: 'Montserrat', source: 'Montserrat-Medium.ttf', weight: 500 } ];
调用浏览器并初始化 调用ARJS 导出PDF文件
(async () => {
const browser = await puppeteer.launch({headless: true});
const page = await browser.newPage();
await page.goto(http://localhost:9999/host.html);
//await page.goto(${__dirname}/resources/host.html);
const pdfString =await page.evaluate(({reportUrl, fonts}) =>
new Promise(async (resolve, reject) => {
// await GC.ActiveReports.Core.FontStore.registerFonts(fonts);
const report = new GC.ActiveReports.Core.PageReport();
await report.load(reportUrl);
const doc = await report.run();
const result = await GC.ActiveReports.PdfExport.exportDocument(doc, {fonts: fonts, info: {author: 'GrapeCity'}});
const reader = new FileReader();
reader.readAsBinaryString(result.data);
reader.onload = () => resolve(reader.result);
reader.onerror = () => reject('Error occurred while reading binary string');
}), {reportUrl: 'SimpleTable.rdlx-json', fonts: fonts});
const pdfData = Buffer.from(pdfString, 'binary');
fs.writeFileSync(`${__dirname}/out115.pdf`, pdfData);
console.log('done');
process.exit(0);
})();
