- SpringBoot应用ELK日志收集
概述
利用docker容器化以后，需要考虑如何采集位于Docker容器中的应用程序的打印日志供运维分析。比如SpringBoot应用的日志收集。利用ELK日志中心来收集容器化应用程序所产生的日志，并且可以用可视化的方式对日志进行查询与分析，其架构如下图所示
架构图
环境搭建
基础环境依赖
| 组件 | 版本号 |
|---|---|
| Mysql | 5.7 |
| Elasticsearch | 7.6.2 |
| Logstash | 7.6.2 |
| Kibana | 7.6.2 |
docker安装
(不同的操作系统可以参考 yeasy.gitbook.io/docker_prac…)
安装yum-utils（安装docker-ce所需依赖）
yum install -y yum-utils device-mapper-persistent-data lvm2
为yum源添加docker仓库位置
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum.repos.d
# 仓库源存放的位置
cd /etc/yum.repos.d
vim docker-ce.repo
安装docker
⚠️注意 docker-ce与docker两个仓库版本有差异（本人爬坑比较多 docker不支持文件的挂载比较老的版本）
yum install docker-ce
# 如果报错以下信息
errors during downloading metadata for repository 'base':
- Curl error (28): Timeout was reached for http://mirrors.aliyuncs.com/centos/3/os/x86_64/repodata/repomd.xml [Connection timed out after 30001 milliseconds]
- Status code: 404 for http://mirrors.cloud.aliyuncs.com/centos/3/os/x86_64/repodata/repomd.xml (IP: 100.100.2.148)
- Status code: 404 for http://mirrors.aliyun.com/centos/3/os/x86_64/repodata/repomd.xml (IP: 39.96.118.193)
Error: Failed to download metadata for repo 'base': Cannot download repomd.xml: Cannot download repodata/repomd.xml: All mirrors were tried
# 将/etc/yum.repos.d/docker-ce.repo的地址进行修改
# 将数据源替换成版本7 不然下载的时候会报错 链接地址不存在.
baseurl=https://download.docker.com/linux/centos/7/debug-$basearch/stable
启动docker
systemctl start docker
利用docker安装对应的服务
Elasticsearch安装
使用如下命令启动Elasticsearch服务
docker run -p 9200:9200 -p 9300:9300 --name elasticsearch \
-e "discovery.type=single-node" \
-e "cluster.name=elasticsearch" \
-v /mydata/elasticsearch/plugins:/usr/share/elasticsearch/plugins \
-v /mydata/elasticsearch/data:/usr/share/elasticsearch/data \
-d elasticsearch:7.6.2
启动的时候会报错
OpenJDK 64-Bit Server VM warning: Option UseConcMarkSweepGC was deprecated in version 9.0 and will likely be removed in a future release.
{"type": "server", "timestamp": "2021-06-03T11:24:02,468Z", "level": "ERROR", "component": "o.e.b.ElasticsearchUncaughtExceptionHandler", "cluster.name": "elasticsearch", "node.name": "4f5aaf7716c0", "message": "uncaught exception in thread [main]",
"stacktrace": ["org.elasticsearch.bootstrap.StartupException: ElasticsearchException[failed to bind service]; nested: AccessDeniedException[/usr/share/elasticsearch/data/nodes];",
"at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:174) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Elasticsearch.execute(Elasticsearch.java:161) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.cli.EnvironmentAwareCommand.execute(EnvironmentAwareCommand.java:86) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.cli.Command.mainWithoutErrorHandling(Command.java:125) ~[elasticsearch-cli-7.6.2.jar:7.6.2]",
"at org.elasticsearch.cli.Command.main(Command.java:90) ~[elasticsearch-cli-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:126) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:92) ~[elasticsearch-7.6.2.jar:7.6.2]",
"Caused by: org.elasticsearch.ElasticsearchException: failed to bind service",
"at org.elasticsearch.node.Node.<init>(Node.java:615) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.node.Node.<init>(Node.java:257) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:221) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:221) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:349) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:170) ~[elasticsearch-7.6.2.jar:7.6.2]",
"... 6 more",
"Caused by: java.nio.file.AccessDeniedException: /usr/share/elasticsearch/data/nodes",
"at sun.nio.fs.UnixException.translateToIOException(UnixException.java:90) ~[?:?]",
"at sun.nio.fs.UnixException.rethrowAsIOException(UnixException.java:111) ~[?:?]",
"at sun.nio.fs.UnixException.rethrowAsIOException(UnixException.java:116) ~[?:?]",
"at sun.nio.fs.UnixFileSystemProvider.createDirectory(UnixFileSystemProvider.java:389) ~[?:?]",
"at java.nio.file.Files.createDirectory(Files.java:693) ~[?:?]",
"at java.nio.file.Files.createAndCheckIsDirectory(Files.java:800) ~[?:?]",
"at java.nio.file.Files.createDirectories(Files.java:786) ~[?:?]",
"at org.elasticsearch.env.NodeEnvironment.lambda$new$0(NodeEnvironment.java:274) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.env.NodeEnvironment$NodeLock.<init>(NodeEnvironment.java:211) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.env.NodeEnvironment.<init>(NodeEnvironment.java:271) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.node.Node.<init>(Node.java:277) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.node.Node.<init>(Node.java:257) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap$5.<init>(Bootstrap.java:221) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap.setup(Bootstrap.java:221) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Bootstrap.init(Bootstrap.java:349) ~[elasticsearch-7.6.2.jar:7.6.2]",
"at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:170) ~[elasticsearch-7.6.2.jar:7.6.2]",
"... 6 more"] }
uncaught exception in thread [main]
启动时会发现/usr/share/elasticsearch/data目录没有访问权限，只需要修改/mydata/elasticsearch/data目录的权限，再重新启动即可
chmod 777 /mydata/elasticsearch/data/
安装中文分词器IKAnalyzer，并重新启动
# 进入docker容器中
docker exec -it elasticsearch /bin/bash
#此命令需要在容器中运行
elasticsearch-plugin install https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip
-> Installing https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip
-> Downloading https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.6.2/elasticsearch-analysis-ik-7.6.2.zip
[=================================================] 100%??
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@ WARNING: plugin requires additional permissions @
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
* java.net.SocketPermission * connect,resolve
See http://docs.oracle.com/javase/8/docs/technotes/guides/security/permissions.html
for descriptions of what these permissions allow and the associated risks.
Continue with installation? [y/N]y
-> Installed analysis-ik
# 退出去后重启生效
docker restart elasticsearch
访问会返回版本信息：http://39.103.203.41:9200/
{
"name" : "4f5aaf7716c0",
"cluster_name" : "elasticsearch",
"cluster_uuid" : "PBB0ZytDStO-9SJjAarNyw",
"version" : {
"number" : "7.6.2",
"build_flavor" : "default",
"build_type" : "docker",
"build_hash" : "ef48eb35cf30adf4db14086e8aabd07ef6fb113f",
"build_date" : "2020-03-26T06:34:37.794943Z",
"build_snapshot" : false,
"lucene_version" : "8.4.0",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
Logstash安装
下载Logstash7.6.2的docker镜像
docker pull logstash:7.6.2
如下配置文件logstash.conf
input {
tcp {
mode => "server"
host => "0.0.0.0"
port => 4560
codec => json_lines
type => "debug"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4561
codec => json_lines
type => "error"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4562
codec => json_lines
type => "business"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4563
codec => json_lines
type => "record"
}
}
filter{
if [type] == "record" {
mutate {
remove_field => "port"
remove_field => "host"
remove_field => "@version"
}
json {
source => "message"
remove_field => ["message"]
}
}
}
output {
elasticsearch {
hosts => "39.103.203.41:9200"
index => "mall-%{type}-%{+YYYY.MM.dd}"
}
}
创建/mydata/logstash目录，并将Logstash的配置文件logstash.conf拷贝到该目录
mkdir /mydata/logstash
使用如下命令启动Logstash服务
docker run --name logstash -p 4560:4560 -p 4561:4561 -p 4562:4562 -p 4563:4563 \
--link elasticsearch:es \
-v /mydata/logstash/logstash.conf:/usr/share/logstash/pipeline/logstash.conf \
-d logstash:7.6.2
在logstash中安装json_lines插件
# 进入logstash容器
docker exec -it logstash /bin/bash
# 进入bin目录
cd /bin/
# 安装插件
logstash-plugin install logstash-codec-json_lines
OpenJDK 64-Bit Server VM warning: Option UseConcMarkSweepGC was deprecated in version 9.0 and will likely be removed in a future release.
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by com.headius.backport9.modules.Modules to method sun.nio.ch.NativeThread.signal(long)
WARNING: Please consider reporting this to the maintainers of com.headius.backport9.modules.Modules
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
Validating logstash-codec-json_lines
Installing logstash-codec-json_lines
Installation successful
# 退出容器
exit
# 重启logstash服务
docker restart logstash
Kibana安装
下载Kibana7.6.2的docker镜像
7.6.2: Pulling from library/kibana
ab5ef0e58194: Already exists
c64d415fc4c4: Pull complete
40a228497f87: Pull complete
047cebeb3d2b: Pull complete
a1e90407e522: Pull complete
b665bda75e65: Pull complete
12bc27d9cfdc: Pull complete
2611a8427d9d: Pull complete
12efd486dee3: Pull complete
d2dfc5062b56: Pull complete
Digest: sha256:097e2b7f33f353a8fc19bbf2a6558431c63637113fdc625e6d34fc46f96c0130
Status: Downloaded newer image for kibana:7.6.2
docker.io/library/kibana:7.6.2
使用如下命令启动Kibana服务
docker run --name kibana -p 5601:5601 \
--link elasticsearch:es \
-e "elasticsearch.hosts=http://es:9200" \
-d kibana:7.6.2

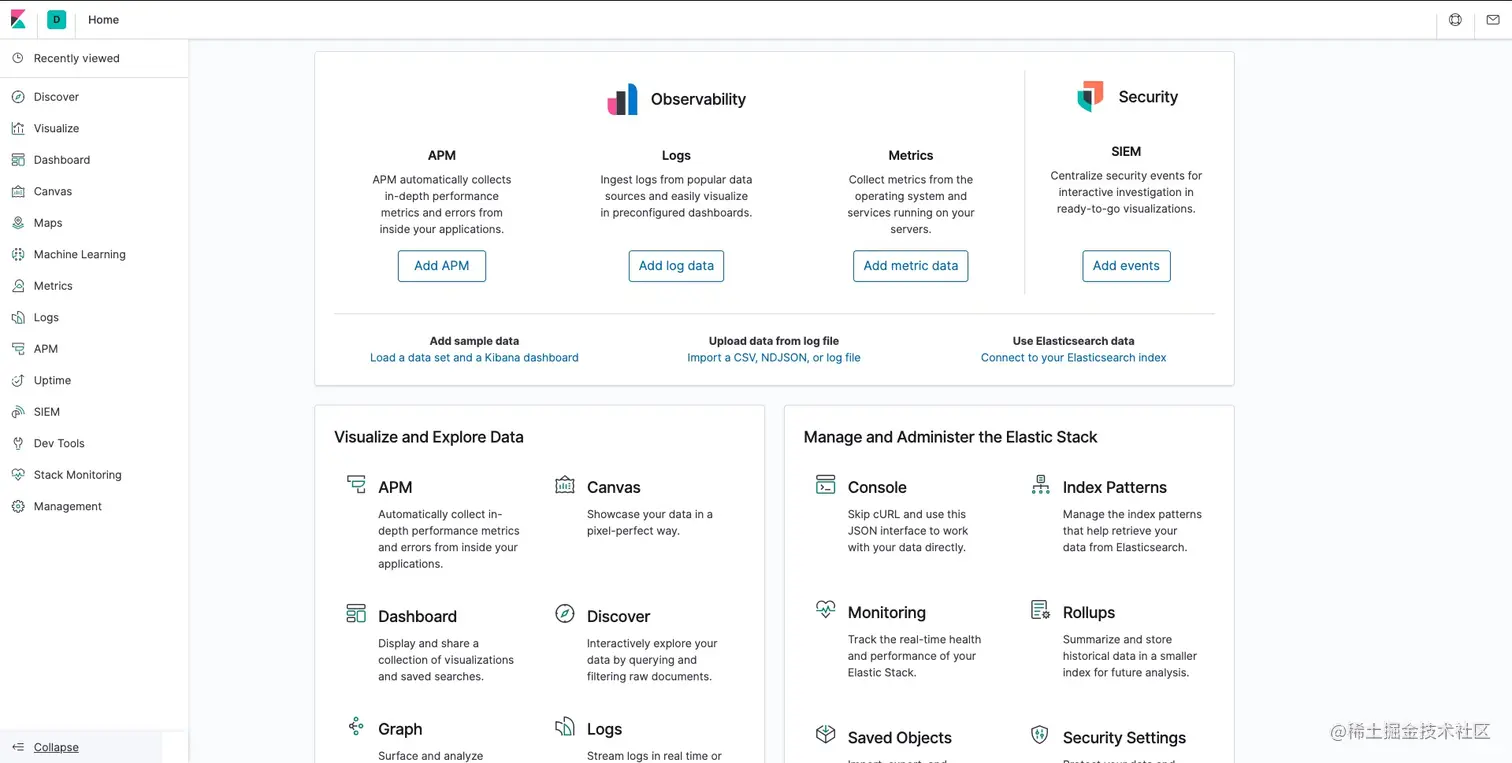

访问地址进行测试 http://39.103.203.41:5601/
SpringBoot应用集成Logstash
<!--集成logstash-->
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
<version>5.3</version>
</dependency>
添加配置文件logback-spring.xml让logback的日志输出到logstash
注意appender节点下的destination需要改成你自己的logstash服务地址，例如我自己的是：39.103.203.41:4560
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration>
<configuration>
<include resource="org/springframework/boot/logging/logback/defaults.xml"/>
<include resource="org/springframework/boot/logging/logback/console-appender.xml"/>
<!--应用名称-->
<property name="APP_NAME" value="mall-admin"/>
<!--日志文件保存路径-->
<property name="LOG_FILE_PATH" value="${LOG_FILE:-${LOG_PATH:-${LOG_TEMP:-${java.io.tmpdir:-/tmp}}}/logs}"/>
<contextName>${APP_NAME}</contextName>
<!--每天记录日志到文件appender-->
<appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${LOG_FILE_PATH}/${APP_NAME}-%d{yyyy-MM-dd}.log</fileNamePattern>
<maxHistory>30</maxHistory>
</rollingPolicy>
<encoder>
<pattern>${FILE_LOG_PATTERN}</pattern>
</encoder>
</appender>
<!--输出到logstash的appender-->
<appender name="LOGSTASH" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
<!--可以访问的logstash日志收集端口-->
<destination>39.103.203.41:4560</destination>
<encoder charset="UTF-8" class="net.logstash.logback.encoder.LogstashEncoder"/>
</appender>
<root level="INFO">
<appender-ref ref="CONSOLE"/>
<appender-ref ref="FILE"/>
<appender-ref ref="LOGSTASH"/>
</root>
</configuration>
运行SpringBoot应用
package com.macro.mall.tiny;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class MallApplication {
public static void main(String[] args) {
SpringApplication.run(MallApplication.class, args);
}
}
