Spring源码解析之路 默认标签解析与注册篇

前言

上一章从源头上一步步的跟踪了bean的加载，bean加载需要解析配置文件，但是配置文件中也有不同的标签，spring会对不同的标签进行不同的解析逻辑，标签包括import，beans，bean，alias，下面就来分析不同的解析具体的逻辑

bean标签的解析

private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
    // 对import标签的解析
    if (delegate.nodeNameEquals(ele, "import")) {
        this.importBeanDefinitionResource(ele);
    } else if (delegate.nodeNameEquals(ele, "alias")) {
       // 对alias标签的解析
        this.processAliasRegistration(ele);
    } else if (delegate.nodeNameEquals(ele, "bean")) {
        // 对bean标签的解析
        this.processBeanDefinition(ele, delegate);
    } else if (delegate.nodeNameEquals(ele, "beans")) {
          // 对beans标签的解析
        this.doRegisterBeanDefinitions(ele);
    }

}

bean标签的解析是最为复杂的，只要理解了bean标签的解析，其他标签的解析也就都迎刃而解

// 解析bean标签方法
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
    // 返回配置文件中的属性
    BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
    if (bdHolder != null) {
        // 不为空时，如果默认标签的子节点存在自定义属性，需要对自定义标签进行解析
        bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);

        try {
            // 解析完成后 对bdHolder进行注册
            BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, this.getReaderContext().getRegistry());
        } catch (BeanDefinitionStoreException var5) {
            this.getReaderContext().error("Failed to register bean definition with name '" + bdHolder.getBeanName() + "'", ele, var5);
        }
        // 最后发出相应事件，通知相关的监听器，注册完成
        this.getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
    }

}

delegate.parseBeanDefinitionElement(ele);在这个方法中进行解析

  @Nullable
    public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, @Nullable BeanDefinition containingBean) {
        // 解析id属性
        String id = ele.getAttribute("id");
        // 解析name属性
        String nameAttr = ele.getAttribute("name");
        List<String> aliases = new ArrayList();
        if (StringUtils.hasLength(nameAttr)) {
            String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, ",; ");
            aliases.addAll(Arrays.asList(nameArr));
        }

        String beanName = id;
        if (!StringUtils.hasText(id) && !aliases.isEmpty()) {
            beanName = (String)aliases.remove(0);
            if (this.logger.isTraceEnabled()) {
                this.logger.trace("No XML 'id' specified - using '" + beanName + "' as bean name and " + aliases + " as aliases");
            }
        }

        if (containingBean == null) {
            this.checkNameUniqueness(beanName, aliases, ele);
        }
        // 创建用于承载属性的AbstractBeanDefinition类型的GenericBeanDefinition
        AbstractBeanDefinition beanDefinition = this.parseBeanDefinitionElement(ele, beanName, containingBean);
        if (beanDefinition != null) {
            if (!StringUtils.hasText(beanName)) {
                try {
                    if (containingBean != null) {
                        beanName = BeanDefinitionReaderUtils.generateBeanName(beanDefinition, this.readerContext.getRegistry(), true);
                    } else {
                        beanName = this.readerContext.generateBeanName(beanDefinition);
                        String beanClassName = beanDefinition.getBeanClassName();
                        if (beanClassName != null && beanName.startsWith(beanClassName) && beanName.length() > beanClassName.length() && !this.readerContext.getRegistry().isBeanNameInUse(beanClassName)) {
                            aliases.add(beanClassName);
                        }
                    }

                    if (this.logger.isTraceEnabled()) {
                        this.logger.trace("Neither XML 'id' nor 'name' specified - using generated bean name [" + beanName + "]");
                    }
                } catch (Exception var9) {
                    this.error(var9.getMessage(), ele);
                    return null;
                }
            }

            String[] aliasesArray = StringUtils.toStringArray(aliases);
            return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
        } else {
            return null;
        }
    }

解析后，最终将信息封装到BeanDefinitionHolder中，而这其中也创建了BeanDefinition的实现GenericBeanDefinition

Spring通过BeanDefinition将配置文件中的bean配置信息转换为容器内部表示，并将这些BeanDefinition注册到BeanDefinitionRegisity

public abstract class BeanDefinitionReaderUtils {
    public static final String GENERATED_BEAN_NAME_SEPARATOR = "#";

    public BeanDefinitionReaderUtils() {
    }

    public static AbstractBeanDefinition createBeanDefinition(@Nullable String parentName, @Nullable String className, @Nullable ClassLoader classLoader) throws ClassNotFoundException {
        GenericBeanDefinition bd = new GenericBeanDefinition();
        bd.setParentName(parentName);
        if (className != null) {
            if (classLoader != null) {
                //这里面挺重要 是通过jvm的加载器来记载bean配置文件中配置的对象，也就是说他的实例化是通过传入加载器和类名来进行的，不是简单的new 一个对象
                bd.setBeanClass(ClassUtils.forName(className, classLoader));
            } else {
                bd.setBeanClassName(className);
            }
        }

        return bd;
    }

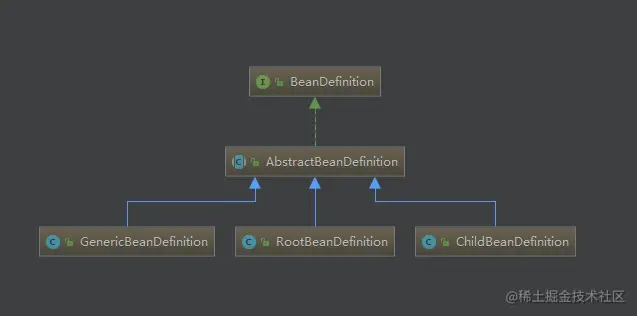

Xml中所有的配置都可以在GenericBeanDefinition实例类中找到对应的配置，但是GenericBeanDefinition只是子类实现，大部分的通用属性都保存在AbstractBeanDefinition

public abstract class AbstractBeanDefinition extends BeanMetadataAttributeAccessor implements BeanDefinition, Cloneable {
-------
// 作用范围
@Nullable
private String scope;
private boolean abstractFlag;
// 是否延迟加载
@Nullable
private Boolean lazyInit;
// 是否自动注入
private int autowireMode;
private int dependencyCheck;
@Nullable
private String[] dependsOn;
private boolean autowireCandidate;
private boolean primary;
-------

以上bean解析就结束了，解析的过程就是将xml配置封装到GenericBeanDefinition的过程，而GenericBeanDefinition实现了BeanDefinition，最终BeanDefinitionHolder又和BeanDefinition有依赖的关系，所以返回了BeanDefinitionHolder

public class BeanDefinitionHolder implements BeanMetadataElement {
    private final BeanDefinition beanDefinition;
    private final String beanName;
    @Nullable
    private final String[] aliases;

    public BeanDefinitionHolder(BeanDefinition beanDefinition, String beanName) {
        this(beanDefinition, beanName, (String[])null);
    }

回到最开始的方法，这个方法里面包含两步骤，一步是bean的解析（将xml文件解析到GenericBeanDefinition，GenericBeanDefinition是BeanDefinition的实现，BeanDefinition是BeanDefinitionHolder中的一个属性），一步是bean的注册，下面我们就看看bean的注册

// 解析bean标签方法
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
    // 返回配置文件中的属性（BeanDefinitionHolder中包含BeanDefinition）
    BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
    if (bdHolder != null) {
        // 不为空时，如果默认标签的子节点存在自定义属性，需要对自定义标签进行解析
        bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);

        try {
            // 解析完成后 对bdHolder进行注册
            BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, this.getReaderContext().getRegistry());
        } catch (BeanDefinitionStoreException var5) {
            this.getReaderContext().error("Failed to register bean definition with name '" + bdHolder.getBeanName() + "'", ele, var5);
        }
        // 最后发出相应事件，通知相关的监听器，注册完成
        this.getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
    }

}

registerBeanDefinition方法

public static void registerBeanDefinition(BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry) throws BeanDefinitionStoreException {
    String beanName = definitionHolder.getBeanName();
    // 使用beanName作为唯一标识注册
    registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());
    String[] aliases = definitionHolder.getAliases();
    if (aliases != null) {
        String[] var4 = aliases;
        int var5 = aliases.length;

        for(int var6 = 0; var6 < var5; ++var6) {
            String alias = var4[var6];
            registry.registerAlias(beanName, alias);
        }
    }

}

在DefaultListableBeanFactory类中进行注册，注册的理解就是通过beanName形成一个map，beanName是key

 public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition) throws BeanDefinitionStoreException {
        Assert.hasText(beanName, "Bean name must not be empty");
        Assert.notNull(beanDefinition, "BeanDefinition must not be null");
        if (beanDefinition instanceof AbstractBeanDefinition) {
            try {
                ((AbstractBeanDefinition)beanDefinition).validate();
            } catch (BeanDefinitionValidationException var8) {
                throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName, "Validation of bean definition failed", var8);
            }
        }

        BeanDefinition existingDefinition = (BeanDefinition)this.beanDefinitionMap.get(beanName);
        if (existingDefinition != null) {
            if (!this.isAllowBeanDefinitionOverriding()) {
                throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
            }

            if (existingDefinition.getRole() < beanDefinition.getRole()) {
                if (this.logger.isInfoEnabled()) {
                    this.logger.info("Overriding user-defined bean definition for bean '" + beanName + "' with a framework-generated bean definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]");
                }
            } else if (!beanDefinition.equals(existingDefinition)) {
                if (this.logger.isDebugEnabled()) {
                    this.logger.debug("Overriding bean definition for bean '" + beanName + "' with a different definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]");
                }
            } else if (this.logger.isTraceEnabled()) {
                this.logger.trace("Overriding bean definition for bean '" + beanName + "' with an equivalent definition: replacing [" + existingDefinition + "] with [" + beanDefinition + "]");
            }
            // beanDefinitionMap是全局变量会出现并发访问问题
            // 在这一步注册bean
            this.beanDefinitionMap.put(beanName, beanDefinition);
        } else {
            if (this.hasBeanCreationStarted()) {
                Map var4 = this.beanDefinitionMap;
                synchronized(this.beanDefinitionMap) {
                    this.beanDefinitionMap.put(beanName, beanDefinition);
                    List<String> updatedDefinitions = new ArrayList(this.beanDefinitionNames.size() + 1);
                    updatedDefinitions.addAll(this.beanDefinitionNames);
                    updatedDefinitions.add(beanName);
                    this.beanDefinitionNames = updatedDefinitions;
                    this.removeManualSingletonName(beanName);
                }
            } else {
                this.beanDefinitionMap.put(beanName, beanDefinition);
                this.beanDefinitionNames.add(beanName);
                this.removeManualSingletonName(beanName);
            }

            this.frozenBeanDefinitionNames = null;
        }

        if (existingDefinition == null && !this.containsSingleton(beanName)) {
            if (this.isConfigurationFrozen()) {
                this.clearByTypeCache();
            }
        } else {
            this.resetBeanDefinition(beanName);
        }

    }
