antd UI组件记录

597 阅读2分钟
  • Select 的清空按钮("X")在iPhone手机上点击时,触发onClear事件很困难。


原因:按钮面积太小,导致在iPhone端老是触发到ant-select-selector这个表单,使用户无法触发onClear事件。

解决方法:重写"X"样式,把按钮面积增大。


    .ant-select-clear {
      top: 1px  !important;
      margin-top: 0 !important;
      right: 1px !important;
      padding-right: 11px !important;
      width: auto !important;
      height: 50px !important;
      line-height: 50px !important;
      border-top-right-radius: 8px;
      border-bottom-right-radius: 8px;
    }
  • Upload 在MAC系统中,上传Word文件不成功

原因: file.type返回是空的

解决方法:

const checkWordFile = (name: string) => {
    const fileEnd = name.substr(name.lastIndexOf(".") + 1).toLocaleLowerCase();
    return fileEnd === "docx" || fileEnd === "doc";
};

const customBeforeUpload = (file: RcFile, FileList: RcFile[], controlError: (error: boolean) => void) => {
        console.info("file: ", file);
        const isLt2M = file.size / 1024 / 1024 < 10;
        controlError(false);

        return new Promise<any>((resolve, reject) => {
            console.info("checkWordFile: ", checkWordFile(file.name));
            if ((file.type !== "" && !fileType.find(it => file.type.toLocaleLowerCase().includes(it.toLocaleLowerCase()))) || (file.type === "" && !checkWordFile(file.name))) {
                controlError(true);
                reject();
            }
            if (!isLt2M) {
                controlError(true);
                reject();
            }
            resolve(file as any);
        });
    };

在beforeUpload函数中新增一个 file.type为""的验证:file.type === null && !checkWordFile(file.name);

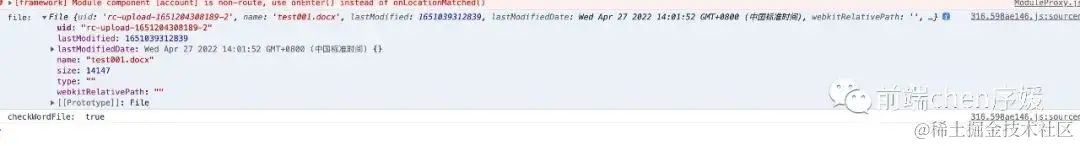

MAC上传Word文件:file.type === ""

  • Form.List使用 与 shouldUpdate的使用

在 CodePen 中打开

const [form] = useForm();

const subjectData = [
    {
        value: "java",
        name: "Java",
        catalogue: [
            {
                value: "java catalogue-1",
                name: "Java Catalogue-1",
            },
            {
                value: "java catalogue-2",
                name: "Java Catalogue-2",
            },
            {
                value: "java catalogue-3",
                name: "Java Catalogue-3",
            },
        ],
    },
    {
        value: "javaScript",
        name: "JavaScript",
        catalogue: [
            {
                value: "css",
                name: "CSS",
            },
            {
                value: "react",
                name: "React",
            },
            {
                value: "vue",
                name: "Vue",
            },
        ],
    },
];

const resetValue = (name: any, subjectValue: string | null) => {
    const subjects = form.getFieldsValue();
    const {subject} = subjects;
    const newSubject = subject.map((it: any, index: any) => {
        if (index === name) {
            return {...it, value: subjectValue};
        }
        return it;
    });

    form.setFieldsValue({subject: newSubject});
};

{/* 默认一条数据:initialValues={{subject: [{}]}} */}
<Form layout="vertical" className="vertical_layout_form_wrap" form={form} name="basic" initialValues={{subject: [{}]}}>
    <Form.List name="subject">
        {(fields, {add, remove}) => {
            console.info("fields: ", fields);
            let catalogue: Catalogue[] = [];
            return (
                <Row gutter={24}>
                    <Col>
                        {fields.map(({key, name, ...restField}) => {
                            return (
                                <Space key={name} style={{display: "flex"}} align="baseline">
                                    <Form.Item {...restField} name={[name, `name`]}>
                                        <Select
                                            onChange={() => {
                                                console.info("name: ", name);
                                                resetValue(name, null);
                                            }}
                                            style={{width: "150px"}}
                                            placeholder="Name"
                                        >
                                            {subjectData.map(subject => (
                                                <Option key={subject.value} value={subject.value}>
                                                    {subject.name}
                                                </Option>
                                            ))}
                                        </Select>
                                    </Form.Item>
                                    <Form.Item
                                        noStyle
                                        shouldUpdate={(prevValues, curValues) => {
                                            console.info("prevValues: ", prevValues);

                                            console.info("curValues: ", curValues);
                                            return prevValues.subject !== curValues.subject;
                                        }}
                                    >
                                        {({getFieldValue}) => {
                                            const values = getFieldValue("subject");

                                            const currentCatalogue = subjectData.filter(data => data.value === values?.[name]?.name)?.map(data => data?.catalogue);

                                            catalogue = (currentCatalogue.length > 0 ? currentCatalogue[0] : []) as Catalogue[];

                                            return (
                                                <Form.Item {...restField} name={[name, `value`]}>
                                                    <Select
                                                        style={{width: "150px"}}
                                                        placeholder="Value"
                                                        showSearch
                                                        allowClear
                                                        filterOption={(input: string, value: any) => value.props.children.toLowerCase().indexOf(input.toLowerCase()) >= 0}
                                                        onSearch={value => {
                                                            console.info("value: ", value);
                                                            console.info("name: ", name); //use "name" it means "key"
                                                        }}
                                                        onSelect={() => {}}
                                                        dropdownRender={menu => {
                                                            return (
                                                                <>
                                                                    {menu}
                                                                    <Button
                                                                        style={{margin: 0}}
                                                                        type="link"
                                                                        onMouseDown={e => e.preventDefault()}
                                                                        onClick={e => {
                                                                            console.info("e: ", e);
                                                                        }}
                                                                    >
                                                                        + New Value
                                                                    </Button>
                                                                </>
                                                            );
                                                        }}
                                                    >
                                                        {catalogue?.map(data => (
                                                            <Option key={data.value} value={data.value}>
                                                                {data.name}
                                                            </Option>
                                                        ))}
                                                    </Select>
                                                </Form.Item>
                                            );
                                        }}
                                    </Form.Item>
                                    <Button onClick={() => remove(name)} type="text" className="label_labels_del_btn">
                                        <CloseOutlined />
                                    </Button>
                                </Space>
                            );
                        })}
                    </Col>
                    <Col style={{flex: 1}}>
                        <Form.Item>
                            {/* add({}, 0)  新增在顶部;  add() 新增在底部 */}
                            <Button type="dashed" onClick={() => add({}, 0)}>
                                + Add
                            </Button>
                        </Form.Item>
                    </Col>
                </Row>
            );
        }}
    </Form.List>
</Form>

码云地址:gitee.com/echopcn/cod…

  • antd table expand 一次只展开一条

    const onTableRowExpand = (expanded: any, record: any) => {
        const keys = [];
        if (expanded) {
        keys.push(record.restaurant_id);
        }
        initDefaultExpandRestaurant(keys);
    };


    <Table
        rowKey={record => `${record.restaurant_id}`}
        columns={columns}
        dataSource={restaurantCommonStocksList}
        pagination={false}
        expandable={{
        defaultExpandedRowKeys: defaultExpandRestaurant,
        expandedRowKeys: defaultExpandRestaurant,
        expandedRowRender: (record: SearchRestaurantCommonStockAJAXResponse$RestaurantCommonStock) => <ExpandedRowRender dataSource={record.items} currRestaurantId={record.restaurant_id} />,
        onExpand: (expanded, record) => {
        onTableRowExpand(expanded, record);
        },
        expandIcon: ({expanded, onExpand, record}) => {
        if (record.items.length > 0) {
        return <LegacyIcon style={{fontSize: "18px"}} type={expanded ? "up" : "down"} onClick={e => onExpand(record, e)} />;
        }
        },
        }}
    />

  • BaseForm中的表单使用

    实例化获取表单值:
    const [form] = useForm();
    const formRef = useRef<FormInstance<any>>();
    const values = formRef.current?.getFieldsValue();

    <FormBase getFormRef={formRef} formList={formList} onClear={onClear} onFinish={onSearch} />

    非实例化获取表单值:
    const onSearch = (values: any) => {
          console.info(values);
    })


  • antd form 3.18.1

    import Form, { WrappedFormUtils } from "antd/lib/form/Form";
    form: WrappedFormUtils,
    form: {getFieldDecorator, resetFields, validateFields},


  • form的validator验证 返回信息:将callback改成 Promise.reject

    例:
    	validator: (data, value, callback) => {
            if(value<10){
            	return Promise.reject("Count cannot less than 0");
            }
            return Promise.resolve();
        }

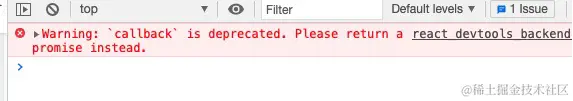

    解决下图console中抛出的问题:


  • 用div替换p标签,用作表格action列的按钮容器

    例:
        <div className="vendor_list_action">
         <Button type="link">
                 Edit
             </Button>
         <Divider type="vertical" />
         <Button type="link">
             Delete
         </Button>
     </div>


    解决下图console中抛出的问题:


  • Table组件,需要把 rowKey 字段加上

    antd的Table 中的rowKey要写,并且要是唯一值,否则会出现奇奇怪怪的问题
