一、环境准备
VS2017，x64
cmake-3.14.5-win64-x64.msi
FreeCADLibs_12.1.2_x64_VC15.1.7z，源码依赖库，x64位，里面已集成boost/Qt5/Python等依赖环境，点击详细说明
依赖库下载：github.com/FreeCAD/Fre…
FreeCAD LibPack Version 12.1.2 debug/release with
Visual Studio 2017
Qt 5.12.1
PySide2 build against Qt 5.12.1
Coin3D 4.0
Pivy
Python 3.6.8
OpenCascade 7.3
Boost 1.67 (including the debug files build against python_d.exe)
二、CMake生成VS工程

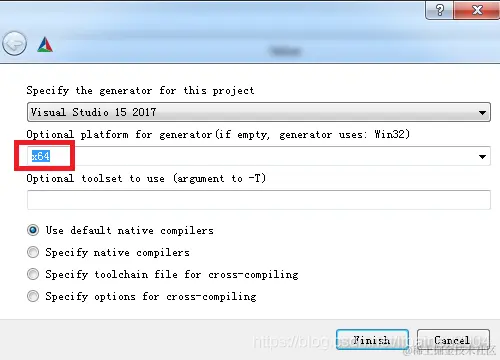

1、建工程
注意，一定要选择x64，因为依赖库FreeCADLibs_12.1.2_x64_VC15.1.7z是64位的。这个很重要，如果误选了32位，则会报错：
CMake Error at C:/Program Files/CMake/share/cmake-3.14/Modules/FindBoost.cmake:2165 (message):
Unable to find the requested Boost libraries.
Boost version: 1.67.0
Boost include path: F:/CADCAM/FreeCADLibs_12.1.2_x64_VC15.1/include
Could not find the following Boost libraries:
boost_filesystem
boost_program_options
boost_regex
boost_system
boost_thread
Some (but not all) of the required Boost libraries were found. You may
need to install these additional Boost libraries. Alternatively, set
BOOST_LIBRARYDIR to the directory containing Boost libraries or BOOST_ROOT
to the location of Boost.
Call Stack (most recent call first):
CMakeLists.txt:654 (find_package)
CMake Error at CMakeLists.txt:670 (message):
=============================================
Required components:
filesystem;program_options;regex;system;thread
Not found, install the components:
filesystem;program_options;regex;system;thread
=============================================

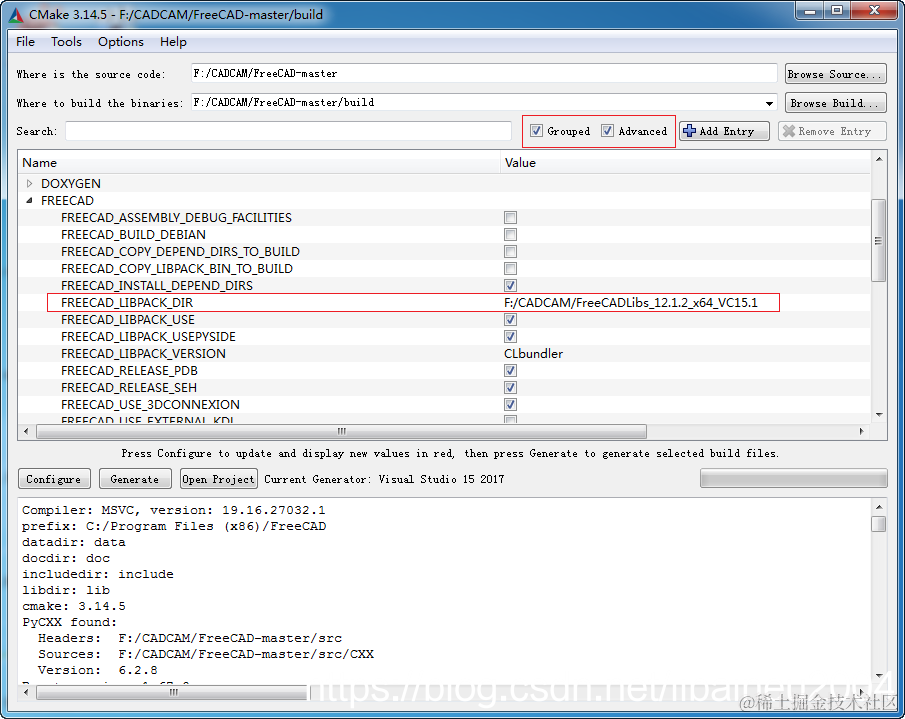

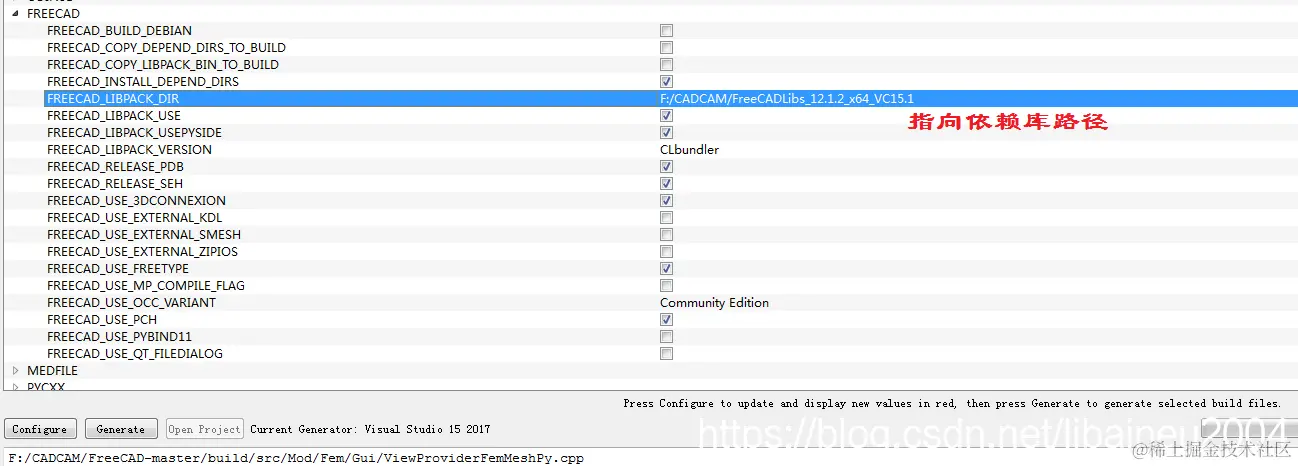

2、指定依赖库的路径

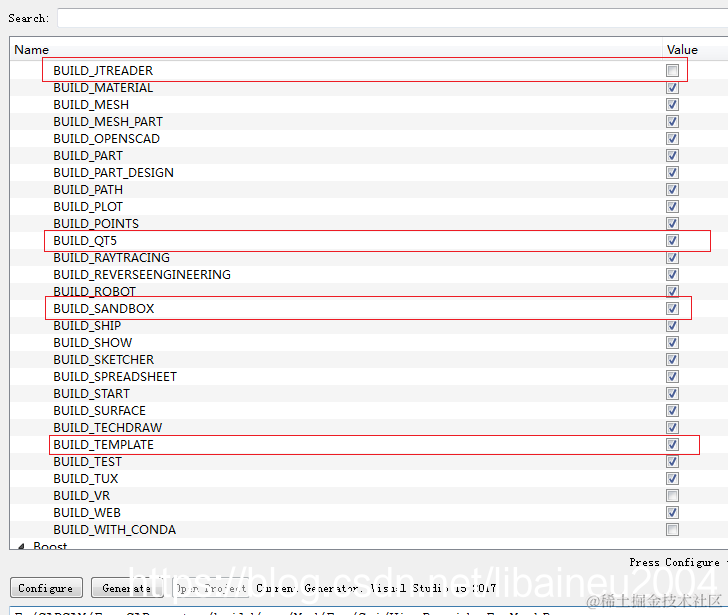

3、勾选需要的功能模块
4、先后点击按钮Configure和Generate。OK！
三、异常处理
如果CMake点击按钮Configure过程有boost库相关的错误信息，请打开项目的CMakeLists.txt文件
F:\CADCAM\FreeCAD-master\CMakeLists.txt ，手动添加以下三句话，会有更详细的提示信息。
set(Boost_DEBUG ON) #是否开启Boost Debug模式，ON位开启，OFF关闭。开启之后会输出很多调试信息，方便寻找错误
set(Boost_ARCHITECTURE "-x32") # CPU架构，对应库文件文件名里的x32或者x64
set(Boost_THREADAPI "win32") # 线程类型，对应thread模块文件名里面的pthread或者win32
四、编译源码及依赖文件拷贝
VS2017打开F:\CADCAM\FreeCAD-master\build\FreeCAD.sln，使用x64编译器编译。
编译比较耗时，需要耐心等待。编译完成之后，程序还无法正常运行，需要把相关依赖文件附上：
1.把
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\bin
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\data
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\resources
拷贝到源文件工程目录F:\CADCAM\FreeCAD-master\build\
resources文件夹的文件很重要，QWebEngine所需的一些关键文件
qtwebengine_resources.pak
qtwebengine_resources_100p
qtwebengine_resources_200p.pak.pak
QtWebEngineProcess.exe
icudtl.dat
缺失了它们，F:\CADCAM\FreeCAD-master\src\Mod\Web\Gui\BrowserView.cpp源码运行会报错，抛出异常。
QWebEngineProfile *profile = view->page()->profile();
2.把
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\plugins\iconengines
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\plugins\imageformats
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\plugins\platforms
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\plugins\printsupport
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\plugins\sqldrivers
拷贝到源文件工程目录F:\CADCAM\FreeCAD-master\build\bin
3.把
F:\CADCAM\FreeCADLibs_12.1.2_x64_VC15.1\translations\qtwebengine_locales
拷贝到源文件工程目录F:\CADCAM\FreeCAD-master\build\bin
五、其他版本同样适用
上述的方法，同样适用于以下环境：
VS2019+Qt5.12.9 x64+FreeCAD v0.18.5+FreeCADLibs_12.1.6_x64_VC15
main函数的入口：F:\Software\CADCAM\FreeCAD\FreeCAD-0.18.5\src\Main\MainGui.cpp
---
FreeCAD是一个基于OpenCASCADE的开源CAD/CAE工具。 OpenCASCADE是一套开源的CAD/CAM/CAE几何模型核心，来自法国Matra Datavision公司，是著名的CAD软件EUCLID的开发平台。
www.freecadweb.org/wiki/Gettin… 入门教程
forum.freecadweb.org/index.php 社区
www.freecadweb.org/wiki/Compil…
github.com/FreeCAD/Fre… 依赖库官方发布
github.com/apeltauer/F… 依赖库非官方纯私人发布，版本比较新
www.opencascade.com/content/dow…
www.opencascade.com/content/lat…
