（六）错误处理机制
1. SpringBoot默认的错误处理机制

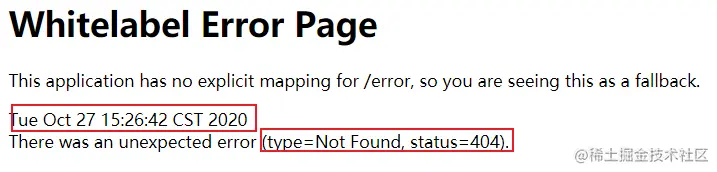

1）浏览器会返回默认的错误界面，并携带一些显示信息

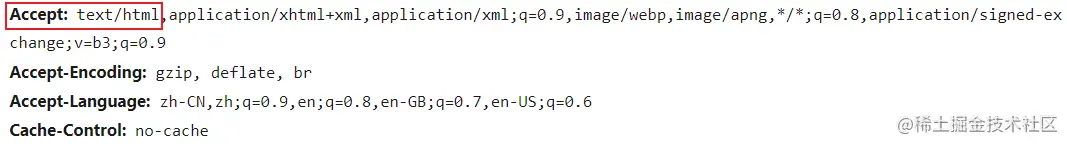

浏览器发送请求的请求头

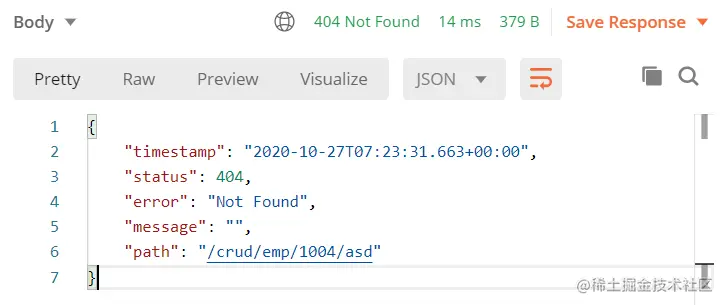

2）使用postman进行请求访问，会返回json数组

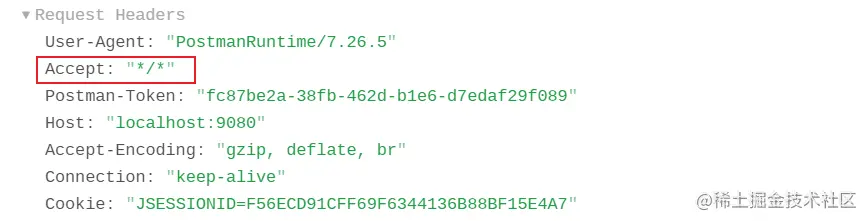

postman发送请求的请求头
默认处理机制的原理：
ErrorMvcAutoConfiguration 中配置了Mvc错误的处理方式，是SpringBoot中处理Mvc错误信息的自动配置，通过向IoC容器中添加组件来完成配置。
自动配置中向容器中添加了以下组件：
① DefaultErrorAttributes：默认进行错误信息处理
② BasicErrorController：处理默认/error的请求
③ ErrorPageCustomizer：指定错误页面跳转
④ DefaultErrorViewResolver：设置默认的错误视图
这些组件具体的功能：
① DefaultErrorAttributes：用于错误信息处理
@Order(Ordered.HIGHEST_PRECEDENCE)
public class DefaultErrorAttributes implements ErrorAttributes, HandlerExceptionResolver, Ordered {
......
@Override
@Deprecated
public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
Map<String, Object> errorAttributes = new LinkedHashMap<>();
// 将时间戳存放到
errorAttributes.put("timestamp", new Date());
addStatus(errorAttributes, webRequest);
addErrorDetails(errorAttributes, webRequest, includeStackTrace);
addPath(errorAttributes, webRequest);
return errorAttributes;
}
// 取出错误状态码，错误提示等
private void addStatus(Map<String, Object> errorAttributes, RequestAttributes requestAttributes) {
Integer status = getAttribute(requestAttributes, RequestDispatcher.ERROR_STATUS_CODE);
if (status == null) {
errorAttributes.put("status", 999);
errorAttributes.put("error", "None");
return;
}
errorAttributes.put("status", status);
try {
errorAttributes.put("error", HttpStatus.valueOf(status).getReasonPhrase());
}
catch (Exception ex) {
// Unable to obtain a reason
errorAttributes.put("error", "Http Status " + status);
}
}
// 取出详细的错误信息，包括异常、获取异常路径、获取异常提示等
private void addErrorDetails(Map<String, Object> errorAttributes, WebRequest webRequest,
boolean includeStackTrace) {
Throwable error = getError(webRequest);
if (error != null) {
while (error instanceof ServletException && error.getCause() != null) {
error = error.getCause();
}
errorAttributes.put("exception", error.getClass().getName());
if (includeStackTrace) {
addStackTrace(errorAttributes, error);
}
}
addErrorMessage(errorAttributes, webRequest, error);
}
......
}
② BasicErrorController：处理默认/error的请求
@Controller
@RequestMapping("${server.error.path:${error.path:/error}}")
public class BasicErrorController extends AbstractErrorController {
......
// 产生html类型的数据；浏览器发送的请求来到此方法处理
@RequestMapping(produces = MediaType.TEXT_HTML_VALUE)
public ModelAndView errorHtml(HttpServletRequest request, HttpServletResponse response) {
HttpStatus status = getStatus(request);
Map<String, Object> model = Collections
.unmodifiableMap(getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.TEXT_HTML)));
response.setStatus(status.value());
// 指定错误页面，并包含错误页面的地址和页面内容
ModelAndView modelAndView = resolveErrorView(request, response, status, model);
return (modelAndView != null) ? modelAndView : new ModelAndView("error", model);
}
// 产生json数据，其他客户端的请求来到此方法处理
@RequestMapping
public ResponseEntity<Map<String, Object>> error(HttpServletRequest request) {
HttpStatus status = getStatus(request);
if (status == HttpStatus.NO_CONTENT) {
return new ResponseEntity<>(status);
}
Map<String, Object> body = getErrorAttributes(request, getErrorAttributeOptions(request, MediaType.ALL));
return new ResponseEntity<>(body, status);
}
......
}
ModelAndView 方法中调用 resolveErrorView 方法进行页面响应。
protected ModelAndView resolveErrorView(HttpServletRequest request, HttpServletResponse response, HttpStatus status,
Map<String, Object> model) {
// 遍历所有的ErrorViewResolver得到ModelAndView
for (ErrorViewResolver resolver : this.errorViewResolvers) {
ModelAndView modelAndView = resolver.resolveErrorView(request, status, model);
if (modelAndView != null) {
return modelAndView;
}
}
return null;
}
具体的页面指向由
DefaultErrorViewResolver类解析得到，具体的实现方式请看下面关于DefaultErrorViewResolver类的说明。
③ ErrorPageCustomizer：配置错误页面跳转
private final DispatcherServletPath dispatcherServletPath;
protected ErrorPageCustomizer(ServerProperties properties, DispatcherServletPath dispatcherServletPath) {
this.properties = properties;
this.dispatcherServletPath = dispatcherServletPath;
}
ErrorPageCustomizer 类中为 dispatcherServletPath 赋值在注册错误信息相关的类中
@Override
public void registerErrorPages(ErrorPageRegistry errorPageRegistry) {
ErrorPage errorPage = new ErrorPage(
this.dispatcherServletPath.getRelativePath(this.properties.getError().getPath()));
errorPageRegistry.addErrorPages(errorPage);
}
最终得到的请求路径为 /error
@Value("${error.path:/error}")
private String path = "/error";// 系统发生错误后来发送error请求进行处理，相当于以前在web.xml中的注册的错误规则
④ DefaultErrorViewResolver：配置默认的错误视图显示
在 ErrorMvcAutoConfiguration 中返回 DefaultErrorViewResolver
@Bean
@ConditionalOnBean(DispatcherServlet.class)
@ConditionalOnMissingBean(ErrorViewResolver.class)
DefaultErrorViewResolver conventionErrorViewResolver() {
return new DefaultErrorViewResolver(this.applicationContext, this.resourceProperties);
}

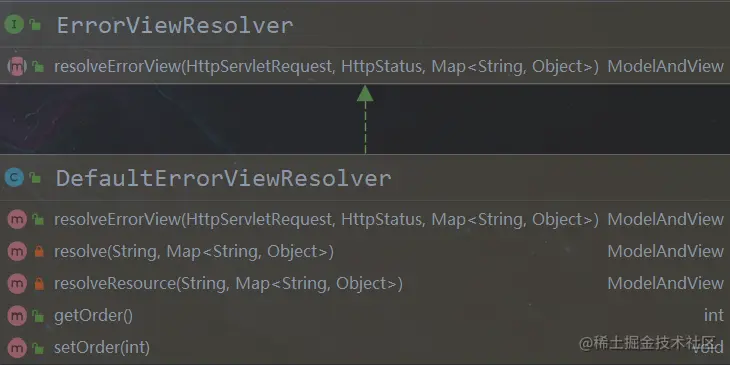

DefaultErrorViewResolver 类中定义响应的页面信息
public class DefaultErrorViewResolver implements ErrorViewResolver, Ordered {
private static final Map<Series, String> SERIES_VIEWS;
// 定义响应码
static {
Map<Series, String> views = new EnumMap<>(Series.class);
views.put(Series.CLIENT_ERROR, "4xx");
views.put(Series.SERVER_ERROR, "5xx");
SERIES_VIEWS = Collections.unmodifiableMap(views);
}
......
@Override
public ModelAndView resolveErrorView(HttpServletRequest request, HttpStatus status, Map<String, Object> model) {
ModelAndView modelAndView = resolve(String.valueOf(status.value()), model);
if (modelAndView == null && SERIES_VIEWS.containsKey(status.series())) {
modelAndView = resolve(SERIES_VIEWS.get(status.series()), model);
}
return modelAndView;
}
private ModelAndView resolve(String viewName, Map<String, Object> model) {
// SpringBoot默认找到一个页面？ error/以状态码命名的页面（如：error/404）
String errorViewName = "error/" + viewName;
// 如果模板引擎可以解析这个页面地址则用模板引擎解析
TemplateAvailabilityProvider provider = this.templateAvailabilityProviders.getProvider(errorViewName,
this.applicationContext);
if (provider != null) {
// 模板引擎可用的情况下返回errorViewName指定的视图地址
return new ModelAndView(errorViewName, model);
}
// 模板引擎不可用，则在静态资源文件夹下寻找errorViewName对应的页面。如：error/404.html
return resolveResource(errorViewName, model);
}
}
产生错误信息后 ErrorMvcAutoConfiguration 的处理步骤：
- 当系统中出现4xx或5xx类的错误；
ErrorPageCustomizer就会生效（用于定制错误的响应规则的bean）设置发送/error请求；/error请求会被BasicErrorController处理，响应html页面或json数据；- 响应的html页面或json数据，由
DefaultErrorViewResolver配置后返回；
2. 定制错误响应
2.1 如何定制错误页面
1）有模板引擎的情况下
error/状态码：将错误页面命名为 错误状态码.html 放在模板引擎文件夹里面的error文件夹内，发生状态码对应的错误时会进入到对应的页面。
我们也可以用4xx和5xx作为错误页面的文件名来匹配这种类型的所有错误，精确定位优先（即优先寻找和状态码对应的页面，找不到的时候才使用此类页面）
页面中能获取到的信息：
获取到的页面信息放到共享页面信息 DefaultErrorAttributes 类中
- timestamp：时间戳
- status：状态码
- error：错误提示
- exception：异常对象
- message：JSR303数据校验错误都在这里
2）没有模板引擎的情况下
模板引擎中找不到这个错误页面，则在静态资源文件夹中找
3）以上都没有的错误页面
则使用SpringBoot默认的错误提示页面
2.2 如何定制错误的数据
1）自定义异常处理&返回定制的json数据
//没有自适应效果...
@ControllerAdvice
public class MyExceptionHandler {
@ResponseBody
@ExceptionHandler(UserNotExistException.class)
public Map<String,Object> handleException(Exception e){
Map<String,Object> map = new HashMap<>();
map.put("code","user.notexist");
map.put("message",e.getMessage());
return map;
}
}
2）转发到/error进行自适应响应效果处理
@ControllerAdvice
public class MyExceptionHandler {
@ExceptionHandler(UserNotExistException.class)
public String handleException(Exception e, HttpServletRequest request) {
Map<String, Object> map = new HashMap<>();
// 传入自定义的错误状态码 4xx 5xx
request.setAttribute("javax.servlet.error.status_code",500);
map.put("code", "user.notexist");
map.put("message", "用户出错啦");
request.setAttribute("ext", map);
// 转发到/error页面，此时浏览器和其他客户端响应的内容不同，由BasicErrorController处理
return "forward:/error";
}
}
2.3 将定制的数据传递出去
出现异常时Spring Boot的处理步骤：
- 当页面发生异常时，会发送/error请求；
- 发送的/error请求会被
BasicErrorController类处理； - 响应出去可以获取的数据由
getErrorAttributes获取到（ErrorController的实现类AbstractErrorController中规定的方法）
因此我们传递数据的方法：
① 书写 ErrorController 的实现类【或着编写 AbstractErrorController 的子类】注入到容器中；
② 页面上能用到的数据，或者json返回能用的数据都是通过 DefaultErrorAttributes 的getErrorAttributes 方法获取到的，容器中的 DefaultErrorAttributes 默认是进行数据处理的，因此我们可以通过自定义 ErrorAttributes ，实现错误信息传递；
代码示例：
// 给容器中注入我们自定义的ErrorAttributes
@Component
public class MyErrorAttributes extends DefaultErrorAttributes {
// 返回值的map就是页面和json能获取到的字段
@Override
public Map<String, Object> getErrorAttributes(WebRequest webRequest, ErrorAttributeOptions options) {
Map<String, Object> map = super.getErrorAttributes(webRequest, options);
map.put("author", "Bruce");
// 我们异常处理器携带的数据
Map<String, Object> ext = (Map<String, Object>) webRequest.getAttribute("ext", RequestAttributes.SCOPE_REQUEST);
map.put("ext", ext);
return map;
}
}

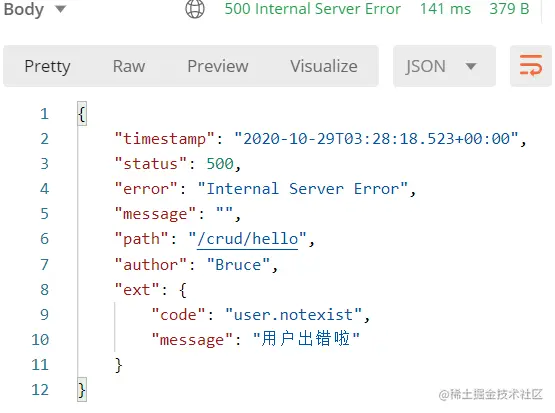

最终效果：响应是自适应的，可以通过定制ErrorAttributes改变需要返回的内容
（七）Servlet容器相关

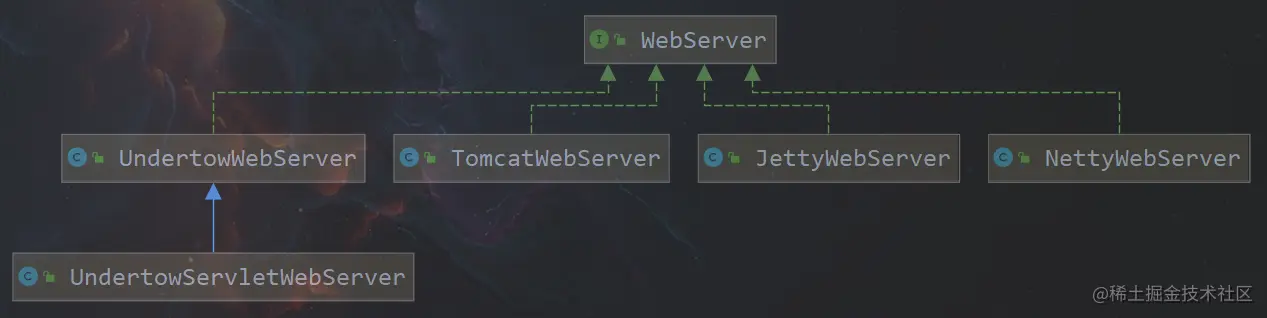

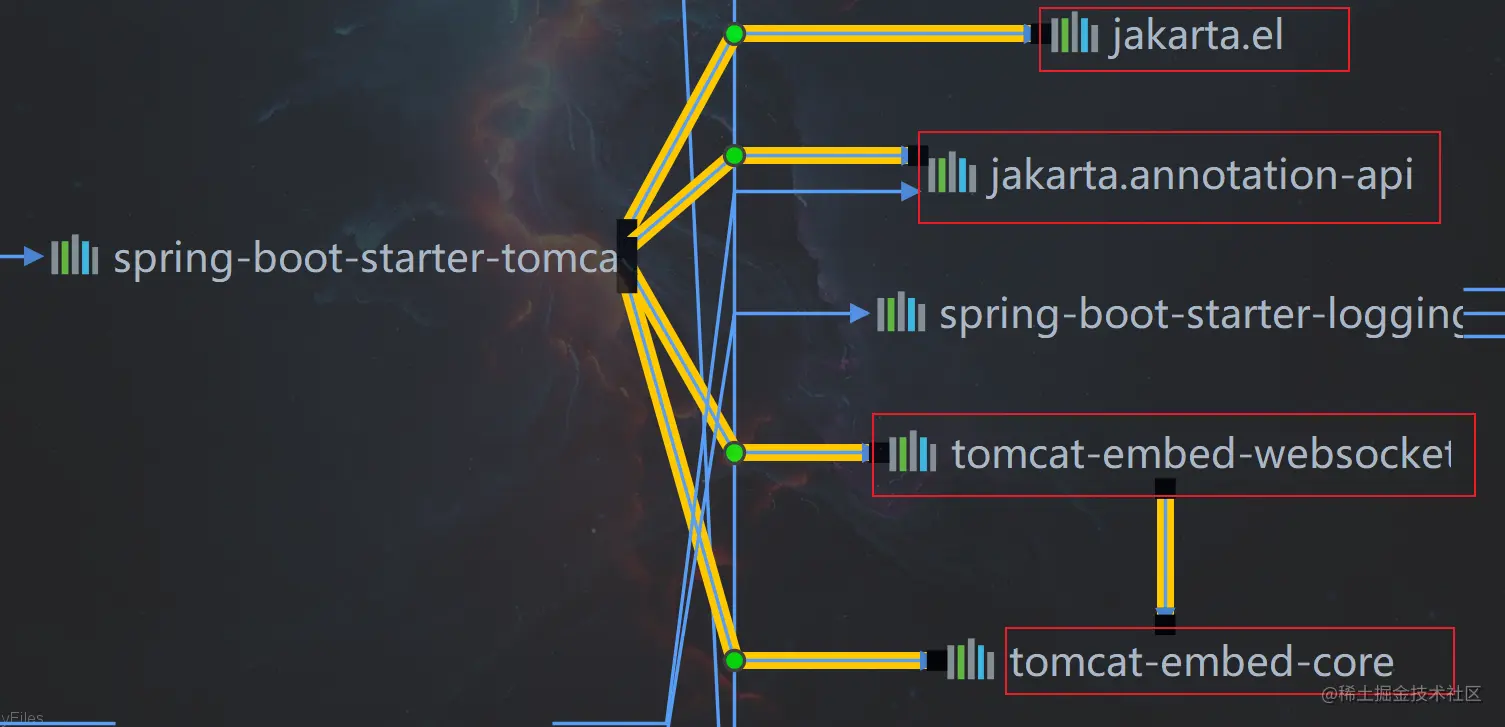

SpringBoot默认使用的是嵌入式的servlet容器（内嵌Tomcat作为Servlet容器）
1. 嵌入式Servlet容器
1.1 修改和定制嵌入式Servlet容器的相关配置
① 通过配置文件修改，修改和server有关的配置（ServerProperties 类中规定）
# server.xxx是server相关的配置
server.port=9083
server.servlet.context-path=/servlet
# server.tomcat.xxx是tomcat相关的配置
server.tomcat.uri-encoding=utf-8
② 通过实现 WebServerFactoryCustomizer 接口进行修改，WebServerFactoryCustomizer 是嵌入式servlet容器定制器，可以用来修改Servlet容器配置
@Component
public class CustomizationBean implements WebServerFactoryCustomizer<ConfigurableWebServerFactory> {
@Override
public void customize(ConfigurableWebServerFactory factory) {
factory.setPort(9000);
}
}

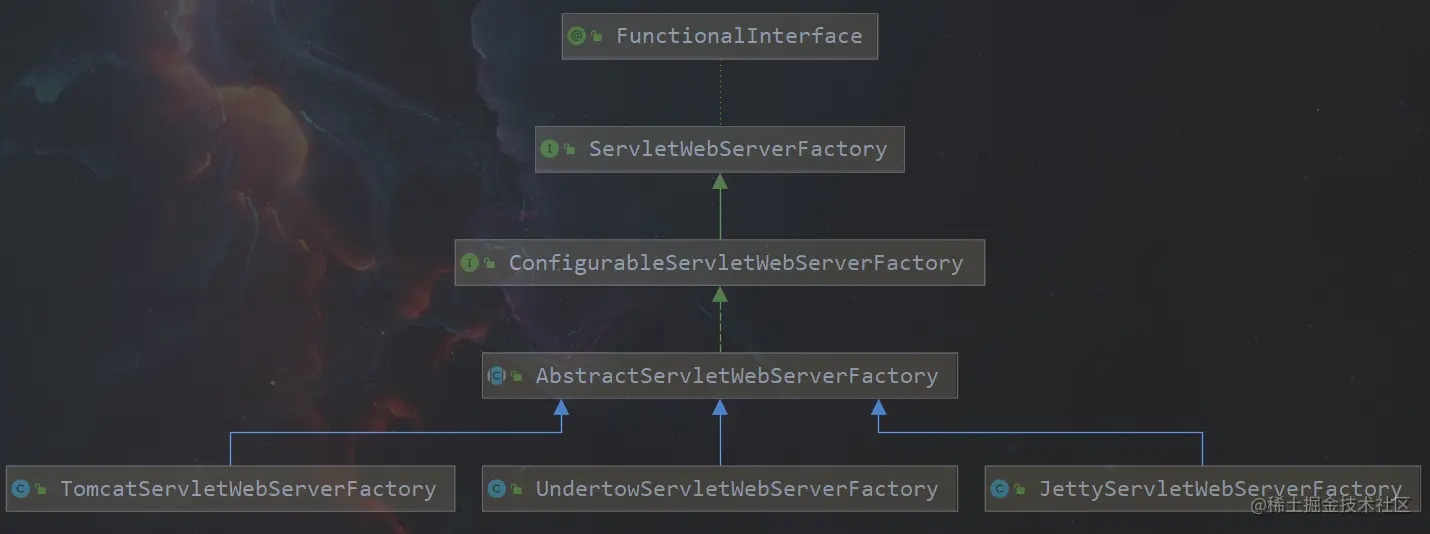

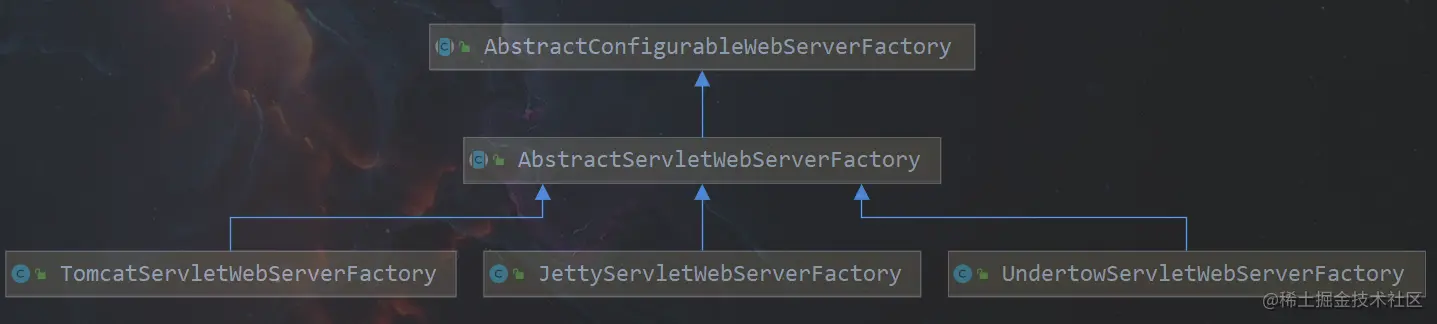

③ 通过 ConfigurableServletWebServerFactory 的子类定制配置
@Configuration
public class MyServerConfig {
/**
* 也可以将创建tomcat定制器示例，进行更多的配置
* @return
*/
@Bean
public ConfigurableServletWebServerFactory webServerFactory() {
TomcatServletWebServerFactory factory = new TomcatServletWebServerFactory();
factory.setPort(9090);
return factory;
}
}
发现Spring Boot的配置执行优先级
@component>application.properties>@bean不清楚是否准确还需要进一步的自动配置原理研究确定。
SpringBoot中对嵌入式Servlet容器的配置：Embedded Servlet Container Support
1.2 注册三大Servlet组件【Servlet、Filter、Listener】
SpringBoot默认采用jar包的方式启动嵌入式Servlet容器来启动SpringBoot的web引用，由于没有web.xml
文件，因此注册三大组件采用 @Bean 的方式进行配置。
① 注册Servlet组件，使用 ServletRegistrationBean
自定义Servlet
public class MyServlet extends HttpServlet {
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doPost(req,resp);
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.getWriter().write("this is my servlet");
}
}
在配置类中书写 ServletRegistrationBean 类型的配置Bean注册Servlet组件
@Bean
public ServletRegistrationBean myServlet() {
ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new MyServlet(), "/myServlet");
servletRegistrationBean.setLoadOnStartup(1);
return servletRegistrationBean;
}
② 注册Filter组件
自定义Fliter
public class MyFilter implements Filter {
@Override
public void init(FilterConfig filterConfig) throws ServletException {
}
@Override
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
System.out.println("MyFilter is running ......");
filterChain.doFilter(servletRequest,servletResponse);
}
@Override
public void destroy() {
}
}
在配置类中书写 FilterRegistrationBean 类型的配置Bean注册Filter组件
@Bean
public FilterRegistrationBean myFilter() {
FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean();
filterRegistrationBean.setFilter(new MyFilter());
filterRegistrationBean.setUrlPatterns(Arrays.asList("/test", "/myServlet"));
return filterRegistrationBean;
}
③ 注册Listener组件
自定义Listener
public class MyListener implements ServletContextListener {
@Override
public void contextInitialized(ServletContextEvent sce) {
System.out.println("contextInitialized web 应用启动。。。。。。");
}
@Override
public void contextDestroyed(ServletContextEvent sce) {
System.out.println("contextDestroyed web 应用销毁。。。。。。");
}
}
在配置类中书写 ServletListenerRegistrationBean 类型的配置Bean注册Listener组件
@Bean
public ServletListenerRegistrationBean myListener() {
ServletListenerRegistrationBean<MyListener> servletListenerRegistrationBean = new ServletListenerRegistrationBean<>(new MyListener());
return servletListenerRegistrationBean;
}
SpringBoot在自动配置SpringMVC时，会自动注册SpringMVC前端控制器 DispatcherServlet ，通过DispatcherServletAutoConfiguration 类加载 DispatcherServlet
@Configuration(proxyBeanMethods = false)
@Conditional(DispatcherServletRegistrationCondition.class)
@ConditionalOnClass(ServletRegistration.class)
@EnableConfigurationProperties(WebMvcProperties.class)
@Import(DispatcherServletConfiguration.class)
protected static class DispatcherServletRegistrationConfiguration {
@Bean(name = DEFAULT_DISPATCHER_SERVLET_REGISTRATION_BEAN_NAME)
@ConditionalOnBean(value = DispatcherServlet.class, name = DEFAULT_DISPATCHER_SERVLET_BEAN_NAME)
public DispatcherServletRegistrationBean dispatcherServletRegistration(DispatcherServlet dispatcherServlet,
WebMvcProperties webMvcProperties, ObjectProvider<MultipartConfigElement> multipartConfig) {
// 默认拦截：/，即所有的请求，包括静态资源，但不会拦截jsp请求。 /*会拦截jsp
// 也可以通过在配置文件中设置spring.mvc.servlet.path修改SpringMVC前端控制器默认拦截请求路径
DispatcherServletRegistrationBean registration = new DispatcherServletRegistrationBean(dispatcherServlet,
webMvcProperties.getServlet().getPath());
registration.setName(DEFAULT_DISPATCHER_SERVLET_BEAN_NAME);
registration.setLoadOnStartup(webMvcProperties.getServlet().getLoadOnStartup());
multipartConfig.ifAvailable(registration::setMultipartConfig);
return registration;
}
}
1.3 使用其他的嵌入式Servlet容器
SpringBoot默认使用Tomcat作为内置的Servlet容器，我们也可以切换为其他的Servlet容器，如：Jetty（适合于长连接）、Undertow（不支持jsp）
Spring Boot中默认支持的Servlet容器关系图
SpringBoot中默认支持的内嵌式Servlet容器：
① Tomcat容器（默认使用）
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
② 使用Jetty作为Servlet容器
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<artifactId>spring-boot-starter-tomcat</artifactId>
<groupId>org.springframework.boot</groupId>
</exclusion>
</exclusions>
</dependency>
<!--使用jetty作为Servlet容器-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jetty</artifactId>
</dependency>
③ 使用Undertow作为Servlet容器
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<artifactId>spring-boot-starter-tomcat</artifactId>
<groupId>org.springframework.boot</groupId>
</exclusion>
</exclusions>
</dependency>
<!--使用undertow作为Servlet容器-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-undertow</artifactId>
</dependency>
Tomcat Jetty Undertow三种Servlet容器对比介绍：Undertow,Tomcat和Jetty服务器配置详解与性能测试
1.4 嵌入式Servlet容器自动配置原理
EmbeddedWebServerFactoryCustomizerAutoConfiguration SpringBoot中嵌入式servlet容器的自动配置类，自动配置里中展示了SpringBoot支持的Servlet容器：Tomcat、Jetty、Undertow、Netty，默认使用的是Tomcat。根据pom文件导入的Starter来决定使用哪种Servlet容器。
@Configuration(proxyBeanMethods = false)
@ConditionalOnWebApplication
@EnableConfigurationProperties(ServerProperties.class)
public class EmbeddedWebServerFactoryCustomizerAutoConfiguration {
/**
* Nested configuration if Tomcat is being used.
*/
@Configuration(proxyBeanMethods = false)
// 条件判断，判断是否导入了Tomcat依赖
@ConditionalOnClass({ Tomcat.class, UpgradeProtocol.class })
public static class TomcatWebServerFactoryCustomizerConfiguration {
@Bean
public TomcatWebServerFactoryCustomizer tomcatWebServerFactoryCustomizer(Environment environment,
ServerProperties serverProperties) {
return new TomcatWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Jetty is being used.
*/
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass({ Server.class, Loader.class, WebAppContext.class })
public static class JettyWebServerFactoryCustomizerConfiguration {
@Bean
public JettyWebServerFactoryCustomizer jettyWebServerFactoryCustomizer(Environment environment,
ServerProperties serverProperties) {
return new JettyWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Undertow is being used.
*/
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass({ Undertow.class, SslClientAuthMode.class })
public static class UndertowWebServerFactoryCustomizerConfiguration {
@Bean
public UndertowWebServerFactoryCustomizer undertowWebServerFactoryCustomizer(Environment environment,
ServerProperties serverProperties) {
return new UndertowWebServerFactoryCustomizer(environment, serverProperties);
}
}
/**
* Nested configuration if Netty is being used.
*/
@Configuration(proxyBeanMethods = false)
@ConditionalOnClass(HttpServer.class)
public static class NettyWebServerFactoryCustomizerConfiguration {
@Bean
public NettyWebServerFactoryCustomizer nettyWebServerFactoryCustomizer(Environment environment,
ServerProperties serverProperties) {
return new NettyWebServerFactoryCustomizer(environment, serverProperties);
}
}
}
Servlet容器自动配置原理：
1）ServletWebServerFactory 是Web服务器定制器（Servlet定制工厂）：创建Servlet容器，根据不同的类别创建对应的Servlet容器
@FunctionalInterface
public interface ServletWebServerFactory {
/**
* Gets a new fully configured but paused {@link WebServer} instance. Clients should
* not be able to connect to the returned server until {@link WebServer#start()} is
* called (which happens when the {@code ApplicationContext} has been fully
* refreshed).
* @param initializers {@link ServletContextInitializer}s that should be applied as
* the server starts
* @return a fully configured and started {@link WebServer}
* @see WebServer#stop()
*/
WebServer getWebServer(ServletContextInitializer... initializers);
}
继承关系图
2）WebServer 是Servlet容器类的父类
public interface WebServer {
/**
* Starts the web server. Calling this method on an already started server has no
* effect.
* @throws WebServerException if the server cannot be started
*/
void start() throws WebServerException;
/**
* Stops the web server. Calling this method on an already stopped server has no
* effect.
* @throws WebServerException if the server cannot be stopped
*/
void stop() throws WebServerException;
/**
* Return the port this server is listening on.
* @return the port (or -1 if none)
*/
int getPort();
/**
* Initiates a graceful shutdown of the web server. Handling of new requests is
* prevented and the given {@code callback} is invoked at the end of the attempt. The
* attempt can be explicitly ended by invoking {@link #stop}. The default
* implementation invokes the callback immediately with
* {@link GracefulShutdownResult#IMMEDIATE}, i.e. no attempt is made at a graceful
* shutdown.
* @param callback the callback to invoke when the graceful shutdown completes
* @since 2.3.0
*/
default void shutDownGracefully(GracefulShutdownCallback callback) {
callback.shutdownComplete(GracefulShutdownResult.IMMEDIATE);
}
}
继承关系图
以 TomcatServletWebServerFactory 为例介绍Servlet容器的自动配置原理：
① 创建Tomcat容器的工厂 TomcatServletWebServerFactory
public class TomcatServletWebServerFactory extends AbstractServletWebServerFactory
implements ConfigurableTomcatWebServerFactory, ResourceLoaderAware {
......
@Override
public WebServer getWebServer(ServletContextInitializer... initializers) {
if (this.disableMBeanRegistry) {
Registry.disableRegistry();
}
// 创建一个Tomcat
Tomcat tomcat = new Tomcat();
// 配置Tomcat的基本内容
File baseDir = (this.baseDirectory != null) ? this.baseDirectory : createTempDir("tomcat");
tomcat.setBaseDir(baseDir.getAbsolutePath());
Connector connector = new Connector(this.protocol);
connector.setThrowOnFailure(true);
tomcat.getService().addConnector(connector);
customizeConnector(connector);
tomcat.setConnector(connector);
tomcat.getHost().setAutoDeploy(false);
configureEngine(tomcat.getEngine());
for (Connector additionalConnector : this.additionalTomcatConnectors) {
tomcat.getService().addConnector(additionalConnector);
}
prepareContext(tomcat.getHost(), initializers);
// 将配置好的Tomcat传入到getTomcatWebServer方法中，返回Tomcat容器并启动容器
return getTomcatWebServer(tomcat);
}
......
// 将配置好的Tomcat传入到TomcatWebServer中，创建Tomcat容器并返回
protected TomcatWebServer getTomcatWebServer(Tomcat tomcat) {
return new TomcatWebServer(tomcat, getPort() >= 0, getShutdown());
}
......
}
② TomcatWebServer 的构造器用于初始化Tomcat容器
public class TomcatWebServer implements WebServer {
......
/**
* Create a new {@link TomcatWebServer} instance.
* @param tomcat the underlying Tomcat server
* @param autoStart if the server should be started
* @param shutdown type of shutdown supported by the server
* @since 2.3.0
*/
// 通过构造器初始化Tomcat容器
public TomcatWebServer(Tomcat tomcat, boolean autoStart, Shutdown shutdown) {
Assert.notNull(tomcat, "Tomcat Server must not be null");
this.tomcat = tomcat;
this.autoStart = autoStart;
this.gracefulShutdown = (shutdown == Shutdown.GRACEFUL) ? new GracefulShutdown(tomcat) : null;
initialize();
}
// 初始化Tomcat容器
private void initialize() throws WebServerException {
logger.info("Tomcat initialized with port(s): " + getPortsDescription(false));
synchronized (this.monitor) {
try {
addInstanceIdToEngineName();
Context context = findContext();
context.addLifecycleListener((event) -> {
if (context.equals(event.getSource()) && Lifecycle.START_EVENT.equals(event.getType())) {
// Remove service connectors so that protocol binding doesn't
// happen when the service is started.
removeServiceConnectors();
}
});
// Start the server to trigger initialization listeners
this.tomcat.start();
// We can re-throw failure exception directly in the main thread
rethrowDeferredStartupExceptions();
try {
ContextBindings.bindClassLoader(context, context.getNamingToken(), getClass().getClassLoader());
}
catch (NamingException ex) {
// Naming is not enabled. Continue
}
// Unlike Jetty, all Tomcat threads are daemon threads. We create a
// blocking non-daemon to stop immediate shutdown
startDaemonAwaitThread();
}
catch (Exception ex) {
stopSilently();
destroySilently();
throw new WebServerException("Unable to start embedded Tomcat", ex);
}
}
}
......
}
3）修改嵌入式Servlet容器的配置
① 修改配置文件，即配置 ServerProperties 中的配置信息，通过读取配置信息配置Servlet容器
② 通过实现 WebServerFactoryCustomizer 接口，进行自定义Servlet容器定制
对Servlet容器修改配置原理的方式
4）Spring Boot中 ServletWebServerFactoryAutoConfiguration 类进行自动配置
@Configuration(proxyBeanMethods = false)
@AutoConfigureOrder(Ordered.HIGHEST_PRECEDENCE)
@ConditionalOnClass(ServletRequest.class)
@ConditionalOnWebApplication(type = Type.SERVLET)
@EnableConfigurationProperties(ServerProperties.class)
@Import({ ServletWebServerFactoryAutoConfiguration.BeanPostProcessorsRegistrar.class,
ServletWebServerFactoryConfiguration.EmbeddedTomcat.class,
ServletWebServerFactoryConfiguration.EmbeddedJetty.class,
ServletWebServerFactoryConfiguration.EmbeddedUndertow.class })
// 导入后置处理器，导入内嵌式Servlet容器的相关配置和与Servlet容器相关的配置类
public class ServletWebServerFactoryAutoConfiguration {
@Bean
public ServletWebServerFactoryCustomizer servletWebServerFactoryCustomizer(ServerProperties serverProperties) {
return new ServletWebServerFactoryCustomizer(serverProperties);
}
@Bean
@ConditionalOnClass(name = "org.apache.catalina.startup.Tomcat")
public TomcatServletWebServerFactoryCustomizer tomcatServletWebServerFactoryCustomizer(
ServerProperties serverProperties) {
return new TomcatServletWebServerFactoryCustomizer(serverProperties);
}
@Bean
@ConditionalOnMissingFilterBean(ForwardedHeaderFilter.class)
@ConditionalOnProperty(value = "server.forward-headers-strategy", havingValue = "framework")
public FilterRegistrationBean<ForwardedHeaderFilter> forwardedHeaderFilter() {
ForwardedHeaderFilter filter = new ForwardedHeaderFilter();
FilterRegistrationBean<ForwardedHeaderFilter> registration = new FilterRegistrationBean<>(filter);
registration.setDispatcherTypes(DispatcherType.REQUEST, DispatcherType.ASYNC, DispatcherType.ERROR);
registration.setOrder(Ordered.HIGHEST_PRECEDENCE);
return registration;
}
/**
* Registers a {@link WebServerFactoryCustomizerBeanPostProcessor}. Registered via
* {@link ImportBeanDefinitionRegistrar} for early registration.
*/
public static class BeanPostProcessorsRegistrar implements ImportBeanDefinitionRegistrar, BeanFactoryAware {
private ConfigurableListableBeanFactory beanFactory;
@Override
public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
if (beanFactory instanceof ConfigurableListableBeanFactory) {
this.beanFactory = (ConfigurableListableBeanFactory) beanFactory;
}
}
// 注册registerBeanDefinitions，调用后置处理器WebServerFactoryCustomizerBeanPostProcessor
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata,
BeanDefinitionRegistry registry) {
if (this.beanFactory == null) {
return;
}
registerSyntheticBeanIfMissing(registry, "webServerFactoryCustomizerBeanPostProcessor",
WebServerFactoryCustomizerBeanPostProcessor.class);
registerSyntheticBeanIfMissing(registry, "errorPageRegistrarBeanPostProcessor",
ErrorPageRegistrarBeanPostProcessor.class);
}
private void registerSyntheticBeanIfMissing(BeanDefinitionRegistry registry, String name, Class<?> beanClass) {
if (ObjectUtils.isEmpty(this.beanFactory.getBeanNamesForType(beanClass, true, false))) {
RootBeanDefinition beanDefinition = new RootBeanDefinition(beanClass);
beanDefinition.setSynthetic(true);
registry.registerBeanDefinition(name, beanDefinition);
}
}
}
}
在 WebServerFactoryCustomizerBeanPostProcessor web服务工厂定制组件的后置处理器，负责在bean初始化前执行初始化工作。从IoC容器中获取类型为 WebServerFactoryCustomizer 类型的组件。
后置处理器：bean初始化前后（创建完对象，还没进行赋值，执行初始化工作）
public class WebServerFactoryCustomizerBeanPostProcessor implements BeanPostProcessor, BeanFactoryAware {
private ListableBeanFactory beanFactory;
private List<WebServerFactoryCustomizer<?>> customizers;
@Override
public void setBeanFactory(BeanFactory beanFactory) {
Assert.isInstanceOf(ListableBeanFactory.class, beanFactory,
"WebServerCustomizerBeanPostProcessor can only be used with a ListableBeanFactory");
this.beanFactory = (ListableBeanFactory) beanFactory;
}
// 在初始化Bean之前
@Override
public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
// 如果当前初始化的是WebServerFactory类型的组件
if (bean instanceof WebServerFactory) {
postProcessBeforeInitialization((WebServerFactory) bean);
}
return bean;
}
@Override
public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
return bean;
}
// 获取所有的定制器，调用每一个定制器的customize方法来给Servlet容器进行属性赋值；
@SuppressWarnings("unchecked")
private void postProcessBeforeInitialization(WebServerFactory webServerFactory) {
LambdaSafe.callbacks(WebServerFactoryCustomizer.class, getCustomizers(), webServerFactory)
.withLogger(WebServerFactoryCustomizerBeanPostProcessor.class)
.invoke((customizer) -> customizer.customize(webServerFactory));
}
//
private Collection<WebServerFactoryCustomizer<?>> getCustomizers() {
if (this.customizers == null) {
// Look up does not include the parent context
this.customizers = new ArrayList<>(getWebServerFactoryCustomizerBeans());
this.customizers.sort(AnnotationAwareOrderComparator.INSTANCE);
this.customizers = Collections.unmodifiableList(this.customizers);
}
return this.customizers;
}
// 获取定制的Servlet容器的组件
@SuppressWarnings({ "unchecked", "rawtypes" })
private Collection<WebServerFactoryCustomizer<?>> getWebServerFactoryCustomizerBeans() {
return (Collection) this.beanFactory.getBeansOfType(WebServerFactoryCustomizer.class, false, false).values();
}
}
例如：通过后置处理器获取得到 TomcatServletWebServerFactoryCustomizer 调用 customize() 定制方法，获取Servlet容器相关的配置类 serverProperties 进行自动配置
public class TomcatServletWebServerFactoryCustomizer
implements WebServerFactoryCustomizer<TomcatServletWebServerFactory>, Ordered {
private final ServerProperties serverProperties;
public TomcatServletWebServerFactoryCustomizer(ServerProperties serverProperties) {
this.serverProperties = serverProperties;
}
@Override
public int getOrder() {
return 0;
}
// 通过此方法定制Servlet容器
@Override
public void customize(TomcatServletWebServerFactory factory) {
// 获取配置类serverProperties中的配置信息
ServerProperties.Tomcat tomcatProperties = this.serverProperties.getTomcat();
if (!ObjectUtils.isEmpty(tomcatProperties.getAdditionalTldSkipPatterns())) {
factory.getTldSkipPatterns().addAll(tomcatProperties.getAdditionalTldSkipPatterns());
}
if (tomcatProperties.getRedirectContextRoot() != null) {
customizeRedirectContextRoot(factory, tomcatProperties.getRedirectContextRoot());
}
customizeUseRelativeRedirects(factory, tomcatProperties.isUseRelativeRedirects());
factory.setDisableMBeanRegistry(!tomcatProperties.getMbeanregistry().isEnabled());
}
private void customizeRedirectContextRoot(ConfigurableTomcatWebServerFactory factory, boolean redirectContextRoot) {
factory.addContextCustomizers((context) -> context.setMapperContextRootRedirectEnabled(redirectContextRoot));
}
private void customizeUseRelativeRedirects(ConfigurableTomcatWebServerFactory factory,
boolean useRelativeRedirects) {
factory.addContextCustomizers((context) -> context.setUseRelativeRedirects(useRelativeRedirects));
}
}
嵌入式Servlet容器自动配置原理总结：
① SpringBoot根据导入的依赖情况，自动给容器中添加对应的 WebServerFactoryCustomizer 组件（web服务定制器）
② 当容器中某个组件创建对象时会触发后置处理器 WebServerFactoryCustomizerBeanPostProcessor
③ WebServerFactoryCustomizerBeanPostProcessor （Web工厂定制组件后置处理器）获取所有服务工厂定制组件（即实现 WebServerFactoryCustomizer 的接口，自定义的定制器组件）依次调用 customize 定制接口，定制Servlet容器配置；
④ 嵌入式Servlet容器工厂创建tomcat容器，初始化并启动Servlet容器
1.5 嵌入式Servlet容器启动原理
嵌入式Servlet容器工厂创建的时机以及获取嵌入式Servlet容器并启动Tomcat
获取嵌入式Servlet容器工厂：
1）Spring Boot应用通过main方法入口启动，并运行run方法；
2）调用 Application 类中的 run 方法，调用 refreshContext 方法刷新容器【创建IoC容器对象并初始化，创建容器中的各个组件对象】，如果是web应用则创建 AnnotationConfigServletWebServerApplicationContext 容器，否则创建默认IoC容器 AnnotationConfigApplicationContext 容器
public ConfigurableApplicationContext run(String... args) {
StopWatch stopWatch = new StopWatch();
stopWatch.start();
ConfigurableApplicationContext context = null;
Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
configureHeadlessProperty();
SpringApplicationRunListeners listeners = getRunListeners(args);
listeners.starting();
try {
ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
configureIgnoreBeanInfo(environment);
Banner printedBanner = printBanner(environment);
// 创建IoC容器，根据不同的环境创建不同的IoC容器
context = createApplicationContext();
exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
new Class[] { ConfigurableApplicationContext.class }, context);
prepareContext(context, environment, listeners, applicationArguments, printedBanner);
// 刷新容器，即创建容器对象并初始化，创建容器中的各个组件对象
refreshContext(context);
afterRefresh(context, applicationArguments);
stopWatch.stop();
if (this.logStartupInfo) {
new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
}
listeners.started(context);
callRunners(context, applicationArguments);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, listeners);
throw new IllegalStateException(ex);
}
try {
listeners.running(context);
}
catch (Throwable ex) {
handleRunFailure(context, ex, exceptionReporters, null);
throw new IllegalStateException(ex);
}
return context;
}
关于Spring中IoC容器还有很多的内容，会在后续写博客详细介绍的。
3）调用 refresh 方法刷新容器，经过一系列的调用后达到 AbstractApplicationContext 类中的 refresh 方法。
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
// 在此处刷新IoC容器
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// Destroy already created singletons to avoid dangling resources.
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
4）AbstractApplicationContext 类中的 onRefresh 方法刷新IoC容器，其中web的IoC容器重写了 onRefresh 方法，调用的时候通过父类进行多态调用。
5）调用 ServletWebServerApplication 类中 createWebServer 方法，让web的IoC创建嵌入式Servlet容器
private void createWebServer() {
WebServer webServer = this.webServer;
ServletContext servletContext = getServletContext();
if (webServer == null && servletContext == null) {
// 获取嵌入式的Servlet工厂
ServletWebServerFactory factory = getWebServerFactory();
this.webServer = factory.getWebServer(getSelfInitializer());
getBeanFactory().registerSingleton("webServerGracefulShutdown",
new WebServerGracefulShutdownLifecycle(this.webServer));
getBeanFactory().registerSingleton("webServerStartStop",
new WebServerStartStopLifecycle(this, this.webServer));
}
else if (servletContext != null) {
try {
getSelfInitializer().onStartup(servletContext);
}
catch (ServletException ex) {
throw new ApplicationContextException("Cannot initialize servlet context", ex);
}
}
initPropertySources();
}
6）调用 ServletWebServerApplication 类中 getWebServerFactory 方法创建Servlet创建工厂
protected ServletWebServerFactory getWebServerFactory() {
// Use bean names so that we don't consider the hierarchy
// 通过getBean方法从IoC容器中获取ServletWebServerFactory组件
String[] beanNames = getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);
if (beanNames.length == 0) {
throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to missing "
+ "ServletWebServerFactory bean.");
}
if (beanNames.length > 1) {
throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to multiple "
+ "ServletWebServerFactory beans : " + StringUtils.arrayToCommaDelimitedString(beanNames));
}
return getBeanFactory().getBean(beanNames[0], ServletWebServerFactory.class);
}

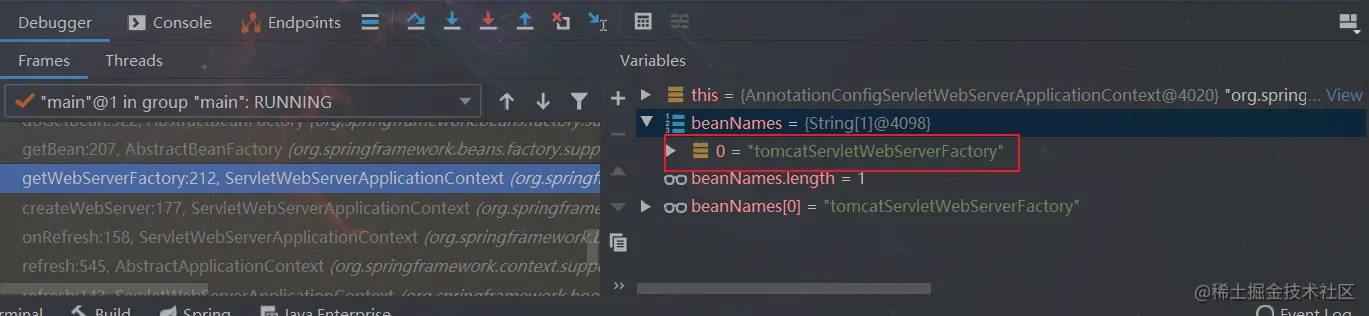

getWebServerFactory 方法中通过 getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class); 从IoC容器中获取 ServletWebServerFactory 组件。我们通过debug调试可以看到在IoC容器中获取 tomcatServletWebServerFactory 组件。我们在SpringBoot自动配置类： ServletWebServerFactoryAutoConfiguration 类中，注入了 tomcatServletWebServerFactory 组件
我们在得到 tomcatServletWebServerFactory 组件后，就进入到了 tomcatServletWebServerFactory 类中创建Servlet容器对象此时会触发后置处理器 WebServerFactoryCustomizerBeanPostProcessor，后置处理器会获取所有的定制器来定制Servlet容器类的相关配置。
7）通过容器工厂获取嵌入式的Servlet容器，即通过 tomcatServletWebServerFactory 类创建 tomcatWebServer 类；
8）创建嵌入式Servlet容器，并启动容器。tomcatWebServer 类中包含对tomcat容器的相关配置和启动方法。
首先启动嵌入式的Servlet容器，再创建IoC容器中的其他组件，即IoC容器在启动的时候就创建了Servlet容器。
本章中涉及到的IoC容器相关的内容并没有详细说明，会在后续的博文中详细说明的。
2. 外置Servlet容器
- 嵌入式Servlet容器：应用打包成可执行的jar包，通过执行jar包启动应用。
- 优点：启动简单，不同的嵌入式Servlet容器间切换方便，且不用安装外部的Servlet容器
- 缺点：不支持jsp，优化定制比较复杂，通过配置文件进行配置或定制Servlet创建工厂
WebServerFactoryCustomizer
- 外置的Servlet容器：将应用打包成war包，通过外置的Servlet容器，如：使用安装配置好的Tomcat运行项目打包后的war包
2.1 外置Servlet容器使用方法
① 设置项目的打包方式设置为war包；
② 设置项目不使用内置的Servlet容器；
③ 必须编写 SpringBootServletInitializer 的实现类，并实现 configure 方法；
④ 通过外部的Servlet容器，启动war包；
具体的使用操作：
① 设置项目的打包方式设置为war包；（注意创建webapp的目录结构）
使用SpringBoot项目创建工具时指定，或修改项目的 pom.xml 文件
<packaging>war</packaging>
② 设置项目不使用内置的Servlet容器；
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-tomcat</artifactId>
<scope>provided</scope>
</dependency>
③ 必须编写 SpringBootServletInitializer 的实现类，并实现 configure 方法；
public class ServletInitializer extends SpringBootServletInitializer {
@Override
protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
// 调用configure方法，传入SpringBoot应用主程序
return application.sources(Springboot04JspApplication.class);
}
}
④ 通过外部的Servlet容器，启动war包；
关于在IDEA中配置Tomcat服务器，请查看博文：SpringBoot项目修改为外置Tomcat启动
2.2 外置Servlet容器启动原理
不同打包方式的执行步骤：
- jar包：执行SpringBoot主类的main方法，创建并启动IoC容器，创建嵌入式Servlet容器；
- war包：启动服务器，服务器启动SpringBoot应用【SpringBootServletInitializer】，创建并启动IoC容器；
Servlet 3.1 Shared libraries / runtimes pluggability 的规范：
- 服务器启动时（web应用启动时）会创建当前web应用内每个jar包里的
ServletContainerInitializer实例； ServletContainerInitializer的实现类必须放在jar包的META—INF/services文件夹内，包含一个名为javax.servlet.ServletContainerInitializer的文件，内容为ServletContainerInitializer的实现类的全类名；- 还可以使用
@HandlesTypes注解，在启动应用时加载我们感兴趣的类；
流程：
① 启动Tomcat服务器；
② org\springframework\spring-web\5.2.10.RELEASE\spring-web-5.2.10.RELEASE.jar!\META-INF\services\javax.servlet.ServletContainerInitializer Spring的web模块中包含的文件，文件的内容：org.springframework.web.SpringServletContainerInitializer，即：应用启动时需要创建这个类；
③ SpringServletContainerInitializer 将 @HandlesTypes(WebApplicationInitializer.class) 注解标注的所有 WebApplicationInitializer 类型的类都传入到 onStartup 方法中 ，为这些 WebApplicationInitializer 类型的类创建实例；
@HandlesTypes(WebApplicationInitializer.class)
public class SpringServletContainerInitializer implements ServletContainerInitializer {
@Override
public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext)
throws ServletException {
List<WebApplicationInitializer> initializers = new LinkedList<>();
if (webAppInitializerClasses != null) {
for (Class<?> waiClass : webAppInitializerClasses) {
// Be defensive: Some servlet containers provide us with invalid classes,
// no matter what @HandlesTypes says...
if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) &&
WebApplicationInitializer.class.isAssignableFrom(waiClass)) {
try {
// 为这些WebApplicationInitializer类型的类创建实例
initializers.add((WebApplicationInitializer)
ReflectionUtils.accessibleConstructor(waiClass).newInstance());
}
catch (Throwable ex) {
throw new ServletException("Failed to instantiate WebApplicationInitializer class", ex);
}
}
}
}
if (initializers.isEmpty()) {
servletContext.log("No Spring WebApplicationInitializer types detected on classpath");
return;
}
servletContext.log(initializers.size() + " Spring WebApplicationInitializers detected on classpath");
AnnotationAwareOrderComparator.sort(initializers);
for (WebApplicationInitializer initializer : initializers) {
// 每一个WebApplicationInitializer类型的类都调用自己的 `onStartup` 方法；
initializer.onStartup(servletContext);
}
}
}
④ 每一个 WebApplicationInitializer 类型的类都调用自己的 onStartup 方法；
WebApplicationInitializer 接口的继承关系图
⑤ 相当于我们的 SpringBootServletInitializer 实现类会被创建对象，并执行 onStartup 方法；
⑥ SpringBootServletInitializer 实例执行 onStartup 方法时会调用 createRootApplicationContext 方法创建IoC容器；
⑦ createRootApplicationContext 方法中调用run方法启动SpringBoot应用并创建IoC容器
SpringBootServletInitializer 类源码：
public abstract class SpringBootServletInitializer implements WebApplicationInitializer {
......
// 执行onStartup方法
@Override
public void onStartup(ServletContext servletContext) throws ServletException {
// Logger initialization is deferred in case an ordered
// LogServletContextInitializer is being used
this.logger = LogFactory.getLog(getClass());
// 创建IoC容器
WebApplicationContext rootApplicationContext = createRootApplicationContext(servletContext);
if (rootApplicationContext != null) {
servletContext.addListener(new SpringBootContextLoaderListener(rootApplicationContext, servletContext));
}
else {
this.logger.debug("No ContextLoaderListener registered, as createRootApplicationContext() did not "
+ "return an application context");
}
}
......
// 创建IoC容器的方法
protected WebApplicationContext createRootApplicationContext(ServletContext servletContext) {
// 创建SpringApplicationBuilder
SpringApplicationBuilder builder = createSpringApplicationBuilder();
builder.main(getClass());
ApplicationContext parent = getExistingRootWebApplicationContext(servletContext);
if (parent != null) {
this.logger.info("Root context already created (using as parent).");
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, null);
builder.initializers(new ParentContextApplicationContextInitializer(parent));
}
builder.initializers(new ServletContextApplicationContextInitializer(servletContext));
builder.contextClass(AnnotationConfigServletWebServerApplicationContext.class);
// 调用configure方法，子类重写此方法，将SpringBoot的主程序传入
builder = configure(builder);
builder.listeners(new WebEnvironmentPropertySourceInitializer(servletContext));
// 调用build方法创建一个Spring应用
SpringApplication application = builder.build();
if (application.getAllSources().isEmpty()
&& MergedAnnotations.from(getClass(), SearchStrategy.TYPE_HIERARCHY).isPresent(Configuration.class)) {
application.addPrimarySources(Collections.singleton(getClass()));
}
Assert.state(!application.getAllSources().isEmpty(),
"No SpringApplication sources have been defined. Either override the "
+ "configure method or add an @Configuration annotation");
// Ensure error pages are registered
if (this.registerErrorPageFilter) {
application.addPrimarySources(Collections.singleton(ErrorPageFilterConfiguration.class));
}
application.setRegisterShutdownHook(false);
// 调用run方法启动SpringBoot应用
return run(application);
}
......
// configure方法，子类实现后传入主启动类
protected SpringApplicationBuilder configure(SpringApplicationBuilder builder) {
return builder;
}
......
}
因此通过外置Servlet容器启动SpringBoot应用的过程是：先启动外置Servlet容器，再启动SpringBoot应用。
关于Spring中的IoC容器相关的内容，会再写文章进行详细讲解的。这一篇博文比较长，能看到这里的小伙伴都很棒啊ヾ(≧▽≦*)o
