数据库设计与模型映射

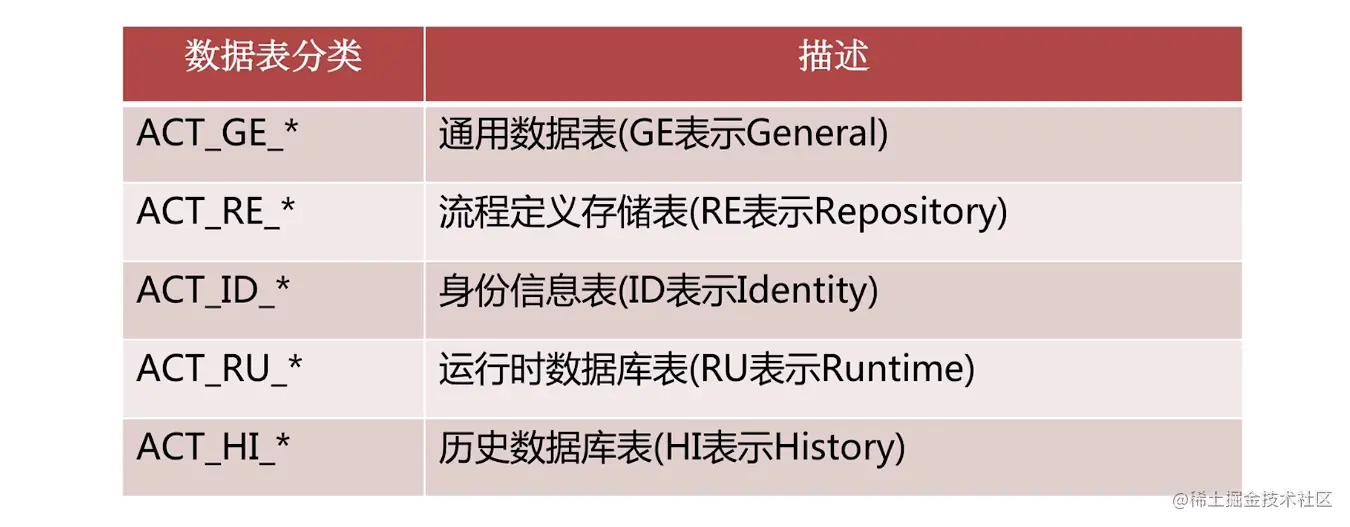

数据库模型设计

数据库建表语句

Mysql建表语句

• 核心引擎 activiti.mysql.create.engine.sql (必选)
• 历史数据 activiti.mysql.create.engine.sql (可选)
• 身份信息 activit.mysql.create.identity.sql(可选)

Mysql删除语句

• 核心引擎 activiti.mysql.drop.engine.sql
• 历史数据 activiti.mysql.drop.history.sql
• 身份信息 activiti.mysql.drop.identity.sql

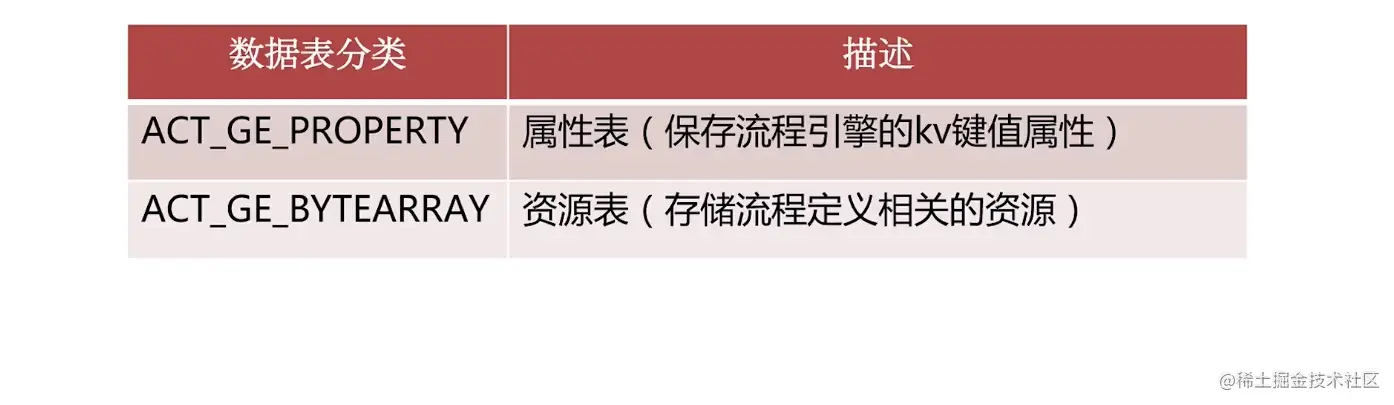

通用数据库

• 查看数据库基本信息

  • java 代码

      private static final Logger LOGGER = LoggerFactory.getLogger(DbConfigTests.class);


        @Test
        public void testDbConfig() {
            ProcessEngineConfiguration resourceDefault = ProcessEngineConfiguration.createProcessEngineConfigurationFromResourceDefault();
            ProcessEngine processEngine = resourceDefault.buildProcessEngine();
            ManagementService managementService = processEngine.getManagementService();
            Map<String, Long> tableCount = managementService.getTableCount();
            // 获取所有表的键
            ArrayList<String> tableNames = Lists.newArrayList(tableCount.keySet());
            // 对表的集合排序
            Collections.sort(tableNames);
            for (String tableName : tableNames) {
                LOGGER.info("tableName = {}", tableName);
            }
            LOGGER.info("tableName.size() = {}", tableNames.size());


        }


  • 控制台输出结果为

• 删除表结构java代码

      @Test
      public void dropTable() {
          ProcessEngineConfiguration configuration = ProcessEngineConfiguration
                  .createProcessEngineConfigurationFromResource("activiti-mysql.cfg.xml");
          ProcessEngine processEngine = configuration.buildProcessEngine();
          ManagementService managementService = processEngine.getManagementService();
          Object executeCommand = managementService.executeCommand((CommandContext commandContext) -> {
              commandContext.getDbSqlSession().dbSchemaDrop();
              LOGGER.info("删除表结构");
              return null;
          });

      }


• 测试部署java代码

  public class DbGeTest {


      @Rule
      public ActivitiRule activitiRule = new ActivitiRule("activiti-mysql.cfg.xml");

      @Test
      public void testByteArray() {
          activitiRule.getRepositoryService().createDeployment()
                  .name("测试部署")
                  .addClasspathResource("my-process.bpmn20.xml")
                  .deploy();
      }

      @Test
      public void testByteArrayInsert() {
          ManagementService managementService = activitiRule.getManagementService();
          managementService.executeCommand((CommandContext commandContext) -> {
              ByteArrayEntityImpl byteArrayEntity = new ByteArrayEntityImpl();
              byteArrayEntity.setName("test");
              byteArrayEntity.setBytes("test message".getBytes());
              commandContext.getByteArrayEntityManager().insert(byteArrayEntity);
              return null;
          });
      }
  }


流程定义存储表

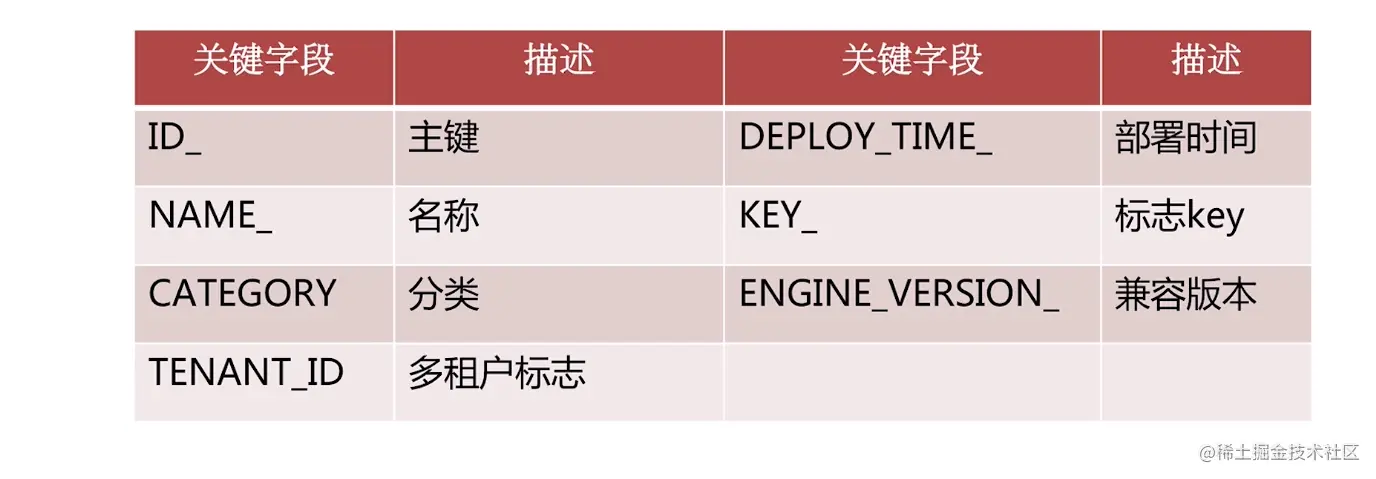

ACT_RE_DEPLOYMENT【DeploymentEntityImpl】

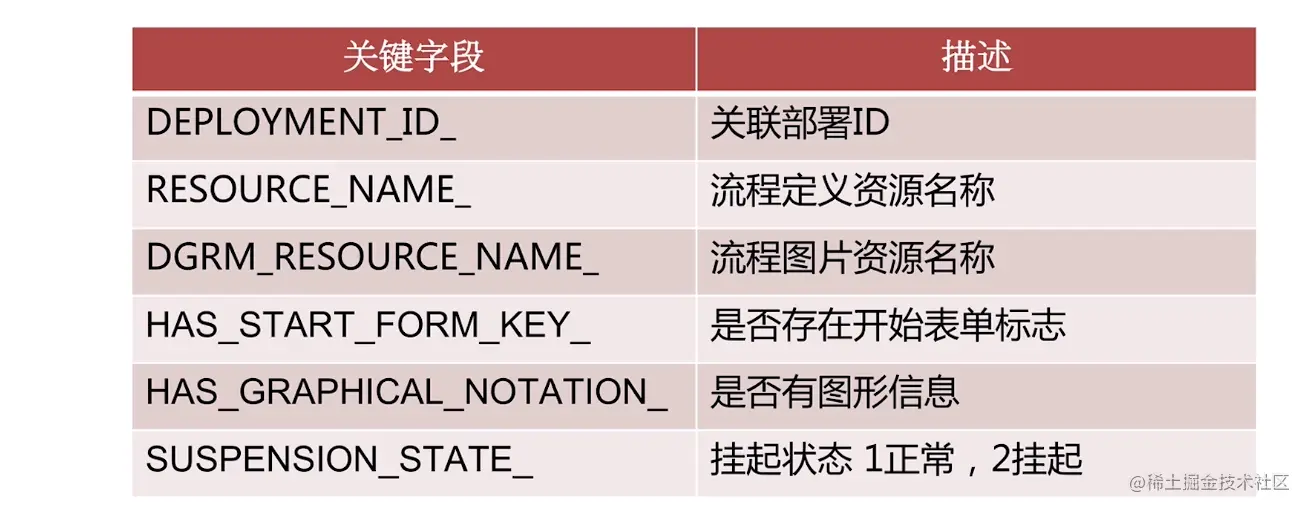

ACT_RE_PROCDEF【ProcessDefinitionEntityImpl】

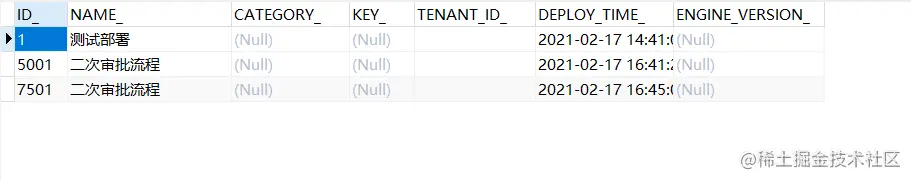

• 数据库表里面的信息如下

• 部署文件资源代码

    @Test
    public void testDepoly() {
        activitiRule.getRepositoryService()
                .createDeployment()
                .name("二次审批流程")
                .addClasspathResource("second_approve.bpmn20.xml")
                .deploy();
    }

• 挂起代码如下

 @Test
    public void testSuspend() {
        RepositoryService repositoryService = activitiRule.getRepositoryService();
        repositoryService.suspendProcessDefinitionById("second_approve:2:7504");
        boolean suspended = repositoryService
                .isProcessDefinitionSuspended("second_approve:2:7504");
        LOGGER.info("suspended =  {}", suspended);
    }

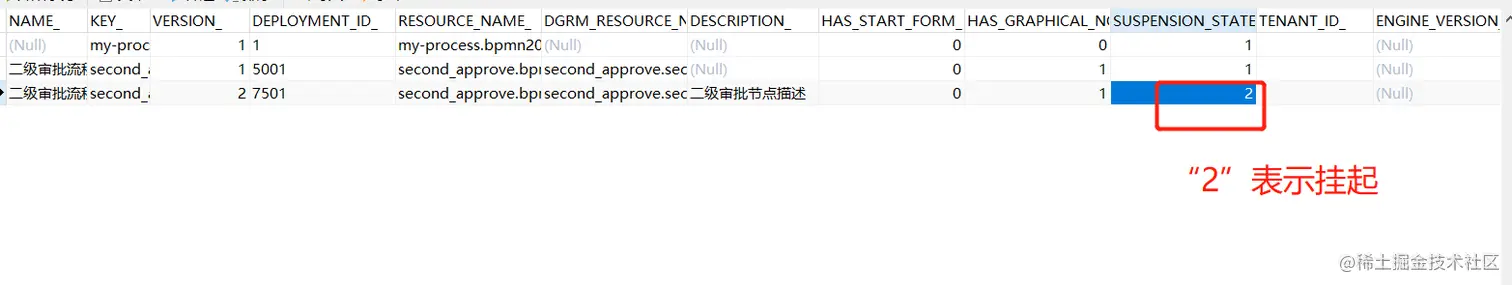

• 结果如下

身份数据表设计

身份数据表（identity）

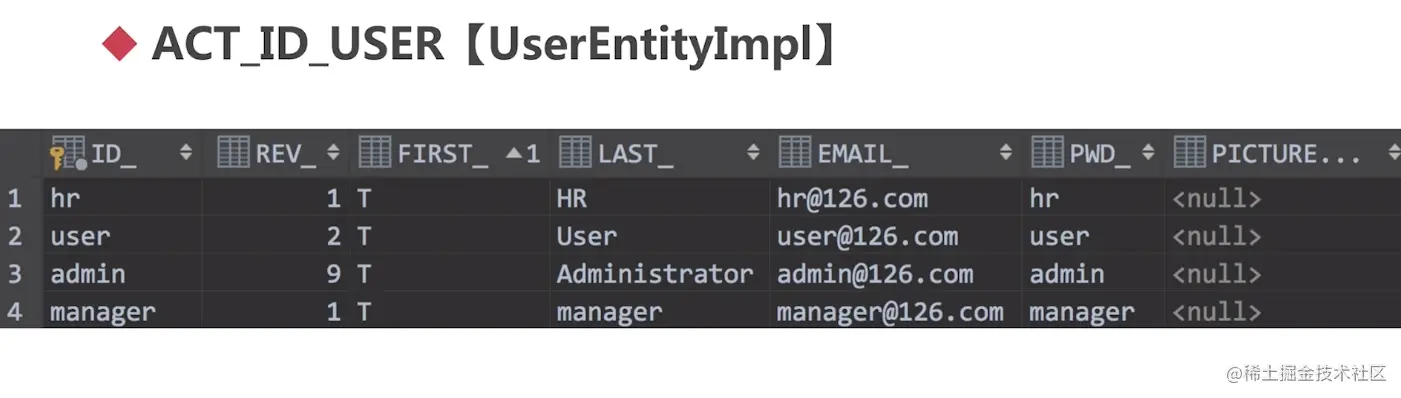

ACT_ID_USER(UserEntityImpl)

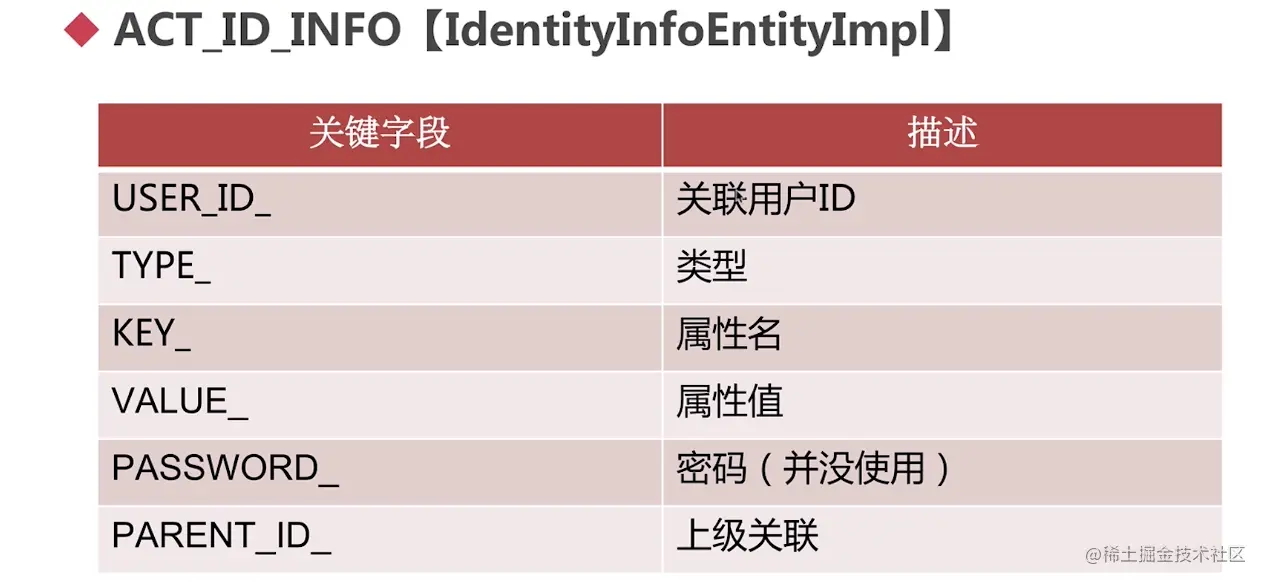

ACT_ID_INFO(IdentityInfoEntityImpl)

ACT_ID_GROUP(GroupEntityImpl)

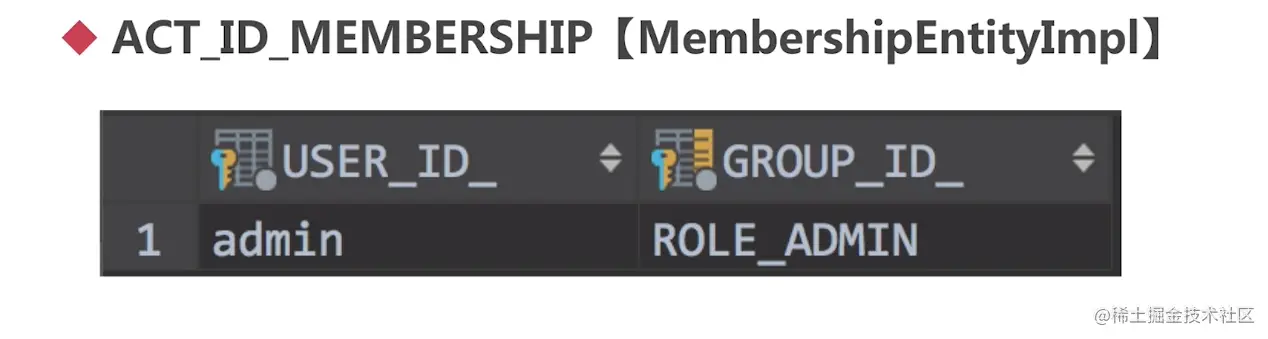

ACT_ID_MEMBERSHIP(MemberShipEntityImpl)

创建用户信息表

• Java代码

public class DbIdentityTest {
    @Rule
    public ActivitiRule activitiRule = new ActivitiRule("activiti-mysql.cfg.xml");

    @Test
    public void testIdentity() {
        IdentityService identityService = activitiRule.getIdentityService();
        User user1 = identityService.newUser("user1");
        user1.setFirstName("firstName");
        user1.setLastName("lastName");
        user1.setEmail("1233@qq.com");
        user1.setPassword("pwd");
        identityService.saveUser(user1);
        User user2 = identityService.newUser("user2");
        identityService.saveUser(user2);

        Group group1 = identityService.newGroup("group1");
        group1.setName("for test");
        identityService.saveGroup(group1);
        identityService.createMembership(user1.getId(), group1.getId());
        identityService.createMembership(user2.getId(), group1.getId());

        identityService.setUserInfo(user1.getId(),"age","18");
        identityService.setUserInfo(user1.getId(),"address","Bejing");
    }

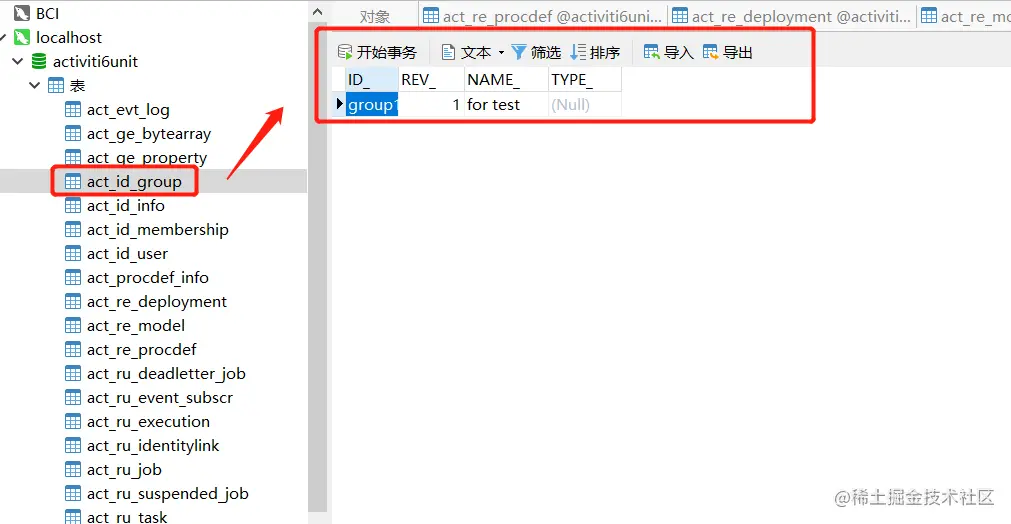

• 执行结果为

运行时流程数据表

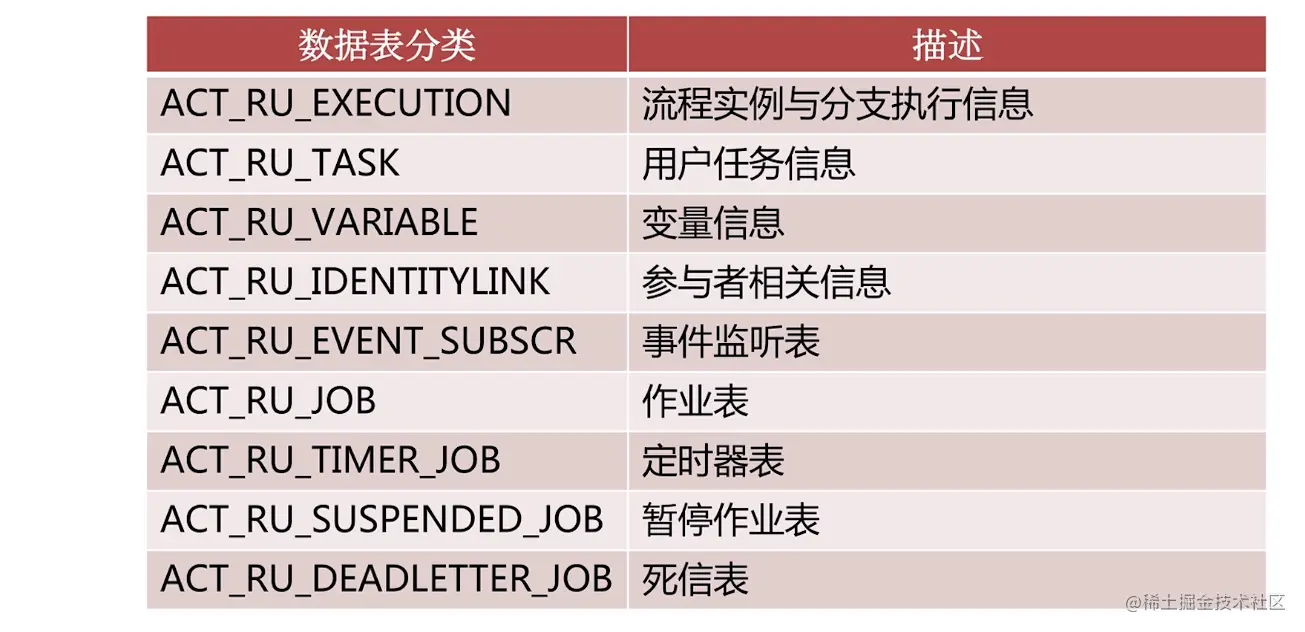

数据表分类

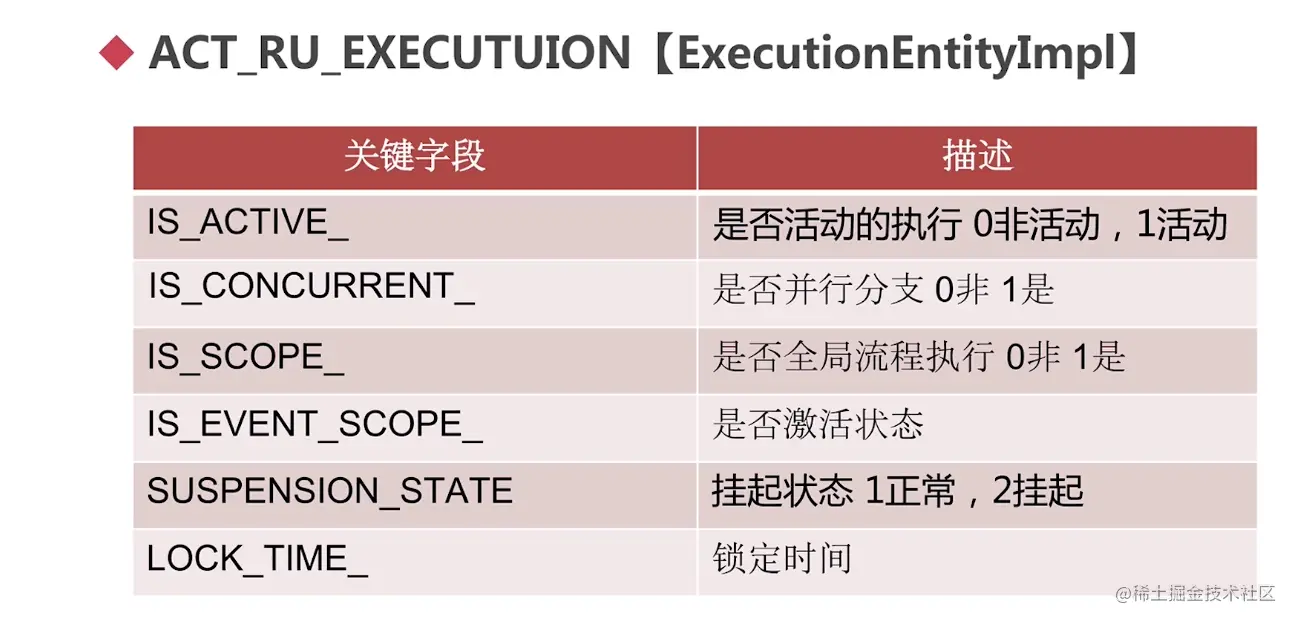

ACT_ID_EXECUTUION(ExecutionEntityImpl)

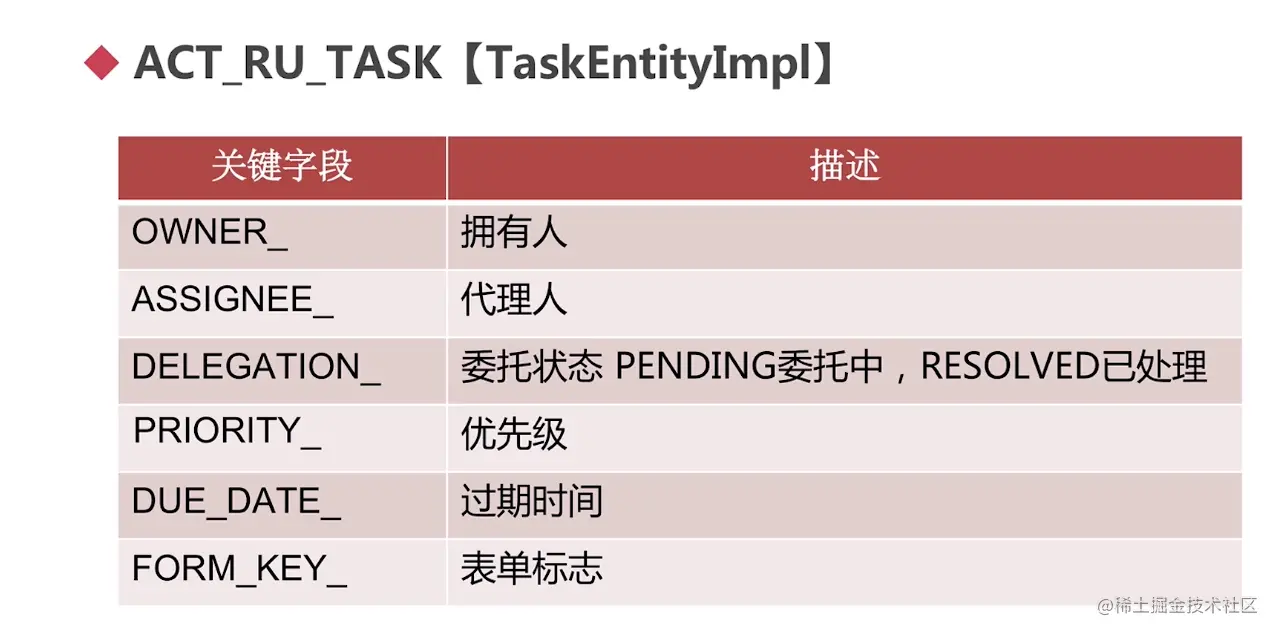

ACT_ID_TASK（TaskEntityImpl）

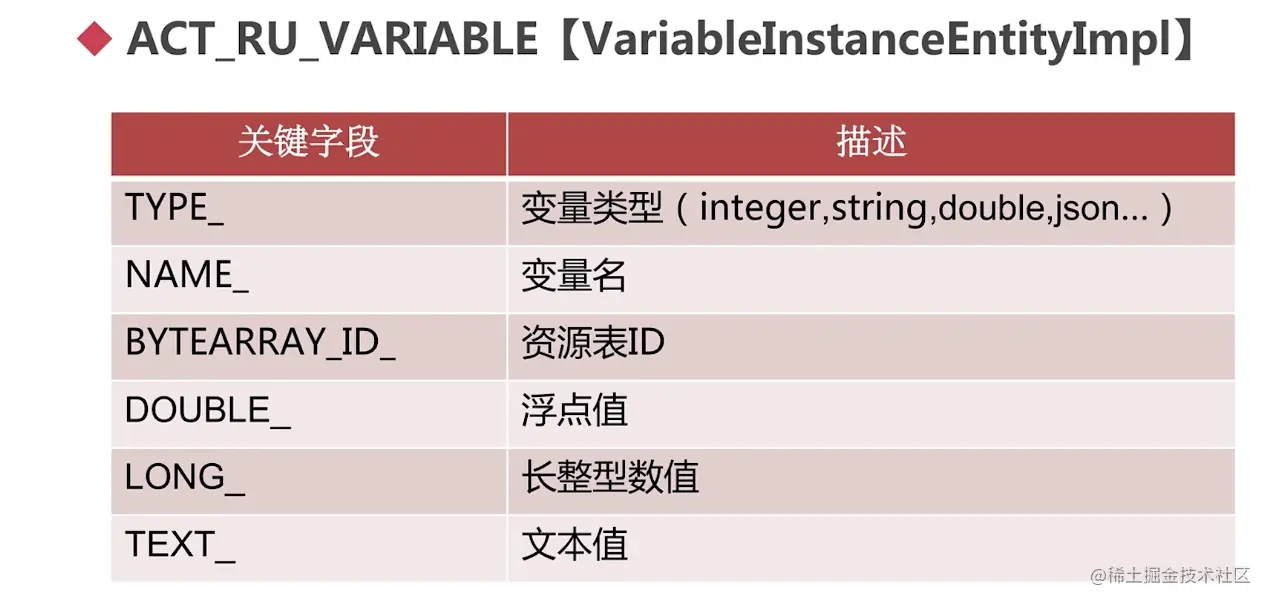

ACT_RU_VARIABLE(VariableInstanceEntityImpl)

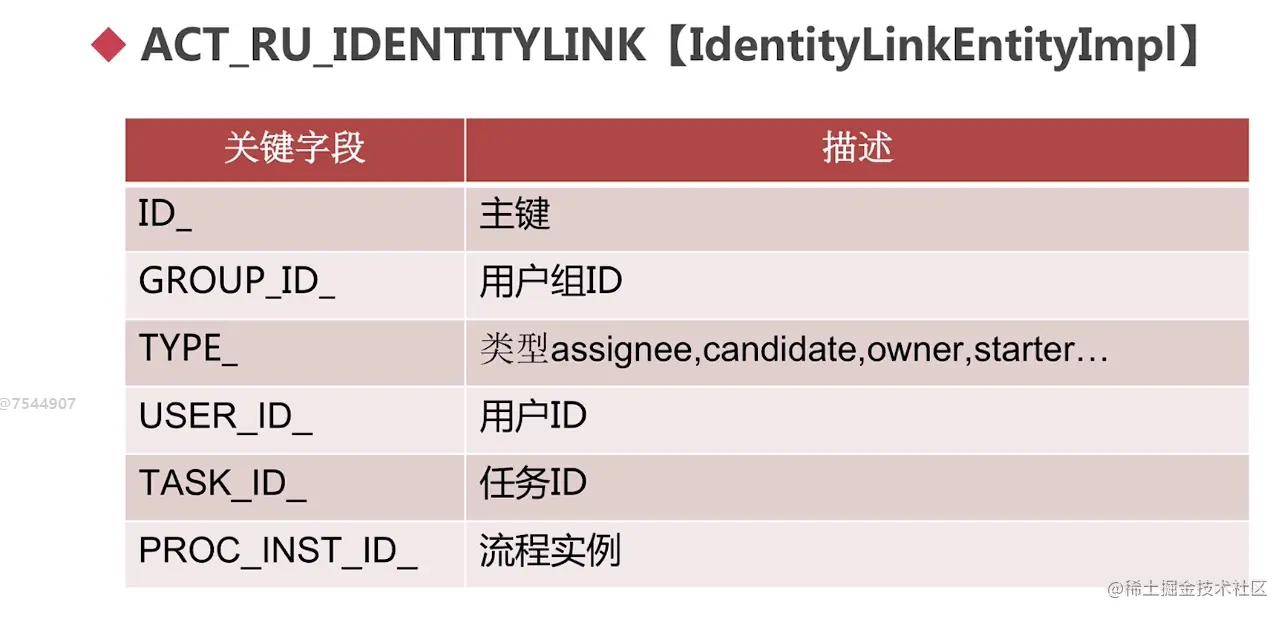

ACT_RU_IDENITYLINK(IdentityLinkedEntityImpl)

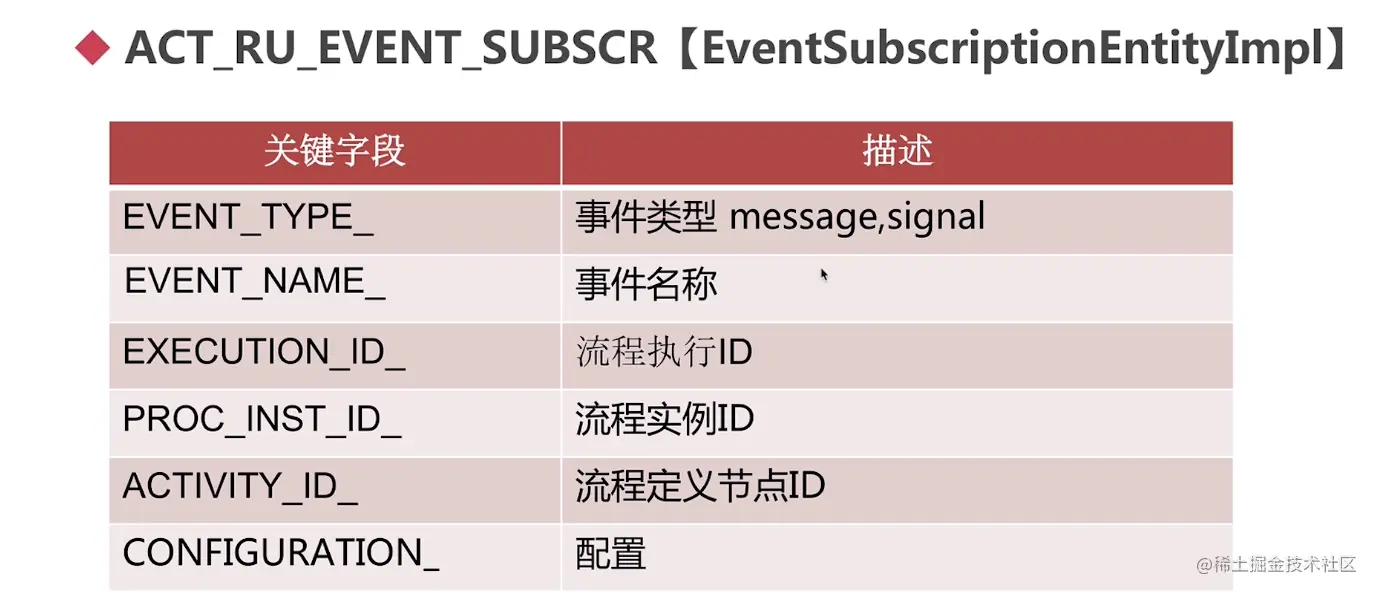

ACT_RU_EVENT_SUBSCR(EventSubscriptionEntityImpl)

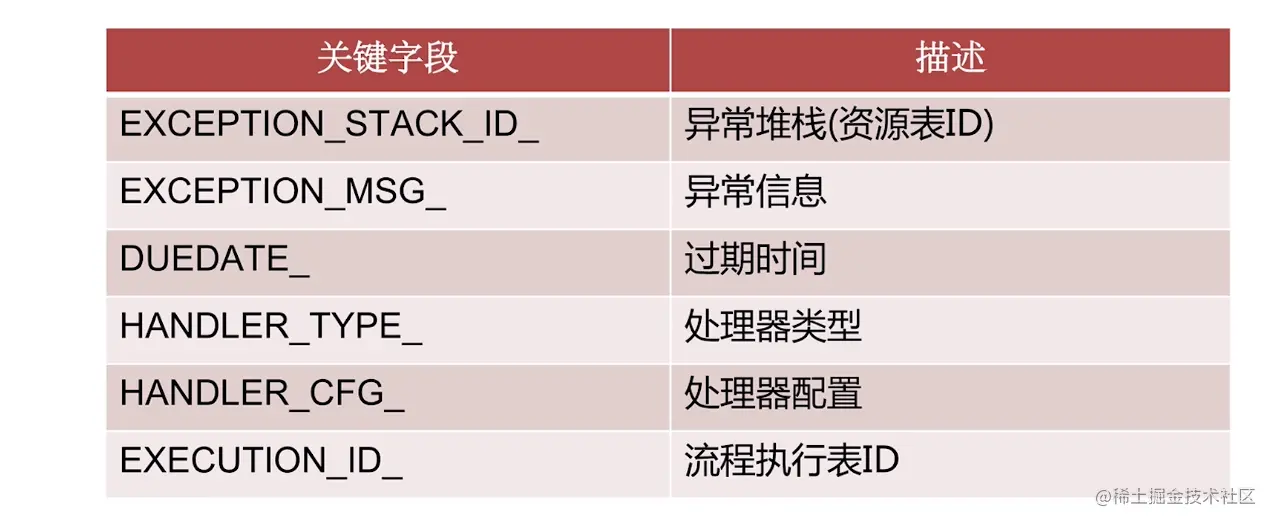

ACT_RU_JOB(JobEntityImpl)

• Java执行代码

  public class DbRepostitoryTests {
      private static final Logger LOGGER = LoggerFactory.getLogger(DbRepostitoryTests.class);

      @Rule
      public ActivitiRule activitiRule = new ActivitiRule("activiti-mysql.cfg.xml");

      @Test
      public void testDepoly() {
          activitiRule.getRepositoryService()
                  .createDeployment()
                  .name("二次审批流程")
                  .addClasspathResource("second_approve.bpmn20.xml")
                  .deploy();
      }

      @Test
      public void testSuspend() {
          RepositoryService repositoryService = activitiRule.getRepositoryService();
          repositoryService.suspendProcessDefinitionById("second_approve:2:7504");
          boolean suspended = repositoryService
                  .isProcessDefinitionSuspended("second_approve:2:7504");
          LOGGER.info("suspended =  {}", suspended);
      }
  }


private static final Logger LOGGER = LoggerFactory.getLogger(DbRunTimeTests.class);

    @Rule
    public ActivitiRule activitiRule = new ActivitiRule("activiti-mysql.cfg.xml");

    @Test
    public void testDepoly() {
        activitiRule.getRepositoryService()
                .createDeployment()
                .name("二次审批流程")
                .addClasspathResource("second_approve.bpmn20.xml")
                .deploy();
        Map<String, Object> variables = Maps.newHashMap();
        variables.put("key1", "values1");
        ProcessInstance processInstance = activitiRule.getRuntimeService()
                .startProcessInstanceByKey("second_approve", variables);
    }

    @Test
    public void testSetOwner() {
        TaskService taskService = activitiRule.getTaskService();
        Task task = taskService.createTaskQuery().processDefinitionKey("second_approve")
                .singleResult();
        taskService.setOwner(task.getId(), "user1");
    }

    @Test
    public void testMessage() {
        Deployment deployment = activitiRule.getRepositoryService()
                .createDeployment().addClasspathResource("my-process-message.bpmn20.xml")
                .deploy();
    }

    @Test
    public void testMessageReceived() throws InterruptedException {
        Deployment deployment = activitiRule.getRepositoryService()
                .createDeployment().addClasspathResource("my-process-message-received.bpmn20.xml")
                .deploy();
        ProcessInstance processInstance = activitiRule.getRuntimeService()
                .startProcessInstanceByKey("my-process");
        Thread.sleep(1000 * 30L);
    }

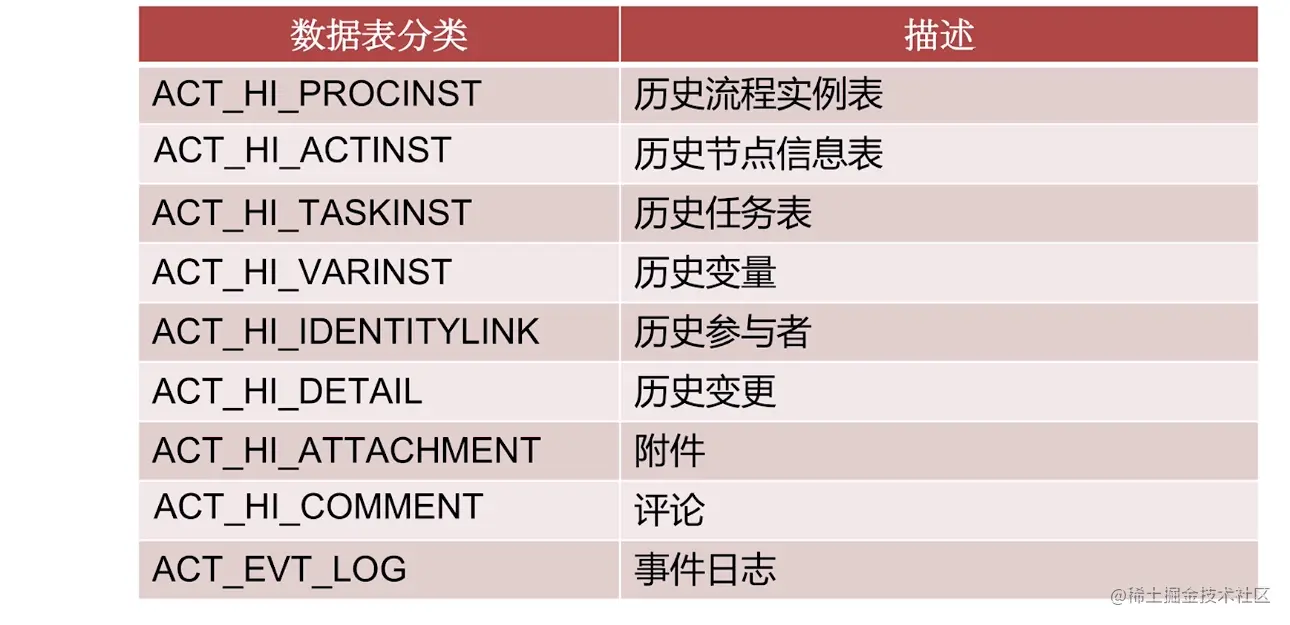

历史流程数据表

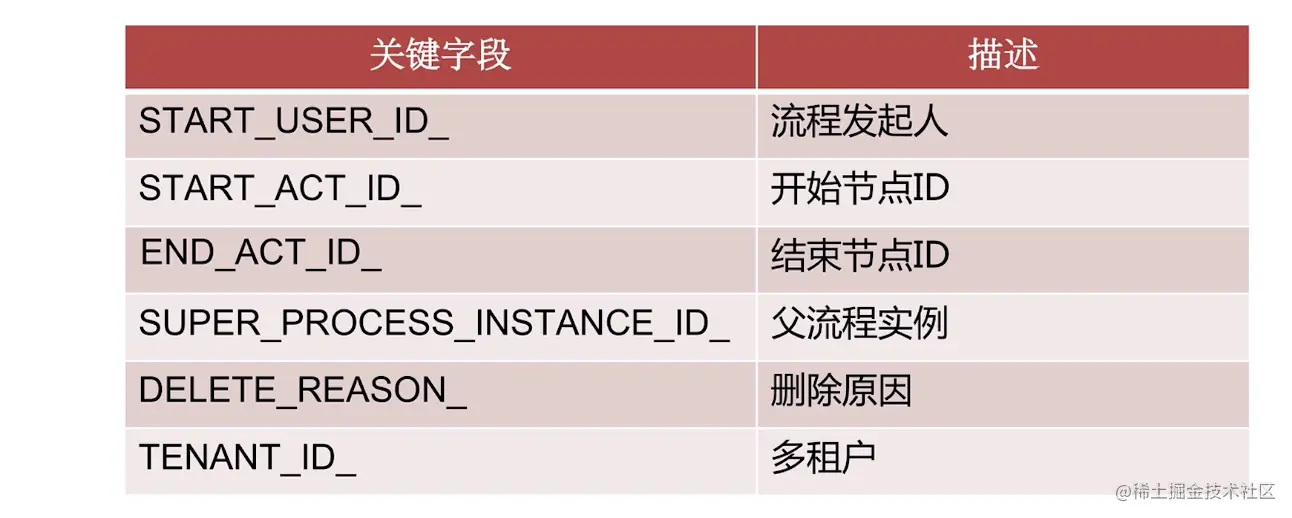

ACT_HI_PROCINST(HistoricProcessInstanceEntityImpl)

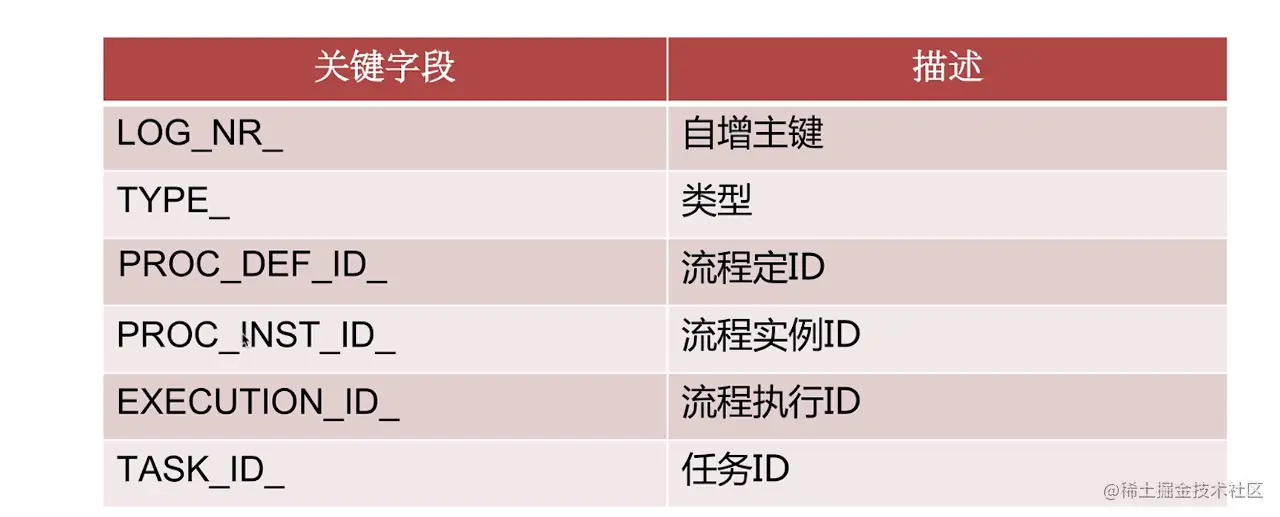

ACT_HI_LOG（EventLogEntryEntryImpl）
