在这里，我来展示一个使用QML来做单位转换的例程：
\
Main.qml
\
/*
* Copyright 2012 Canonical Ltd.
*
* This program is free software; you can redistribute it and/or modify
* it under the terms of the GNU Lesser General Public License as published by
* the Free Software Foundation; version 3.
*
* This program is distributed in the hope that it will be useful,
* but WITHOUT ANY WARRANTY; without even the implied warranty of
* MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the
* GNU Lesser General Public License for more details.
*
* You should have received a copy of the GNU Lesser General Public License
* along with this program. If not, see <http://www.gnu.org/licenses/>.
*/
import QtQuick 2.4
import Ubuntu.Components 1.3
import "conversion.js" as Converter
/*!
\brief Example unit converter application.
The application demonstrates the usage of
- i18n
- units
- Label
- Tabs
- Tab
- Page
- ToolbarActions
- Action
- TextField and
- Button components
The application converts length and weight units between several metrics.
Related units are grouped in the same page (Tab) and conversion happens when
pressing Enter/Return after entering a number in one of the input fields (i.e.
accepting the entered text), or by pressing the "Convert" button.
The navigation between converter pages is provided by the Tabs component.
*/
MainView {
id: root
// objectName for functional testing purposes (autopilot-qt5)
objectName: "mainView"
// Note! applicationName needs to match the .desktop filename
applicationName: "unit-converter"
/*
This property enables the application to change orientation
when the device is rotated. The default is false.
*/
automaticOrientation: true
width: units.gu(100)
height: units.gu(75)
property real margins: units.gu(2)
property real labelWidth: units.gu(12)
// Length conversion model; the unit is Mile
property var lengthModel: [
{"unit": "Inch", "rate": 63360.0},
{"unit": "Meter", "rate": 1609.344},
{"unit": "Miles", "rate": 1.0},
{"unit": "Feets", "rate": 5280.0},
{"unit": "Yards", "rate": 1760.0},
{"unit": "Kilometers", "rate": 1.609344},
]
// Weight conversion model; the base unit is Pound
property var weightModel: [
{"unit": "Pounds", "rate": 1.0},
{"unit": "Kilograms", "rate": 0.45359237},
{"unit": "Ounces", "rate": 16},
{"unit": "Stones", "rate": 0.0714285714},
{"unit": "US Tons", "rate": 0.0005},
{"unit": "UK Tons", "rate": 0.000446428571},
]
// converter page template
Component {
id: pageContent
Page {
// expose Repeater's model for reusability, so we can set it from
// outside, when we build the tabs
property alias model: converter.model
// remove the input panel when pressed outside of any text input
MouseArea {
anchors.fill: parent
onPressed: Qt.inputMethod.hide();
}
Flickable {
id: flickable
anchors {
fill: parent
margins: root.margins
}
flickableDirection: Flickable.VerticalFlick
contentWidth: pageLayout.width
contentHeight: pageLayout.height
Column {
id: pageLayout
width: flickable.width
height: childrenRect.height
spacing: units.gu(1.2)
// show as many lines as many units we have in the model
// it is assumed that the model has "unit" and "rate" roles
Repeater {
id: converter
Row {
spacing: units.gu(1)
Label {
text: i18n.tr(modelData.unit)
textSize: Label.Large
width: root.labelWidth
height: input.height
verticalAlignment: Text.AlignVCenter
}
// input field performing conversion
TextField {
id: input
//errorHighlight: false
validator: DoubleValidator {notation: DoubleValidator.StandardNotation}
width: pageLayout.width - root.labelWidth - spacing
text: "0.0"
font.pixelSize: FontUtils.sizeToPixels("large")
height: units.gu(4)
// on-the-fly conversion
onTextChanged: if (activeFocus) Converter.convert(input, converter, index)
onAccepted: Qt.inputMethod.hide()
}
}
}
}
}
head.actions: Action {
objectName: "action"
iconName: "clear"
text: i18n.tr("Clear")
onTriggered: Converter.clear(converter)
}
}
}
Tabs {
id: tabs
// First tab begins here
Tab {
objectName: "Tab1"
title: i18n.tr("Lengths")
// Tab content begins here
page: Loader {
sourceComponent: pageContent
onStatusChanged: {
if (status === Loader.Ready && item) {
item.parent = parent;
item.model = lengthModel;
}
}
}
}
// Second tab begins here
Tab {
objectName: "Tab2"
title: i18n.tr("Weights")
page: Loader {
sourceComponent: pageContent
onStatusChanged: {
if (status === Loader.Ready && item) {
item.parent = parent;
item.model = weightModel;
}
}
}
}
}
}
\

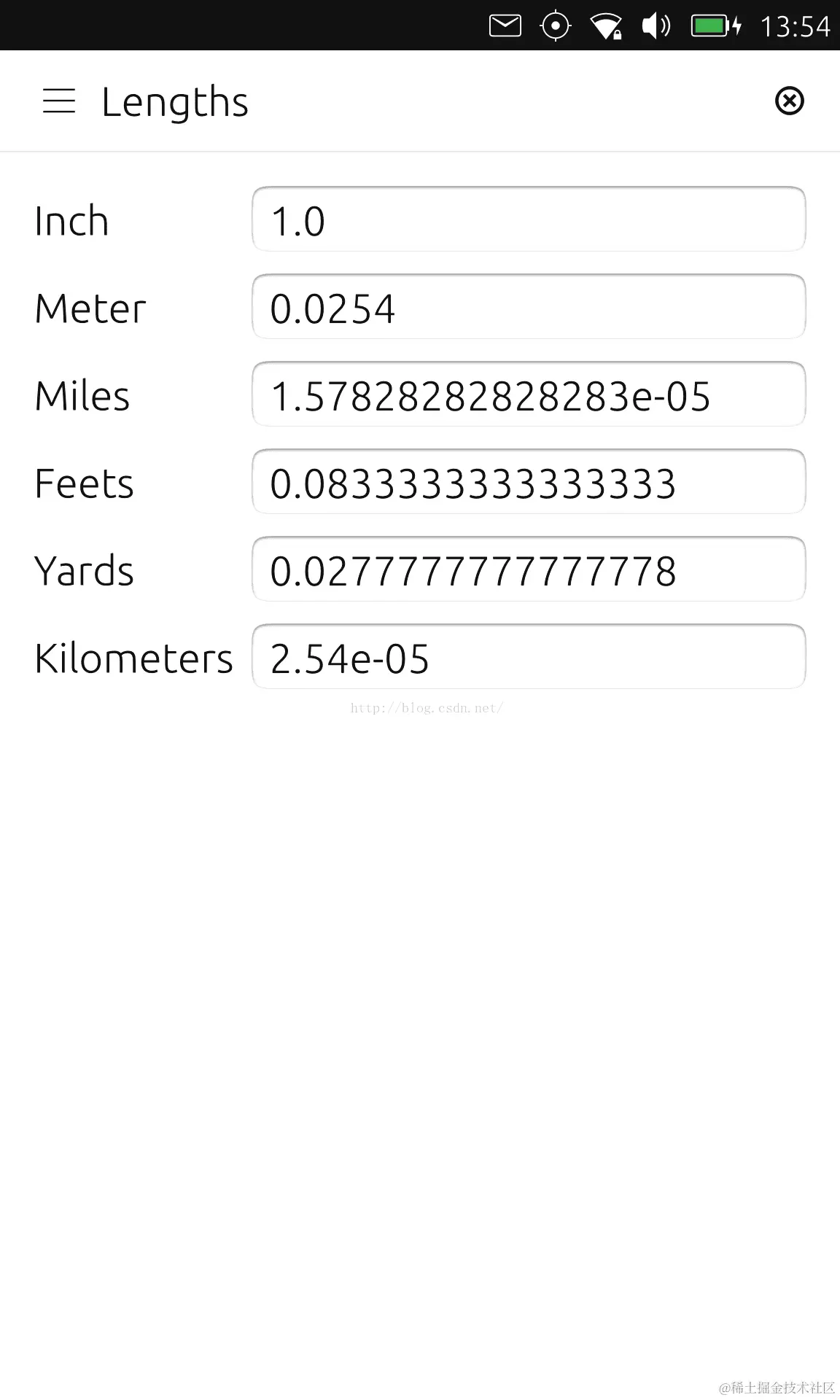

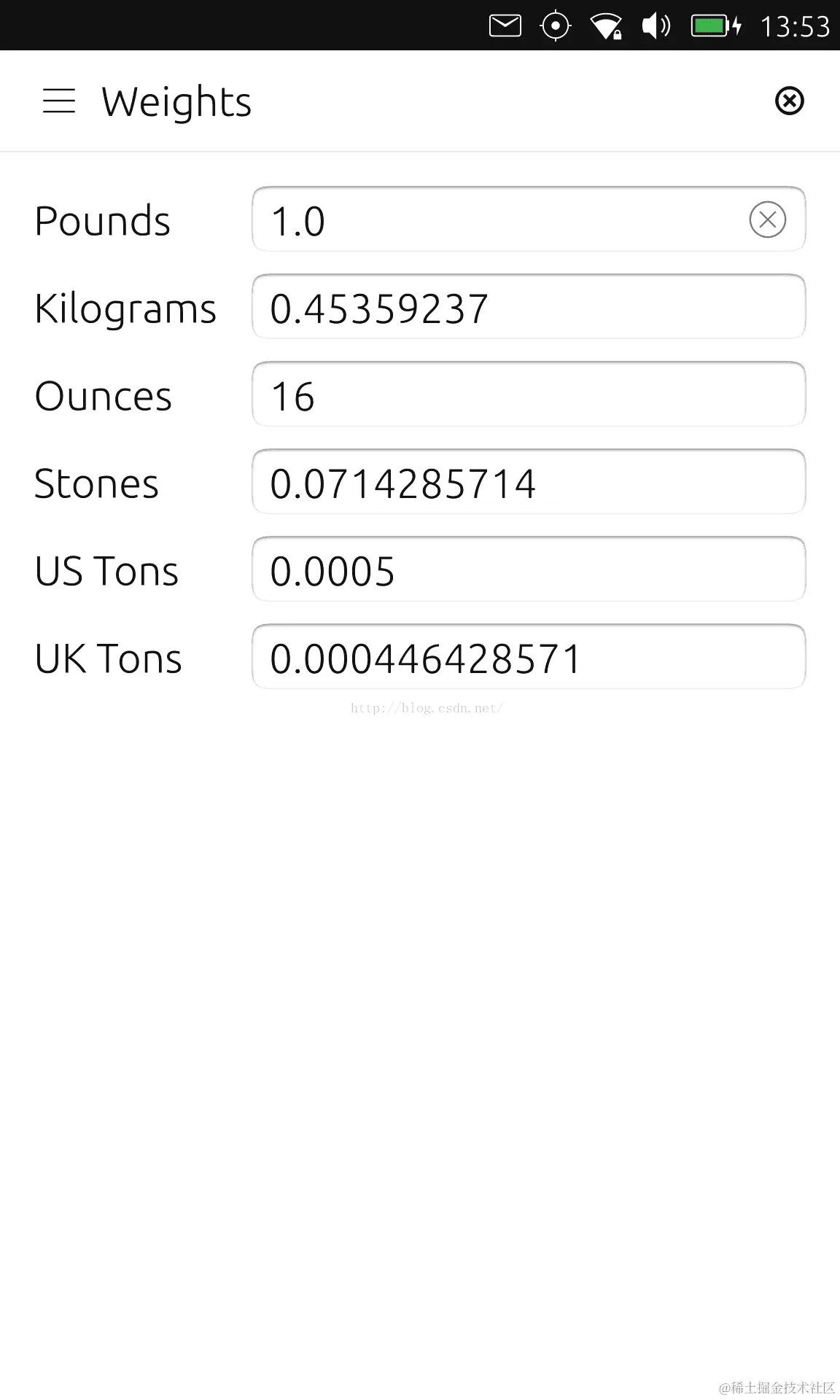

运行我们的例程:
\
\
所有的源码在： github.com/liu-xiao-gu…
\
