前言
我们知道RocketMq里面有四个组件，分别是NameServer（注册中心）、Broker（消息存储器）、Producer（生产者）和Consumer（消费者）。RocketMq没有像kafka一样使用Zookeeper作为注册中心，而是使用自研的NameServer，NameServer是无状态的节点，彼此无关联。 跟很多中间件的服务注册与发现原理一样，消息服务器Broker启动后，会向NameServer注册自己的路由信息。Producer和Consumer启动后会向NameServer获取Broker的路由信息，并选择Broker进行连接，进行消息发送和消息拉取。
探索服务注册
1、Broker服务器是通过BrokerStartup.start()启动的。
public static void main(String[] args) {
start(createBrokerController(args));
}
2、然后在start()方法里调用的是BrokerController的start()方法。主要是启动一些服务，通过一个单线程的定时任务的线程池调用registerBrokerAll()向NameServer注册路由。之所以定时注册，其实就是NameServer的心跳检测，NameServer会每隔一段时间扫描一遍Broker，剔除掉长时间没有发送心跳的Broker。
···前面都是在启动一些服务
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
BrokerController.this.registerBrokerAll(true, false, brokerConfig.isForceRegister());
} catch (Throwable e) {
log.error("registerBrokerAll Exception", e);
}
}
}, 1000 * 10, Math.max(10000, Math.min(brokerConfig.getRegisterNameServerPeriod(), 60000)), TimeUnit.MILLISECONDS);
3、如果强制注册并且Broker需要注册，则调用doRegisterBrokerAll()方法进行注册，然后调用brokerOuterAPI.registerBrokerAll()进行注册
public synchronized void registerBrokerAll(final boolean checkOrderConfig, boolean oneway, boolean forceRegister) {
...
if (forceRegister || needRegister(this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.brokerConfig.getRegisterBrokerTimeoutMills())) {
doRegisterBrokerAll(checkOrderConfig, oneway, topicConfigWrapper);
}
}
private void doRegisterBrokerAll(boolean checkOrderConfig, boolean oneway,
TopicConfigSerializeWrapper topicConfigWrapper) {
List<RegisterBrokerResult> registerBrokerResultList = this.brokerOuterAPI.registerBrokerAll(
this.brokerConfig.getBrokerClusterName(),
this.getBrokerAddr(),
this.brokerConfig.getBrokerName(),
this.brokerConfig.getBrokerId(),
this.getHAServerAddr(),
topicConfigWrapper,
this.filterServerManager.buildNewFilterServerList(),
oneway,
this.brokerConfig.getRegisterBrokerTimeoutMills(),
this.brokerConfig.isCompressedRegister());
if (registerBrokerResultList.size() > 0) {
RegisterBrokerResult registerBrokerResult = registerBrokerResultList.get(0);
if (registerBrokerResult != null) {
if (this.updateMasterHAServerAddrPeriodically && registerBrokerResult.getHaServerAddr() != null) {
this.messageStore.updateHaMasterAddress(registerBrokerResult.getHaServerAddr());
}
this.slaveSynchronize.setMasterAddr(registerBrokerResult.getMasterAddr());
if (checkOrderConfig) {
this.getTopicConfigManager().updateOrderTopicConfig(registerBrokerResult.getKvTable());
}
}
}
}
4、看下BrokerOuterAPI.registerBrokerAll()做了些什么。
- 首先通过remotingClient.getNameServerAddressList()拿到所有NameServer的地址
- 然后根据broker的路由信息构造请求头RegisterBrokerRequestHeader
- 最后遍历每个nameServer地址，使用固定数目的线程池和线程同步工具CountdownLatch，执行注册，线程任务里调用registerBroker()进行注册。 我们看到每个broker都要向所有nameServer注册后，流程才能继续下去。
public List<RegisterBrokerResult> registerBrokerAll(
final String clusterName,
final String brokerAddr,
final String brokerName,
final long brokerId,
final String haServerAddr,
final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,
final boolean oneway,
final int timeoutMills,
final boolean compressed) {
final List<RegisterBrokerResult> registerBrokerResultList = Lists.newArrayList();
List<String> nameServerAddressList = this.remotingClient.getNameServerAddressList();
if (nameServerAddressList != null && nameServerAddressList.size() > 0) {
final RegisterBrokerRequestHeader requestHeader = new RegisterBrokerRequestHeader();
requestHeader.setBrokerAddr(brokerAddr);
requestHeader.setBrokerId(brokerId);
requestHeader.setBrokerName(brokerName);
requestHeader.setClusterName(clusterName);
requestHeader.setHaServerAddr(haServerAddr);
requestHeader.setCompressed(compressed);
RegisterBrokerBody requestBody = new RegisterBrokerBody();
requestBody.setTopicConfigSerializeWrapper(topicConfigWrapper);
requestBody.setFilterServerList(filterServerList);
final byte[] body = requestBody.encode(compressed);
final int bodyCrc32 = UtilAll.crc32(body);
requestHeader.setBodyCrc32(bodyCrc32);
final CountDownLatch countDownLatch = new CountDownLatch(nameServerAddressList.size());
for (final String namesrvAddr : nameServerAddressList) {
brokerOuterExecutor.execute(new Runnable() {
@Override
public void run() {
try {
RegisterBrokerResult result = registerBroker(namesrvAddr,oneway, timeoutMills,requestHeader,body);
if (result != null) {
registerBrokerResultList.add(result);
}
log.info("register broker[{}]to name server {} OK", brokerId, namesrvAddr);
} catch (Exception e) {
log.warn("registerBroker Exception, {}", namesrvAddr, e);
} finally {
countDownLatch.countDown();
}
}
});
}
try {
countDownLatch.await(timeoutMills, TimeUnit.MILLISECONDS);
} catch (InterruptedException e) {
}
}
return registerBrokerResultList;
}
5、在registerBroker()内部才是真正的网络请求。在开始的start()方法里，我们看到传入的参数oneWay是fale，所以走的是remotingClient.invokeSync()流程，这个就是Netty发起的网络请求。注册成功之后会返回RegisterBrokerResult，否则会抛出MQBrokerException异常。
private RegisterBrokerResult registerBroker(
final String namesrvAddr,
final boolean oneway,
final int timeoutMills,
final RegisterBrokerRequestHeader requestHeader,
final byte[] body
) throws RemotingCommandException, MQBrokerException, RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException,
InterruptedException {
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.REGISTER_BROKER, requestHeader);
request.setBody(body);
if (oneway) {
try {
this.remotingClient.invokeOneway(namesrvAddr, request, timeoutMills);
} catch (RemotingTooMuchRequestException e) {
// Ignore
}
return null;
}
RemotingCommand response = this.remotingClient.invokeSync(namesrvAddr, request, timeoutMills);
assert response != null;
switch (response.getCode()) {
case ResponseCode.SUCCESS: {
RegisterBrokerResponseHeader responseHeader =
(RegisterBrokerResponseHeader) response.decodeCommandCustomHeader(RegisterBrokerResponseHeader.class);
RegisterBrokerResult result = new RegisterBrokerResult();
result.setMasterAddr(responseHeader.getMasterAddr());
result.setHaServerAddr(responseHeader.getHaServerAddr());
if (response.getBody() != null) {
result.setKvTable(KVTable.decode(response.getBody(), KVTable.class));
}
return result;
}
default:
break;
}
throw new MQBrokerException(response.getCode(), response.getRemark());
}
6、然后NameServer收到注册请求之后，会调用RouteInfoManager的registerBroker()方法进行注册。这个方法使用了读写锁控制并发。
- 先根据集群名从clusterAddrTable中获取所有的brokerName。然后把当前注册的brokerName加入到clusterAddrTable中。
- 根据brokerName从brokerAddrTable中获取BrokerData，如果为空则为首次注册registerFirst=true，否则就是发送的心跳。首次注册就创建BrokerData，加入到brokerAddrTable中。
- 根据brokerId判断当前Broker是否是主机。isBrokerTopicConfigChanged()判断broker的路由变了或者registerFirst首次注册，则需要更新broker的路由信息，调用createAndUpdateQueueData()进行更新。
- 然后把当前broker的信息加入到brokerLiveTable，首次注册的话prevBrokerLiveInfo就是null。
- 最后判断如果brokerId不是主机，则从brokerData中获取主机的地址，并返回主机的信息。
public RegisterBrokerResult registerBroker(
final String clusterName,
final String brokerAddr,
final String brokerName,
final long brokerId,
final String haServerAddr,
final TopicConfigSerializeWrapper topicConfigWrapper,
final List<String> filterServerList,
final Channel channel) {
RegisterBrokerResult result = new RegisterBrokerResult();
try {
try {
this.lock.writeLock().lockInterruptibly();
Set<String> brokerNames = this.clusterAddrTable.get(clusterName);
if (null == brokerNames) {
brokerNames = new HashSet<String>();
this.clusterAddrTable.put(clusterName, brokerNames);
}
brokerNames.add(brokerName);
boolean registerFirst = false;
BrokerData brokerData = this.brokerAddrTable.get(brokerName);
if (null == brokerData) {
registerFirst = true;
brokerData = new BrokerData(clusterName, brokerName, new HashMap<Long, String>());
this.brokerAddrTable.put(brokerName, brokerData);
}
Map<Long, String> brokerAddrsMap = brokerData.getBrokerAddrs();
//Switch slave to master: first remove <1, IP:PORT> in namesrv, then add <0, IP:PORT>
//The same IP:PORT must only have one record in brokerAddrTable
Iterator<Entry<Long, String>> it = brokerAddrsMap.entrySet().iterator();
while (it.hasNext()) {
Entry<Long, String> item = it.next();
if (null != brokerAddr && brokerAddr.equals(item.getValue()) && brokerId != item.getKey()) {
it.remove();
}
}
String oldAddr = brokerData.getBrokerAddrs().put(brokerId, brokerAddr);
registerFirst = registerFirst || (null == oldAddr);
if (null != topicConfigWrapper
&& MixAll.MASTER_ID == brokerId) {
if (this.isBrokerTopicConfigChanged(brokerAddr, topicConfigWrapper.getDataVersion())
|| registerFirst) {
ConcurrentMap<String, TopicConfig> tcTable =
topicConfigWrapper.getTopicConfigTable();
if (tcTable != null) {
for (Map.Entry<String, TopicConfig> entry : tcTable.entrySet()) {
this.createAndUpdateQueueData(brokerName, entry.getValue());
}
}
}
}
BrokerLiveInfo prevBrokerLiveInfo = this.brokerLiveTable.put(brokerAddr,
new BrokerLiveInfo(
System.currentTimeMillis(),
topicConfigWrapper.getDataVersion(),
channel,
haServerAddr));
if (null == prevBrokerLiveInfo) {
log.info("new broker registered, {} HAServer: {}", brokerAddr, haServerAddr);
}
if (filterServerList != null) {
if (filterServerList.isEmpty()) {
this.filterServerTable.remove(brokerAddr);
} else {
this.filterServerTable.put(brokerAddr, filterServerList);
}
}
if (MixAll.MASTER_ID != brokerId) {
String masterAddr = brokerData.getBrokerAddrs().get(MixAll.MASTER_ID);
if (masterAddr != null) {
BrokerLiveInfo brokerLiveInfo = this.brokerLiveTable.get(masterAddr);
if (brokerLiveInfo != null) {
result.setHaServerAddr(brokerLiveInfo.getHaServerAddr());
result.setMasterAddr(masterAddr);
}
}
}
} finally {
this.lock.writeLock().unlock();
}
} catch (Exception e) {
log.error("registerBroker Exception", e);
}
return result;
}

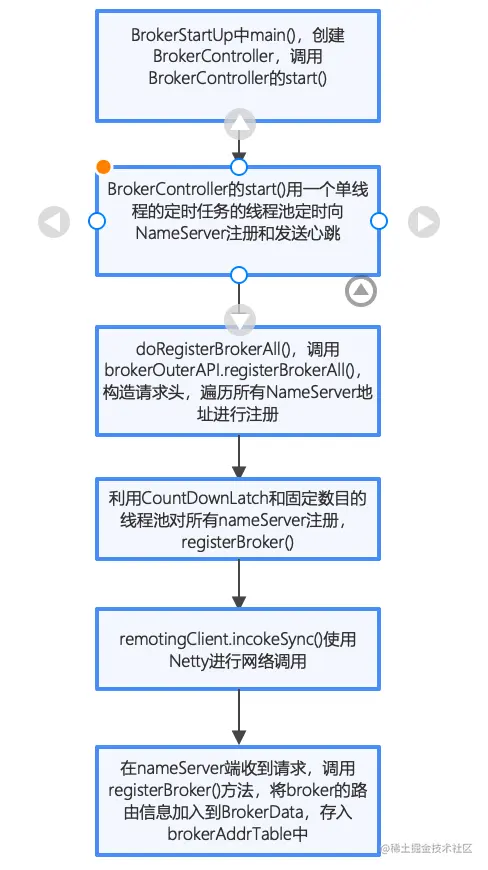

整个服务注册的流程如下：
探索服务发现

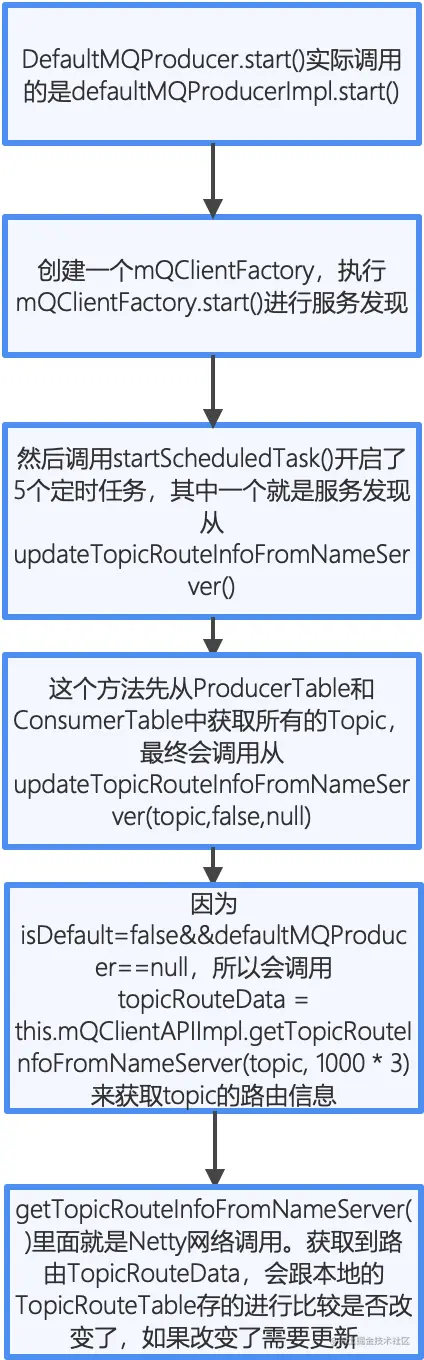

启动一个生产者很简单，就是创建Producer对象，然后告诉它NameServer的地址,然后调用start()方法 1、DefaultMQProducer.start()方法其实是调用的是defaultMQProducerImpl.start()
public void start() throws MQClientException {
this.setProducerGroup(withNamespace(this.producerGroup));
this.defaultMQProducerImpl.start();
if (null != traceDispatcher) {
try {
traceDispatcher.start(this.getNamesrvAddr(), this.getAccessChannel());
} catch (MQClientException e) {
log.warn("trace dispatcher start failed ", e);
}
}
}
2、在defaultMQProducerImpl.start()里面。可以看到刚开始创建的时候，会创建一个mQClientFactory=MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook)。然后执行mQClientFactory.start()进行服务的发现。最后还调用了mQClientFactory.sendHeartbeatToAllBrokerWithLock()维持心跳，具体的就不进去看了
public void start(final boolean startFactory) throws MQClientException {
switch (this.serviceState) {
case CREATE_JUST:
this.serviceState = ServiceState.START_FAILED;
this.checkConfig();
if (!this.defaultMQProducer.getProducerGroup().equals(MixAll.CLIENT_INNER_PRODUCER_GROUP)) {
this.defaultMQProducer.changeInstanceNameToPID();
}
this.mQClientFactory = MQClientManager.getInstance().getOrCreateMQClientInstance(this.defaultMQProducer, rpcHook);
boolean registerOK = mQClientFactory.registerProducer(this.defaultMQProducer.getProducerGroup(), this);
if (!registerOK) {
this.serviceState = ServiceState.CREATE_JUST;
throw new MQClientException("The producer group[" + this.defaultMQProducer.getProducerGroup()
+ "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
null);
}
this.topicPublishInfoTable.put(this.defaultMQProducer.getCreateTopicKey(), new TopicPublishInfo());
if (startFactory) {
mQClientFactory.start();
}
log.info("the producer [{}] start OK. sendMessageWithVIPChannel={}", this.defaultMQProducer.getProducerGroup(),
this.defaultMQProducer.isSendMessageWithVIPChannel());
this.serviceState = ServiceState.RUNNING;
break;
...
}
this.mQClientFactory.sendHeartbeatToAllBrokerWithLock();
this.timer.scheduleAtFixedRate(new TimerTask() {
@Override
public void run() {
try {
RequestFutureTable.scanExpiredRequest();
} catch (Throwable e) {
log.error("scan RequestFutureTable exception", e);
}
}
}, 1000 * 3, 1000);
}
3、看看mQClientFactory.start()里面做了什么：主要是获取NameServer的地址，然后startScheduledTask（）启动一些定时任务，开启一些拉取、负载均衡和push的服务。主要关注startScheduledTask的定时任务
public void start() throws MQClientException {
synchronized (this) {
switch (this.serviceState) {
case CREATE_JUST:
this.serviceState = ServiceState.START_FAILED;
// If not specified,looking address from name server
if (null == this.clientConfig.getNamesrvAddr()) {
this.mQClientAPIImpl.fetchNameServerAddr();
}
// Start request-response channel
this.mQClientAPIImpl.start();
// Start various schedule tasks
this.startScheduledTask();
// Start pull service
this.pullMessageService.start();
// Start rebalance service
this.rebalanceService.start();
// Start push service
this.defaultMQProducer.getDefaultMQProducerImpl().start(false);
log.info("the client factory [{}] start OK", this.clientId);
this.serviceState = ServiceState.RUNNING;
break;
case START_FAILED:
throw new MQClientException("The Factory object[" + this.getClientId() + "] has been created before, and failed.", null);
default:
break;
}
}
}
4、在startScheduledTask里面一共五个定时任务，我们主要关注第二个服务发现，从updateTopicRouteInfoFromNameServer()从NameServer获取topic对应的路由信息。
private void startScheduledTask() {
//周期性获取nameServer的地址信息，当本地nameServer地址为空时
if (null == this.clientConfig.getNamesrvAddr()) {
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.mQClientAPIImpl.fetchNameServerAddr();
} catch (Exception e) {
log.error("ScheduledTask fetchNameServerAddr exception", e);
}
}
}, 1000 * 10, 1000 * 60 * 2, TimeUnit.MILLISECONDS);
}
//周期性从NameServer获取topic对应的路由信息，也就是我们的服务发现
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.updateTopicRouteInfoFromNameServer();
} catch (Exception e) {
log.error("ScheduledTask updateTopicRouteInfoFromNameServer exception", e);
}
}
}, 10, this.clientConfig.getPollNameServerInterval(), TimeUnit.MILLISECONDS);
//周期性剔除有问题的Broker，而且向Broker发送心跳
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.cleanOfflineBroker();
MQClientInstance.this.sendHeartbeatToAllBrokerWithLock();
} catch (Exception e) {
log.error("ScheduledTask sendHeartbeatToAllBroker exception", e);
}
}
}, 1000, this.clientConfig.getHeartbeatBrokerInterval(), TimeUnit.MILLISECONDS);
//周期性的维护Consumer的offset。
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.persistAllConsumerOffset();
} catch (Exception e) {
log.error("ScheduledTask persistAllConsumerOffset exception", e);
}
}
}, 1000 * 10, this.clientConfig.getPersistConsumerOffsetInterval(), TimeUnit.MILLISECONDS);
//周期性的调整线程池
this.scheduledExecutorService.scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
try {
MQClientInstance.this.adjustThreadPool();
} catch (Exception e) {
log.error("ScheduledTask adjustThreadPool exception", e);
}
}
}, 1, 1, TimeUnit.MINUTES);
}
5、第一层逻辑很简单，从ConsumerTable和ProducerTable中获取所有需要获取路由的Topic，然后调用 updateTopicRouteInfoFromNameServer(topic)。
public void updateTopicRouteInfoFromNameServer() {
Set<String> topicList = new HashSet<String>();
// Consumer
{
Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQConsumerInner> entry = it.next();
MQConsumerInner impl = entry.getValue();
if (impl != null) {
Set<SubscriptionData> subList = impl.subscriptions();
if (subList != null) {
for (SubscriptionData subData : subList) {
topicList.add(subData.getTopic());
}
}
}
}
}
// Producer
{
Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQProducerInner> entry = it.next();
MQProducerInner impl = entry.getValue();
if (impl != null) {
Set<String> lst = impl.getPublishTopicList();
topicList.addAll(lst);
}
}
}
for (String topic : topicList) {
this.updateTopicRouteInfoFromNameServer(topic);
}
}
6、最终会调用updateTopicRouteInfoFromNameServer(topic, false, null) 只把主要代码贴出来。因为isDefault=false&&defaultMQProducer==null，所以会调用topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3)来获取topic的路由信息。然后根据和本地的topicRouteTable中的TopicRouteData进行比较，如果改变了就更新brokerAddrTable，遍历producerTable更新publicInfo，遍历consumerTable更新subscribeInfo。最后将cloneTopicRouteData的值存入topicRouteTable。
TopicRouteData topicRouteData;
if (isDefault && defaultMQProducer != null) {
topicRouteData = this.mQClientAPIImpl.getDefaultTopicRouteInfoFromNameServer(defaultMQProducer.getCreateTopicKey(),
1000 * 3);
if (topicRouteData != null) {
for (QueueData data : topicRouteData.getQueueDatas()) {
int queueNums = Math.min(defaultMQProducer.getDefaultTopicQueueNums(), data.getReadQueueNums());
data.setReadQueueNums(queueNums);
data.setWriteQueueNums(queueNums);
}
}
} else {
topicRouteData = this.mQClientAPIImpl.getTopicRouteInfoFromNameServer(topic, 1000 * 3);
}
if (topicRouteData != null) {
TopicRouteData old = this.topicRouteTable.get(topic);
boolean changed = topicRouteDataIsChange(old, topicRouteData);
if (!changed) {
changed = this.isNeedUpdateTopicRouteInfo(topic);
} else {
log.info("the topic[{}] route info changed, old[{}] ,new[{}]", topic, old, topicRouteData);
}
if (changed) {
TopicRouteData cloneTopicRouteData = topicRouteData.cloneTopicRouteData();
for (BrokerData bd : topicRouteData.getBrokerDatas()) {
this.brokerAddrTable.put(bd.getBrokerName(), bd.getBrokerAddrs());
}
// Update Pub info
{
TopicPublishInfo publishInfo = topicRouteData2TopicPublishInfo(topic, topicRouteData);
publishInfo.setHaveTopicRouterInfo(true);
Iterator<Entry<String, MQProducerInner>> it = this.producerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQProducerInner> entry = it.next();
MQProducerInner impl = entry.getValue();
if (impl != null) {
impl.updateTopicPublishInfo(topic, publishInfo);
}
}
}
// Update sub info
{
Set<MessageQueue> subscribeInfo = topicRouteData2TopicSubscribeInfo(topic, topicRouteData);
Iterator<Entry<String, MQConsumerInner>> it = this.consumerTable.entrySet().iterator();
while (it.hasNext()) {
Entry<String, MQConsumerInner> entry = it.next();
MQConsumerInner impl = entry.getValue();
if (impl != null) {
impl.updateTopicSubscribeInfo(topic, subscribeInfo);
}
}
}
log.info("topicRouteTable.put. Topic = {}, TopicRouteData[{}]", topic, cloneTopicRouteData);
this.topicRouteTable.put(topic, cloneTopicRouteData);
return true;
}
} else {
log.warn("updateTopicRouteInfoFromNameServer, getTopicRouteInfoFromNameServer return null, Topic: {}", topic);
}
7、我们看看getTopicRouteInfoFromNameServer()是怎么获取topic的路由信息的。这里就是真正的网络调用，还是使用Netty客户端remotingClient发起异步调用。
public TopicRouteData getTopicRouteInfoFromNameServer(final String topic, final long timeoutMillis,
boolean allowTopicNotExist) throws MQClientException, InterruptedException, RemotingTimeoutException, RemotingSendRequestException, RemotingConnectException {
GetRouteInfoRequestHeader requestHeader = new GetRouteInfoRequestHeader();
requestHeader.setTopic(topic);
RemotingCommand request = RemotingCommand.createRequestCommand(RequestCode.GET_ROUTEINTO_BY_TOPIC, requestHeader);
RemotingCommand response = this.remotingClient.invokeSync(null, request, timeoutMillis);
assert response != null;
switch (response.getCode()) {
case ResponseCode.TOPIC_NOT_EXIST: {
if (allowTopicNotExist && !topic.equals(MixAll.AUTO_CREATE_TOPIC_KEY_TOPIC)) {
log.warn("get Topic [{}] RouteInfoFromNameServer is not exist value", topic);
}
break;
}
case ResponseCode.SUCCESS: {
byte[] body = response.getBody();
if (body != null) {
return TopicRouteData.decode(body, TopicRouteData.class);
}
}
default:
break;
}
throw new MQClientException(response.getCode(), response.getRemark());
}
整个服务发现获取topic路由的大致流程如下
我们来看下获取到TopicRouteData的结构：
public class TopicRouteData extends RemotingSerializable {
private String orderTopicConf;
private List<QueueData> queueDatas;
private List<BrokerData> brokerDatas;
private HashMap<String/* brokerAddr */, List<String>/* Filter Server */> filterServerTable;
...
}
既有Topic的Broker列表也有Queue列表。当生产者要发送消息的时候，就从brokerAddrTable中找到Broker的地址，再从TopicRouteData中通过负载均衡选择一个Queue(还要进行处理，这只是个逻辑上的Queue)来进行发送。
结语
本文分析就到这。服务注册重点就是Broker启动是获取所有NameServer的地址，然后一一注册，使用的还是Netty网络调用，NameServer端收到注册信息后，保存在自己本地。当生产者启动时实际上通过MqClientFactory进行调用，也是定时任务：先获取所有Topic，遍历每个Topic，从NameServer获取Topic的路由信息TopicRouteData，和本地进行比较，如果发生改变就更新。
