Mapper接口编程的命名习惯

Mapper接口方式的编程，需要先有一个接口。这个接口的命名一般是xxxxMapper。
比如：
User模块的Mapper，接口命名为UserMapper。
Book模块的Mapper，接口命名为BookMapper。

Mapper接口开发有四个开发规范必须遵守
1、对应的mapper配置文件的namespace属性值必须是Mapper接口的全类名。
2、Mapper接口中的方法名必须与mapper配置文件中对应的id值相同。
3、Mapper接口的方法的参数类型必须与mapper配置文件中配置的parameterType类型匹配上
4、Mapper接口的方法返回值类型必须与mapper配置文件中配置的resultType 类型匹配上

提前准备工作，准备好的项目

在mybatis-config.xml中配置你的库名我的是mybatis

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
  <environments default="development">
    <environment id="development">
      <transactionManager type="JDBC"/>
      <!-- 修改数据库的四个连接属性  -->
      <dataSource type="POOLED">
        <property name="driver" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/mybatis"/>
        <property name="username" value="root"/>
        <property name="password" value="root"/>
      </dataSource>
    </environment>
  </environments>
  <!-- 配置sql语句 的那个mapper配置文件 -->
  <mappers>
    <mapper resource="com/dao/UserMapper.xml"/>
  </mappers>
</configuration>

UserMapper代码：

public interface UserMapper {
		// 保存用户
		public int saveUser(User user);
		// 更新用户
		public int updateUser(User user);
		// 根据id删除用户
		public int deleteUserById(int id);
		// 根据id搜索用户
		public User findUserById(int id);
		// 搜索全部用户
		public List<User> findUsers();
}

UserMapper.xml代码：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.dao.UserMapper">

<!-- 	public Integer saveUser(User user); -->
	<insert id="saveUser" parameterType="com.pojo.User">
		insert into t_user(`last_name`,`sex`) values(#{lastName},#{sex})
	</insert>
<!-- 	public Integer updateUser(User user); -->
	<update id="updateUser" parameterType="com.pojo.User">
		update t_user set last_name = #{lastName} , sex = #{sex} where id = #{id}
	</update>
<!-- 	public Integer deleteUserById(Integer id); -->
	<delete id="deleteUserById">
		delete from t_user where id = #{id}
	</delete>
<!-- 	public User findUserById(Integer id); -->
	<select id="findUserById" resultType="com.pojo.User">
		select id,last_name lastName,sex from t_user where id = #{id}
	</select>
<!-- 	public List<User> findUsers(); -->
	<select id="findUsers" resultType="com.pojo.User">
		select id,last_name lastName,sex from t_user
	</select>
</mapper>

测试类：

public class UserMapperTest {

	static SqlSessionFactory sqlSessionFactory;

	@BeforeClass
	public static void setUpBeforeClass() throws Exception {
		String url = "mybatis-config.xml";
		// 读取配置文件
		InputStream inputStream = Resources.getResourceAsStream(url);
		// 创建SqlSessionFactory对象
		sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
	}

	@Test
	public void testSaveUser() {
		SqlSession session = sqlSessionFactory.openSession();
		try {
			UserMapper userMapper = session.getMapper(UserMapper.class);
			User user = new User(0, "ddddd", 1);
			userMapper.saveUser(user);
			session.commit();
			System.out.println(user);
		} finally {
			session.close();
		}
	}

	@Test
	public void testUpdateUser() {
		SqlSession session = sqlSessionFactory.openSession();
		try {
			UserMapper userMapper = session.getMapper(UserMapper.class);
			User user = new User(4, "eeeee", 1);
			userMapper.updateUser(user);
			session.commit();
		} finally {
			session.close();
		}
	}

	@Test
	public void testDeleteUserById() {
		SqlSession session = sqlSessionFactory.openSession();
		try {
			UserMapper userMapper = session.getMapper(UserMapper.class);
			userMapper.deleteUserById(4);
			session.commit();
		} finally {
			session.close();
		}
	}

	@Test
	public void testFindUserById() {
		SqlSession session = sqlSessionFactory.openSession();
		try {
			UserMapper userMapper = session.getMapper(UserMapper.class);
			System.out.println(userMapper.findUserById(1));
		} finally {
			session.close();
		}
	}

	@Test
	public void testFindUsers() {
		SqlSession session = sqlSessionFactory.openSession();
		try {
			UserMapper userMapper = session.getMapper(UserMapper.class);
			System.out.println(userMapper.findUsers());
		} finally {
			session.close();
		}
	}
}

源码解析
它是怎么工作的呢？拿测试类中查询举例
1.读取配置文件mybatis-config.xml,通过Resources.getResourceAsStream(“mybatis-config.xml”);返回一个流对象InputStream
2.通过SqlSessionFactoryBuilder().build(流对象InputStream放进来)来创建SqlSessionFactory对象
3.使用SqlSessionFactory对象打开一个session方法，sqlSessionFactory.openSession();获取SqlSession对象
4.使用SqlSession调用getMapper()方法，我们进入源码查看该方法

@Override
  public <T> T getMapper(Class<T> type) {
    return configuration.<T>getMapper(type, this);
  }

我们之前放进来的UserMapper.class对应Class type，它作为 configuration.getMapper(type, this)的参数再次传递，我们进入它的方法体内

 public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    return mapperRegistry.getMapper(type, sqlSession);
  }

它再次被当做参数和sqlSession一起传递，进入它的方法体内，现在才是重点

@SuppressWarnings("unchecked")
  public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
    final MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory<T>) knownMappers.get(type);
    if (mapperProxyFactory == null) {
      throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
    }
    try {
      return mapperProxyFactory.newInstance(sqlSession);
    } catch (Exception e) {
      throw new BindingException("Error getting mapper instance. Cause: " + e, e);
    }
  }

我们可以看到MapperProxyFactory这个类是Mapper接口的代理工厂，这个mapper的代理就是我们之前的UserMapper 的实现类
看看之前的代码UserMapper userMapper = session.getMapper(UserMapper.class);
接着查看源码return mapperProxyFactory.newInstance(sqlSession);通过newInstance方法它要创建UserMapper接口的实例了，反射有讲newInstance()创建实例。
mapperProxyFactory.newInstance(sqlSession)进入它的方法体内

public T newInstance(SqlSession sqlSession) {
    final MapperProxy<T> mapperProxy = new MapperProxy<T>(sqlSession, mapperInterface, methodCache);
    return newInstance(mapperProxy);
  }

newInstance(mapperProxy)进入它的方法体内

@SuppressWarnings("unchecked")
  protected T newInstance(MapperProxy<T> mapperProxy) {
    return (T) Proxy.newProxyInstance(mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy);
  }

Proxy.newProxyInstance()方法解析：用来new一个jdk动态代理的
看看里面的参数 (mapperInterface.getClassLoader(), new Class[] { mapperInterface }, mapperProxy)
mapperInterface.getClassLoader()：类加载器
在这里插入图片描述

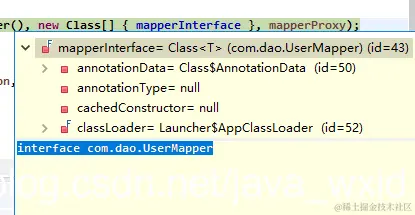

new Class[] { mapperInterface }：interface com.dao.UserMapper
在这里插入图片描述
mapperProxy：
protected T newInstance(MapperProxy mapperProxy) {
进入MapperProxy类中
public class MapperProxy implements InvocationHandler, Serializable {
可以看到MapperProxy实现了InvocationHandler

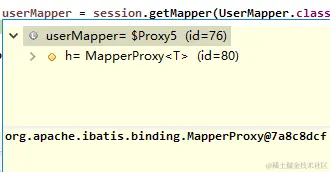

回到之前测试类的代码：UserMapper userMapper = session.getMapper(UserMapper.class);
在这里插入图片描述

可以看到它已经是mapper的代理，jdk动态代理，这样可以解释为什么我们没有写接口也可以用接口里的方法，因为它通过代理给你创建了一个实现类。

继续看System.out.println(userMapper.findUsers());进入方法体内

  @Override
  public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
    if (Object.class.equals(method.getDeclaringClass())) {
      try {
        return method.invoke(this, args);
      } catch (Throwable t) {
        throw ExceptionUtil.unwrapThrowable(t);
      }
    }
    final MapperMethod mapperMethod = cachedMapperMethod(method);
    return mapperMethod.execute(sqlSession, args);
  }

为什么会进入到这个方法体内呢？userMapper.findUsers()前面证明了userMapper是jdk动态代理，jdk动态代理在执行任何方法时都会执行InvocationHandler执行里面的invoke方法

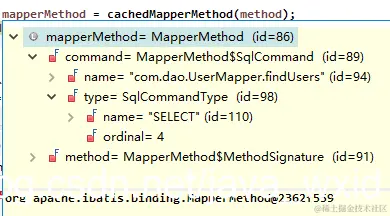

执行 final MapperMethod mapperMethod = cachedMapperMethod(method);

在这里插入图片描述

可以看到它已经找到了UserMapper接口中对应的方法了再看
在这里插入图片描述
可以看到它找到了select标签，我们接口中的方法名和我们的id值是不是对应上了，我们还可以深入的看看，select只有二种情况，一种是执行selectOne，一种是执行selectList.
当我们执行到return mapperMethod.execute(sqlSession, args);进入它的方法体内

  public Object execute(SqlSession sqlSession, Object[] args) {
    Object result;
    switch (command.getType()) {
      case INSERT: {
    	Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.insert(command.getName(), param));
        break;
      }
      case UPDATE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.update(command.getName(), param));
        break;
      }
      case DELETE: {
        Object param = method.convertArgsToSqlCommandParam(args);
        result = rowCountResult(sqlSession.delete(command.getName(), param));
        break;
      }
      case SELECT:
        if (method.returnsVoid() && method.hasResultHandler()) {
          executeWithResultHandler(sqlSession, args);
          result = null;
        } else if (method.returnsMany()) {
          result = executeForMany(sqlSession, args);
        } else if (method.returnsMap()) {
          result = executeForMap(sqlSession, args);
        } else if (method.returnsCursor()) {
          result = executeForCursor(sqlSession, args);
        } else {
          Object param = method.convertArgsToSqlCommandParam(args);
          result = sqlSession.selectOne(command.getName(), param);
        }
        break;
      case FLUSH:
        result = sqlSession.flushStatements();
        break;
      default:
        throw new BindingException("Unknown execution method for: " + command.getName());
    }
    if (result == null && method.getReturnType().isPrimitive() && !method.returnsVoid()) {
      throw new BindingException("Mapper method '" + command.getName()
          + " attempted to return null from a method with a primitive return type (" + method.getReturnType() + ").");
    }
    return result;
  }

通过command.getType()判断类型SELECT执行

	 case SELECT:
            if (method.returnsVoid() && method.hasResultHandler()) {
              executeWithResultHandler(sqlSession, args);
              result = null;
            } else if (method.returnsMany()) {
              result = executeForMany(sqlSession, args);
            } else if (method.returnsMap()) {
              result = executeForMap(sqlSession, args);
            } else if (method.returnsCursor()) {
              result = executeForCursor(sqlSession, args);
            } else {
              Object param = method.convertArgsToSqlCommandParam(args);
              result = sqlSession.selectOne(command.getName(), param);
            }
            break;

method.returnsVoid() 可以看到通过方法的返回值区别是执行selectOne，是执行selectList.

	// 根据id搜索用户
	public User findUserById(int id);
	// 搜索全部用户
	public List<User> findUsers();

method.returnsMany() 它是返回集合，就是返回多个，可以深入的看看

public boolean returnsMany() {
return returnsMany;
}
进入方法体内

  public static class MethodSignature {

    private final boolean returnsMany;

ctrl+f查找returnsMany

public MethodSignature(Configuration configuration, Class<?> mapperInterface, Method method) {
  Type resolvedReturnType = TypeParameterResolver.resolveReturnType(method, mapperInterface);
  if (resolvedReturnType instanceof Class<?>) {
    this.returnType = (Class<?>) resolvedReturnType;
  } else if (resolvedReturnType instanceof ParameterizedType) {
    this.returnType = (Class<?>) ((ParameterizedType) resolvedReturnType).getRawType();
  } else {
    this.returnType = method.getReturnType();
  }
  this.returnsVoid = void.class.equals(this.returnType);
  this.returnsMany = (configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray());

通过this.returnsMany = (configuration.getObjectFactory().isCollection(this.returnType) || this.returnType.isArray());可以看到它是不是集合还是数组
如果是list集合进入到result = executeForMany(sqlSession, args);进入到它的方法体内

  private <E> Object executeForMany(SqlSession sqlSession, Object[] args) {
    List<E> result;
    Object param = method.convertArgsToSqlCommandParam(args);
    if (method.hasRowBounds()) {
      RowBounds rowBounds = method.extractRowBounds(args);
      result = sqlSession.<E>selectList(command.getName(), param, rowBounds);
    } else {
      result = sqlSession.<E>selectList(command.getName(), param);
    }
    // issue #510 Collections & arrays support
    if (!method.getReturnType().isAssignableFrom(result.getClass())) {
      if (method.getReturnType().isArray()) {
        return convertToArray(result);
      } else {
        return convertToDeclaredCollection(sqlSession.getConfiguration(), result);
      }
    }
    return result;
  }

可以看到它找到了SelectList

if (method.hasRowBounds()) {
          RowBounds rowBounds = method.extractRowBounds(args);
          result = sqlSession.<E>selectList(command.getName(), param, rowBounds);
        } else {
          result = sqlSession.<E>selectList(command.getName(), param);
        }

method.returnsMap() 是不是Map
method.returnsCursor() 是不是游标
最后 result = sqlSession.selectOne(command.getName(), param);可以看到它找到了selectOne

avatar
文章
阅读
粉丝
相关推荐
一文搞懂Java动态代理：为什么Mybatis Mapper不需要实现类？
3.6k阅读
 ·
37点赞
Mybatis源码 - Mapper代理查询过程解析 <package>标签解析 JDK动态代理原理 代理对象创建 invoke方法
750阅读
 ·
2点赞
【简写Mybatis】03-Mapper xml的注册和使用
310阅读
 ·
0点赞
MyBatis用起来：怎样在mapper里一次传好几个参数呢？
588阅读
 ·
0点赞
Mybatis整合SpringBoot自动扫描Mapper接口类注册Bean
333阅读
 ·
0点赞
一起来学Mybatis Plus(五) & Mapper CRUD接口
460阅读
 ·
4点赞
在 Nest.js 中编写 SQL 的另一种方式(MyBatisMapper)
625阅读
 ·
7点赞
死磕MybatisPlus系列：Mapper的奇妙之旅
290阅读
 ·
1点赞
Mybatis中SqlSession执行Mapper的过程
331阅读
 ·
0点赞
SpringBoot中几种好用的代码生成器(基于Mybatis-plus生成entity、mapper、xml等)
2.2k阅读
 ·
17点赞

友情链接：
