flutter 交互式用户指导，以及如何在布局中创造一个洞

原文

https://medium.com/litslink/flutter-interactive-user-guidanc-e-or-how-to-make-a-hole-in-layout-d72bf6eb27f9

代码

https://github.com/alex-melnyk/flutter_user_guidance

正文

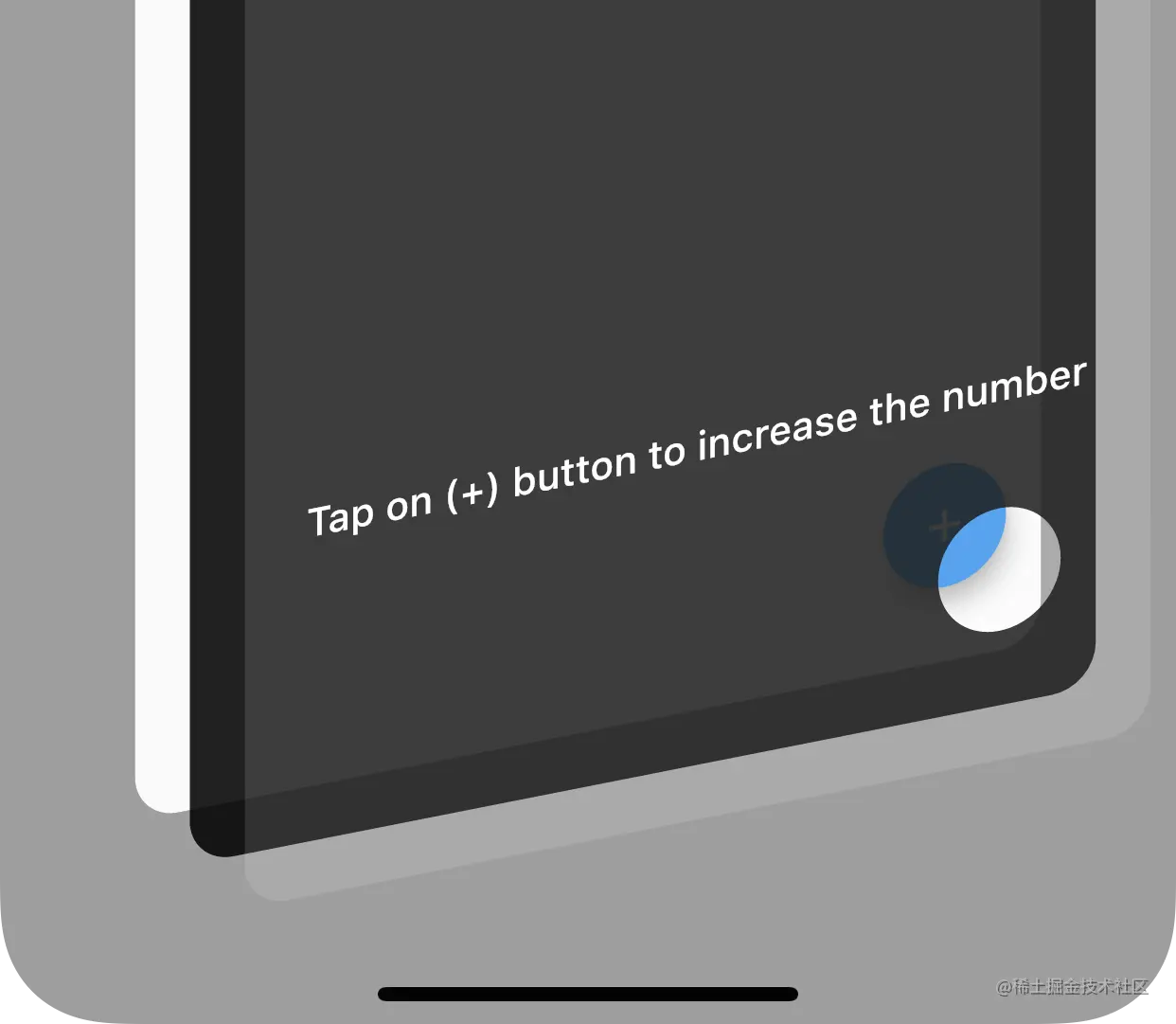

大家好！我想给你看一个有趣的 Flutter 特征。我们可以建立交互式的用户指导使用 blending 混合颜色。

这个简单的技巧可以让你在应用程序中建立有趣的用户指南，而不仅仅是一张图片。它可以真正与动画等互动。

布局

首先，要构建覆盖，您需要将目标页面的 Scaffold 小部件包装到 Stack 小部件中，并将 Scaffold 小部件作为第一个项目保留。

  @override
  Widget build(BuildContext context) {
    final theme = Theme.of(context);

    return Stack(
      children: [
        Scaffold(
          appBar: AppBar(
            title: Text('Flutter User Guidance Example'),
            centerTitle: false,
            actions: [
              IconButton(
                icon: Icon(Icons.slideshow),
                onPressed: () => _userGuidanceController.show(),
              ),
            ],
          ),
          body: Center(
            child: Column(
              mainAxisAlignment: MainAxisAlignment.center,
              children: <Widget>[
                Text(
                  'You have pushed the button this many times:',
                ),
                Text(
                  '$_counter',
                  style: theme.textTheme.headline4,
                ),
              ],
            ),
          ),
          floatingActionButton: FloatingActionButton(
            onPressed: _handleFABPressed,
            tooltip: 'Increment',
            child: Icon(Icons.add),
          ),
        ),
      ],
    );
  }

对于第二个地方，创建一个覆盖整个脚手架的覆盖图，使用一点透明的深/浅背景。Root ColorFiltered 具有混合模式“ source out”，内部 Container 在后台具有“ destination out”，这允许我们剪切小部件以在 root ColorFiltered 小部件中剪切它们。

        Positioned.fill(
          child: ColorFiltered(
            colorFilter: ColorFilter.mode(
              Colors.black87,
              BlendMode.srcOut,
            ),
            child: Stack(
              children: [
                Positioned.fill(
                  child: Container(
                    decoration: BoxDecoration(
                      color: Colors.black,
                      backgroundBlendMode: BlendMode.dstOut,
                    ),
                  ),
                ),
                Center(
                  child: Container(
                    width: 150,
                    height: 150,
                    color: Colors.white,
                  ),
                ),
              ],
            ),
          ),
        ),

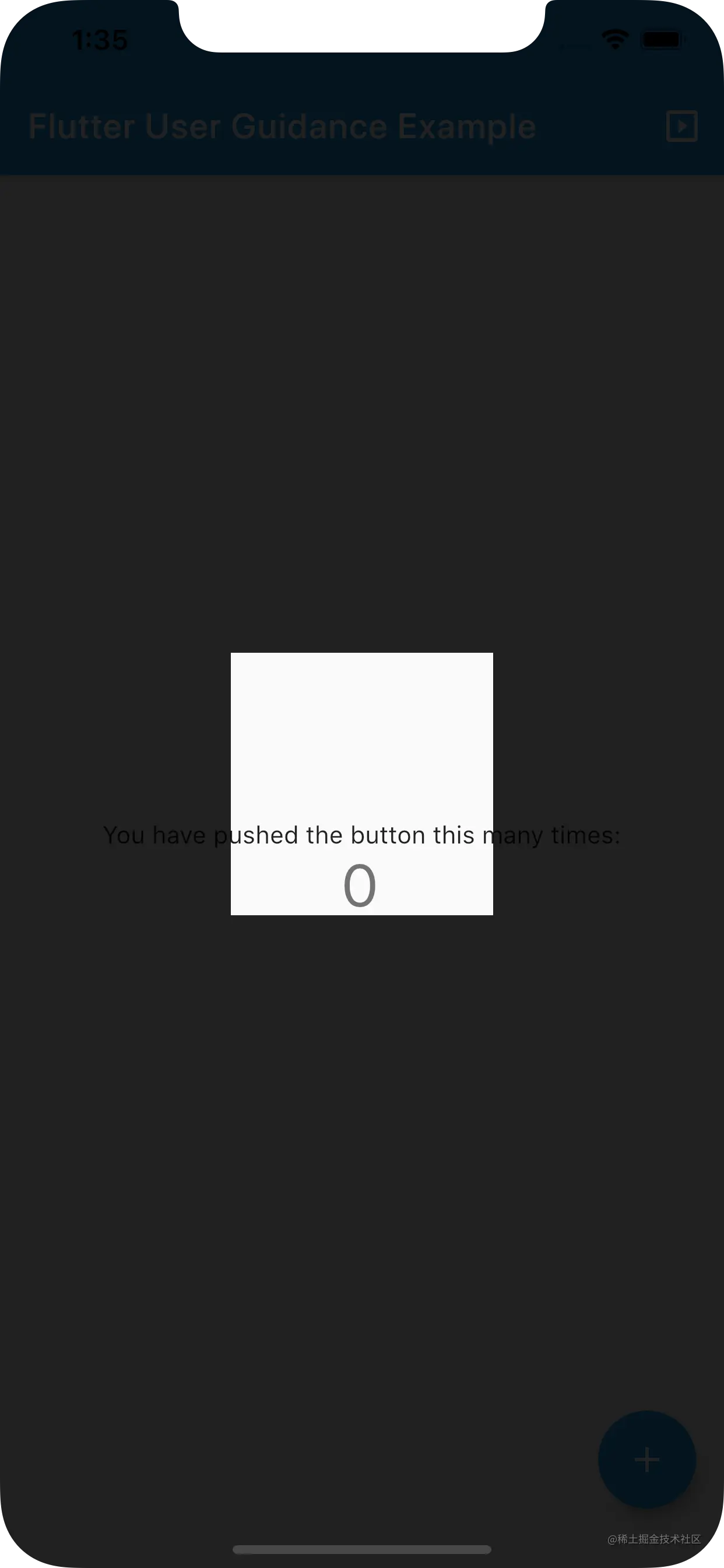

例如，在这个例子中，我们有一个容器，大小为 150x150，颜色为白色，需要混合的颜色，不应该是完全透明的，否则你不会看到它。因此，颜色是需要混合，以了解什么地区剪出来。

使用者指引

当然，您需要添加一些单词或元素来引导用户浏览指南。在这种情况下，您可以将小部件放在同一个 Stack 中经过过滤的 root ColorFiltered 上。

        Align(
          alignment: Alignment.bottomLeft,
          child: Material(
            color: Colors.transparent,
            child: Container(
              margin: EdgeInsets.only(
                left: 16,
                bottom: 38,
              ),
              padding: EdgeInsets.symmetric(
                horizontal: 16,
                vertical: 8,
              ),
              decoration: BoxDecoration(
                color: Colors.white,
                borderRadius: BorderRadius.circular(5),
              ),
              child: Text(
                'Hello Interactive User Guidance!\n'
                    'Tap on + button to increase the number...'
              ),
            ),
          ),
        ),

请记住，Stack 小部件来自 Scaffold 并且没有任何 Material 支持，所以用一个 Material 小部件包装它就足够了。

这里有一个完整的例子，如果你把所有这些步骤都做对了，你会看到同样的图片。

  @override
  Widget build(BuildContext context) {
    final theme = Theme.of(context);

    return Stack(
      children: [
        Scaffold(
          appBar: AppBar(
            title: Text('Flutter User Guidance Example'),
            centerTitle: false,
            actions: [
              IconButton(
                icon: Icon(Icons.slideshow),
                onPressed: () => _userGuidanceController.show(),
              ),
            ],
          ),
          body: Center(
            child: Column(
              mainAxisAlignment: MainAxisAlignment.center,
              children: <Widget>[
                Text(
                  'You have pushed the button this many times:',
                ),
                Text(
                  '$_counter',
                  style: theme.textTheme.headline4,
                ),
              ],
            ),
          ),
          floatingActionButton: FloatingActionButton(
            onPressed: _handleFABPressed,
            tooltip: 'Increment',
            child: Icon(Icons.add),
          ),
        ),
        Positioned.fill(
          child: ColorFiltered(
            colorFilter: ColorFilter.mode(
              Colors.black87,
              BlendMode.srcOut,
            ),
            child: Stack(
              children: [
                Positioned.fill(
                  child: Container(
                    decoration: BoxDecoration(
                      color: Colors.black,
                      backgroundBlendMode: BlendMode.dstOut,
                    ),
                  ),
                ),
                Align(
                  alignment: Alignment.bottomRight,
                  child: Container(
                    margin: EdgeInsets.only(
                      right: 9,
                      bottom: 27,
                    ),
                    width: 70,
                    height: 70,
                    decoration: BoxDecoration(
                      color: Colors.white,
                      shape: BoxShape.circle,
                    ),
                  ),
                ),
              ],
            ),
          ),
        ),
        Align(
          alignment: Alignment.bottomLeft,
          child: Material(
            color: Colors.transparent,
            child: Container(
              margin: EdgeInsets.only(
                left: 16,
                bottom: 38,
              ),
              padding: EdgeInsets.symmetric(
                horizontal: 16,
                vertical: 8,
              ),
              decoration: BoxDecoration(
                color: Colors.white,
                borderRadius: BorderRadius.circular(5),
              ),
              child: Text(
                'Hello Interactive User Guidance!\n'
                    'Tap on + button to increase the number...'
              ),
            ),
          ),
        ),
      ],
    );
  }

动画和步骤

我准备了一个简单的例子，通过动画剪辑区域从矩形切换到圆形并移动，从一个指导切换到另一个。只要查看我的仓库，就能获得这种体验。

完整的项目源代码可以在 GitHub 上找到。

https://github.com/alex-melnyk/flutter_user_guidance

---
