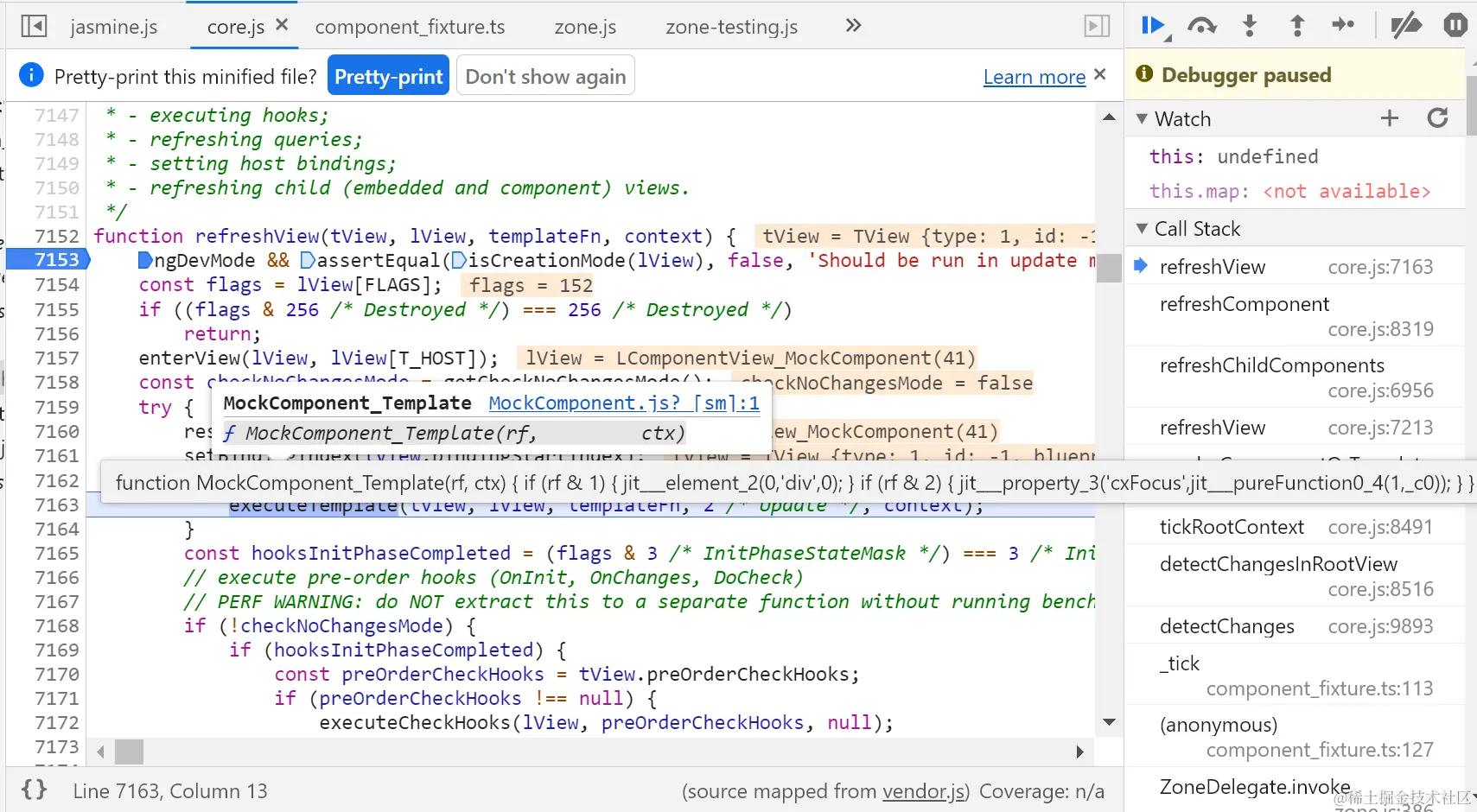

在refreshView里执行template function：

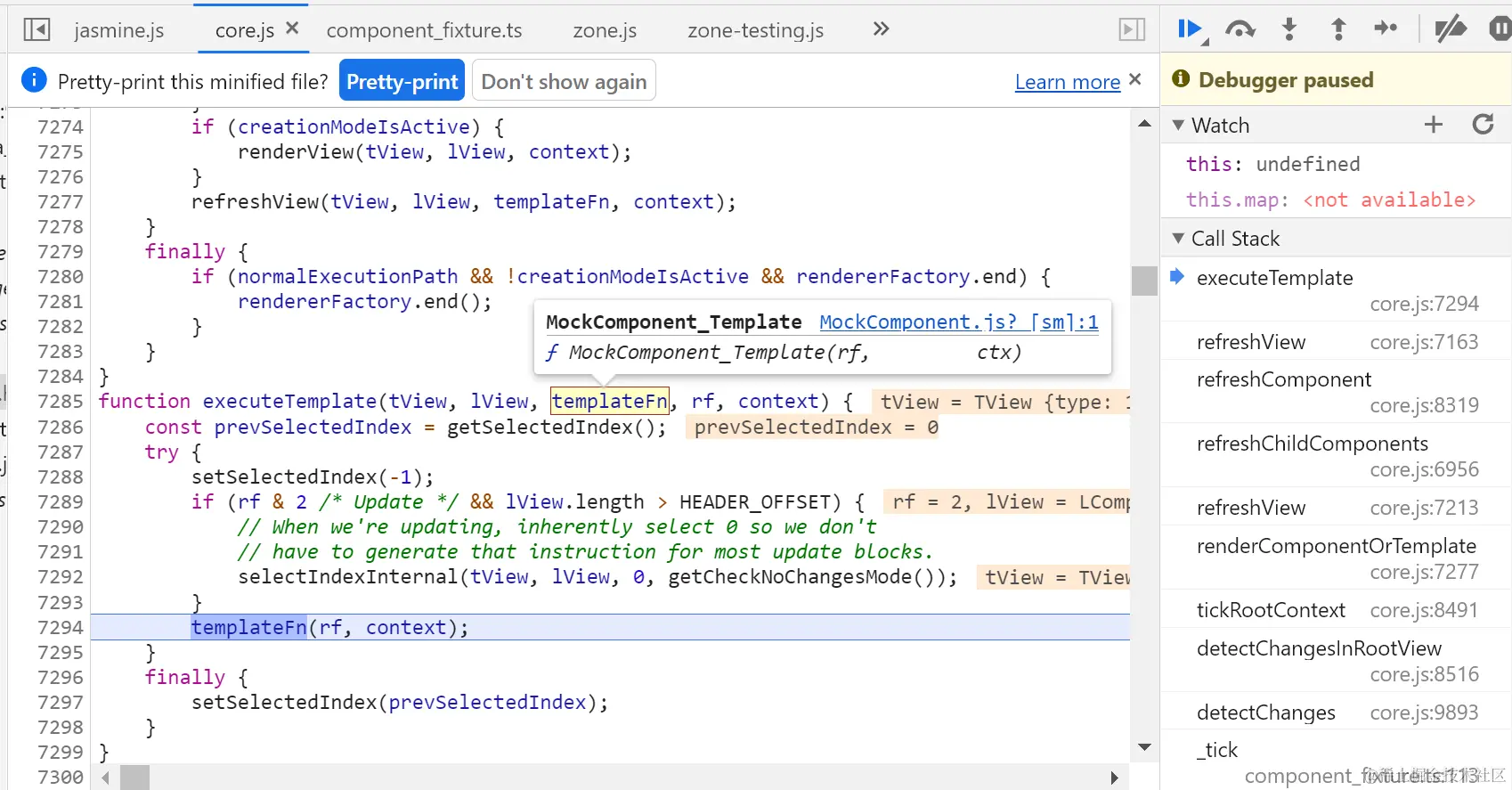

执行template：

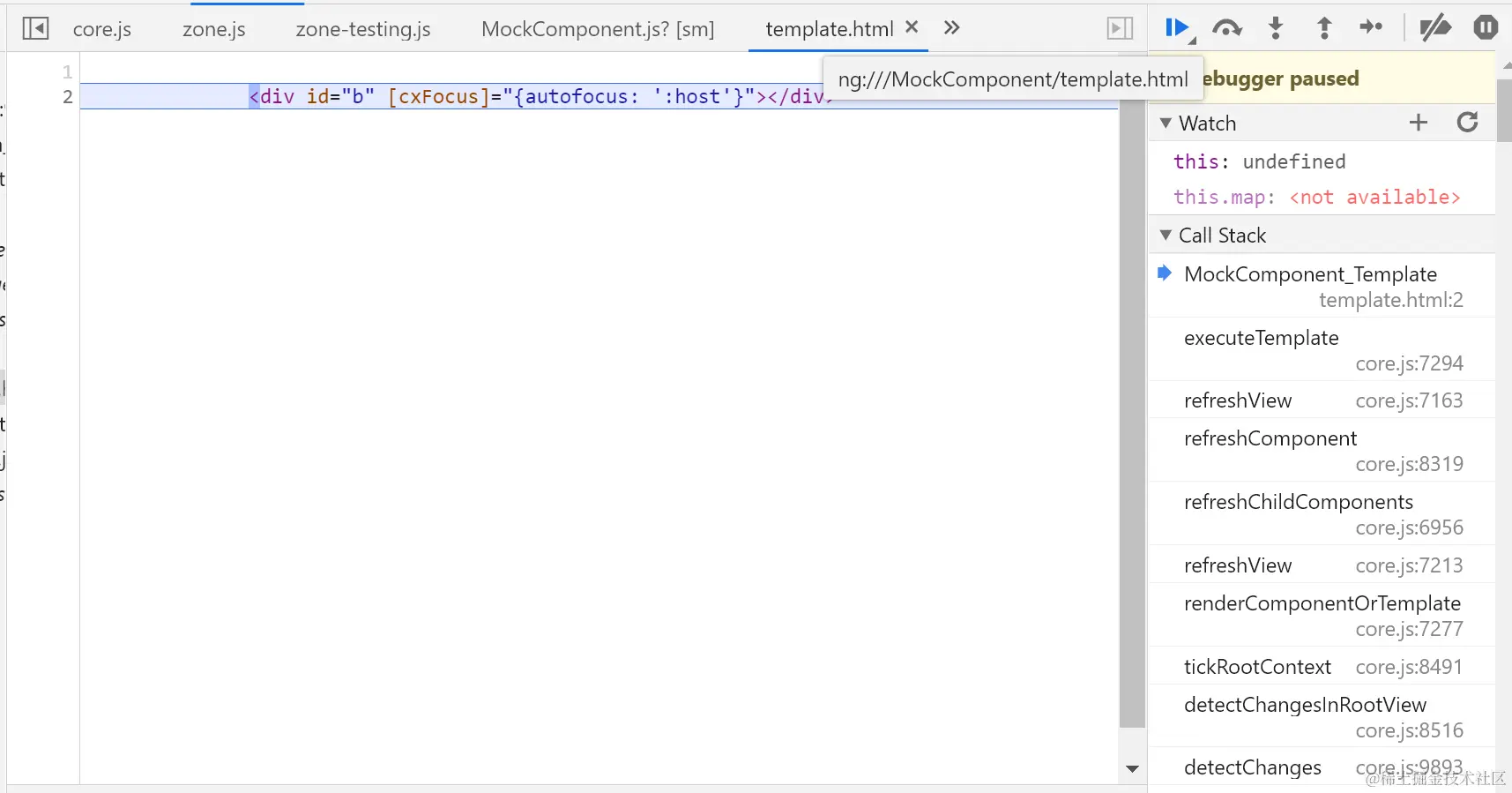

template function如图：

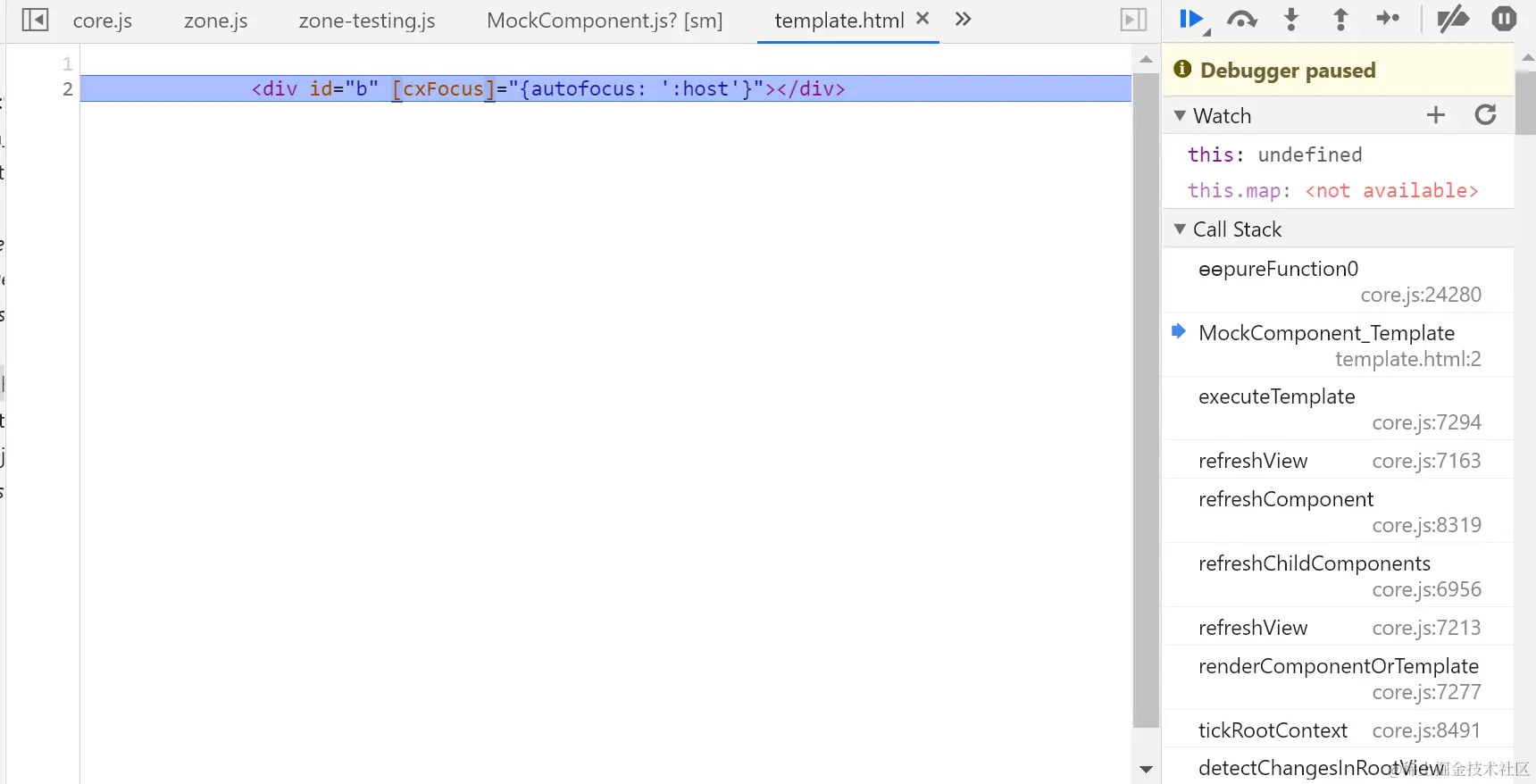

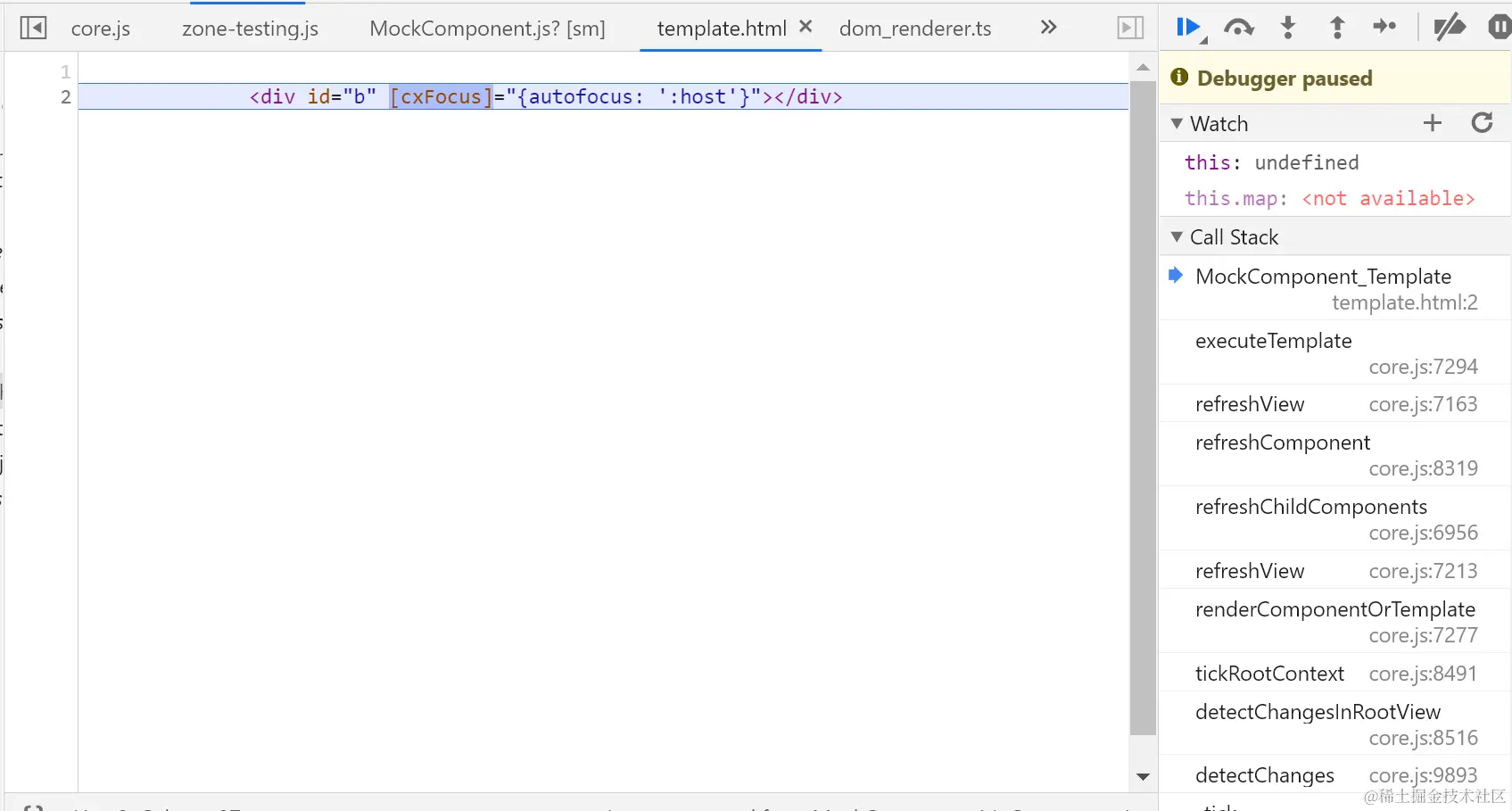

单步执行到[cxFocus]时：

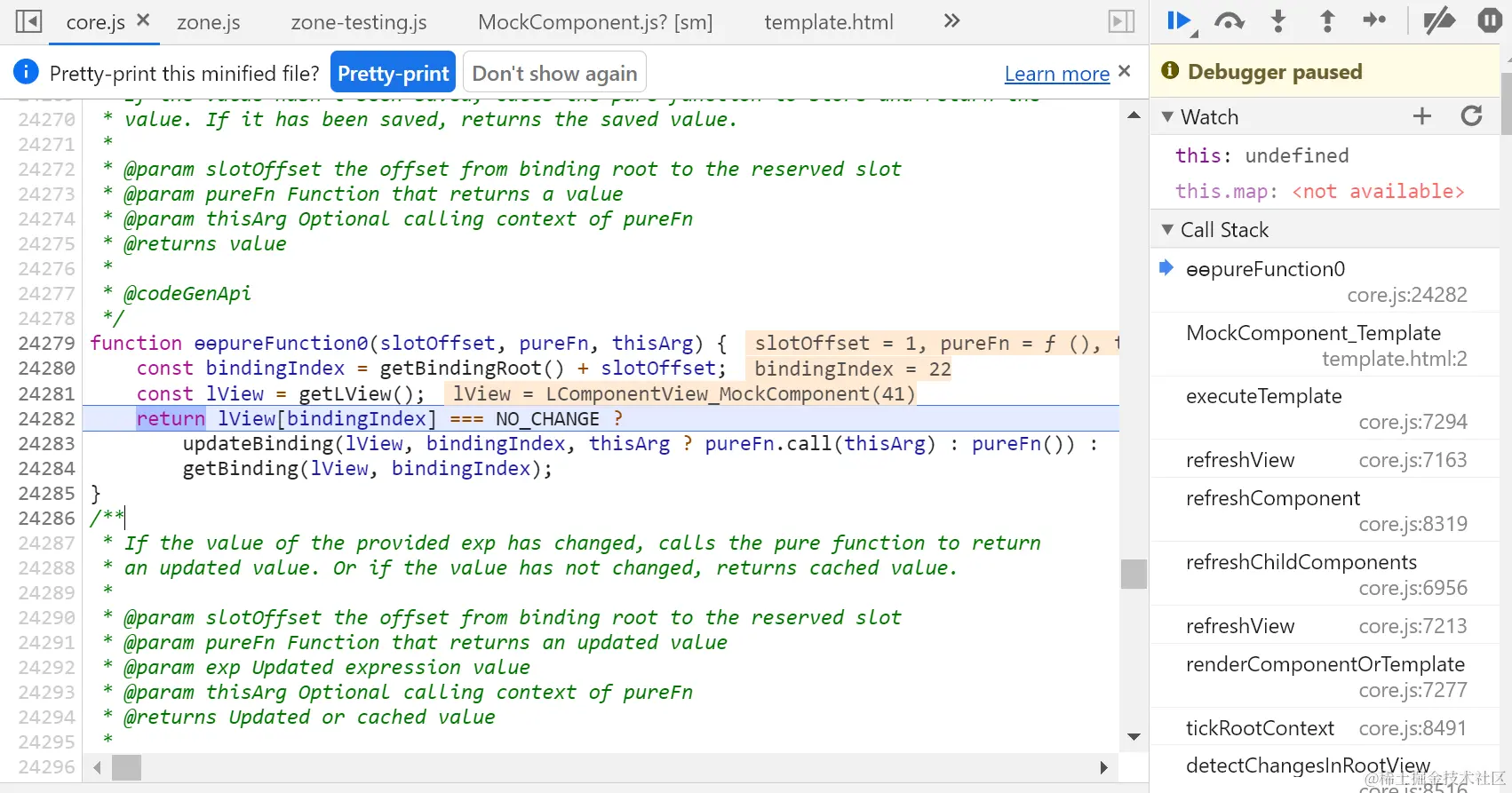

再单步执行，进入函数ɵɵpureFunction0：
/**
* @license
* Copyright Google LLC All Rights Reserved.
*
* Use of this source code is governed by an MIT-style license that can be
* found in the LICENSE file at https://angular.io/license
*/
/**
* Bindings for pure functions are stored after regular bindings.
*
* |-------decls------|---------vars---------| |----- hostVars (dir1) ------|
* ------------------------------------------------------------------------------------------
* | nodes/refs/pipes | bindings | fn slots | injector | dir1 | host bindings | host slots |
* ------------------------------------------------------------------------------------------
* ^ ^
* TView.bindingStartIndex TView.expandoStartIndex
*
* Pure function instructions are given an offset from the binding root. Adding the offset to the
* binding root gives the first index where the bindings are stored. In component views, the binding
* root is the bindingStartIndex. In host bindings, the binding root is the expandoStartIndex +
* any directive instances + any hostVars in directives evaluated before it.
*
* See VIEW_DATA.md for more information about host binding resolution.
*/
/**
* If the value hasn't been saved, calls the pure function to store and return the
* value. If it has been saved, returns the saved value.
*
* @param slotOffset the offset from binding root to the reserved slot
* @param pureFn Function that returns a value
* @param thisArg Optional calling context of pureFn
* @returns value
*
* @codeGenApi
*/
function ɵɵpureFunction0(slotOffset, pureFn, thisArg) {
const bindingIndex = getBindingRoot() + slotOffset;
const lView = getLView();
return lView[bindingIndex] === NO_CHANGE ?
updateBinding(lView, bindingIndex, thisArg ? pureFn.call(thisArg) : pureFn()) :
getBinding(lView, bindingIndex);
}

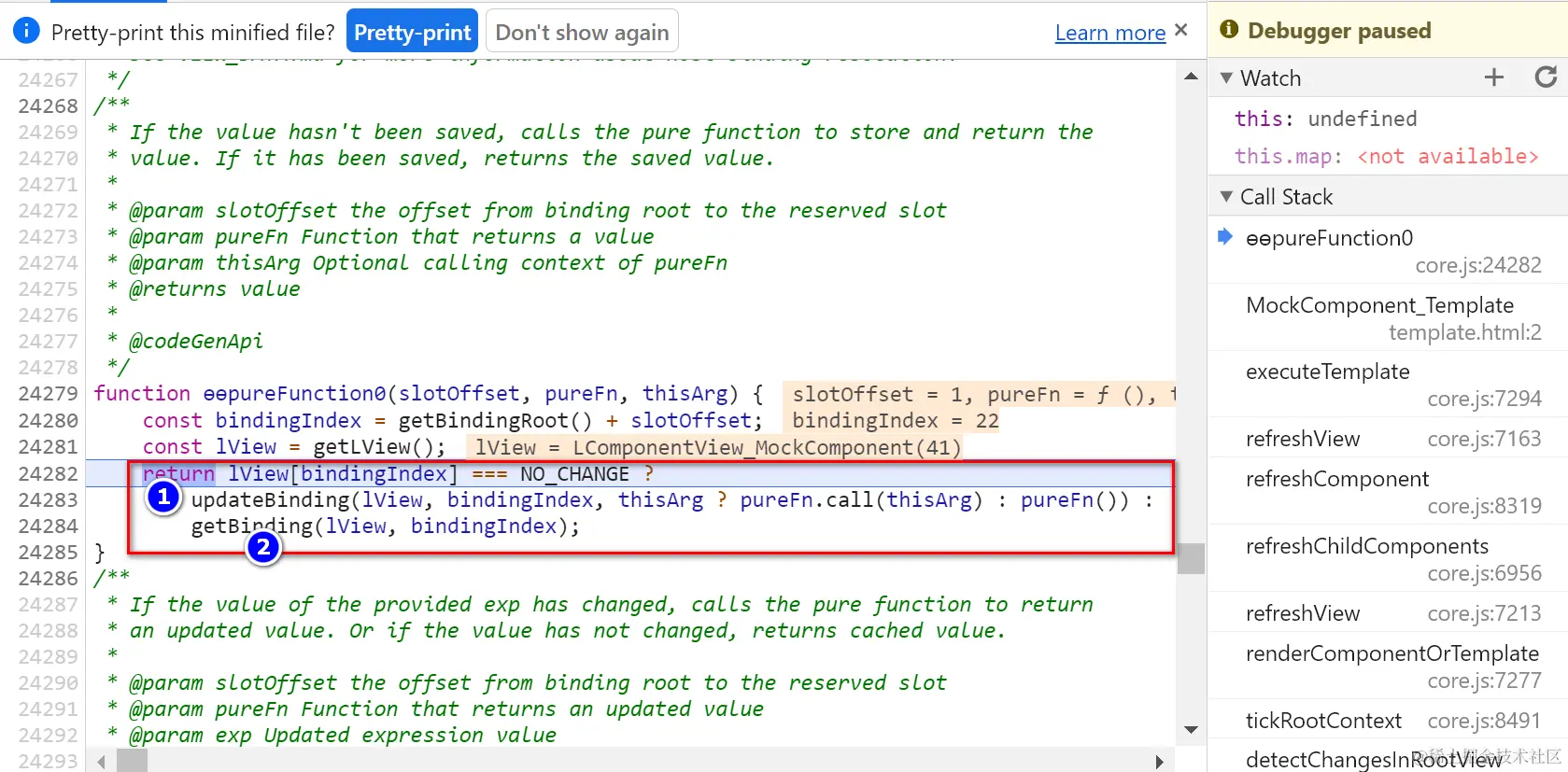

如果binding没有变化，就updateBinding，否则执行getBinding：
执行pureFn：
？？：
成功将[cxFocus]绑定的值提取出来了：

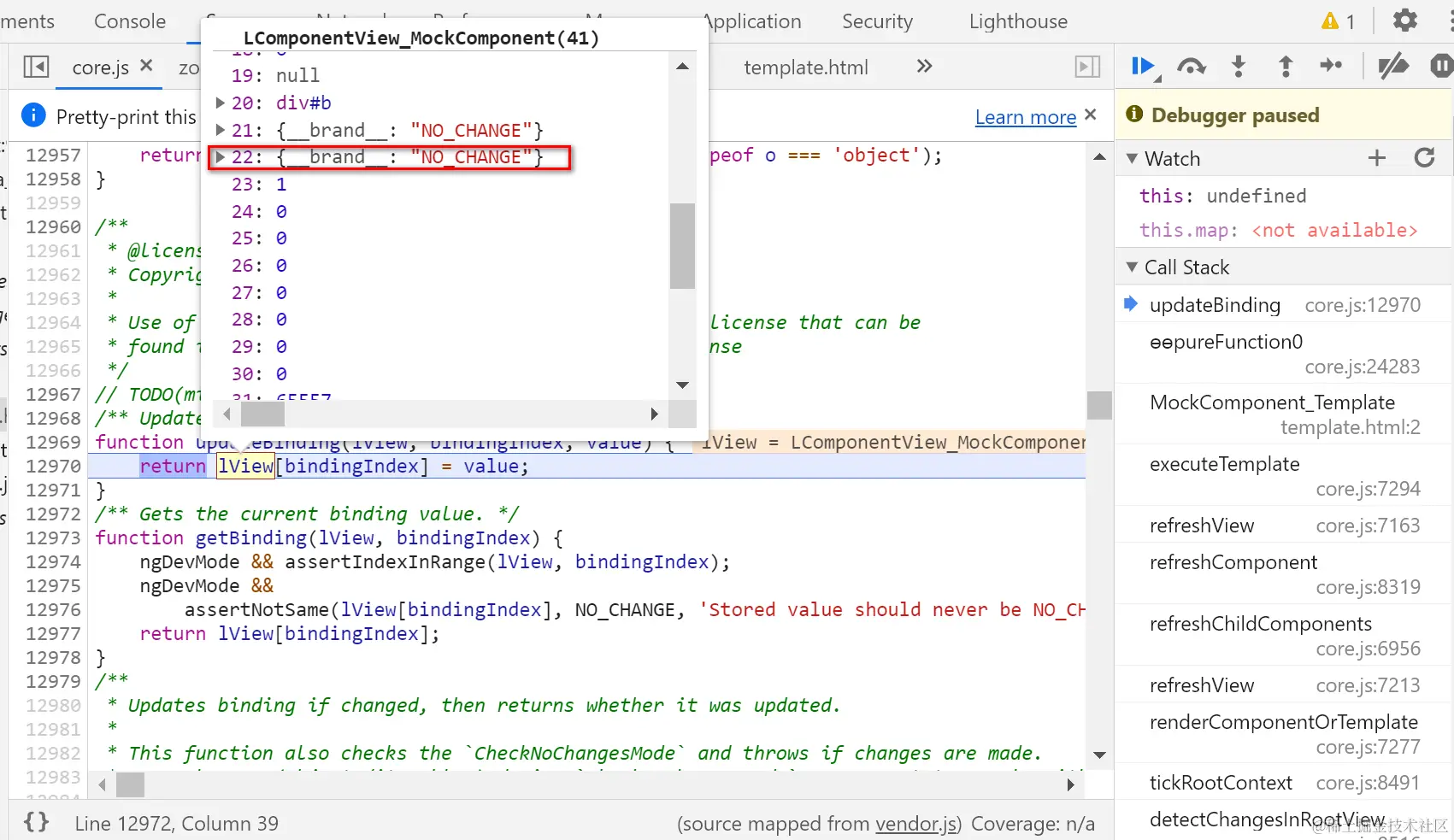

index为22即将被填充：

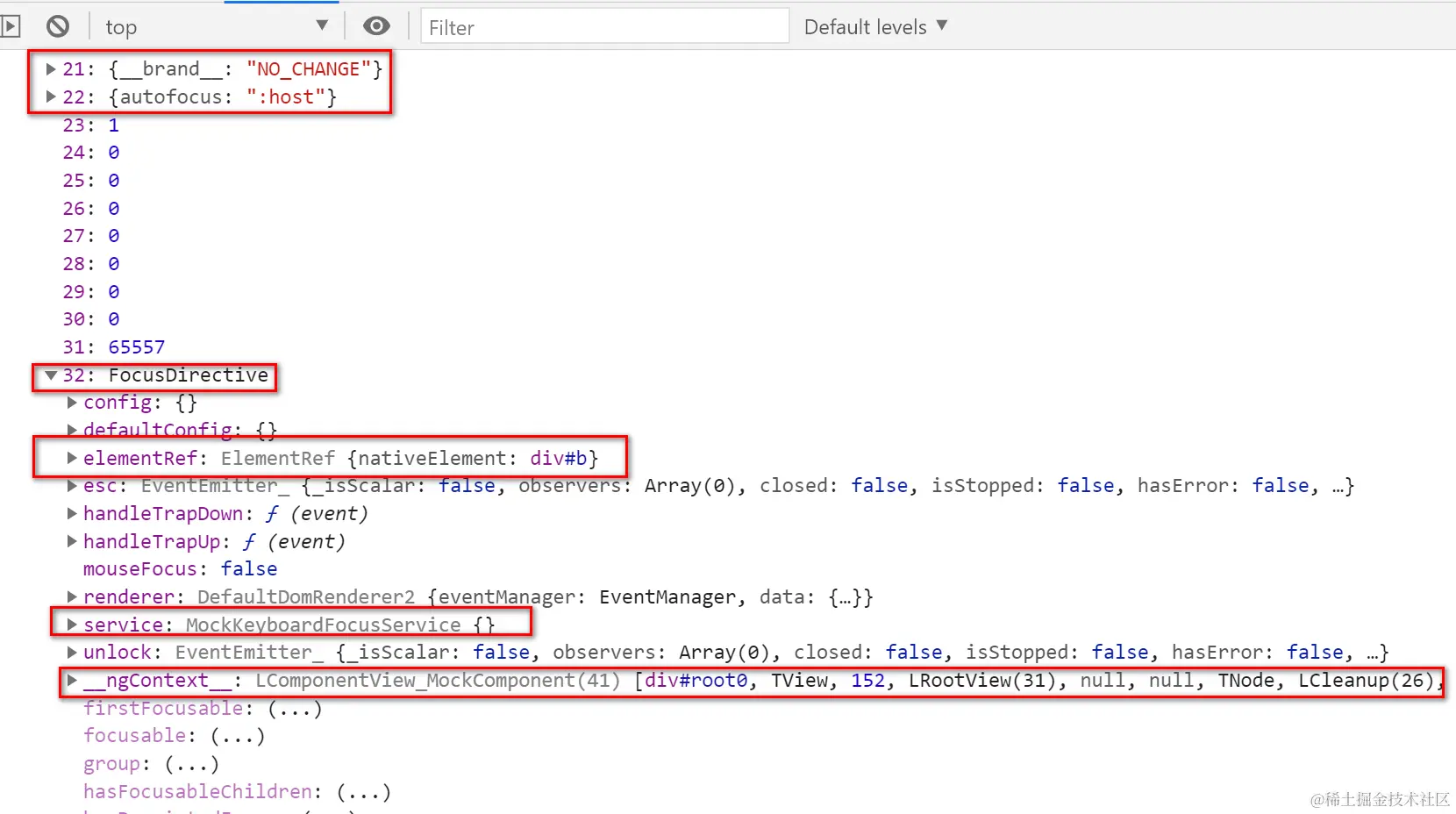

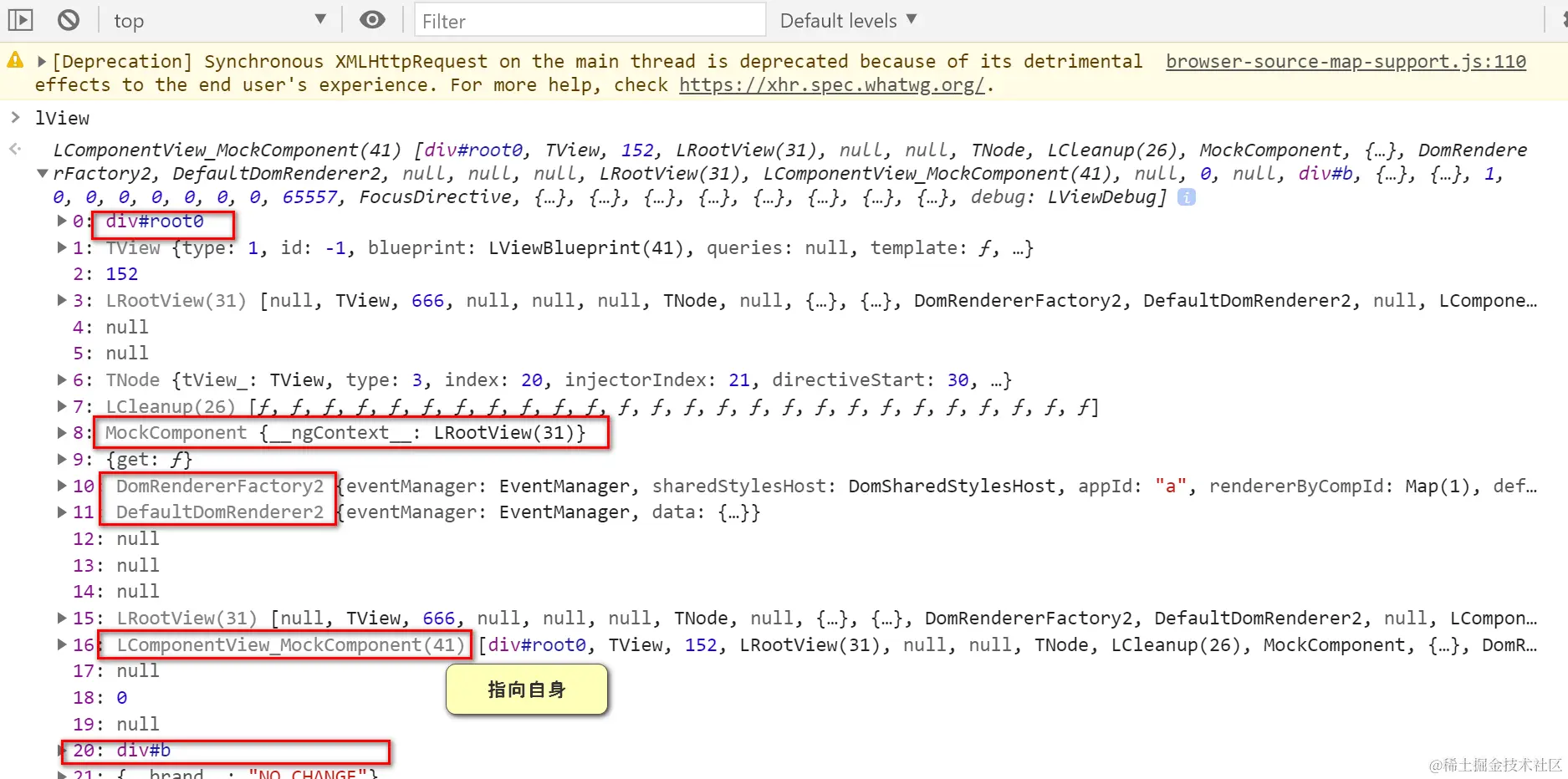

再次看下Logic view的内部结构：
感觉该Component的所有属性都包含在LView里了：

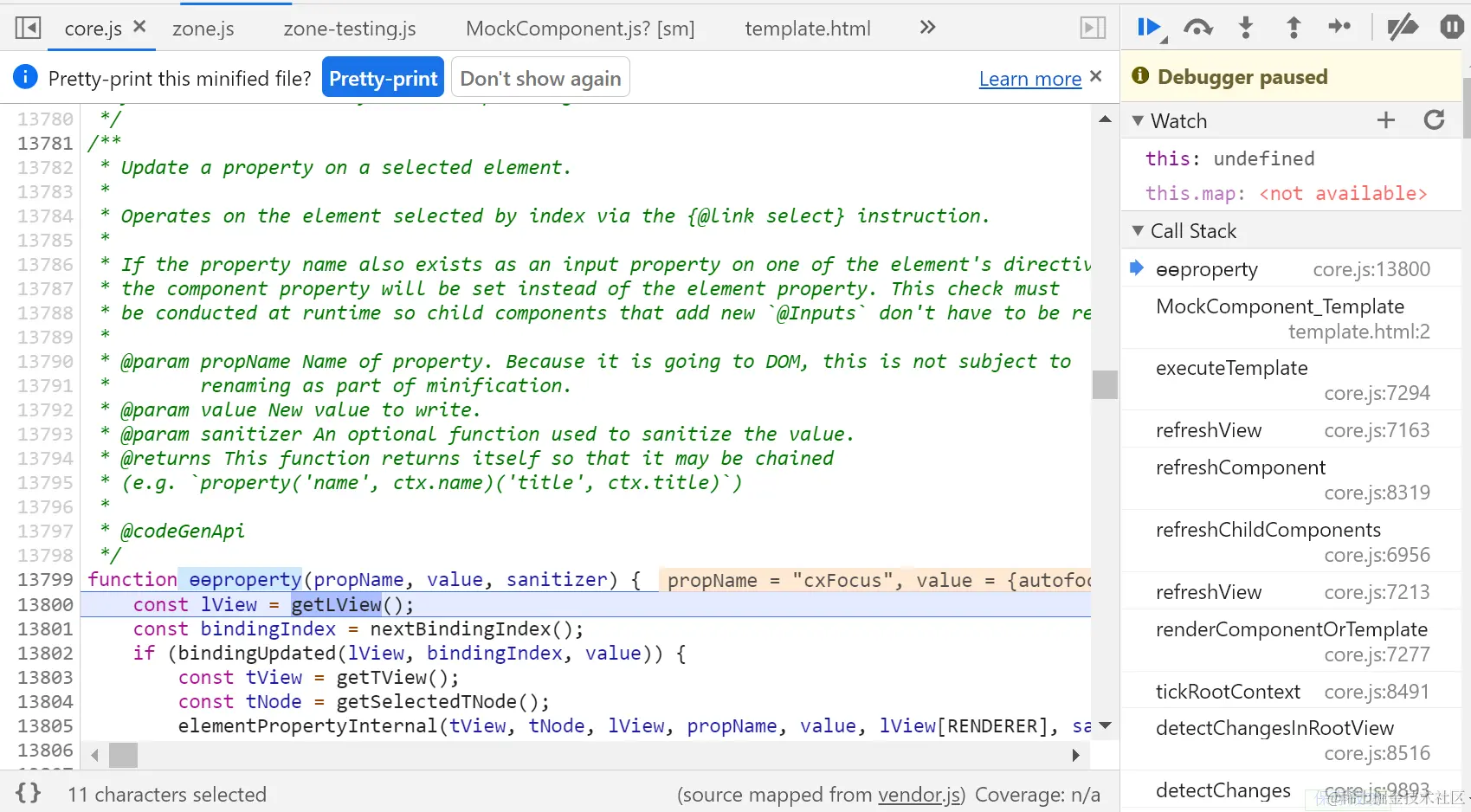

紧接着执行 ɵɵproperty函数：
/**
* @license
* Copyright Google LLC All Rights Reserved.
*
* Use of this source code is governed by an MIT-style license that can be
* found in the LICENSE file at https://angular.io/license
*/
/**
* Update a property on a selected element.
*
* Operates on the element selected by index via the {@link select} instruction.
*
* If the property name also exists as an input property on one of the element's directives,
* the component property will be set instead of the element property. This check must
* be conducted at runtime so child components that add new `@Inputs` don't have to be re-compiled
*
* @param propName Name of property. Because it is going to DOM, this is not subject to
* renaming as part of minification.
* @param value New value to write.
* @param sanitizer An optional function used to sanitize the value.
* @returns This function returns itself so that it may be chained
* (e.g. `property('name', ctx.name)('title', ctx.title)`)
*
* @codeGenApi
*/
function ɵɵproperty(propName, value, sanitizer) {
const lView = getLView();
const bindingIndex = nextBindingIndex();
if (bindingUpdated(lView, bindingIndex, value)) {
const tView = getTView();
const tNode = getSelectedTNode();
elementPropertyInternal(tView, tNode, lView, propName, value, lView[RENDERER], sanitizer, false);
ngDevMode && storePropertyBindingMetadata(tView.data, tNode, propName, bindingIndex);
}
return ɵɵproperty;
}

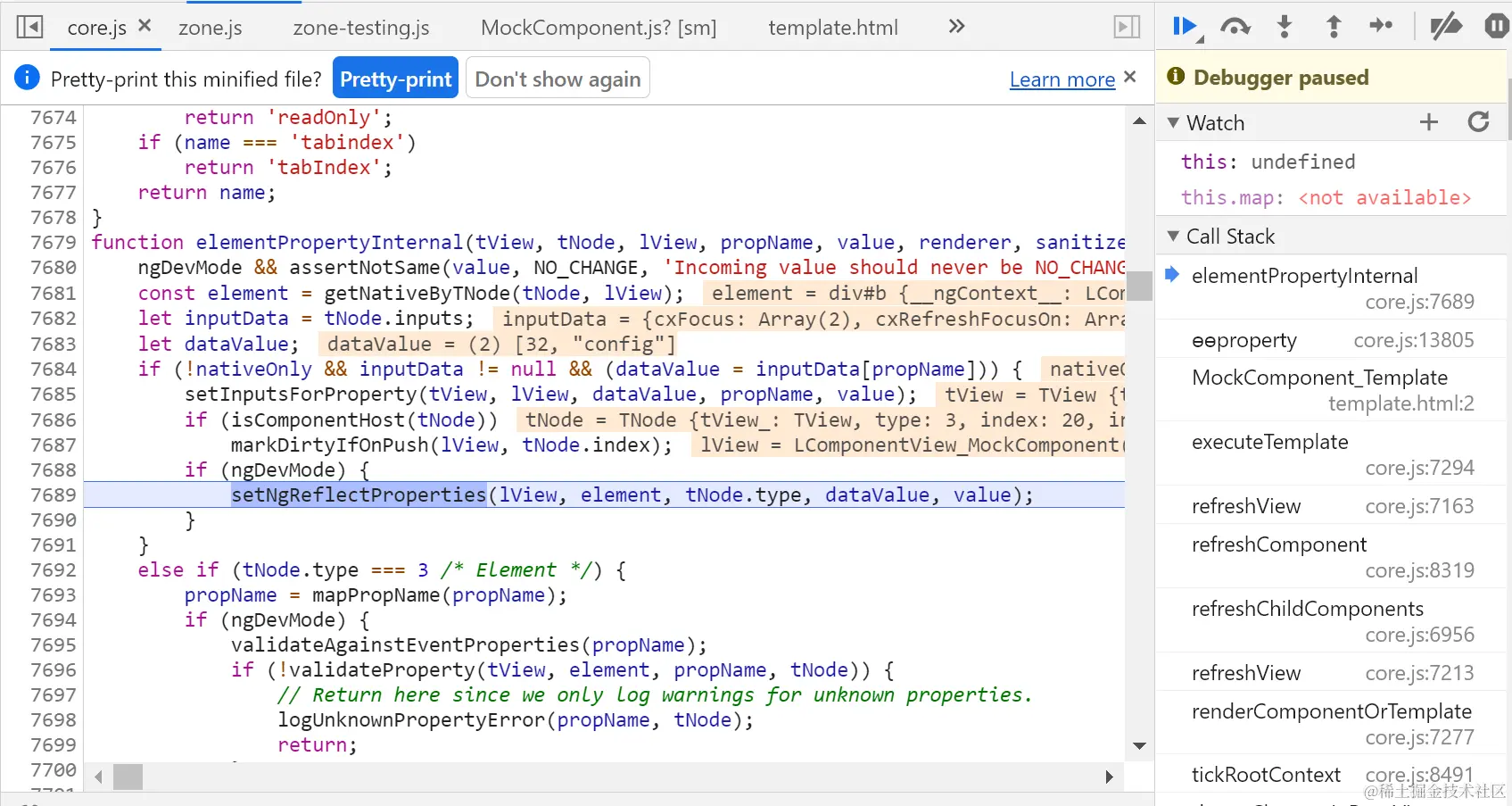

执行完毕：
更多Jerry的原创文章，尽在：“汪子熙”:
