Angular的_zone.onMicrotaskEmpty最终会通过changeDetect重新刷新视图

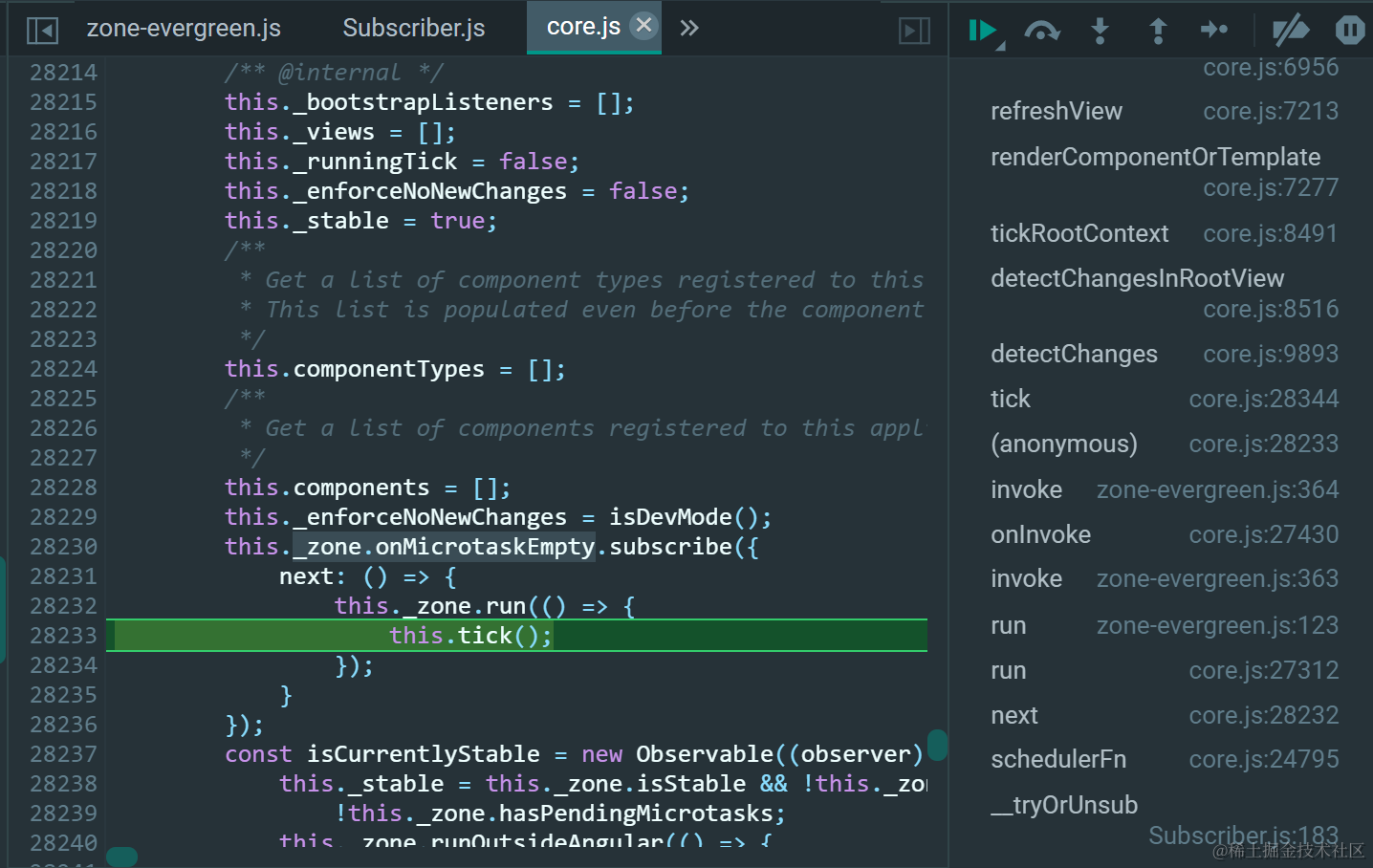

_zone.onMicrotaskEmpty的触发起始位置：

class ApplicationRef {
    /** @internal */
    constructor(_zone, _console, _injector, _exceptionHandler, _componentFactoryResolver, _initStatus) {
        this._zone = _zone;
        this._console = _console;
        this._injector = _injector;
        this._exceptionHandler = _exceptionHandler;
        this._componentFactoryResolver = _componentFactoryResolver;
        this._initStatus = _initStatus;
        /** @internal */
        this._bootstrapListeners = [];
        this._views = [];
        this._runningTick = false;
        this._enforceNoNewChanges = false;
        this._stable = true;
        /**
         * Get a list of component types registered to this application.
         * This list is populated even before the component is created.
         */
        this.componentTypes = [];
        /**
         * Get a list of components registered to this application.
         */
        this.components = [];
        this._enforceNoNewChanges = isDevMode();
        this._zone.onMicrotaskEmpty.subscribe({
            next: () => {
                this._zone.run(() => {
                    this.tick();
                });
            }
        });

tick方法的实现会调用视图view的detectChange方法：

/**
     * Invoke this method to explicitly process change detection and its side-effects.
     *
     * In development mode, `tick()` also performs a second change detection cycle to ensure that no
     * further changes are detected. If additional changes are picked up during this second cycle,
     * bindings in the app have side-effects that cannot be resolved in a single change detection
     * pass.
     * In this case, Angular throws an error, since an Angular application can only have one change
     * detection pass during which all change detection must complete.
     */
    tick() {
        if (this._runningTick) {
            throw new Error('ApplicationRef.tick is called recursively');
        }
        try {
            this._runningTick = true;
            for (let view of this._views) {
                view.detectChanges();
            }
            if (this._enforceNoNewChanges) {
                for (let view of this._views) {
                    view.checkNoChanges();
                }
            }
        }
        catch (e) {
            // Attention: Don't rethrow as it could cancel subscriptions to Observables!
            this._zone.runOutsideAngular(() => this._exceptionHandler.handleError(e));
        }
        finally {
            this._runningTick = false;
        }
    }

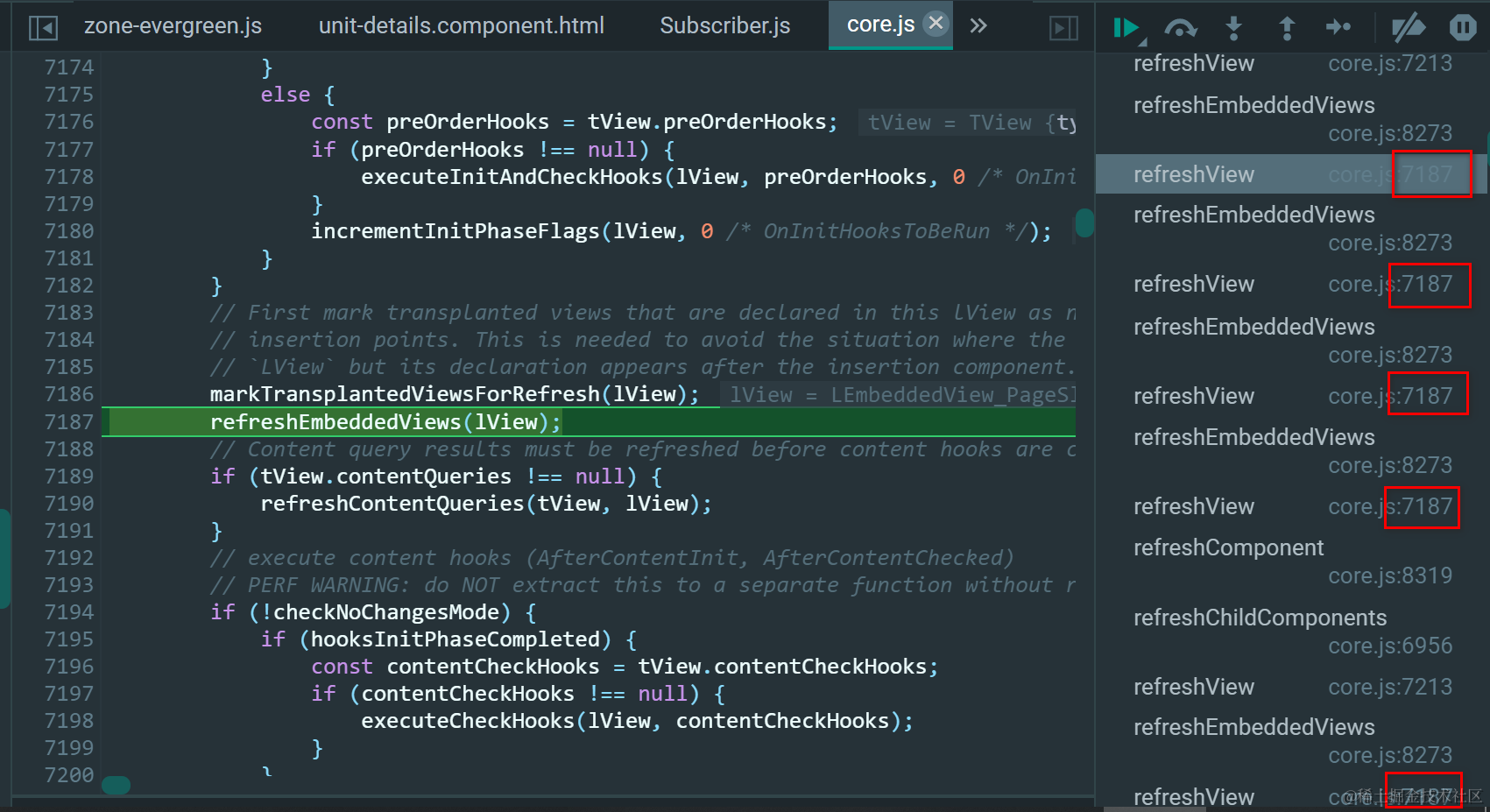

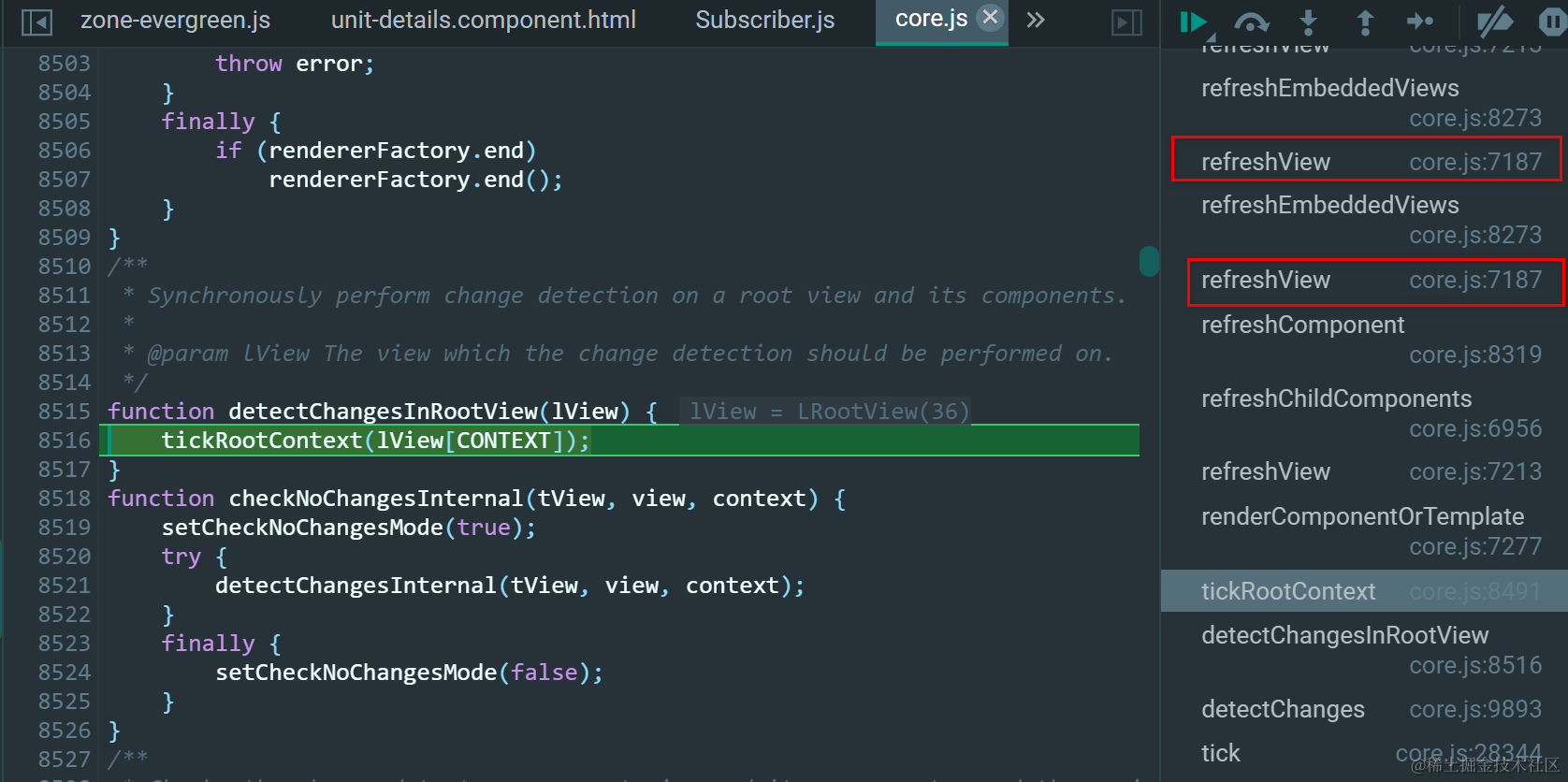

递归调用refreshView：

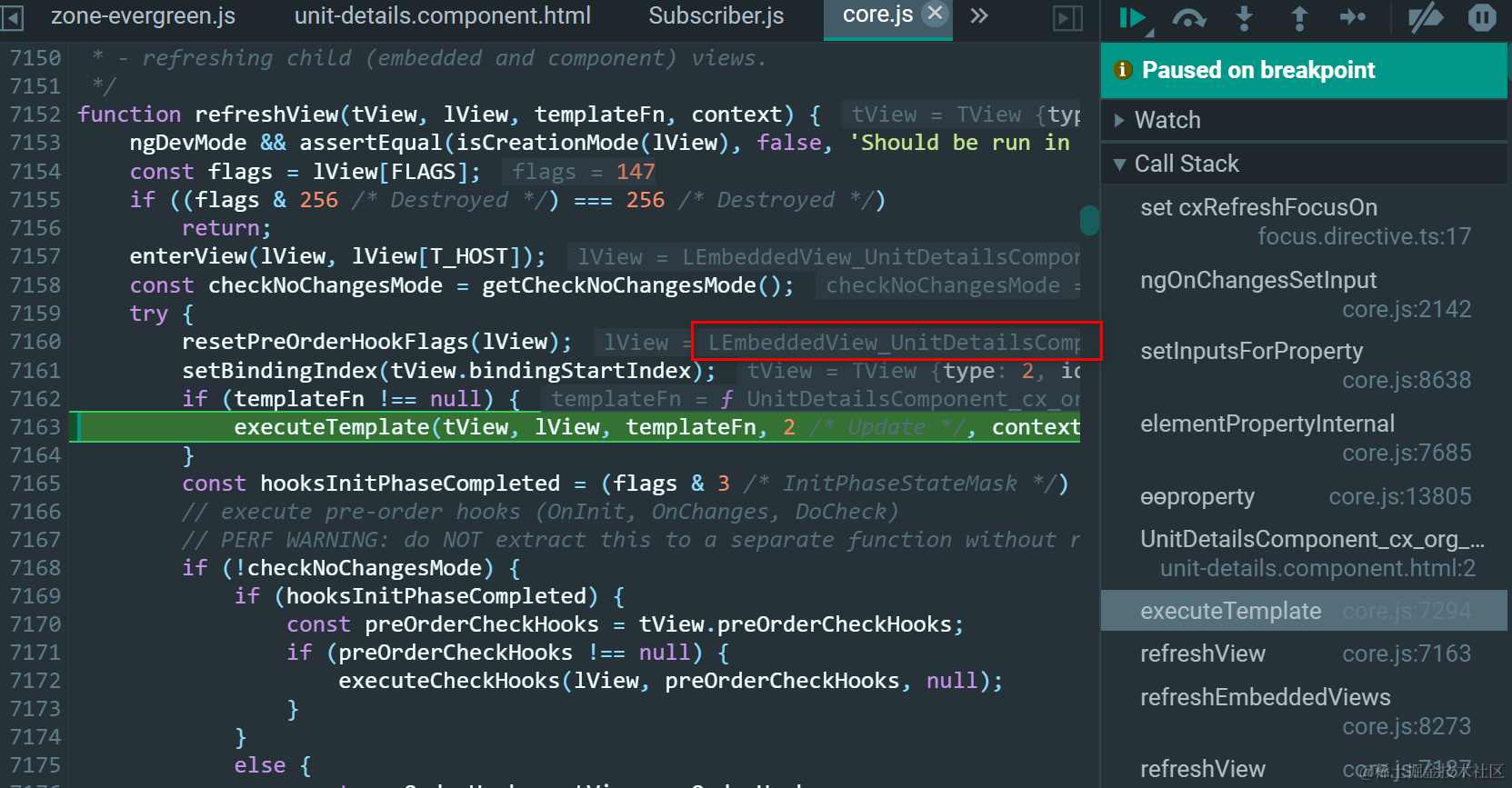

refreshView里执行view template：

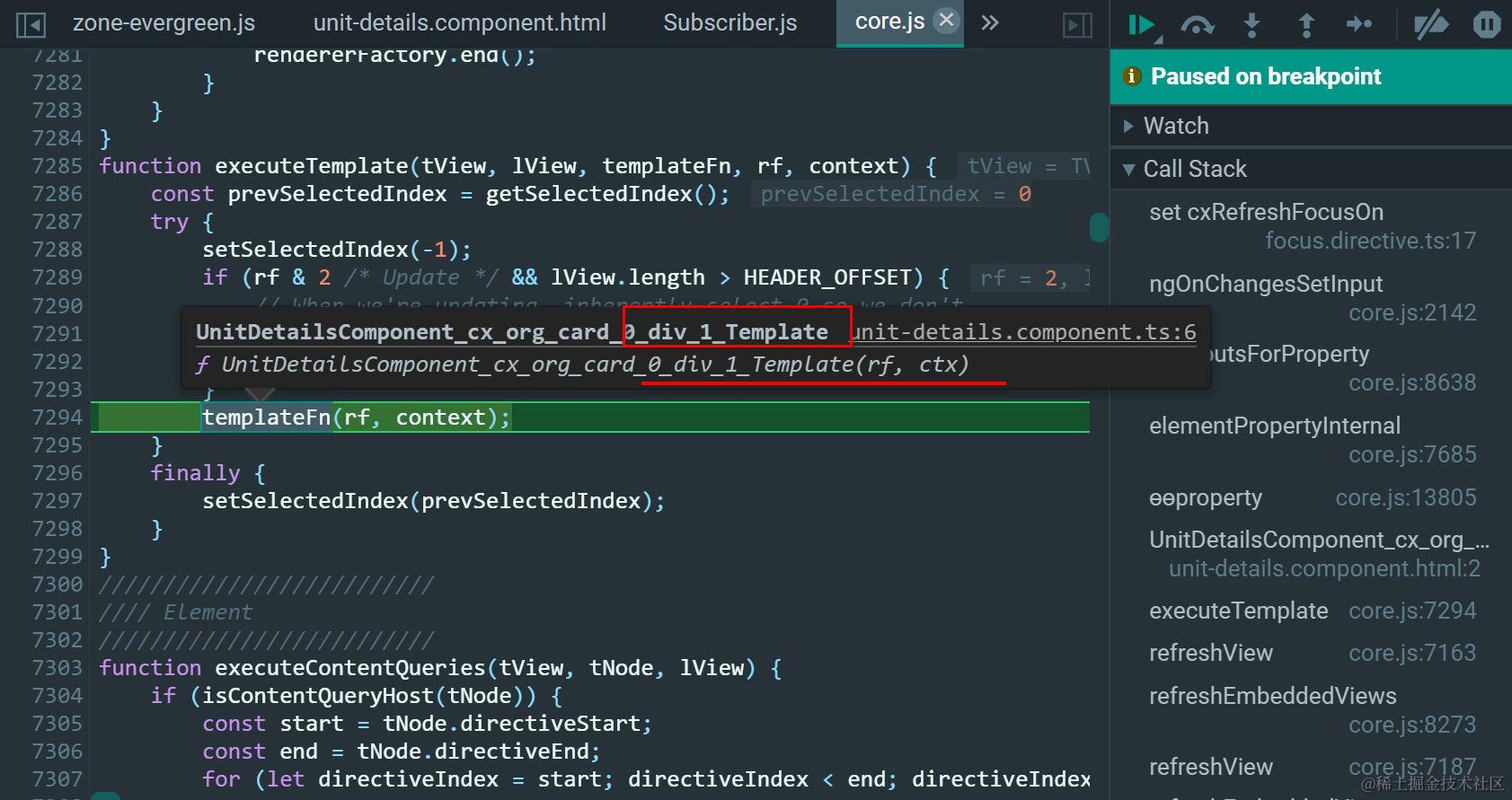

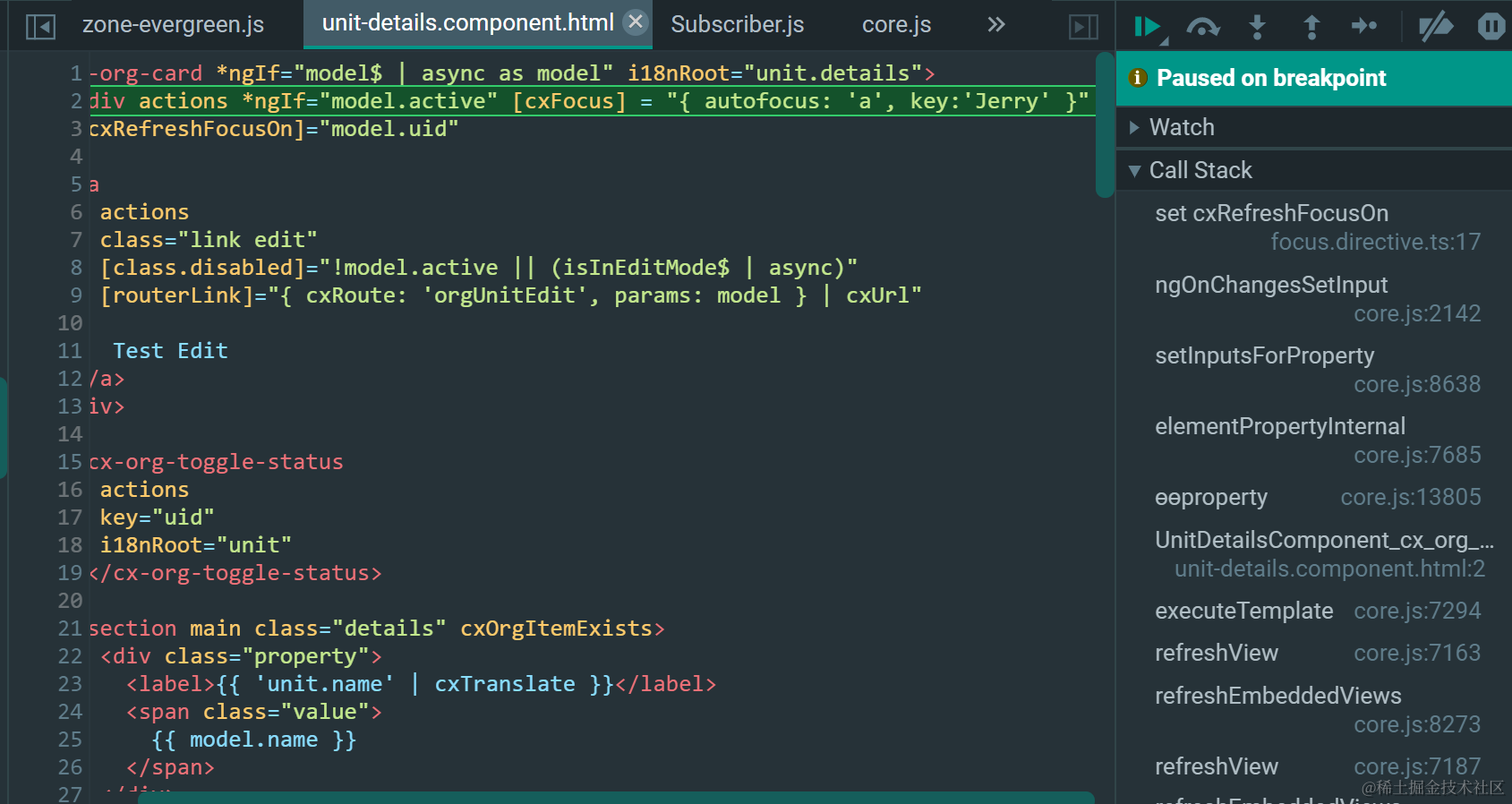

从调试器里能看出template所属的host DOM element，在这个例子里是UnitDetailsComponent内的cx-org-card标签里第一个div元素：

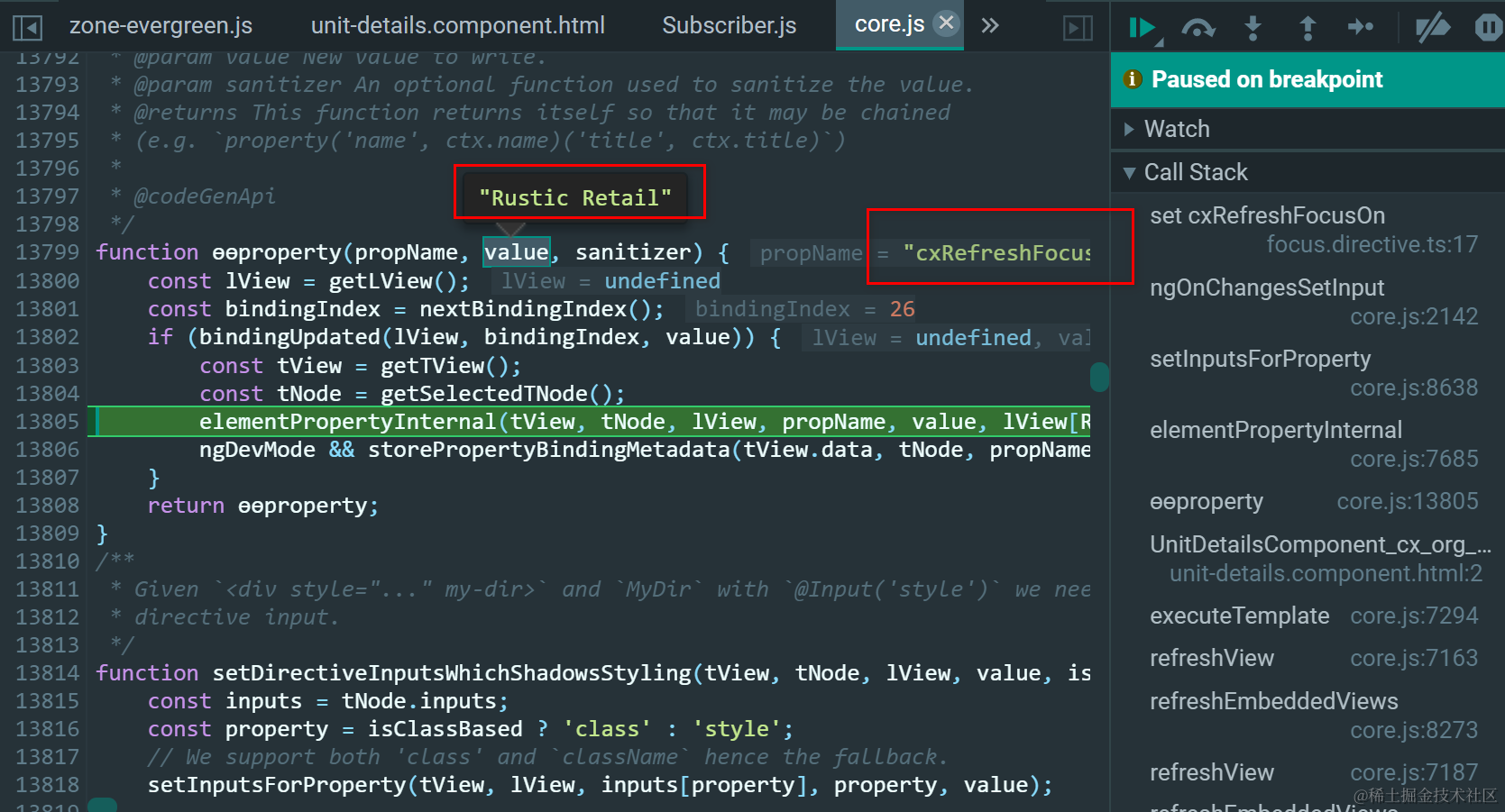

这里待执行的setter的property和value都已经自动生成了：

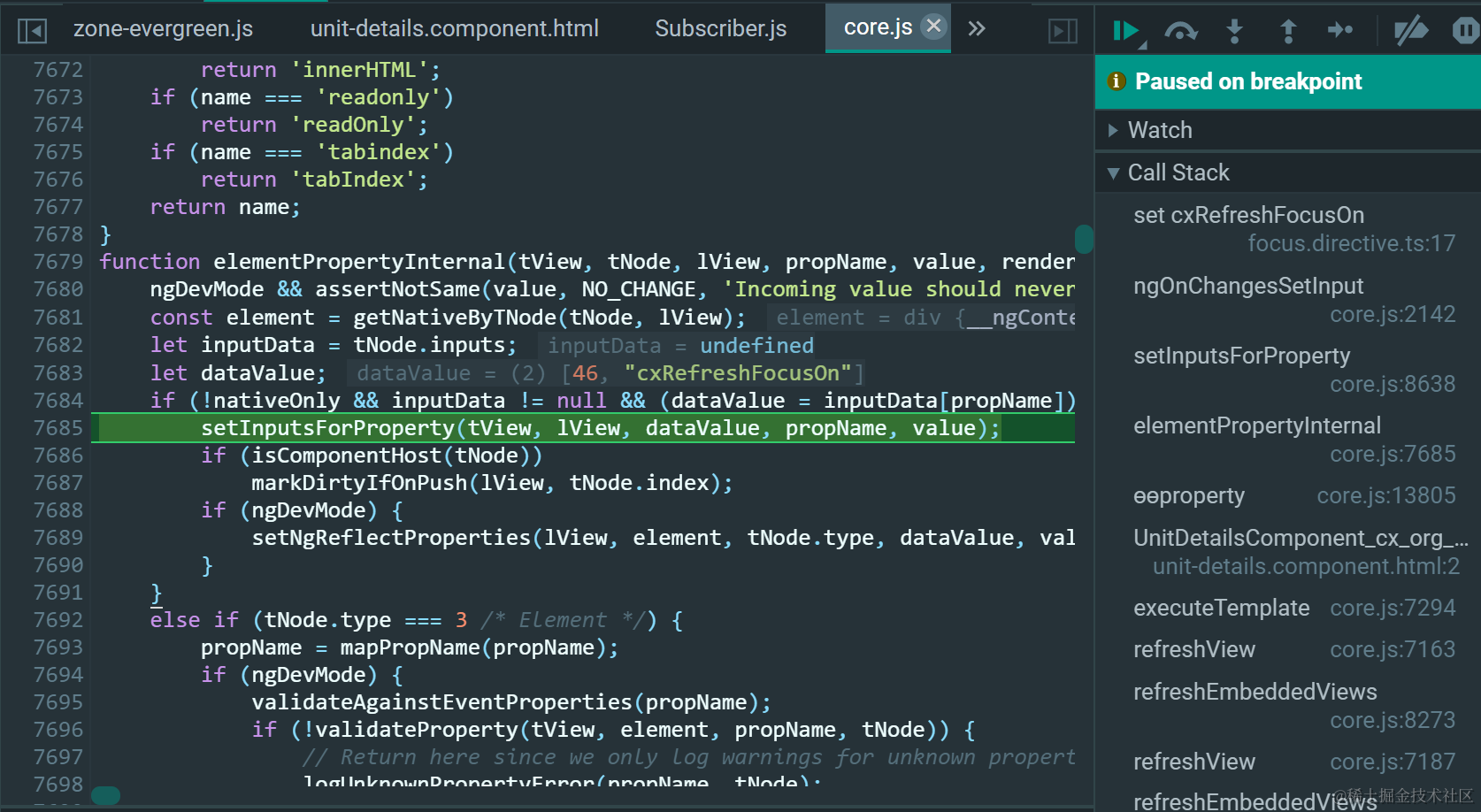

这里的highlight似乎有问题，应该是第三行被highlight才对：

function ngOnChangesSetInput(instance, value, publicName, privateName) {
    const simpleChangesStore = getSimpleChangesStore(instance) ||
        setSimpleChangesStore(instance, { previous: EMPTY_OBJ, current: null });
    const current = simpleChangesStore.current || (simpleChangesStore.current = {});
    const previous = simpleChangesStore.previous;
    const declaredName = this.declaredInputs[publicName];
    const previousChange = previous[declaredName];
    current[declaredName] = new SimpleChange(previousChange && previousChange.currentValue, value, previous === EMPTY_OBJ);
    instance[privateName] = value;
}

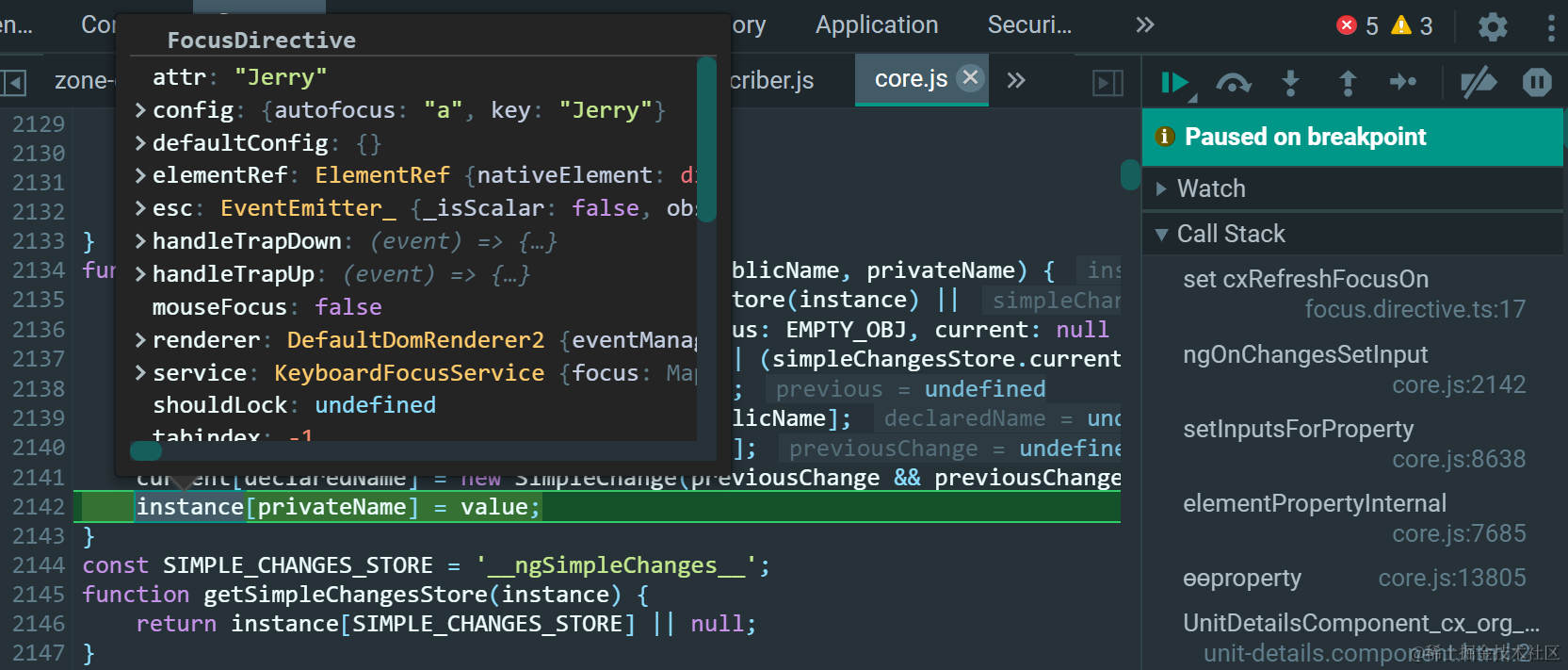

instance：FocusDirective

这个__ngSimpleChanges__应该不能被应用程序使用：
