rxjs of操作符生成的Observable对象的执行详细分析

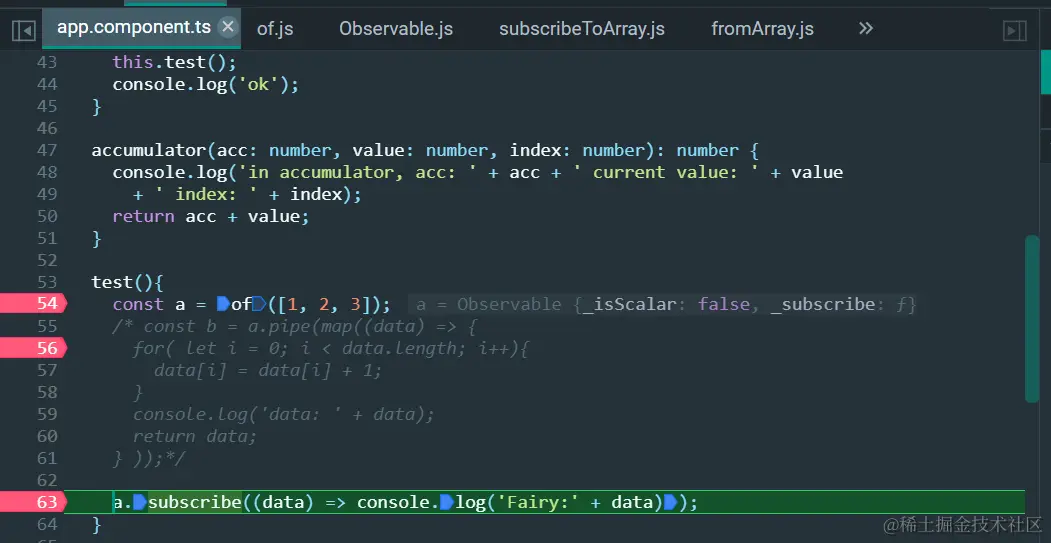

代码：

const a = of([1, 2, 3]);
a.subscribe((data) => console.log('Fairy:' + data));

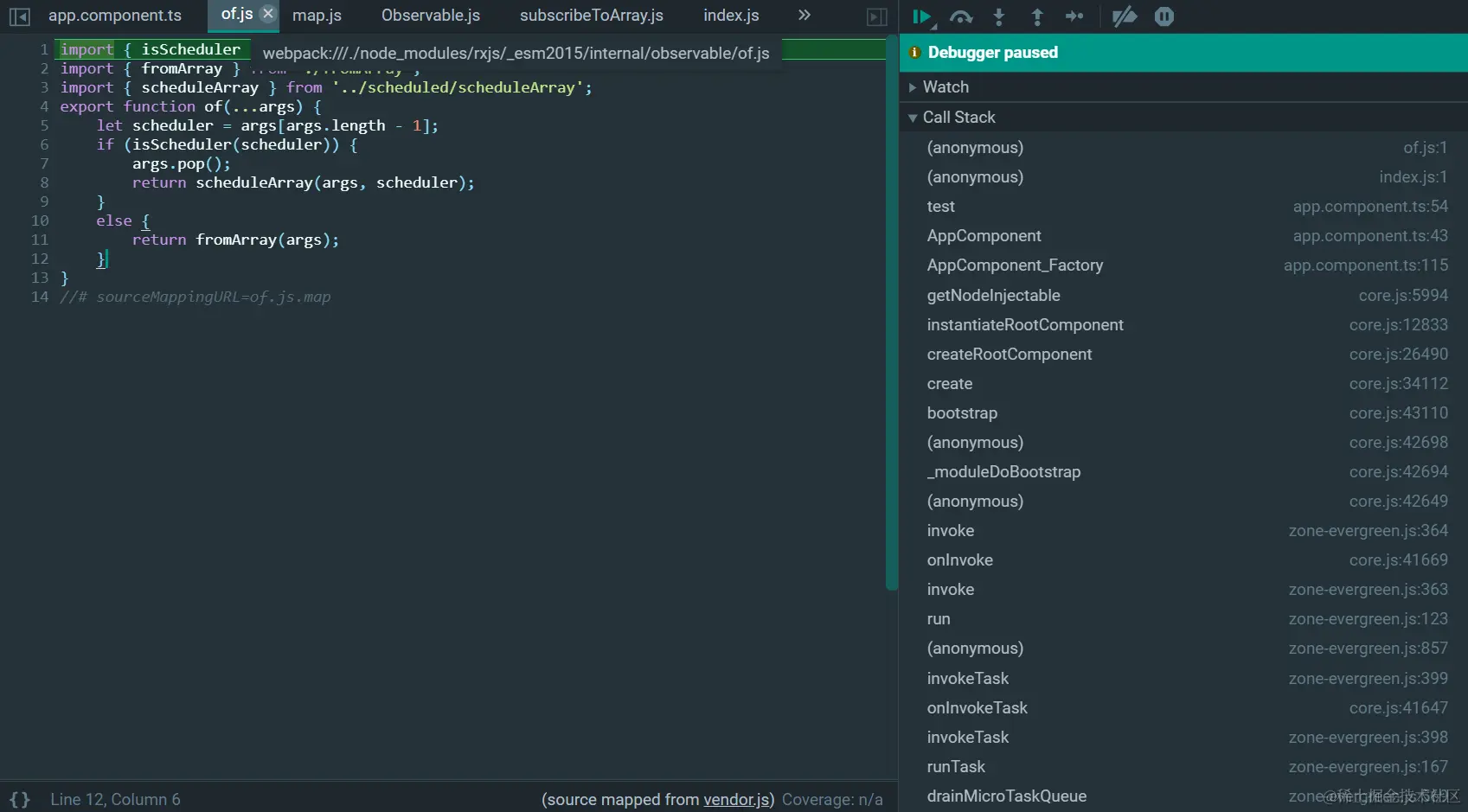

单步调试，首先执行of所在的index.ts:

of.js的实现很简单：

import { isScheduler } from '../util/isScheduler';
import { fromArray } from './fromArray';
import { scheduleArray } from '../scheduled/scheduleArray';
export function of(...args) {
    let scheduler = args[args.length - 1];
    if (isScheduler(scheduler)) {
        args.pop();
        return scheduleArray(args, scheduler);
    }
    else {
        return fromArray(args);
    }
}
//# sourceMappingURL=of.js.map

没有scheduler，走fromArray这条路：

fromArray.js的实现：

import { Observable } from '../Observable';
import { subscribeToArray } from '../util/subscribeToArray';
import { scheduleArray } from '../scheduled/scheduleArray';
export function fromArray(input, scheduler) {
    if (!scheduler) {
        return new Observable(subscribeToArray(input));
    }
    else {
        return scheduleArray(input, scheduler);
    }
}
//# sourceMappingURL=fromArray.js.map

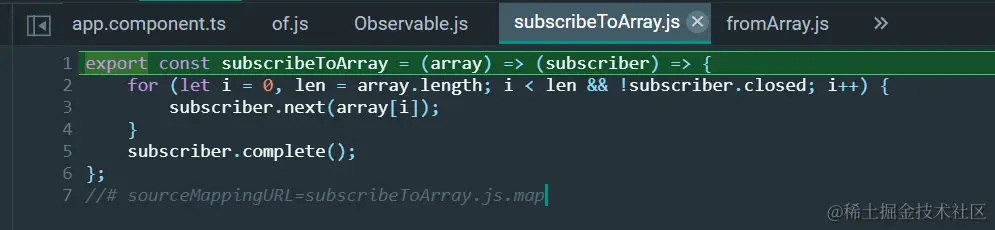

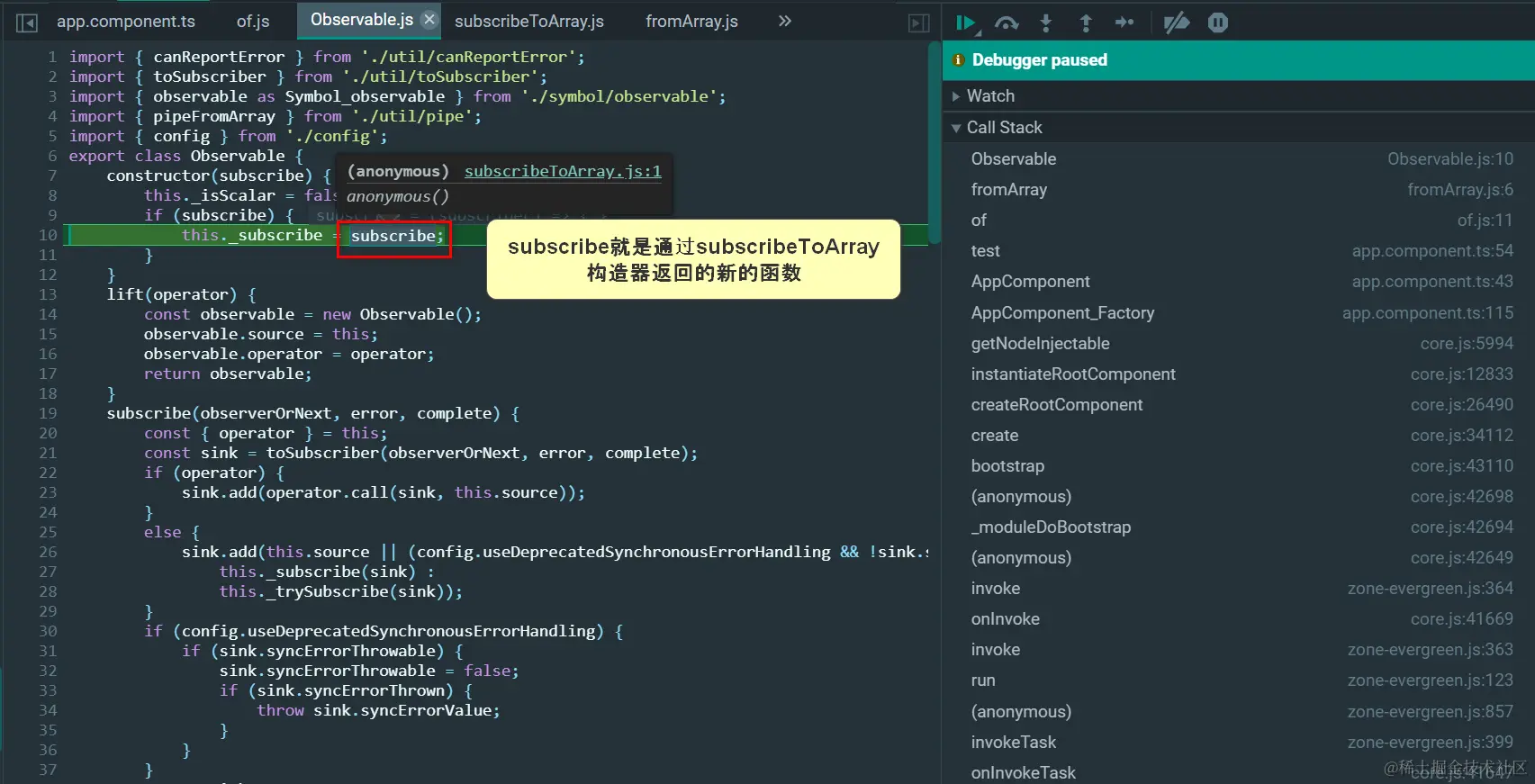

这个subscribeToArray是一个函数构造器，接收一个数组，返回一个新的函数：

export const subscribeToArray = (array) => (subscriber) => {
    for (let i = 0, len = array.length; i < len && !subscriber.closed; i++) {
        subscriber.next(array[i]);
    }
    subscriber.complete();
};
//# sourceMappingURL=subscribeToArray.js.map

该函数和我们在应用代码里调用Observable对象的subscribe方法时传入的回调函数有何区别？

继续往下调试。

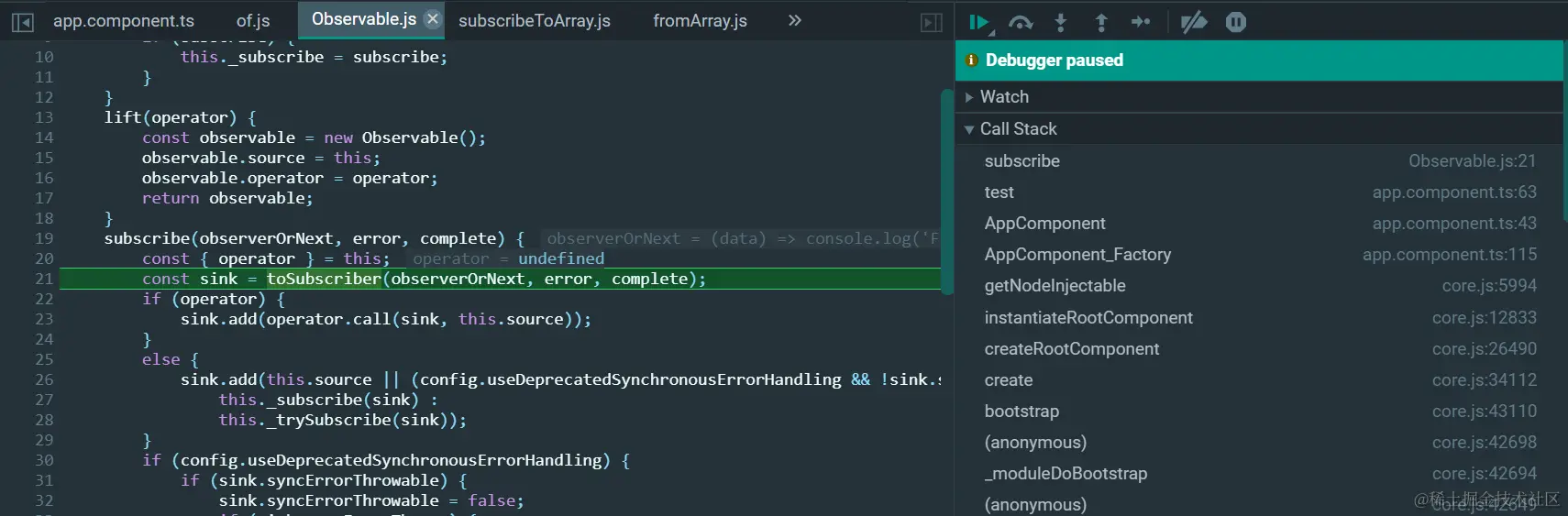

调用Observable对象的subscribe方法：

ObserverOrNext就是上图第63行的箭头函数，error和complete为undefined：

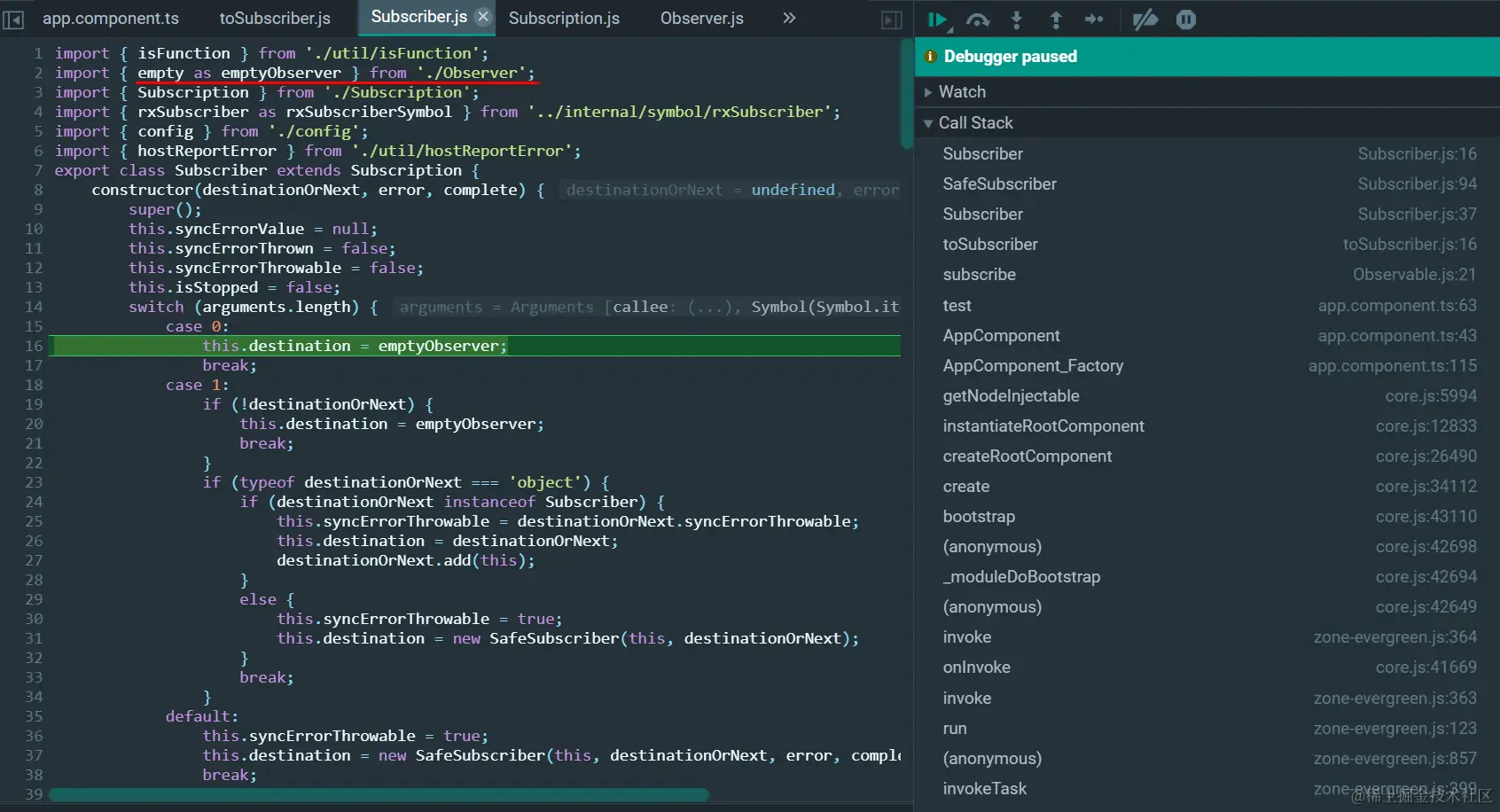

新建一个Subscriber对象：

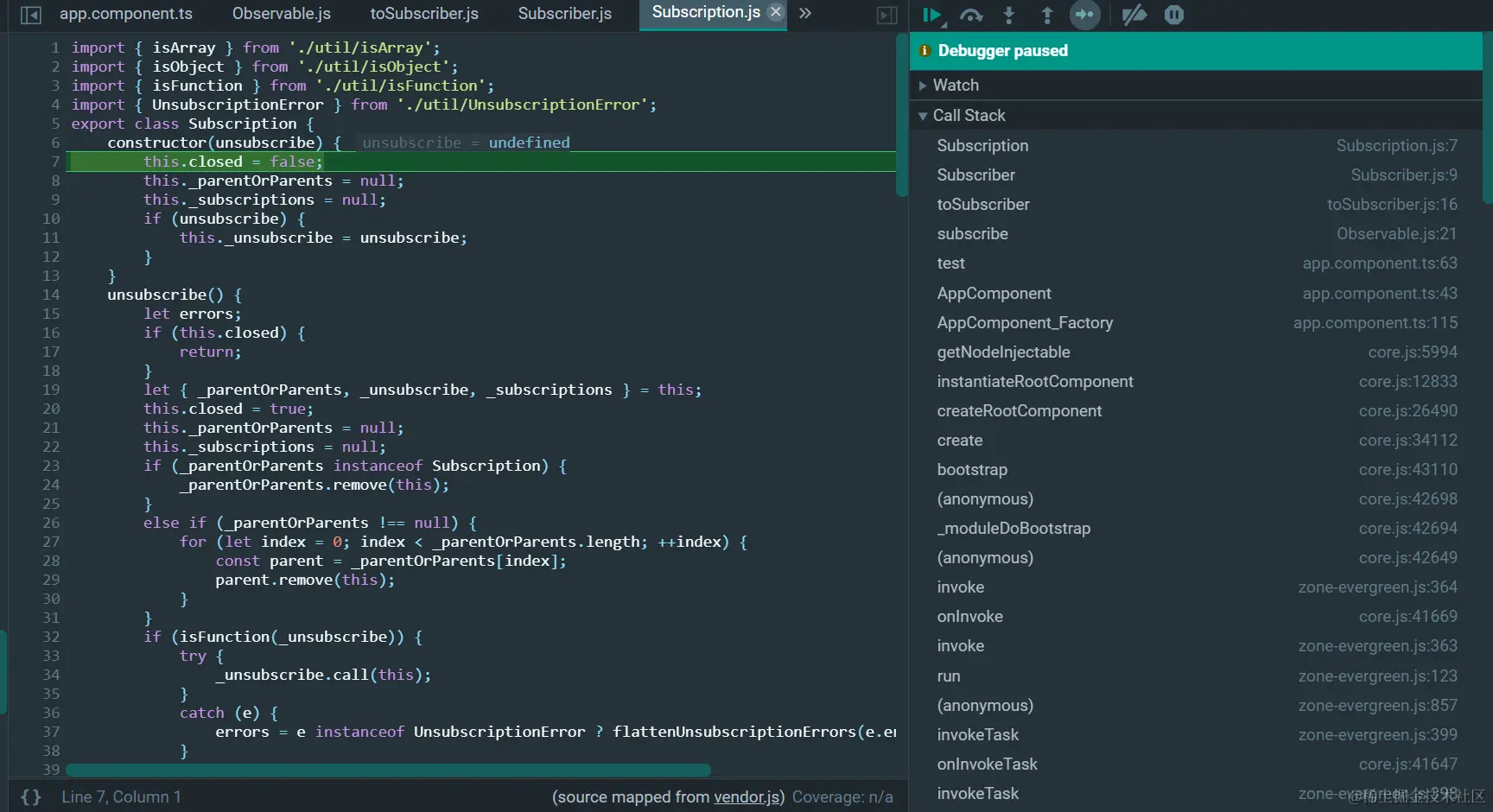

subscriber的父类是subscription：

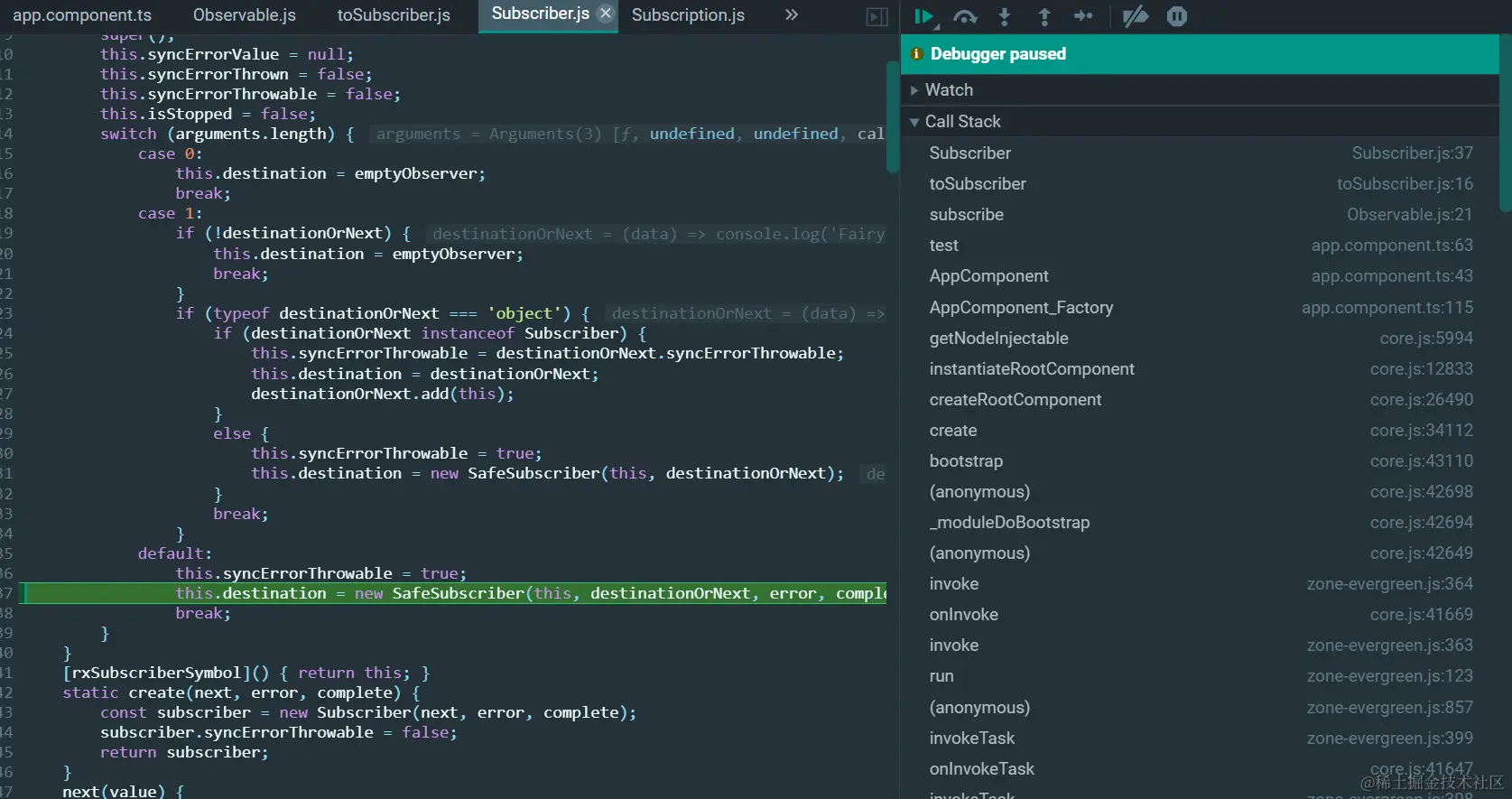

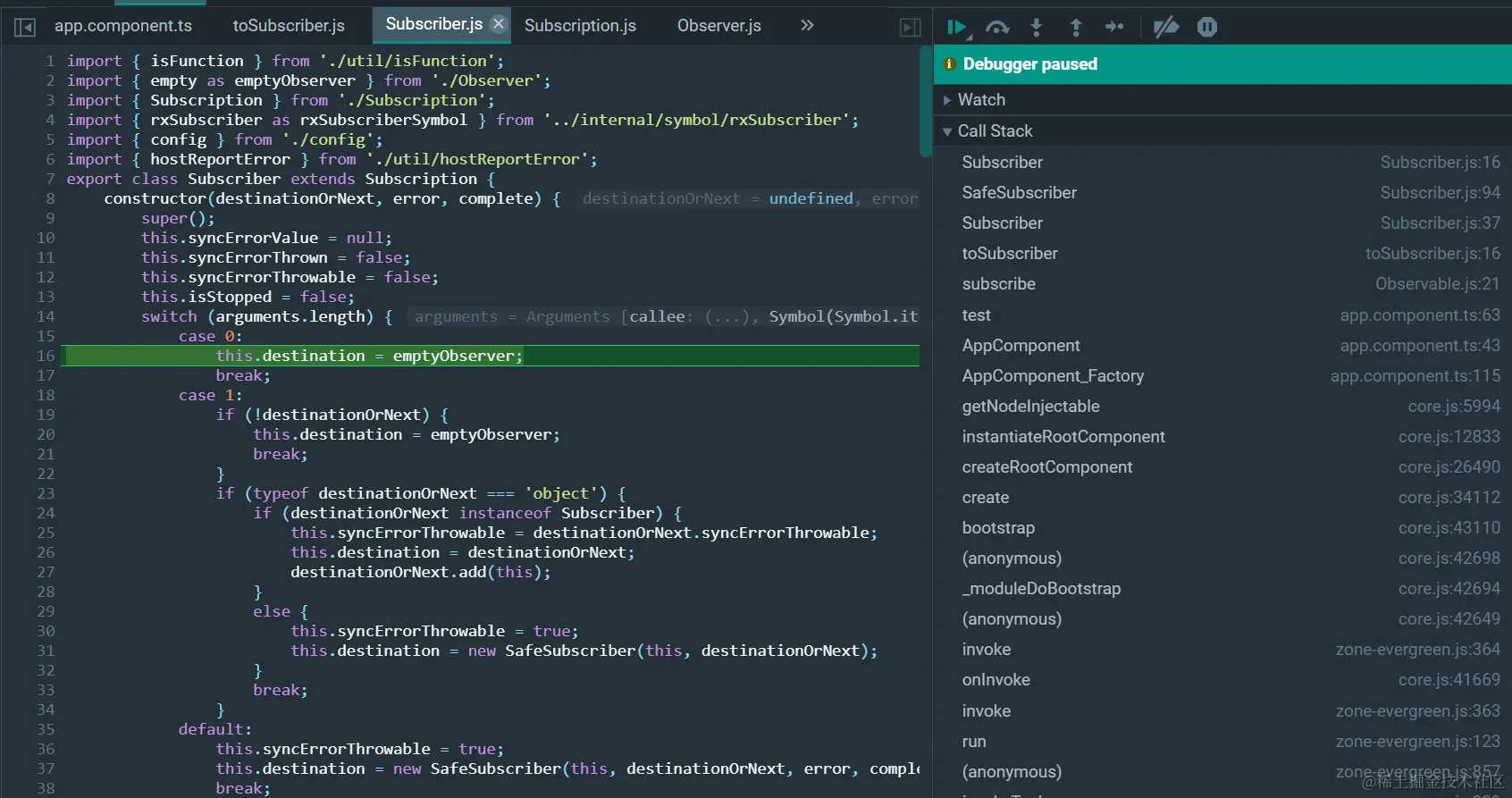

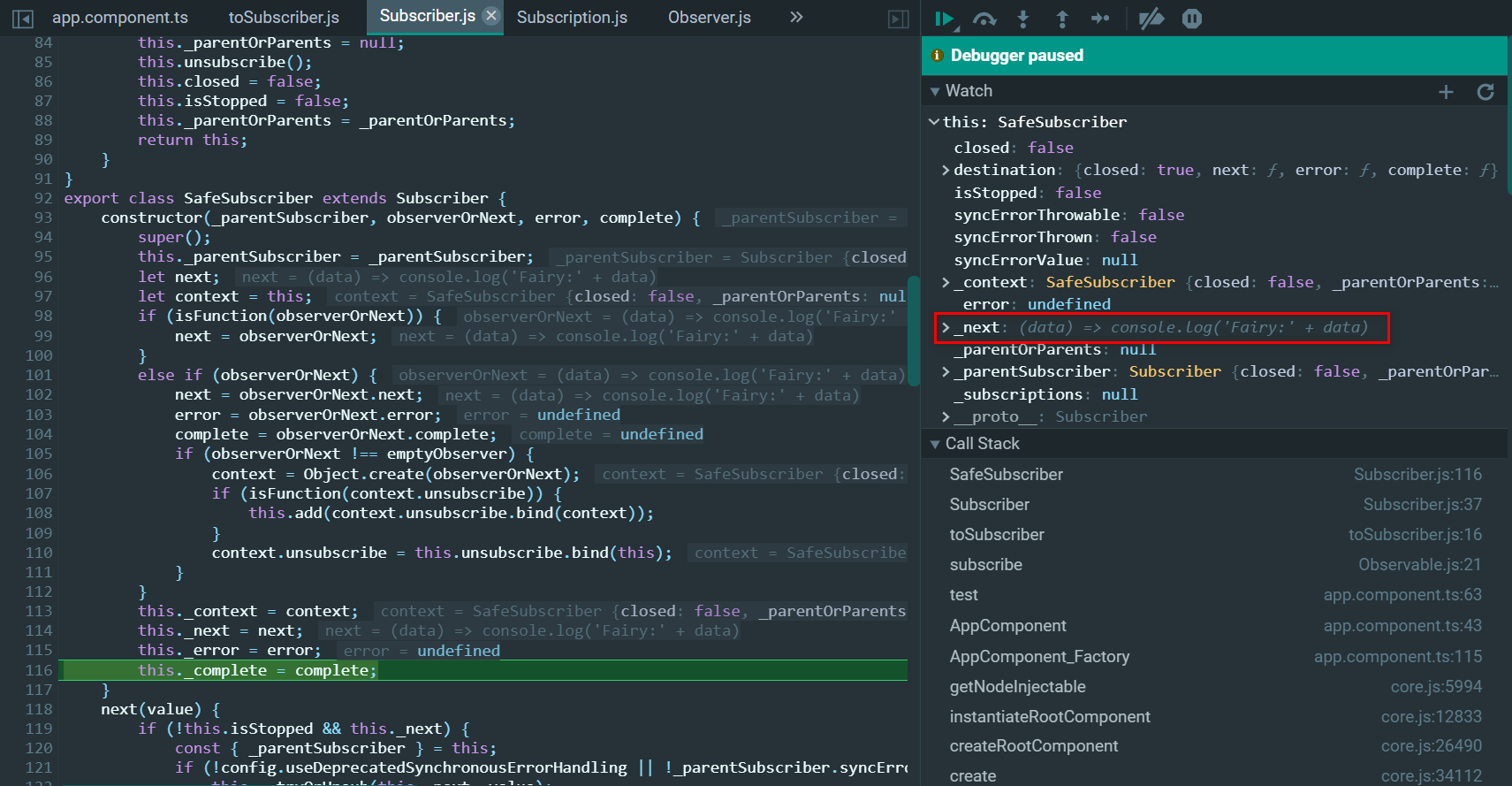

subscriber的destination是一个SafeSubscriber：

SafeSubscriber也是一个Subscriber：

这个emptyObservable啥实现也没有：

import { config } from './config';
import { hostReportError } from './util/hostReportError';
export const empty = {
    closed: true,
    next(value) { },
    error(err) {
        if (config.useDeprecatedSynchronousErrorHandling) {
            throw err;
        }
        else {
            hostReportError(err);
        }
    },
    complete() { }
};
//# sourceMappingURL=Observer.js.map
ExtensibilityExtensibility

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/b92a7602893c45f58a612d671ba29094~tplv-k3u1fbpfcp-zoom-1.image)

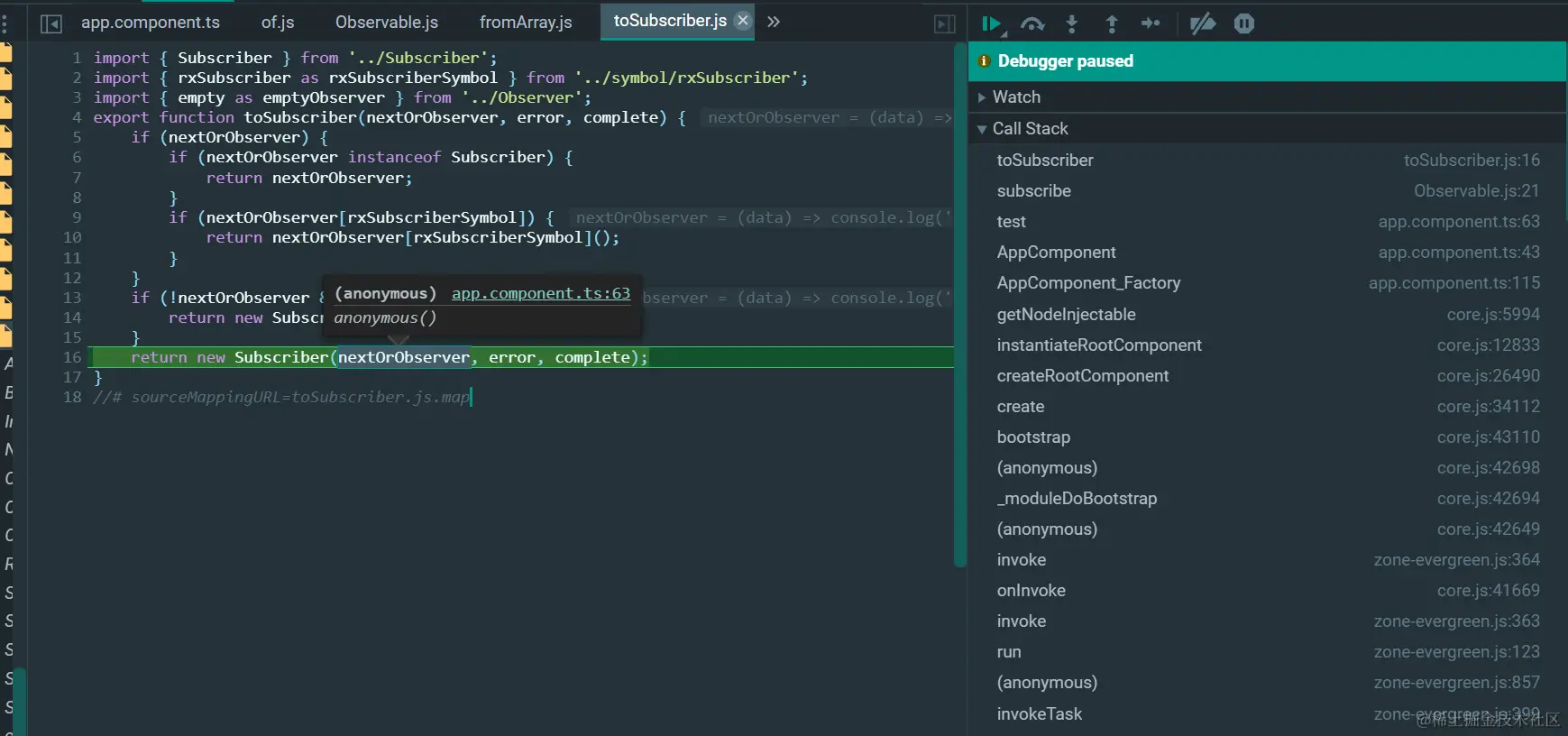

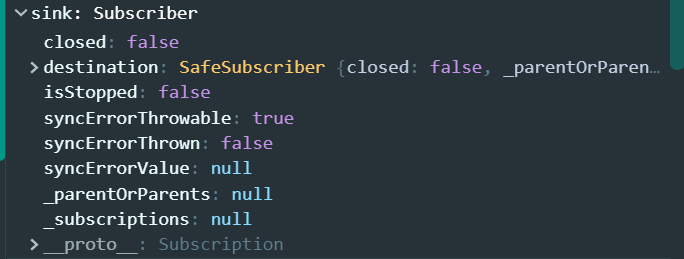

所以toSubscriber返回的实际是一个subscriber对象：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/31ca5643ac6a4c16ac6f9987cf3fe7f7~tplv-k3u1fbpfcp-zoom-1.image)
![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/3892385a6f9b49289b5acbbcf15ec7ea~tplv-k3u1fbpfcp-zoom-1.image)

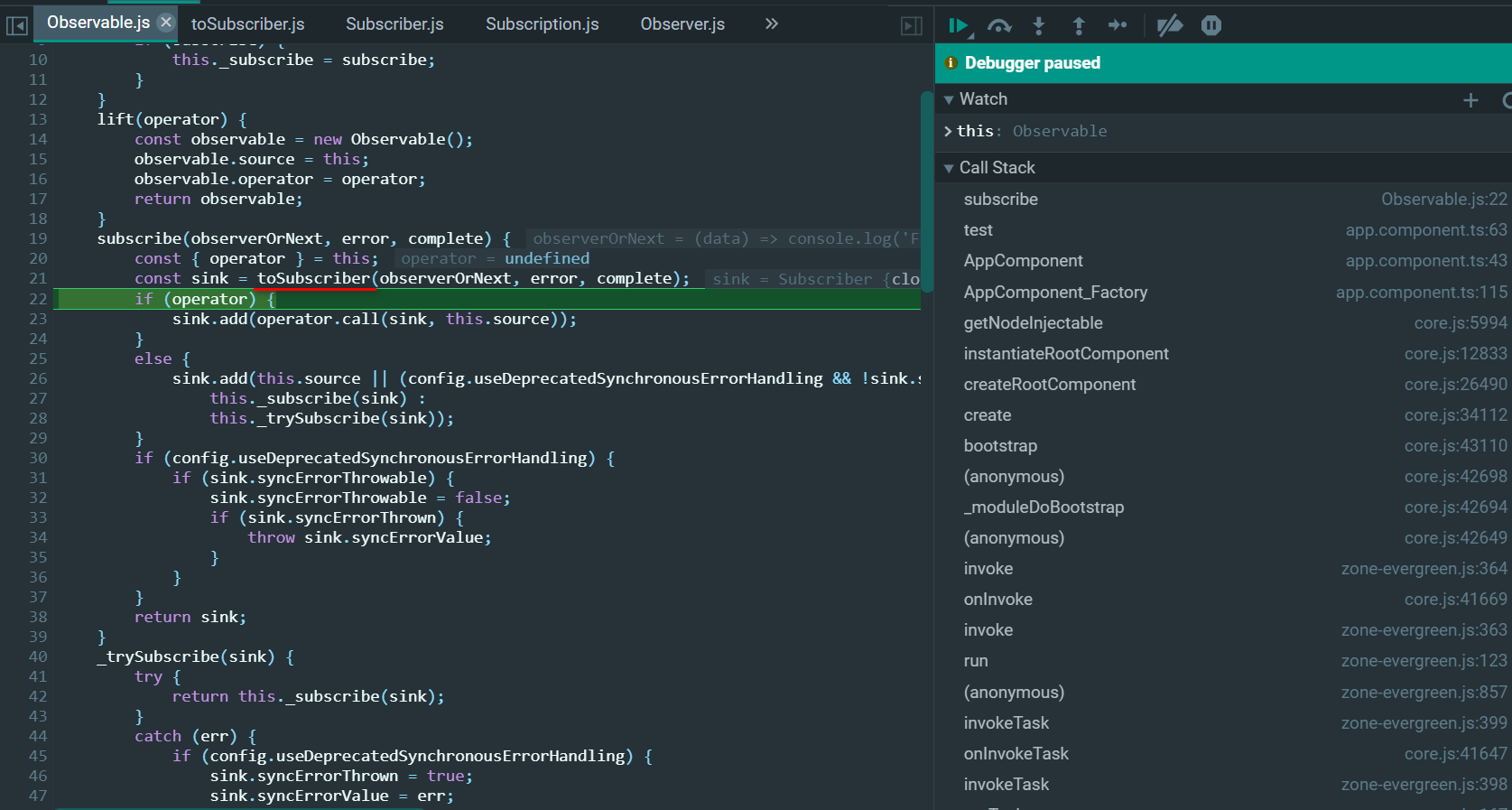

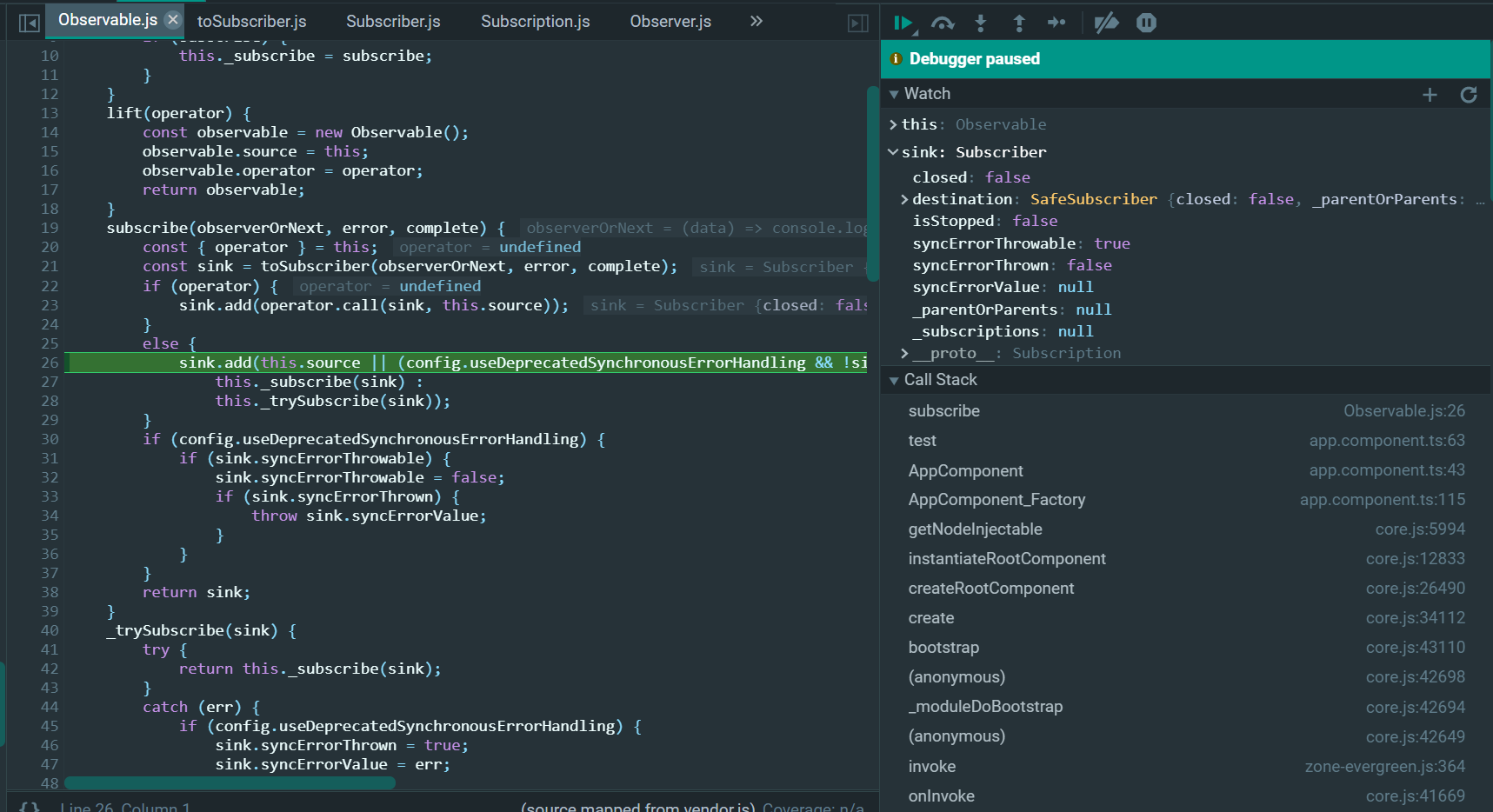

首先调用subscriber对象的add方法，目的是通过这个三元表达式，判断到底应该调用subscribe方法，还是trySubscribe方法：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/81740a36c5b0472db981725ec4f5a419~tplv-k3u1fbpfcp-zoom-1.image)


在我的Angular10，执行后者：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/e313705184824566ac4e70ac299fc0f9~tplv-k3u1fbpfcp-zoom-1.image)

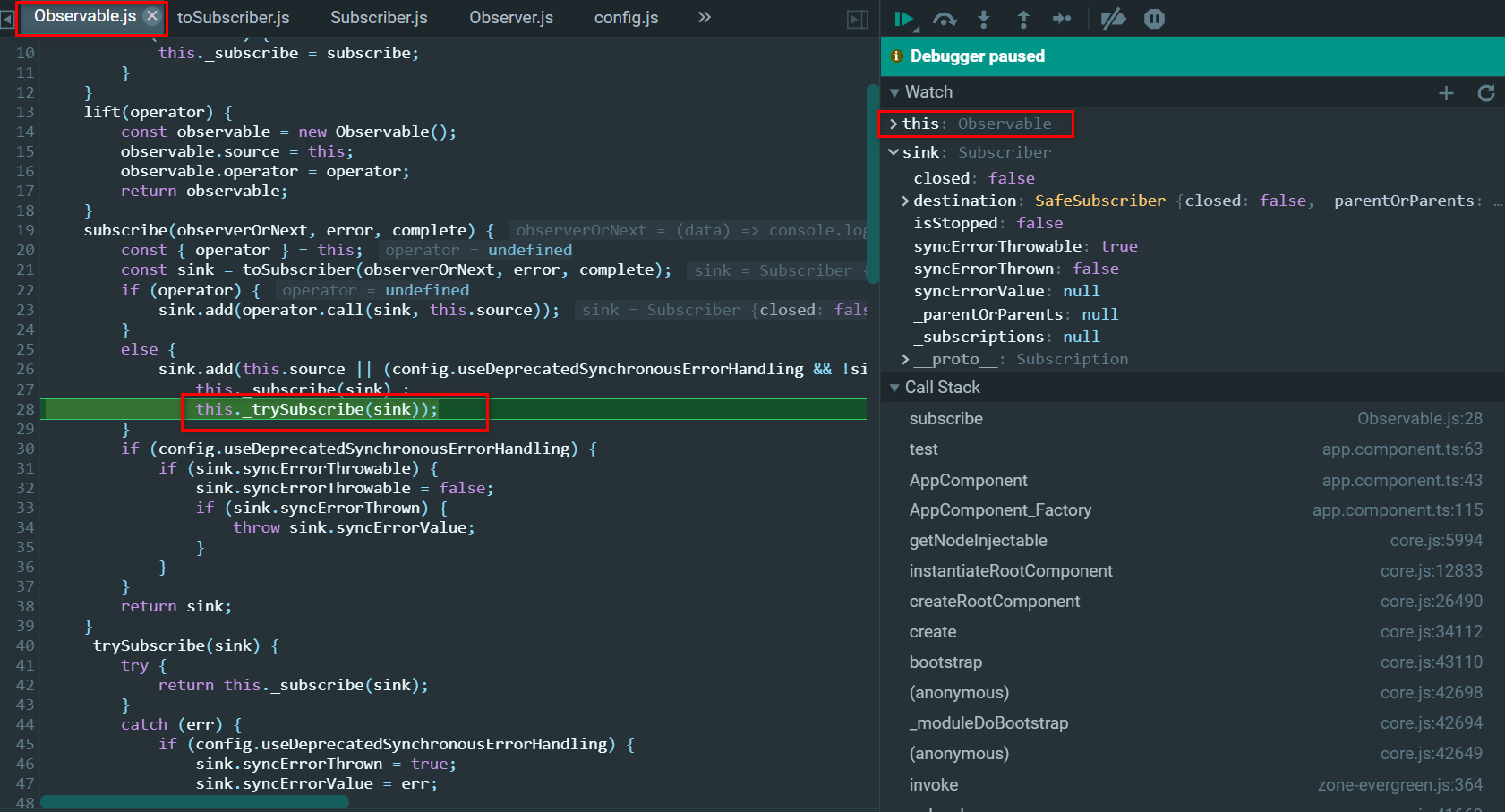

记住这个语义：Observable的subscribe方法，输入参数为subscriber：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/7a029f905149483ea3d19385a66884ed~tplv-k3u1fbpfcp-zoom-1.image)

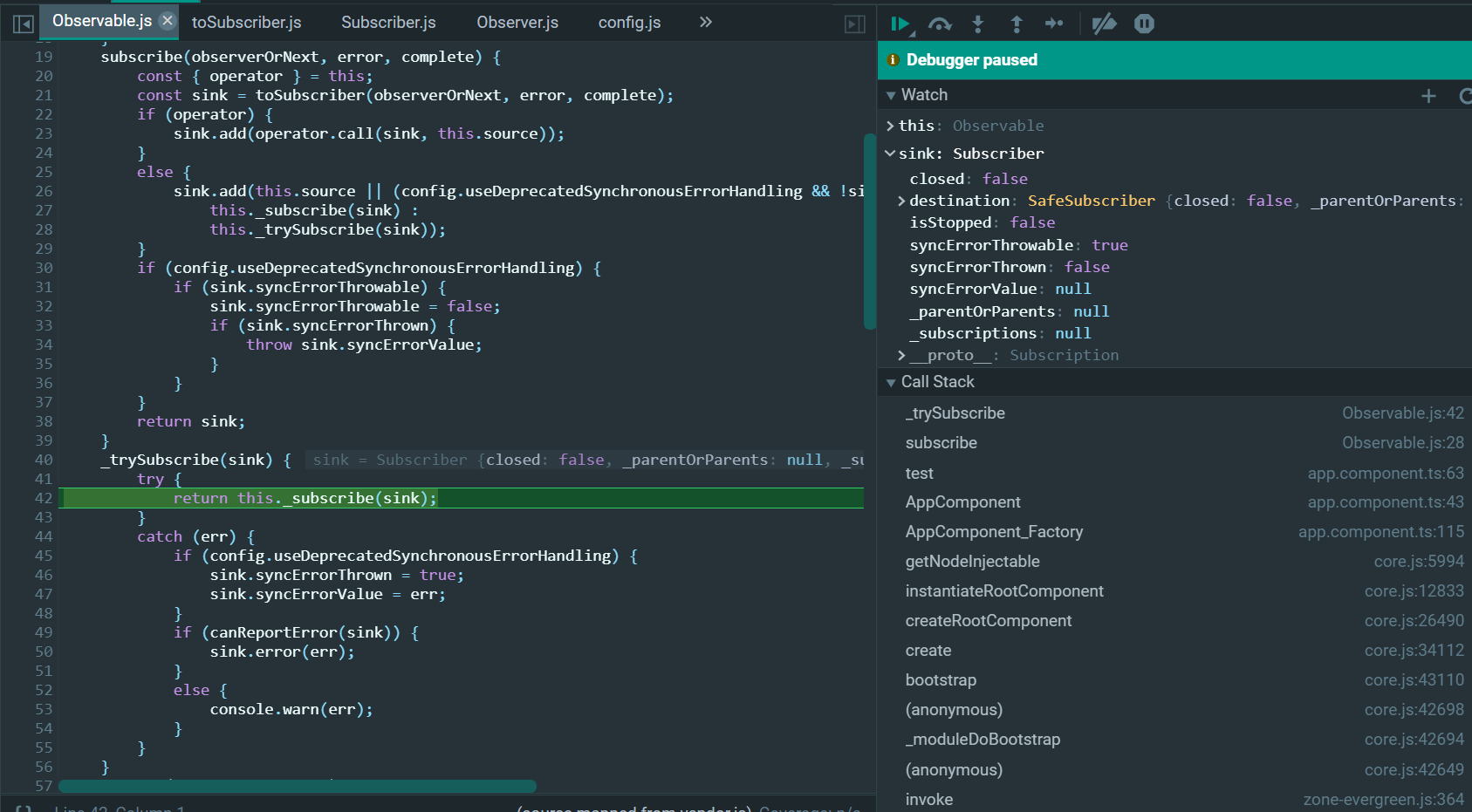

_trySubscribe调用_subscribe:

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/3d9ea8f687f84fb68a9b1510246aa17a~tplv-k3u1fbpfcp-zoom-1.image)

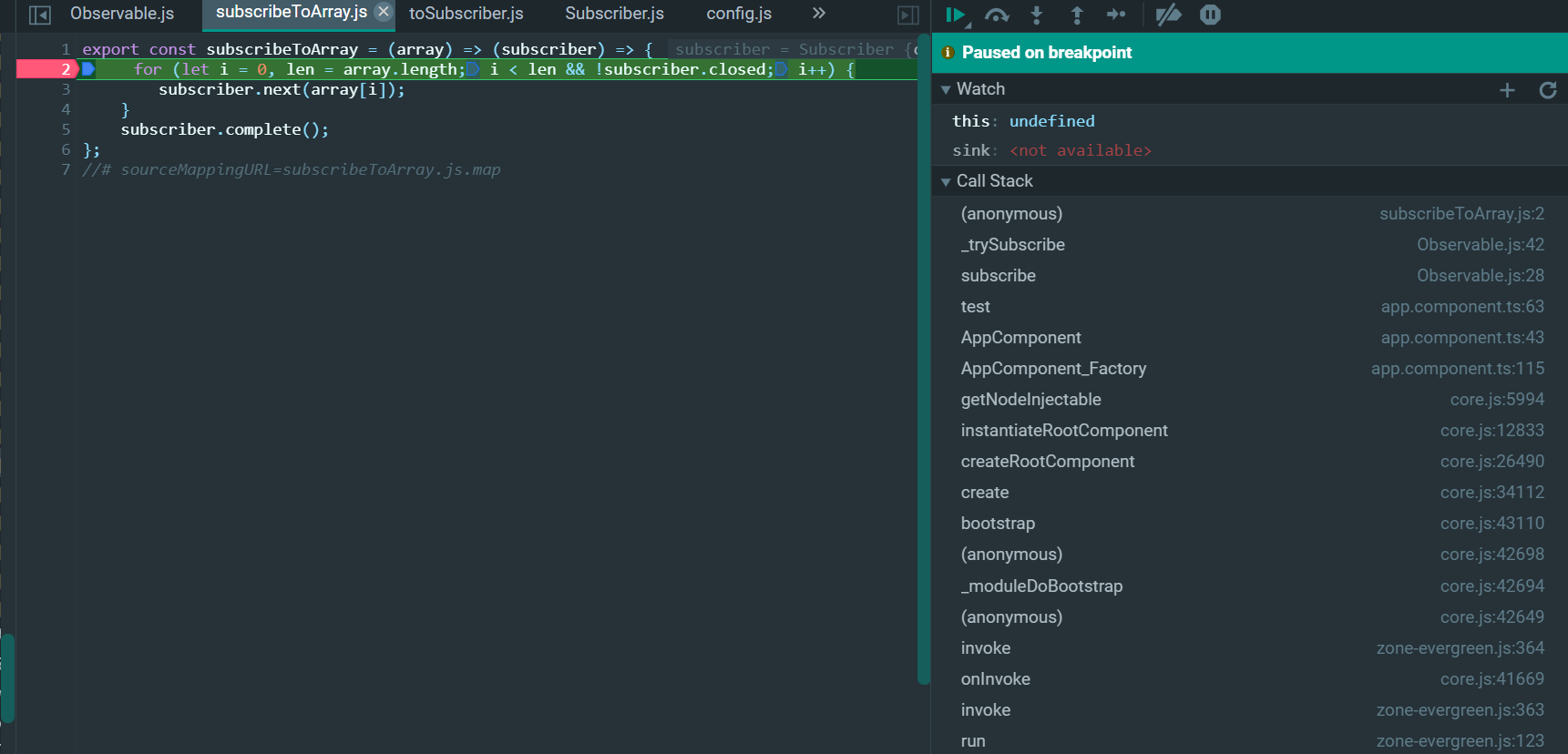

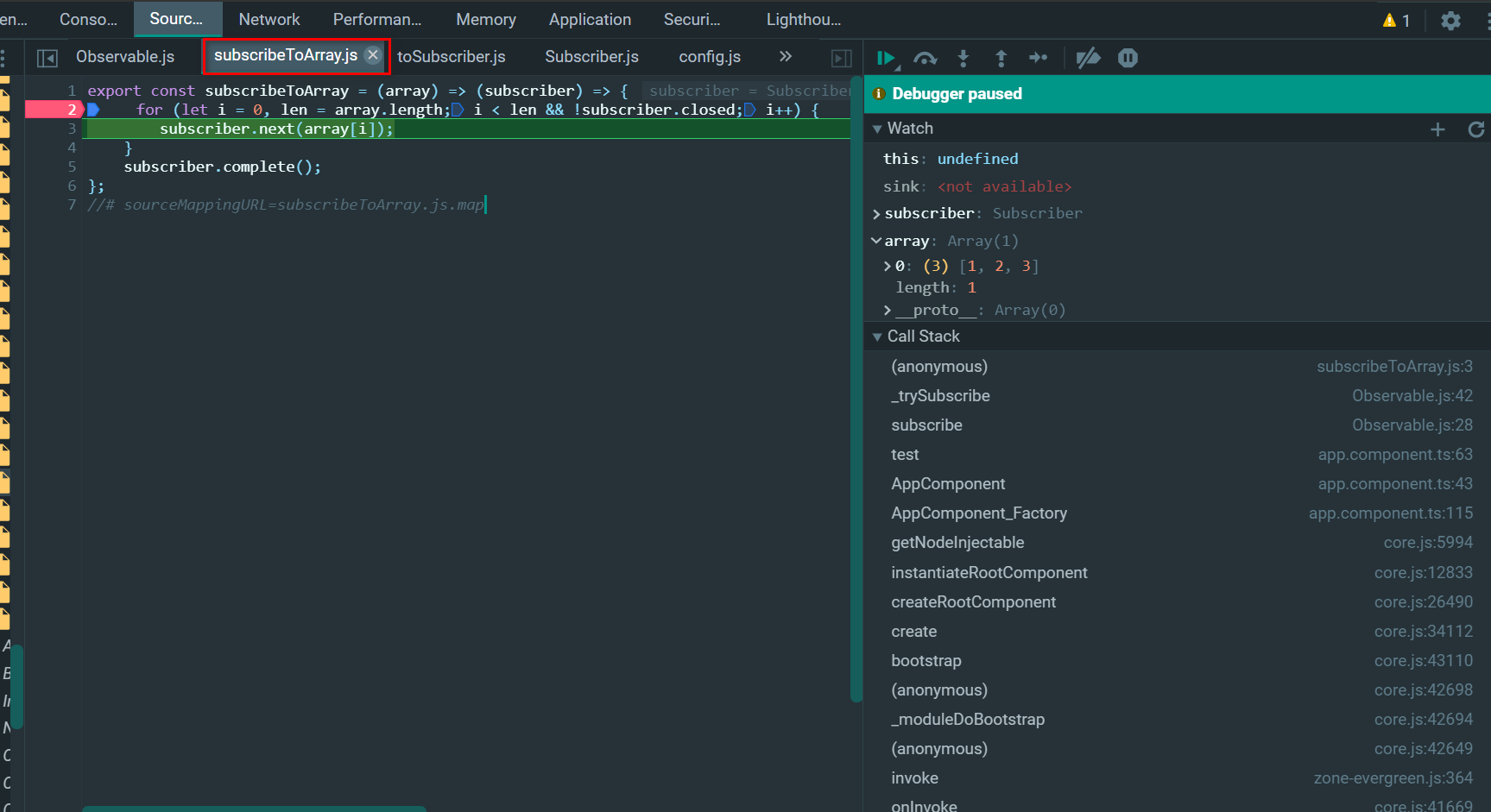

然后就执行到了之前用subscribeToArray返回的function内部：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/f8dc1864fc654abf959736a791484926~tplv-k3u1fbpfcp-zoom-1.image)

注意在这个上下文里，我们既有输入，又有应用程序传入的subscribe函数，因此可以调用next了：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/49521925fd3544a3aa778b231ce623fa~tplv-k3u1fbpfcp-zoom-1.image)
![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/7576609375ff47bd860caa739bb95856~tplv-k3u1fbpfcp-zoom-1.image)

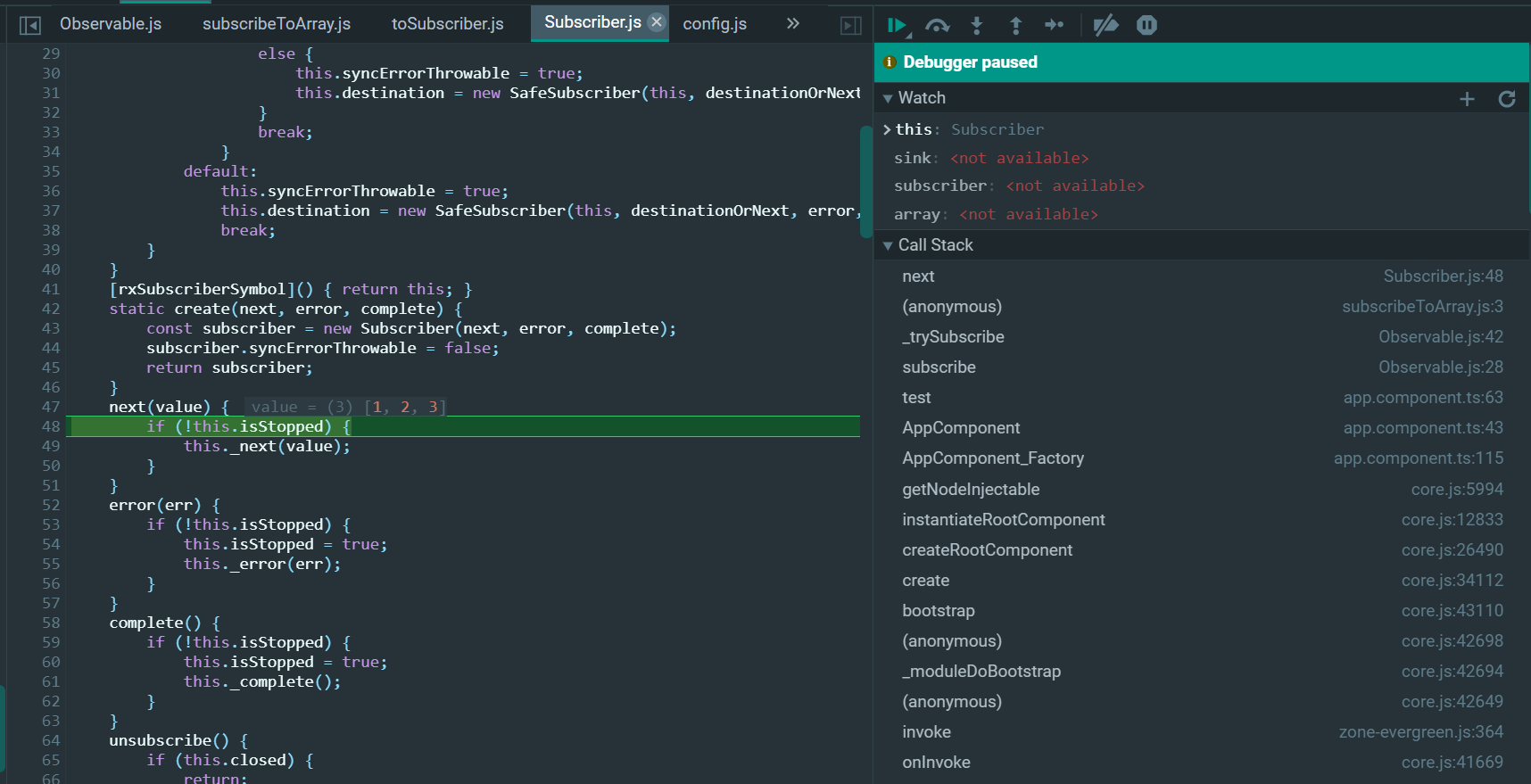

next和_next的区别就在于有个this.isStopped的判断：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/8dbc8e0ace74428189cf065a4026b705~tplv-k3u1fbpfcp-zoom-1.image)

注意语义：Observable调用subscribe，而subscriber调用next.

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/a16a56eaf97745a1a428343504a97983~tplv-k3u1fbpfcp-zoom-1.image)

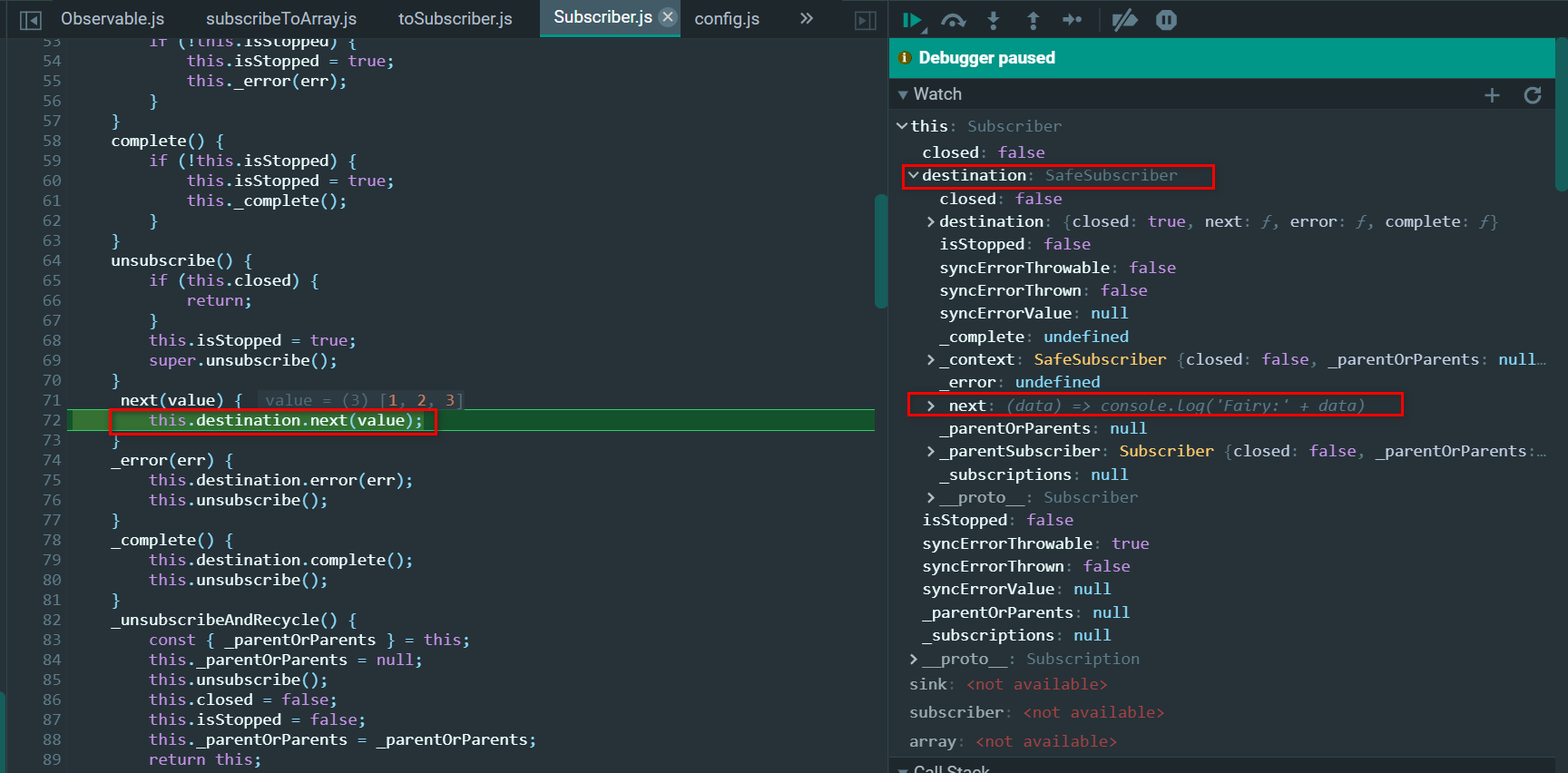

subscriber的desination里包含了应用程序传入的callback：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/aff6fa5905164378aa4fbcfc0f60d42f~tplv-k3u1fbpfcp-zoom-1.image)
![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/aa3c798e7a0b403080522ac913e7f440~tplv-k3u1fbpfcp-zoom-1.image)

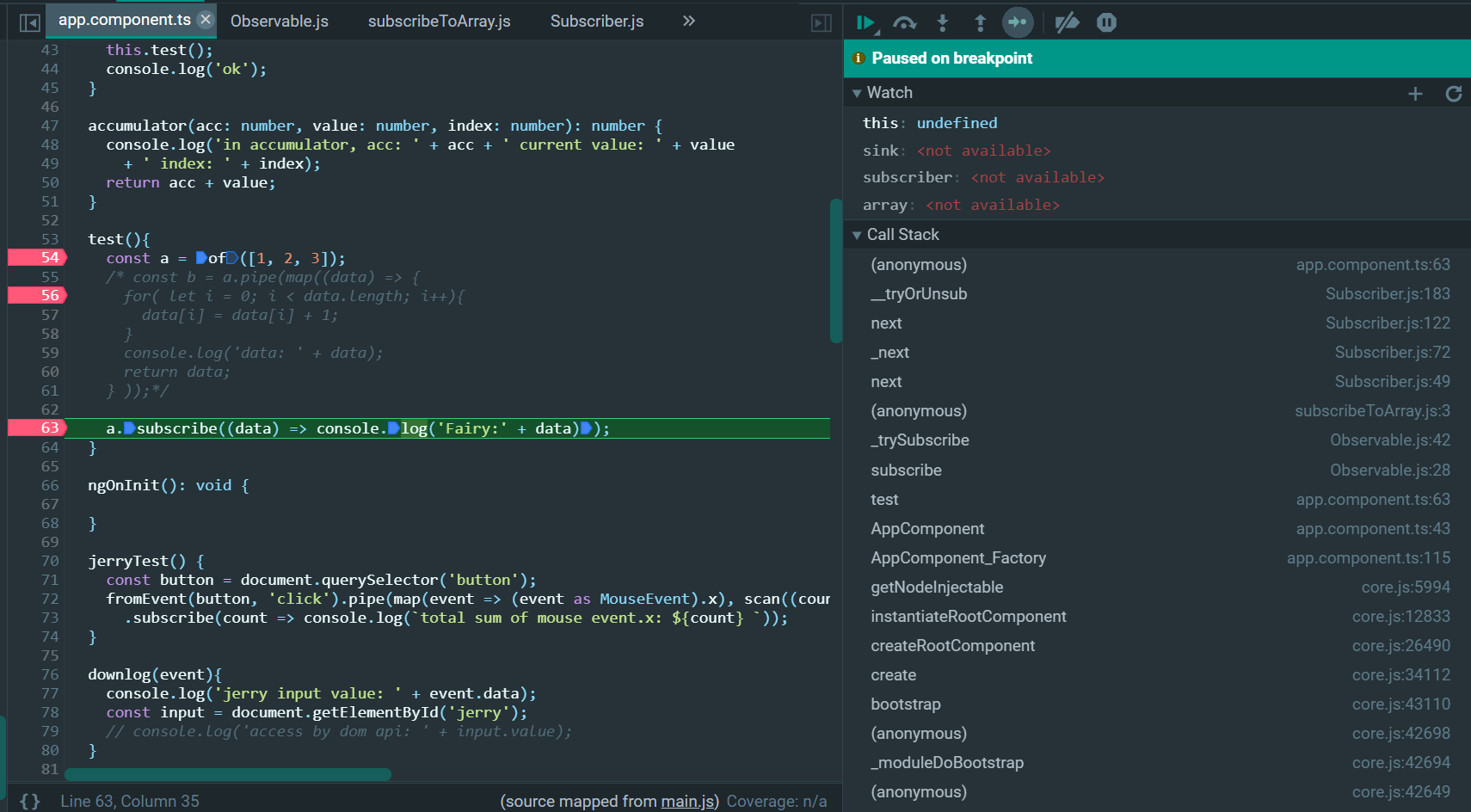

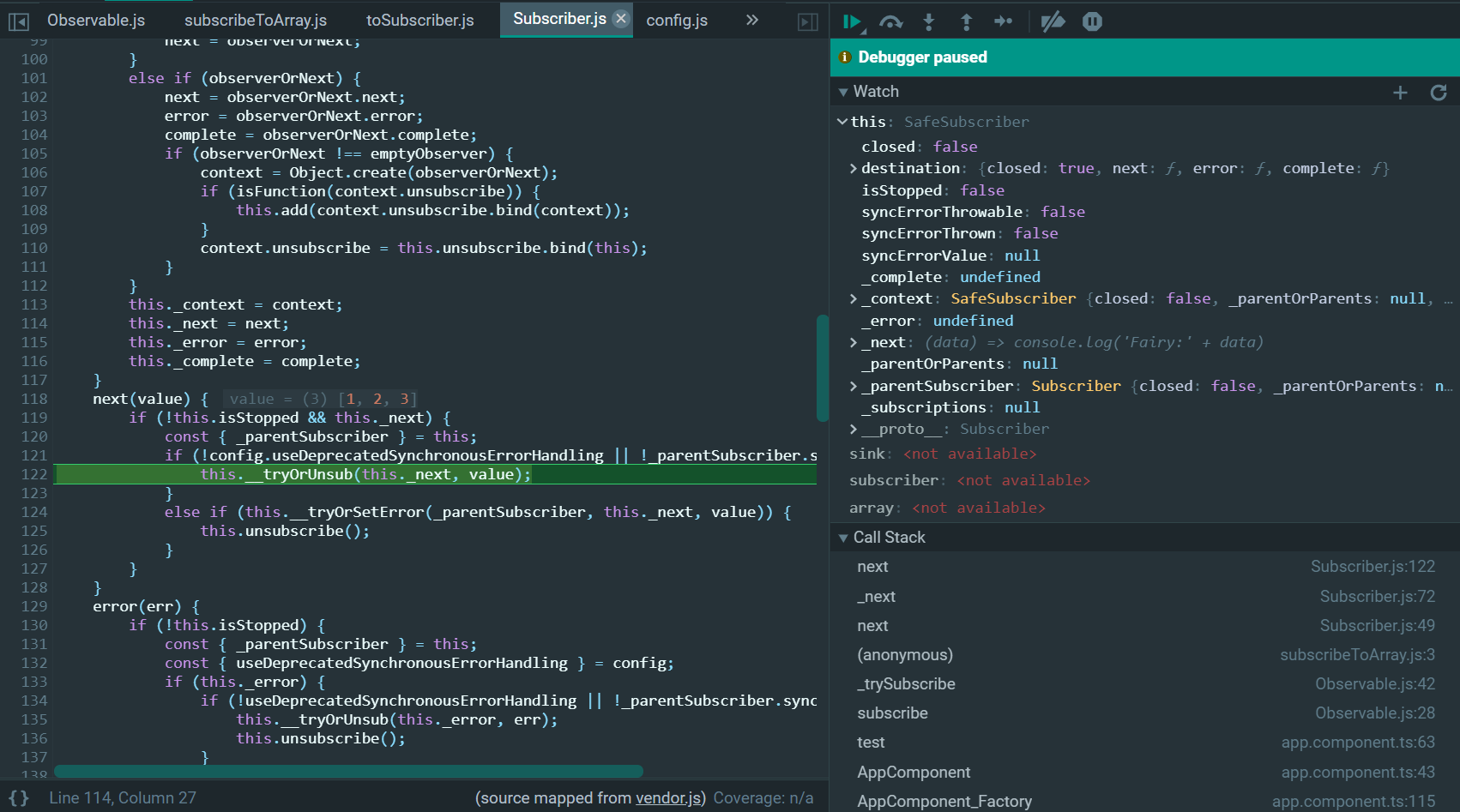

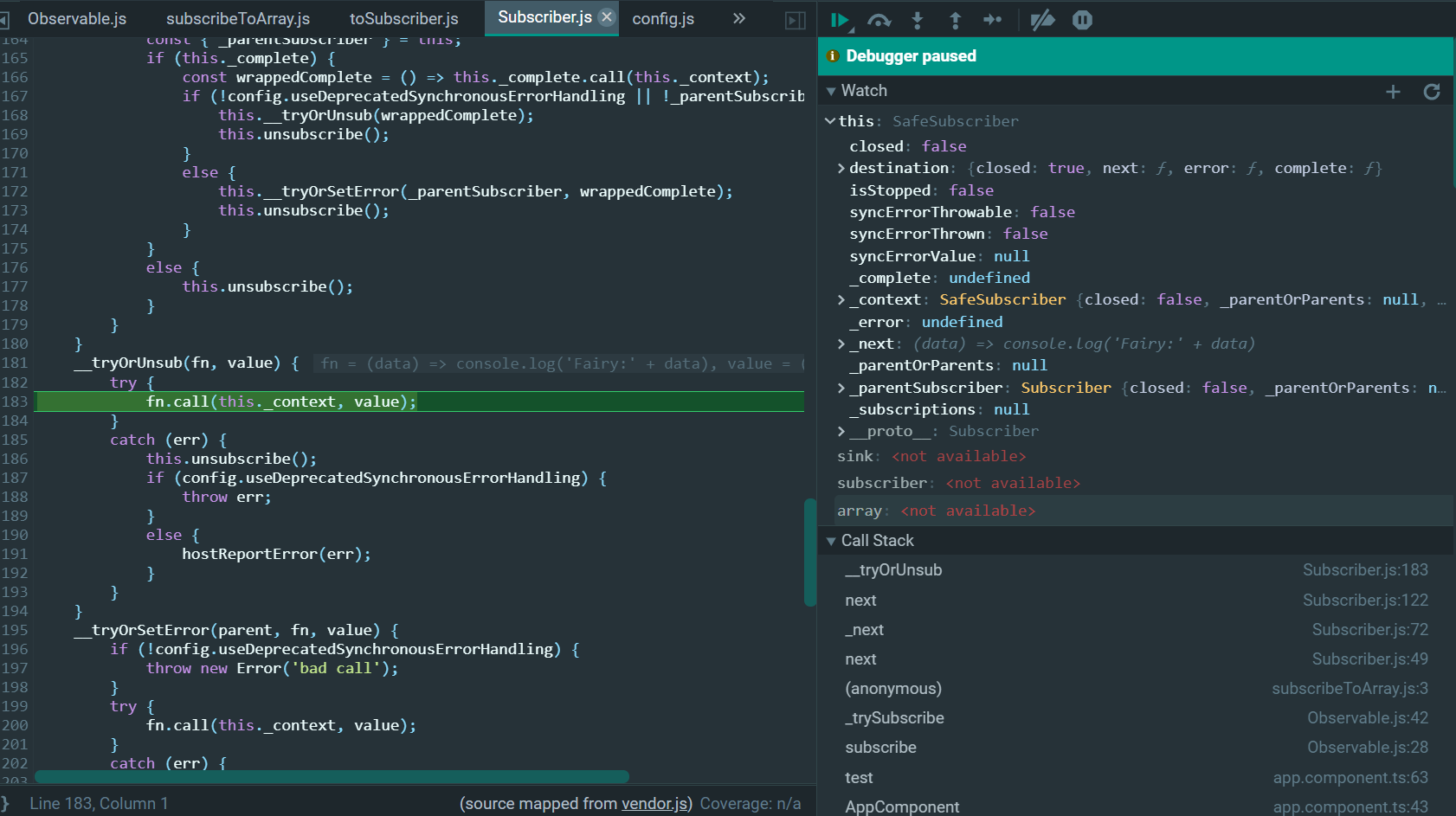

subscriber的_tryOrUnsub函数里，最终调用应用程序的callback：

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/dd72f82b09004c35822d588804298a74~tplv-k3u1fbpfcp-zoom-1.image)
![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/e89f86dd0e4448d381bf67ab2f3f0583~tplv-k3u1fbpfcp-zoom-1.image)

更多Jerry的原创文章，尽在："汪子熙":
