Quantum Distillation Literature Review

224 阅读3分钟

introduction

Quick Introduction

目标

  • 在只使用local operations and classical communication (LOCC)的前提下,将N个entangled state为ρ\rho的entangled pair的copies转化为少量近似纯净的Bell pairs。这样做的好处是能够减少channel noise引起的退相干。

各类distillation protocols的基础论文

  • C. H. Bennett, G. Brassard, S. Popescu, B. Schumacher, J. A. Smolin, and W. K. Wootters. Purification of noisy entanglement and faithful teleportation via noisy channels. Physical Review Letters, 76:722–725, 1996, link 1.
  • C. H. Bennett, D. P. DiVincenzo, J. A. Smolin, and W. K. Wootters. Mixed-state entanglement and quantum error correction. Physical Review A, 54:3824–3851, 1996, link 2.

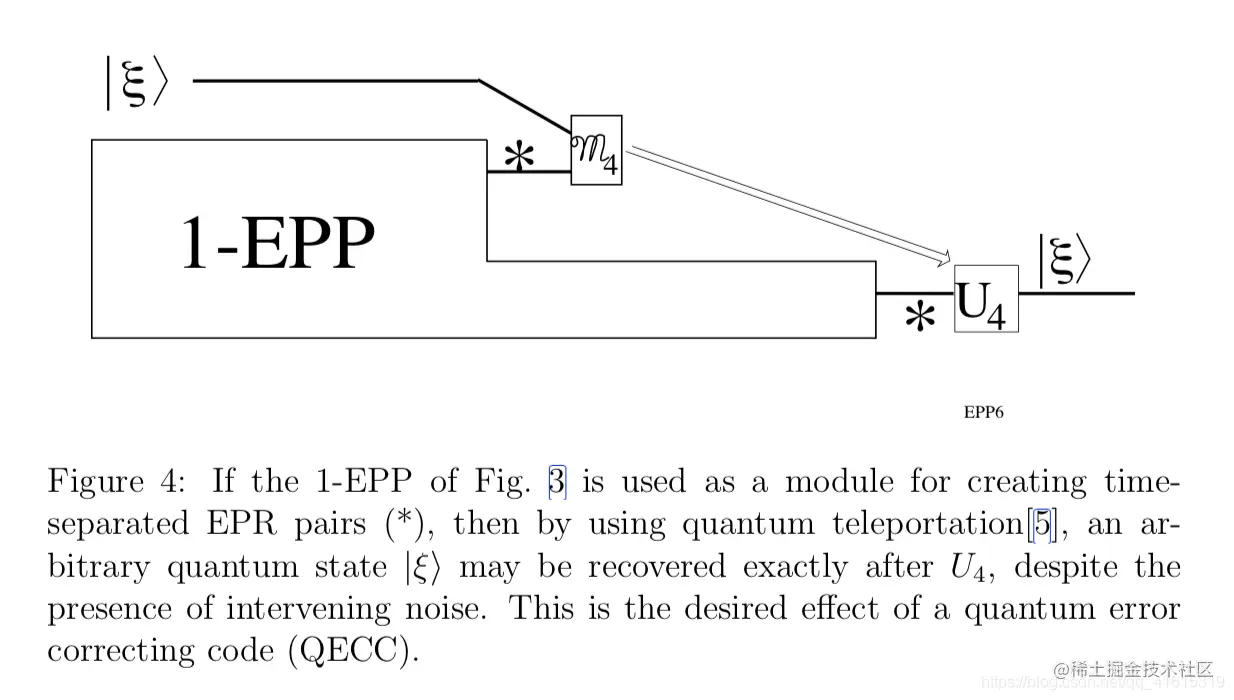

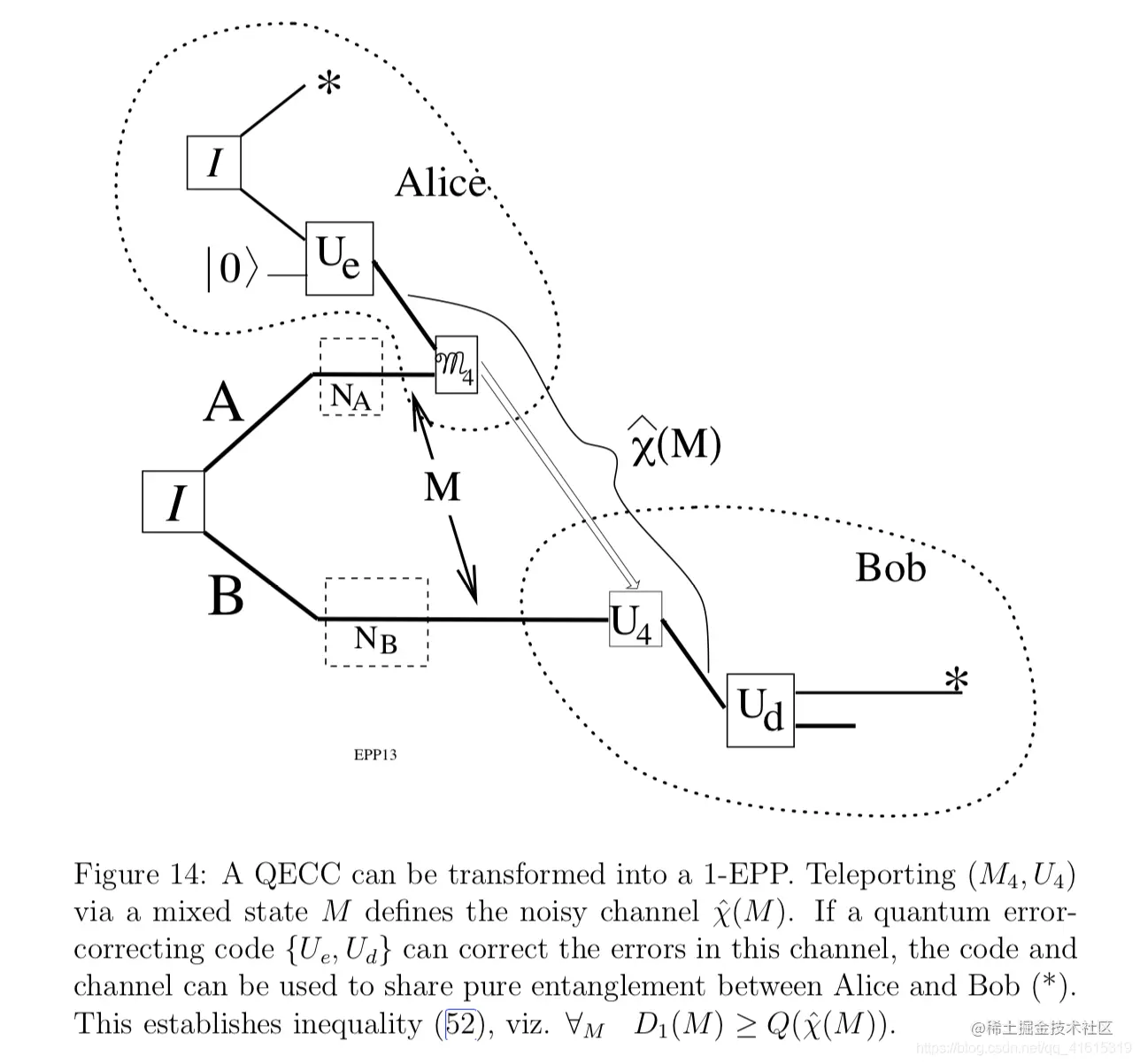

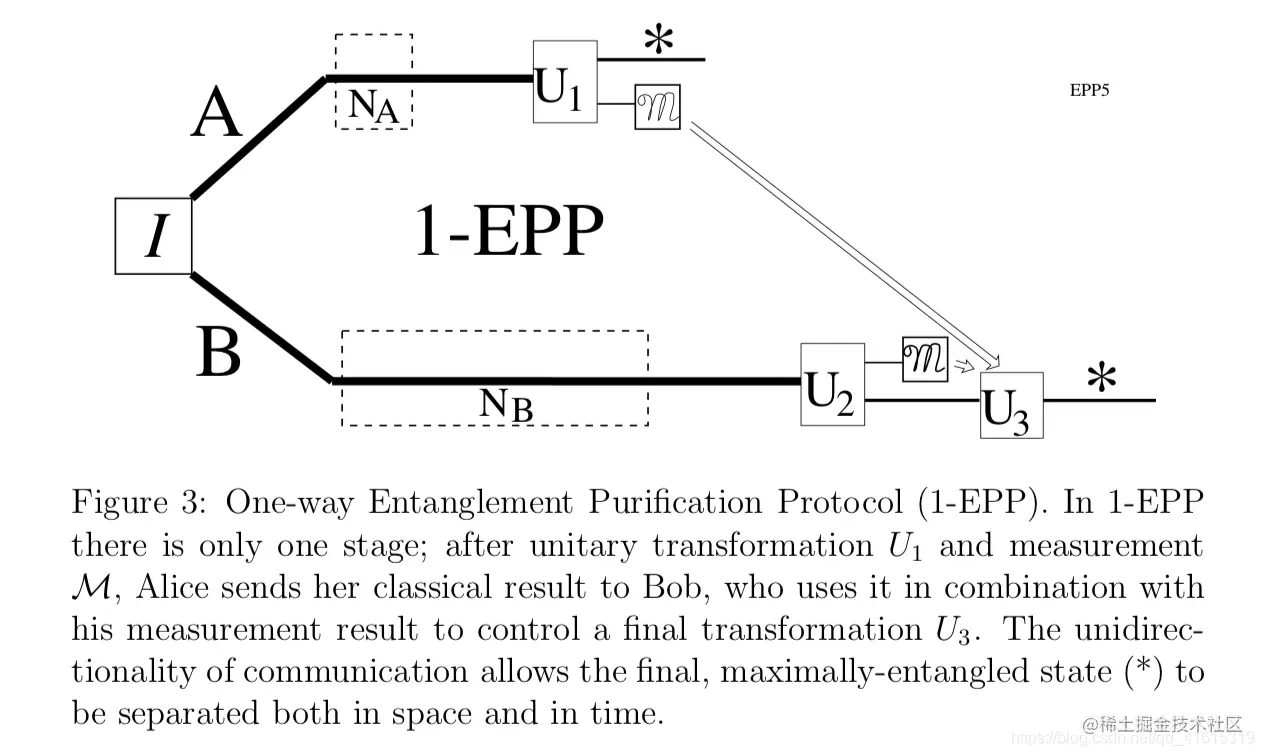

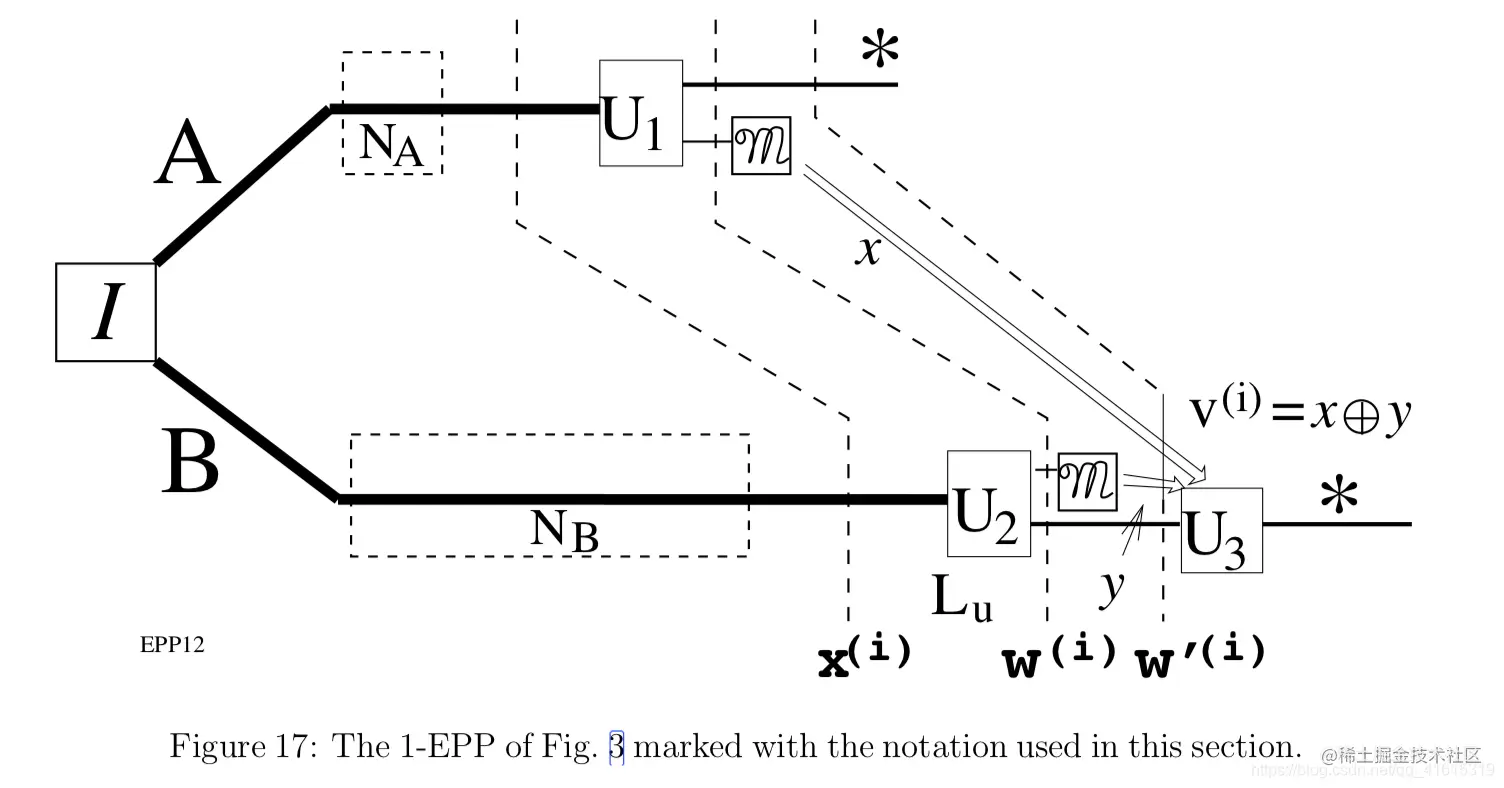

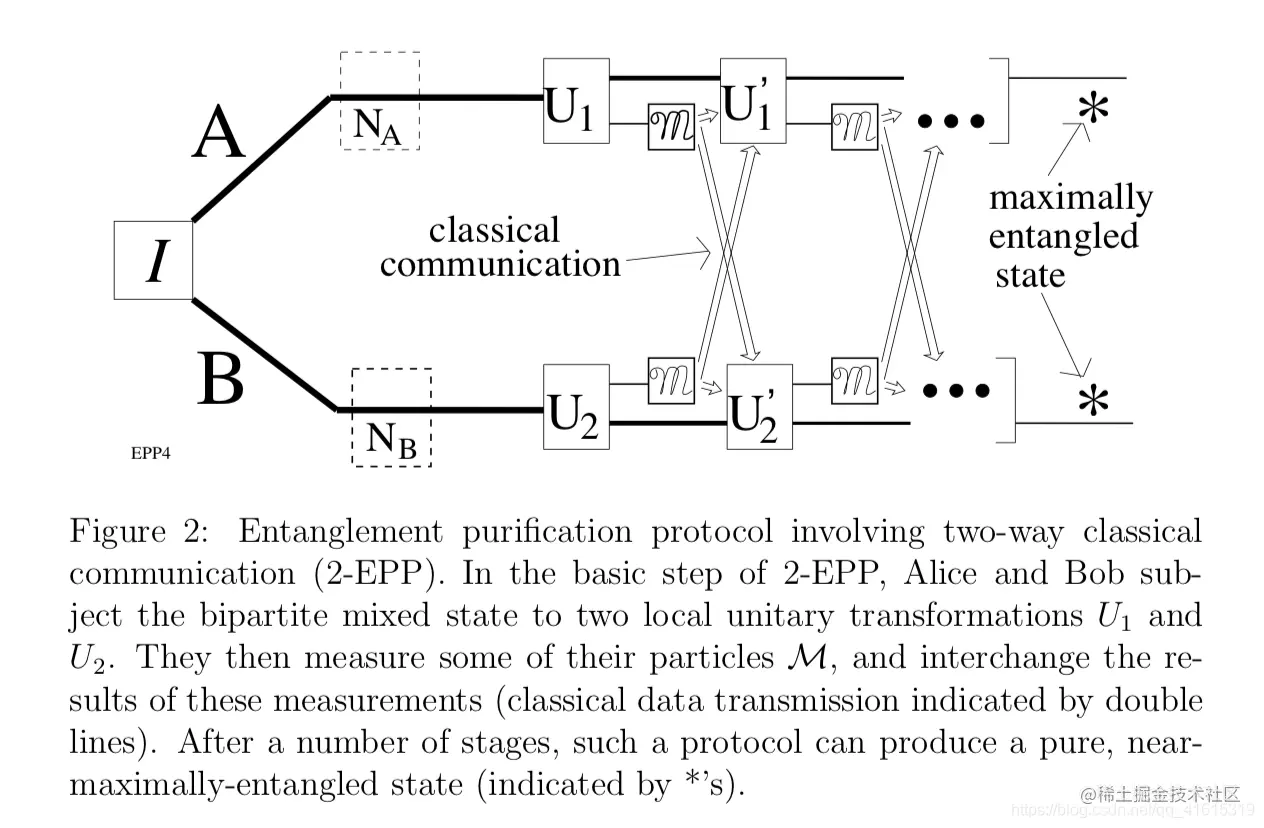

    • 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

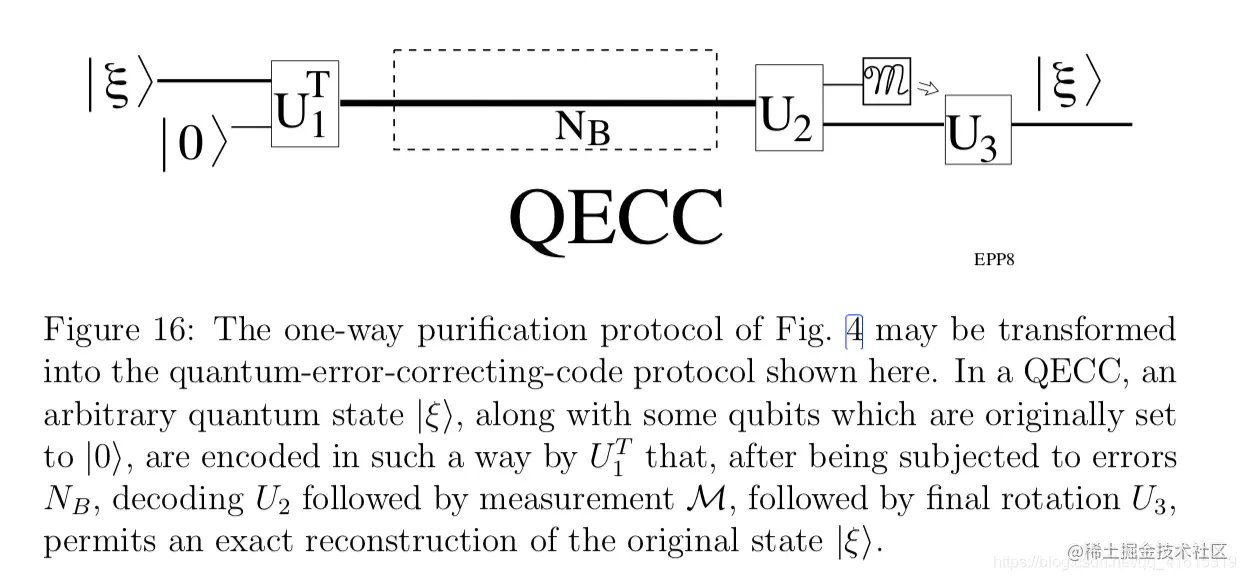

  • explanation of QECC

Literature Review

综述 Survey

  • Entanglement Distillation: A Discourse on Bound Entanglement in Quantum Information Theory, Lieven Clarisse. survey_1
  • Generation and Manipulation of Entanglement in Quantum Optical Systems, Daniel Edward Browne, p89 - p143. survey_2
  • Tools and Methods for the Distillation of Entanglement in Continuous Variable Quantum Optics, Alvaro Felipe Feito Boirac. survey_3

Recursive Protocols

  • The recurrence protocol (IBM protocol):开头处的基础论文
  • The QPA protocol (Oxford protocol)
    • D. Deutsch, A. Ekert, R. Jozsa, C. Macchiavello, S. Popescu, and A. Sanpera. Quantum privacy amplification and the security of quantum cryptography over noisy channels. Physical Review Letters, 77:2818–2821, 1996, link.
    • C. Macchiavello. On the analytical convergence of the qpa procedure. Physics Letters A, 246:385–388, 1998, link.
  • Local Permutation优化
    • J. Dehaene, M. Van den Nest, B. De Moor, and F. Verstraete. Local permutations of products of Bell states and entanglement distillation. Physical Review A, 67: 022310, 2003, link.
    • E. Hostens, J. Dehaene, and B. De Moor. The equivalence of two approaches to the design of entanglement distillation protocols. 2004, link.

Hashing and breeding

  • P.W. Shor and J. A. Smolin. Quantum error-correcting codes need not completely reveal the error syndrome. 1996, link.

Continuous Variable Distillation of Entanglement with Linear Optics

The (ρ(i),ρ(i))(\rho^{(i)}, \rho^{(i)}) Protocol / Gaussian Operation:

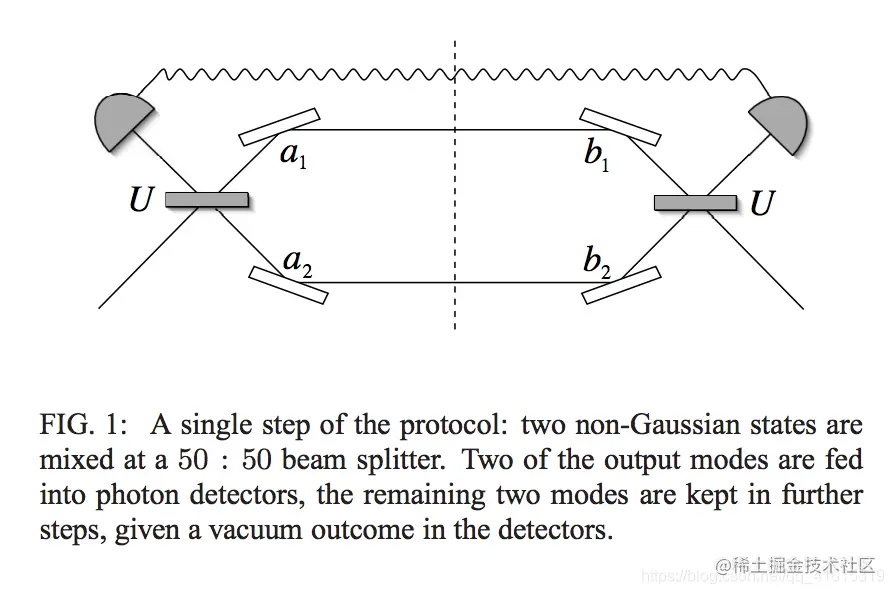

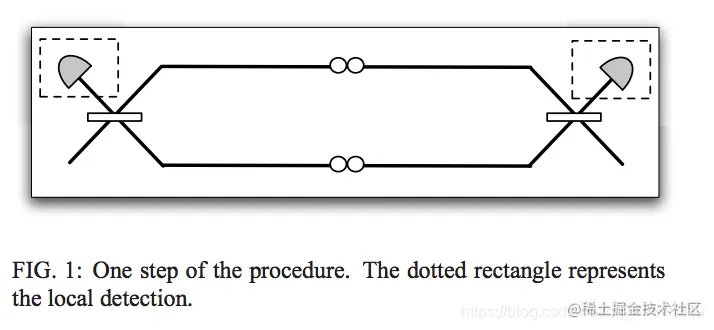

  • D.E. Browne, J. Eisert, S. Scheel, and M.B. Plenio. Driving non-gaussian to gaussian states with linear optics. Physical Review A, 67:062320, 2003. link 在这里插入图片描述

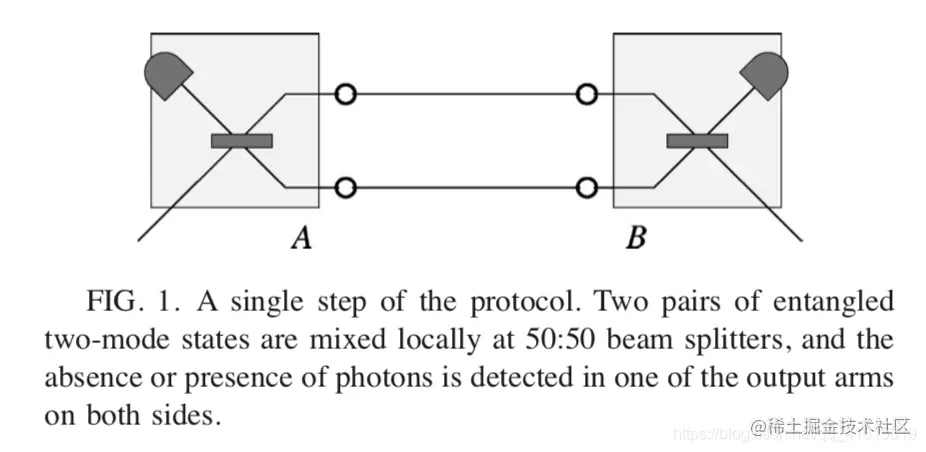

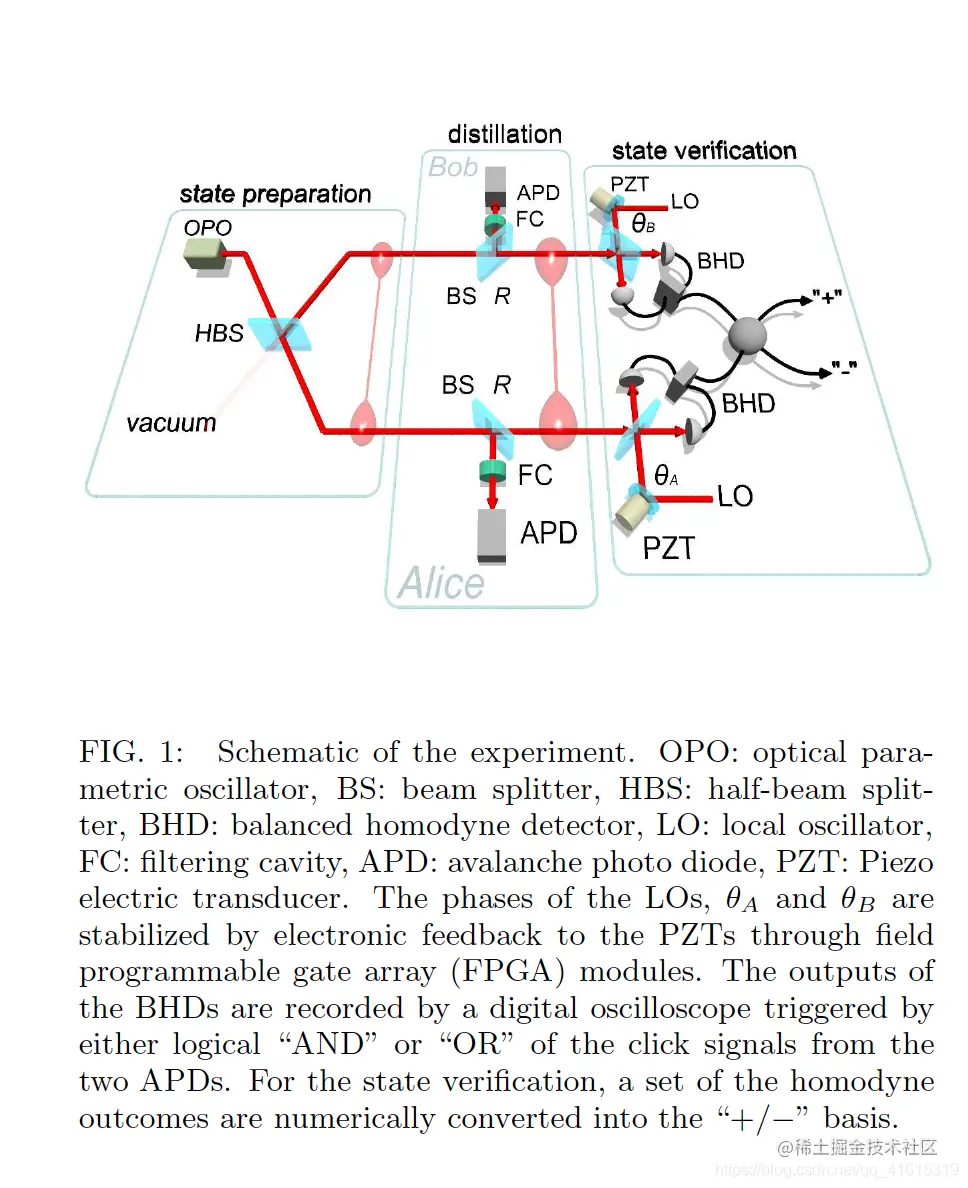

  • Takahashi, H., Neergaard-Nielsen, J. S., Takeuchi, M., Takeoka, M., Hayasaka, K., Furusawa, A., & Sasaki, M. (2010). Entanglement distillation from Gaussian input states. Nature photonics, 4(3), 178-181. link 在这里插入图片描述 在这里插入图片描述

Non-Gaussian Resource States

Photon Subtraction and Heralding

  • S. Olivares and M. G. A. Paris. Squeezed fock state by inconclusive photon subtraction. SEMICLASS.OPT., 7:S616, 2005. link

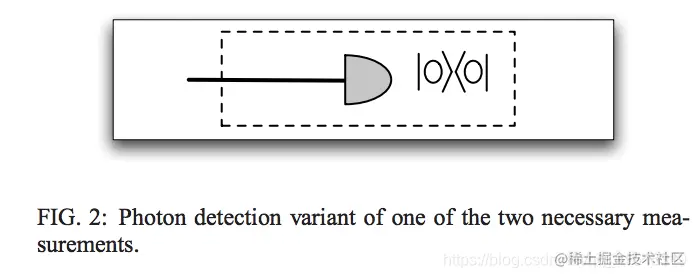

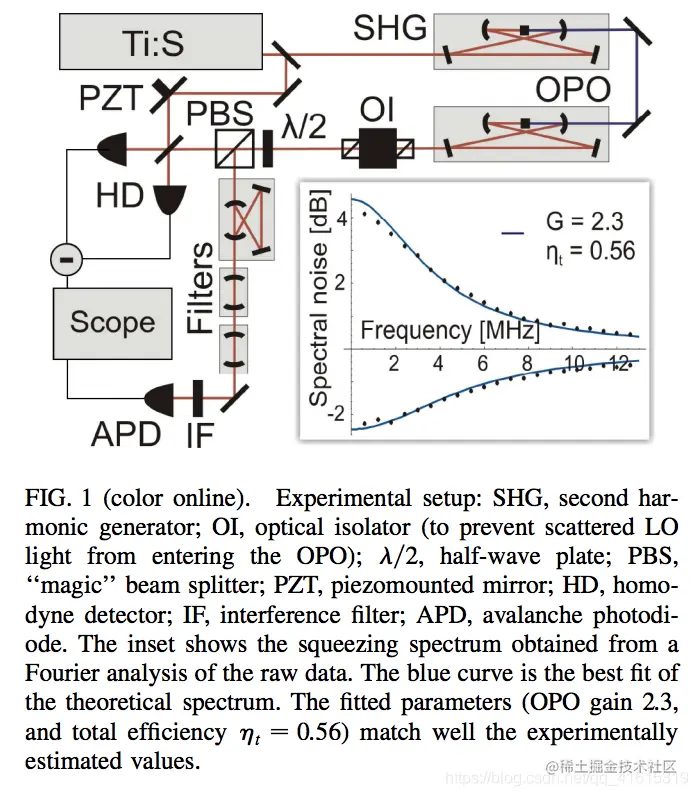

  • J. S. Neergaard-Nielsen, B. Melholt Nielsen, C. Hettich, K. Moelmer, and E. S. Polzik. Generation of a superposition of odd photon number states for quantum information networks. Physical Review Letters, 97:083604, 2006. link 在这里插入图片描述

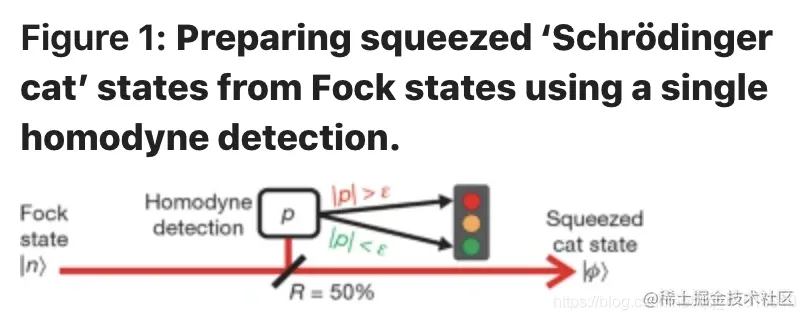

  • H. Jeong A. Ourjoumtsev, R. Tualle Brouri, and P. Grangier. Generation of optical Schr¨odinger cats from photon number states. Nature, 448:784, 2007. link 在这里插入图片描述 在这里插入图片描述

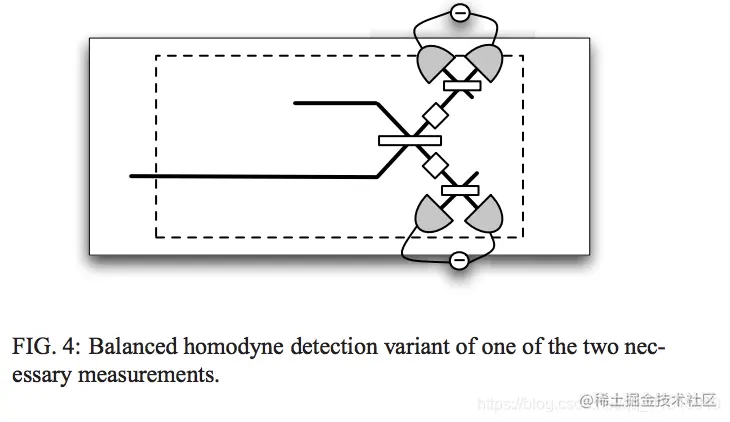

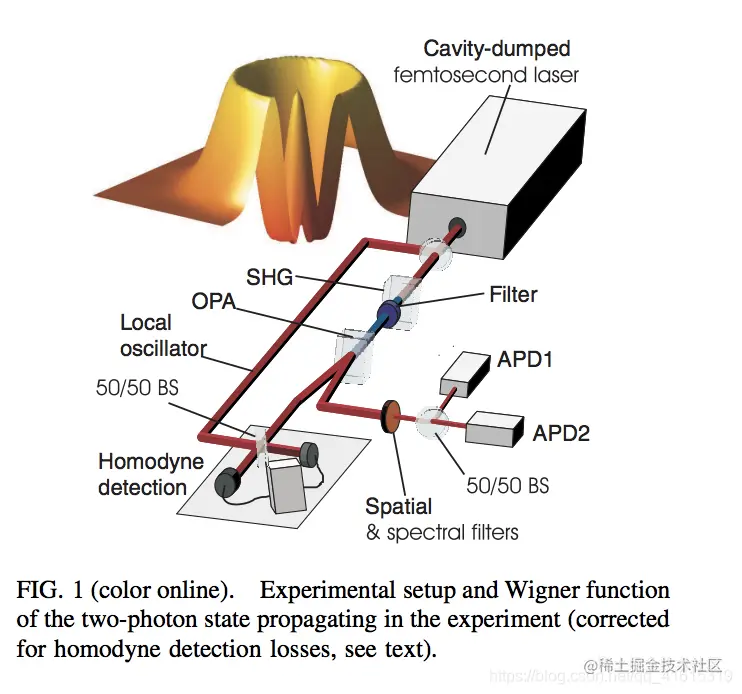

  • A. Ourjoumtsev, R. Tualle-Brouri, and P. Grangier. Quantum homodyne tomography of a two-photon fock state. Physical Review Letters, 96:213601, 2006. link 在这里插入图片描述 在这里插入图片描述

The (ρ(i),ρ(0))(\rho^{(i)}, \rho^{(0)}) Protocol
Homodyne Distillation Pumping

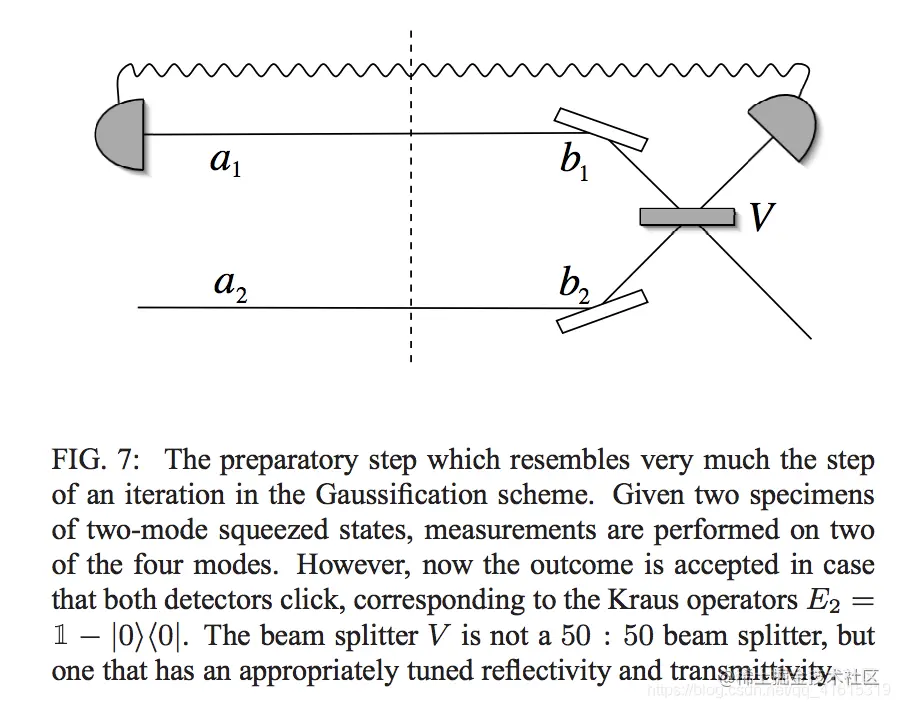

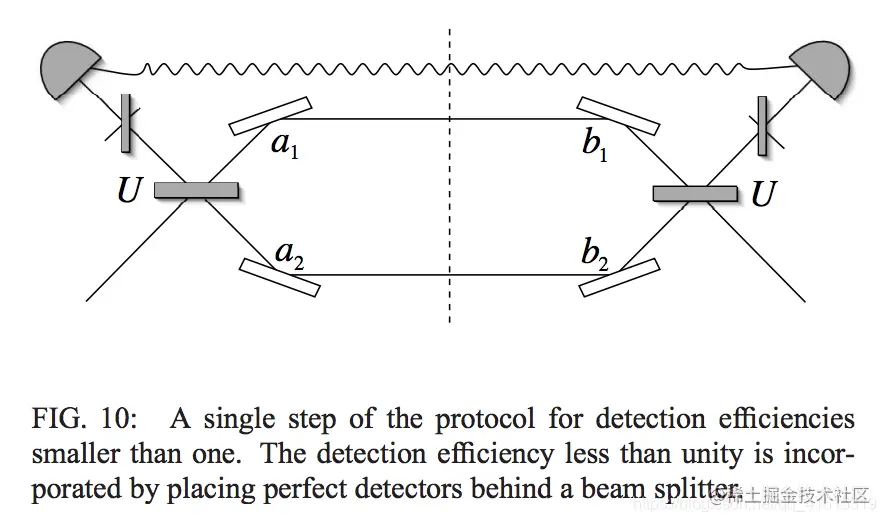

  • J. Eisert, D. E. Browne, S. Scheel, and M. B. Plenio. Distillation of continuous-variable entanglement with optical means. Annals of Physics, 311:431, 2004. link 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

  • J. Eisert, M. B. Plenio, D. E. Browne, S. Scheel, and A. Feito. On the experimental feasibility of continuous-variable optical entanglement distillation. Optics and Spectroscopy, 103:181, 2007. link 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述

2011 - 2021 论文整理

  • Kalb, N., Reiserer, A. A., Humphreys, P. C., Bakermans, J. J., Kamerling, S. J., Nickerson, N. H., ... & Hanson, R. (2017). Entanglement distillation between solid-state quantum network nodes. Science, 356(6341), 928-932. link 在这里插入图片描述

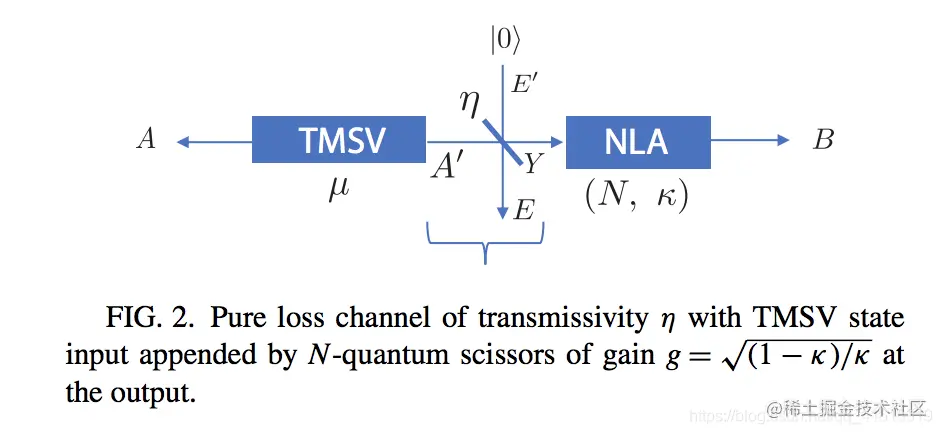

  • Seshadreesan, K. P., Krovi, H., & Guha, S. (2019). Continuous-variable entanglement distillation over a pure loss channel with multiple quantum scissors. Physical Review A, 100(2), 022315. link 在这里插入图片描述 在这里插入图片描述 在这里插入图片描述
