how to consume a webservice via ABAP proxywsdl: http://ldcix

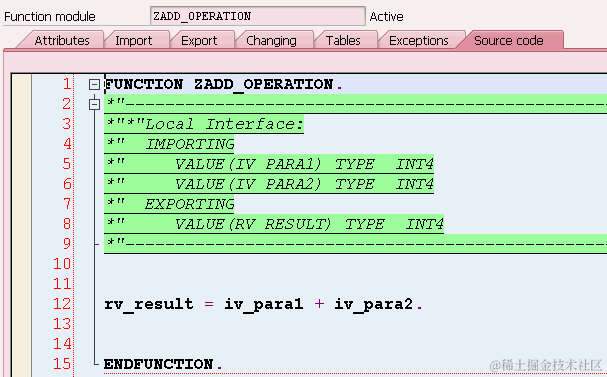

The function module being exposed as web service looks like below:

wsdl: ldcix3d.wdf.sap.corp:50024/sap/bc/srt/…

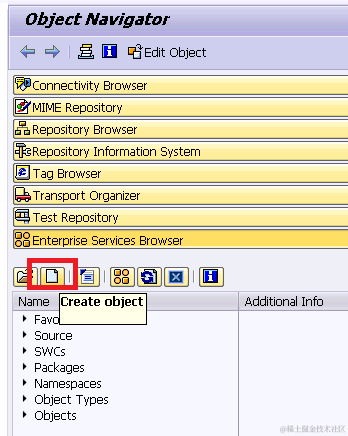

SE80, click create button:

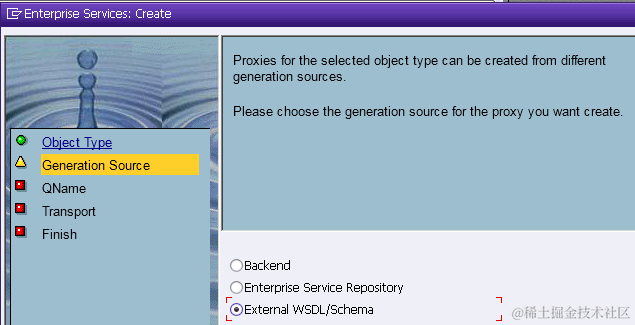

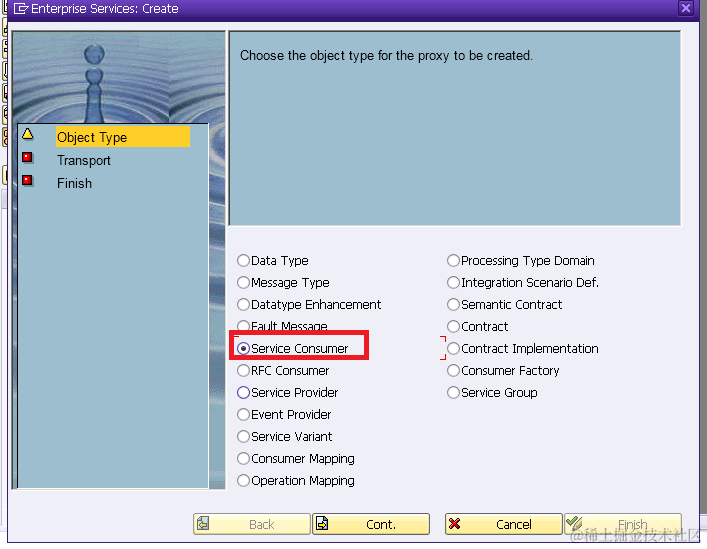

select “Service Consumer”:

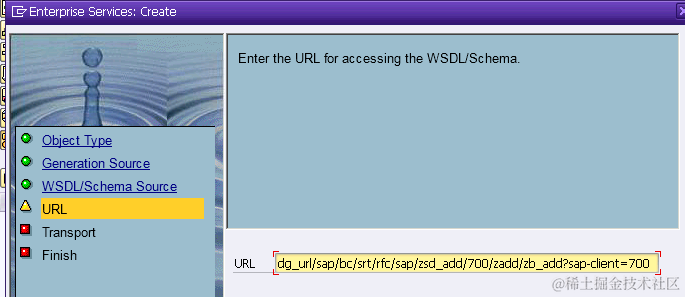

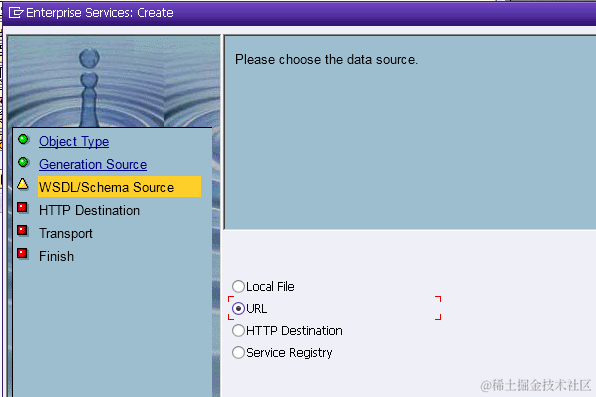

input WSDL url:

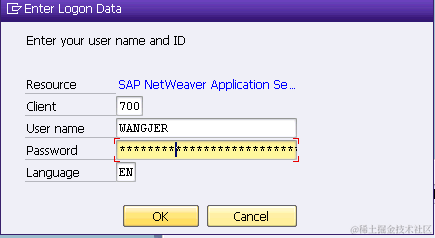

There is a pop up window. Maintain user and password accordingly.

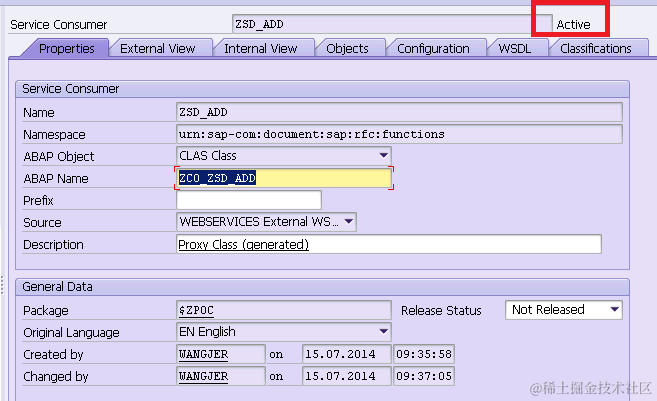

Activate the proxy class, the status should be Active:

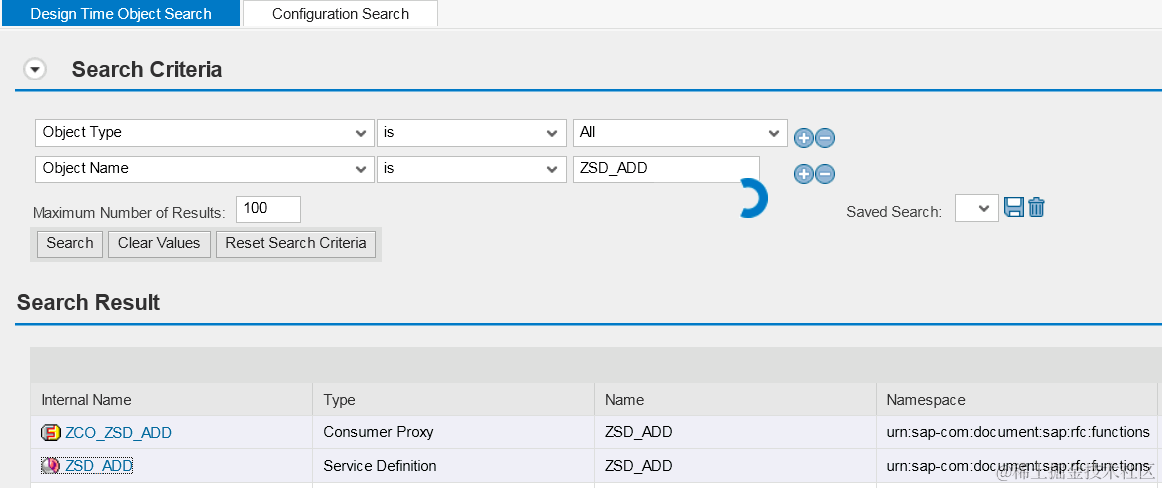

search the just created consumer proxy ZCO_ZSD_ADD in SOAMANAGER:

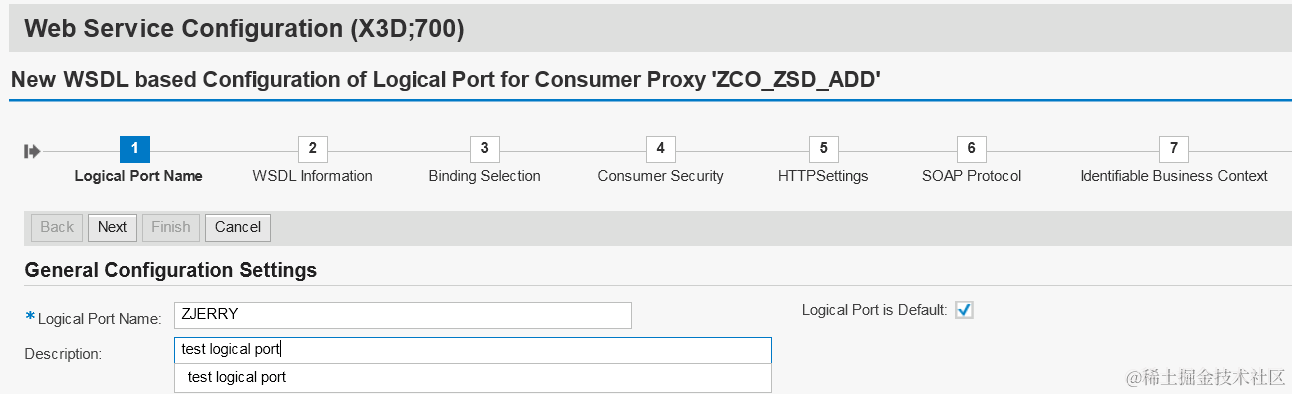

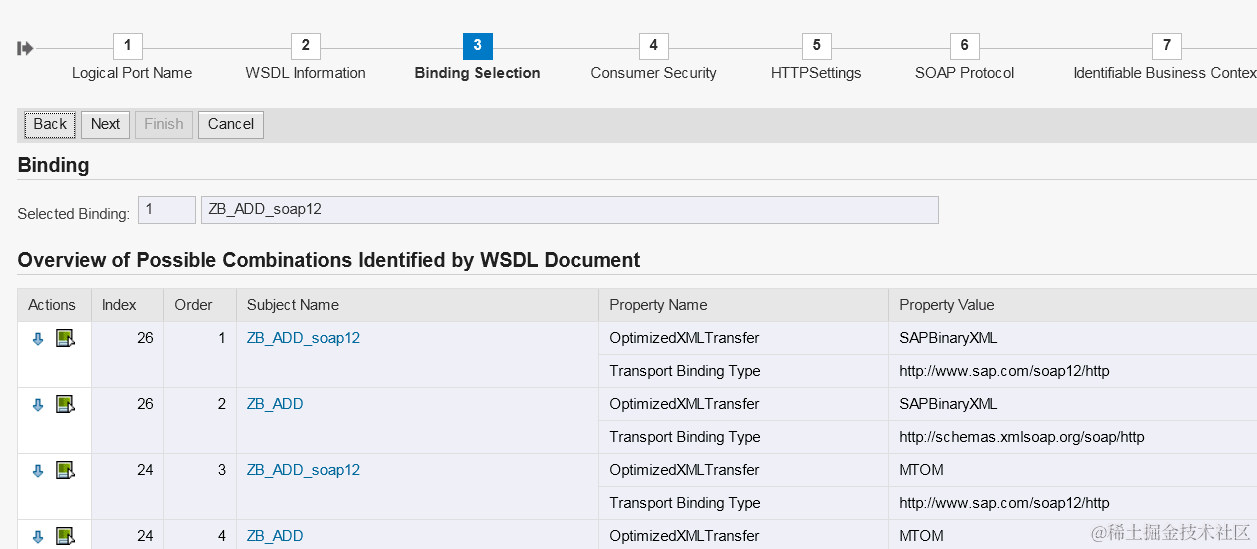

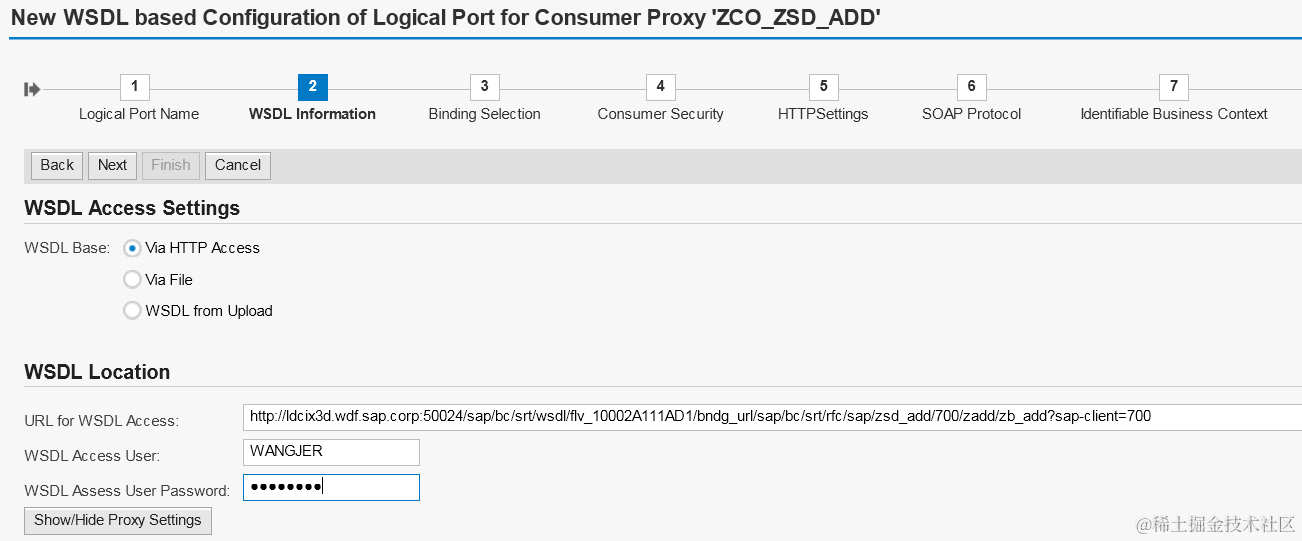

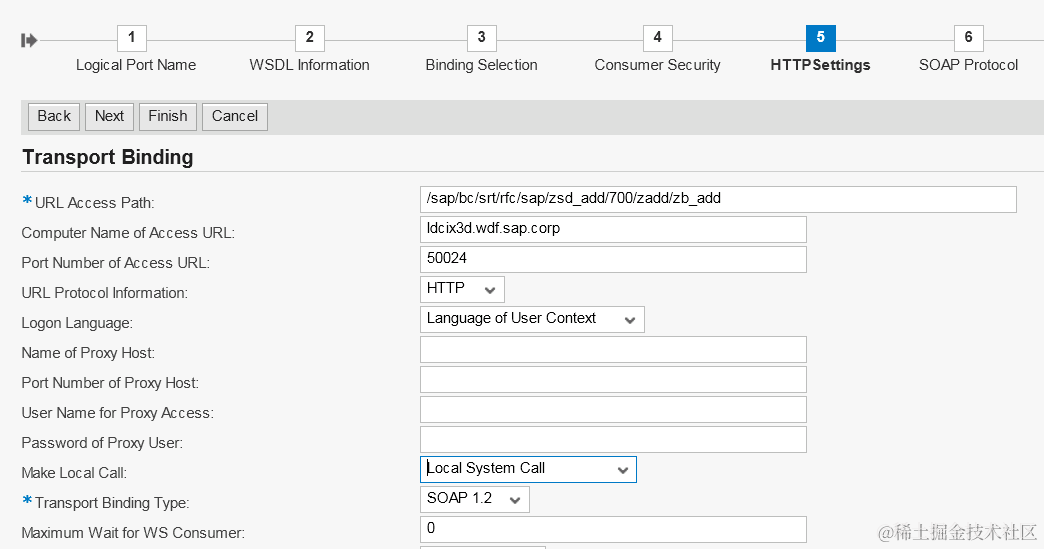

Create a new logical port:

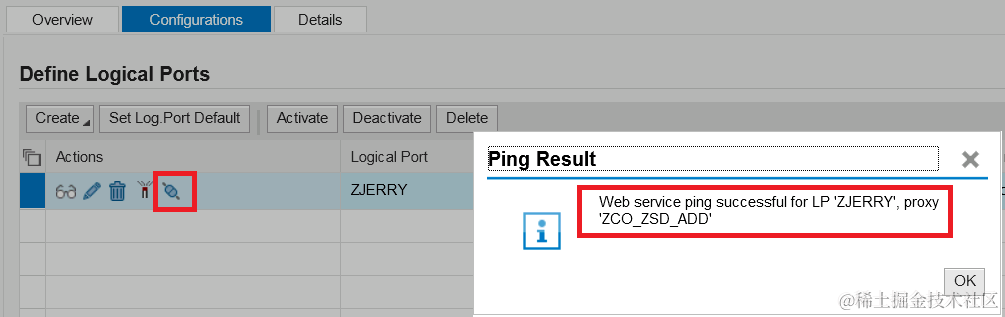

Click the ping button to ensure the logical port works correctly:

Create a test report like below:

REPORT ZJERRY_WS_TEST.
DATA: LO_PROXY TYPE REF TO ZCO_ZSD_ADD,
      INPUT TYPE ZADD_OPERATION,
      OUTPUT TYPE ZADD_OPERATIONRESPONSE.
CREATE OBJECT LO_PROXY
   EXPORTING
     LOGICAL_PORT_NAME = 'ZJERRY'.
INPUT-IV_PARA1 = 1.
INPUT-IV_PARA2 = 3.
try.
CALL METHOD LO_PROXY->ZADD_OPERATION
  EXPORTING
     INPUT = INPUT
  IMPORTING
     OUTPUT = OUTPUT.
CATCH CX_ROOT into DATA(CX_ROOT).
   WRITE: / CX_ROOT->GET_TEXT( ).
   RETURN.
endtry.
WRITE: / 'result: ' , output-RV_RESULT.

Or you can directly test the ABAP consumer proxy class in SE24:

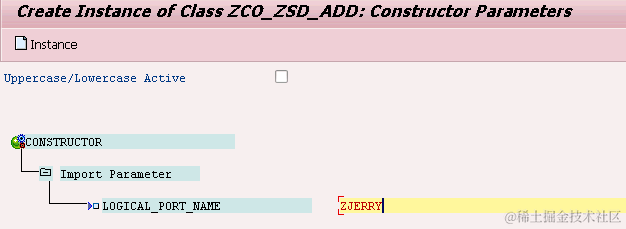

specify the default logical port, and click button “Create Instance”:

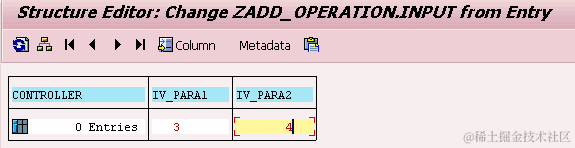

specify 3 and 4 as input para1 and input para2:

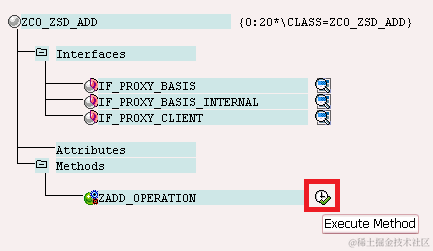

execute and get expected result 7:

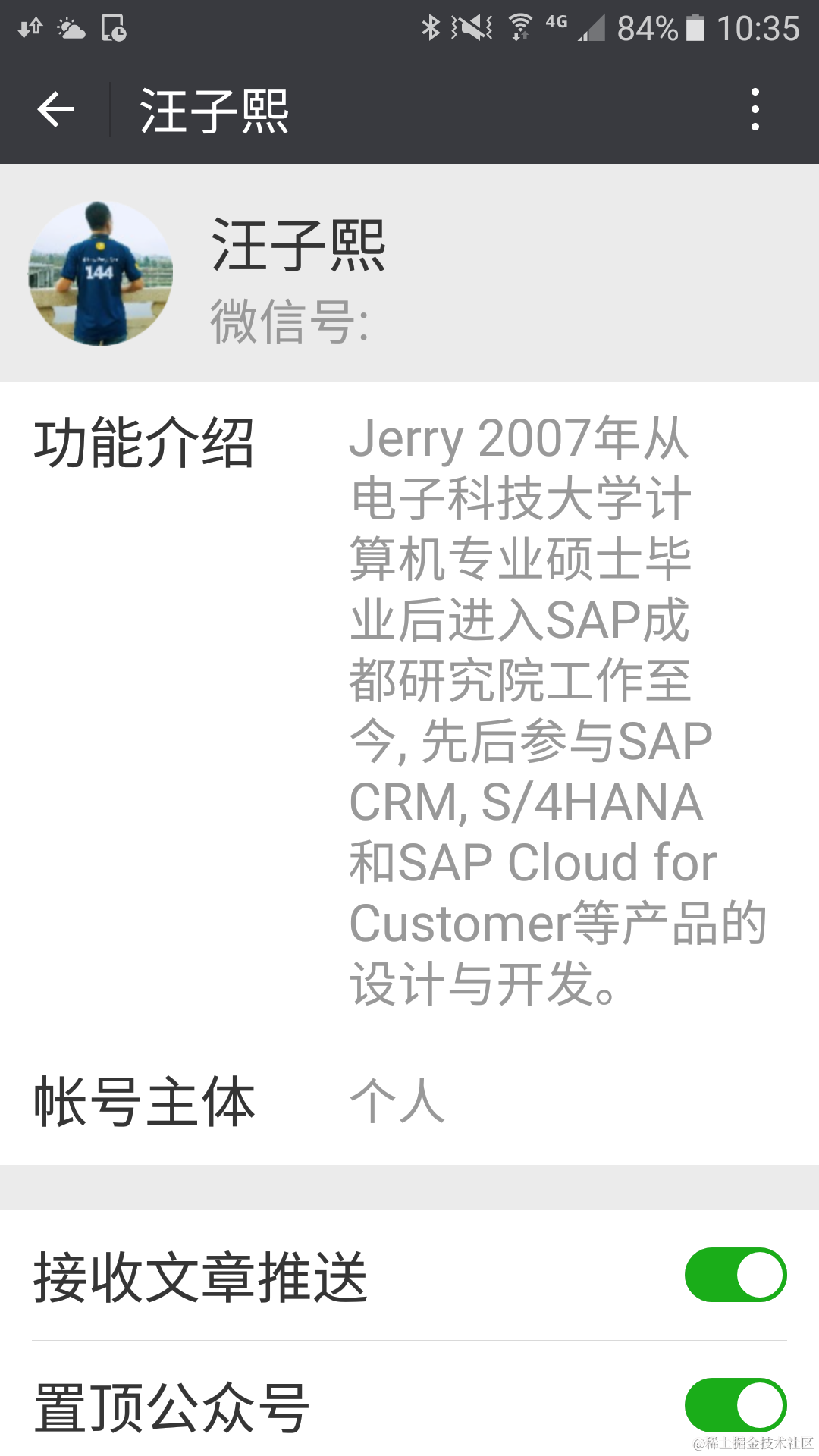

要获取更多Jerry的原创文章，请关注公众号"汪子熙":
