Created by Jerry Wang on Dec 24, 2014

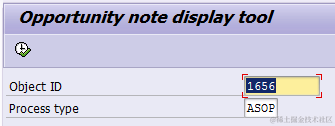

执行report：

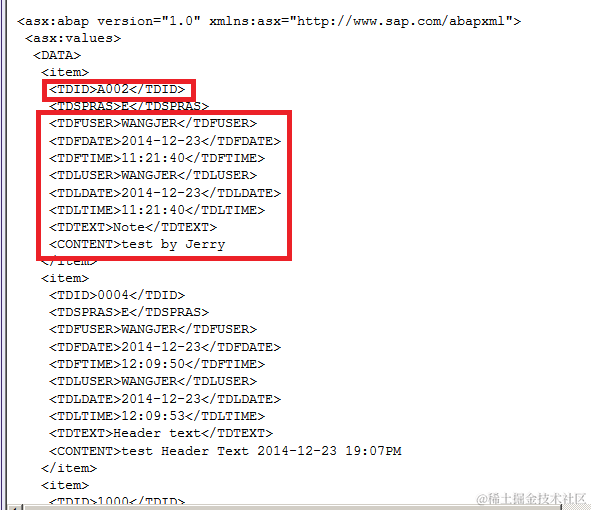

该report以XML的方式输出该one order instance拥有的所有text：

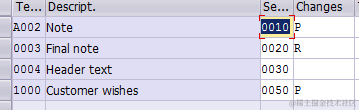

上图的A002和Note对应SPRO里的如下customizing：
source code：
REPORT tool_text_browse_one_order.
PARAMETERS: id TYPE crmd_orderadm_h-object_id OBLIGATORY DEFAULT '1656',
type TYPE crmd_orderadm_h-process_type OBLIGATORY DEFAULT 'ASOP'.
TYPES: text_line(cl_crm_odata_oppt_constant=>gc_oppt_notes_textlength) TYPE c.
TYPES: BEGIN OF ty_text_detail,
tdid TYPE stxh-tdid,
tdspras TYPE stxh-tdspras,
tdfuser TYPE stxh-tdfuser,
tdfdate TYPE stxh-tdfdate,
tdftime TYPE stxh-tdftime,
tdluser TYPE stxh-tdluser,
tdldate TYPE stxh-tdldate,
tdltime TYPE stxh-tdltime,
tdtext TYPE ttxit-tdtext,
content TYPE string,
END OF ty_text_detail.
DATA: lv_char32 TYPE char32, " CRMD_ORDERADM_H-guid,
lv_textname TYPE string,
lv_id LIKE id,
lv_guid TYPE crmd_orderadm_h-guid,
lt_stxh TYPE STANDARD TABLE OF stxh,
ls_stxh LIKE LINE OF lt_stxh,
ls_notes TYPE crmt_odata_oppt_notes.
DATA: ls_thead TYPE thead.
DATA: lt_text_table TYPE TABLE OF text_line.
DATA: ls_bupa_addr TYPE bapiaddr3.
DATA: ls_return TYPE STANDARD TABLE OF bapiret2.
DATA: lt_lines TYPE STANDARD TABLE OF tline.
DATA: et_notes TYPE crmt_odata_oppt_notest.
DATA: ls_text_detail TYPE ty_text_detail,
lt_text_detail TYPE STANDARD TABLE OF ty_text_detail.
DATA: lt_text_object TYPE STANDARD TABLE OF ttxit,
ls_text_object LIKE LINE OF lt_text_object,
lv_xml TYPE string.
lv_id = id.
CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
EXPORTING
input = lv_id
IMPORTING
output = lv_id.
SELECT SINGLE guid FROM crmd_orderadm_h INTO lv_guid WHERE object_id = id AND process_type = type.
IF sy-subrc <> 0.
WRITE: / 'No opportunity found' COLOR COL_GROUP.
RETURN.
ENDIF.
lv_char32 = lv_guid.
CONCATENATE lv_char32 '%' INTO lv_textname.
SELECT * FROM stxh INTO TABLE lt_stxh
WHERE tdobject EQ 'CRM_ORDERH'
AND tdname LIKE lv_textname.
SELECT tdid tdtext FROM ttxit INTO CORRESPONDING FIELDS OF TABLE lt_text_object
WHERE tdspras = sy-langu
AND tdobject = cl_crm_odata_oppt_constant=>gc_oppt_notes_tdobject.
LOOP AT lt_stxh INTO ls_stxh.
ls_notes-header_guid = lv_char32.
MOVE-CORRESPONDING ls_stxh TO ls_text_detail.
READ TABLE lt_text_object INTO ls_text_object WITH KEY tdid = ls_stxh-tdid.
IF sy-subrc = 0.
ls_text_detail-tdtext = ls_text_object-tdtext.
ENDIF.
CALL FUNCTION 'BAPI_USER_GET_DETAIL'
EXPORTING
username = ls_stxh-tdfuser
IMPORTING
address = ls_bupa_addr
TABLES
return = ls_return.
ls_notes-creator = ls_bupa_addr-fullname.
CONVERT DATE ls_stxh-tdfdate TIME ls_stxh-tdftime INTO TIME STAMP ls_notes-created_at TIME ZONE 'UTC'.
CLEAR lt_lines.
CALL FUNCTION 'READ_TEXT'
EXPORTING
id = ls_stxh-tdid
language = ls_stxh-tdspras
name = ls_stxh-tdname
object = ls_stxh-tdobject
IMPORTING
header = ls_thead
TABLES
lines = lt_lines
EXCEPTIONS
OTHERS = 1.
CHECK sy-subrc EQ 0.
CALL FUNCTION 'CONVERT_ITF_TO_STREAM_TEXT'
TABLES
itf_text = lt_lines
text_stream = lt_text_table.
CONCATENATE LINES OF lt_text_table INTO ls_notes-content RESPECTING BLANKS.
ls_text_detail-content = ls_notes-content.
APPEND ls_text_detail TO lt_text_detail.
CLEAR: ls_notes, ls_stxh, lt_lines, lt_text_table, ls_thead, ls_bupa_addr, ls_text_detail.
ENDLOOP.
CALL TRANSFORMATION id SOURCE data = lt_text_detail RESULT XML lv_xml.
CALL METHOD cl_demo_output=>display_xml( lv_xml ).
| # One order text change tool## Created by Jerry Wang, last modified on Jan 01, 2015使用report 修改之前： 执行report，
report执行成功：

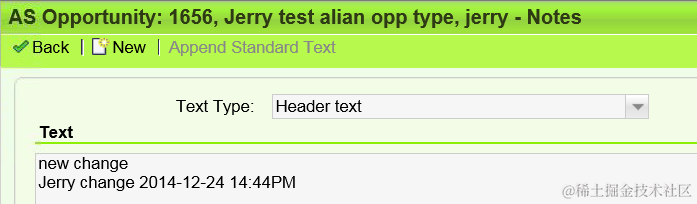

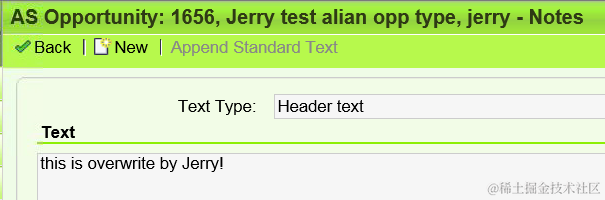

UI上check：

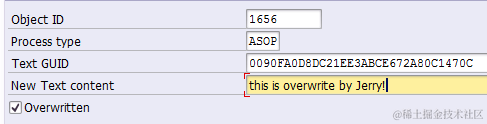

enable overwrite后再执行：
source code：```
REPORT tool_text_change_one_order. PARAMETERS: id TYPE crmd_orderadm_h-object_id OBLIGATORY DEFAULT '1656', type TYPE crmd_orderadm_h-process_type OBLIGATORY DEFAULT 'ASOP', tid TYPE stxh-tdname OBLIGATORY DEFAULT '0090FA0D8DC21EE3ABCE672A80C1470C', new TYPE string OBLIGATORY DEFAULT 'new' LOWER CASE, over TYPE char1 AS CHECKBOX DEFAULT 'X'. TYPES: text_line(cl_crm_odata_oppt_constant=>gc_oppt_notes_textlength) TYPE c. DATA: lv_char32 TYPE char32, " CRMD_ORDERADM_H-guid, lv_textname TYPE string, lv_id LIKE id, lv_guid TYPE crmd_orderadm_h-guid, lt_stxh TYPE STANDARD TABLE OF stxh, ls_stxh LIKE LINE OF lt_stxh, ls_notes TYPE crmt_odata_oppt_notes. DATA: ls_thead TYPE thead. DATA: lt_text_table TYPE TABLE OF text_line. DATA: ls_bupa_addr TYPE bapiaddr3. DATA: ls_return TYPE STANDARD TABLE OF bapiret2. DATA: lt_lines TYPE STANDARD TABLE OF tline, ls_line LIKE LINE OF lt_lines. DATA: lt_objects_to_save TYPE crmt_object_guid_tab. DATA: lt_objects_not_saved TYPE crmt_object_guid_tab. DATA: lt_saved_objects TYPE crmt_return_objects. lv_id = id. CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT' EXPORTING input = lv_id IMPORTING output = lv_id. SELECT SINGLE guid FROM crmd_orderadm_h INTO lv_guid WHERE object_id = id AND process_type = type. IF sy-subrc <> 0. WRITE: / 'No opportunity found' COLOR COL_GROUP. RETURN. ENDIF. lv_char32 = lv_guid. CONCATENATE lv_char32 '%' INTO lv_textname. SELECT * FROM stxh INTO TABLE lt_stxh WHERE tdobject EQ 'CRM_ORDERH' AND tdname EQ tid. IF lines( lt_stxh ) <> 1. WRITE: / 'Cound not read given text' COLOR COL_NEGATIVE. RETURN. ENDIF. READ TABLE lt_stxh INTO ls_stxh INDEX 1. CALL FUNCTION 'READ_TEXT' EXPORTING id = ls_stxh-tdid language = ls_stxh-tdspras name = ls_stxh-tdname object = ls_stxh-tdobject IMPORTING header = ls_thead TABLES lines = lt_lines EXCEPTIONS OTHERS = 1. CHECK sy-subrc EQ 0. CALL FUNCTION 'CONVERT_ITF_TO_STREAM_TEXT' TABLES itf_text = lt_lines text_stream = lt_text_table. CONCATENATE LINES OF lt_text_table INTO ls_notes-content RESPECTING BLANKS. DATA: lt_text TYPE crmt_text_comt, ls_text LIKE LINE OF lt_text, ls_input_fields TYPE crmt_input_field, lv_logical_key TYPE crmt_logical_key, ls_field_names TYPE crmt_input_field_names. DATA: lt_input_field_names TYPE crmt_input_field_names_tab, ls_input_field_name LIKE LINE OF lt_input_field_names. DATA: lt_input_fields TYPE crmt_input_field_tab. ls_text-ref_handle = '0000000000'. ls_text-ref_guid = lv_guid. ls_text-ref_kind = 'A'. ls_text-text_object = cl_crm_odata_oppt_constant=>gc_oppt_notes_tdobject. MOVE-CORRESPONDING ls_stxh TO ls_text. ls_text-lines = lt_lines. ls_text-mode = 'B'. ls_line-tdformat = '*'. ls_line-tdline = new. IF over = abap_true. CLEAR: ls_text-lines. ENDIF. APPEND ls_line TO ls_text-lines. APPEND ls_text TO lt_text. CLEAR ls_input_fields. ls_input_fields-ref_guid = lv_guid. ls_input_fields-ref_kind = 'A'. ls_input_fields-objectname = 'TEXTS'. CONCATENATE ls_text-tdid ls_text-tdspras INTO lv_logical_key. ls_input_fields-logical_key = lv_logical_key. " use handle or guid ? CLEAR ls_input_fields-field_names. ls_input_field_name-fieldname = 'LINES'. APPEND ls_input_field_name TO ls_input_fields-field_names. "APPEND LINES OF lt_input_field_names TO ls_input_fields-field_names. INSERT ls_input_fields INTO TABLE lt_input_fields. CALL FUNCTION 'CRM_ORDER_MAINTAIN' EXPORTING it_text = lt_text CHANGING ct_input_fields = lt_input_fields EXCEPTIONS error_occurred = 1 document_locked = 2 no_change_allowed = 3 no_authority = 4. IF sy-subrc <> 0 . WRITE: / 'text modify failed: ' COLOR COL_NEGATIVE, sy-subrc COLOR COL_TOTAL. RETURN. ENDIF. APPEND lv_guid TO lt_objects_to_save. CALL FUNCTION 'CRM_ORDER_SAVE' EXPORTING it_objects_to_save = lt_objects_to_save iv_update_task_local = abap_true IMPORTING et_saved_objects = lt_saved_objects et_objects_not_saved = lt_objects_not_saved EXCEPTIONS document_not_saved = 1 OTHERS = 2. IF sy-subrc EQ 0 AND lt_saved_objects IS NOT INITIAL. CALL FUNCTION 'BAPI_TRANSACTION_COMMIT' EXPORTING wait = abap_true. WRITE: / 'text changed successfully' COLOR COL_NEGATIVE. ELSE. WRITE: / 'text changed failed' COLOR COL_POSITIVE. ENDIF. BREAK-POINT.
| -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
# One order text display tool
## Created by Jerry Wang, last modified on Dec 24, 2014

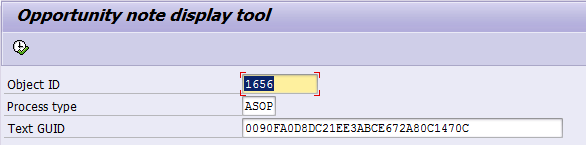

执行report，输入opportunity id, process type和text guid：\
[](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/e7904af9773c462090deb2b2434bd6c4~tplv-k3u1fbpfcp-zoom-1.image)

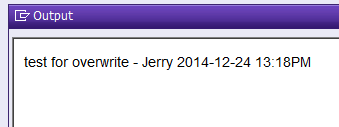

输出文本内容：\
[](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/e77877a3961549069f79549a3f494555~tplv-k3u1fbpfcp-zoom-1.image)

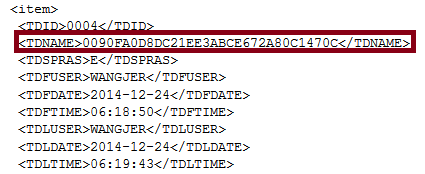

text guid可以通过one order text browser tool来获得：\
[](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/94f48f24440442abba541a52a79f41ef~tplv-k3u1fbpfcp-zoom-1.image)
source code：
REPORT znote_display_tool.
PARAMETERS: id TYPE crmd_orderadm_h-object_id OBLIGATORY DEFAULT '1656',
type TYPE crmd_orderadm_h-process_type OBLIGATORY DEFAULT 'ASOP',
tid TYPE stxh-tdname OBLIGATORY DEFAULT '0090FA0D8DC21EE3ABCE672A80C1470C'.
TYPES: text_line(cl_crm_odata_oppt_constant=>gc_oppt_notes_textlength) TYPE c.
DATA: lv_char32 TYPE char32, " CRMD_ORDERADM_H-guid,
lv_textname TYPE string,
lv_id LIKE id,
lv_guid TYPE crmd_orderadm_h-guid,
lt_stxh TYPE STANDARD TABLE OF stxh,
ls_stxh LIKE LINE OF lt_stxh,
ls_notes TYPE crmt_odata_oppt_notes.
DATA: ls_thead TYPE thead.
DATA: lt_text_table TYPE TABLE OF text_line.
DATA: ls_bupa_addr TYPE bapiaddr3.
DATA: ls_return TYPE STANDARD TABLE OF bapiret2.
DATA: lt_lines TYPE STANDARD TABLE OF tline.
lv_id = id.
CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
EXPORTING
input = lv_id
IMPORTING
output = lv_id.
SELECT SINGLE guid FROM crmd_orderadm_h INTO lv_guid WHERE object_id = id AND process_type = type.
IF sy-subrc <> 0.
WRITE: / 'No opportunity found' COLOR COL_GROUP.
RETURN.
ENDIF.
lv_char32 = lv_guid.
CONCATENATE lv_char32 '%' INTO lv_textname.
SELECT * FROM stxh INTO TABLE lt_stxh
WHERE tdobject EQ 'CRM_ORDERH'
AND tdname EQ tid.
IF lines( lt_stxh ) <> 1.
WRITE: / 'Cound not read given text' COLOR COL_NEGATIVE.
RETURN.
ENDIF.
READ TABLE lt_stxh INTO ls_stxh INDEX 1.
CALL FUNCTION 'READ_TEXT'
EXPORTING
id = ls_stxh-tdid
language = ls_stxh-tdspras
name = ls_stxh-tdname
object = ls_stxh-tdobject
IMPORTING
header = ls_thead
TABLES
lines = lt_lines
EXCEPTIONS
OTHERS = 1.
CHECK sy-subrc EQ 0.
CALL FUNCTION 'CONVERT_ITF_TO_STREAM_TEXT'
TABLES
itf_text = lt_lines
text_stream = lt_text_table.
CONCATENATE LINES OF lt_text_table INTO ls_notes-content RESPECTING BLANKS.
CALL METHOD cl_demo_output=>display_text( ls_notes-content ).
