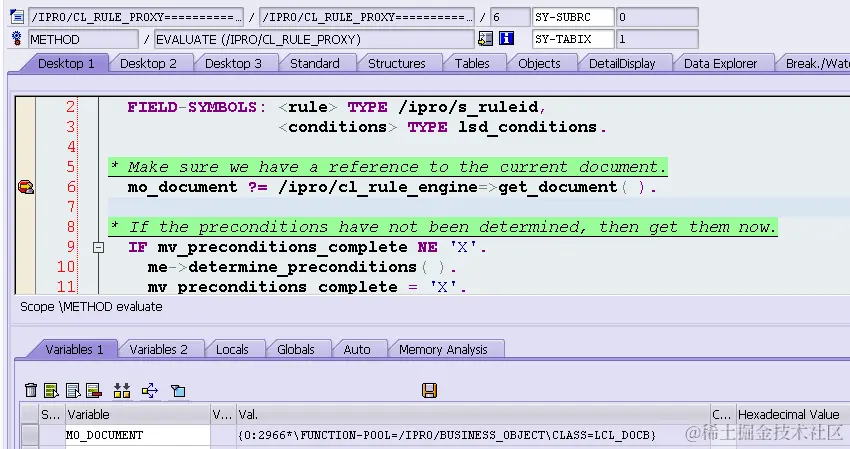

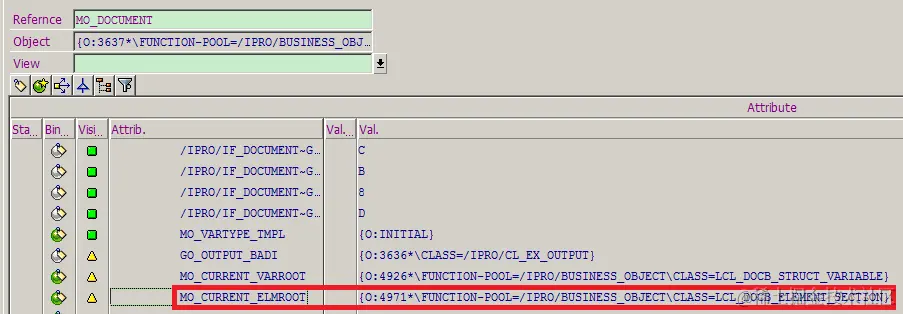

the local class instance mo_document represents all attributes of a document instance in the memory. It is implemented with the local class LCL_DOCB in function group /IPRO/BUSINESS_OBJECT.

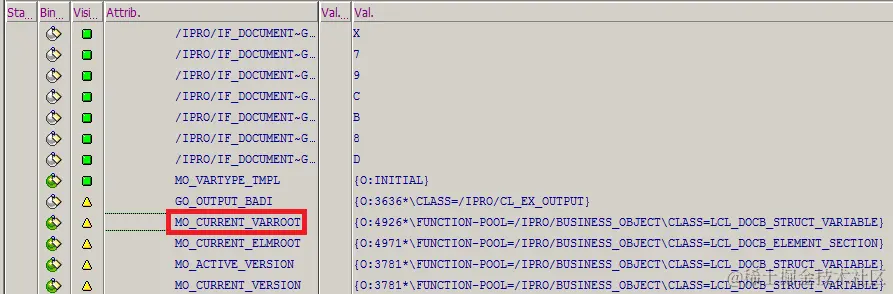

mo_current_varroot
This attribute points to the representation of content root variable in the memory.

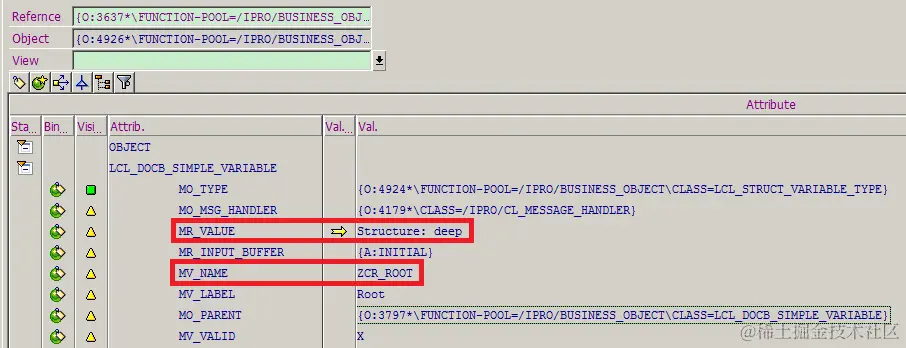

Double click ont it and you can get the name of variable in MV_NAME, and all the content of variables could be found in MR_VALUE:

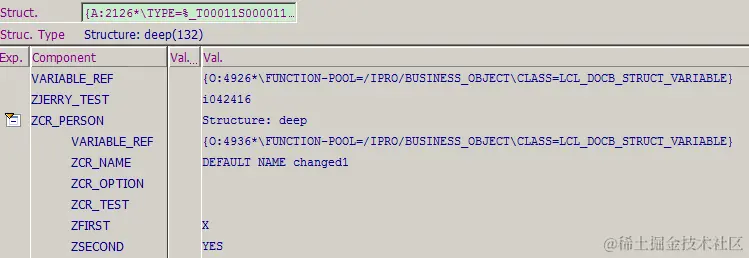

This below is the result after double click on MR_VALUE. From here we know the root variable contains a simple variable ZJERRY_TEST with content "i042416" and another structural variable ZCR_PERSON with five simple variable ( ZCR_NAME, ZCR_OPTION, ZCR_TEST, ZFIRST and ZSECOND ) and their corresponding value.

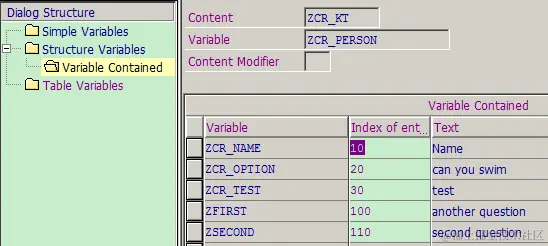

The hierarchy relationship between structural variable and its children variable is maintained in customizing:

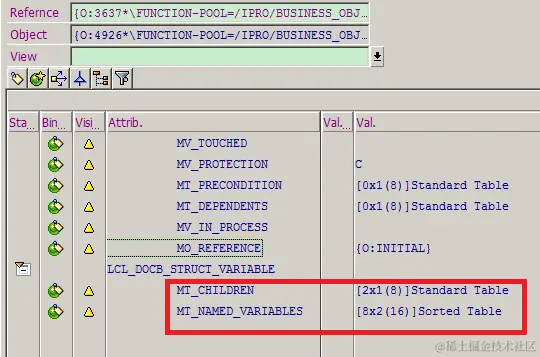

by double clicking on mt_children, you could get the direct children of root variable.

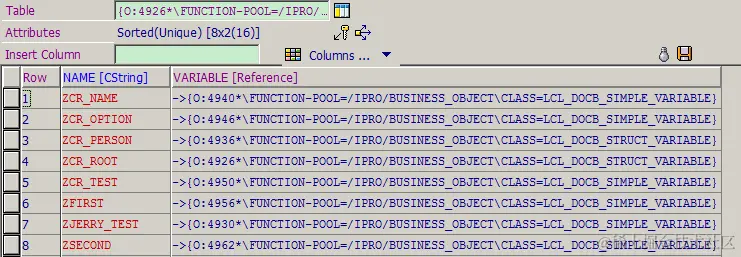

and MT_NAMED_VARIABLES gives you an overview of all variables currently used by the document:
MO_CURRENT_ELEROOT contains the reference pointing to document's section information ( A document consists of several sections and each sections then could include one or more elements - each element is a word or text or html document fragment which defines the layout of the output document ).

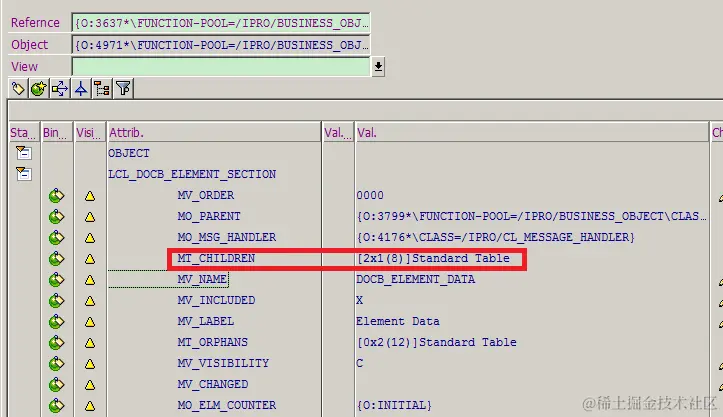

double click on MO_CURRENT_ELEROOT, then we know this document has two sections. Doube click on MT_CHILDREN then you could get element list of each sections, and finally you could get the binary source of element( word, html, text or other file format ).
