Created by Jerry Wang on Jul 13, 2014
1. First you should define the table cells for each column as simple variables.
For me I would like to have a table with two columns "Class ID" and "Class Name", so I first create two simple variables accordingly.

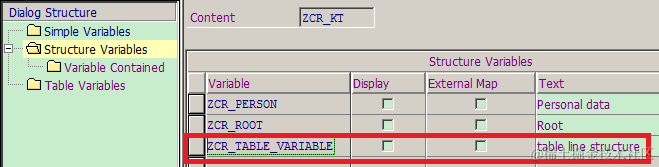

2. create a structure variable acting as the line structure of your table:

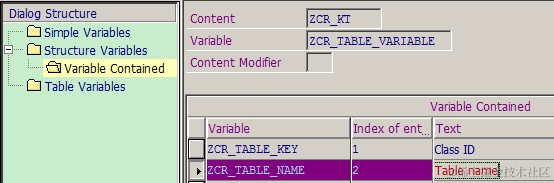

put the two simple variables created in step 1 to this structure variable:

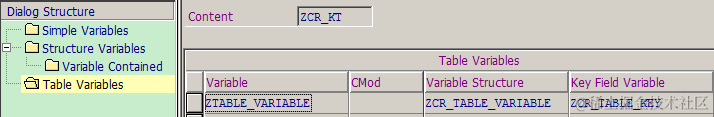

3. create a table variable, specify the structure variable created in step 2 to its "Variable Structure", and specify the simple variable which will be used as key field.
4. Add the new table variable to variable hierarchy tree. In my example, I put the table structure to the root variable of content ZCR_KT.

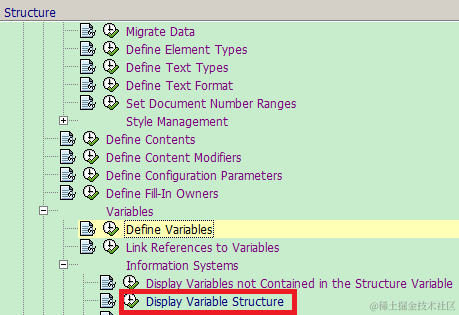

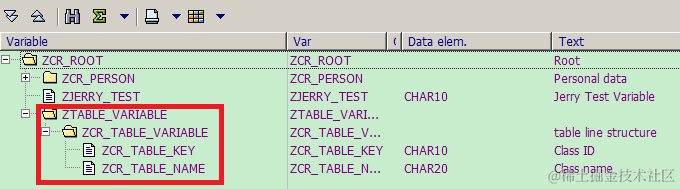

Use this activity to check the variable tree hierarchy:
And then in the runtime, you could drag the table variable as a whole and drop it into element layout part to generate a table in the document.
