Created by Jerry Wang, last modified on Oct 22, 2014

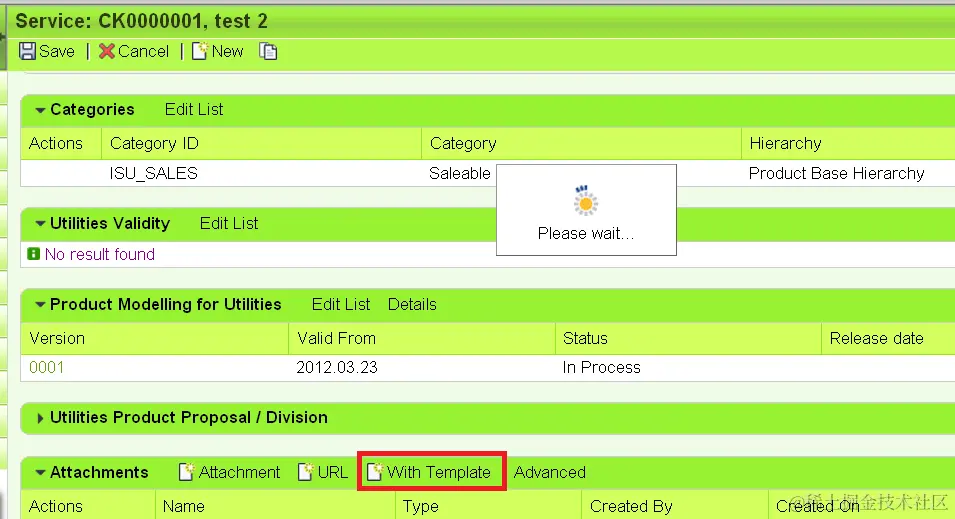

该工具可以用于模拟在webclient UI上点击了With Template button后选择一个支持web service的web template和web service response merge的操作.

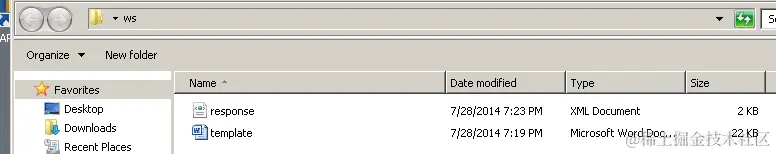

按照consulting node 2047259 - Trouble shooting guide about word document merge with web service 的描述，将word template和web service response download至本地:
然后执行report，即可trigger word template与web service的merge操作.
REPORT tool_document_merge.
PARAMETERS: file1 TYPE string OBLIGATORY DEFAULT 'C:\Users\i042416\Desktop\Note2047259.docx',
file2 TYPE string OBLIGATORY DEFAULT 'C:\Users\i042416\Desktop\LV_XPAYLOAD.xml'.
FORM upload_file USING iv_file_path CHANGING cv_file TYPE xstring.
DATA: l_filename TYPE string,
l_rawtab TYPE STANDARD TABLE OF raw255,
l_len TYPE i.
l_filename = iv_file_path.
CLEAR: l_rawtab, l_len.
CALL METHOD cl_gui_frontend_services=>gui_upload
EXPORTING
filename = l_filename
filetype = 'BIN'
IMPORTING
filelength = l_len
CHANGING
data_tab = l_rawtab
EXCEPTIONS
file_open_error = 1
file_read_error = 2
no_batch = 3
gui_refuse_filetransfer = 4
invalid_type = 5
no_authority = 6
unknown_error = 7
bad_data_format = 8
header_not_allowed = 9
separator_not_allowed = 10
header_too_long = 11
unknown_dp_error = 12
access_denied = 13
dp_out_of_memory = 14
disk_full = 15
dp_timeout = 16
not_supported_by_gui = 17
error_no_gui = 18
OTHERS = 19.
IF sy-subrc IS NOT INITIAL.
WRITE:/ 'Error Occurred when Uploading file!' COLOR COL_NEGATIVE INTENSIFIED ON.
RETURN.
ENDIF.
CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
EXPORTING
input_length = l_len
IMPORTING
buffer = cv_file
TABLES
binary_tab = l_rawtab
EXCEPTIONS
failed = 1
OTHERS = 2.
ASSERT sy-subrc = 0.
ENDFORM.
START-OF-SELECTION.
DATA: lv_template TYPE xstring,
lv_response TYPE xstring,
lv_wsdl_url TYPE string,
lv_ws_name TYPE websname,
lv_response_ns TYPE xstring,
lv_wsdl_operation TYPE string,
lv_namespace TYPE anyuri,
lv_xdata TYPE xstring,
lo_docx TYPE REF TO CL_DOCX_DOCUMENT,
lo_main TYPE REF TO CL_DOCX_MAINDOCUMENTPART,
lv_template_xdata TYPE xstring,
lv_xpayload TYPE xstring,
lv_data TYPE xstring.
PERFORM upload_file USING file1 CHANGING lv_template.
PERFORM upload_file USING file2 CHANGING lv_response.
CALL METHOD cl_crm_oi_util=>get_ws_url_from_template
EXPORTING
iv_data = lv_template
IMPORTING
ev_wsdl_url = lv_wsdl_url
ev_wsdl_operation = lv_wsdl_operation.
ASSERT cl_crm_oi_docx_helper=>has_word_addin_format( lv_template ) = abap_true.
ASSERT cl_crm_oi_docx_helper=>has_content_control_format( lv_template ) = abap_true.
cl_crm_oi_docx_helper=>replace_vars_uuid_with_path(
CHANGING
cv_docx_doc = lv_template ).
lo_docx = cl_docx_document=>load_document( lv_template ).
lo_main = lo_docx->get_maindocumentpart( ).
lv_template_xdata = lo_main->get_data( ).
cl_crm_oi_docx_helper=>get_ws_info_from_template( EXPORTING iv_xdata = lv_template
IMPORTING ev_ws_name = lv_ws_name ).
IF ( lv_ws_name IS NOT INITIAL OR lv_wsdl_url IS NOT INITIAL ) AND lv_response IS NOT INITIAL.
CALL TRANSFORMATION crm_office_int_rt_add_ns
SOURCE XML lv_response
RESULT XML lv_response_ns.
lv_xpayload = lv_response_ns.
ENDIF.
ASSERT lv_xpayload IS NOT INITIAL.
TRY.
CALL METHOD cl_crm_oi_docx_transform_rt=>transform
EXPORTING
iv_xml_xstring = lv_response_ns
iv_wordml_xstring = lv_template_xdata
iv_uri = 'urn:sap-com:document:sap:soap:functions:mc-style'
iv_contentcontrol_format = 'X'
iv_cc_customxml = cl_crm_oi_docx_helper=>m_doc_customxml
IMPORTING
ev_wordml_xstring = lv_xdata.
CATCH cx_oi_fault.
WRITE: / 'merge error!'.
RETURN.
ENDTRY.
lo_main->feed_data( lv_xdata ).
lv_xdata = lo_docx->get_package_data( ).
WRITE: / 'document merged successfully!'.
