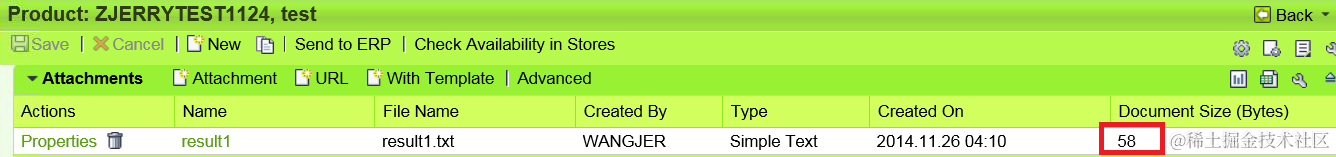

| # Created by Jerry Wang on Nov 26, 2014System AG3/001, Product: ZJERRYTEST1124, upload one text attachment with 58 bytes. Click the hyperlink "result1" in column Name, the file is opened in browser via the link below: ldai2ag3.wdf.sap.corp:44356/sap/bc/cont…

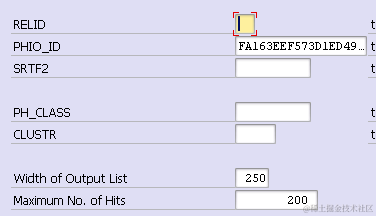

use transaction code SE16 to query database table with PHIO_ID = FA163EEF573D1ED49DA44708EF3ABF63:

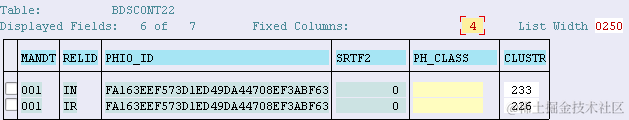

and two entries found:

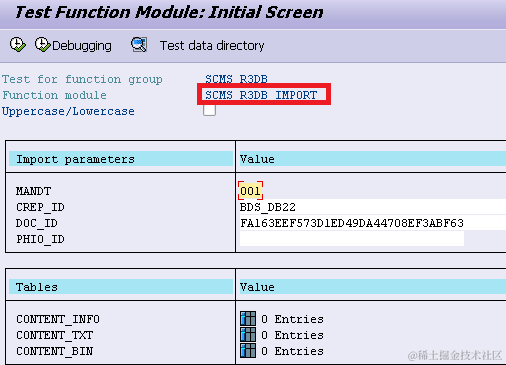

execute FM SCMS_R3DB_IMPORT in test mode, specify CREP_ID = BDS_DB22 and DOC_ID = FA163EEF573D1ED49DA44708EF3ABF63

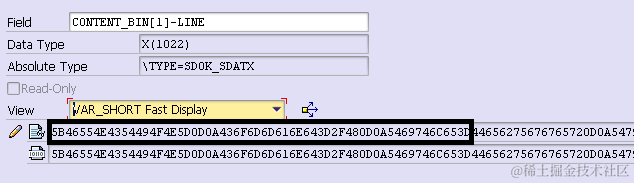

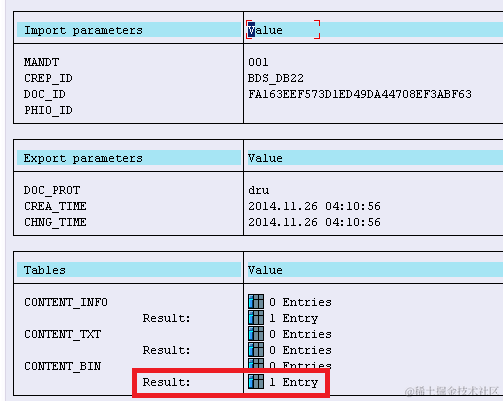

binary content of uploaded attachment could be found in CONTENT_BIN:
the content returned by FM is actually exactly the same compared with the binary data of the local file:
# How does this FM actually finish data retrieve task?Just execute the following code in AG3:```
DATA: phio_cluster TYPE scmst_r3db_cont_cluster. IMPORT phio_cluster FROM DATABASE bdscont22(ir) CLIENT sy-mandt ID 'FA163EEF573D1ED49DA44708EF3ABF63' IGNORING CONVERSION ERRORS. BREAK-POINT.
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
