Created by Jerry Wang on Mar 09, 2014

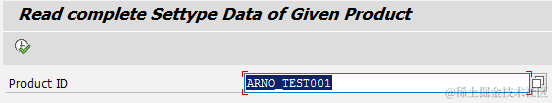

自己写了一个小工具，输入product ID，输出这个product所有settype包含的内容.

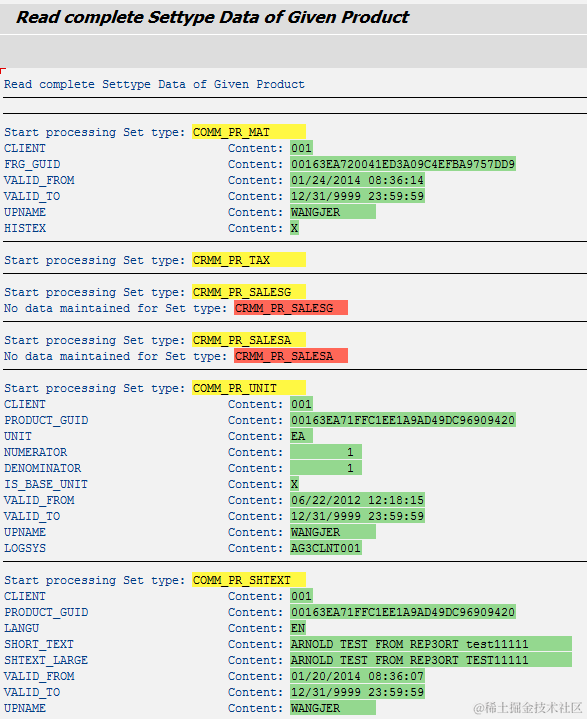

输出结果如下图所示:
REPORT ZHANA_PRODUCT_READ_COMPLETE.
PARAMETER: prd_id TYPE comm_product-product_id OBLIGATORY.
CALL FUNCTION 'ZCRM_PRODUCT_GET_ALL_DATA'
EXPORTING
iv_product_id = prd_id.
FUNCTION zcrm_product_get_all_data.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" REFERENCE(IV_PRODUCT_ID) TYPE COMM_PRODUCT-PRODUCT_ID
*"----------------------------------------------------------------------
DATA: lt_product_assigned TYPE STANDARD TABLE OF comm_prprdcatr,
ls_product_assigned LIKE LINE OF lt_product_assigned,
lt_cate_set_rel TYPE comt_prcat_frag_rel_tab,
ls_settype TYPE comt_settype_ext,
ls_cate_sel_rel LIKE LINE OF lt_cate_set_rel,
lr_old TYPE REF TO data,
lv_set_guid TYPE comt_frg_guid,
lr_new TYPE REF TO data,
lr_data TYPE REF TO data,
params TYPE TABLE OF rfc_funint,
ptab TYPE abap_func_parmbind_tab,
ptab_line TYPE abap_func_parmbind,
etab TYPE abap_func_excpbind_tab,
etab_line TYPE abap_func_excpbind,
ls_params LIKE LINE OF params,
nametab TYPE TABLE OF x031l,
ls_nametab LIKE LINE OF nametab,
ls_product TYPE comm_product,
lr_tabdescr TYPE REF TO cl_abap_tabledescr.
FIELD-SYMBOLS: <data> TYPE any,
<field> TYPE any,
<struc> TYPE any,
<line> TYPE any,
<table> TYPE ANY TABLE.
SELECT SINGLE product_id product_guid INTO ls_product FROM comm_product WHERE product_id = iv_product_id.
IF sy-subrc <> 0.
WRITE:/ 'Cannot find product with ID: ' , iv_product_id COLOR COL_NEGATIVE INTENSIFIED ON.
RETURN.
ENDIF.
CALL METHOD cl_com_product_org_type=>comc_pr_org_link_read_all
IMPORTING
et_pr_org_rel = lt_rel_meta
EXCEPTIONS
not_found = 1
OTHERS = 2.
SELECT * INTO TABLE lt_product_assigned FROM comm_prprdcatr WHERE product_guid = ls_product-product_guid.
LOOP AT lt_product_assigned INTO ls_product_assigned.
CALL FUNCTION 'COM_PRCAT_FRAG_REL_READ'
EXPORTING
iv_category_guid = ls_product_assigned-category_guid
IMPORTING
et_prcat_frag_rel = lt_cate_set_rel
EXCEPTIONS
wrong_call = 1
OTHERS = 2.
ASSERT sy-subrc = 0.
PERFORM add_settype CHANGING lt_cate_set_rel.
LOOP AT lt_cate_set_rel INTO ls_cate_sel_rel.
CALL FUNCTION 'COM_SETTYPE_READ_SINGLE'
EXPORTING
iv_settype_guid = ls_cate_sel_rel-frgtype_guid
IMPORTING
es_settype = ls_settype
EXCEPTIONS
not_found = 1
no_import_values = 2
no_text_found = 3
OTHERS = 4.
CHECK ls_settype-func_read IS NOT INITIAL.
CLEAR: params,ptab,etab.
CALL FUNCTION 'RFC_GET_FUNCTION_INTERFACE'
EXPORTING
funcname = ls_settype-func_read
TABLES
params = params.
LOOP AT params INTO ls_params WHERE optional = space.
CLEAR: ptab_line.
CASE ls_params-paramclass.
WHEN 'E'.
ptab_line-name = ls_params-parameter.
ptab_line-kind = abap_func_importing.
CREATE DATA lr_data TYPE (ls_params-tabname).
ptab_line-value = lr_data.
INSERT ptab_line INTO TABLE ptab.
WHEN 'I'. "exporting parameter in the program
ptab_line-name = ls_params-parameter.
ptab_line-kind = abap_func_exporting.
CREATE DATA lr_data TYPE (ls_params-tabname).
ASSIGN lr_data->* TO <data>.
IF ptab_line-name = co_set_guid.
PERFORM get_set_guid USING ls_product-product_guid ls_settype CHANGING lv_set_guid.
<data> = lv_set_guid.
ELSEIF ptab_line-name = co_product_guid.
<data> = ls_product-product_guid.
ENDIF.
ptab_line-value = lr_data.
INSERT ptab_line INTO TABLE ptab.
WHEN 'X'.
etab_line-name = 'NOT_FOUND'.
etab_line-value = 10.
INSERT etab_line INTO TABLE etab.
ENDCASE.
ENDLOOP.
ULINE.
WRITE:/ 'Start processing Set type:' , ls_settype-frgtype_id COLOR COL_TOTAL.
CHECK ptab IS NOT INITIAL.
CALL FUNCTION ls_settype-func_read PARAMETER-TABLE ptab EXCEPTION-TABLE etab.
IF sy-subrc <> 0.
WRITE:/ 'No data maintained for Set type:' , ls_settype-frgtype_id COLOR COL_NEGATIVE.
ELSE.
LOOP AT ptab INTO ptab_line WHERE kind = abap_func_importing.
CHECK ptab_line-value IS NOT INITIAL.
ASSIGN ptab_line-value->* TO <struc>.
PERFORM display_content USING <struc> ptab_line-value.
ENDLOOP.
ENDIF.
ENDLOOP.
ENDLOOP.
ENDFUNCTION.
FORM display_struct USING struc TYPE any.
FIELD-SYMBOLS: <local_field1> TYPE any.
DATA: lt_para_table1 TYPE abap_compdescr_tab,
ls_line1 LIKE LINE OF lt_para_table1,
lv_type TYPE i.
CLEAR: lv_type.
PERFORM get_field_table USING struc CHANGING lt_para_table1.
DO.
ASSIGN COMPONENT sy-index OF STRUCTURE struc TO <local_field1>.
IF sy-subrc <> 0.
EXIT.
ENDIF.
IF <local_field1> IS NOT INITIAL.
" IF <local_field1> is still structure
" THEN
TRY.
lr_strucdescr ?= cl_abap_typedescr=>describe_by_data( <local_field1> ).
lv_type = co_struct.
CATCH cx_sy_move_cast_error.
TRY.
lr_tabledescr ?= cl_abap_tabledescr=>describe_by_data( <local_field1> ).
lv_type = co_table.
CATCH cx_sy_move_cast_error.
TRY.
lr_refdescr ?= cl_abap_refdescr=>describe_by_data( <local_field1> ).
CATCH cx_sy_move_cast_error.
lv_type = co_ref.
ENDTRY.
lv_type = co_other.
ENDTRY.
ENDTRY.
CASE lv_type.
WHEN co_struct.
PERFORM display_struct USING <local_field1>.
WHEN co_table.
PERFORM display_table USING <local_field1>.
WHEN co_ref.
BREAK-POINT.
WHEN co_other.
READ TABLE lt_para_table1 INTO ls_line1 INDEX sy-index.
WRITE:/ ls_line1-name, ' Content:' , <local_field1> COLOR COL_POSITIVE INTENSIFIED ON.
ENDCASE.
ENDIF.
ENDDO.
ENDFORM.
FORM add_settype CHANGING rel_table TYPE comt_prcat_frag_rel_tab.
DATA: lt_table TYPE STANDARD TABLE OF comc_settype,
lt_copy LIKE lt_table,
ls_rel_line TYPE comt_prcat_frag_rel,
ls_table LIKE LINE OF lt_table.
CHECK lv_first_time = abap_true.
ls_table-frgtype_id = 'COMM_PR_STATUS'.
APPEND ls_table TO lt_copy.
ls_table-frgtype_id = 'COMM_PR_CATEGORY'.
APPEND ls_table TO lt_copy.
SELECT frgtype_guid frgtype_id INTO CORRESPONDING FIELDS OF TABLE lt_table FROM comc_settype
FOR ALL ENTRIES IN lt_copy WHERE frgtype_id = lt_copy-frgtype_id.
LOOP AT lt_table INTO ls_table.
ls_rel_line-frgtype_guid = ls_table-frgtype_guid.
APPEND ls_rel_line TO rel_table.
ENDLOOP.
lv_first_time = abap_false.
ENDFORM.
FORM get_field_table USING struc TYPE any CHANGING para_tab TYPE abap_compdescr_tab.
TRY.
lr_strucdescr ?= cl_abap_typedescr=>describe_by_data( struc ).
CLEAR: para_tab.
para_tab = lr_strucdescr->components.
CATCH cx_sy_move_cast_error.
ENDTRY.
ENDFORM.
FORM display_table USING struc TYPE ANY TABLE.
FIELD-SYMBOLS: <local_line2> TYPE any,
<local_field2> TYPE any.
DATA: lt_para_table TYPE abap_compdescr_tab,
ls_line LIKE LINE OF lt_para_table.
LOOP AT struc ASSIGNING <local_line2>.
DO.
PERFORM get_field_table USING <local_line2> CHANGING lt_para_table.
ASSIGN COMPONENT sy-index OF STRUCTURE <local_line2> TO <local_field2>.
IF sy-subrc <> 0.
EXIT.
ENDIF.
IF <local_field2> IS NOT INITIAL.
lr_typedescr = cl_abap_typedescr=>describe_by_data( <local_field2> ).
TRY.
lr_chardescr ?= lr_typedescr.
READ TABLE lt_para_table INTO ls_line INDEX sy-index.
WRITE:/ ls_line-name, ' Content:' , <local_field2> COLOR COL_POSITIVE INTENSIFIED ON.
CATCH cx_sy_move_cast_error.
"struc or table
TRY.
"struc
lr_strucdescr ?= lr_typedescr.
PERFORM display_struct USING <local_field2>.
CATCH cx_sy_move_cast_error.
TRY.
lr_tabledescr ?= lr_typedescr.
PERFORM display_table USING <local_field2>.
CATCH cx_sy_move_cast_error.
FIELD-SYMBOLS: <temp_table> TYPE REF TO data.
ASSIGN <local_field2> TO <temp_table>.
PERFORM display_ref USING <temp_table>.
ENDTRY.
ENDTRY.
ENDTRY.
ENDIF.
ENDDO.
ENDLOOP.
ENDFORM.
FORM display_ref USING ref_data TYPE REF TO data.
FIELD-SYMBOLS:<local_table> TYPE ANY TABLE,
<line> TYPE any.
ASSIGN ref_data->* TO <local_table>.
LOOP AT <local_table> ASSIGNING <line>.
PERFORM display_struct USING <line>.
ENDLOOP.
ENDFORM.
FORM display_content USING struc TYPE any top_table TYPE REF TO data.
FIELD-SYMBOLS: <local_table> TYPE ANY TABLE,
<local_line> TYPE any,
<local_field> TYPE any.
lr_typedescr = cl_abap_typedescr=>describe_by_data( struc ).
TRY.
lr_strucdescr ?= lr_typedescr.
PERFORM display_struct USING struc.
CATCH cx_sy_move_cast_error.
"ASSIGN ptab_line-value->* TO <local_table>.
ASSIGN top_table->* TO <local_table>.
PERFORM display_table USING <local_table>.
ENDTRY.
ENDFORM.
FORM get_set_guid USING product_guid TYPE comm_prprdcatr-product_guid settype TYPE comt_settype_ext
CHANGING set_guid TYPE comt_frg_guid.
READ TABLE lt_rel_meta
WITH KEY org_type = settype-org_unit
INTO ls_rel_meta.
ASSERT sy-subrc = 0.
DATA:
lt_rel_table TYPE REF TO data,
lt_set_table TYPE REF TO data,
lt_set_table_sort TYPE REF TO data,
lt_key_tab TYPE REF TO data,
ls_key_line TYPE REF TO data,
ls_result TYPE REF TO data,
lt_rel_db_tab TYPE REF TO data,
lt_set_guid TYPE comt_frg_guid_tab,
lv_current TYPE abap_bool VALUE abap_true.
FIELD-SYMBOLS:
<rel_tab> TYPE ANY TABLE,
<rel_tab_db> TYPE ANY TABLE,
<set_tab> TYPE ANY TABLE,
<key_line> TYPE any,
<field> TYPE any,
<result> TYPE any,
<key_tab> TYPE ANY TABLE,
<set_tab_sort> TYPE ANY TABLE.
"* create relation table:
CREATE DATA lt_rel_table
TYPE (ls_rel_meta-link_table_ttyp).
ASSIGN lt_rel_table->* TO <rel_tab>.
ASSERT <rel_tab> IS ASSIGNED.
CREATE DATA lt_key_tab TYPE (ls_rel_meta-link_sel_ttyp).
ASSIGN lt_key_tab->* TO <key_tab>.
ASSERT <key_tab> IS ASSIGNED.
CREATE DATA lt_rel_db_tab TYPE (ls_rel_meta-link_table_ttyp).
ASSIGN lt_rel_db_tab->* TO <rel_tab_db>.
CREATE DATA ls_key_line TYPE (ls_rel_meta-link_sel_struc).
ASSIGN ls_key_line->* TO <key_line>.
ASSIGN COMPONENT 1 OF STRUCTURE <key_line> TO <field>.
<field> = product_guid.
ASSIGN COMPONENT 2 OF STRUCTURE <key_line> TO <field>.
<field> = settype-frgtype_guid.
INSERT <key_line> INTO TABLE <key_tab>.
CALL FUNCTION ls_rel_meta-func_rel_read_mu
EXPORTING
it_product_set_type = <key_tab>
iv_current = lv_current
iv_read_old_values = 'X'
iv_update_buffer = space
IMPORTING
et_rel = <rel_tab>
et_rel_old = <rel_tab_db>
EXCEPTIONS
not_found = 1
wrong_call = 2
OTHERS = 3.
CHECK sy-subrc = 0.
CREATE DATA ls_result TYPE (ls_rel_meta-link_table_struc).
ASSIGN ls_result->* TO <result>.
LOOP AT <rel_tab> ASSIGNING <result>.
ASSIGN COMPONENT 'FRAGMENT_GUID' OF STRUCTURE <result> TO <field>.
IF sy-subrc = 0.
set_guid = <field>.
ENDIF.
EXIT.
ENDLOOP.
ENDFORM.
