Why with_indobjects is not available in product search

135 阅读1分钟

Created by Jerry Wang, last modified on Mar 17, 2014

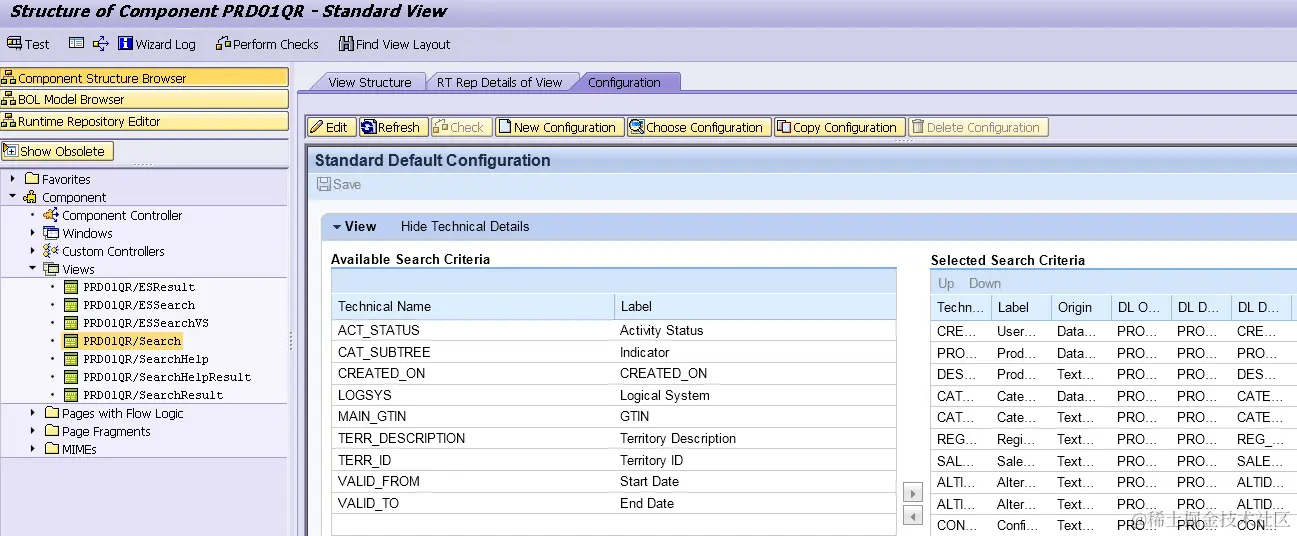

Product search的configuration里,在available search criteria和Selected Search Criteria两个区域内都没有发现WITH_INDOBJECTS这一attribute:



clipboard1

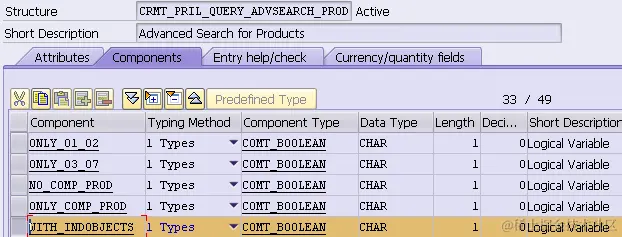

虽然query object的structure里确实有with_indobjects这一字段。



clipboard2

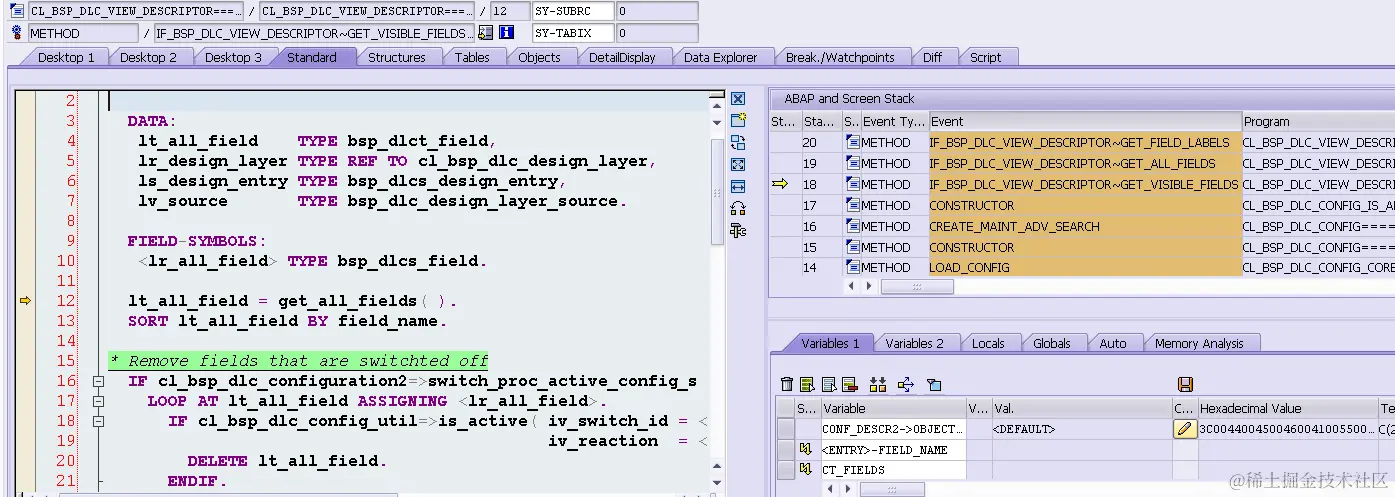

我们可以debug GET_VISIBLE_FIELDS方法:



clipboard3

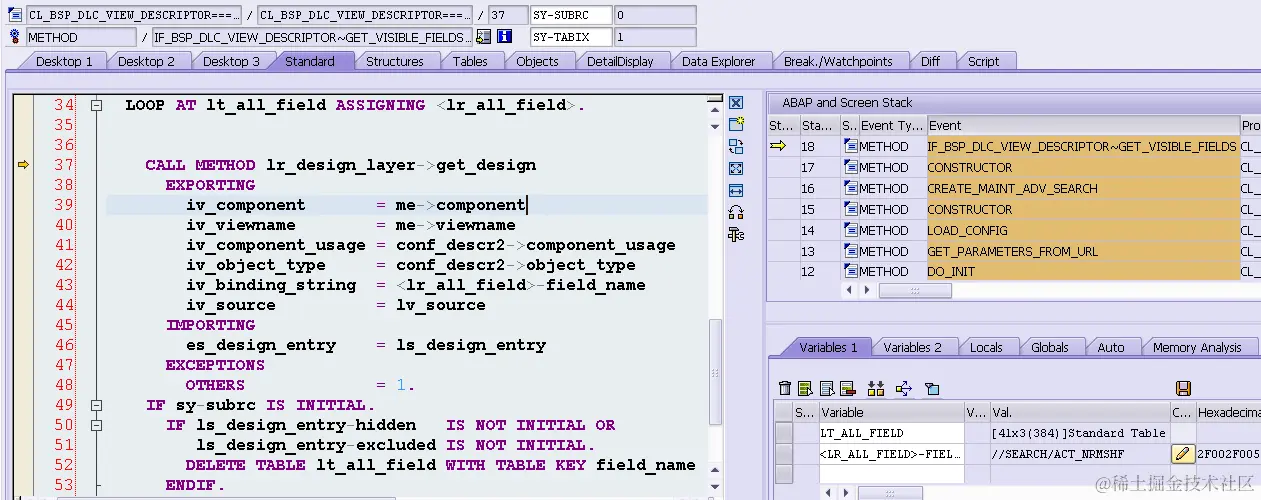

框架会遍历每个字段,如果字段对应的design entity 的hidden或者excluded flag被置位,该field将不会显示。



clipboard4

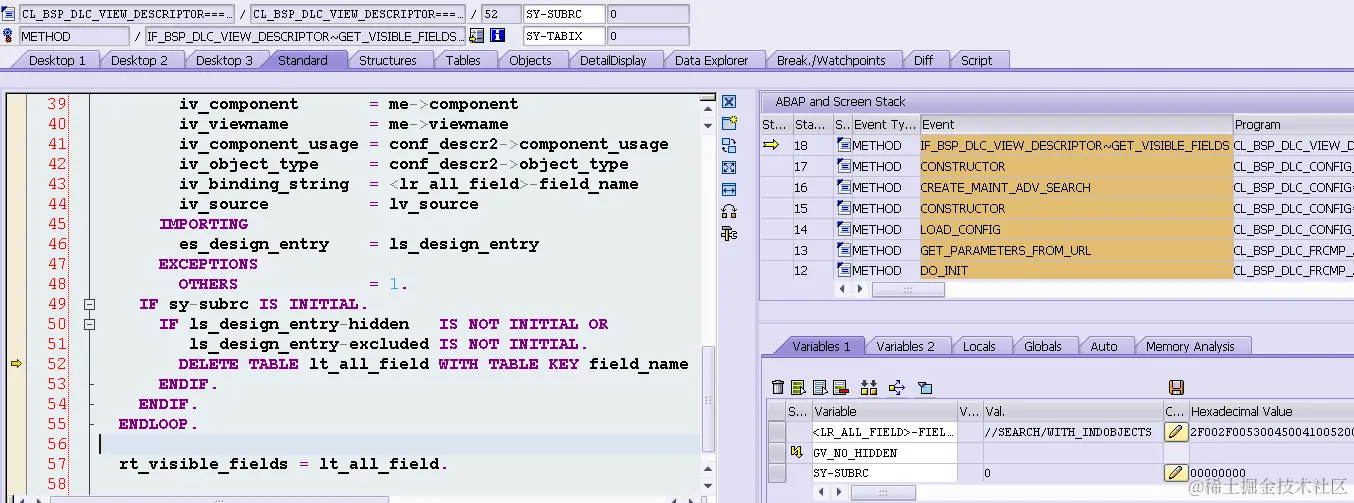

这里with_indobjects从待显示的fields里移除:



clipboard5

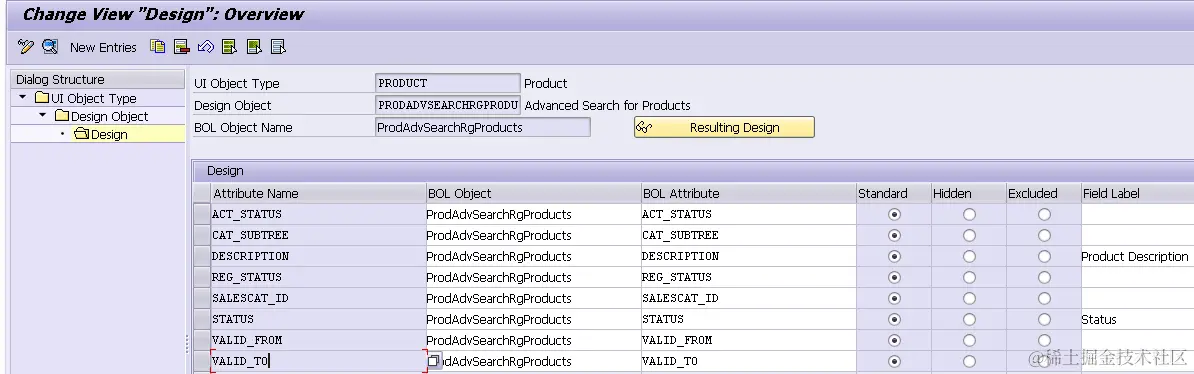

框架会检查search field是否在design layer里配置为standard。如果配置为hidden或者excluded,或者design layer里不存在对应的entry,



则该field将不会显示。对于with_indobjects而言,系统标准的design layer setting并没有对应的entry, 因此该field不会出现在View configuration里

clipboard6

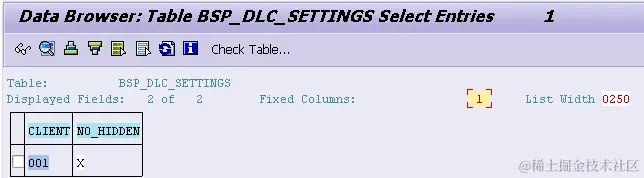

可以通过在下列表BSP_DLC_SETTINGS里添加一行entry的做法来disable 系统的这一behavior。 添加之后即使design layer里没有对应的entry或者被标记成hidden 和excluded也能显示在view configuration里:



clipboard7







clipboard8
