How to identify the product settype and attribute in a given list

101 阅读1分钟

Created by Jerry Wang on May 27, 2014

Work center SalesOperation, view Listings, Maintenance Group选择Listing & Exclusion:



clipboard1

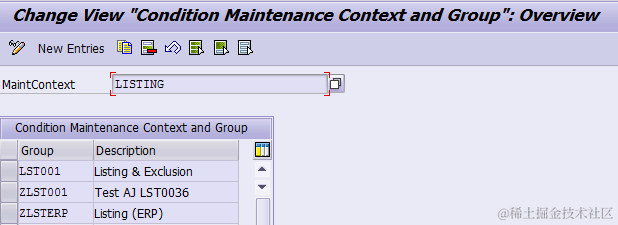

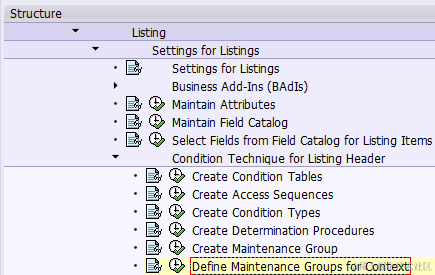

该dropdownlist 的entry在如下customizing里维护:



clipboard2







clipboard3

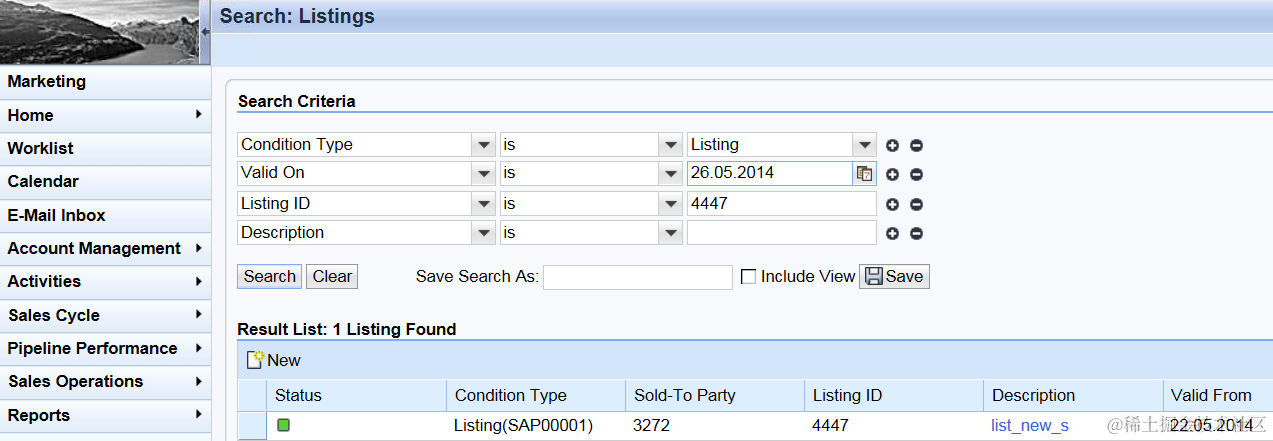

根据list ID搜索出结果:



clipboard4

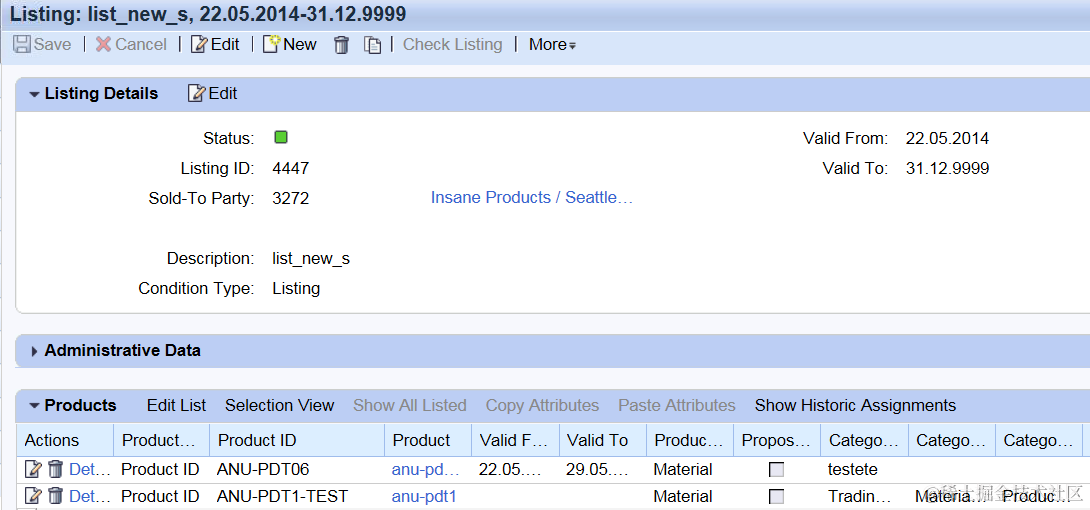

在UI上不容易直观地得到该list的PPR type:



clipboard5

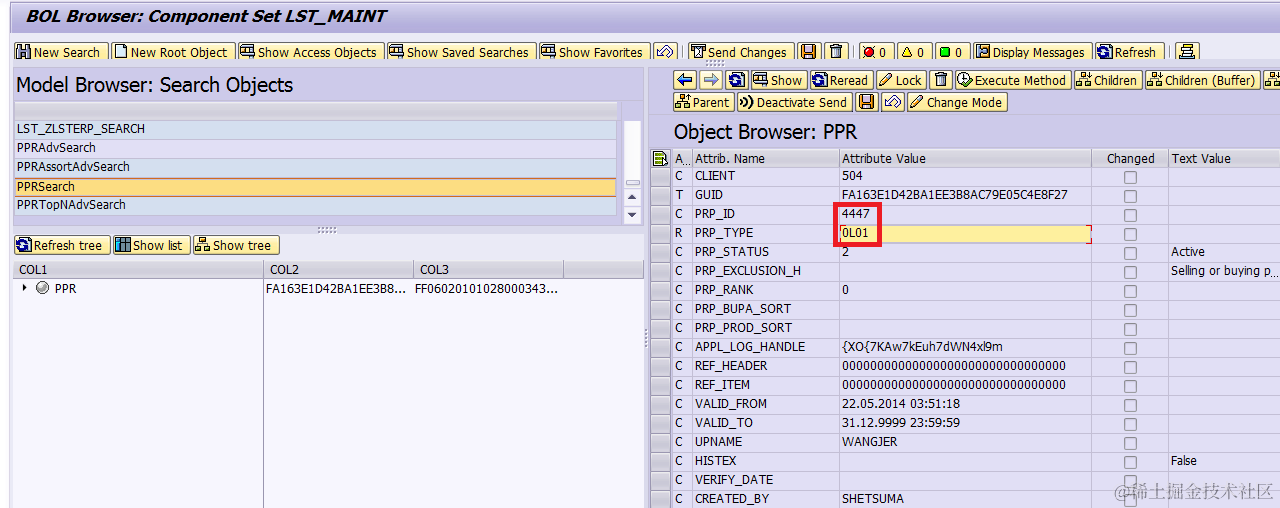

可通过BOL browser在后台得到该List的PPR type 0L01:



clipboard6

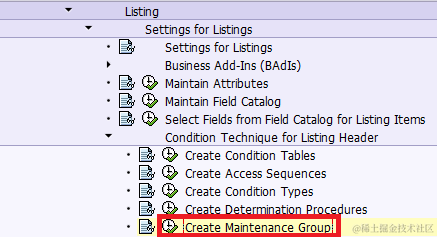

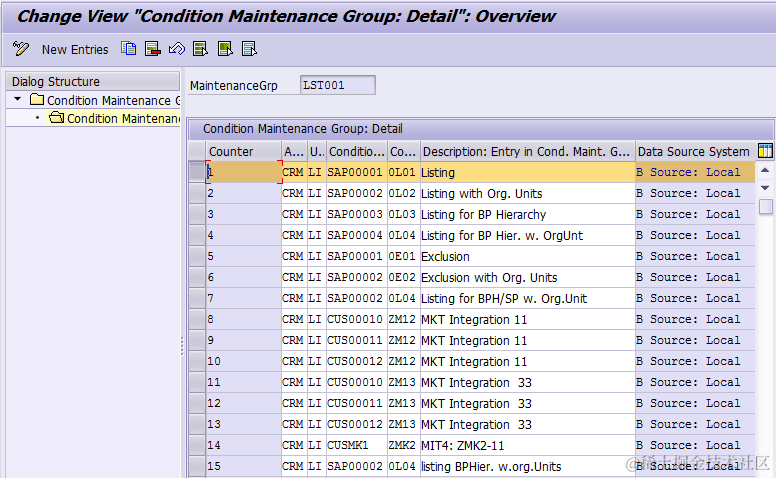

在该customizing里能维护Group LST001下面的所有condition type:



clipboard7







clipboard8

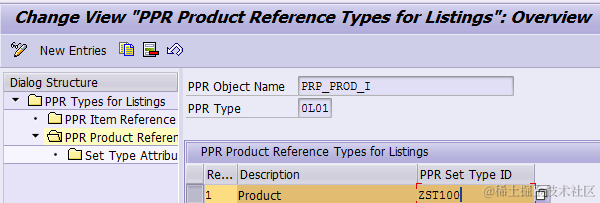

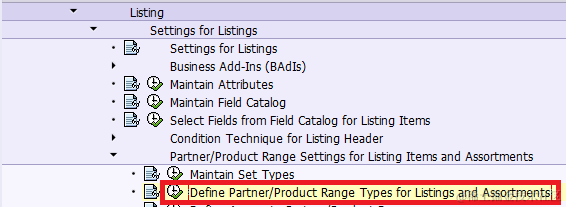

在下列customizing里维护0L01对应的settype和attributes:



clipboard9







clipboard10

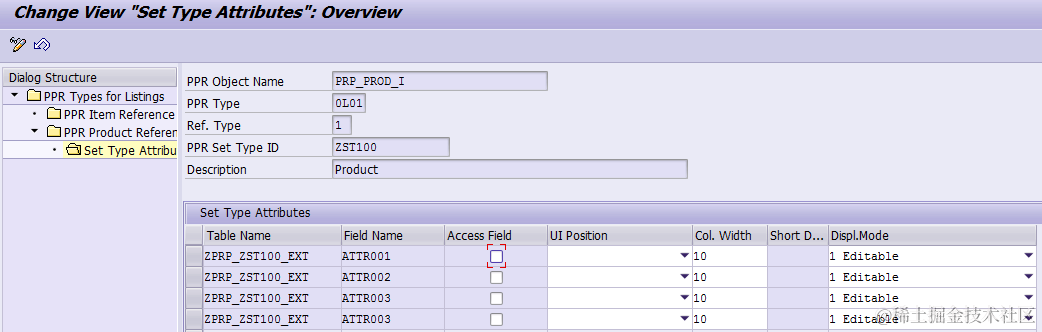

定义最后显示在UI上的四个attributes:



clipboard11





对应的UI fields:



clipboard12

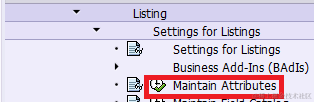

每个atttribute对应的technical属性在下列customizing里维护:



clipboard13







clipboard14

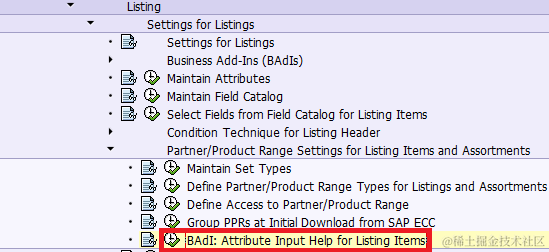

可通过下列customizing 给没有assign value table 的attribute实现custom的value help:



clipboard15







clipboard16
