Created by Jerry Wang, last modified on Feb 25, 2015
Requirement：
1. Add new button "Create Service Contract" in IBASE search result view

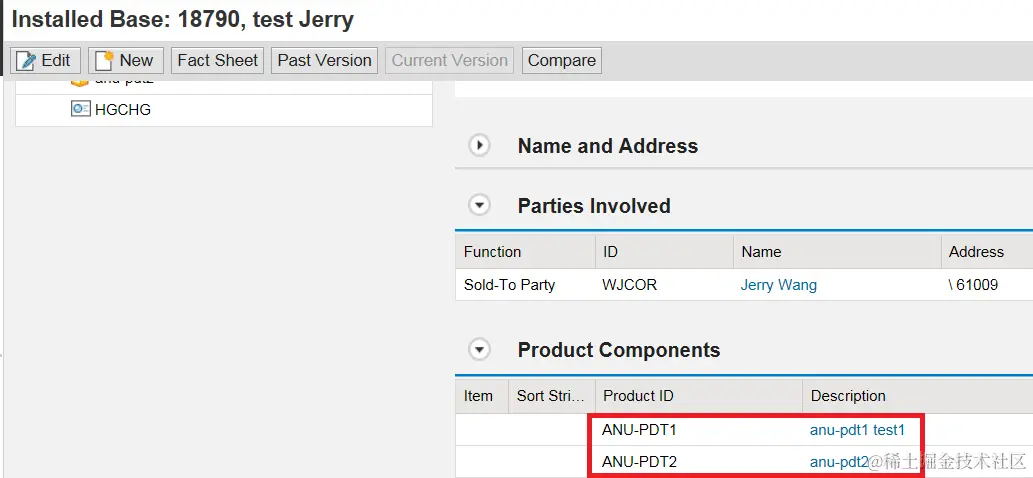

the selected ibase 18790 in this example has two products component:

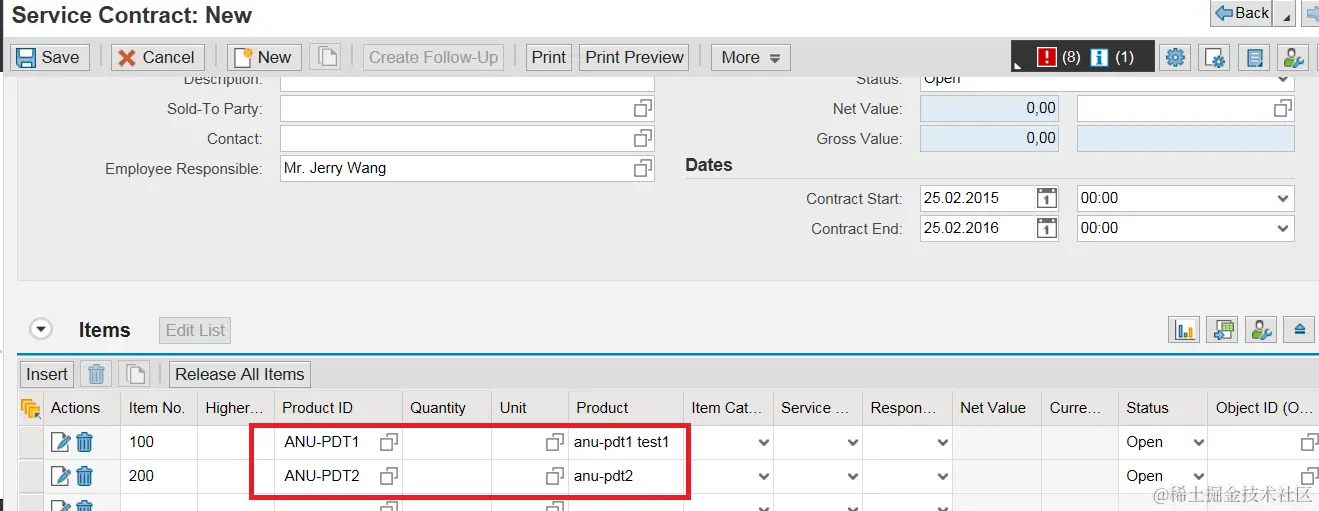

2. Once "Create Service Contract" button is clicked, the two products are required to transfer to service contract creation page automatically:
Implementation
1. ui component CRMCMP_IBSEARCH, view HeaderResultList:

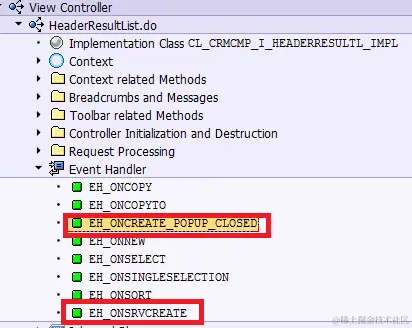

Add two event handlers:
EH_ONCREATE_POPUP_CLOSED:
METHOD eh_oncreate_popup_closed.
DATA:
lv_proc_type TYPE crmt_process_type,
ls_params TYPE crmt_name_value_pair,
lt_params TYPE crmt_name_value_pair_tab,
lr_msg_srv TYPE REF TO cl_bsp_wd_message_service,
lv_transferred TYPE crmt_boolean,
lr_core TYPE REF TO cl_crm_bol_core,
lr_factory TYPE REF TO cl_crm_bol_entity_factory,
lr_order TYPE REF TO cl_crm_bol_entity,
lr_context_node TYPE REF TO cl_bsp_wd_context_node,
lr_current TYPE REF TO if_bol_bo_property_access,
lr_col TYPE REF TO if_bol_bo_col,
lr_comp TYPE REF TO cl_bt112s_s_bspwdcomponen_impl,
lr_adm_h TYPE REF TO cl_crm_bol_entity,
lr_items LIKE lr_adm_h,
lr_tx TYPE REF TO if_bol_transaction_context.
CHECK go_proctype_popup->get_fired_outbound_plug( ) EQ 'leave'. "# EC NOTEXT
lr_context_node = go_proctype_popup->get_context_node( iv_cnode_name = 'PROCTYPE' ).
CHECK lr_context_node IS BOUND.
* Get the selected line
lr_current = lr_context_node->collection_wrapper->get_current( ).
CHECK lr_current IS BOUND.
lv_proc_type = lr_current->get_property_as_string( 'PROCESS_TYPE' ).
ls_params-name = 'PROCESS_TYPE'. "#EC NOTEXT
ls_params-value = lv_proc_type. "#EC NOTEXT
APPEND ls_params TO lt_params.
lr_core = cl_crm_bol_core=>get_instance( ).
lr_factory = lr_core->get_entity_factory( 'BTOrder' ). "#EC NOTEXT
lr_order = lr_factory->create( lt_params ).
IF lr_order IS NOT BOUND.
lr_msg_srv = me->view_manager->get_message_service( ).
lr_msg_srv->add_message( iv_msg_type = 'I'
iv_msg_id = 'CRM_SRV_WEBREQ_ORDER'
iv_msg_number = '014' ).
IF 1 = 2. MESSAGE e014(crm_srv_webreq_order).ENDIF.
RETURN.
ENDIF.
go_created_btorder = lr_order.
lr_adm_h = lr_order->get_related_entity( iv_relation_name = 'BTOrderHeader' iv_mode = cl_crm_bol_entity=>bypassing_buffer ).
IF lr_adm_h IS BOUND.
lr_items = lr_adm_h->get_related_entity(
iv_relation_name = 'BTHeaderItemsExt' iv_mode = cl_crm_bol_entity=>bypassing_buffer ).
ENDIF.
me->parse_products_from_ibase( ).
CALL METHOD cl_crm_uiu_bt_tools=>add_products_to_btorder
EXPORTING
ir_products_col = go_selected_products
IMPORTING
ev_prdtransfer_flag = lv_transferred
CHANGING
cr_btorder = lr_order
cr_btitems = lr_items.
me->nav_to_service_creation_page( ).
ENDMETHOD.
method PARSE_PRODUCTS_FROM_IBASE.
go_selected_products = zcl_crm_prod_accessor=>get_productlist_by_ibase( GO_SELECTED_IBASES ).
endmethod.
METHOD nav_to_service_creation_page.
DATA:
lr_data_collection TYPE REF TO cl_crm_bol_bo_col,
lr_nav_srv TYPE REF TO if_crm_ui_navigation_service,
lr_window TYPE REF TO cl_bsp_wd_window,
lr_descriptor_object TYPE REF TO if_bol_bo_property_access.
CALL METHOD cl_crm_ui_descriptor_obj_srv=>create_entity_based
EXPORTING
ir_entity = go_created_btorder
iv_ui_object_type = space
iv_ui_object_action = if_crm_ui_descriptor_object=>gc_action_create
iv_component = 'CRMCMP_IBSEARCH'
RECEIVING
rr_result = lr_descriptor_object.
ASSERT lr_descriptor_object IS BOUND.
lr_nav_srv = cl_crm_ui_navigation_service=>get_instance( me ).
IF lr_nav_srv->is_dynamic_nav_supported( ir_descriptor_object = lr_descriptor_object ) EQ abap_true.
CREATE OBJECT lr_data_collection.
lr_data_collection->if_bol_bo_col~add( iv_entity = lr_descriptor_object ).
lr_data_collection->if_bol_bo_col~add( iv_entity = go_created_btorder ).
lr_window ?= me->view_manager->get_window_controller( ).
lr_window->call_outbound_plug( iv_outbound_plug = 'DEFAULT'
iv_data_collection = lr_data_collection ).
ENDIF.
ENDMETHOD.

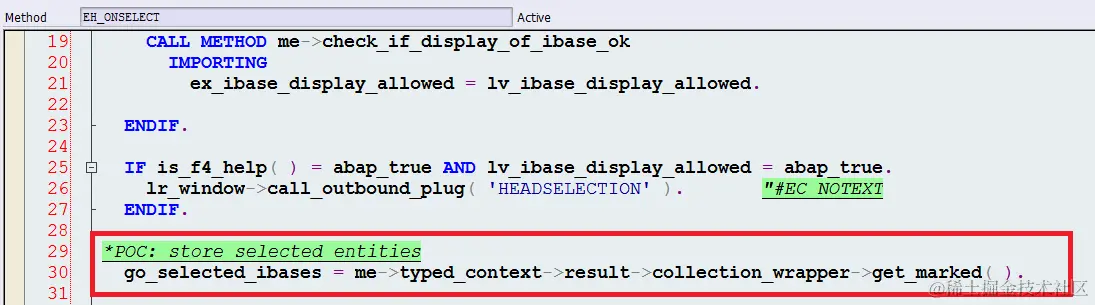

EH_ONSELECT: add one line below:

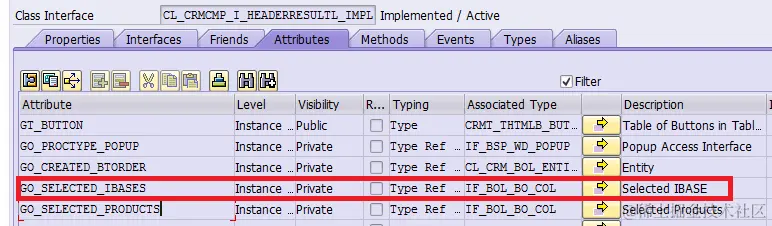

add new attribute:
EH_ONSRVCREATE:
method EH_ONSRVCREATE.
INCLUDE:
crm_object_types_con.
DATA:
lv_proc_type TYPE crmt_process_type,
lv_title TYPE string,
ls_struct TYPE crmst_followup_proctype_option,
ls_params TYPE crmt_name_value_pair,
lt_params TYPE crmt_name_value_pair_tab,
lr_context_node TYPE REF TO cl_bsp_wd_context_node,
lr_struct_ref TYPE REF TO crmst_followup_proctype_option,
lr_value_node TYPE REF TO cl_bsp_wd_value_node,
lr_current TYPE REF TO if_bol_bo_property_access,
lr_core TYPE REF TO cl_crm_bol_core,
lr_factory TYPE REF TO cl_crm_bol_entity_factory,
lr_order TYPE REF TO cl_crm_bol_entity,
lr_col TYPE REF TO if_bol_bo_col,
lr_comp TYPE REF TO cl_bt112s_s_bspwdcomponen_impl,
lr_tx TYPE REF TO if_bol_transaction_context.
lr_col = ZCL_CRM_IBASE_CC_POC_UTIL=>get_proctypes_for_create( ).
* popup not necessary
IF lr_col->size( ) = 1.
* lr_current ?= lr_col->get_first( ) .
* lv_proc_type = lr_current->get_property_as_string( iv_attr_name = 'PROCESS_TYPE' ).
*
* ls_params-name = 'PROCESS_TYPE'. "#EC NOTEXT
* ls_params-value = lv_proc_type. "#EC NOTEXT
* APPEND ls_params TO lt_params.
*
*** add entity
* lr_core = cl_crm_bol_core=>get_instance( ).
* lr_factory = lr_core->get_entity_factory( 'BTOrder' ). "#EC NOTEXT
* lr_order = lr_factory->create( lt_params ).
*
* CHECK lr_order IS BOUND.
*
** prefetch data after create
* IF gv_bol_view IS NOT INITIAL.
* TRY.
* lr_core = cl_crm_bol_core=>get_instance( ).
* CREATE OBJECT lr_col
* TYPE
* cl_crm_bol_bo_col.
* lr_col->add( lr_order ).
* lr_core->prefetch_view( iv_bo_collection = lr_col
* iv_view_name = gv_bol_view ).
* CATCH cx_root. "#EC NO_HANDLER
** ignore exceptions as it is only for performance
* ENDTRY.
* ENDIF.
*
* set_btorder_to_coco( lr_order ).
*
* IF NOT view_group_context IS BOUND.
* CREATE OBJECT me->view_group_context
* TYPE
* cl_bsp_wd_view_group_context.
* ENDIF.
* lr_tx ?= lr_order->get_transaction( ).
* view_group_context->set_associated_tx_context( lr_tx ).
* view_group_context->set_all_editable( ).
*
* op_edit( ).
ELSE.
* Create the popup if necassary
IF go_proctype_popup IS NOT BOUND.
lv_title = cl_wd_utilities=>get_otr_text_by_alias( 'CRM_UIU_BT/SELECT_PROC_TYPE' ).
go_proctype_popup = comp_controller->window_manager->create_popup(
iv_interface_view_name = 'ProcTypeWindow'
iv_usage_name = 'CUBTFollowUp'
iv_title = lv_title ).
ENDIF.
* Clear AdminH Context of Popup
lr_context_node = go_proctype_popup->get_context_node( iv_cnode_name = 'PROCTYPEBTADMINH' ).
CHECK lr_context_node IS BOUND.
lr_context_node->collection_wrapper->clear( ).
* Add Options Value Node of Popup
lr_context_node = go_proctype_popup->get_context_node( iv_cnode_name = 'PROCTYPEOPTIONS' ).
CHECK lr_context_node IS BOUND.
lr_context_node->collection_wrapper->clear( ).
CREATE DATA lr_struct_ref.
CREATE OBJECT lr_value_node
EXPORTING
iv_data_ref = lr_struct_ref.
* Only BUS2000xxx proctypes
ls_struct-bus_category = 'BUS2000112'."gv_bor_object_type.
* TODO: 2015-02-16
"ls_struct-template_only = gv_template_only.
"ls_struct-quotation_only = gv_quotation_only.
"ls_struct-btx_class = gv_btx_class.
lr_value_node->if_bol_bo_property_access~set_properties( ls_struct ).
lr_context_node->collection_wrapper->add( lr_value_node ).
* Check size of result
lr_context_node = go_proctype_popup->get_context_node( iv_cnode_name = 'PROCTYPE' ).
CHECK lr_context_node IS BOUND.
IF lr_context_node->collection_wrapper->size( ) EQ 1.
* No Popup if there is only one possibility
* TODO
* lr_current = lr_context_node->collection_wrapper->get_current( ).
* CHECK lr_current IS BOUND.
* lv_proc_type = lr_current->get_property_as_string( 'PROCESS_TYPE' ).
* create_new( lv_proc_type ).
ELSE.
* Open the Popup
go_proctype_popup->set_on_close_event( iv_view = me iv_event_name = 'create_popup_closed' ).
go_proctype_popup->set_display_mode( if_bsp_wd_popup=>c_display_mode_surrounded ).
go_proctype_popup->open( ).
ENDIF.
ENDIF.
endmethod.

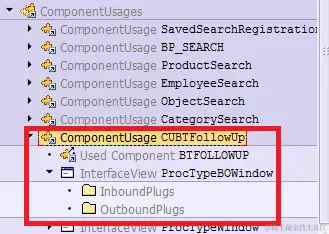

2. add component usage:

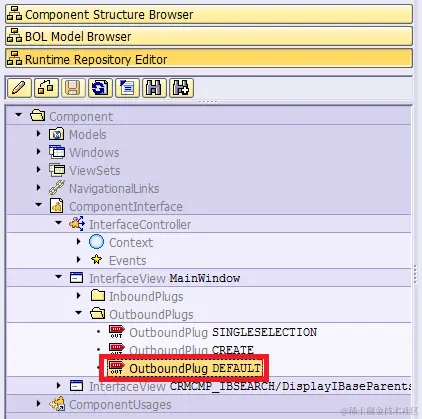

3. create outbound plug DEFAULT in window:
.
endmethod.

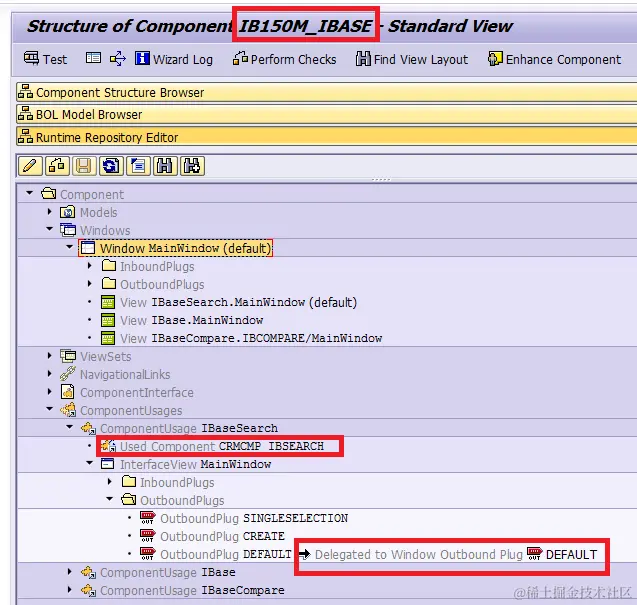

4. Map this DEFAULT plug to IB150M_IBASE's outbound plug DEFAULT:

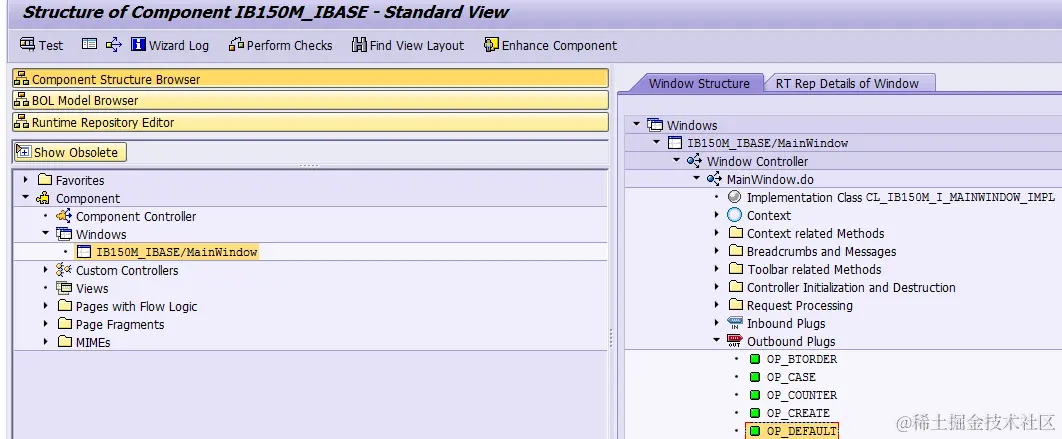

create a new outbound plug in window controller:
source code:
method OP_DEFAULT.
me->fire_outbound_plug( iv_outbound_plug = 'DEFAULT' "EC NOTEXT
iv_data_collection = iv_data_collection ).
endmethod.
5. utility class source code:
source code:
method OP_DEFAULT.
me->fire_outbound_plug( iv_outbound_plug = 'DEFAULT' "EC NOTEXT
iv_data_collection = iv_data_collection ).
endmethod.
