Created by Jerry Wang, last modified on Apr 14, 2014

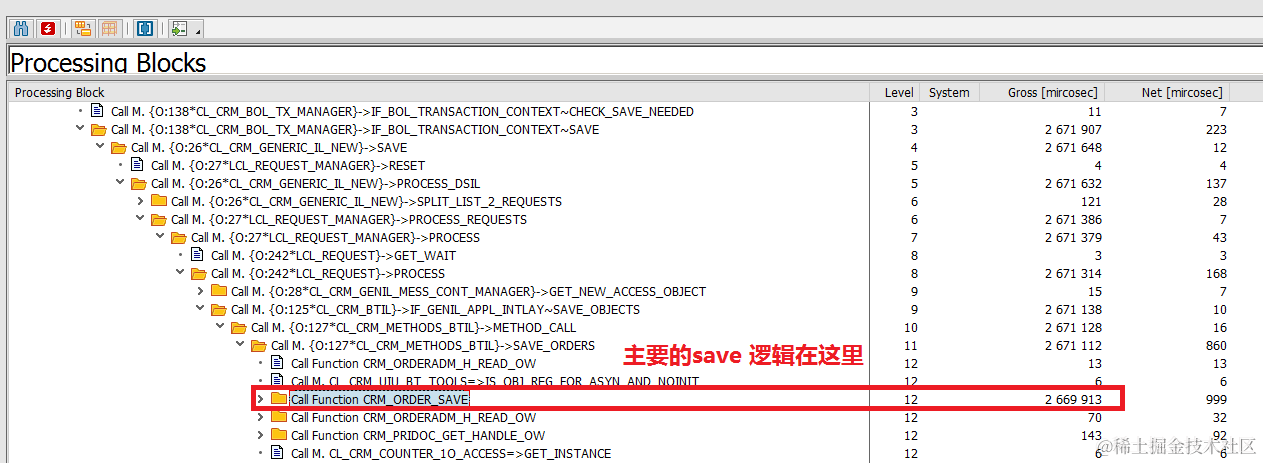

使用wiki末尾的report 通过 bol entity的 set_property 修改一个service order的description，在SAT里面能够看到下列callstack:
1. 从container proxy拿到attribute property object ( line 16 )
2. 从object model根据attribute name和当前BOL entity的object name拿到attribute index( line 18 )
3. 判断当前待修改的attribute是否满足修改条件: 非read only, 且BOL entity是changeable( line 23 ~ line 24 )
4. 判断当前的attribute value是否等于待修改的新value ( line 25 )
5. 如果bol entity没有上锁，则call lock method ( line 29)
6. 将changed flag置位( line 34 )
7. 将bol entity的sendable flag置位( line 37 )

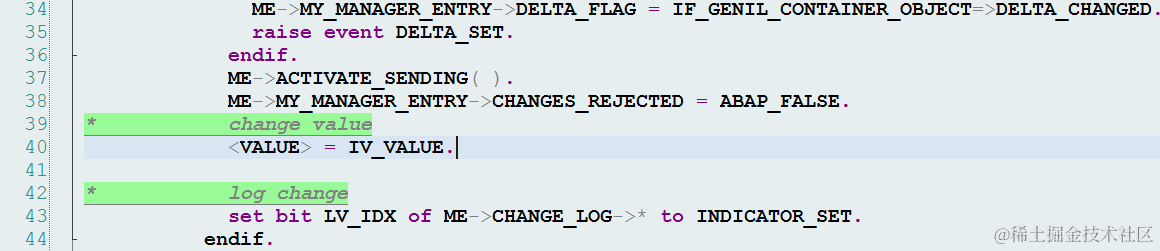

8. 在buffer里将attribute设成set_property传入的值( line 40 )
9. 记录change log ( line 43 )

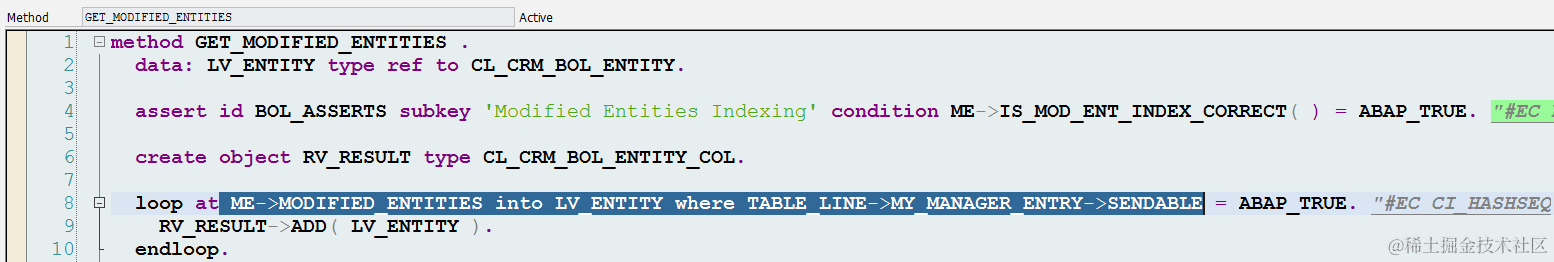

在bol entity manager GET_MODIFIED_ENTITIES里:
只有在set_property里面调用了activate_sending的entity才会返回.
设置断点:

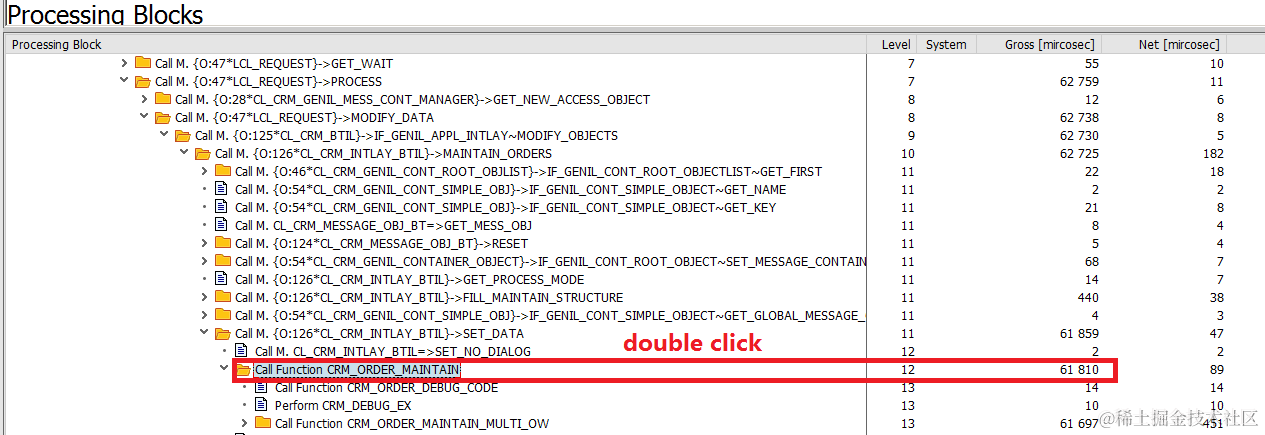

通过debug的方式能发现如果通过 set_property修改description，则传到function module CRM_ORDER_MAINTAIN里的参数只是order guid + new description value:
REPORT zorder_search_update.
PARAMETERS: id TYPE crmd_orderadm_h-object_id OBLIGATORY DEFAULT '8000000140',
type TYPE char4 OBLIGATORY DEFAULT 'SRVO',
text type char10 OBLIGATORY DEFAULT 'new value'.
DATA: lo_core TYPE REF TO cl_crm_bol_core,
lo_collection TYPE REF TO if_bol_entity_col,
lv_query_name TYPE crmt_ext_obj_name,
lt_selection_parameter TYPE genilt_selection_parameter_tab,
ls_selection_parameter TYPE genilt_selection_parameter,
lo_order TYPE REF TO cl_crm_bol_entity,
lo_header TYPE REF TO cl_crm_bol_entity,
lv_success TYPE abap_bool,
lv_changed TYPE abap_bool,
ls_query_parameters TYPE genilt_query_parameters,
lv_size TYPE i.
START-OF-SELECTION.
ls_selection_parameter-attr_name = 'OBJECTID'.
ls_selection_parameter-option = 'EQ'.
ls_selection_parameter-sign = 'I'.
ls_selection_parameter-low = id.
APPEND ls_selection_parameter TO lt_selection_parameter.
ls_selection_parameter-attr_name = 'MAINCATEGORY'.
ls_selection_parameter-option = 'EQ'.
ls_selection_parameter-sign = 'I'.
ls_selection_parameter-low = type.
APPEND ls_selection_parameter TO lt_selection_parameter.
lv_query_name = 'BTAdvQueryAUI'.
lo_core = cl_crm_bol_core=>get_instance( ).
lo_core->load_component_set( 'BT' ).
lo_collection = lo_core->dquery(
iv_query_name = lv_query_name
it_selection_parameters = lt_selection_parameter
is_query_parameters = ls_query_parameters ).
CHECK lo_collection IS NOT INITIAL.
lv_size = lo_collection->size( ).
WRITE: / 'Number of Service Order found: ' , lv_size COLOR COL_POSITIVE.
CHECK lv_size > 0.
lo_order = lo_collection->get_first( ).
lo_header = lo_order->get_related_entity( 'BTOrderHeader' ).
lo_header->switch_to_change_mode( ).
lo_header->set_property( iv_attr_name = 'DESCRIPTION' iv_value = text ).
DATA: lo_transaction TYPE REF TO if_bol_transaction_context.
lo_transaction = lo_core->get_transaction( ).
lo_core->modify( ).
lv_changed = lo_transaction->check_save_needed( ).
CHECK lv_changed EQ abap_true.
lv_success = lo_transaction->save( ).
IF lv_success = abap_true.
lo_transaction->commit( ).
WRITE:/ 'Service Order changed Successfully'.
ELSE.
lo_transaction->rollback( ).
ENDIF.
