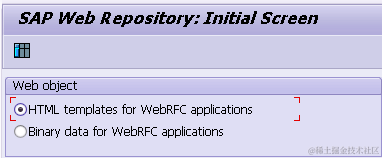

使用tcode tcode SMW0, 选择Binary data for WebRFC applications:
点击创建button:

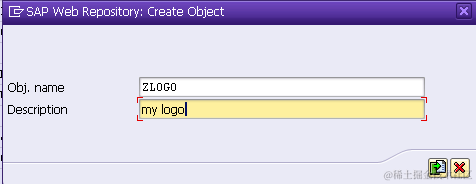

输入technical name和description:

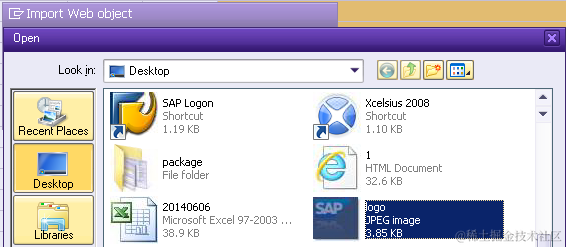

点击import icon 从本地load picture:

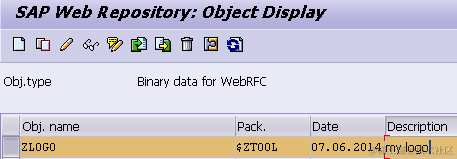

import完成之后可在server端看到上传完毕的picture:
使用下列代码可以从server端consume picture binary data并将其重新下载至本地:
REPORT zget_picture.
DATA: query_table LIKE w3query OCCURS 1 WITH HEADER LINE,
html_table LIKE w3html OCCURS 1,
return_code LIKE w3param-ret_code,
content_type LIKE w3param-cont_type,
content_length LIKE w3param-cont_len,
pic_data LIKE w3mime OCCURS 0,
pic_size TYPE i.
query_table-name = '_OBJECT_ID'.
query_table-value = 'ZLOGO'.
APPEND query_table.
CALL FUNCTION 'WWW_GET_MIME_OBJECT'
TABLES
query_string = query_table
html = html_table
mime = pic_data
CHANGING
return_code = return_code
content_type = content_type
content_length = content_length
EXCEPTIONS
object_not_found = 1
parameter_not_found = 2
OTHERS = 3.
CALL FUNCTION 'GUI_DOWNLOAD'
EXPORTING
bin_filesize = content_length
filename = '\\TSHomeServer\TSHome$\i042416\Desktop\11.jpg'
filetype = 'BIN'
TABLES
data_tab = pic_data
EXCEPTIONS
file_write_error = 1
no_batch = 2
gui_refuse_filetransfer = 3
invalid_type = 4
no_authority = 5
unknown_error = 6
header_not_allowed = 7
separator_not_allowed = 8
filesize_not_allowed = 9
header_too_long = 10
dp_error_create = 11
dp_error_send = 12
dp_error_write = 13
unknown_dp_error = 14
access_denied = 15
dp_out_of_memory = 16
disk_full = 17
dp_timeout = 18
file_not_found = 19
dataprovider_exception = 20
control_flush_error = 21
OTHERS = 22.
