前言
@Configuration @Component @Bean @Import等注解，相信大家在使用spring的时候会经常使用到，这些注解在spring中是如何处理的，不知道大家会不会很好奇，今天我们来探索spring注解的秘密 --- ConfigurationClassPostProcessor
类图
查看ConfigurationClassPostProcessor的类图，可以清楚地看到它分别实现了 BeanDefinitionRegistryPostProcessor和 PriorityOrdered，如果有看过本人的上一篇文章，就可以知道这个类的执行时机，下面是这个类执行的代码，委托给 PostProcessorRegistrationDelegate执行，
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
for (String ppName : postProcessorNames) {
// 如果该类既实现了PriorityOrdered，又实现了BeanDefinitionRegistryPostProcessor，放到暂存list中
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
processedBeans.add(ppName);
}
}
sortPostProcessors(currentRegistryProcessors, beanFactory);
registryProcessors.addAll(currentRegistryProcessors);
// 在这里执行
invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
currentRegistryProcessors.clear();
// 执行代码也非常简单，就是一个for循环
private static void invokeBeanDefinitionRegistryPostProcessors(
Collection<? extends BeanDefinitionRegistryPostProcessor> postProcessors, BeanDefinitionRegistry registry) {
for (BeanDefinitionRegistryPostProcessor postProcessor : postProcessors) {
postProcessor.postProcessBeanDefinitionRegistry(registry);
}
}
注册时机
那么问题来了， ConfigurationClassPostProcessor是在什么时候注册到IOC容器中的？
// AnnotationConfigApplicationContext构造器中会初始化AnnotatedBeanDefinitionReader
public AnnotationConfigApplicationContext(DefaultListableBeanFactory beanFactory) {
super(beanFactory);
this.reader = new AnnotatedBeanDefinitionReader(this);
this.scanner = new ClassPathBeanDefinitionScanner(this);
}
public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry, Environment environment) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
Assert.notNull(environment, "Environment must not be null");
this.registry = registry;
this.conditionEvaluator = new ConditionEvaluator(registry, environment, null);
// AnnotatedBeanDefinitionReader中会提前注册支持注解的组件
AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
}
public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
BeanDefinitionRegistry registry, @Nullable Object source) {
// 获取DefaultListableBeanFactory，这个方法只是一个类型转换
DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
if (beanFactory != null) {
if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
}
if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
}
}
Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);
// 在这里注册ConfigurationClassPostProcessor
if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// 注册AutowiredAnnotationBeanPostProcessor，处理@Autowired，bean的属性注入的时候会用到
if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
// 注册CommonAnnotationBeanPostProcessor，处理一些公共注解，比如@Resource、@PostConstruct、@PreDestroy
if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
// 对jpa的处理，首先会判断有没有引入jpa相关的jar包，再注册这个类
if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition();
try {
def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
AnnotationConfigUtils.class.getClassLoader()));
}
catch (ClassNotFoundException ex) {
throw new IllegalStateException(
"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
}
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// 注册EventListenerMethodProcessor，处理@EventListener
if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
}
if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
}
return beanDefs;
}
源码解析
postProcessBeanDefinitionRegistry
ConfigurationClassPostProcessor实现了 BeanDefinitionRegistryPostProcessor接口，那么我们可以很简单地找到执行的入口：
postProcessBeanDefinitionRegistry
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
int registryId = System.identityHashCode(registry);
if (this.registriesPostProcessed.contains(registryId)) {
throw new IllegalStateException(
"postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
}
if (this.factoriesPostProcessed.contains(registryId)) {
throw new IllegalStateException(
"postProcessBeanFactory already called on this post-processor against " + registry);
}
this.registriesPostProcessed.add(registryId);
// 上面都是一些校验，直接看核心代码
processConfigBeanDefinitions(registry);
}
看下面的源码之前，我们先了解一下配置类 full模式跟 lite模式的区别：full模式配置类会被cglib代理，lite模式配置类不会被cglib代理，所以full模式下@Bean方法不能被声明为private和final（cglib是通过生成子类来实现代理的）
我们通过一个测试看一下两者的差别
@Configuration // 通过@Configuration来区别是full配置类 or lite配置类
public class FullConfig {
@Bean
public String test() {
System.out.println(user().hashCode());
System.out.println(user().hashCode());
return "test";
}
@Bean
public User user() {
return new User();
}
}
@Component
public class LiteConfig {
@Bean
public String test() {
System.out.println(user().hashCode());
System.out.println(user().hashCode());
return "test";
}
@Bean
public User user() {
return new User();
}
}
public class Test {
public static void main(String[] args) {
AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(LiteConfig.class);
context.getBean(User.class);
context.close();
}
}
lite模式下的打印信息

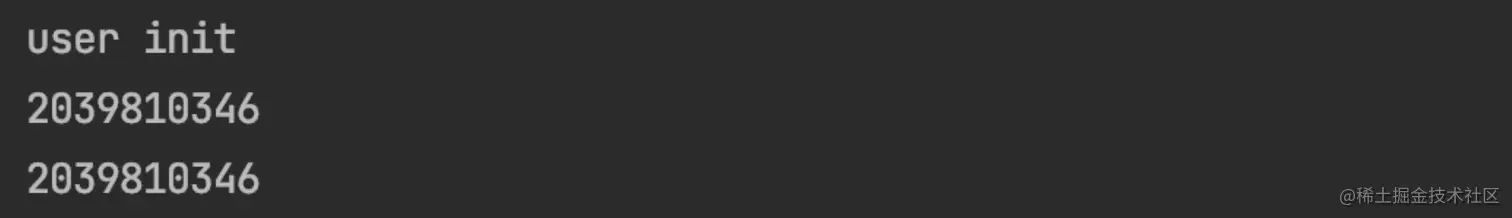

full模式下的打印信息
总结：lite模式下，多次调用user()会生成多个对象，full模式不会
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
// 用来保存full配置类
List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
// 拿到当前registry中所有已经注册到beanDefinition的名称
String[] candidateNames = registry.getBeanDefinitionNames();
for (String beanName : candidateNames) {
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
// org.springframework.context.annotation.ConfigurationClassPostProcessor.configurationClass
// BeanDefinition中这个值不为空，说明之前已经设置过了
if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
if (logger.isDebugEnabled()) {
logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
}
}
// 校验是否为配置类，并为BeanDefinition设置属性为lite或者full
// 在这为BeanDefinition设置lite和full属性值是为了后面再使用
// 这个方法的详细解释见下文
else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// 没有发现待处理的配置类（@Configuration），直接返回
if (configCandidates.isEmpty()) {
return;
}
// 按照@Order值进行排序
configCandidates.sort((bd1, bd2) -> {
int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
return Integer.compare(i1, i2);
});
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
// 判断是否有设置命名策略
if (!this.localBeanNameGeneratorSet) {
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
// 设置命名策略
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
// 设置环境变量，前面已经初始化过了
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
// 存放所有配置类
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
// 存放已经解析过的配置类
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
// 注意：这里是一个大的do...while循环，所有配置类解析完毕后会退出循环
do {
// 委托给ConfigurationClassParser来解析这些配置类
parser.parse(candidates);
// 校验扫描出来的beanDefinition是否合法，这里主要是校验
// 1.proxyBeanMethods = true的情况下配置类是否可以重写（非final，需要生成cglib代理类）
// 2.@Bean修饰的方法是否可以重写（非final，需要生成cglib代理类）
parser.validate();
Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// 初始化一个ConfigurationClassBeanDefinitionReader
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(
registry, this.sourceExtractor, this.resourceLoader, this.environment,
this.importBeanNameGenerator, parser.getImportRegistry());
}
// 把封装好的ConfigurationClass对象委托给BeanDefinitionReader处理
// 将ConfigurationClass解析为BeanDefinition
this.reader.loadBeanDefinitions(configClasses);
alreadyParsed.addAll(configClasses);
candidates.clear();
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
// 这里会对解析好的BeanDefinition再次校验是full配置类还是lite配置类
// 比如某个类Import了一个配置类
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
判断全配置类or半配置类
public static boolean checkConfigurationClassCandidate(
BeanDefinition beanDef, MetadataReaderFactory metadataReaderFactory) {
String className = beanDef.getBeanClassName();
if (className == null || beanDef.getFactoryMethodName() != null) {
return false;
}
AnnotationMetadata metadata;
// 不是spring预先注册的类，会走这个if
if (beanDef instanceof AnnotatedBeanDefinition &&
className.equals(((AnnotatedBeanDefinition) beanDef).getMetadata().getClassName())) {
// Can reuse the pre-parsed metadata from the given BeanDefinition...
metadata = ((AnnotatedBeanDefinition) beanDef).getMetadata();
}
// 此处return false，过滤了spring预先注册的几个类
else if (beanDef instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) beanDef).hasBeanClass()) {
Class<?> beanClass = ((AbstractBeanDefinition) beanDef).getBeanClass();
if (BeanFactoryPostProcessor.class.isAssignableFrom(beanClass) ||
BeanPostProcessor.class.isAssignableFrom(beanClass) ||
AopInfrastructureBean.class.isAssignableFrom(beanClass) ||
EventListenerFactory.class.isAssignableFrom(beanClass)) {
return false;
}
metadata = AnnotationMetadata.introspect(beanClass);
}
else {
try {
// asm技术获取该类的信息
MetadataReader metadataReader = metadataReaderFactory.getMetadataReader(className);
metadata = metadataReader.getAnnotationMetadata();
}
catch (IOException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Could not find class file for introspecting configuration annotations: " +
className, ex);
}
return false;
}
}
Map<String, Object> config = metadata.getAnnotationAttributes(Configuration.class.getName());
// 这里有两个判断
// 1.当前类中含有@Configuration注解
// 2.注解中proxyBeanMethods属性为true
// 则将其设置为full配置类
if (config != null && !Boolean.FALSE.equals(config.get("proxyBeanMethods"))) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
}
// 因为含有@Configuration注解并且proxyBeanMethods属性为true的类走上面的判断
// 走这个逻辑的有两种类
// 1.含有@Configuration注解并且proxyBeanMethods属性为false
// 2.含有@Bean，@Component，@ComponentScan，@Import，@ImportResource注解
// 以上两种类设置为lite配置类
else if (config != null || isConfigurationCandidate(metadata)) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
else {
return false;
}
// lite或者full配置类设置order优先级
Integer order = getOrder(metadata);
if (order != null) {
beanDef.setAttribute(ORDER_ATTRIBUTE, order);
}
return true;
}
// candidateIndicators静态常量初始化时包含了四个元素
private static final Set<String> candidateIndicators = new HashSet<>(8);
static {
candidateIndicators.add(Component.class.getName());
candidateIndicators.add(ComponentScan.class.getName());
candidateIndicators.add(Import.class.getName());
candidateIndicators.add(ImportResource.class.getName());
}
public static boolean isConfigurationCandidate(AnnotationMetadata metadata) {
// 该类是接口直接返回false
if (metadata.isInterface()) {
return false;
}
// candidateIndicators是一个静态常量，在初始化时，包含了四个元素
// 分别是@Bean，@Component，@ComponentScan，@Import，@ImportResource
// 只要这个类上添加了这四种注解中的一个，这个类便是一个配置类
// 这个类对应的BeanDefinition中的configurationClass属性值是lite
for (String indicator : candidateIndicators) {
if (metadata.isAnnotated(indicator)) {
return true;
}
}
// 查找有没有加了@Bean注解的方法
try {
return metadata.hasAnnotatedMethods(Bean.class.getName());
}
catch (Throwable ex) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to introspect @Bean methods on class [" + metadata.getClassName() + "]: " + ex);
}
return false;
}
}
ConfigurationClass
一个配置类中有什么注解，如何进行描述呢？Spring使用了ConfigurationClass用来抽象一个配置类
final class ConfigurationClass {
// 配置类的注解信息
private final AnnotationMetadata metadata;
private final Resource resource;
@Nullable
private String beanName;
// 当前类是由哪个配置类导入的
private final Set<ConfigurationClass> importedBy = new LinkedHashSet<>(1);
// 当前配置类所有的含@Bean注解的方法
private final Set<BeanMethod> beanMethods = new LinkedHashSet<>();
// @ImportResource相关的信息，这个不理会
private final Map<String, Class<? extends BeanDefinitionReader>> importedResources =
new LinkedHashMap<>();
// 配置类上的@Import注解导入的类，如果是实现了@ImportBeanDefinitionRegister接口，将会封装到这里
private final Map<ImportBeanDefinitionRegistrar, AnnotationMetadata> importBeanDefinitionRegistrars =
new LinkedHashMap<>();
final Set<String> skippedBeanMethods = new HashSet<>();
}
protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
// 该配置类是否以及解析过，比如当前类以及被别的类import过
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
if (configClass.isImported()) {
if (existingClass.isImported()) {
// 某个配置类被多个类import
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one.
this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// sourceClass：对配置类的元数据的封装，比如这个配置类有什么注解，有什么方法
// 此处的configClass只是一个实例化好的对象，只是一个空壳，doProcessConfigurationClass对配置类进行解析，并且填充
// configClass
SourceClass sourceClass = asSourceClass(configClass, filter);
// 这里的do...while循环是为了处理某个类有父类的情况，有父类的情况下会继续解析父类
do {
sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
}
while (sourceClass != null);
// 将处理好的类放进 configurationClasses 中
this.configurationClasses.put(configClass, configClass);
}
@Nullable
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass, SourceClass sourceClass)
throws IOException {
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// 如果配置类被@Component修饰，先处理内部类
processMemberClasses(configClass, sourceClass);
}
// 处理@PropertySource和@PropertySources注解
// 会将文件转换成一个PropertySource对象，然后存到environment对象当中
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
processPropertySource(propertySource);
}
else {
logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
"]. Reason: Environment must implement ConfigurableEnvironment");
}
}
// 处理@ComponentScan和@ComponentScans注解
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// 处理扫描，对于类的配置暂时不进行处理
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
//
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
// 遍历所有扫描出来的类
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// 处理@Import注解
processImports(configClass, sourceClass, getImports(sourceClass), true);
// 处理@ImportResource注解
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// 处理@Bean注解
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// 因为java8支持接口中定义默认方法，此处处理接口的默认方法
processInterfaces(configClass, sourceClass);
// 如果该类有父类，返回父类，外层是一个do...while循环，会再跑一遍这个方法
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
return sourceClass.getSuperClass();
}
}
// 如果没有父类，返回空，此类处理完毕
return null;
}
以上是ConfigurationClassPostProcessor大致执行流程，但是每个注解处理的细节，各位看官应该还是半知半解，下面接着说
@Component
先看一段代码来感受一下这个注解的使用场景
@Component
public class ComponentConfig {
// 一个内部类
class InnerClass {
@Bean
public User user() {
System.out.println("component test");
return new User();
}
}
}
private void processMemberClasses(ConfigurationClass configClass, SourceClass sourceClass,
Predicate<String> filter) throws IOException {
// 获取所有的内部类
Collection<SourceClass> memberClasses = sourceClass.getMemberClasses();
// 如果含内部类
if (!memberClasses.isEmpty()) {
List<SourceClass> candidates = new ArrayList<>(memberClasses.size());
// 循环解析内部类
for (SourceClass memberClass : memberClasses) {
// 这里有两个判断
// 1.内部类是否是一个配置类
// 2.内部类的名字与当前类不一致（这个判断有点诡异）
// 则加入待处理的配置类列表中
if (ConfigurationClassUtils.isConfigurationCandidate(memberClass.getMetadata()) &&
!memberClass.getMetadata().getClassName().equals(configClass.getMetadata().getClassName())) {
candidates.add(memberClass);
}
}
// 待配置类进行排序
OrderComparator.sort(candidates);
for (SourceClass candidate : candidates) {
// 判断是否有出现循环import的情况
if (this.importStack.contains(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
// 处理内部类，这里是一个递归，再次走一遍解析的流程（详细可见上文）
processConfigurationClass(candidate.asConfigClass(configClass), filter);
}
finally {
this.importStack.pop();
}
}
}
}
}
@ComponentScan
先看一段代码来感受一下这个注解的使用场景
@ComponentScan(value = "com.example")
public class ComponentScanConfig {
}
public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
// 创建一个扫描器
ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);
Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
// @ComponentScan注解可以配置命名策略（nameGenerator）
// 默认情况下为true，如果为false，命名策略用的是你在配置类上配置的
// BeanUtils.instantiateClass 此处会对命令策略的类进行初始化
boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
BeanUtils.instantiateClass(generatorClass));
····
····
return scanner.doScan(StringUtils.toStringArray(basePackages));
}
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
for (String basePackage : basePackages) {
// 进行扫描，找出想要加载的类
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
// 使用了注解的类会走这个if
if (candidate instanceof AnnotatedBeanDefinition) {
// 处理一些常用的注解，比如@Lazy、@Primary，代码比较简单，一看便知
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
// 判断该beanDefinition是否已注册，如果已注册，就不再重复注册
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder =
AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
// 注册beanDefinition
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}
private Set<BeanDefinition> scanCandidateComponents(String basePackage) {
Set<BeanDefinition> candidates = new LinkedHashSet<>();
try {
// 将包名转换为一个路径
// 这里的路径是指编译为字节码之后的路径
// 举个例子：com.example --> classpath*:com/example/**/*.class
String packageSearchPath = ResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX +
resolveBasePackage(basePackage) + '/' + this.resourcePattern;
Resource[] resources = getResourcePatternResolver().getResources(packageSearchPath);
boolean traceEnabled = logger.isTraceEnabled();
boolean debugEnabled = logger.isDebugEnabled();
for (Resource resource : resources) {
if (traceEnabled) {
logger.trace("Scanning " + resource);
}
if (resource.isReadable()) {
try {
// 使用asm技术解析类，MetadataReader描述了类的信息
// 为什么这里要使用asm技术来解析类，不用Class.forName反射的方式？
// 因为使用asm是一种无侵入式的方式，如果使用反射技术，需要先将class文件加载进JVM中，这样子的话，
// class的某些初始化代码（static）就会被执行，这不是一个框架应该做的事情
MetadataReader metadataReader = getMetadataReaderFactory().getMetadataReader(resource);
// 剔除某些不需要加载的类，比如excludeFilters，@condition注解
if (isCandidateComponent(metadataReader)) {
ScannedGenericBeanDefinition sbd = new ScannedGenericBeanDefinition(metadataReader);
sbd.setSource(resource);
if (isCandidateComponent(sbd)) {
if (debugEnabled) {
logger.debug("Identified candidate component class: " + resource);
}
candidates.add(sbd);
}
else {
if (debugEnabled) {
logger.debug("Ignored because not a concrete top-level class: " + resource);
}
}
}
else {
if (traceEnabled) {
logger.trace("Ignored because not matching any filter: " + resource);
}
}
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to read candidate component class: " + resource, ex);
}
}
else {
if (traceEnabled) {
logger.trace("Ignored because not readable: " + resource);
}
}
}
}
catch (IOException ex) {
throw new BeanDefinitionStoreException("I/O failure during classpath scanning", ex);
}
return candidates;
}
@Import
先看一段代码来感受一下这个注解的使用场景
public class ImportSelectorConfig implements ImportSelector {
@Override
public String[] selectImports(AnnotationMetadata importingClassMetadata) {
String[] str = {"com.example.springdemo.bean.User"};
System.out.println("ImportSelectorConfig");
return str;
}
}
public class ImportBeanDefinitionRegistrarConfig implements ImportBeanDefinitionRegistrar {
@Override
public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
System.out.println("ImportBeanDefinitionRegistrarConfig");
ImportBeanDefinitionRegistrar.super.registerBeanDefinitions(importingClassMetadata, registry);
}
}
@Data
@Builder
public class Staff {
public Staff() {
System.out.println("staff");
}
}
@Configuration
@Import({Staff.class, ImportSelectorConfig.class, ImportBeanDefinitionRegistrarConfig.class})
public class Config {
}
总结：import注解可以import三种类型的类
- ImportSelector类型
- ImportBeanDefinitionRegistrar类型
- 普通类

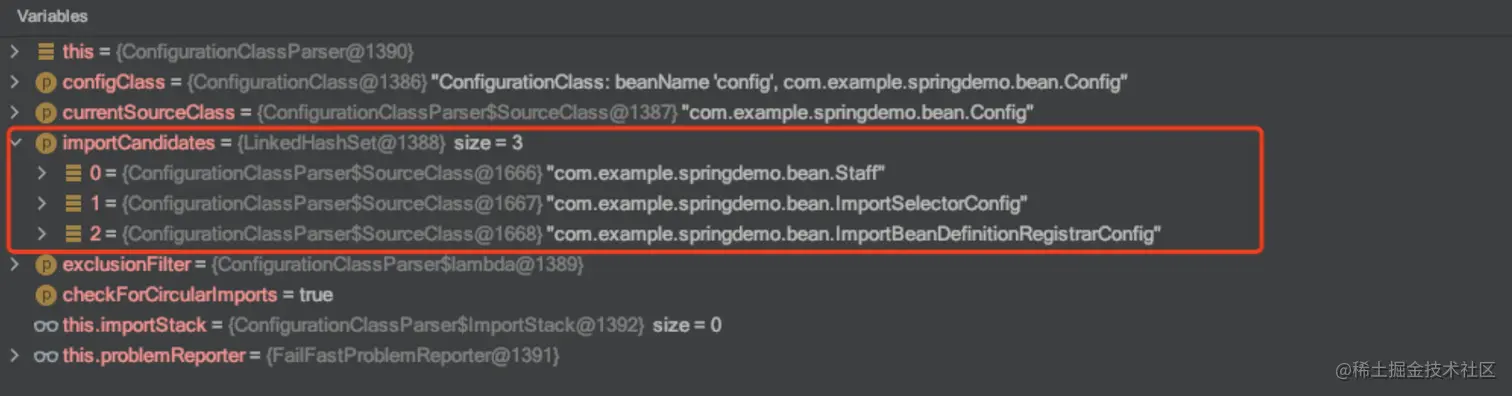

private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
Collection<SourceClass> importCandidates, Predicate<String> exclusionFilter,
boolean checkForCircularImports) {
// import注解没有import任何类
if (importCandidates.isEmpty()) {
return;
}
// 检查是否有循环import的情况
if (checkForCircularImports && isChainedImportOnStack(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
// 这里会对import类做处理，import类有三种类型
// 1.ImportSelector类型
// 2.ImportBeanDefinitionRegistrar类型
// 3.普通类
for (SourceClass candidate : importCandidates) {
if (candidate.isAssignable(ImportSelector.class)) {
// Candidate class is an ImportSelector -> delegate to it to determine imports
Class<?> candidateClass = candidate.loadClass();
ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class,
this.environment, this.resourceLoader, this.registry);
Predicate<String> selectorFilter = selector.getExclusionFilter();
if (selectorFilter != null) {
exclusionFilter = exclusionFilter.or(selectorFilter);
}
if (selector instanceof DeferredImportSelector) {
this.deferredImportSelectorHandler.handle(configClass, (DeferredImportSelector) selector);
}
else {
String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames, exclusionFilter);
// 这里会做一个processImports的递归，为什么只有当import的类是ImportSelector才会做这个递归，
// ImportBeanDefinitionRegistrar和普通类都不会？
// 因为ImportSelector可能会导入多个类，这些类中可能有ImportSelector、ImportBeanDefinitionRegistrar
// 或者普通类，需要再次做处理
// ImportSelector这个类本身对于spring是没有意义的，它的作用在于导入类
processImports(configClass, currentSourceClass, importSourceClasses, exclusionFilter, false);
}
}
else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
// import的类是ImportBeanDefinitionRegistrar类型
// 会暂存在ConfigurationClass中，后面做处理
Class<?> candidateClass = candidate.loadClass();
ImportBeanDefinitionRegistrar registrar =
ParserStrategyUtils.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
this.environment, this.resourceLoader, this.registry);
configClass.addImportBeanDefinitionRegistrar(registrar, currentSourceClass.getMetadata());
}
else {
// import导入的类既不是ImportBeanDefinitionRegistrar、也不是ImportSelector
// 当成一个配置类来处理，再走一个配置类的处理流程
this.importStack.registerImport(
currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
processConfigurationClass(candidate.asConfigClass(configClass), exclusionFilter);
}
}
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to process import candidates for configuration class [" +
configClass.getMetadata().getClassName() + "]", ex);
}
finally {
this.importStack.pop();
}
}
}
loadBeanDefinitions
private void loadBeanDefinitionsForConfigurationClass(
ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {
if (trackedConditionEvaluator.shouldSkip(configClass)) {
String beanName = configClass.getBeanName();
if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) {
this.registry.removeBeanDefinition(beanName);
}
this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName());
return;
}
// 如果该类是通过@Import或者ImportSelector的方式添加到容器中的，会走这个if
if (configClass.isImported()) {
registerBeanDefinitionForImportedConfigurationClass(configClass);
}
// 如果该类中含有@Bean方法，走这个if
for (BeanMethod beanMethod : configClass.getBeanMethods()) {
loadBeanDefinitionsForBeanMethod(beanMethod);
}
// 处理@ImportResource注解，这部分代码不看了
loadBeanDefinitionsFromImportedResources(configClass.getImportedResources());
// 如果该类中存在@Import注解，且Import的类实现了ImportBeanDefinitionRegistrar
loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars());
}
@Bean
先看一段代码来感受一下这个注解的使用场景
@Configuration
public class BeanConfig {
@Bean
public User user() {
System.out.println("user");
return new User();
}
@Bean
public static Staff staff() {
System.out.println("staff");
return new Staff();
}
}
这两个@bean，一个加了static，一个没有加，主要的差别要在初始化的时候才能够体现，后面会写bean的生命周期相关的文章
private void loadBeanDefinitionsForBeanMethod(BeanMethod beanMethod) {
·····
·····
// 如果是静态的@Bean方法，设置beanClass，bean的初始化时会调用到
if (metadata.isStatic()) {
// static @Bean method
if (configClass.getMetadata() instanceof StandardAnnotationMetadata) {
beanDef.setBeanClass(((StandardAnnotationMetadata) configClass.getMetadata()).getIntrospectedClass());
}
else {
beanDef.setBeanClassName(configClass.getMetadata().getClassName());
}
// 设置FactoryMethodName
beanDef.setUniqueFactoryMethodName(methodName);
}
else {
// 如果是非静态的@Bean方法，设置factoryBeanName，bean的初始化时会调用到
beanDef.setFactoryBeanName(configClass.getBeanName());
// 设置FactoryMethodName
beanDef.setUniqueFactoryMethodName(methodName);
}
·····
·····
// 注册beanDefinition
this.registry.registerBeanDefinition(beanName, beanDefToRegister);
}
总结
这篇文章看起来会很枯燥，本来我想用画图的方式来帮助理解的，但是整个方法有大量的递归，不好画图，只能这样了
